Chevrolet VEGA 1971 User manual

-IT-
www.PlandeGraissage.org

INTRODUCTION
Your Vega has many fine features. One of these is a designed-in
ease of service and maintenance. Sooner
or later you're going to
want to try your hand at performing some of these maintenance
procedures yourself. This booklet has been prepared especially for
those of you who are new to this kind of undertaking
but will be of
equal interest
if you have had wider mechanical experience. You'll
find all you need to know, written in an easy to follow style giving
needed parts, tools and procedures. The Table of Contents will
locate general areas, the Maintenance Schedule will help you relate
specific procedures to the recommended time and mileage intervals,
and the Index at the rear of the booklet will locate specific items.
We know you'll enjoy your Vega and part of this enjoyment will
be in keeping it in top shape yourself.
Caution: As with any machinery. extreme care should be taken when
performing any maintenance or repairs so as to prevent accidental
injury. Improper or incomplete servicing could also result in vehicle
operational problems. Should you have any question about performing
any service. have the service performed by a qualified mechanic .
We welcome your comments and suggestions.
All informati' oncontained
in this booklet is the lat-
est product information
ava
il able at the time of
printing. The right is re-
served to make changes at
any time without notice.
ST-302-71
©General Motors Corporation 1970
1
Chevrolet Motor Division
General Motors Corporation
Detroit, Michigan
48202
Part No. 3988975
Third Edition, Febru ary, 1971
www.PlandeGraissage.org

TABLE OF CONTENTS
Maintenance Schedule Index . . . . . . . . . . . . . . . . . . . Page 4
Lubrication ... . . . . . . . . . . . . . . . . . . . . . . . . .
Engine
......... . . ................... . . . . .
Front Suspension
...... ' ... . ..... ... .... . . .
Powerglide and Torque Drive
.. . .... .
Manual Transmission . . . . . . . . . . . . . . . . . .
Rear Axle
........... .. .. ... . .. . .. .........
Manual Steering
..... . .. .. . ... .. .. . .... ... . .
Power Steering ........ . .. .. ..... ...... .... .
Brake Master Cylinder
.......... . .. .. . .. . ... .
Body Parts
... . .... . . . .. .. .. . .... .. . . . . . .
Wheel Bearings . . . . . . . . . . . . . . . . . . . . . . . .
6
6
10
11
14
15
16
16
18
18
20
Tune-Up. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Battery Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . 24
Belt Condition and Tensioning
.. . ..... 29
Distributor Maintenance
... . . .. . . . . . . . 31
Spark Plugs . . . . . . . . . . ..... . .. " 37
What Spark.Plugs Can Tell You About
Your Engine . . . . . . . . . . .
.. . ... . .. .. .. 38
Engine Timing
... ........ . ........... '. 43
. Positive Crankcase Ventilation Valve
.......... . . 45
Evaporation Emission Canister . . . . .
.. . ... .. .
Carburetor
......... . . . ... . . . . . . . . . . . . . . .
Valve Adjustment
..... . . .. .. . .... . . .. .
46
48
52
Lighting ....... .. . ............ . ... ...... . . . . 55
Head Lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Tum Signal Lamps . . .. ... .. ... . .. .. ..... 59
Side MarkerLamps . . . . . . . . . . . . 60
License Plate Lamps . . . . . . . . . . . . . . . . . . . " 62
Dome Lamp
......... . . . . . . . . . . . . . . . . . 63
Instrument Cluster Lamps 63
Automatic Transmission Shift Quadrant Lamp 64
Tum Signal Flasher . . . . . . . . . . . . . 65
Four-way Hazard Flasher . . . . . . . . . . . . . . . . . . . . . 65
Instrument Cluster
........ . . . . .. .. . ... . .... " 66
Fuses . . . . .
.. .... ..... . . . ..... . .... . . . 69
2
www.PlandeGraissage.org

TABLE OF CONTENTS (cont'd.)
Page
Tires and Shock Absorbers . . . . . . . . . . . . . . . . . . . . .. 70
Tires ....... . . ... ...... . .. ... .. 70
Tread Wear Indicator . . . . . . . . . . . . . . 70
Tire Inspection
Tire Changing . . . . . .
.. . .. . ........ . ... 71
.... . . .. ...... .. . ....... . . 74
75
76
Front Shock Absorbers . . . . . . . . . . . . . . . . . . . .. 77
Rear Shock Absorbers . . . . . . . . . . . . . . . . . . . . . . 78
Tire Rotation . . . . . . . . . . . . . . . . . . . . .
Shock Absorbers
Engine Cooling and Air Conditioning . . .
.. . . 79
Cooling System . . . . . . . . . . . . 79
Cooling System Flushing
.. . , . . . . . . . . . . 80
Air Conditioning . . . . . . . . . . . . . . 81
Inspection . . . . . . . . 81
Refrigerant Quick Check Procedure 82
Brakes and Clutch . .
... . ... .. ....... ._ ... .. . . . . 84
Brakes
Brake Lines
Parking-Brake
Front Brakes
Rear Brakes . . . . . . . . .
Bleeding the Hydraulic System.
Clutch
.Clutch Pedal Free Play Adjustment ... . . ... . . .
Sheet Metal
Sheet Metal Removal .
Windshield Wiper Blade Replacement
84
85
85
86
90
90
92
92
93
93
99
Minor Trouble Shooting . . . .
.. 100
Trouble Shooting Guide .101
Fuel System and Engine . . . . . . . . . . . . . . . . . . .102
Electrical System ..... . .. . .. . . .. .. . ... .. .... 103
Cooling System . . . . . . . . . . . .104
Vehicle Support Information . . . . .. ... .. ... .. ... .105
Index . . . ... . . . . .. . .. .... 109
3
www.PlandeGraissage.org

MAINTENANCE
SCHEDULE
INDEX
Periodically
Page
• Check the oil level . . . . . . . . . . . . . . . . . . . .. . . . . . . . .. 8
• Check the energizer fluid level . . . . . . . . . . . . . . . . . . . 28
• Check all the lights for proper operation . .. . .. .... ... . . .55
• Inspect seat belts . .See Owners Manual
• Inspect tires . ..... . ... 70
Every 6,000 Miles or 4 Months
(whichever comes first)
• Change the engine oil-more often during severe
operating conditions
• Change the oil filter at the first oil change, then
at every other oil change . . . . . . . .
• Lubricate the front suspension and steering linkage
While working
under the car you should also:
• Lubricate the parking brake cables
• Check the lubricant level of the:
8
8
. ... 10
.20
Standard Transmission .
.... . .. .. . . . . . . .. .. .. 14
Rear Axle . ... ... . . . . . . . . .
.15
• Inspect the:
Brake lines and hoses . .85
Exhaust system for proper mounting, leaks,
missing
or damaged parts ... See Owners Manual
Parking brake linkage
Tires .
..... .
Now, moving
to the engine compartment:
• Check the fluid level of the:
Energizer
(battery) . .. ... . .
Brake master cylinder .... .. .
Powerglide
and TorqueDrive transmission
. .
.. .. 70
. .. . . 28
. .... . .... 18
... .. . ... 11
. ... .. . .16
Power steering pump
Radiator. . . . .. . .. . ... .... .. 79
• Inspect the:
Air conditioning refrigerant charge . . . .. ....... 82
Accessory drive belts . . . . . . . . . . . . . . . . .29
Power steering lines and hoses . . . . . . . . . . . . . . . . . . . 17
Throttle linkage . . . ..... . . ........ 49
4
www.PlandeGraissage.org

• Lubricate body parts ... . .... . 18
• Check and, if necessary, adjust Emission
Control items:
Carburetor idle speed . . . . . . . . . . . . . . . . . . . . . . . .
.. 50
Solenoid idle speed .. . ... . ... .. . ....... .... . . 50
. Ignition timing .... . .. .. . . . .... . ...... . . ... 50
Every 6,000 Miles
• Rotate the tires ............ ..... ....... . ..... . .... 75
Every 12,000 Miles or 12 Months
(whichever comes first)
• Tune your engine; which includes such items as:
Energizer fluid level check (battery) .
.... ... ...... 28
Accessory drive belt tensioning
.. . .. . ....... . ..... 29
Distributor cap and rotor inspection . . . . . .
.. . . . . . . . 31
Points, inspection and replacement .. . ........ . .. . .33
Distributor cam lubricator
.... ..... . ... . . ... . .. .37
Condenser, inspection and replacement
... . . ... . ... 36
Spark plug replacement .............. ..... ... .. 37
Timing the engine
.... . .. . . . ... . ..... .... . .. ... 43
Fuel filter replacement . . . . . . . . ; . . . . . . . . . . . . . . . .49
Carburetor adjustments
......... .. . .. . . ... .. . .. 50
Emission canister filter replacement . . . . . . . . . . . . . .. 46
• Check the headlamp aim . . . . . . . . . . . . . . . . . . . . .56
• Inspect the brake lines and brake system for leaks . . . . . . . .85
Every 24,000 Miles
• Repack the front wheel bearings . . . . . . . . . . . . . . . . . . . . . 20
• Replace distributor cam lubricator .. . .... .... . . . . .. ... 37
• Replace the PCV valve* .
.......... . ...... .. .. ... .. 45
• Adjust the engine valves .... ............. .. ... . .. . . . 52
• Drain automatic transmission and add fresh
fluid-adjust the low band onthe Powerglide and
Torque Drive transmissions . .
........... . . . . . . ... . 11
Every 2 Years
• Drain radiator coolant, flush and refill the system . . ... . . .. 80
Every 36,000 Miles
• Check the manual steering gear for seal leakage . . . . . . . . . .16
Every 50,000 Miles
• Replace the air cleaner (more often during dusty
driving conditions)
............... ..... .. . . . . . . .. .48
* or 24 months. (whichevercomes first)
5
www.PlandeGraissage.org

r.
~ . .
lUBRICATION
/1
ENGINE LUBRICATION
Engine oil should be selected to give the best per-
formance under the climatic and driving conditions in
the territory in which your Vega
is driven.
During warm
or hot weather, an oil which will pro-
vide adequate lubrication under high operating tem-
peratures
is required.
During the colder months of the year, an oil which
will permit easy starting at the lowest atmospheric
temperature likely to be encountered, should be used.
When the engine
is drained and refilled, the engine
oil should be selected, not on the basis of the existing
teinperature at the time of the change, but on the lowest
temperature anticipated for the period during which
the oil
is to be used.
Unless the engine oil
is selected on the basis of vis-
cosity or fluidity at the anticipated temperature, diffi-
culty in starting will be experienced at each sudden
drop in temperature.
SAE Viscosity Oils
SAE Viscosity Numbers indicate only the viscosity
or
body of the oil, that is, whether an oil is a light or a
heavy body oil, and do not consider
or include other
properties or quality factors.
6
www.PlandeGraissage.org

The lower SAE Viscosity Numbers, such as SAE 5W SAE
lOW which represent the light body oils, are recommended for
use during cold weather to provide easy starting and instant lubri-
cation. The higher SAE Viscosity Numbers such as SAE 30 and
SAE 30W, which represent heavier body oils, are recommended
for use during warm
or hot weather to provide improved oil econ-
omy and adequate lubrication under high operating temperatures.
Oils are available which are designed to combine the easy start-
ing characteristics of the lower SAE.Viscosity Number with the
warm weather operating characteristics of the higher SAE Vis-
cosity Number. These are termed "multi-viscosity oils," SAE
5W-20,
SAE 5W-30, SAE 10W-30, SAE 10W-40, SAE 20W-40.
The following chart will serve as a guide in selecting the proper
oil viscosity.
In addition to providing proper lubrication, the cor-
rect viscosity helps assure good cold and hot starting by reducing
friction and thus·increasing cranking speed.
Please Note:
• SAE 5W-20 oils are not recommended for sustained high speed driving .
• SAE 30 oils may be used at temperatures above 40 degrees F.
RECOMMENDED SAE VISCOSITY NUMBER
I I I
•
'_l'_lIlY.t11ri( ••
tWIll.- •
I • I I I -.
I I I
•
1-
r I I I I I
-30 -20 0 20 40 60 80 100
TEMPERATURE RANGE ANTICIPATE!) BEFORE NEXT OIL CHANGE, OF.
Types of Oils- How to Determine the Quality of Oil
You Are Getting
In service, engine oils may form sludge and varnish and, under
some conditions, corrosive acids unless protected against oxidation.
To minimize the formation of these harmful products and to
assure the use of oil best suited for present day operating conditions,
automobile manufacturers have developed a series ofsequence.tests
designed to evaluate the ability of any oil to properly lubricate
automobile engines.
Only those oils which are certified by their suppliers as meeting
(a) MS service requirements and (b) car makers tests are of the
quality
tQ be used in Chevrolet engines.
7
www.PlandeGraissage.org

Checking
and Maintaining the
Oil Level
Warm up the engine, turn off
the ignition and allow a
few
minutes so the oil can return to
the crankcase before checking
the level.
The engine oil dipstick
is lo-
cated in the left rear corner of
the engine compartment next
to the engine. The dipstick
is
marked "FULL" and "ADD".
The oil level should be main-
tained between the two marks,
neithergoing above the"FULL"
line nor below the "ADD" line.
1. Remove the dipstick from
the tube and wipe it off
with a rag.
Engine Oil Change
2. Replace it and make sure it
is seated in the tube.
3. Remove it again and in-
spect it to see if the oil falls
between the two marks.
4. Add oil only if the level falls
below the "ADD" mark.
One quart will raise the
level from the"ADD"mark
to the "FULL" mark.
5. Replace dipstick firmly.
To ensure continuation of best performance, low maintenance
cost and long engine life, it
is necessary to change the crankcase oil
whenever
it becomes contaminated with harmful foreign materials.
Under normal driving conditions draining the crankcase and refill-
ing it with fresh oil every 4 months
or every 6000 miles (whichever
occurs first)
is recommended.
In certain types of service including trailer hauling, extensive
idling, short trip operation at freezing temperatures (engine not
thoroughly warmed-up), the oil change interval should not exceed
2 months
or 3,000 miles, (whichever occurs first).
8
www.PlandeGraissage.org

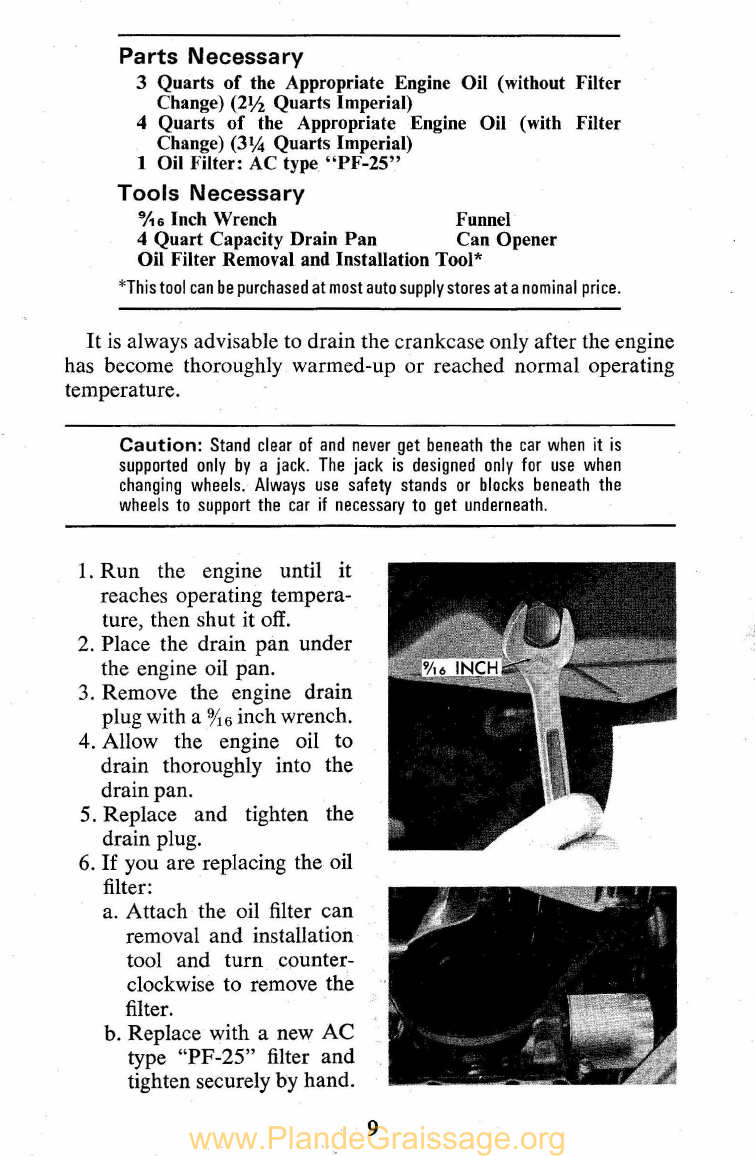

Parts Necessary
3 Quarts of the Appropriate Engine Oil (without Filter
Change) (2Yz Quarts Imperial)
4 Quarts
of the Appropriate Engine Oil (with Filter
Change)
(3IA Quarts Imperial)
1 Oil Filter: AC type
"PF-25"
Tools Necessary
%6 Inch Wrench Funnel
4
Quart Capacity Drain Pan Can Opener
Oil Filter Removal and Installation Tool*
*This tool can be purchased at most auto supply stores at a nominal price .
It is always advisable to drain the crankcase only after the engine
has become thoroughly warmed-up or reached normal operating
temperature.
Caution: Stand clear of and never get beneath the car when it is
supported only by a jack . The jack is designed only for use when
changing wheels. Always use safety stands or blocks beneath the
wheels to support the car if necessary to get underneath .
1. Run the engme until it
reaches operating tempera-
ture, then shut it
off.
2. Place the drain pan under
the engine oil pan.
3. Remove the engine drain
plug with a
716 inch wrench.
4. Allow the engine oil to
drain thoroughly into the
drain pan.
5. Replace and tighten the
drain plug.
6. If you are replacing the oil
filter:
a. Attach the oil filter can
removal and installation
tool and turn counter-
clockwise to remove the
filter.
b. Replace with a new
AC
type "PF-25" filter and
tighten securely by hand.
9
www.PlandeGraissage.org

7. Fill engine with oil through
filler hole in valve cover,
three quarts for oil change
only or four quarts if the
oil filter has been changed.
8. Check the oil level to make
sure it
is full but not over-
filled.
9. Add more oil if necessary.
10. Start engine and run for a
few seconds. While the en-
gine is running check the
oil filter to make sure it
is
not leaking.
11. Turn
off engine.
12. Check again to be sure the
oil level falls between the
two marks on the dipstick.
FRONT SUSPENSION
LUBRICATION
Parts Necessary
EP Chassis Lubricant
This lubricant must meet GM Specification GM 6031 M. It is avail·
able from your local Chevrolet Dealer. Ask for part number 1051195.
Tools Necessary
1 Grease Gun*
Some Old Rags
*A hand grease gun can be purchased at many auto supply or de -
partment stores.
Please Note: Ball joints should not be lubricated unless their temp-
erature is 10°F. or higher .
1. Apply chassis lubricant
with the grease gun to the
steering linkage grease fit-
tings.
There are seven grease
fit-
10
tings on the linkage.
Apply until the lubricant
is seen oozing from around
the rubber seals. Wipe off
excess.
www.PlandeGraissage.org

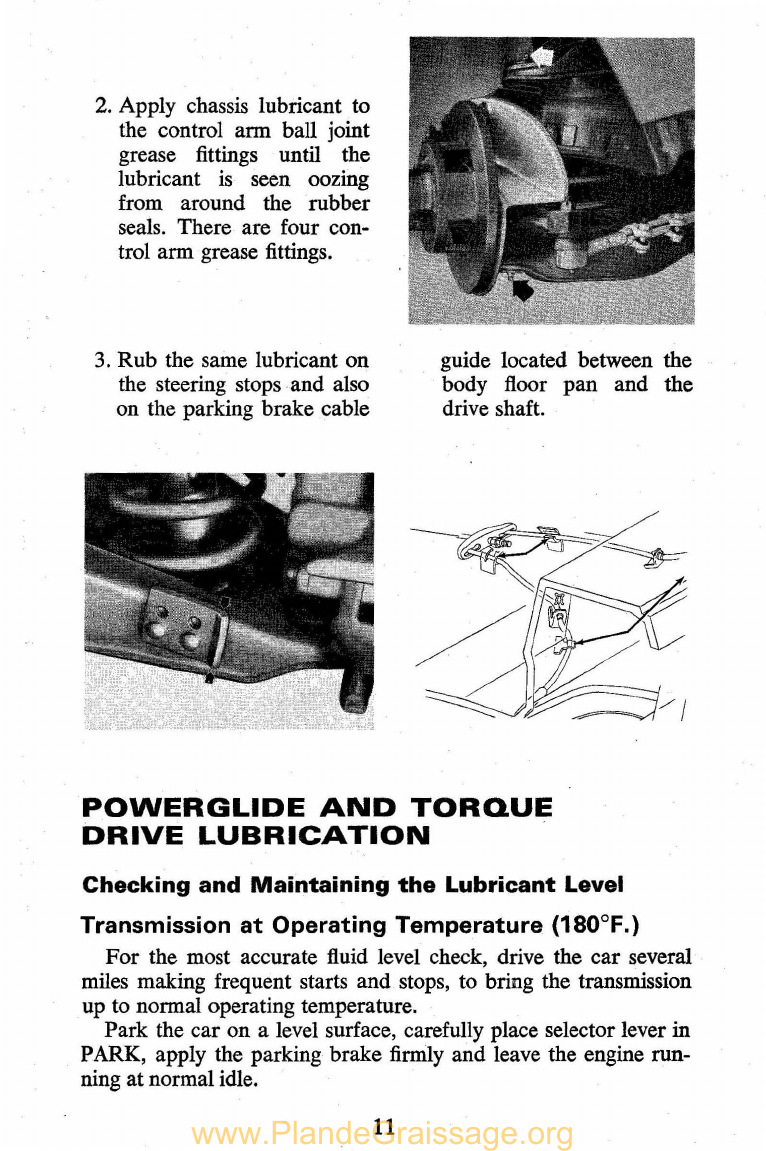

2. Apply chassis lubricant to
the control arm ball joint
grease fittings until the
lubricant
is seen oozing
from around the rubber
seals. There are four con-
trol arm·grease fittings.
3. Rub the same lubricant on
the steering stops and also
on the parking brake cable
guide located between the
body floor pan and the
drive shaft.
POWERGLIDE AND TORQUE
DRIVE LUBRICATION
Checking and Maintaining the Lubricant Level
Transmission at Operating Temperature (180°F.)
For the most accurate fluid level check, drive the car several
miles making frequent starts and stops, to bring the transmission
up to normal operating temperature.
Park the car on a level surface, carefully place selector lever in
PARK, apply the parking brake firmly and leave the engine run-
ning at normal idle.
11
www.PlandeGraissage.org

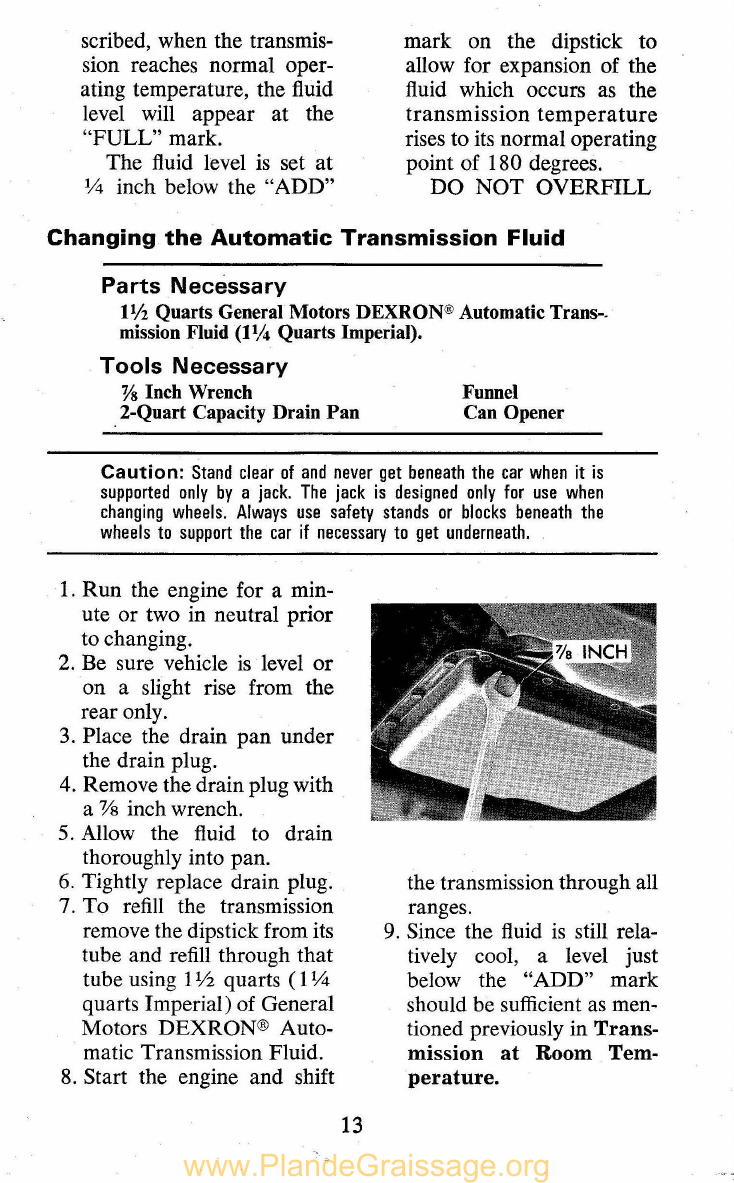

scribed, when the transmis-
sion reaches normal oper-
ating temperature, the fluid
level will appear at the
"FULL" mark.
The fluid level
is set at
1AI inch below the "ADD"
mark on the dipstick to
allow for expansion of the
fluid which occurs
as the
transmission temperature
rises to its normal operating
point of 180 degrees.
DO NOT OVERFILL
Changing the Automatic Transmission Fluid
Parts Necessary
11/2 Quarts General Motors DEXRON® Automatic Trans-.
mission Fluid
(1 % Quarts Imperial).
Tools Necessary
'Vs Inch Wrench Funnel
2-Quart Capacity Drain
Pan Can Opener
Caution: Stand clear of and never get beneath the car when it is
supported only by a jack. The jack is designed only for use when
changing wheels. Always use safety stands or blocks beneath the
wheels to support the car if necessary to get underneath.
1. Run the engine for a min-
ute or two in neutral prior
to changing.
2. Be sure vehicle
is level or
on a slight rise from the
rear only.
3. Place the drain pan under
the drain plug.
4. Remove the drain plug with
a % inch wrench.
5. Allow the fluid to drain
thoroughly into pan.
6. Tightly replace drain plug.
7.
To refill the transmission
remove the dipstick from its
tube and refill through that
tube using 1
Yz quarts (11A1
quarts Imperial) of General
Motors DEXRON@ Auto-
matic Transmission Fluid.
8. Start the engine and shift
13
the transmission through all
ranges.
9. Since the fluid is still rela-
tively cool, a level just
below the "ADD" mark
should be sufficient
as men-
tioned previously in
Trans-
mission at Room Tem-
perature.
www.PlandeGraissage.org

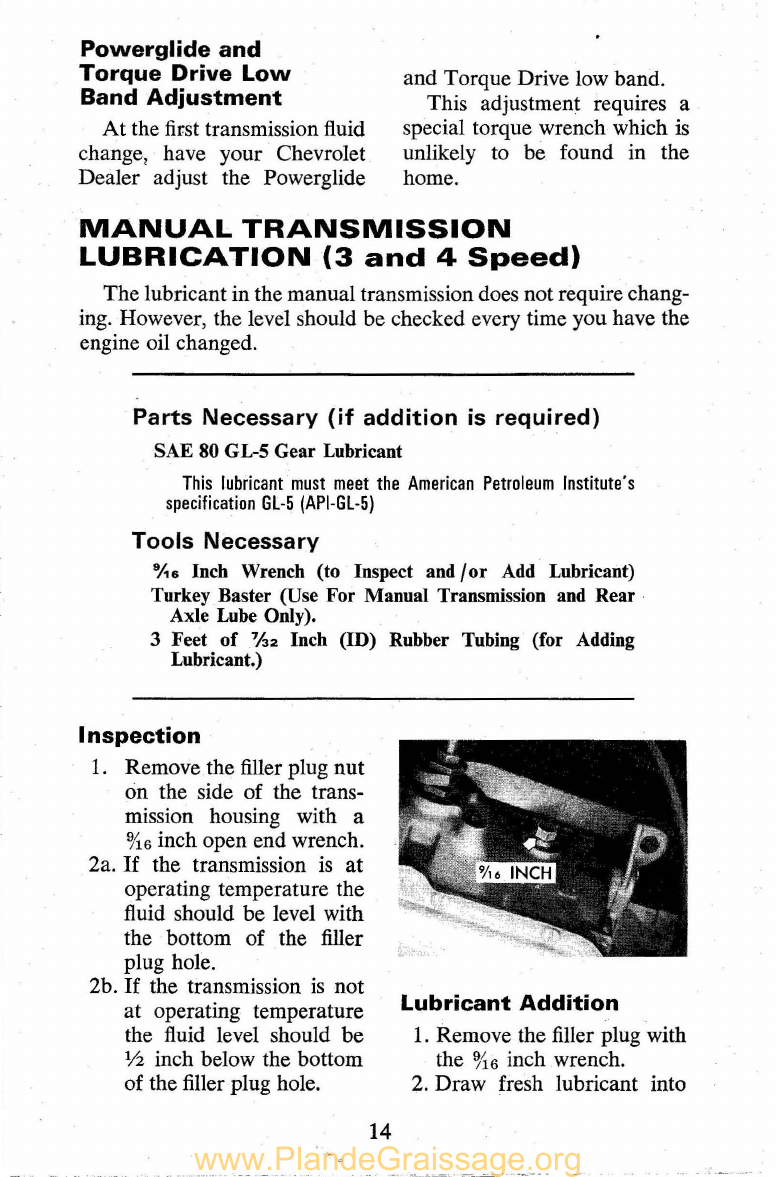

Powerglide and
Torque Drive Low
Band Adjustment
At the first transmission fluid
change1 have your Chevrolet
Dealer adjust the Powerglide
and Torque Drive low band.
This adjustment requires a
special torque wrench which
is
unlikely to be found in the
home.
MANUAL TRANSMISSION
LUBRICATION (3 and 4 Speed)
The lubricant in the manual transmission does not require chang-
ing.However, the level should be checked every time you have the
engine oil changed.
Parts Necessary (if addition is required)
SAE 80 GL-5 Gear Lubricant
This lubricant must meet the American Petroleum Institute's
specification GL-5 (API-GL-5)
Tools Necessary
9j,6 Inch Wrench (to Inspect and lor Add Lubricant)
Turkey Baster (Use For Manual Transmission and Rear
Axle Lube Only).
3 Feet of %2 Inch (ID) Rubber Tubing (for Adding
Lubricant.)
Inspection
1. Remove the filler plug nut
on the side of the trans-
mission housing with a
%6 inch open end wrench.
2a.
If the transmission is at
operating temperature the
fluid should be level with
the bottom of the filler
plug hole.
2b.
If the transmission is not
at operating temperature
the fluid level should be
liz inch below the bottom
of the filler plug hole.
14
Lubricant Addition
1. Remove the filler plug with
the
%6 inch wrench.
2. Draw fresh lubricant into
www.PlandeGraissage.org

the turkey baster and tube.
3. Holding the baster nose
down, place the tube in the
filler plug hole and squeeze
the bulb to force fluid into
the transmission until it be-
gins to run out the hole.
4. Reinstall the filler plug.
REAR AXLE LUBRICATION
The lubricant in the rear axle does not require changing. How-
ever, the level should be checked every time you have the engine
oil changed.
Parts Necessary (if addition is required)
Standard Axle
SAE 80 or 90 "Multi-Purpose" Gear Lubricant.
This lubricant must meet the American Petroleum Institute's
specification GL -5 (API-GL-5).
Positraction Axles
This axle requires a special positraction lubricant which
can be purchased at your local Chevrolet dealership. Ask
for
Part No. 1051022.
Tools Necessary
9/'6 Inch Open End Wrench (to Inspect and/or Add
Lubricant)
Turkey Baster (Use For Manual Transmission and Rear
Axle Lube Only).
3 Feet of %2Inch (ID) Rubber Tubing
Caution: Stand clear of and never get beneath the car when it is
supported only by a jack. The jack is designed only for use when
changing wheels. Always use safety stands or blocks beneath the
wheels to support the car if necessary to get underneath.
Inspection
1. Remove the filler plug on
the side of the housing
with the
%6 inch open end
wrench.
2a.
If the axle is at operating
temperature the fluid
should be level with the
bottom of the filler plug
hole.
2b.
If the axle is cold the fluid
15
www.PlandeGraissage.org

level should be ~ inch
below the bottom of the
filler plug hole.
Lubricant Addition
1. Remove the filler plug with
the
%6 inch wrench.
2. Draw fresh lubricant into
the turkey baster and tube.
3. Holding the baster nose
down, place the tube in the
filler plug hole and squeeze
the bulb to force fluid into
the axle until it begins to
run out the hole.
4. Reinstall the filler plug.
MANUAL STEERING INSPECTION
The manual steering gear is
factory filled with lubricant. No
lubrication
is required for the
life of the steering gear.
Every 36,000 miles the steer-
ing gear should be inspected for
seal leakage.
If it is leaking
actual solid grease should ap-
pear-not just an oily film. If
solid grease does leak from the
gear see your authorized Chev-
rolet dealer.
POWER STEERING
The most common cause of noise and poor power assist from the
power steering system
is the lack of proper belt tension.
With the engine turned
off, check the belt driving the power
steering pump, which
is located at the left front of the engine com-
partment. (Belt tension checking procedure may be found in the
Tune Up Section, see the index).
Parts Necessary
GM Power Steering Fluid
This may be obtained from your Chevrolet dealer. ask for Part No.
1050017.
Tools Necessary
None
16
www.PlandeGraissage.org

Inspection
1. Open the hood. The power
steering pump
is located at
the left front of the engine
compartment.
2. Remove the filler cap. The
power steering pump dip-
stick
is attached to it.
3. If the fluid is not at operat-
ing temperature, it will
register low on the stick.
If
it is at operating tempera-
ture, it should register high.
However, the fluid level
should not be allowed to
fall below the end of the
dipstick.
Hose Inspection
Fluid Addition
L Remove cap.
2. Inspect.
3. Add fluid as necessary to
meet requirements of step 3
of inspection.
The power steering hoses run from the pump to the steering gear.
They carry very high pressure power steering fluid.
The hoses should be inspected for:
1. Fluid leakage at all fittings.
2. Bends causing hose restriction.
3. Interference with parts of the vehicle which could cause chafing.
If any such problems exist, they should be brought to the atten-
tion of your authorized Chevrolet dealer.
17
www.PlandeGraissage.org

BRAKE MASTER CYLINDER
The brake master cylinder is mounted on the left side of the fire
wall.
It contains the brake fluid used in all the brakelines. Thefluid
in the master cylinder should be checked each time your engine
oil
is changed.
Parts Necessary
Hydraulic Brake Fluid
Use Delco Hydraulic Brake Fluid Supreme No. 11 or equivalent.
Tools Necessary
Screwdriver
1. Take care to prevent for-
eign matter entering the
master cylinder while cover
is removed.
2. Use screwdriver tosnap the
retaining wire off the cover.
Remove the cover.
3. Add brake fluid until the
level
is within l,4 inch of
the top.
4. Replace the cover and snap the retainer back into place.
BODY PART LUBRICATION
The mechanical parts of the body with contacting surfaces that
have relative motion with other parts should be lubricated every
6 months,
or if you prefer every other oil change.
Parts Necessary
Lubriplate Grease, Part No. 1050110
Lubriplate Spray,Part No. 1050520
Spray-A-Squeak Silicone Lubricant Part No. 1050018
(for use on weatherstrips).
EP Chassis Grease for the Hand Brake Cable.
Tools Necessary
Old Rags.
1. Remove all dirt and old
lubricant from the surfaces
to be serviced.
18
2. Spray or wipe the lubricant
on those surfaces which rub
together.
www.PlandeGraissage.org

The following should be lubricated:
All hinges and latches: Hood A and B; Doors C, D and E; Rear
Deck Lids, G and H; The Trunk Torque Rods
I. Transmission Shift
Linkage J. DoorWeather Strips F (onlyifthey squeak).
19
www.PlandeGraissage.org

Hand Brake and Linkage. Clutch Pulley.
WHEEL BEARING LUBRICATION
In order to repack the front wheel bearings, the disc brake cali-
per must be removed. The procedure for disc brake caliper removal
maybefound on page 87.
Parts Necessary
Brake:
4 Retaining
Pin Clips
4 Retaining Pins
4 Pin Bushing Assemblies
.2 Wheel Bearing Cotter Pins
Wheel bearing lubricant Part No. 1051195 (a special
lubricantformulated especially for use with disc brakes).
CAUTION: "Long fiber" viscous type lubricants should not
be used.
Tools Necessary
Hammer
Set of Slot Screwdrivers
Pair Adjustable Pliers
1 Inch Box End Wrench
% Inch Nut Driver
2 Inch x 2 Inch Block
of ~ Inch Wood
1
Pint of Kerosene
1. Remove the disc caliper
and hang it from the front
suspension never from the
brake lines.
2. Remove the dust cap with a
pair of adjustable pliers.
20
www.PlandeGraissage.org
