Chiayo DCT-511 User manual

DCT-511
DCR-511
2.4G DIGITAL TWO-WAY TOUR GUIDE SYSTEM
ISO 9001:2008
ISO 14001
OHSAS 18001
Green Product
OPERATION MANUAL
ISO
14001
REGISTERED
INTERNATIONAL
OH SAS
18 001
REGISTERED
INTERNATIONAL

-1-

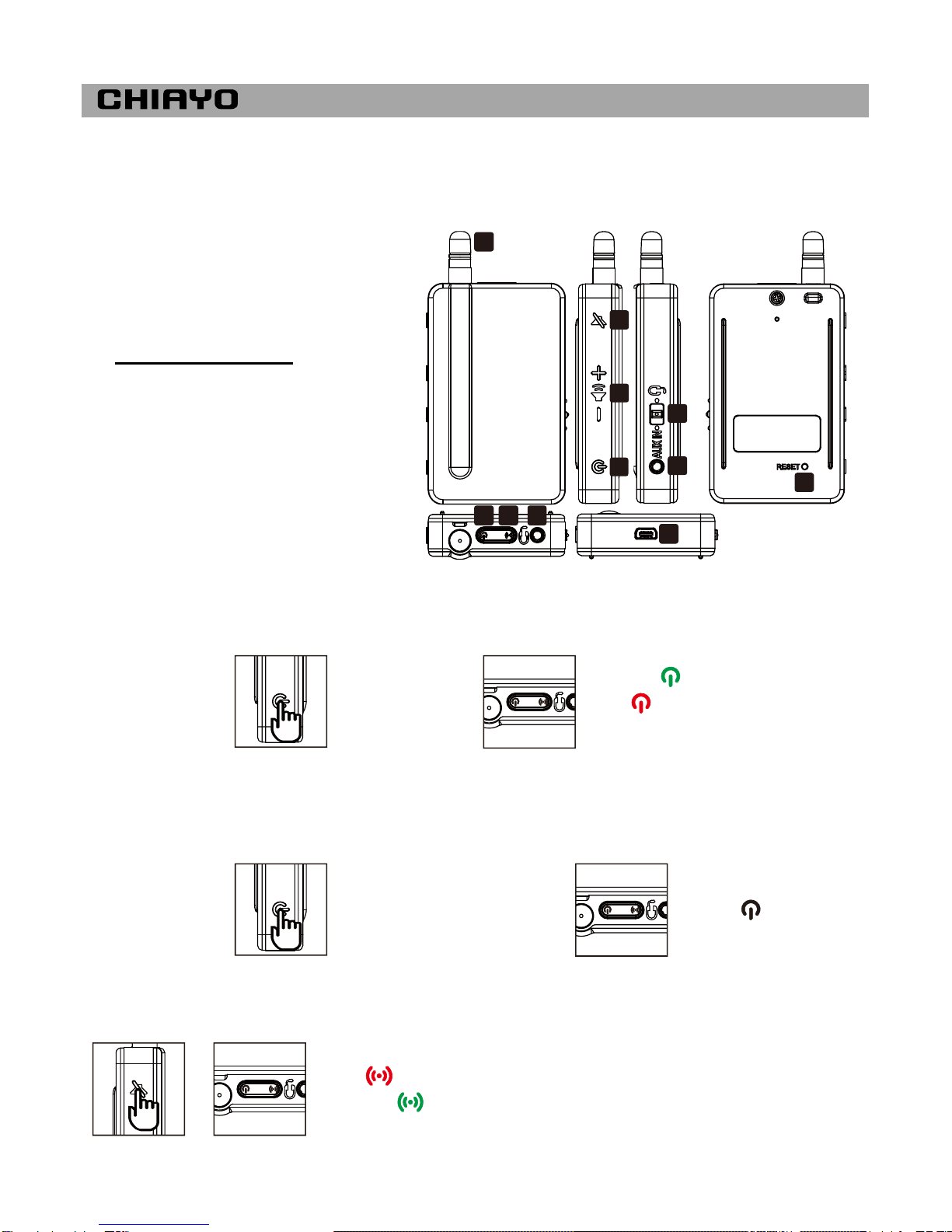

DCT-511 Mini transmitter
Parts and functions
1. Antenna
2. Mute button
3. Volume control
4. Power/pairing button
5. MIC-MIX-AUX IN mode
switch
6. Aux input(Ø 3.5mm)
7. Power indicator
8. Mute indicator
9. Earphone jack (Ø 3.5mm)
10.Mini USB charging port
11.Reset
Turning on the transmitter
1.Press the power button for 1 second
2.The power indicator will glow.
GREEN : enough power
RED : battery low or during
charging
Turning off the transmitter
Press and hold the power button for about 3 seconds and the indicator light will go
off.
►OFF
Audio muting
Press the mute button to activate or cancel muting.
►
RED : muting ON
GREEN : muting OFF
1
2
3
4
5
6
11
7 8 9
10

ISO 9001｜ISO 14001｜OHSAS 18001
-2-

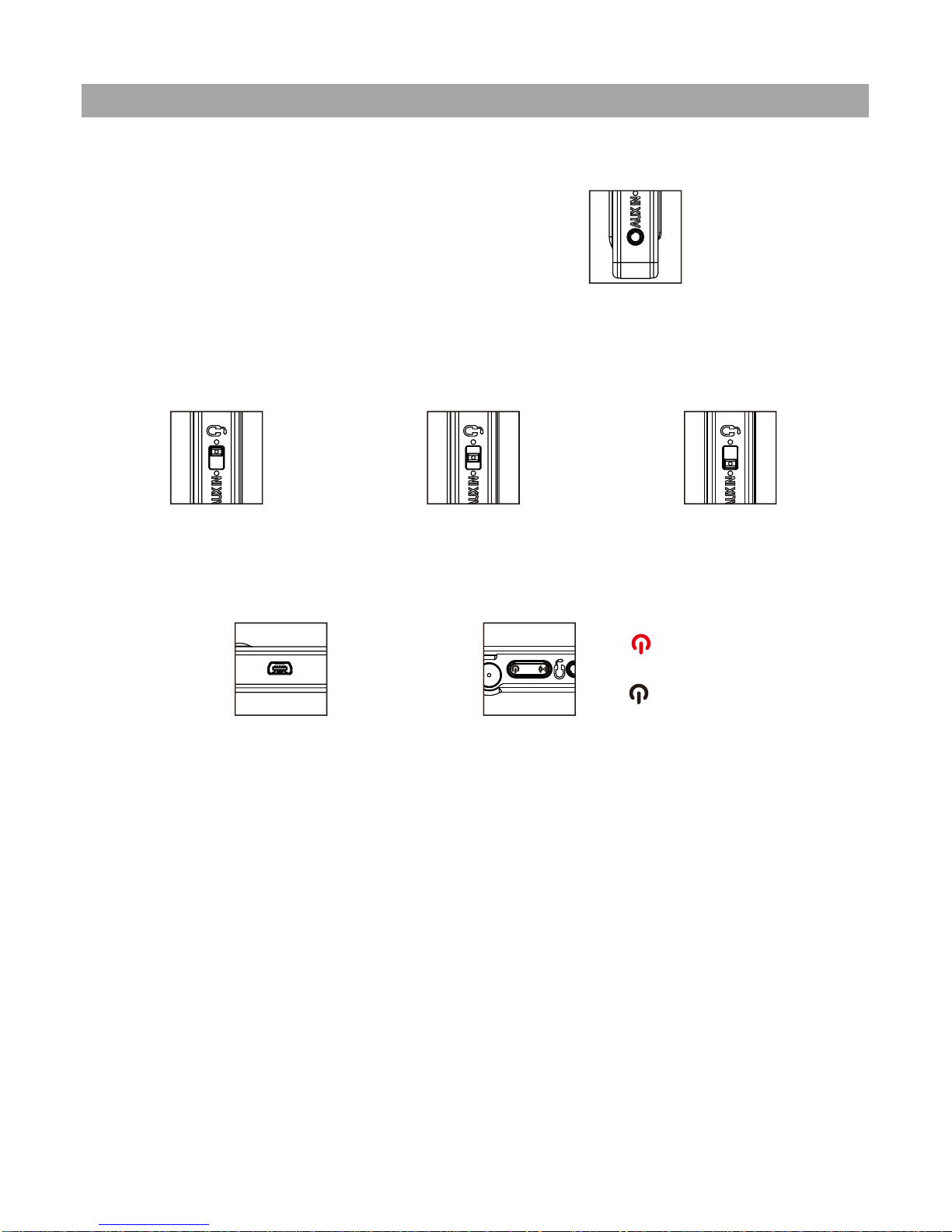

External audio input
To add music as background music, just input
your audio signal to AUX IN In a museum tour,
you may also input the respective prerecorded
introductions for various galleries.
►MP3/MP4 player
Audio mode switch
1.Using microphone only
2.Using both microphone
and external audio
3.Using external audio only
Battery charging
1.Mini USB charging port
2.Charging status
RED : battery low or during
charging
OFF : fully charged
Charging can be done by either mini USB or the charging box HC-520.
The charging process takes approximately four hours.

-3-
DCR-511 Mini receiver
Parts and functions
1. Antenna
2. Press to talk
3. Volume control
4. Power/frequency synchronizing
5. Power indicator
6. Reception indicator
7. Earphone jack (Ø 3.5mm)
8. Mini USB charging port
9. Reset
Turning on the receiver
1.Press the power button for 1 second
2.The power indicator will glow.
GREEN : enough power
RED : battery low or during
charging
Turning off the receiver
Press and hold the power button for about 3 seconds and the indicator light will go
off.
►OFF
1
2
3
4
9
5 6 7
8

ISO 9001｜ISO 14001｜OHSAS 18001
-4-
Press to talk
Press the talk button to talk with your guide and
the conversation could be heard by other
members. And release to stop.
<25cm
Reception indicator
The LED stays green within the reception
range from the tour guide. Once beyond
the reception range, it will flash red and
beep as a warning of dropout.
GREEN : signal OK
RED +beep sound:
signal weak
Battery charging
1.Charging can be done by either mini
USB or the dedicated charging box.
2.Charging status
RED : battery low or during
charging
LED OFF: fully charged
The charging process takes approximately four hours.

-5-

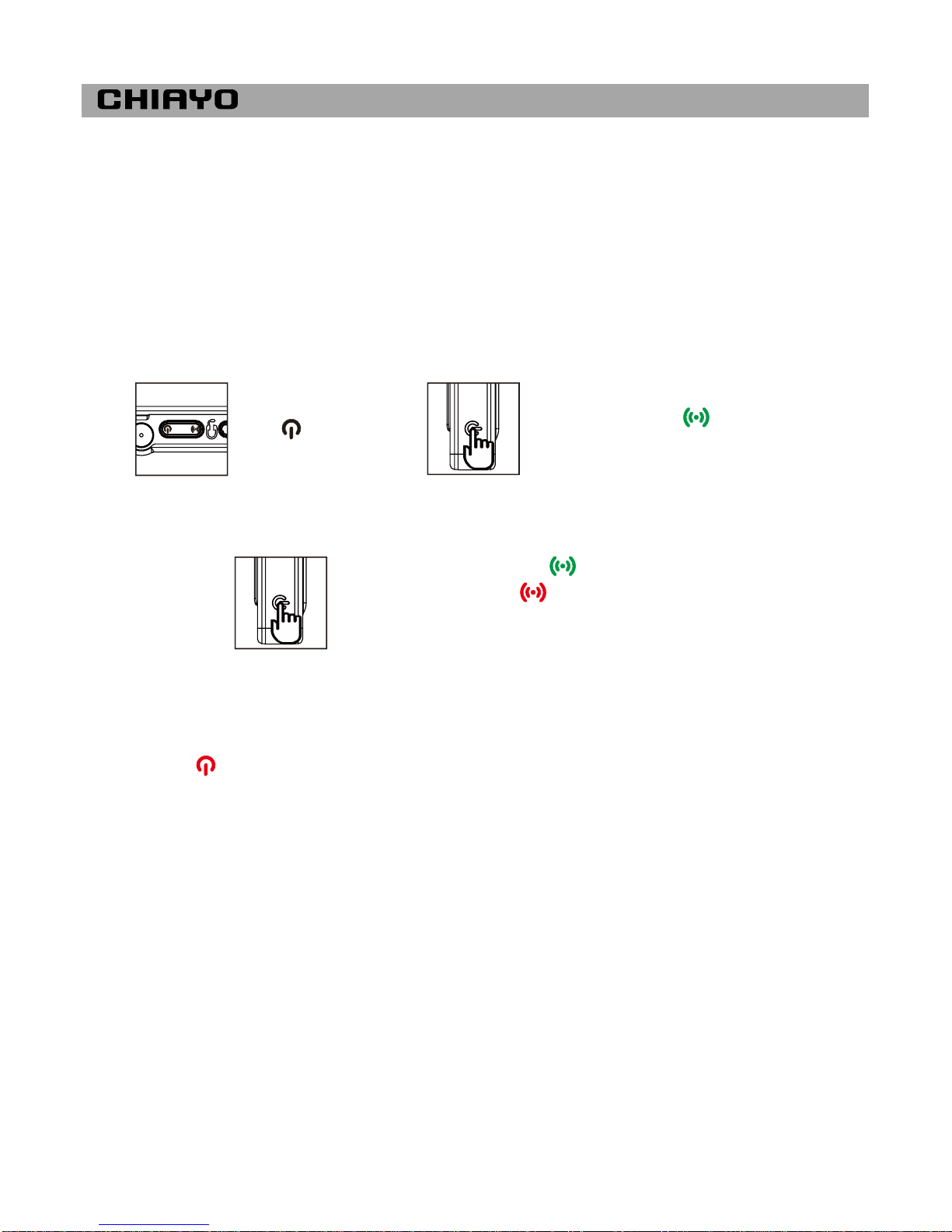

Pairing DCT-511 and DCR-511
Even though the transmitter and receiver (in the same package) were
ready paired at the factory, it is highly recommended that before the tour
begins, the receivers should do a fresh pairing with the specific tour
leader’s transmitter.
1.Turn off DCT-511 and
DCR-511
2.Press DCT-511’s power
button for 5 seconds
3.The mute indicator
flashes green to imply
readiness to pair.
OFF
GREEN flashes, lasting
14 seconds for pairing.
4.Press DCR-511’s power button for 5
seconds.
5.DCR-511’s signal led will glow.
GREEN : pairing done
RED : pairing failed.
Remarks
Before pairing, please make sure that the battery has enough power and
then turn off the devices. Pairing isn’t workable if the power is weak with
indicator glowing RED.
To synchronize mass receivers with the transmitter, just follow STEP 4
on all receivers simultaneously.
Once the transmitter and receiver are paired, they will stay paired and no
pairing is needed for usages later on.

ISO 9001｜ISO 14001｜OHSAS 18001
-6-
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one of the
following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: To assure continued compliance, any changes or modifications
not expressly approved by the party responsible for compliance could void the
user's authority to operate this equipment. (Example - use only shielded
interface cables when connecting to computer or peripheral devices).
FCC Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated
with a minimum distance of 20 centimeters between the radiator and your body.
This transmitter must not be co-located or operating in conjunction with any
other antenna or transmitter.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1)This device may not cause harmful interference, and
(2)This device must accept any interference received, including interference
that may cause undesired operation.

CHIAYO ELECTRONICS CO.,LTD.
Http://www.chiayo.com.tw Email: [e-mail]
Office: 30, Lane 27, Section 4, Jen-Ai Road, Taipei10685, Taiwan｜Tel:[phone]｜Fax: [phone]
Factory: 88, Chung-Hsiao Street 2, Chiayi 60080, Taiwan｜Tel:[phone]｜Fax:[phone]
