Garmin Rino 655t User manual
rino® 600 series
owner’s manual
© 2011 Garmin Ltd. or its subsidiaries
All rights reserved. Under the copyright laws, this manual may not be copied, in whole or in part, without the
written consent of Garmin. Garmin reserves the right to change or improve its products and to make changes
in the content of this manual without obligation to notify any person or organization of such changes or
improvements. Go to www.garmin.com for current updates and supplemental information concerning the use
of this product.
Garmin
®
, the Garmin logo, Rino
®
, BlueChart
®
, and City Navigator
®
are trademarks of Garmin Ltd. or its
subsidiaries, registered in the USA and other countries. HomePort
™
, BaseCamp
™
, chirp
™
, and ANT+
™
are trademarks of Garmin Ltd. or its subsidiaries. These trademarks may not be used without the express
permission of Garmin.
Windows
®
is a registered trademark of Microsoft Corporation in the United States and/or other countries.
Mac
®
is a registered trademarks of Apple Computer, Inc. microSD
™
is a trademark of SD-3C, LLC. Other
trademarks and trade names are those of their respective owners.
Rino 600 Series Owner’s Manual 1
Table of Contents
Keys3
Manual Conventions 4
Battery Information 4
Acquiring Satellite Signals 6
Registering Your Device 6
Turning On the Backlight 6
Locking the Screen 7
About the Radio 8
Choosing a Channel 8
Radio Settings 9
About Contacts 10
Notes 10
About Peer-to-Peer Positioning 11
Using SAME Weather Alerts 12
Radio Page Status Indicators 13
Waypoints 15
About Sharing Data 16
Tracks 16
Navigating a Saved Track17
Navigating to a Destination18
Map19
Compass 19
Navigating to a Contact 21
Geocaches 21
Routes 21
Using Sight ‘N Go 23
Taking a Photo 24
Viewing Photos 24
Customizing the Data Fields26
Customizing the Home Screen 26
Creating a Custom Prole 26
Customizing Specic Pages 27
System Settings28
Display Settings 29
Setting the Device Tones 29
2 Rino 600 Series Owner’s Manual
Table of Contents
Map Settings29
Tracks Settings 30
Changing the Units of Measure 31
Time Settings 31
Position Format Settings 32
Heading Settings 32
Altimeter Settings 33
Geocache Settings 34
Routing Settings 34
Marine Map Settings35
Fitness 36
Resetting Data 36
Trip Computer 37
Elevation Plot37
Viewing the Calendar and
Almanacs 37
Calculating the Size of an Area 37
Setting an Alarm 38
Opening the Stopwatch 38
Updating the Software 39
Viewing Device Information 39
Specications 39
About the Batteries 40
Caring for the Device 41
Data Management 42
Additional Maps 45
Optional Accessories 45
Data Field Options 46
Troubleshooting 51
FCC Licensing Information 53
Rino 600 Series Owner’s Manual 3
Getting Started
See the Important Safety and Product
Information guide in the product
box for product warnings and other
important information.
When using your device the rst time,
you should complete the following
tasks to set up the device and get to
know the basic features.
1. Install the batteries (page 4).
2. Register the device (page 6).
3. Acquire satellites (page 6).
4. Set up the radio (page 9).
5. Mark a waypoint (page 15).
6. Record a track (page 17).
7. Navigate to a destination (page 18).
8. Calibrate the compass (page 19).

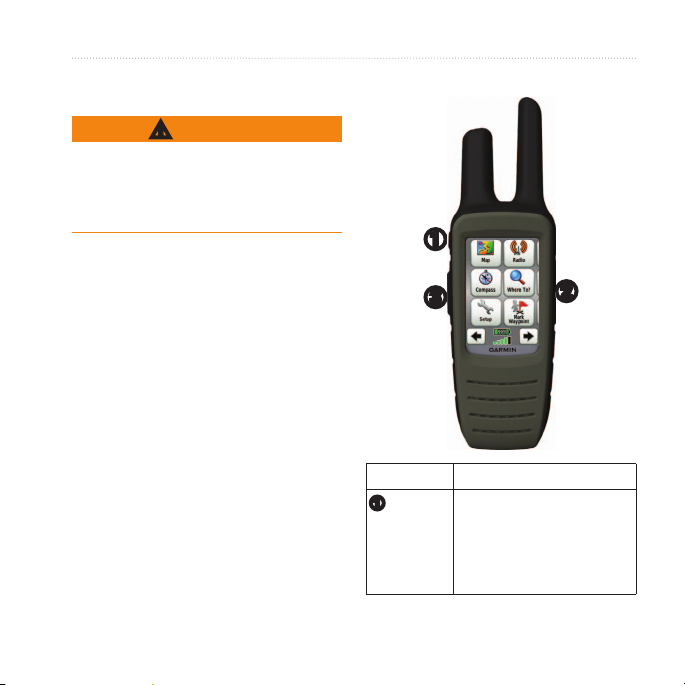

➌
➊
➋
➊
Select to send out a call
tone If enabled
(page 11), the call key
sends your position when
released
4 Rino 600 Series Owner’s Manual
Getting Started
➋
Hold to turn on or off
the device Select to
adjust backlight, volume,
squelch level, and to lock
or unlock the screen
➌
Hold to talk stands
for push-to-talk
All the pages are found on the home
screen. Use or to scroll through
the pages. The small arrows (>) used in
the text indicate that you should select
a series of items in order, for example,
“Select > .”
The device operates on the included
lithium-ion battery pack or four AA
batteries.
For tips on maximizing battery life and
other battery information, see page 40.
: The lithium-ion battery pack
can be used only with the Rino® 650
and 655t.
1. Locate the battery pack
➊
that
came in the product box.
➊
2. Align the metal contacts on the
battery pack with the metal contacts
on the back of the device.
3. Gently press the battery pack into
place.
Rino 600 Series Owner’s Manual 5
Getting Started

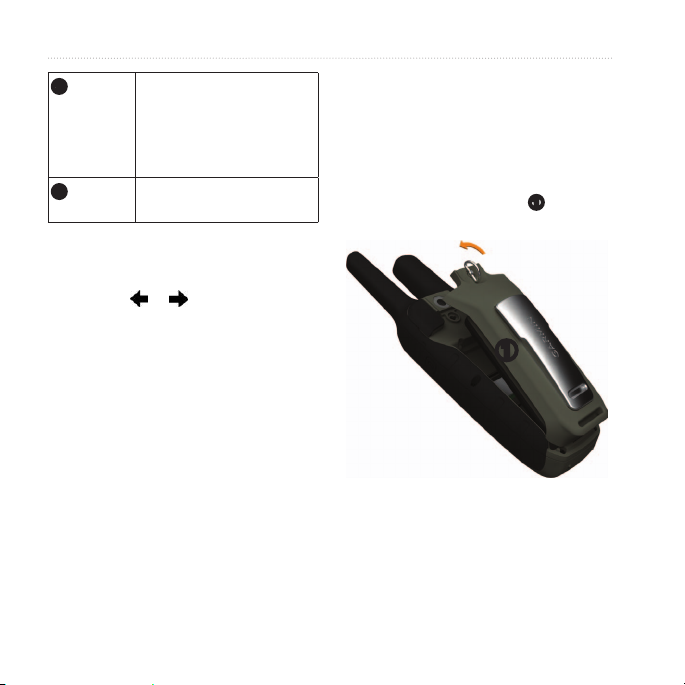

4. Turn the D-ring clockwise.
Before you use the device the rst
time, charge the battery.
Charging a fully depleted battery takes
6 hours. The device will not charge
when outside the temperature range
from 32°F to 113°F (from 0°C to
45°C).
1. Plug the AC charger into a standard
wall outlet.
2. Lift weather cap.
3. Plug the small end of the AC
charger into the two-pin connector
➊
.
➊
4. Charge the device completely.
A fully charged battery can run for
up to 14 hours before it must be
recharged.
Instead of the lithium-ion battery pack,
you can use alkaline, NiMH, or lithium
batteries. This is especially handy
when you are on the trail and cannot
charge the lithium-ion battery pack.
Use NiMH or lithium batteries for best
results.
1. Turn the D-ring counter-clockwise,
and remove the cover.
6 Rino 600 Series Owner’s Manual
Getting Started
2. Lift the latch on the cover to
separate the battery compartment.

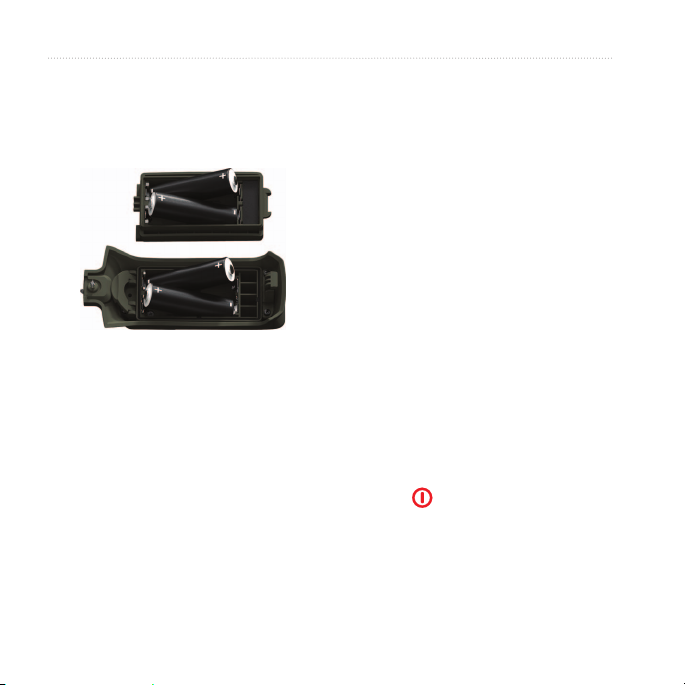

3. Insert four AA batteries, observing
polarity.
4. Replace the battery cover, and turn
the D-ring clockwise.
5. Update the battery type in the
system settings (page 40).
It may take 30 to 60 seconds to acquire
signals.
1. Go outdoors to an open area.
2. Turn on the device.
3. Wait while the device searches for
satellites.
A question mark ashes while the
device determines your location.
The GPS bars indicate satellite
strength. When the bars are green, the
device has acquired satellite signals.
• Go to http://my.garmin.com.
• Keep the original sales receipt, or a
photocopy, in a safe place.
The backlight will turn off after a
period of inactivity. To change the
backlight timeout, see page 29.
• Select .
• Touch the screen.
Alerts and messages also activate the
backlight.
Rino 600 Series Owner’s Manual 7
Getting Started
The backlight levels vary for the
different power sources. For example,
the highest backlight setting while
running on AA batteries is lower
than the highest while running on the
lithium-ion battery. This is to extend
the AA battery life.
1. While the device is on, select .
2. Use and to adjust the brightness
level.
: This action does not lock the
keys.
1. Select .
2. Select .
8 Rino 600 Series Owner’s Manual
Radio
The radio page provides the user
interface for Family Radio Service
(FRS) and General Mobile Radio
Service (GMRS) radio operations.
The Rino has a total of 30 channels and
121 squelch codes.
1-7 GMRS and FRS
channels
8-14 FRS channels
15-22 GMRS channels
15R-22R Repeater channels
(page 9).
GMRS frequencies are regulated by the
FCC. In order to transmit on GMRS
frequencies, you must obtain a license
from the FCC (page 53).
1. Select .
2. Select .
1. Select > .
2. Use or to select a channel.
You can scan the channels for voice
activity.
Select > .
You can pick which channels and codes
to scan. Selecting specic channels and
codes reduces the scan time and helps
prevent missing a transmission.
1. Select > .
2. Select a channel to add.
3. Select .
Rino 600 Series Owner’s Manual 9
Radio
You can monitor a single channel for
any activity, including static and weak
voice signals. This is helpful if a signal
is going out of range.
Select > .
Select > .
• —enables you to
send your current location after
each transmission (page 11).
• —enables polling.
Polling allows another Rino user to
get your location by sending a poll
request.
• —adjusts power level
on GMRS frequencies.
• —allows you to
search for weather alerts on the
current channel or all available
channels.
• :
◦ —Continuous Tone
Controlled Squelch System
allows you to ignore unwanted
calls from persons using the
same channel.
◦ —Digital-Coded Squelch
allows you to ignore unwanted
calls from persons using the
same channel.
• —enables the
GMRS repeater channels 15R-22R.
GMRS repeater channels are
not available on devices sold in
Canada. Position reporting is not
allowed by the FCC on repeater
channels.
• —allows you to
select the type of headset you are
using. To purchase accessories, go
to http://buy.garmin.com or contact
your Garmin dealer.
10 Rino 600 Series Owner’s Manual
Radio
• —Voice operated
transmission controls the sensitivity
level of any Vox accessory.
The rst time a signal is received from
another Rino user, the new contact
page appears. From that page, you
can show their location on the map,
navigate to their location (page 21), or
add them to your contacts list.
When a new contact signal is received,
the new contact page appears.
Select to save the contact.
1. Select .
2. Select a contact.
3. Select an item.
4. Select .
1. Select .
2. Select a contact.
3. Select .
: Notes transmit to all users on
your current channel and code.
You can send notes to other Rino users
on your current channel and code. You
can review previously received notes
from your contacts. You can edit and
save favorite notes to quickly send
them later.
1. Select >
.
2. Write the note.
The maximum character limit is 13.
3. Select .
4. Select an option:
Rino 600 Series Owner’s Manual 11
Radio
• Select to send
without saving.
• Select .
• Select .
1. Select > .
2. Select a note to send.
3. Select .
: Locations may only be sent
once every 30 seconds, due to FCC
restrictions.
You can send your location to another
Rino using peer-to-peer positioning.
You can also track the movement of
other Rino users and navigate to their
locations.
Select >>
>.
Before you can send a location, you
must enable peer-to-peer positioning
(page 11).
1. Select > .
2. Select .
3. Select a category.
4. Select an item.
5. Select .
12 Rino 600 Series Owner’s Manual
Radio
: SAME weather alerts are
available in the US only on the Rino
650 and 655t.
SAME (Specic Area Message
Encoding) weather alerts allow you to
receive county weather alerts on your
device.
1. From the radio page, select
.
2. Select a channel.
: You can receive SAME
weather alerts only on the current
weather channel.
The weather radio must remain on
until alerts are received.
When you receive a SAME weather
alert, a message appears containing the
alert information. The device shows
your county map with color-coded
watches and warnings.
Select to view the
weather alert on the map.
You can scan over a county warning
on the map and select the information
button to see more detailed
information.
Rino 600 Series Owner’s Manual 13
Radio
Activity on
channel
A signal is being
received, but does
not match the current
code
Radio Off The 2-way radio is
turned off
Ready to
transmit of
FRS
FRS channel is
selected and the
device can transmit
Ready to
transmit on
GMRS
GMRS channel is
selected and the
device can transmit
Receiving
transmission
The device
is receiving a
transmission on the
selected channel
Ready to
receive
weather
The device is set to
a weather channel
and waiting to receive
weather broadcast
Receiving
weather
The device is
receiving a weather
broadcast
Radio feature is off
Transmit power at
1/2 watts FRS
channels transmit on
this level only
Transmit power at
1 watts
Transmit power at
2 watts
Transmit power at
5 watts
: If your device battery is too
low, the power level is decreased
automatically. The transmit power
is limited to 2 watts in Canada. The
maximum output power of the Rino
610 is 1 Watt.
Rino 600 Series Owner’s Manual 15
Waypoints and Tracks
Waypoints are locations you record and
store in the device.
You can save your current location as
a waypoint.
Select .
1. Select > .
2. Select a waypoint.
Before you can edit a waypoint, you
must create a waypoint.
1. Select .
2. Select a waypoint.
3. Select an item to edit.
4. Enter the new information.
5. Select .
1. Select .
2. Select a waypoint.
3. Select .
Waypoint averaging allows you to
increase the accuracy of a waypoint
location by collecting multiple samples
of the waypoint location.
1. Select .
2. Select a waypoint.
3. Move to the location.
4. Select .
5. When the sample condence status
bar reaches 100%, select .
For best results, collect four to
eight samples for the waypoint,
waiting at least 90 minutes between
samples.
16 Rino 600 Series Owner’s Manual
Waypoints and Tracks
Your device can send or receive data
when connected to another compatible
device. You can share waypoints,
geocaches, routes, and tracks.
Before you can share data wirelessly
using ANT+™ wireless technology, you
must be within 10 feet (3 m) of the
compatible Garmin device.
1. Select .
2. Follow the on-screen instructions.
A track is a recording of your path.
The track log contains information
about points along the recorded path,
including time, location, and elevation
for each point.
1. Select > >
.
2. Select , or
, .
If you select ,
, a line on the map indicates
your track.
3. Select .
4. Select an option:
• To record tracks at a variable
rate that creates an optimum
representation of your tracks,
select .
• To record tracks at a specied
distance, select .
• To record tracks at a specied
time, select .
5. Select .
6. Select an option to record tracks
more or less often.
Rino 600 Series Owner’s Manual 17
Waypoints and Tracks
: Using the
interval provides the most track
detail and lls up the device
memory quicker.
The track being recorded is called the
current track.
1. Select >
.
2. Select an option:
• To show the current track on the
map, select .
• To show the elevation plot
for the current track, select
.
1. Select >
.
2. Select what you want to save:
• Select .
• Select , and select
a portion.
Select > >
> .
1. Select .
2. Select a track.
3. Select > .
You must record and save a track
before you can navigate using it.
1. Select .
2. Select a saved track.
3. Select .
4. Select .
18 Rino 600 Series Owner’s Manual
Navigation
You can use the Where To? menu to
nd a destination to navigate to. Not all
Where To? categories are available in
all areas and maps.
1. Select .
2. Select an item.
3. Select .
4. Navigate using the map (page 19)
or compass (page 19).
You can use the search feature to nd
POIs near a point on the map, your
current location, or a waypoint. This
may require additional maps, see
page 45.
1. Select > .
2. Select an item you want to search
near.
3. Select .
4. Navigate using the map (page 19)
or compass (page 19).
You can navigate back to the beginning
of a track. This can be helpful when
nding your way back to camp or the
trail head.
1. Select >
> .
2. Select .
The map page opens with your
route marked with a magenta line.
3. Navigate using the map (page 19)
or compass (page 19).
Other manuals for Rino 655t
3
This manual suits for next models
2
Table of contents
Other Garmin Two-way Radio manuals
Garmin
Garmin RINO 520 - Hiking GPS Receiver User manual
Garmin
Garmin GPSMAP 130 User manual
Garmin
Garmin Rino User manual
Garmin
Garmin A03250 Instruction manual
Garmin
Garmin RINO120 User manual
Garmin
Garmin RINO 110 - Hiking GPS Receiver User manual
Garmin
Garmin Rino 655t Instruction manual
Garmin
Garmin Rino 530HCx - Hiking GPS Receiver User manual
Garmin
Garmin Rino 120 User manual
Garmin
Garmin rino130 User manual
Garmin
Garmin RINO 110 - Hiking GPS Receiver User manual
Garmin
Garmin Rino 120 User manual
Garmin
Garmin Rino 130 User manual
Garmin
Garmin Rino 130 User manual
Garmin
Garmin GPSMAP 530 User manual
Garmin
Garmin RINO 110 - Hiking GPS Receiver User manual
Garmin
Garmin RINO 110 - Hiking GPS Receiver User manual
Garmin
Garmin Rino 520HCx - Hiking GPS Receiver User manual
Garmin
Garmin Rino 120 User manual
Garmin
Garmin GPSMAP 520 - Marine GPS Receiver User manual
