Chicago Electric 91924 User manual

Electric Snow
Thrower 11 AMP
ASSEMBLY AND OPERATING INSTRUCTIONS
3491 Mission Oaks Blvd., Camarillo, CA 93011
Visit ourWeb site at: http://www.harborfreight.com
Copyright©2004 by Harbor Freight Tools®. All rights reserved. No portion of this
manual or any artwork contained herein may be reproduced in any shape or form
without the express written consent of Harbor Freight Tools.
For technical questions, please call 1-800-444-3353.
®
91924

SKU 91924 Page 2
For technical questions, please call 1-800-444-3353.
PRODUCT SPECIFICATIONS
SAVE THIS MANUAL
You will need this manual for the safety warnings and precautions, assembly,
operating, inspection, maintenance and cleaning procedures, parts list and as-
sembly diagram. Keep your invoice with this manual. Write the invoice number
on the inside of the front cover. Keep this manual and invoice in a safe and dry
place for future reference.
GENERAL SAFETY RULES
WARNING!
READ AND UNDERSTAND ALL INSTRUCTIONS
Failure to follow all instructions listed below may result in
electric shock, fire, and/or serious injury.
SAVETHESE INSTRUCTIONS
WORK AREA
1. Keep your work area clean and well lit. Cluttered work areas and poor lighting
invite accidents.
2. Do not operate power tools in explosive atmospheres, such as in the
presence of flammable liquids, gases, or dust. Power tools create sparks
which may ignite the dust or fumes.
3. Keep bystanders, children, and visitors away while operating a power tool.
Distractions can cause you to lose control. Protect others in the work area from
debris such as snow or ice. Provide barriers or shields as needed.
This compact, lightweight SnowThrower is used for clearing snow from patios,
small driveways, or steps. It can clear a path up to 12” wide in snow up to 9-1/2” deep, if
used in a manner set forth below.You can choose among three different snow throwing
heights and directions.It features a safety lock Trigger for your protection.
:noitcurtsnoC rotoMcitsalPtcapmIhgiH eldnaHleetSyollAhtiwemarF :snoisnemiDllarevOH"5/4-32xW"3/1-61xL"5/1-42
:htdiWgniwolP"21:htpeDgniwolP"2/1-9
:droCrewoPgnol"71,gnorp3xGWA61:hctiwSrewoPhctiwSytefaSelbuoD
:gnitaRrewoPsttaW0001-008taspmA11:deepSrotoMmpr0591
:tnemeriuqeRcirtcelEzH06,CAV021-011:thgieWteN.sbL5.22

SKU 91924 Page 3
For technical questions, please call 1-800-444-3353.
ELECTRICAL SAFETY
4. Grounded tools must be plugged into an outlet properly installed and
grounded in accordance with all codes and ordinances. Never remove the
grounding prong or modify the plug in any way. Do not use any adapter
plugs. Check with a qualified electrician if you are in doubt as to whether
the outlet is properly grounded. If the tool should electrically malfunction or
break down, grounding provides a low resistance path to carry electricity away
from the user.
5. Double insulated tools are equipped with a polarized plug (one blade is
wider than the other). This plug will fit in a polarized outlet only one way. If
the plug does not fit fully in the outlet, reverse the plug. If it still does not
fit, contact a qualified electrician to install a polarized outlet. Do not
change the plug in any way. Double insulation eliminates the need for the
three wire grounded power cord and grounded power supply system.
6. Avoid body contact with grounded surfaces such as pipes, radiators,
ranges, and refrigerators. There is an increased risk of electric shock if your
body is grounded.
7. Do not expose power tools to rain or wet conditions. Water entering a power
tool will increase the risk of electric shock.
8. Do not abuse the Power Cord. Never use the Power Cord to carry the tool
or pull the Plug from an outlet. Keep the Power Cord away from heat, oil,
sharp edges, or moving parts. Replace damaged Power Cords immedi-
ately. Damaged Power Cords increase the risk of electric shock.
9. When operating a power tool outside, use an outdoor extension cord
marked “W-A” or “W”. These extension cords are rated for outdoor use, and
reduce the risk of electric shock.
PERSONAL SAFETY
10. Stay alert. Watch what you are doing, and use common sense when oper-
ating a power tool. Do not use a power tool while tired or under the influ-
ence of drugs, alcohol, or medication. A moment of inattention while operat-
ing power tools may result in serious personal injury.
11. Dress properly. Do not wear loose clothing or jewelry. Contain long hair.
Keep your hair, clothing, and gloves away from moving parts. Loose clothes,
jewelry, or long hair can be caught in moving parts. A long-sleeved jacket and
jeans are recommended during use.

SKU 91924 Page 4
For technical questions, please call 1-800-444-3353.
12. Avoid accidental starting. Be sure theTrigger is off before plugging in.
Carrying power tools with your finger on the Trigger, or plugging in power tools
with the Trigger on, invites accidents.
13. Remove adjusting keys or wrenches before turning the power tool on. A
wrench or a key that is left attached to a rotating part of the power tool may result
in personal injury.
14. Do not overreach. Keep proper footing and balance at all times. Proper
footing and balance enables better control of the power tool in unexpected
situations.
15. Use safety equipment. Always wear eye protection. Dust mask, non-skid
safety shoes, hard hat, or hearing protection must be used for appropriate
conditions.
TOOL USE AND CARE
16. Be sure you are standing firmly and in balance before operating this snow
Thrower. Wear proper shoes for what may be a slippery surface. Brace yourself
and grasp the snow Thrower with both hands before operating it.
17. Do not force the tool. Use the correct tool for your application. The correct
tool will do the job better and safer at the rate for which it is designed.
18. Do not use the power tool if theTrigger does not turn it on or off. Any tool
that cannot be controlled with the Trigger is dangerous and must be replaced.
19. Disconnect the Power Cord Plug from the power source before making any
adjustments, changing accessories, or storing the tool. Such preventive
safety measures reduce the risk of starting the tool accidentally.
20. Store idle tools out of reach of children and other untrained persons. Tools
are dangerous in the hands of untrained users.
21. Maintain tools with care. Keep tools clean and in good condition. Properly
maintained tools function better and are easier to control. Do not use a dam
aged tool. Tag damaged tools “Do not use” until repaired.
22. Check for misalignment or binding of moving parts, breakage of parts, and
any other condition that may affect the tool’s operation. If damaged, have
the tool serviced before using. Many accidents are caused by poorly main-
tained tools.

SKU 91924 Page 5
For technical questions, please call 1-800-444-3353.
23. Use only accessories that are recommended by the manufacturer for your
model. Accessories that may be suitable for one tool may become hazardous
when used on another tool. SERVICE
24. Tool service must be performed only by qualified repair personnel. Service
or maintenance performed by unqualified personnel could result in a risk of injury.
25. When servicing a tool, use only identical replacement parts. Follow
instructions in the “Inspection, Maintenance, And Cleaning” section of this
manual. Use of unauthorized parts or failure to follow maintenance instructions
may create a risk of electric shock or injury.
SPECIFIC SAFETY RULES
1. Maintain labels and nameplates on the SnowThrower. These carry impor-
tant information. If unreadable or missing, contact Harbor Freight Tools for a
replacement.
2. Always wear safety impact eye goggles and heavy work gloves when using
the SnowThrower. Using personal safety devices reduce the risk for injury.
Safety impact eye goggles and heavy work gloves are available from Harbor
Freight Tools.
3. Maintain a safe working environment. Keep the work area well lit. Make sure
there is adequate surrounding work space. Always keep the work area free of
obstructions, grease, oil, trash, and other debris. Do not use a power tool in
areas near flammable chemicals, dusts, and vapors. Do not use this product in a
damp or wet location.
4. When using this power tool, always maintain a firm grip on the tool with
both hands to resist starting torque.
5. Always keep the extension cord away from moving parts on the tool.
6. Avoid unintentional starting. Make sure you are prepared to begin work
before turning on the Snow Thrower.
7. Do not force the SnowThrower. This tool will do the work better and safer at
the speed and capacity for which it was designed.

SKU 91924 Page 6
For technical questions, please call 1-800-444-3353.
8. Never lay the SnowThrower down until the motor has come to a complete
stop. The tool may create unforeseen risk while the motor cycles down.
9. Never leave the SnowThrower unattended when it is plugged into an
electrical outlet. Turn off the tool, and unplug it from its electrical outlet before
leaving.
10. Always unplug the SnowThrower from its electrical outlet before perform-
ing any inspection, maintenance, or cleaning procedures.
11. WARNING! People with pacemakers should consult their physician(s)
before using this product. Operation of electrical equipment in close proximity to
a heart pacemaker could cause interference to or failure of the pacemaker.

SKU 91924 Page 7
For technical questions, please call 1-800-444-3353.
GROUNDING
WARNING!
Improperly connecting the grounding wire can result in the risk of electric
shock. Check with a qualified electrician if you are in doubt as to whether the
outlet is properly grounded. Do not modify the power cord plug provided with
the tool. Never remove the grounding prong from the plug. Do not use the
tool if the power cord or plug is damaged. If damaged, have it repaired by
a service facility before use. If the plug will not fit the outlet, have a proper
outlet installed by a qualified electrician.
GROUNDEDTOOLS:TOOLS WITHTHREE PRONG PLUGS
1. Tools marked with “Grounding Required” have a three wire cord and three prong
grounding plug. The plug must be connected to a properly grounded outlet. If
the tool should electrically malfunction or break down, grounding provides a low
resistance path to carry electricity away from the user, reducing the risk of elec-
tric shock. (See Figure A.)
2. The grounding prong in the plug is connected through the green wire inside the
cord to the grounding system in the tool. The green wire in the cord must be the
only wire connected to the tool’s grounding system and must never be attached
to an electrically “live” terminal. (See Figure A.)
3. Your tool must be plugged into an appropriate outlet, properly installed and
grounded in accordance with all codes and ordinances. The plug and outlet
should look like those in the following illustration. (See Figure A.)

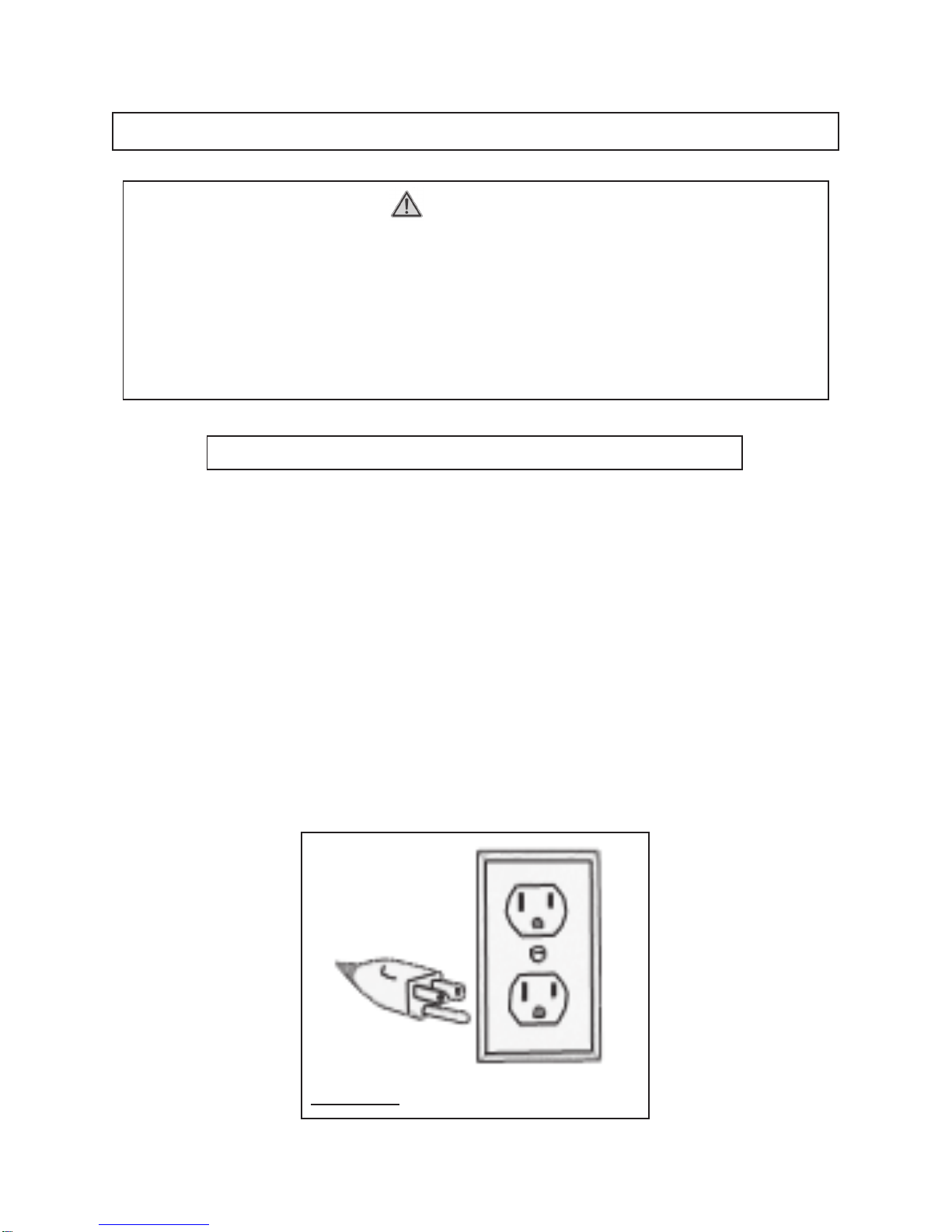

FIGURE A

SKU 91924 Page 8
For technical questions, please call 1-800-444-3353.

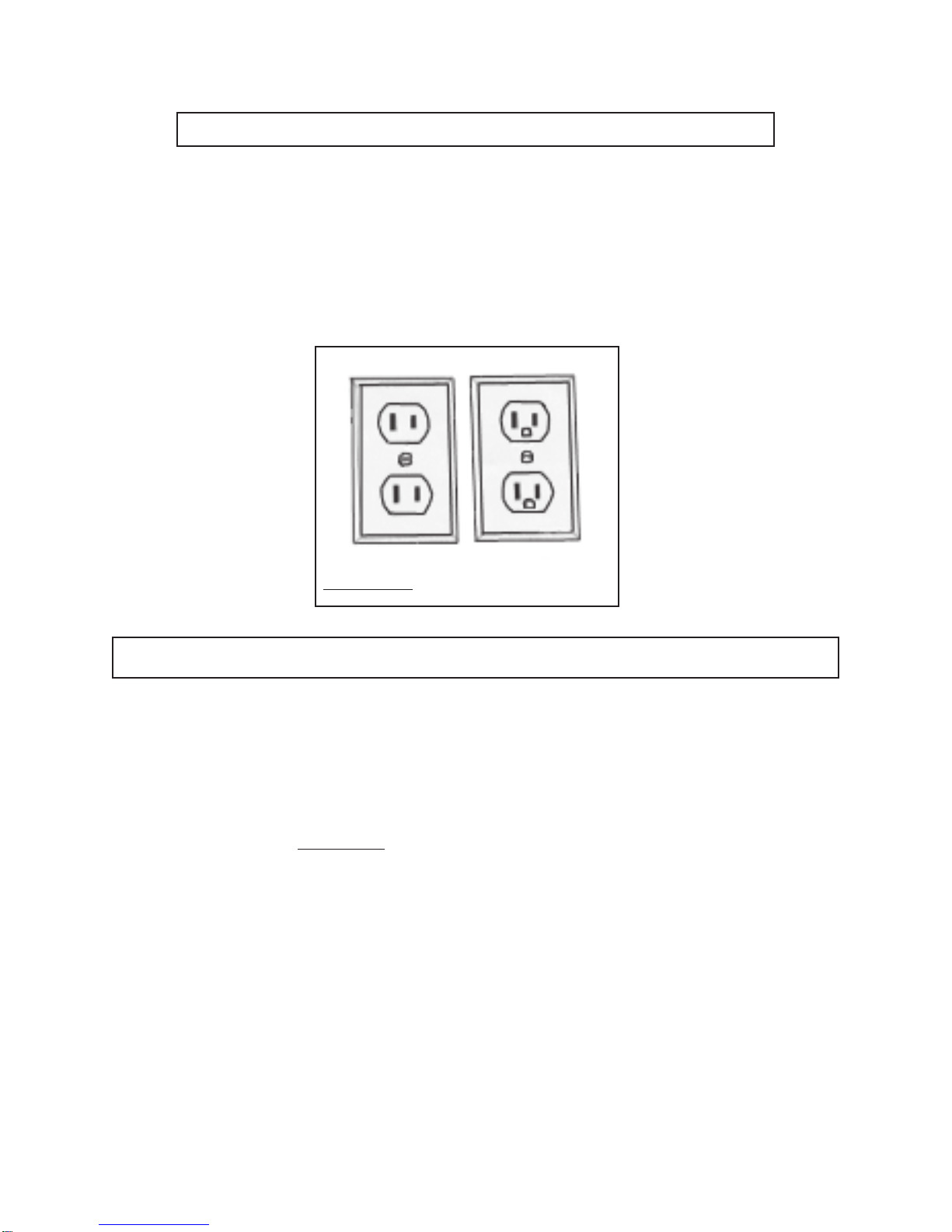

FIGURE B
DOUBLE INSULATEDTOOLS:TOOLS WITHTWO PRONG PLUGS
4. Tools marked “Double Insulated” do not require grounding. They have a special
double insulation system which satisfies OSHA requirements and complies with
the applicable standards of Underwriters Laboratories, Inc., the Canadian
Standard Association, and the National Electrical Code. (See Figure B.)
5. Double insulated tools may be used in either of the 120 volt outlets shown in the
following illustration. (See Figure B.)
EXTENSION CORDS
1. Grounded tools require a three wire extension cord. Double Insulated tools
can use either a two or three wire extension cord.
2. As the distance from the supply outlet increases, you must use a heavier gauge
extension cord. Using extension cords with inadequately sized wire causes a
serious drop in voltage, resulting in loss of power and possible tool damage.
(See Figure C, next page.)
3. The smaller the gauge number of the wire, the greater the capacity of the cord.
For example, a 14 gauge cord can carry a higher current than a 16 gauge cord.
(See Figure C.)
4. When using more than one extension cord to make up the total length, make
sure each cord contains at least the minimum wire size required.
(See Figure C.)
5. If you are using one extension cord for more than one tool, add the nameplate
amperes and use the sum to determine the required minimum cord size.

SKU 91924 Page 9
For technical questions, please call 1-800-444-3353.
6. If you are using an extension cord outdoors, make sure it is marked with the suffix
“W-A” (“W” in Canada) to indicate it is acceptable for outdoor use.
7. Make sure your extension cord is properly wired and in good electrical condition.
Always replace a damaged extension cord or have it repaired by a qualified
electrician before using it.
8. Protect your extension cords from sharp objects, excessive heat, and damp or
wet areas.
RECOMMENDED MINIMUM WIRE GAUGE FOR EXTENSION CORDS*
(120 VOLT)
NAMEPLATE
AMPERES
(At Full Load)
EXTENSION CORD LENGTH
25
Feet 50 Feet 75 Feet 100 Feet 150 Feet
0 – 2.0 18 18 18 18 16
2.1 – 3.4 18 18 18 16 14
3.5 – 5.0 18 18 16 14 12
5.1 – 7.0 18 16 14 12 12
7.1 – 12.0 16 14 12 10 -
12.1 – 16.0 14 12 10 - -
16.1 – 20.0 12 10 - - -
* Based on limiting the line voltage drop
to five volts at 150% of the rated amperes.
FIGURE C
SYMBOLOGY
Double Insulated
Canadian Standards
Association
Underwriters
Laboratories, Inc.
Volts Alternating Current
Amperes
No Load Revolutions
per Minute (RPM)
noxxxx/min.
A
V ~

SKU 91924 Page 10
For technical questions, please call 1-800-444-3353.
UNPACKING
When unpacking, check to make sure that this product is in good condition, and all the
following are included. If any parts are missing or broken, please call Harbor FreightTools
at the number shown on the cover of this manual as soon as possible.
SnowThrower Main Component
SnowThrower Handle
(2) Locking Knobs
ASSEMBLY AND OPERATING INSTRUCTIONS
NOTE: For additional information regarding the parts listed in the following pages, refer
to the Assembly Diagram on page 13.
1. CAUTION: Always make sure the Power Cord is unplugged from its electrical outlet
prior to assembling or making any adjustments to the tool.
2. Before using the Snow Thrower, you must assemble the Handle. Insert the upper
part of the Handle into the lower part, as in the photo.There is an insertion mark on
the handle. Do not insert beyond the mark. Be careful not to damage the electric
cord inside the Handle.Tighten the Knobs.
3. To operate, the SnowThrower must
have 110-120 VAC power. Provide
an extension cord (not supplied) of
sufficientlength,andmeeting there-
quirements discussed in the previ-
oussection.Be careful that the ex-
tension cord does not lie in open
water or on wet surfaces. Observe
all safety precautions mentioned in
this manual.
4. If the SnowThrower gets locked up
with ice or operates slowly or with
difficulty, stop using immediately.
UnplugtheSnowThrowerandmove
it to a slightly warm garage or other room where any water will be able to drain away
from the Thrower without damaging the room. Ensure that all snow and water has
completely melted and the Thrower has dried before use.
5. You can adjust the height of the thrown material among three settings, High, Me-
dium, orLow.You do thisby raising or lowering the heightof theRearWheels, which
changes the angle of the SnowThrower.
Knobs
Upper
Handle

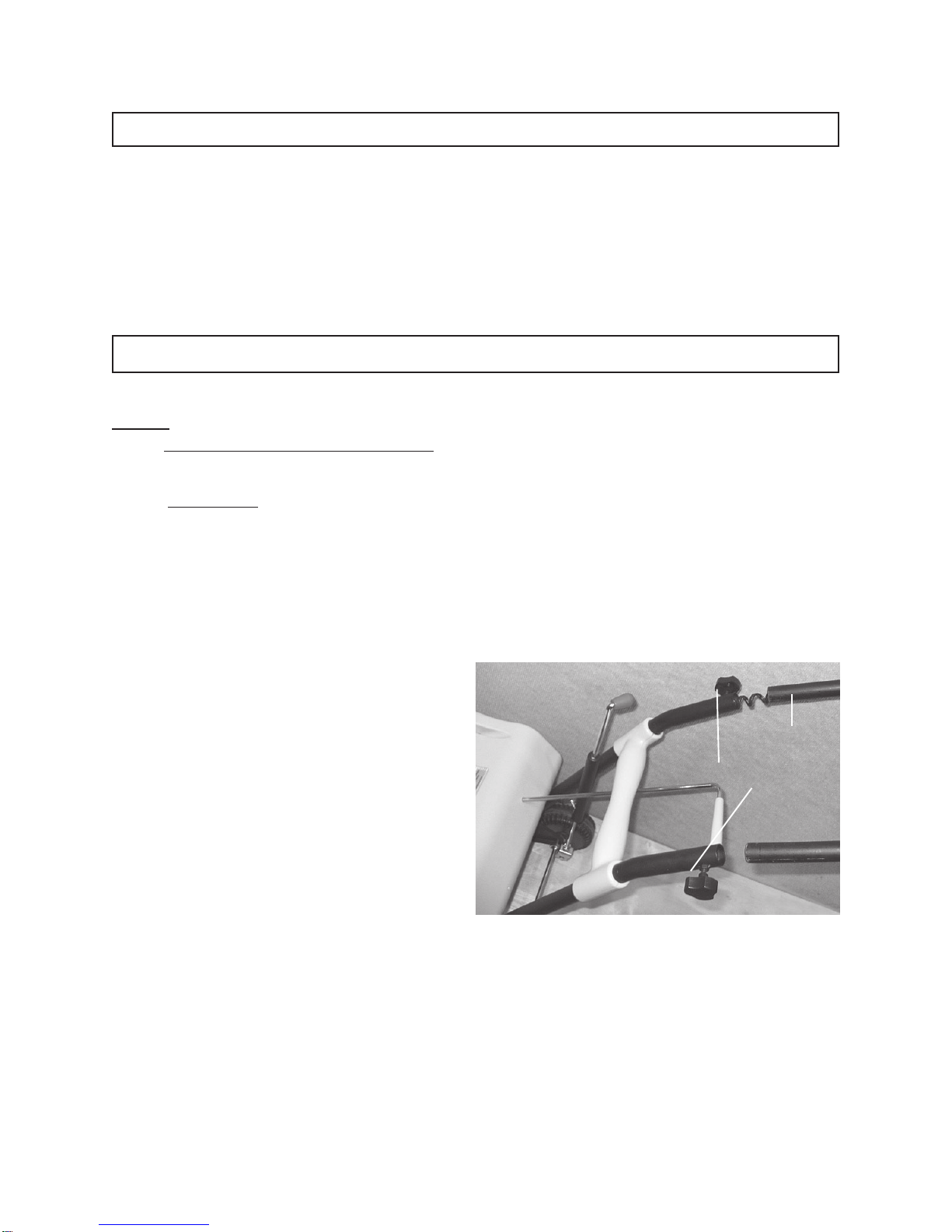

Assembling the Handle

SKU 91924 Page 11
For technical questions, please call 1-800-444-3353.
6. To change the angle that the snow is ejected, rotate the Height Control Lever to
unlock it.Then press down or pull up on the Handle as needed to move the unit to
the desired setting. Rotate the Height Control Lever to lock the unit into its new
setting.
7. You can adjust whether the snow is
ejected forward, or to the left or right.To
change the angle at which snow is
ejected,push theDirectionControlLever
down slightly, rotate it to the left, right, or
center as required, then allow it to come
back up.This will change the orientation
of the Direction Flaps as desired.
8. To operate the Snow Thrower, grasp the
Handle firmly. Press in the Safety and,
while holding it in, squeeze the Trigger.
The machine will begin to operate imme-
diately.
Height Control
Lever
Direction Control
Lever
Safety Trigger
Direction Flaps
NOTE: To stop the machine, remove your
hand from the handle, releasing the
Trigger.
9. Roll the Snow Thrower slowly for-
ward over the snow.Observe the di-
rectionthatthesnowisbeingthrown.
If necessary, stop working and ad-
justthe throwing heightordirection.
10. Do not force the Snow Thrower
through the snow. Listen to the motor
as you work. If the motor slows down
excessively, pull the Snow Thrower
backtoallowthemotortoregainspeed,
androllthemachineforwardataslower
rate.
11. When you reach the end of a row, be
aware of where the thrown snow will
go.You may have to adjust your direc-
tion or the throwing height to manage
the direction of thrown snow. REV 11/04

SKU 91924 Page 12
For technical questions, please call 1-800-444-3353.
INSPECTION, MAINTENANCE, AND CLEANING
1. WARNING! Make sure theTrigger of the SnowThrower is in its “OFF”position
and that the tool is unplugged from its electrical outlet before performing any in-
spection, maintenance, or cleaning procedures.
2. BEFORE EACH USE, inspect the general condition of the Snow Thrower. Check
for loose screws, misalignment or binding of moving parts, cracked or broken parts,
damaged electrical wiring, and any other condition that may affect its safe opera-
tion. If abnormal noise or vibration occurs, have the problem corrected before fur-
ther use. Do not use damaged equipment.
3. When putting this tool away after each use, be sure to remove any snow or water
which may be on it. Water and moist conditions are inherently damaging to any
electrical tool. Be sure to store this tool in dry condition in a dry place.
4. Check the Belt for damage, and to be sure it is properly aligned. If it is loose or
damaged, have it serviced or replaced by a qualified service technician.
5. Check the Rubber Blades for wear, and to be sure they are properly installed.Each
Rubber Blade is held in place with four Screws and Washers. Ensure that they are
properly installed and tight.
6. If the Rubber Blades are excessively worn, they may be replaced.To do this, first
remove and set aside the four Screws and Washers from each Rubber Blade.The
Rubber Blades may be pulled out of the slots in the Drum.
7. Install new Rubber Blades in the Drum, being sure that the shiny side of the new
Rubber Blade is up, and the coarse side is down.Tighten each Rubber Blade firmly
in place using the Screws andWashers.
12. When you have finished blowing snow, stop the machine.To do this, release your
grip on the handle, which will release theTrigger, stopping the machine.Disconnect
the extension cords, roll them up and store them for next use. Move the Snow
Thrower to a suitable storage location. Brush or wipe off any snow or moisture
before storing this tool. Remember that storing this machine wet may cause dam-
age to it.
WARNING:Snow, ice and other materials may be ejected from this SnowThrower at
high speed. Use extreme caution in managing the direction of materials thrown by
this SnowThrower. Never allow the ejected material to be directed at any person or
animal. Be careful to direct thrown material away from any property which may be
harmed by the force of the ejected material or its accumulation.

SKU 91924 Page 13
For technical questions, please call 1-800-444-3353.
PARTS LIST
traPNOITPIRCSED.ytQtraPNOITPIRCSED.ytQtraPNOITPIRCSED.ytQ
1laeS223kniL136tekcarBdroCrewoP1
2yelluP133reveLlortnoCnoitceriD146gnisuoHeldnaHreppU1
3esaB143DrehsaW156rotcetorPelbaC1
4wercS353tekcarBtfahS166CgnirpS1
5tuNtresnInolyN363wercS576ytefaS1
6etalP173AgnirpS186reggirT1
7wercS2183eriWdaeL196hctiwS1
8etalP293redloHeriW107eldnaHrewoLtfeL1
9edalBrebbuR204tekcarBelxAthgiR117niPnoitcennoC1
01revoC114paC227wercS4
11revoCesaBthgiR124tekcarBelxAtfeL137leehW2
21ArehsaW334elxA147gnisuoH1
31palFnoitceriDtfeL144pirG157yelluP1
41tuNtresnInolyN254rotcennoC167tleB1
51wercS3164tuNnrocA177BgnirpS1
61palFnoitceriD474tekcarBretsujdA187egnalF1
71draoBpalFnoitceriD184ydoBretsujdAthgieH197gniraeB1
81palFnoitceriDthgiR194draoBnoitalusnI108reniateR2
91laeS105gnirpS118revoC1
02redloHrotoM115niP228eldnipSpalF1
12wercS625pilC138revoCyelluP1
22naF135niP148wercS51
32gnir-O145reveLlortnoCthgieH158pilC1
42rotoM155eldnaHlortnoCthgieH168gnihsuB1
52ErehsaW7165redloHlortnoCrewoL178BrehsaW8
62tnuoMmottoBrotoM175redloHlortnoCreppU188rehsaWkcoL8
72tuNtresnInolyN5185bonK298rotalusnI4
82wercS495eldnaHrewoLthgiR109revoC2
92revoC106eldnaHreppU219lanimreT2
03reifitceR116droCrewoP129lanimreT2
13eciveDtcetorPdaolrevO126gnisuoHeldnaHrewoL139DgnirpS1

SKU 91924 Page 14
For technical questions, please call 1-800-444-3353.

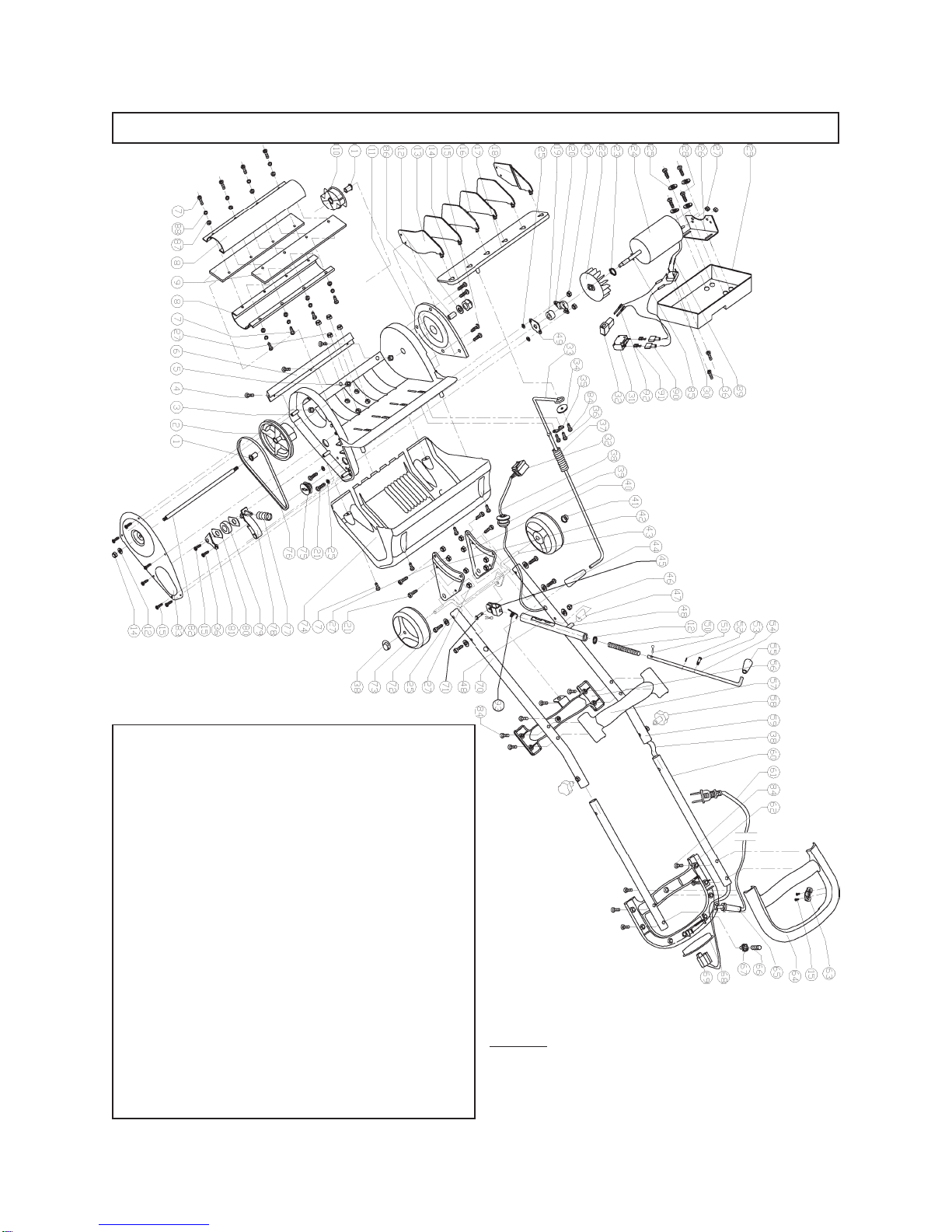

ASSEMBLY DIAGRAM
NOTE: Some parts are listed and shown
for illustration purposes only, and are not
available individually as replacement
parts.
PLEASE READTHE
FOLLOWING
CAREFULLY
THE MANUFACTURER AND/OR DISTRIBUTOR
HAS PROVIDED THE PARTS LIST AND ASSEM-
BLY DIAGRAM IN THIS MANUAL AS A REFER-
ENCE TOOL ONLY. NEITHER THE MANUFAC-
TURERNOR DISTRIBUTORMAKES ANYREPRE-
SENTATION OR WARRANTY OF ANY KIND TO
THE BUYER THAT HE OR SHE IS QUALIFIED TO
MAKEANYREPAIRSTOTHEPRODUCT, ORTHAT
HE OR SHE IS QUALIFIED TO REPLACE ANY
PARTS OFTHE PRODUCT. IN FACT, THE MANU-
FACTURER AND/OR DISTRIBUTOR EXPRESSLY
STATES THAT ALL REPAIRS AND PARTS RE-
PLACEMENTS SHOULD BE UNDERTAKEN BY
CERTIFIED AND LICENSEDTECHNICIANS, AND
NOTBYTHE BUYER. THEBUYERASSUMESALL
RISK AND LIABILITY ARISING OUT OF HIS OR
HER REPAIRS TO THE ORIGINAL PRODUCT OR
REPLACEMENT PARTS THERETO, OR ARISING
OUT OF HIS OR HER INSTALLATION OF RE-
PLACEMENT PARTS THERETO.
