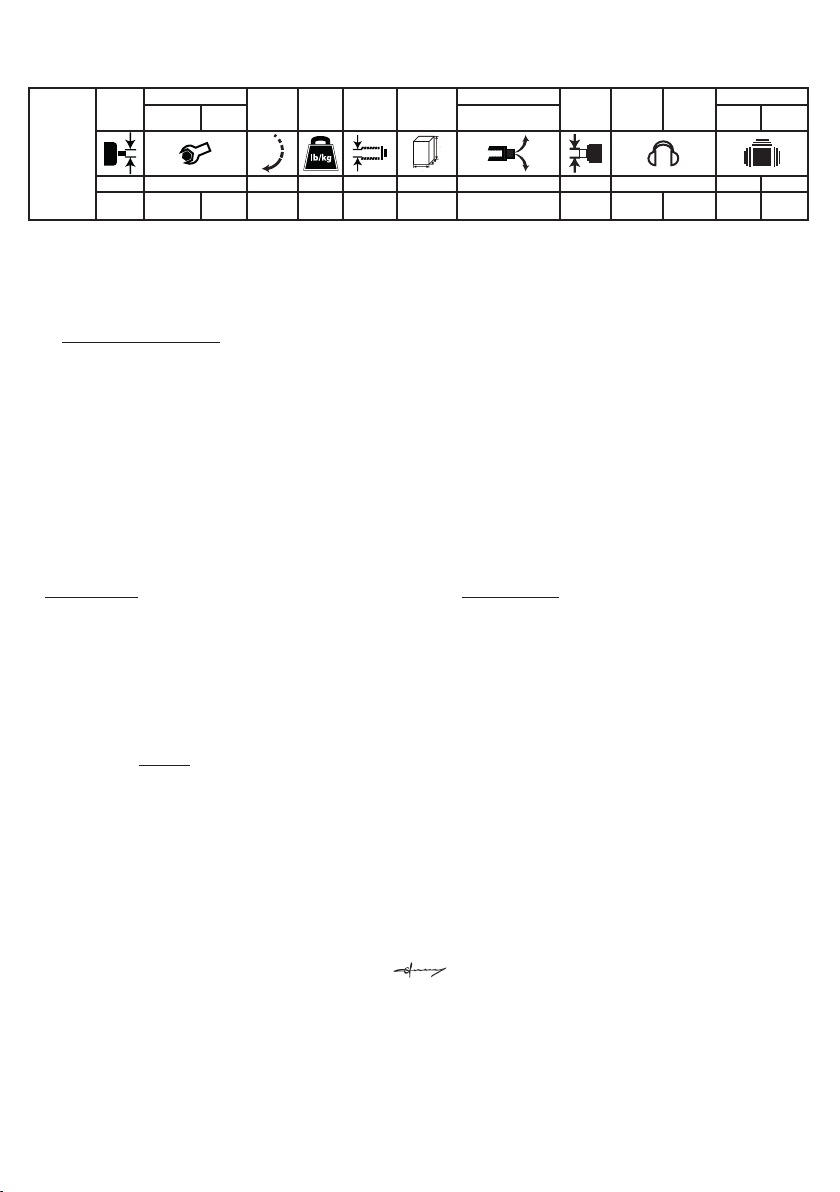

1. Technical Data (see Fig 4.)
CP6120-D35H & CP6120-D35L Series
Impact Wrench
max pressure 6.3 bar (90 psi)
ahd :Vibration level, kUncertainty ; LpA Sound pressure level dB(A), KpA = KWA = 3 dB Uncertainty.
Declaration of noise (ISO 15744) and vibration emission (ISO 28927-2)
All values are current as of the date of this publication.
These declared values were obtained by laboratory type testing in accordance with the stated standards and are suitable for comparison with the declared va-
lues of other tools tested in accordance with the same standards. These declared values are not adequate for use in risk assessments and values measured
in individual work places may be higher. The actual exposure values and risk of harm experienced by an individual user are unique and depend upon the way
the user works, the workpiece and the workstation design, as well upon the exposure time and the physical condition of the user.
We, CHICAGO PNEUMATIC TOOLS , cannot be held liable for the consequences of using the declared values, instead of values reecting the actual exposu-
re, in an individual risk assessment in a work place situation over which we have no control.
This tool may cause hand-arm vibration syndrome if its use is not adequately managed.
We recommend a programme of health surveillance to detect early symptoms which may relate to noise or vibration exposure, so that management proce-
dures can be modified to help prevent future impairment.
2. Machine Type
• This product is designed for installing and removing threaded fasteners in wood, metal and plastic. No other use permitted. For professional use only.
• Please read the product safety information carefully!
3. Implementation and Operation
• Connect device as shown in Fig.1.
• Fix the accessories properly to the tool.
• To switch rotation, turn the switch (B) as shown in Fig. 3
• To start the machine, simply pull the trigger (A). Machine speed is increased by increasing pressure on the trigger. Release the trigger to stop.
• Use the reverse switch (B) only when the drive spindle comes to a complete stop.
4. Lubrication
•Motor Lubrication •Clutch Lubrication
Use an air line lubricator with SAE #10 oil, adjusted to two (2) drops per minute. If
an air line lubricator cannot be used, add air motor oil to the inlet once a day.
Recommended lubricant CP Oil PROTECTO-LUBE:
- 4 oz (0.12l) P/N: CA149661
- 20.8 oz (0.591l) P/N: CA000046
- 1gal (3.8l) P/N: P089507
Use CP Pneu-Lube Synthetic Clutch Grease 8940158455:
1.75 oz. (50g).
5. Maintenance
• Follow local country environmental regulations for safe handling and disposal of all components
• Disassemble and inspect the tool every three 3 months if the tool is used every day. Replace damaged or worn parts.
• Always ensure that the machine is disconnected from energy source (compressed air) to avoid accidental operation.
• High wear parts are underlined in the parts list.
• To keep downtime to a minimum, the following service kits are recommended:
Tune-Up Kit: see part list
6. Disposal
• The disposal of this equipment must follow the legislation of the respective country.
• All damaged, badly worn or improperly functioning devices MUST BE TAKEN OUT OF OPERATION.
• Repair only by technical maintenance staff.
7. Declaration of conformity
We : CHICAGO PNEUMATIC Tool Company LLC
Declare that the product(s): Impact Wrench
Machine type(s) : CP6120-D35H, CP6120-D35L Serial Number: From 00001 to 99999
Origin of the product : Japan
is in conformity with the requirements of the council Directives on the approximation of the laws of the Member States relating : to “Machinery“ 2006/42/EC (17/05/2006)
applicable harmonised standard(s) : EN ISO 11148-6:2012
Name and position of issuer : Pascal Roussy (R&D Manager)
Place & Date : Saint-Herblain, 12/02/2016
Technical file available from EU headquarter. Pascal Roussy R&D Manager CP Technocenter 38.
Model
Drive
Torque
Speed Weight Inner Hose
Dia.
Dimension
L x H x W
Air Consumption
Air Inlet
Sound-
Pressure
LpA
Sound-
Power
LwA
Vibrations
Working Max At load ahd k
1 2 3 4 5 6 7 8 9 10 11
[inch] [ft.lbs]
[Nm]
[ft.lbs]
[Nm] [min-1] [lb]
[kg]
[inch.]
[mm]
[inch.]
[mm]
[SCFM]
[Nl/s] [inch] [dB(A)] [dB(A)] [m/s²] [m/s²]
