CHIEF 621144 User manual

EAVE SUPPORT TOWER
INSTALLATION MANUAL
P/N 621144
Trusted. Tested. True.

Chief Industries, Inc. 800-359-7600 P/N –621144 Page 2
Chief Industries, Inc. – Agri/Industrial Division
TableofContents
Manual Revisions.................................................................................................................3
STANDARD LIMITED WARRANTY.....................................................................................4
Before You Begin ...............................................................................................................10
General Design Information................................................................................................11
Accessory Equipment.........................................................................................................12
General Contractor Responsibilities...................................................................................12
Field Modifications and Installation Defects ....................................................................................... 12
Checking Shipment............................................................................................................................. 12
Suggested Equipment ........................................................................................................................ 13
Crane Weight Capacity....................................................................................................................... 13
Hardware Torque................................................................................................................................ 14
Concrete Design and Construction..................................................................................................... 15
Installation ..........................................................................................................................16

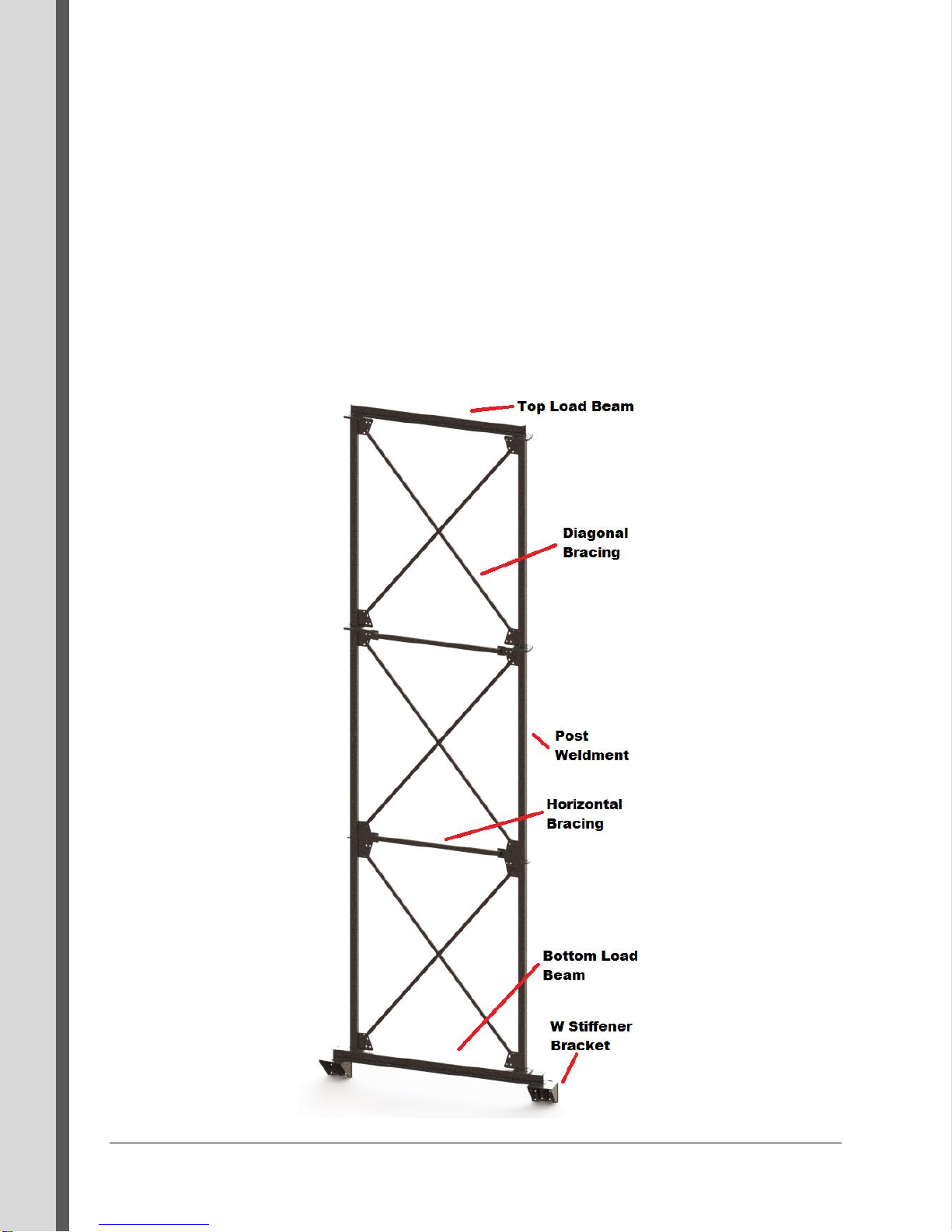

Part Identification................................................................................................................................ 16
Eave tower Sections........................................................................................................................... 21
W Stiffener Mounting .......................................................................................................................... 27
Intermediate Bracing........................................................................................................................... 31
Conveyor Mounting............................................................................................................................. 32
Maintenance Instructions....................................................................................................33

E A V E T O W E R
Chief Industries, Inc. 800-359-7600 INTRODUCTION -9621144 Page 3
Manual Revisions
1-1-2016
oGeneral formatting update
Chief Industries, Inc.
4400 East 39th Street • PO Box 848
Kearney, NE 68847
Phone [phone]
For more information about Chief Industries, Inc. and additional products or services please visit our website
www.agri.Chiefind.com

E A V E T O W E R
Chief Industries, Inc. 800-359-7600 INTRODUCTION -9621144 Page 4
STANDARD LIMITED WARRANTY
Catwalk and Tower Products
1. Definitions. The following terms, when they appear in the body of this Standard Limited
Warranty for Catwalk and Tower Products in initial capital letters shall have the meaning
set forth below:
A. Accepted Purchase Order shall mean the Purchase Order identified below.
B. Chief shall mean Chief Agri/Industrial, a division of Chief Industries, Inc.
C. Original Owner shall mean the original owner identified below.
D. Product shall mean the Agri/Industrial Equipment as described in the Accepted
Purchase Order.
E. Reseller shall mean the authorized Chief Agri/Industrial Equipment dealer
identified below.
2. Limited Product Warranty. Upon and subject to the terms and conditions set forth
below, Chief hereby warrants to the Reseller, and, if different, the Original Owner as
follows:
A. All new Products delivered to the Reseller or the Original Owner by Chief
pursuant to the Accepted Purchase Order will, when delivered, conform to the
specifications set forth in the Accepted Purchase Order;
B. All new Products delivered pursuant to the Accepted Purchase Order will, in
normal use and service, be free from defects in materials or workmanship; and
C. Upon delivery, Chief will convey good and marketable title to the Products, free
and clear of any liens or encumbrances except for, where applicable, a purchase
money security interest in favor of Chief.
3. Duration of Warranty and Notice Requirements. Subject to the Exceptions,
Exclusions and Limitations set forth below, the warranties set forth in Section 2 above
shall apply to all covered non-conforming conditions that are discovered within the first
twenty-four (24) months following delivery of the Product to the carrier designated by the
Reseller and/or the Original Owner at Chief’s manufacturing facility in Kearney,
Nebraska (the “Warranty Period”) and are reported to the Chief as provided in Section 4
below within thirty (30) days following discovery (a “Notice Period”).
4. Notice Procedure. In order to make a valid warranty claim, the Reseller and/or the
Original Owner must provide Chief with a written notice of any nonconforming condition
discovered during the Warranty Period within the applicable Notice Period specified in
Section 3 above. Said notice must be in writing; be addressed to Chief Industries, Inc.,
Agri/Industrial Division, Customer Service Department, P.O. Box 848, Kearney, NE
68848; and contain the following information: (a) the Customer’s name and address; (b)
the Reseller’s name and address; (c) the make and model of the Product in question; (d)
the current location of the Product; (e) a brief description of the problem with respect to
which warranty coverage is claimed; and (f) the date on which the Product was
purchased.

E A V E T O W E R
Chief Industries, Inc. 800-359-7600 INTRODUCTION -9621144 Page 5
5. Exceptions and Exclusions. Anything herein to the contrary notwithstanding, the
warranties set forth in Section 2 above do not cover any of the following, each of which
are hereby expressly excluded:
A. Defects that are not discovered during the applicable Warranty Period;
B. Defects that are not reported to the Chief Agri/Industrial Division Customer
Service Department in conformity with the notice procedure set forth in Section 4
above within the applicable Notice Period specified in Section 3;
C. Any used or pre-owned Products;
D. Any Chief manufactured parts that are not furnished as a part of the Accepted
Purchase Order;
E. Any fixtures, equipment, materials, supplies, accessories, parts or components
that have been furnished by Chief but are manufactured by a third party;
F. Any Products which have been removed from the location at which they were
originally installed;
G. Any defect, loss, damage, cost or expense incurred by the Reseller or the
Original Owner to the extent the same arise out of, relate to or result, in whole or
in part, from any one or more of the following:
(i) Usual and customary deterioration, wear or tear resulting from normal
use, service and exposure;
(ii) Theft, vandalism, accident, war, insurrection, fire or other casualty;
(iii) Any damage, shortages or missing parts which result during shipping or
are otherwise caused by the Reseller, the Original Owner and/or any third
party;
(iv) Exposure to marine environments, including frequent or sustained salt or
fresh water spray;
(v) Exposure to corrosive, chemical, ash, smoke, fumes, or the like
generated or released either within or outside of the structure on which
the Product is installed, regardless of whether or not such facilities are
owned or operated by the Reseller, the Original Owner or an unrelated
third party;
(vi) Exposure to or contact with animals, animal waste and/or decomposition;
(vii) The effect or influence the Product may have on surrounding structures,
including, without limitation, any loss, damage or expense caused by
drifting snow;
(viii) Any Product or portion thereof that has been altered, modified or repaired
by the Reseller, the Original Owner or any third party without Chief’s prior
written consent;
(ix) Any Product or portion thereof that has been attached to any adjacent
structure without Chief’s prior written approval;
(x) Any Product to which any fixtures, equipment, accessories, materials,
parts or components which were not provided as a part of the original
Accepted Purchase Order have been attached without Chief’s prior
written approval;

E A V E T O W E R
Chief Industries, Inc. 800-359-7600 INTRODUCTION -9621144 Page 6
(xi) The failure on the part of the Reseller, the Original Owner or its or their
third party contractors to satisfy the requirements of all applicable
statutes, laws, ordinances rules, regulations and codes, (including zoning
laws and/or building codes);
(xii) The use of the Product for any purpose other than the purpose for which
it was designed; and/or
(xiii) The failure of the Reseller, the Original Owner and/or any third party to:
(a) properly handle, transport and/or store the Product or any
component part thereof;
(b) properly select and prepare a site that is adequate for the
installation and/or operation of the Product or any component part
thereof;
(c) properly design and construct a foundation that is adequate for the
installation and/or operation of the Product or any component part
thereof;
(d) properly set up, erect, construct or install the Product and/or any
component part thereof; and/or
(e) properly operate, use, service and/or maintain the Product and
each component part thereof.
6. Resolution of Warranty Claims. In the event any nonconforming condition is
discovered within the Warranty Period and Chief is notified of a warranty claim as
required by Section 4 prior to the end of the applicable Notice Period set forth in Section
3 above, Chief shall, with the full cooperation of the Reseller and the Original Owner,
immediately undertake an investigation of such claim. To the extent Chief shall
determine, in its reasonable discretion, that the warranty claim is covered by the
foregoing Limited Product Warranty, the following shall apply:
A. Warranty Claims With Respect to Covered Non-Conforming Conditions
Discovered Within the First Three Hundred Sixty Five (365) Days and Reported
to Chief Within Thirty (30) Days of Discovery. In the case of a warranty claim
which relates to a covered non-conforming condition that is discovered during the
first three hundred sixty five (365) days of the Warranty Period and is reported to
Chief as required by Section 4 within thirty (30) days of discovery as required by
Section 3, Chief will, as Chief’s sole and exclusive obligation to the Reseller and
the Original Owner, and as their sole and exclusive remedy, work in cooperation
with the Reseller and the Original Owner to correct such non-conforming
condition, and in connection therewith, Chief will ship any required replacement
parts to the “ship to address” set forth in the Accepted Purchase Order FOB
Chief’s facilities in Kearney, Nebraska, and will either provide the labor or
reimburse the Reseller or the Original Owner, as may be appropriate in the
circumstances, for any out of pocket expense the Original Owner may
reasonably and necessarily incur for the labor that is required to correct such
non-conforming condition, provided that if work is to be performed by the
Reseller or a third party contractor, Chief may require at least two competitive
bids to perform the labor required to repair or correct the defect and reserves the
right to reject all bids and obtain additional bids. Upon acceptance of a bid by
Chief, Chief will authorize the necessary repairs.
B. All Other Warranty Claims. Except as is otherwise provided in subsection 6A
above, in the case of all other warranty claims which relate to covered non-

E A V E T O W E R
Chief Industries, Inc. 800-359-7600 INTRODUCTION -9621144 Page 7
conforming conditions that are discovered during the Warranty Period and are
reported to Chief as required by Section 4 within thirty (30) days following
discovery, Chief will, as Chief’s sole and exclusive obligation to the Reseller and
the Original Owner, and as the Reseller’s and the Original Owner’s sole and
exclusive remedy, ship any required replacement parts to the Original Owner at
the “ship to address” specified in the Accepted Purchase Order FOB Chief’s
facilities in Kearney, Nebraska; and in such event, Chief shall have no
responsibility or liability to either the Reseller or the Original Owner for the cost of
any labor required to repair or correct the defect.
7. Warranty Not Transferable. This Warranty applies only to the Reseller and the Original
Owner and is not transferable. As such, this Warranty does not cover any Product that
is sold or otherwise transferred to any third party following its delivery to the Original
Owner.
8. Limitation on Warranties, Liabilities and Damages. The Reseller and the Original
Owner expressly agree that the allocation of the risk, liability, loss, damage, cost and
expense arising from any Product that does not conform to the limited warranty given in
Section 2 above are fair and reasonable and acknowledge that such allocation was
expressly negotiated by the parties and was reflected in the Purchase Price of the
Product. Accordingly the Reseller and the Original Owner expressly agree as follows:
A. Disclaimer of Implied Warranties. EXCEPT AS IS OTHERWISE EXPRESSLY
SET FORTH HEREIN, CHIEF MAKES NO OTHER REPRESENTATIONS OR
WARRANTIES OF ANY KIND WHATSOEVER, WHETHER EXPRESS OR
IMPLIED, BY OPERATION OF LAW, COURSE OF DEALING OR OTHERWISE
WITH RESPECT TO THE PRODUCT, ANY COMPONENT PART THEREOF
OR ANY OTHER GOODS OR SERVICES THAT CHIEF MANUFACTURES,
FABRICATES, PRODUCES, SELLS OR PROVIDES TO THE DEALER OR
THE ORIGINAL OWNER PURSUANT TO THE TERMS OF ANY ACCEPTED
PURCHASE ORDER, INCLUDING WITHOUT LIMITATION ANY
REPRESENTATION OR WARRANTY WITH RESPECT TO DESIGN,
CONDITION, MERCHANTABILITY OR FITNESS OF THE PRODUCT OR ANY
OTHER GOODS OR SERVICES FOR ANY PARTICULAR PURPOSE OR USE.
B. Limitation on Liability. EXCEPT AS IS OTHERWISE EXPRESSLY SET
FORTH IN SECTION 6 ABOVE, CHIEF'S LIABILITY TO THE DEALER
AND/OR THE ORIGINAL OWNER WITH RESPECT TO ANY DEFECTS IN
ANY PRODUCTS OR FOR ANY OTHER GOODS OR SERVICES WHICH DO
NOT CONFORM TO THE WARRANTIES SET FORTH ABOVE SHALL NOT, IN
ANY EVENT, EXCEED THE ACTUAL COST OF SUCH NON-CONFORMING
PRODUCT, GOODS OR SERVICES AS DETERMINED PURSUANT TO THE
ACCEPTED PURCHASE ORDER; AND
C. Limitation on the Nature of Damages. EXCEPT AS EXPRESSLY PROVIDED
IN SECTION 6 ABOVE, CHIEF SHALL NOT, UNDER ANY CIRCUMSTANCES,
BE LIABLE TO THE DEALER, THE ORIGINAL OWNER OR ANY THIRD
PARTY FOR ATTORNEY FEES COURT COSTS OR ANY OTHER SPECIAL,
INDIRECT, INCIDENTAL, CONSEQUENTIAL, LIQUIDATED OR PUNITIVE
DAMAGES OF ANY NAME, NATURE OR DESCRIPTION AS A RESULT OF
THE FAILURE OF ANY PRODUCT OR ANY OTHER GOODS OR SERVICES
PURCHASED BY THE DEALER OR THE ORIGINAL OWNER FROM CHIEF
PURSUANT TO THE ACCEPTED PURCHASE ORDER TO CONFORM TO
THE LIMITED WARRANTIES SET FORTH IN SECTION 2 ABOVE.

E A V E T O W E R
Chief Industries, Inc. 800-359-7600 INTRODUCTION -9621144 Page 8
8. Applicable Law. This Limited Product Warranty has been issued, accepted and
entered into by the Reseller, the Original Owner and Chief in the State of Nebraska and
shall be governed by, and construed in accordance with, the internal laws of the State of
Nebraska. Any legal action or proceeding with respect to any goods or services
furnished to the Original Owner by Chief in connection herewith, or any document
related hereto shall be brought only in the district courts of Nebraska, or the United
States District Court for the District of Nebraska, and, by execution and delivery of this
Limited Product Warranty, the undersigned Original Owner hereby accept for
themselves and with respect to their property, generally and unconditionally, the
jurisdiction of the aforesaid courts. Further, the undersigned Original Owner hereby
irrevocably waives any objection, including, without limitation, any forum non
conveniens, which it may now or hereafter have to the bringing of such action or
proceeding in such respective jurisdictions.
ACKNOWLEDGMENT OF RECEIPT
By its signature hereto, the undersigned Reseller represents and warrants to Chief that the
Reseller has provided a true, correct and complete copy of this Standard Limited Warranty to
the Original Owner at the time the product was purchased.
Reseller Name and Address: _______________________________
_______________________________
_______________________________
Original Owner Name and Address: _______________________________
_______________________________
_______________________________
Accepted Purchase Order No. _________________________
Original Jobsite Address: _____________________________________
_____________________________________
_____________________________________
RESELLER:
By: _________________________________
Date
Print name and title
4842-7507-8689, v. 1

E A V E T O W E R
Chief Industries, Inc. 800-359-7600 INTRODUCTION -9621144 Page 9
Warning
Water Sensitive Materials - Read this notice carefully
Bundles must be inspected and carrier advised immediately if damage is noted. White rust is a
corrosion attack of the zinc coating resulting from the presence of water. Anywhere rust is
found will result in a reduction of the life of the galvanized steel.
If water has entered a bundle or if condensation has formed between items, the bundle must be
opened, the items separated and all surfaces dried.
If items are to be installed within 10 days:
Store bundled items off the ground high enough to allow air circulation beneath bundle and to
prevent water from entering. Store 1 end at least 8” (20.32cm) higher than the opposite end.
Support long bundles in the center. Prevent rain from entering the bundle by covering with a
tarpaulin, making provision for air circulation between the draped edges and the ground.
Do not wrap in plastic.
If items are not to be installed within 10 days:
Provide inside dry storage. Storage beyond 6 months is not recommended. If white rust is
apparent upon receipt of shipment, notify Chief immediately. Damage to items, resulting from
improper storage, is the responsibility of the receiver.

E A V E T O W E R
Chief Industries, Inc. 800-359-7600 INTRODUCTION -9621144 Page 10
Before You Begin
Before starting the installation of the equipment, take time to thoroughly study
the construction methods in this manual, this will save you time and money.
Chief makes no warranty concerning components, accessories or equipment
not manufactured by Chief.
When using a cutting torch or welding galvanized material, the possibility of developing toxic
fumes will exist. Provide adequate ventilation and respiratory protection when using this type of
equipment during installation.
Introduction
Thank you for purchasing Chief equipment. Proper installation and operation will ensure you
the best overall experience with your equipment and guarantee smooth operation.
This proprietary information is loaned with the expressed agreement that the drawings and
information therein contained are the property of Chief Industries, Inc. and will not be
reproduced, copied, or otherwise disposed of, directly or indirectly, and will not be used in whole
or in part to assist in making or to furnish any information for the making of drawings, prints or
other reproduction hereof, or for the making of additional products or equipment except upon
written permission of Chief Industries, Inc. first obtained and specific as to each case. The
acceptance of this material will be construed as an acceptance of the foregoing agreement.
The technical data contained herein is the most recent available at the time of publication and is
subject to modification without notice. Chief Industries, Inc. reserves the right to modify the
construction and method of operation of their products at any time without any obligation on
their part to modify any equipment previously sold and delivered.


E A V E T O W E R
Chief Industries, Inc. 800-359-7600 INTRODUCTION -9621144 Page 11
General Design Information
All Chief towers are designed for structural support of material handling conveyors and
personnel.
All steel materials are purchased in accordance with the applicable ASTM Standard.
All bolted connections are designed using high strength bolts which meet the specifications of
the applicable ASTM or SAE standard.
All Chief tower structures are designed to withstand normally anticipated environmental and
service conditions per the specified ASCE7-10 design code.
Part Number
Description
Max Supported Load
9621696
10’ (3.05m) Eave to Peak Height
12,000 lbs (5,443 kg)
9621680
20’ (6.10m) Eave to Peak Height
12,000 (5,443 kg)
9621788
30’ (9.14m) Eave to Peak Height
5,000 (2,267 kg)

E A V E T O W E R
Chief Industries, Inc. 800-359-7600 INTRODUCTION -9621144 Page 12
Accessory Equipment
All accessory equipment should be installed and maintained in accordance with each individual
supplier’s installation and operation instructions. However, if any modifications to the Chief
standard design are required, contact Chief for special recommendations.
Important Note: Do not modify equipment without Chief approval. It is the responsibility of the
general contractor to verify that all equipment is properly installed and that the equipment is
compatible with the intended use. A qualified electrician should be contracted to complete all
electrical wiring and servicing.
General Contractor Responsibilities
It is the responsibility of the general contractor to verify that the complete support system and
other accessory equipment is constructed with quality workmanship and that all equipment is
installed per the respective manufacturer's instructions.
In addition, the general contractor is responsible for the fitness of use of any system which he
constructs. All accessory equipment incorporated into the system should be approved for the
intended use by each respective equipment manufacturer.
Field Modifications and Installation Defects
Chief assumes no responsibility for field modifications or installation defects which result in
structural damage. If any field modifications are necessary which are not specifically covered
by the contents of the installation manual, contact Chief for approval. Any unauthorized
modification or installation defect which affects the structural integrity of the support system will
void the warranty.
Checking Shipment
For your convenience steel components will be color coded, individual items labeled with an
appropriate part number and packages labeled. Hardware, including bolts, nuts, screws and
other small clips or brackets may be divided into smaller packages for ease of use and
identification.
Check your shipment at the time of delivery against the packing list provided with the shipment.
If any items are missing or any damaged material is evident, note such shortage or damage on
the freight bill before you sign the shipment paperwork.
Claims of shortages will not be honored after 30 days from receipt of shipment. Parts that are
missing or damaged are the responsibility of the delivering carrier, not the manufacturer or
dealer.
It is advisable to reorder damaged or missing parts immediately so that there will be no delay in
the bin installation. After receiving the invoice for the reordered material, file a claim with the
delivering carrier immediately.

E A V E T O W E R
Chief Industries, Inc. 800-359-7600 INTRODUCTION -9621144 Page 13
Suggested Equipment
Chief recommends the following equipment and tools needed for installation of the grain storage
bin. Individual installations may vary.
Impact wrenches and sockets
End wrenches
Crescent wrenches
Vise grip pliers
Alignment punches
Rubber mallets
Level
Crane Weight Capacity
Verify the total dead load by referring to the corresponding manual addendum for your
application. This weight includes all structural members and included hardware.
When determining the crane capacity necessary to install the support structure, the boom
distance must be considered. If a single crane will not lift the support structure two cranes may
be used, utilizing a spreader bar. The spreader bar must be adequately designed to carry the
entire dead weight.
Important Note: Overloading the crane capacity can result in substantial property damage and
severe personal injury. Always verify crane capacity prior to lifting.

E A V E T O W E R
Chief Industries, Inc. 800-359-7600 P/N - 621144 Page 14
Hardware Torque
All components are assembled using SAE grade hex head bolts with corresponding washers
and nuts. Bolts are marked with radial lines on the bolt head as shown in the following
illustration.
Do not substitute any other bolt type or grade. Use only the bolts supplied by Chief. The
substitution of bolts from other sources is not permitted and will void the warranty.
When installing hardware the minimum and maximum torque values shown below must be
followed. All hardware must seat tight against the corresponding bin component.
Bolt Diameter
Grade 2
Grade 5
Grade 8
Grade 8.2
1/4" (.63cm)
6 ft.-lbs.
10 ft.-lbs.
14 ft.-lbs.
14 ft.-lbs.
5/16” (.79cm)
12 ft.-lbs.
19 ft.-lbs.
29 ft.-lbs.
29 ft.-lbs.
3/8” (.95cm)
20 ft.-lbs.
25 ft.-lbs.
47 ft.-lbs.
47 ft.-lbs.
3/4" (1.90cm)
155 ft.-lbs.
240 ft.-lbs.
380 ft.-lbs.
380 ft.-lbs.
1” (2.54cm)
-
-
910 ft.-lbs.
-
Please note the following wrench / socket size to be used on the corresponding hardware:
Bolt Size
Head Size
Nut Size
1/4" (.63cm)
7/16” wrench
7/16” wrench
5/16” (.79cm)
1/2” wrench
1/2" wrench
3/8” (.95cm)
9/16” wrench
9/16” wrench
3/4" (1.90cm)
1-1/8” wrench
1-1/8" wrench
1” (2.54cm)
1-1/2” wrench
1-1/2” wrench

E A V E T O W E R
Chief Industries, Inc. 800-359-7600 P/N - 621144 Page 15
Concrete Design and Construction
Foundation designs are based on the allowable soil bearing capacity of the undisturbed soil and
should be certified by a licensed engineering firm. Using soil borings to determine the allowable
soil bearing capacity, a professional engineer will need to be employed by the contractor to
design the foundation accordingly. Foundation designs must be approved by a licensed
engineer in order to meet local governing building codes and local soil and weather conditions,
including seismic and wind loading requirements. Tower dead load, compression and uplift per
post, overturning moment at the foundation and horizontal shear per post is available from Chief
upon request.
Non-uniform settlement of the foundation can cause severe structural damage to the structure
and foundation. An improperly designed or constructed foundation will void all aspects of the
warranty. It is the responsibility of the general contractor to verify that an adequate foundation
is provided.
Important Note: Faulty concrete construction or shim omission will void the warranty.

E A V E T O W E R
Chief Industries, Inc. 800-359-7600 P/N - 621144 Page 16
Installation
Part Identification
The following is a general outline provided for reference only.
Important Note: Prior to starting the installation it is very important to plan ahead and by
verifying the order and location of all components.
Verify the correct tower type / style by looking at the weld dots located near the end of the tower
posts.
Important Note: Leave all hardware loose until all components have been added. This will
allow for proper alignment of components and ensure that tolerances do not accumulate.

E A V E T O W E R
Chief Industries, Inc. 800-359-7600 P/N - 621144 Page 17
Post Weldment
Stage 0
20’ (6.09m) 9621803
10’ (3.04m) 9621802
Stage 1
20’ (6.09m) 9621811
10’ (3.04m) 9621810

E A V E T O W E R
Chief Industries, Inc. 800-359-7600 P/N - 621144 Page 18
Diagonal Brace
Diagonal brace for used on a 4” (10.16cm) post, 8’ (2.43m) width, 10’ (3.04m) height
Stage 0 9621244
Stage 1 9621460
Horizontal Brace
8’ (2.43m) Width 9621466

E A V E T O W E R
Chief Industries, Inc. 800-359-7600 P/N - 621144 Page 19
Top Load Beam
8’ (2.43m) Width 9621786
Bottom Load Beam
8’ (2.43m) 9621790

E A V E T O W E R
Chief Industries, Inc. 800-359-7600 P/N - 621144 Page 20
Catwalk Support Beam
104” (2.64m) 9380021
Diagonal Brace Spacer
9621347
W Stiffener Bracket
9621780
