ChilLED Tech LOGIC 660 User manual

LOGIC 660 USER MANUAL
Specications
Input Power
Diodes
Spectrum
PPF
Ecacy
Fixture Dimensions
Mounting Height
Thermal Management
Dimming
Lifetime
Warranty
230 - 660W | 100-277 VAC 50/60Hz
Samsung 301B + Osram 660nm
3000K, 5000K, 660nm mix
1585 µmol/s
2.7 - 2.4 µmol/J
28” x 28” (71cm x 71cm) expandable**
24” (~60cm) above canopy
Passive all aluminum
On-board driver
50,000hrs
3 Year Standard
28”
28”
3”
System hardware
A. LOGIC 660 LED xture
B. 79” (2M) DC remote driver cable
C. Meanwell HLG-600 LED Driver
D. 79” (2M) AC Power Cord
E. SS hangers | Aluminum mechanism rope ratchets (x3)
F. Spare Fasteners + T15 torx bit
A.
F.
E.D.
C.
B.
*one included. user may link up to three cables for longer distance remote driver mounting
Mounting | Installation
24” (60cm)
Hanging Height 4’ x 4’ Canopy
3 point mounting
WARNING:
Never plug into wall before all
other connections are made.
Connecting or disconnecting
the DC extension while energized
could permanently damage your
xture & void warranty.
** Expansion instructions, FAQ, PAR map, and additional resources available at chilledgrowlights.com

IMPORTANT SAFETY PRECAUTIONS & GENERAL CARE
Mounting
Cleaning
Isopropyl Alcohol / Rubbing Alcohol
is an approved cleaning agent
for Samsung LEDs.
Dimming
Hanging Height
4 x 4 Flowering 24in.
4 x 4 Vegetative 24in. dim to half power
5 x 5 Flowering 36in.
5 x 5 Vegetative 36in. monitor plant response, dim as needed
First time LED growers:
A note from growmau5,
If this is your rst LED grow light, congratulations & thank you for supporting ChilLED Tech. LED xtures of
this caliber are very intense. For me personally, I like to start by hanging the xture as high as my space allows
on day one. Using a “Kil-a-watt” power monitor, I will also dim the xture by 50%. The new growth will likely
be a lighter lime green color, then settle into a deeper , darker green color as the internodes stack. If the growth
stays a lighter lime green color , or looks washed out, this is likely a “too much light” issue. Start slow, start high
and let the plants get used to the intensity and spectrum over the course of a week. This will save you time
in the long run. ~growmau5
Three hanging sets are included with each light. We recommend hanging this xture using all three.
Set your level (left / right balance) rst, then add the third hanger at the wire harness mounting point.
You can secure the DC extension cable to this third rope ratchet using cable ties for a cleaner look.
IMPORTANT: This is an aluminum, passively cooled LED xture. The top of the pin heatsinks must be
unobstructed to properly radiate heat away from the LEDs. Leave a minimum 4 inch (10cm) air gap above the
xture for proper passive ventilation.

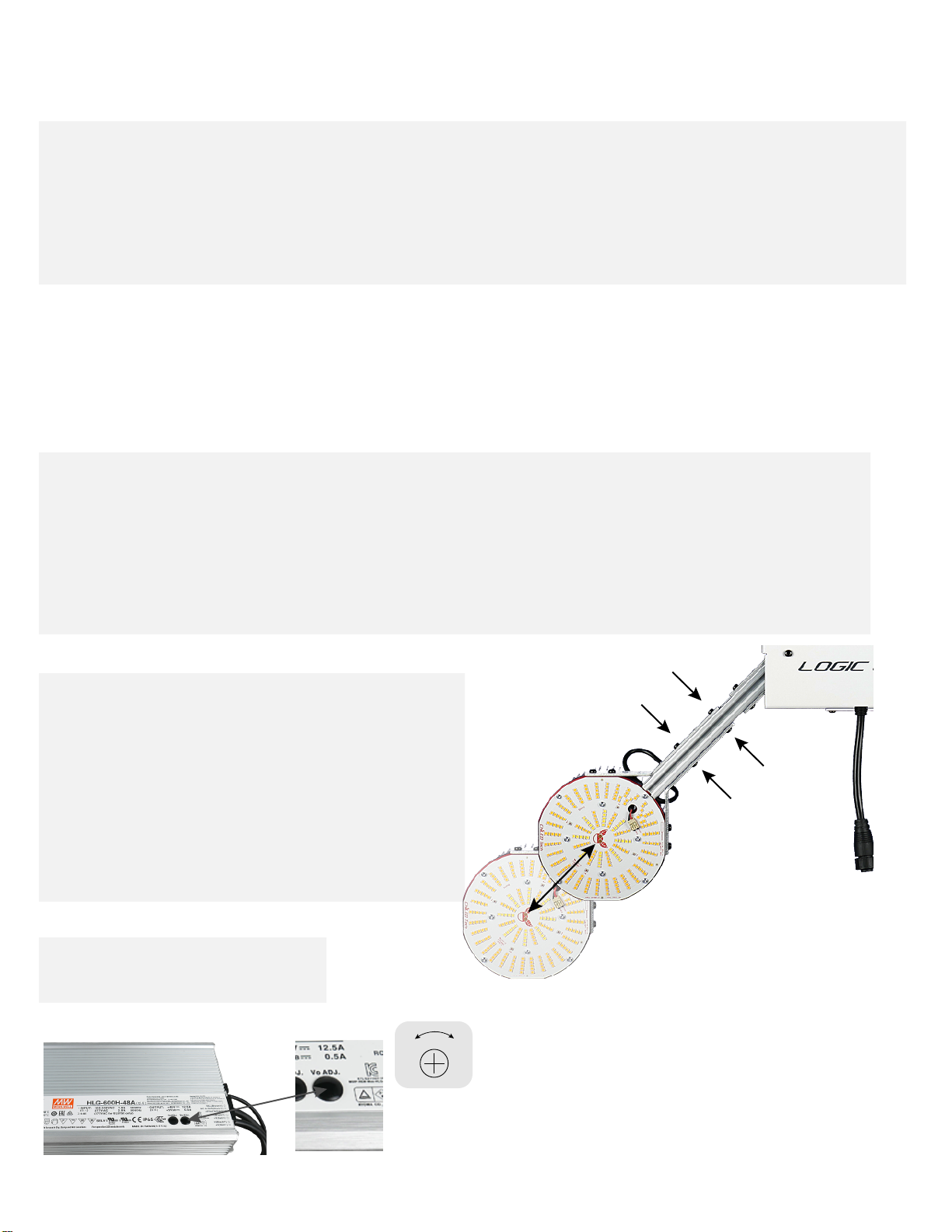

Telescoping Feature
For 4x4 spaces, use the 24”hanging height & factory
mounting position right out of the box.
For larger spaces, users can telescope the four corner
arms for a larger xture & larger spread. Place xture
on a clean, smooth, at surface. Do NOT adjust while
hanging.
Using the included T15 Torx bit, loosen
(but do not remove)
the (4) screws securing each LED bracket.
Adjust to your desired spread then re-tighen.
+
-
To adjust xture brightness, remove Vo cap on LED power supply.
Using a very small screw driver, twist clockwise for max power,
twist counter-clockwise for minimum power. Out of the box,
each xture is factory tuned to max brightness ~630-660w.
Always replace black cap to maintain Meanwell’s dust & water
resistant rating. Loss or permanent removal of this cap may void
warranty.
Vo. ADJ.
