Command Light TRIDENT TRIPOD User manual

3842 Redman Drive 1-800-797-7974
Fort Collins, CO 80524 www.CommandLight.com
TRIDENT TRIPOD
Effective November 2022
This guide supersedes all previous versions
MODELS COVERED:
T40D T50D

COMMAND LIGHT TRIDENT TRIPOD
2
THANK YOU
Please allow us to express a simple thank you for investing in a COMMAND LIGHT product.
As a company we are dedicated to producing the very best and most versatile flood lighting
package available. We take great pride in the quality of our work and hope that you will find
many years of satisfaction from the use of this equipment.
Should you have any problems with your product please do not hesitate to contact us.
A division of Super Vacuum Manufacturing Co., Inc.
COMMAND LIGHT 3842 REDMAN DR, FORT COLLINS, CO 80524 / PHONE [phone] / FAX [phone]
Contents
Limited Warranty...............................................................................................................................3
Breakage or Damage During Shipment ...............................................................................................4
Installation ........................................................................................................................................5
General Description and Specifications...............................................................................................5
Operation..........................................................................................................................................7
Charging the Battery Packs.................................................................................................................8
Parts Lists/Exploded Views...............................................................................................................10
Wiring Schematics............................................................................................................................12
Please take the time to read this manual before installing or operating the Trident Tripod.
Save this guide for future reference.

USER GUIDE
3
COMMAND LIGHT 5 YEAR LIMITED WARRANTY
COMMAND LIGHT products* come with an industry leading 5-year warranty against any
defects in materials and workmanship when used and operated for a period of five years. The
responsibility of COMMAND LIGHT under this limited warranty is limited to the repair and
replacement of parts found to be defective by COMMAND LIGHT.
Any parts damaged in shipping or by improper installation, overloading, abuse, or accident of
any type or cause are not covered by this warranty. If equipment has been damaged in transit, a
claim should be made against the carrier within three days, as we assume no responsibility for
such damage.
If during this time period, you have any malfunctions not related to misuse, accident, neglect, or
normal wear and tear, please take the following steps in order to have your light tower serviced
under the COMMAND LIGHT warranty.
1. Contact us immediately for initial diagnosis at [email protected] or 800-797-
7974; or if parts are needed contact [email protected].
2. You will need to have immediate access to the light tower and the serial number. This
process can be done by individuals with little mechanical ability. (involves pushing
buttons and telling us what the light tower is doing or not doing)
3. We then send parts (if needed) and have an authorized technician dispatched (if needed)
with a written work authorization number and a base number of hours allotted to do
repair. Hourly rates for service are to be determined at the time of authorization by
COMMAND LIGHT, travel time is paid at a maximum of 50% of the authorized service
rate.
4. We remain available for service support via phone, email, or video conference while the
technician completes the repair, also to extend the original time allotted if additional
issues arise. Immediate support cannot be guaranteed unless a time is scheduled prior to
service.
5. Let us know when the repair is completed and reference the work authorization number.
Email an invoice to [email protected] or [email protected]. If you are
unable to create an invoice email us for instructions for payment. Make sure any parts we
have requested to be returned have been shipped back to the provided shipping address. If
a return label is issued it must be used.
6. Finally, we will pay by mailing a check or crediting the account of the person,
department, or company doing the repair. Payments will not be made until all requested
parts have been returned.

COMMAND LIGHT TRIDENT TRIPOD
4
WARRANTY CONTINUED
Please contact us as soon as problems arise in order to execute our warranty. We must have
knowledge of the issue and provide a work authorization in order to pay or reimburse labor or
travel time.
Any unauthorized service voids this warranty. No work is authorized until written consent is
provided by COMMAND LIGHT.
Contact Us Early –before any work is done –We’d love to help!
*excludes light producing components (bulbs, lasers, LEDs) These components may come with
their own manufacturer warranty. Contact us and we can help get it.
Breakage or Damage During Shipment
The transportation company is fully responsible for all shipping damage and will resolve
problems promptly if you handle it correctly. Please read these instructions carefully.
Examine the contents of all shipping cases. If you find any damage, call your transportation
agent at once and have them make a description on the freight or express bill describing the
damage and the number of pieces. Then contact us and we will send you the original bill of
lading. Also promptly contact the transportation company and follow their procedure for filing a
claim. Each company will have a unique procedure to follow.
Please note, we cannot and will not enter claims for damages. If we filed claim here, it would be
sent to your local freight agent for verification and investigation. This time can be saved by you
filing the claim directly. Every consignee is on the ground floor, in contact with the local agent
who inspects the damaged goods, and thus, each claim can be given individual attention.
Since our goods are packed to comply with the regulations of all railroad, truck, and express
companies, we cannot allow deduction from any invoice because of any damage, however, be
sure to file your claim promptly. Our goods are sold F.O.B. factory. We take receipt from the
transportation company certifying that the goods were delivered to them in good order and our
responsibility ceases.
It is seldom that any breakage or damage occurs in any of our shipments and in no case will the
customer be out any expense if they follow the above instructions.
Be sure to keep all damaged goods subject to examination of the truck or express company
inspector, who may call on you some time later. These damaged goods, of course, will belong to
them, and they will inform you what to do with them. If you dispose of these damaged goods,
your claim may not be paid.

USER GUIDE
5
Mounting Bracket Installation
•Mount the base mounting bracket using (2) 5/16”bolts, (4) 5/16”flat washers, (2) 5/16”
nylock nuts, and the include gasket, making sure it is level with the vehicle.
•Lock the quick disconnect onto the tripod, place the tripod into the base mounting bracket.
Use the tripod to mark the (4) holes for the quick disconnect, making sure the tripod is
completely vertical and level with the vehicle.
•Mount the quick disconnect using (4) ¼”bolts, (4) ¼” flat washers, (4) ¼” nylock nuts, and
and the include gasket.
General Description and Specifications
The Trident Tripod is specifically designed to provide convenient and portable high
intensity emergency scene lighting. As with any electromechanical device, take
precautionary steps to ensure safe operation.
Weights listed with no options.
MODEL
LIGHTING
POWER REQ.
WEIGHT
TOTAL OUTPUT
TXXD-FN
FRC Mini Spectra x 1
130W
30 lbs
14,000 lumens
TXXD-FS
FRC Spectra x 1
220W
30 lbs
20,000 lumens
TXXD-W1
Whelen PCH1 x 1
75W
25 lbs
10,130 lumens
TXXD-W12
Whelen PCH1 x 2
150W
35 lbs
20,260 lumens
TXXD-W2
Whelen PFH2 x 1
150W
30 lbs
20,261 lumens
TXXD-CH
FireTech Helios x 1
60W
30 lbs
14,000 lumens
TXXD-CH2
FireTech Helios x 2
120W
45 lbs
28,000 lumens
TXXD-AR
Akron Revel SL x 1
110W
25 lbs
14,000 lumens
TXXD-AX
Akron Revel XL x 1
220W
35 lbs
28,000 lumens
TXXD-LB
Feniex Light Bar
60W Max
35 lbs
Arrow patterns and floodlight
TXXD-FBA
Amber Federal Message Bar
90W Max
35 lbs
Digital message in amber
TXXD-FBB
Blue Federal Message Bar
90W Max
35 lbs
Digital message in blue

COMMAND LIGHT TRIDENT TRIPOD
6
Estimated Battery Run Time
Reported run times based on fully charged batteries at 70° F; temperature and battery condition can
impact tripod performance.
Light blinks three times to warn of low-battery conditions.
Light/message board run times based on floodlight pattern. Multiply minutes by 2 for average arrow
patterns.
Model
DeWalt
9Ah
DeWalt
12Ah
Makita
4Ah
Makita
5Ah
Milwaukee
M28
3Ah
Milwaukee
M28
5Ah
HURST
EWXT
5Ah
HURST
EWXT
9Ah
TXXD-FN
79
min.
105
min.
70
min.
85
min.
62
min.
99
min.
X
X
TXXD-FS
49
min.
64
min.
40
min.
50
min.
34
min.
54
min.
X
X
TXXD-W1
145
min.
192
min.
130
min.
160
min.
105
min.
172
min.
X
X
TXXD-W12
74
min.
96
min.
65
min.
81
min.
54
min.
86
min.
X
X
TXXD-W2
74
min.
96
min.
65
min.
81
min.
54
min.
86
min.
X
X
TXXD-CH
135
min.
175
min.
94
min.
150
min.
96
min.
153
min.
X
X
TXXD-CH2
67
min.
87
min.
47
min.
75
min.
48
min.
76
min.
X
X
TXXD-AR
85
min.
110
min.
75
min.
93
min.
64
min.
102
min.
58
min.
88
min.
TXXD-AX
42
min.
55
min.
37
min.
46
min.
32
min.
51
min.
29
min.
44
min.
TXXD-LB
150
min.
200
min.
120
min.
150
min.
100
min.
165
min.
165
min.
300
min.
TXXD-FBA
100
min.
133
min.
80
min.
100
min.
67
min.
110
min.
110
min.
200
min.
TXXD-FBB
100
min.
133
min.
80
min.
100
min.
67
min.
110
min.
110
min.
200
min.

USER GUIDE
7

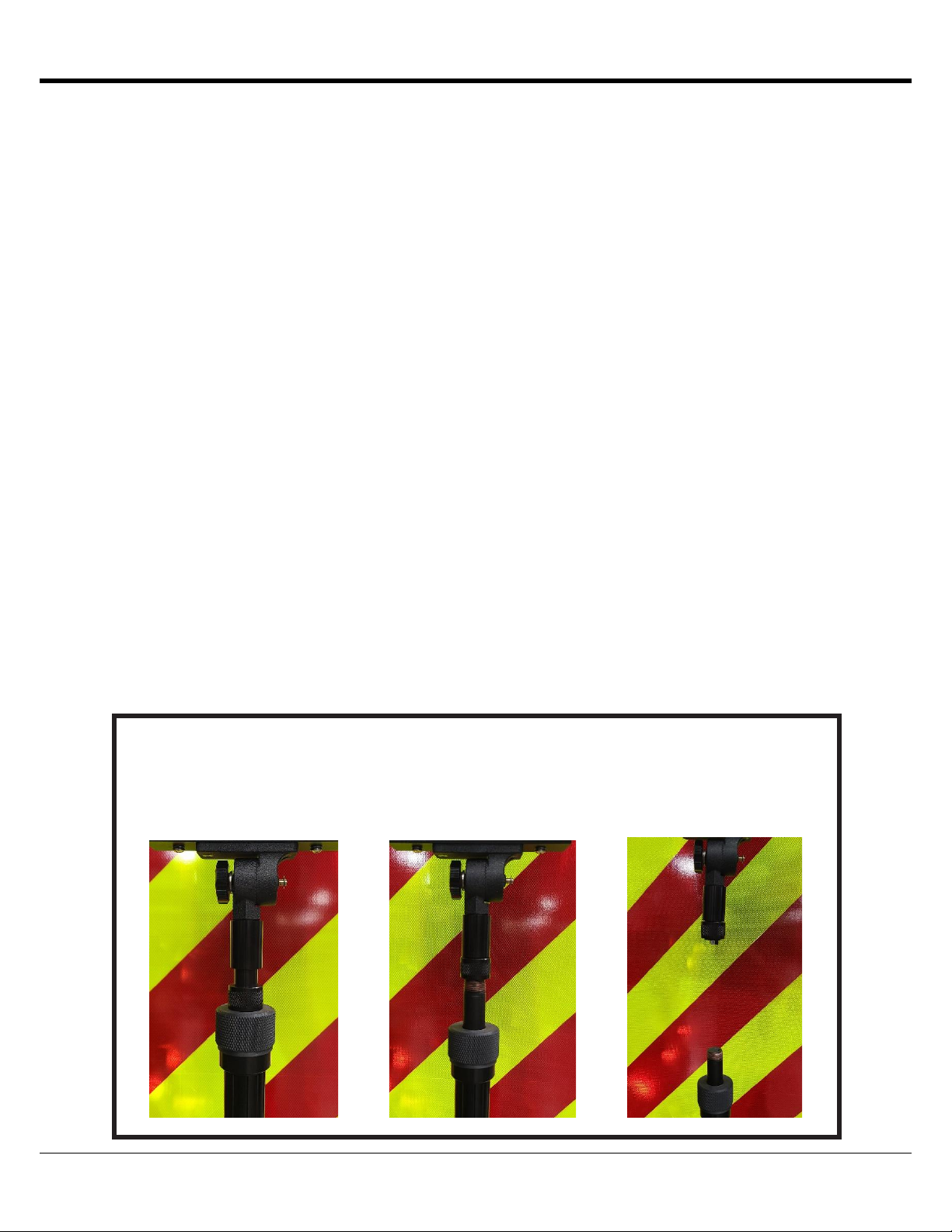

Light fixtures can be quickly removed from the tripod by twisting the knurled portion of light
head coupler counterclockwise, allowing storage of the light head in a different location than the
tripod and the use of multiple different light heads or light bars with a single tripod. Be careful
when removing or re-attaching the light heads. Not aligning the electrical connectors correctly can
cause damage to the connectors.
Operation
•Loosen the main knob and extend the legs as far as possible for the best stability and height,
tighten the knob to lock the legs in place.
•The rear leg can be extended for use on uneven surfaces. Loosen the extension leg knob and
extend the foot out to the desired length, keeping the mast of the tripod as vertical as
possible, then tighten the knob.
•For added stability in high wind conditions or extreme terrain place sandbags at the base of
the legs.
•Insert (1) battery into the battery receiver until it clicks.
•Battery removal will get easier with more remove/replace cycles.
•Adjust the light angle by using the swivel directly below the light fixture.
•Loosen the lock collar at the top of the primary mast by turning it counterclockwise. Extend
the inner mast to the desired height and tighten the lock collar by turning it clockwise.
Reduce glare by extending the inner mast completely.
•Use caution not to direct the light in a way that will inhibit other’s visibility.
•Press the power button on the battery receiver once to turn on the light. The light fixture will
blink three times to warn of low-battery conditions.
•If using truck power, insert the truck power connector into the battery receiver and the truck
power outlet located on the vehicle. The light will turn on as soon as everything is connected,
the power button is not used during truck power operation. There may be an in-cab power
button or switch that will turn power on and off to the power outlet.
•If using shore power, insert the shore power connector into the battery receiver and use an
extension cord to connect to 115V AC power source. The light will turn on as soon as
everything is connected, the power button is not used during shore power operation.
•Before transporting, be sure the lock collar and all knobs are tightened after lowering the
inner mast and folding in the legs.

COMMAND LIGHT TRIDENT TRIPOD
8
Charging the Battery Packs
DeWalt
Remove the DeWalt FlexVolt battery from the tripod. Insert in DeWalt Charger. Use only DeWalt
brand battery chargers.
Using DeWalt AC Fast Charger, batteries will recharge in 60-120 minutes, depending on Amp-
Hour rating.
Other DeWalt chargers, including units that work with vehicle DC power, may take longer to
fully charge the batteries.
Charge indicators
Fully Charged
\
Milwaukee M28
Remove the Milwaukee battery from the tripod. Insert in Milwaukee Charger. Use only
Milwaukee brand battery chargers.
When the battery pack temperature is outside the charging range (40-105ºF or 5-40ºC),
the red light on the charger will flash and the battery will not charge.Once the battery
pack is within the acceptable temperature range, normal charging will take place.
Using the Milwaukee SuperChargerTM, a 12 Amp hour battery will recharge in 60
minutes and an 8 Amp hour battery will recharge in 45 minutes.
Other Milwaukee chargers, including units that work with vehicle DC power, may take longer to
fully charge the batteries.
CAUTION: *DeWalt & Milwaukee M28
•Never store or charge the battery pack below 40°F (4°C) or above 105°F (41°C) or in
direct sunlight.
•Neveruse/charge chargers or batteries in explosive atmospheres.
•Never attempt to open the battery pack. If cracked or damaged, return it to a service
center for recycling.
•Do not splash or immerse charger in water or other liquids.
Charging
Hot/Cold Pack Delay

USER GUIDE
9
Charging the Battery Packs
HURST
Remove the battery from the tripod. Insert in HURST brand chargers only.
When the battery pack temperature is outside the charging range (25-105°F or 4-40°C), the red
light on the charger will flash and the battery will not charge.
Once the battery pack is within the acceptable temperature range, normal charging will take
place.
Using the HURST charger, a 9Ah battery will recharge in 150 minutes and 5Ah battery will
recharge in 100 minutes.
MAKITA
Remove the battery from the tripod. Insert in Makita Charger. Use only Makita XGT® brand
battery chargers.
When the battery pack temperature is outside the charging range (40-105ºF or 5-40ºC), the red
light on the charger will flash and the battery will not charge.
Once the battery pack is within the acceptable temperature range, normal charging will take
place.
Using the Makita Rapid Optimum Charger, a 4.0 Amp hour battery will recharge in 45 minutes
and a 5.0 Amp hour battery will recharge in 50 minutes.
Other Makita chargers, including units that work with vehicle DC power, may take longer to
fully charge the batteries.
CAUTION: *HURST & Makita
•Do not store battery packs or chargers above 120°F (50°C) or in direct sunlight.
•Never use charger or batteries in explosive atmospheres.
•Never attempt to open the battery pack. If cracked or damaged, return it to a service center
for recycling.
•Do not splash or immerse charger in water or other liquids.

COMMAND LIGHT TRIDENT TRIPOD
10
Parts Lists

USER GUIDE
11
Exploded Views

COMMAND LIGHT TRIDENT TRIPOD
12
Wiring Schematic
