Chinavision CVUK-TR32 User manual

.--..-
E r-a Navigation System
User Manual

4& Z*, ?l.r;i7aat** *.5*?^e.a #s*x ?&*saaeal g.A 8*",A Navigsrion Sy$aem U*er Nlaaxual
@
a
User' s Manual
Welcome to use our GpS navigator
a We reserve the final explanation right on this User, s Manual.
a Specifications are subject to change without notice. Sorry for any
inconvenience caused!
a Please make a copy of the important data. We assume no responsibility for
the data loss.
a This manuar has been carefuily checked. prease contact our service center
when any typing mistake is found.
Please read the operating instruction carefully and use the accessories only
provided by the original factory to avoid any unexpected damage. No
warranty will be executed if you are not following the instruction or
connecting with the incompatible accessories, we assume no responsibility
for any loss and damage caused hereby.
The electronic navigation data may be not in conformity with the actual
transporting marks due to the trafiic construction development. please be
sure to comply with the real road condition and follow the traffic rules.
Operating and viewing the GpS during driving may cause severe traffic
accident. Our company will not be responsible for any loss caused by the
unexpected accident.
Users can update and upgrade software from website at his/her option.
Any discrepancy between the pictures with real products hereinafter, the real
one prevails.
Chapter One Product introduction
1. I Introduction
Welcome to use the GpS navigator, which is mainly used for navigating and also
has the optional function of video playing, audio playing, Blueto;th hinds free,
FM, Bluetooth, photo viewing, and E-Book etc.
iHigh performance, low-power consumption MediaTek MTS3S1 CpU;
OComfortable user interface: simple, easy to operate;
iPower management: keep the product trc work longer and more steadily;
aData transmitting: communicate with computer through USB cable;
lExcellent in receiving signar: accurate position fixingfprovides you the satisfied
navigating service;
acompatible with Bruetooth mobire: the navigator can arso be used for making
and answering call with hands-free (Optional);
lEntertainment: Mp3 and Mp4 function can relieve your fatigue;
Y-ou can use it when driving, walking, riding, or waiting for a meeting; the perfect
"GPS + entertainment,, function can maie your life ind work more splendid.
1.2 Package
The packing box contains the following accessories, please confirm:
1.GPS navigator
2.Travel Charger
3.Car charger
4.MlNl USB cabte
5.Earphone
6-User' s manual
T.Protecting cover
8.Car bracket
For the items listed above, please confirm the actual products. lf any damage,
Please contact with the distributor or the agent as soon as possible.
lnstruction
Please read this user' s manuar carefuily to be famiriar with ail the operation
details and to make the GpS navigator performs well:
(Remarkl : The instruction relates to the themer
(Relative informationl : The extending information relates to the theme;
lNotel , The notes and warnings rerite to the theme. prease varue and foilow
these notes, otherwise it will possibly bring damage to you and others.
This user manual only adapts to our GpS navigator products.
a
a
o
@@

E l-A Navigation Syetem
Chapter Two Features and specifications
2.1 Main features
OOperating system: Microsoft Windows CE 5.0;
aHi-Fi stereo earphone and built-in Hi-Fi speaker, volume adjustable;
iButton and touch-screen operation;
lBuilt-in sensitive GPS antenna;
aThe navigating software could run the SD card directly;
lVideo format supported: ASF,AVI,WMV3GP,MP4,FLV;
aPhoto format supported: BMP, JPG, PNG;
aE-book format supported : TXT;
O Built-in rechargeable Li-battery which can be powered by travel and car
charger.
2.2 Specification
User Manual
This chapter will give an introduction of the apparent components and basic
function of the GPS Navigator and it will help you to be familiar with the basic
operation quickly.
User Manual E ,-..= Navigatiof, System
@
@
Status of the LCD light When charging, the red light is on;
urhah ^h.r 6 fi^ieh6.l rh6 hl' '6 li^hf ie
Ooeratino Svstem Microsoft Windows CE 5.0
Navioation Software SD or TF card
Video Plaver ASF.AVI.WMV3GP M P4. FLV.
Audio Plaver MP3 and WMA
Photo viewer E-Album, JPG. GlF. BMP. PNG
EBook Viewer TXT
System setting [FM Transmifter] [Screen adjustment] [Default set]
lvolumel [Powed [Backlight] [fime and Date]
fl enoraoel tsvs lnfol
Temperature Operating Temperature : 0C to 60C
StoraoeTemoerature r -20'C to 60C
Workinq humiditv ranqe 45ol" to 8Oo/"RH
Storaoe humiditv ranoe 30o/" to 90o/"RH
Atmospheric oressure 86KPa to 106KPa
CPU MediaTek MT3351
Flash memory 128 MBytes /2Gl4G
EMS memory 64 MBvtes/128MBvtes
LCD display 4.3" ot5" , 6" or7" TFTLCDdisplay,
Resolution:480(H)-272(V) or 800(Hf480N)
Touch-screen Hioh-accuracv. endurable touch-screen
USB USB Client 2.0. MlNl USB oort
SD/TF SD / MMC slot, the maximum capacity of SD/TF
Card supported reaches to 8GB
Audio A: Built-in high fidelity speaker
B: High fidelity stereo earphone
GPS Cold start' <42s
Hot start: <3s(in the open area)
Warm start: <36s
Battery Built-in rechargeable Li-battery
Battery Charging port DC 5V oort
AC Charger 100/230V charger, 5Y / 1.54
Car Charoer DC9-24V 5V / 1.5A

L.1A ,*.3 ilavigation Syetem User ivlanual
Chapter Three Manual lnstruction
3.1 Power supply and charge
If this navigator is first used, please use AV adaptor to fully charge it.
3.1.1 Power supply
There are three types of supplying power: battery, adaptor, USB cable.
GPS navigator uses the Li-battery to supply power when it is not connected with
adaptor. The mark [ ffiffi ] on the up right of interface indicate the current
electric volume.
GPS navigator uses the external power when it is connected with the adaptor.
GPS navigator uses the USB cable to supply power when the GPS connects to
the PC.
I Remarkl This machine adopt buihin, unchangeable Lithium battery. At normal
condition (if the back light is not so bright), the actual supply hour can be different
because of the different way using the navigator. Some function (audio playing,
video playing, bright back light) will consume a large powel which will reduce the
using hour.
(NoteI This machine adopts built-in, unchangeable Lithium battery. ln order to
avoid fire and burning, please do not poke, bump or take it apart or throw it into
fire or water.
3.1.2 Use the travel charger to supply power
When the GPS navigator is first used, please use the AC adaptor to charge it.
1. Connect the DC part of the adaptor with the power interface at the left side of
the unit (The power interface is same as USB interface );
2. The other part connect to the power socket, it supplies power while charging.
( Remarkl Red LED indicates it' s being charged. Please wait until it is fully
charged and don' t pull out the adaptor while charging. When it is fully-charged,
the LED will turn to Blue. lf low battery or no battery please charge it immediately.
3.1.3 Use the car charger to supply power
l.Connect the DC part of the adaptor with
the power interface;
3.3 Reset system
lf the system cannot work, you can reset the system by the following way:
Click the reset key on the right part of the machine to reset the system by using
the stylus.
(relative informationl r it can be no response in the following condition:
1.The shift between pictures is delayed or stopped.
2.The program select function cannot work normally, such as long time to carry
out or cannot be activated.
3.The power button can not work
( Note) The unsaved data will be lost as you reset the system when the system
has no response. Please copy the data every other time.
3.4 Use bracket to fix navigator
When use GPS in the car, you should fix the device to the part of window besides
the panel by using the bracket.
( Notel When use the bracket, please take care of the position. Please don' t
fix the navigator to the position where the driver' s sight is being influenced.
@@

ffi A*ffi *a'li?&lirry *,tslrtY €3s*r ffiaca#xE A.* E*,,ffi ,{a\igz}g, *Yslen Us*r ffiwrzasal
Please do not lay it aside freely; do not fix it to the air bag, do not lay it on the
expand range of the air bag.
3.5 Stylus
The stylus is the tool for you to use your navigator. Please keep it carefully.
1. Single click :
Singly click the screen with the stylus point.
2. Double click,
Double click the screen with the stylus point.
3. Drawing:
Click one point and hold to move on the screen.
( NoteI Any broken stylus, ball pen or any acute and harsh object will destroy
the LCD if you use it to operate the device.
3.6 SD/MMC card
The attached SD/MMC card contains the navigation software, map data and
media file. Please insert the card correctly when use it.
I Notel Please do not take out the SD/MMC card when the system is navigating
or playing.
( Note I
1 . Don' t stress or curve the SD/MMC card, avoid loss and bulge.
2. Avoid high temperature or high humidity when use and store the card, don' t
expose the card directly to sun light, let the card far away from liquid and
corrosive material.
3. Please pay attention to the heading when insert the SD/MMC card. lf you
insert the card improperly, you will damage the card.
3,7 Connecl with computer
The device can be connected with the computer through the MlNl USB on its left
part. You can copy the document between navigator and computer or copy the
data from GPS navigator to computer so as to recover the data in GPS when you
are in need of them.
l.Please confirm the GPS navigator is power on;
2.Connect the MlNl end tI] of USB cable with the USB port on the teft part
of GPS device and the normal eno 1@ I with the Host port on computer.
3.After connecting, the screen will display the interface as below:
4.Please pull out the MlNl USB cable after you flnished your operation, the GPS
navigatorwill return to the pre-operation interface.
( Notel Data security: Please copy the data to the outer storage device every
time before you update your system data. Our company takes no responsibility to
any loss of data.
(RemarkI The GPS navigatorwill stop the operation when it is connected with
computer.
INoteI lntheprbcessof communication,thefollowingoperationswill breakoff
the connection with computer, the unfinished data will be lost.
1).Pull out the MlNl USB cable;
2).Power off
3).Reset the system by using reset button or electric switch
@@

T___
1..=.' -=':: ::::::-a*. EBs*r W*c?aaaE 4# E*-ffi t'levigetid* A?*-*?n Ws*r F#*masal
Chapter Four Primary function
4.1 The main interface and the function
4.1.1. Main menu
This chapter will introduce the navigation function and notes.
4.2 Navigation functions and features
According to your choice of navigation system, the GPS navigator can make
position by GPS satellite signal receiver and display on the navigation map. The
system can calculate a best route after setting the destination, which can help
users to arrive the destination safely and rapidly.
The system can let you enjoy the individual charm and enjoy your trip by many
different ways such as vision map, vivid animation, voice indication, and words
indication.
The specific navigation functions are depended on your choice of navigating
software. Please refer to the Navigation Software lnstruction.
Notes
1.Map information
It is probably that the electronic navigation data is not consistent with the real
traffic instructions because of the traffic construction development. Please do
@
4.1.2 Function introduction
Navigation Provide navigation service
Bluetooth This device can answer and make phone after connecting with
mobile phone via Bluetooth
Video player SupportASE AVl, WMV 3GP, MP4 and FLV format. Support
progress adiust, pause and full screen plav
Photo viewer Support JPG. BMP and PNG format. Support photo rotate,
enlarge/shrink pictures, automatic plav and so on
E-book Text format: txt.
Support page selection
Audio player Audio playing format: WMA, MP3"
Support random playing, sequential playing, repeat playing,
pause, previous/next, volume
Game Support game
Setting Brightness, Volume, Languages, Power, Time, System, Default,
GPS lnfo, Navipath.
@

r"iz;et' {**zzw*l ?,jsqz {**eeca*€
comply with the highway condition and the actual traffic rules.
2.Navigation
The navigator offers the route for the reference; determine the route by yourself,
the dnver may be more familiar with the route than GPS navigator.
3.Receiving signal
Many factors such as high, dense buildings (in the tunnel, between the high
building, underground parking, under the trestle), various weather condition, and
closure of the satellite will affect the ability to receive signal so as to result in
inaGcurate position, inefficiency of navigation operation and system function.
4.3.2 Single click the button
picture: Dil unO open Bluetooth setiing as the following
4.3 Bluetooth setting and lnstructions:
This chapter introduces how to use this navigator's Bluetooth to connect with cell
phone for call making and answering.
Ooeration method
4.3.1 Single click the button ff ln main menu to open the Bluetooth interface as
the following picture:
4.3.3 Single click botton ffi ,o, will get the following two pictures: the one is
in searching and the next one is the searching result.
4-7
@
@
$earchlllg f6r mobile phores, Fh*
mlt..,

t--_ *
[ ",nn," click the device you want to connect and cticr @ to pair as the following Singte ctick 'ffi unoenter phone book as 4-.11
I oictures:
4.3.5 Single click the button H " open call history as 4-12
After successful pairing and connecting, it will show the following picture
4-9
4.3.4 Click the nutton K to open the phone book interface as 4-10
4-10
@
4.3.6 Single cticf the Outton ffi to open dial pad as 4-13
4-13

Lzt . *:3 7a.r,?.,.:..t aa..i.ira: E&:;;er Wrecpqsel Z Z-*", 1.|r,rira:,a,rri'*\!$i4* 1jz:;*z 74r;c?aa7
,
4.3.7 Single click the button ffi and then it will be in dialing as 4-14 .4",,
*b
4.3.10 Single click the button &,& as 4-17
4-17
4.3.8 If there is an incoming call, it will show the caller lD and its number as 4-15
4.3.9 Single click
as 4-1 6
4_15
!..
ffiand itwill display connected. You can talk with each other
4-16
@
4.3.11 Single message nrtton ffil to download SMS of paired phone as 4-18
4-18
-*,
Sinqle click the 5r6on flEI to enter the following interface as 4-19
Name: Unknown
Itlumber: 10086
Calling...
4-14
@
4-19

lia!igzlira *"!u1se
4.'1 Audio player operation interface
This chapter introduces how to use the GPS video player to play your favorite
music, and let it be your personal MP3.
The audio player supports MP3 and WAV format, you could set the playing
sequen@ as you wish.
Before using the audio player, please copy the files to any folder.
4.5 Video operation lnterface
This chapter introduced how to use the GPS video player.
l.SupportASF, AVl, WMV 3GR MP4 and FLV
2.Support full-screen playing, progress choosing and file selection;
Before using the Video player, please copy your video file (ASF, AVI, WMV 3GP,
MP4 and FLV) to any folder.
4.6 Photo viewer operation int+erface
This chapter introduces how to use the photo viewer to browse pictures.
1. Supports JPG. BMP and PNG
2. Support picture rotate, picture enlarge/shrink and automatic play.
Before using the photo viewer, please copy your photos to any folder.
4.7 E-book reader interface and operation
This chapter introduces how to use GPS to read e-book.
l.Support TXT
2.Support turning over page, page browse, and file choosing.
Before using e-book function, please copy your TXT file and save it to any folder
4.8 Game interface and operation
a
Single click ffi to choose different games as 4-20
&#swr ffd?amea*l t-Z g **ffi Aa,rigatlq, *yi?sti1 5#s*r MasEa*al
4.9 Tool
singre dick 6 to choose different tools as4 -21
4-21
4.10 System setting lnterface and operation
Cficr< H to enter "Setting" menu, then you can set the relevant functions.
There are backlights, volume, languages, FM, time, calibration, system info and
default etc.
@@

L7, , -,.- llg"ig4r.ia" 9y3Lfr3 Ws*r 3&asesEal 13 g **ffi !l4vi1&|.ia,1 tUrzel* W**r ffiaeacaal
4-25
FM Transmitter will send out the audio signal to the radio devices. Take 86.7MHZ
frequency for example, both the GPS transmitting frequency and the received
frequency of the radio should be 86.7MH2, then all the sounds of the GPS will be
input through the amplifier system of the radio.
4.10.4 Navigation path
Set navigation path as 4-26
4.10.5 Date and time setting:
Date and time include:
1. System time set;
2. System date set;
3. System time zone set.
4.10.1 Backlight setting
Single click Eil to "nt"r" Uu"ktight setting interface as 4-23
4.10.2 Volume adjust
"Volume adjustment" includes:
1. Speaker volume adjustment
2. "Screen clicktone" setting
4-24
4.10.3 FM Transmitter
Single clict<.3fl to enter the FM setting as 4-2S
@
4-27

7. a,: a a z1 1, ? ?ar,jz4 1. €$**r &&*esu*E re Z*.ffi t{avigaliqri *yst{,* U**r €#ac?Eeal
1 . Single click button [lorEl to set time and date.
2. Singie ( or I to choose trme area.
Click I to exit current interface after setting, and then it will show as4-28
Choose YES or NO to exit current interface.

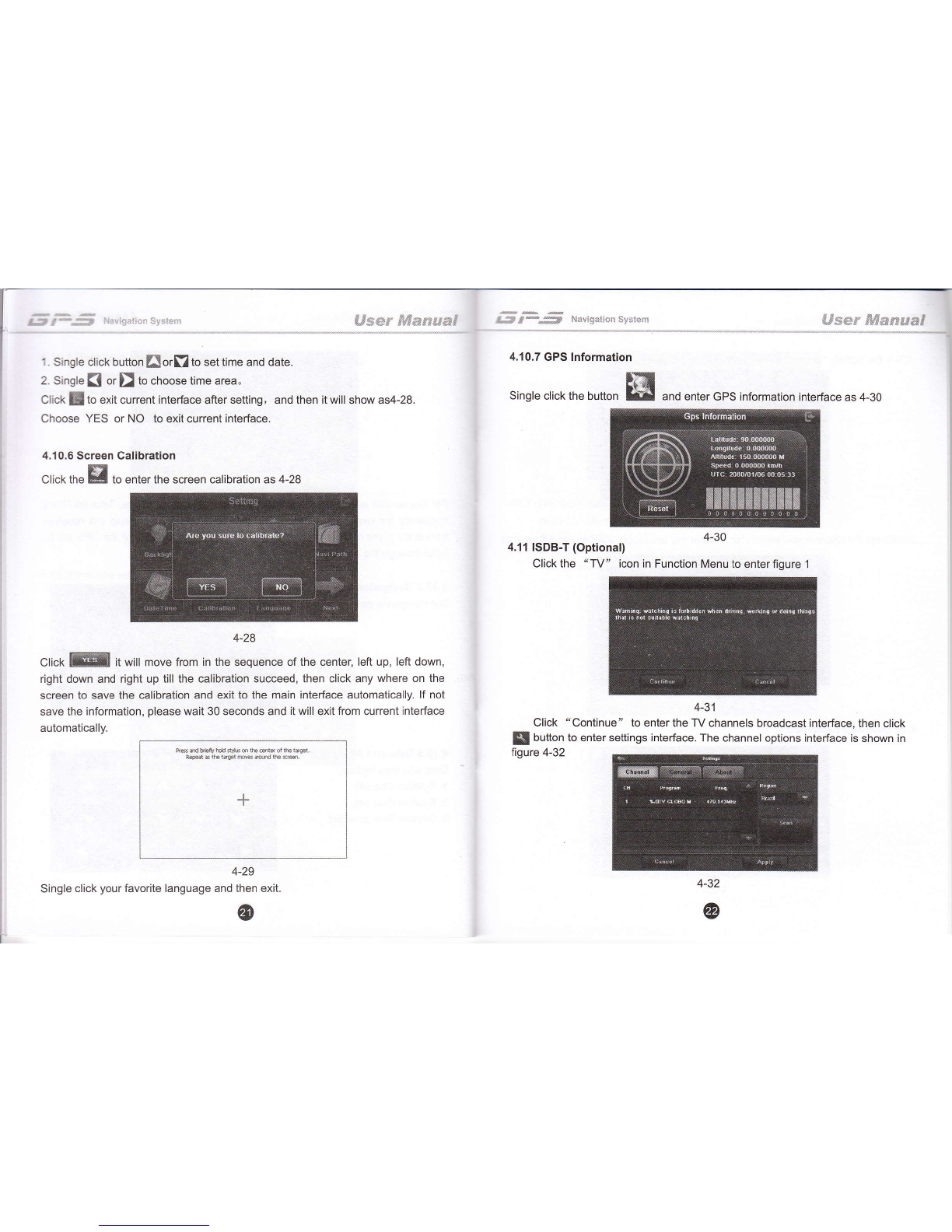

4.1 0.6 Screen Calibration
Click the EI to enter tne screen calibration as 4-28
4-28
cticr ffi it will move from in the sequence of the center, left up, left down,
right down and right up till the calibration succeed, then click any where on the
screen to save the calibration and exit to the main interface automaiically. lf not
save the information, please wait 30 seconds and it will exit from current interface
automatically.
Es, & @ddfu6 k(6ta #tu td@t,
R@&tto@tnloB;nd&q@-
+
4-29
Single click your favorite language and then exit.
@
4.10.7 GPS lnformation
Single click the urtton Eil and enter GPS information interface as 4-30
4.11 ISDB-T (Optional)
Clickthe "TV" icon in Function Menu toenterfigure 1
Click "Continue" to enter the TV channels broadcast interface, then click
p button to enter settings interface. The channel options interface is shown in
figure 4-32
4-32
@
4-30
4-31

a:, , -,,,,A l-k"isati.n gve:effi 48s*r Fffiasaeial L* 8**ffi ?^2avi1elicr *yn aftl Ws*r fr&amasal
Select the TV channel you search for to enter the broadcast interface as figure 4-34

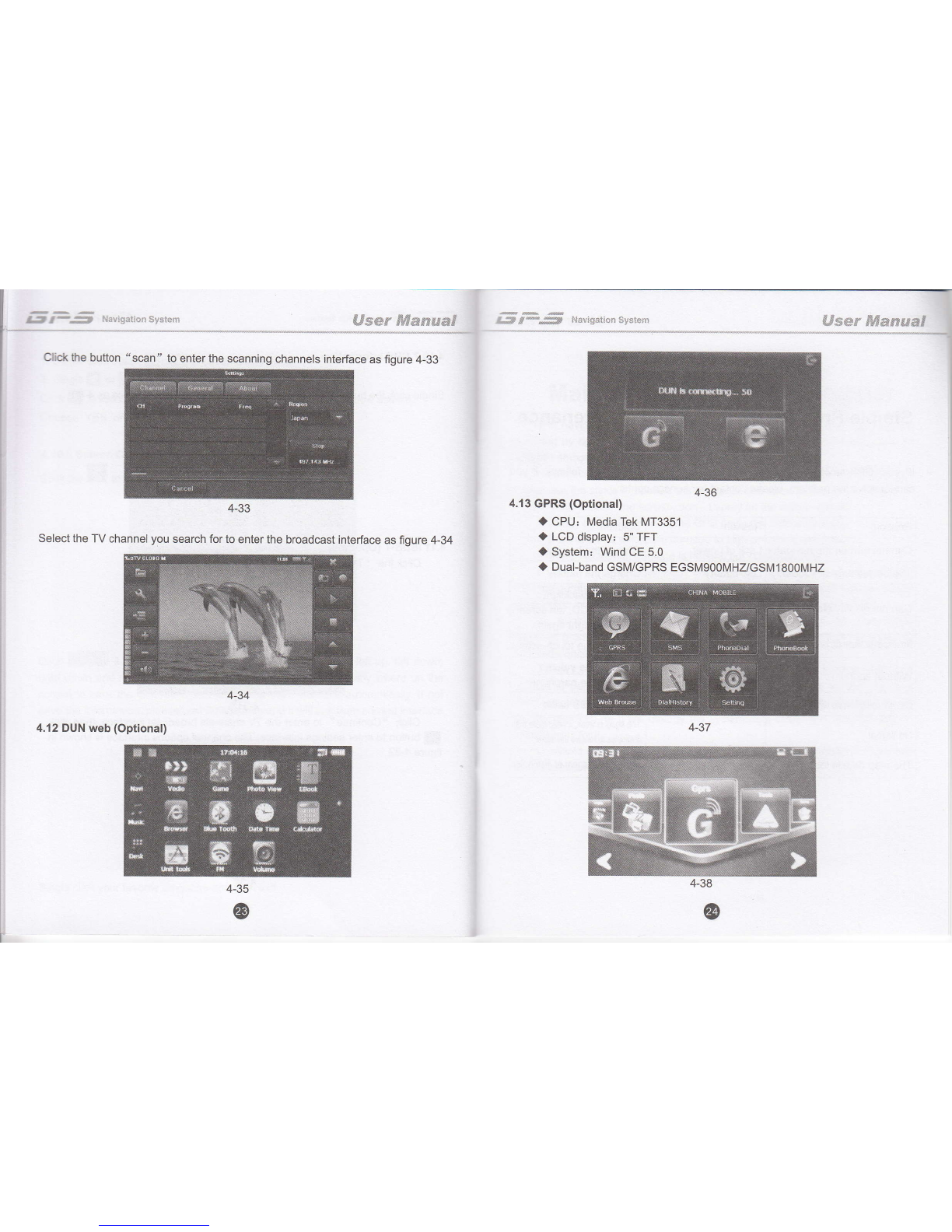

4.12 DUN web (Optional)
4.13 GPRS (Optional)
i CPU: Media Tek MT3351
I LCD display: 5" TFT
I Systemr Wind CE 5.0
I Dual-band GSM/GPRS EGSM900MHZGSM1800MHZ

E t-- Havigation System Us*r Wranual E A*.ffi Niavigatian *y,te*

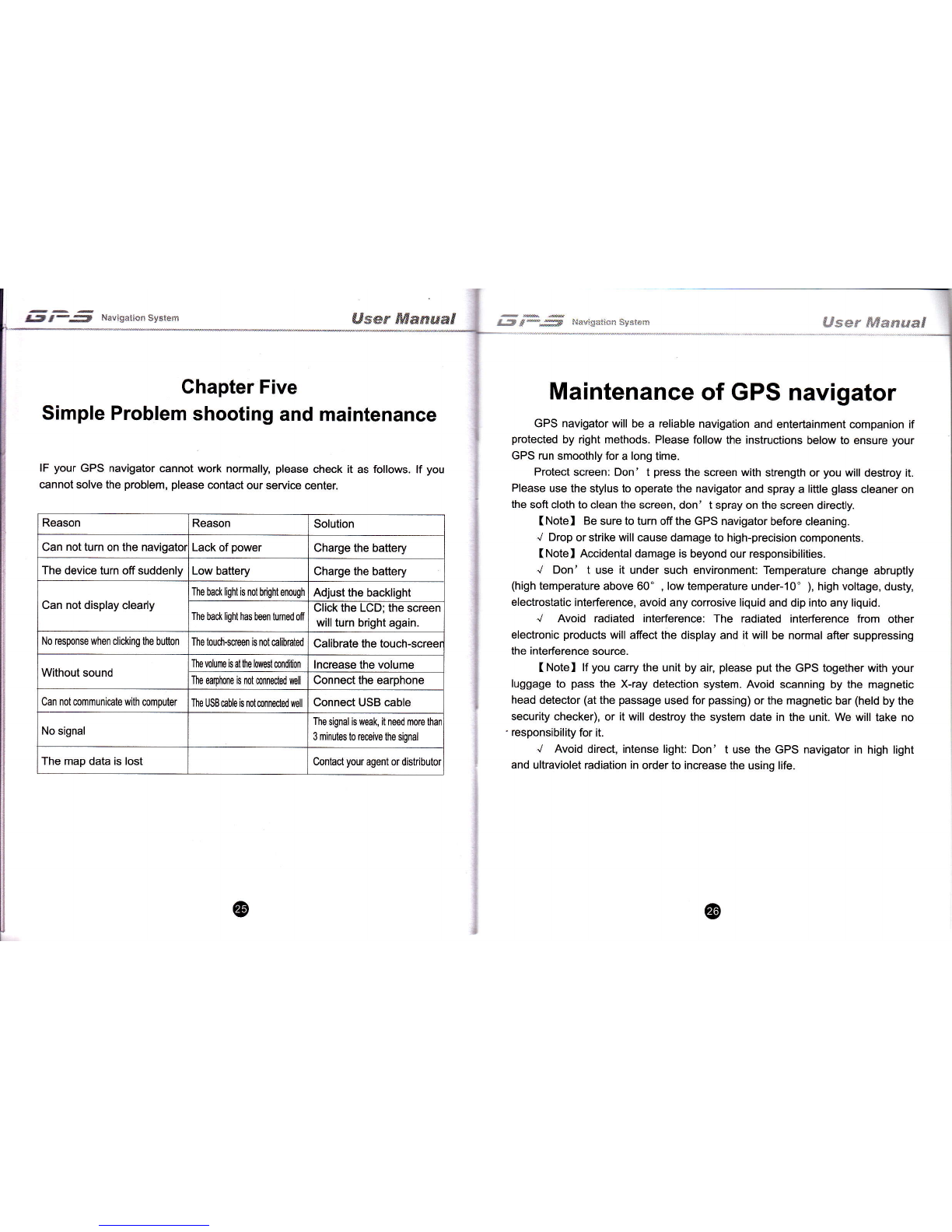

Ghapter Five
Simple Problem shooting and maintenance
lF your GPS navigator cannot work normally, please check it as follows. lf you
cannot solve the problem, please contact our service center.
User htTaxual
Maintenance of GPS navigator
GPS navigator will be a reliable navigation and entertainment companion if
protected by right methods. Please follow the instructions below to ensure your
GPS run smoothly for a long time.
Protect screen: Don' t press the screen with strength or you will destroy it.
Please use the stylus to operate the navigator and spray a little glass cleaner on
the soft cloth to clean the screen, don' t spray on the screen directly.
( Notel Be sure to turn off the GPS navigator before cleaning.
J Drop or strike will cause damage to high-precision components.
(NoteI Accidental damage is beyond our responsibilities.
J Don' t use it under such environment: Temperature change abruptly
(hightemperatureabove60',lowtemperatureunder-'10'),highvoltage,dusty,
electrostatic interference, avoid any corrosive liquid and dip into any liquid.
J Avoid radiated interference: The radiated interference from other
electronic products will affect the display and it will be normal afrer suppressing
the interference source.
(Notel lf you carry the unit by air, please put the GPS together with your
luggage to pass the X-ray detection system. Avoid scanning by the magnetic
head detector (at the passage used for passing) or the magnetic bar (held by the
security checker), or it will destroy the system date in the unit. We will take no
' responsibility for it.
J Avoid direct, intense light: Don' t use the GPS navigator in high light
and ultraviolet radiation in order to increase the using life.
@
Reason Reason Solution
Can not turn on the navigatol Lack of power Charge the battery
The device turn off suddenly Low battery Charge the battery
Can not display clearly The back light is not bright enough Adjust the backlight
The back light has been tumed ofi clicl( the LGD; the screen
will turn bright again.
No response when clicking the button TIe touch-screen is not calibrated Calibrate the touch-screer
Without sound The '/olume is at fte loweslmndilhn lncrease the volume
The eaphone is not mnnedd well Connect the earphone
Can not communicate with computer The USB cable is not onnected well Connect USB cable
No signal The signal is weak, it need more thar
3 minutes lo receive the signal
The map data is lost Contact your agent or distributor
@
