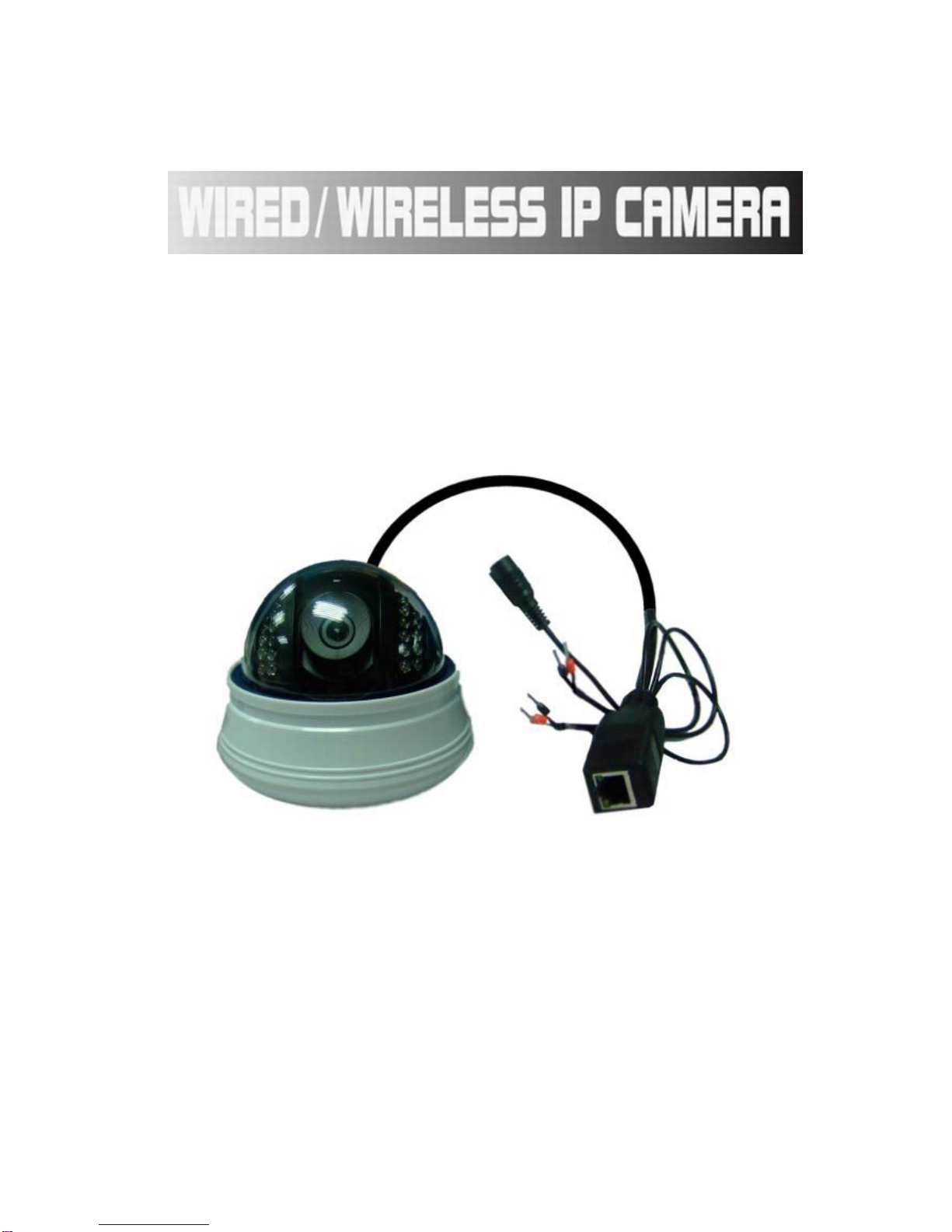

Chinavision CVLM-I70 User manual

USER MANUALV1.0

IP Camera User Manual
2
CATALOGUE
THE 1ST CHAPTER DESCRIPTION OF PRODUCT........................................................................- 1 -
1.1 PACKING........................................................................................................................................ - 1-
1.2 THE LOWESTSYSTEM CONFIGURTION............................................................................... - 1-
1.3 FEATURES .................................................................................................................................... - 1-
THE 2ND CHAPTER HE INSTALLATION OF IP CAMERA ............................................................- 2 -
2.1 INSTALLATION OF PREPAREATION........................................................................................ - 2-
2.2 HARDWARE INSTALLATION...................................................................................................... - 3-
2.3 SOFTWARE INSTALLATION ...................................................................................................... - 3-
THE 3RD CHAPTER CONFIGURATION OF IPCAM........................................................................- 5 -
3.1 GETIPADDRESS IN INTERNALNETWORK.......................................................................... - 6-
3.2 SOFTWARE EDITION UPDATE................................................................................................. - 7-
3.3 LOGIN THE CONFIGURATION PAGE...................................................................................... - 8-
3.4 REAL-TIME MONITORING ......................................................................................................... - 8-
3.4.1 VISITOR OPERATING ................................................. ..- 9 -
3.4.2OPERATOR OPERATING ............................................... - 10 -
3.5 ADMINISTRATOR OPERATING.......................................................................................... - 10 -
3.5.1 DEVICE INFORMATION ................................................ - 11 -
3.5.2 DEVICE NAME SETTINGS.............................................. - 11 -
3.5.3 DEVICE CLOCK SETTINGS............................................. - 11 -
3.5.4 DEVICE USER SETTINGS .............................................. - 12 -
3.5.5 MULTI-CHANNEL DEVICE SETTINGS ................................... - 12 -
3.5.6 BASIC NETWORK SETTINGS........................................... - 14 -
3.5.7 WIRELESS LAN SETTINGS............................................. - 15 -
3.5.8 ADSL SETTINGS ...................................................... - 15 -
3.5.9 UPNP SETTINGS ...................................................... - 16 -
3.5.10 DYNAMIC DOMAIN NAME SETTINGS .................................. - 16 -
3.5.11 MAIL SERVICE SETTINGS............................................. - 17 -
3.5.12 FTP SERVICE SETTINGS ............................................. - 17 -
3.5.13 ALARM SERVICE SETTINGS .......................................... - 18 -
3.5.14 SYSTEM SOFTWARE UPGRADE ...................................... - 19 -
3.5.15 BACKUP & RESTORE SETTINGS ...................................... - 20 -
3.5.16 RESTORE FACTORY DEFAULT SETTINGS............................. - 20 -
3.5.17 DEVICE REBOOT..................................................... - 20 -
3.5.18 LOG................................................................. - 20 -
3.5.19 RETURN............................................................. - 21 -
THE 4TH CHAPTER HOW TO VIEW IP CAMERA.........................................................................- 21 -
4.1 VIEW IN LAN................................................................................................................................-22 -
4.2 VIEW INTERNET ........................................................................................................................ - 23 -

IP Camera User Manual
3
4.2.1 CONNECT INTERNET VIAADSL DIRECTLY .............................. - 23 -
4.2.2 IP CAMERACONNECT INTERNET BY LAN............................... - 25 -
THE 5TH CHAPTER TECHNICAL PARAMETER...........................................................................- 27 -
5.1 KEY FUNCTIONS..................................................................................................................... - 27 -
5.2 KEYPARAMETERS ................................................................................................................... - 28 -
THE 6TH CHAPTER APPENDIX........................................................................................................- 28 -
6.1 RESTORE FACTORY DEFAULT SETTINGS.......................................................................... - 28 -
6.2 TROUBLE SHOOTING............................................................................................................... - 29 -

THE 1ST CHAPTER DESCRIPTION OF
PRODUCT
1.1 PACKING
Packing in detail as follow (If find any missing part, please contact with your supplier
immediately)
1．IP camera, bracket
2．Driver
3．Power adapter
4．B-B network cable
1.2 THE LOWEST SYSTEM CONFIGURTION
The lowest system configuration of your PC when using this IP camera as below:
1．Pentium III CPU or above, 1Ghz frequency or higher
2．256M built-in memory or above
3．10-100M network card or above
4．Operating system: Windows XP, Windows 2000 or above;
Install internet explorer 7.0(or above) browser, we suggest you to use internet explorer
7.0 browser for view.
1.3 FEATURES
Easy installation —— IP CAMERA is an independent system, with built-in CPU and
picture decoder; Just one power adapter and LAN connection can make it work
Suitable for home, office and public place —— No matter monitoring of home,
office or public place, or for amusement only, this IP camera can match your
needs
Support multiform protocols — TCP/IP network protocol, SMTP protocol, HTTP
protocol and other protocols related to internet
Simple configuration —With standard web browser in administrator interface.
Administrator can control and manage IP camera by LAN or Internet

IP Camera User Manual
- 2 -
Viewing/Recording — Clear user interface to view real-time pictures. Even when
you leave for a while, IP CAMERA will record the pictures and transfer files to
your PC. Files will be saved in the form of standard windows media, suitable for
extensive application program
Dynamic Monitoring — Capturing any tiny picture and send to your mail box.IP
CAMERA will automatically compare the two continuous pictures and find out
the changes caused by moving.
Support DDNS — In order to view the pictures by internet, users must know the
gateway IP address when using IP camera. However, if your gateway IP
address is dynamic, you must have dynamic domain server. As usual, many of
the gateway don’t support dynamic domain service, so it is limited when using
IP camera.
User management — if required, only authorized users can view real-time video and
before that, users must enter their user names, passwords. Maximum users: 8
persons
THE 2ND CHAPTER INSTALLATION OF IP
CAMERA
Quickly view the installation manual, after finishing the procedures step by step, IP
camera will work accordingly. IP camera can be used in LAN, you will find the IP address
in LAN by carrying out IP camera tool program on PC, then input this IP address into the
IE browser address field(such as http://192.168.1.188),so it can connect IP camera and
camera interface can be shown on browser page. For external network visit, a prior
suitable configuration of IP camera in LAN is required, please refer to the instructions in
the following chapters.
2.1 INSTALLATION OF PREPAREATION
Please make sure you have already read the user manual carefully and know well
about the functions and configurations of IP camera before installation. Then, use the
enclosed network cables to network to connect IP camera to internet, via router or switch.
Please prepare the router and switch by yourself.

IP Camera User Manual
- 3 -
2.2 HARDWARE INSTALLATION
This part is for introducing how to finish hardware installation and physical
connection of IP camera. After it, please connect power supply, IP camera will start work
and the indicator light will shine.
1．Install IP camera at the place where monitoring required
2．Connect network
Connect IP camera with Hub(10/100M) or switch(10/100M),insert one end of the
network cable into RJ45 port, the other end into router or switch. Indicator light at
RJ45port will flash under normal condition
3．Connect to the power supply
Please use the enclosed power adapter in package to connect the IP camera and
power supply, otherwise you will damage the hardware
1. Make sure the length of the network cable is within validity range. If over
100 meters, please use signal amplifier
2. In order to avoid damages on hardware, please use the power adapter we
supply
3. If you connect PC to IP camera directly, please make sure the crossover
cable is used.
4．Check LED light
After connect to the power supply, IP camera will start work and the small yellow light
at the back of it will shine. In dark condition, you will see the light at the front of camera.22
infrared lights will be as lamp-house to let you see clear picture in dark
2.3 SOFTWARE INSTALLATION
Please use the enclosed IPCamSetup.exe software to start initial installation on your
PC. After it, IP camera Tool will search all IP address in the same network space
automatically.
1．Please use the enclosed driver, then you will see the welcome interface of installation
program.
2．Introduction interface of installation will be shown.After read it, press ”next” to continue
installation. Please refer to picture2.4

IP Camera User Manual
- 4 -
Picture2.4: installation interface 1
3．Installation guidance will help you to finish the installation. Please press “Next” buttons
in turn, please refer to picture 2.5
Picture 2.5: Continue the installation
4．When finish the installation, please restart your computer. Please refer to picture 2.6

IP Camera User Manual
- 5 -
Picture 2.6: finish installation
THE 3RD CHAPTER CONFIGURATION OF
IPCAM
After finish the 2nd chapter, IP camera can work in LAN. We can find the IP address
of IP Camera by IP camera Tool program and visit IP camera by browser. (input IP
address and port number of IP camera into the IE browser address field, such as
“http://192.168.1.112:100”，Then press” enter”. If the port number is 80, then you can input
IP address, http://192.168.1.112 directly, without port number), Please note that our
factory default setting of the port number is 80.
Now we can configure IP camera by operating web configuration page. If you want to
view the monitoring picture by browser, or to operate IP camera web configuration page,
you should know the IP address and port number of IP camera.
We supply IP Camera Tool Program, which is used for searching IP address and port
number of IP camera in LAN only (both IP camera and our PC are in the same network
space), but not for searching IP address and port number of IP camera in external network
(IP camera and our PC are not in the same network space).If we want to visit IP camera
through external network, we must configure IP camera in LAN at first.
About how to make a external network visit or detail information of setup, please refer

IP Camera User Manual
- 6 -
to the following descriptions
3.1 GET IP ADDRESS IN INTERNAL NETWORK
Please pay attention to the camera power and available connection before getting IP
address.
Used LAN or PC need to support DHCP (dynamic IP allocation), because the camera's
default setting is dynamic accessing to IP address; if the used LAN or PC is no such
function, the camera will not be searched out (at this time pls operate it according to the
dialog box)
Double press IP Camera Tool.
As the following dialog box on PC: You will see the IP address after more than 10
seconds, if camera connect to the power supply just for a minute.
Check IP Camera main property setting
If dialog message shows IP camera not in same network with PC, pls click mouse right
button and select network setting.
Manually changed the network setting to be same as PC, as picture show:

IP Camera User Manual
- 7 -
Please do not choose “ Using DHCP”, if your LAN or PC doesn’t support DHCP. You
can set up the camera IP address according to the network space of LAN or PC, but it
should be different from that of other devices or PC in the same network space(the first 3
items and subnet mask should be same).You can change the port setting on the webpage
only.
If LAN or PC supports DHCP, then pls choose “Using DHCP”
3.2 SOFTWARE EDITION UPDATE
IP Camera supports the upgrade of system software and application software,
application software is for interface upgrade.
