Christie DW Series User manual

The Christie DW Series offers exceptional image quality and
detail in a choice of four compact packages for pure presentation
power. The smallest, high-performance 3-chip DLP
®
products
on the market, the Christie DW Series offers a range of 4250 to
7500 ANSI lumens delivered in a native widescreen format – the
pinnacle of image color accuracy and adjustability in an easy to
use, flexible package.
The Christie DW Series features 1280 x 720 native resolution and
a variable contrast ratio of 1600-2000:1 for crisp, detailed images.
With DLP
®
technology, high-quality optics and 10-bit image
processing, the Christie DW Series is ideal for widescreen scope,
high resolution and exceptional image quality for big, bright
displays. Increased color depth in the Christie DW4Kc/DW6Kc
models offer film-like color reproduction for stunning brilliance.
Best price-performance on the market, most reliability, lowest cost
of ownership, best warranties available and renowned customer
service all add up to peace of mind with Christie.
Boardrooms
Conference rooms
Home theater
Houses of worship
Post-production
Training rooms
DW Series
Highest quality images in a native widescreen format

1DW SERIES

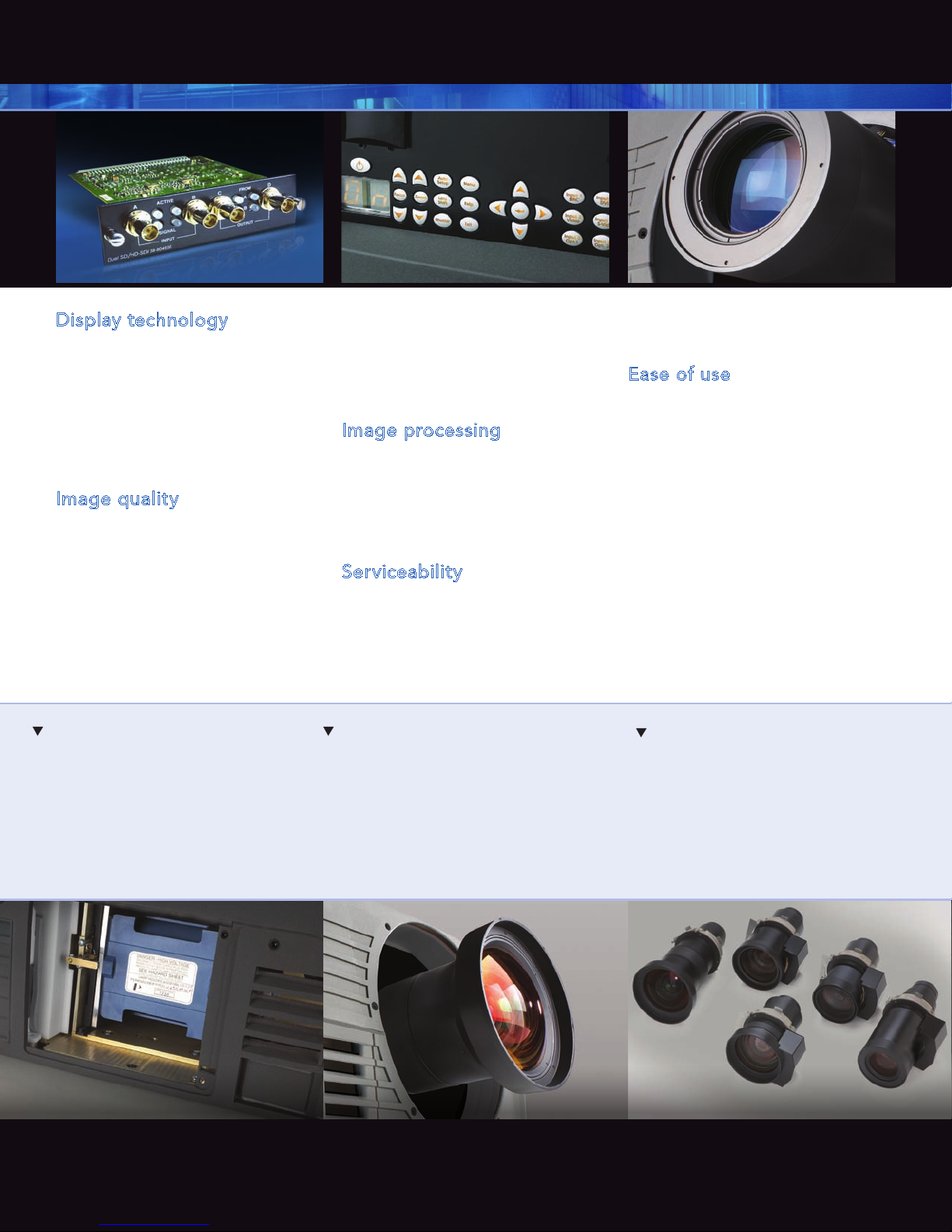

An optional suite of specifically-
designed lenses includes both fixed
and zoom lenses ranging from 0.8:1
through to a 5.0-8.0:1 zoom and features
a durable lens mount with motorized
horizontal and vertical offset. With built-in
light shutter, internal variable contrast
aperture and quick lens insertion, the
Christie DW Series is easy to work with.
Display technology
The Christie DW Series provides the best
1280 x 720 image quality in 3-chip DLP®
projection available. Low maintenance,
highly reliable DLP®technology delivers high
brightness and unsurpassed color, brightness
uniformity and control capabilities in a native
widescreen format.
Image quality
3-chip DLP®products now come standard with
dust sealed DMD’s to prevent contaminants
from getting on imaging surfaces. This ensures
a crisp, dust-free, high-brightness, high-
resolution image, with the added assurance
of less maintenance in harsh environments.
The 3-chip 720 engines are driven by Xenon
illumination and deliver superior image quality,
repeatability of colors and the ability to
edgeblend and tile images – whether multiple
projectors on a single screen, or multiple screen
displays. The enhanced optical system in the
Christie DW4Kc/DW6Kc models allows for a
film-like color experience.
Image processing
With 10-bit image processing, the Christie
DW Series offers high bandwidth signal
processing. The high bandwidth supports
additional functionality such as Picture-in-Picture
and seamless switching between sources.
Serviceability
Operation and maintenance of the Christie
DW Series is easy as well. Field-alignable DMDs
and a fully dust sealed DMD system put full
control in the hands of the user. Replacement
lamp costs are low and Christie offers the best
warranties on the market – two years parts and
labor (excluding the lamp).
Ease of use
A user-friendly Graphic User Interface makes
operation and set-up of the entire Christie
DW Series uncomplicated. The GUI enables full
and easy control of the projector. Multiple
control options let the user choose what’s best
for their application – built-in, IR and wired
remote keypad; RS-422 or RS-232 control; or
through ChristieNET™ via the Ethernet port.
Motorized lens functions provide power focus,
zoom, horizontal and vertical offset functions all
at the touch of a button. Auto set-up recognizes
sources and sets up correct brightness, contrast
and position.
With either 1kW or 1.2kW, the Christie
DW Series features user-replaceable,
pre-aligned Xenon lamp modules with
adjustable lamp power for lower brightness.
The stable color temperature over the
course of the lamp life and the power range
provides the best lamp technology for color
matching across multiple screens.
The Christie DW Series features an
extremely high contrast ratio of 1600-2000:1
full field (400:1 min ANSI contrast ratio) with
the motorized IRIS, users can adjust for high
contrast ratio and better black levels, for
any given application.

The Christie DW Series offers a native widescreen format combined
with high resolution, medium-brightness and a compact package –
for applications where image quality, color and clarity are paramount.
When the images need to speak volumes, the Christie DW Series
delivers high brightness, excellent color and detailed displays.
Deluxe Sound & Picture features superior audiovisual facilities and an
award-winning staff, capable of accommodating post-production of
feature films as well as episodic television. The studio captures, edits
and prints in HD and then screens the dailies.
The Christie DW Series features the widest
source compatibility and has built-in
Ethernet networking for full compatibility
with ChristieNET™.
High brightness, excellent color and detailed displays 2

Cornerstone Christian Faith Church, Chandler, AZ
Cornerstone Christian Fellowship Church was started when Pastor Linn
Winters and Pastor Brent Richardson began to talk about the possibility
of planting a church in Chandler, Arizona. They desired to answer to those
who wanted contemporary worship, and be exciting for those who had
lost interest in church. The dream was to incorporate solid Bible teaching
with dynamic music and practical sermons.

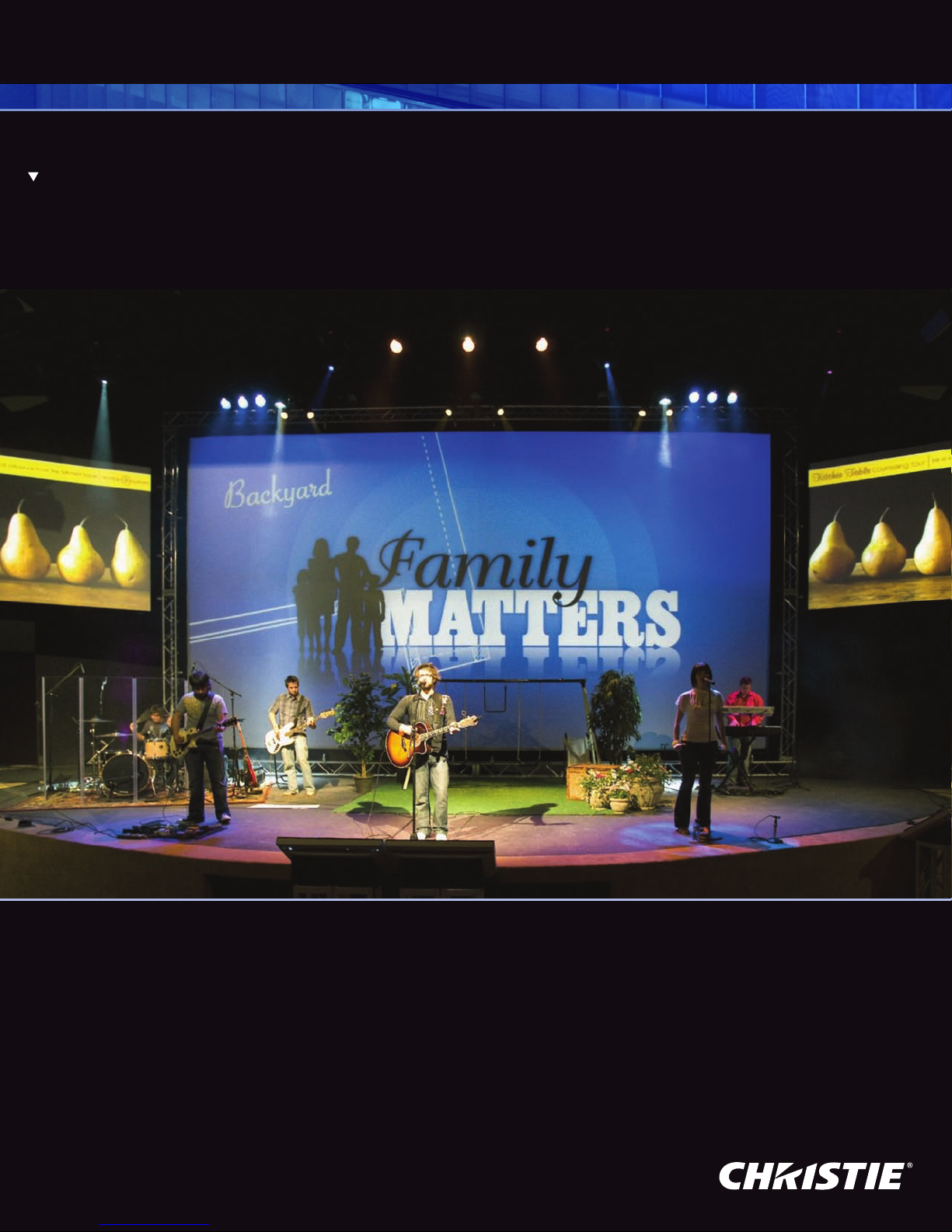

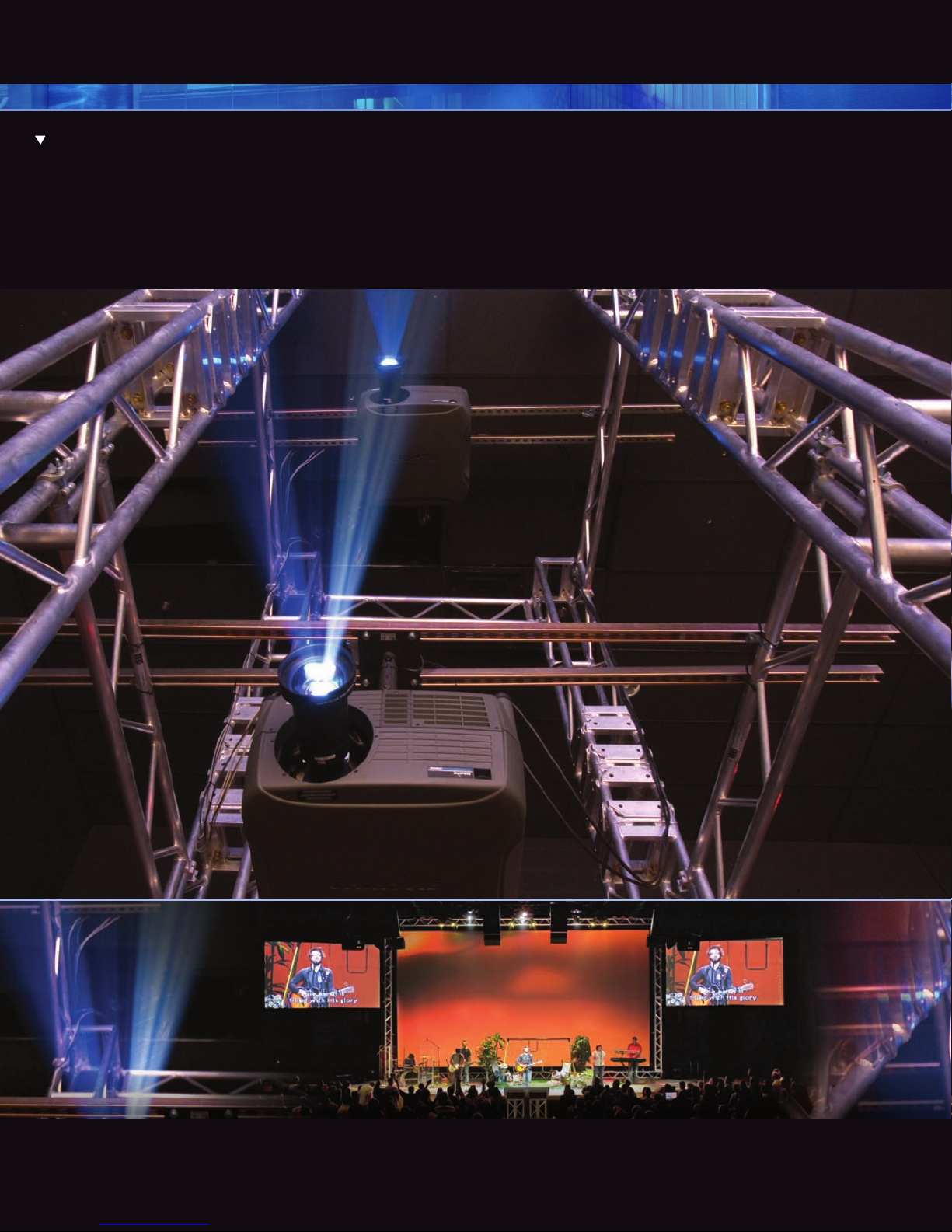

Clark ProMedia, Atlanta, GA, worked with Cornerstone to bring their
worship services to life and increase attendance. With 7500 ANSI lumens
and a native 16:9 HD format, the Christie DW8K offers exceptional image
quality and detail for widescreen scope – perfect to fill the screens of the
1500-seat auditorium. Four stacked Christie DW8Ks were edge-blended
together with four Vista Systems Spyders on a custom 36' x 19' center
screen from Stewart. Two 16' x 9' side screens further supported the main
stage with two more Christie DW8Ks.
3DW SERIES

Inputs
The Christie DW Series offers installation
flexibility and compatibility with any data, video
or HDTV source in use today, from VGA to
QXGA. The multi-standard video decoder and
horizontal and vertical scaling of all inputs gives
you the ability to connect to virtually anything:
RGBHV/YPbPr via 5 BNC•
DVI-I for digital/analog RGB/YPbPr (HDCP)•
One composite video, one S-Video•
Two optional slots for analog/digital modules•
2 RS-232 ports, 1 RS-422 port and 1 GPIO port•
On-board ChristieNET™ connectivity (RJ45)•
Built-in backlit keypad and IR remote control•
Standard accessories
IR keypad (w/batteries)•
Line cord•
User manual•
Optional accessories
Fixed lenses: 0.8:1, 1.32:1•
Zoom lenses: 1.6-2.0:1, 2.0-2.7:1, 2.7-5.0:1, 5.0-8.0:1•
ChristieTWIST™ image warping module with•
enhanced edge-blending
Dual SD/HD-SDI, DVI and legacy•
interface modules
Wire remote control•
Remote IR sensor•
Ethernet, RS-232, RS-422 cables•
Service manual•
KoRE™ 10-bit librarian•
Lens adapter (for competitive lenses)•
Competitive advantages
Xenon lamp system – provides•
repeatability of photo-realistic colors
and color-matching accuracy
Highest brightness – over all•
competitors at 1280 x 720 resolution
Highest contrast – 1600-2000:1•
(via internal adjustable aperture)
The enhanced optical system in the•
Christie DW4Kc/DW6Kc models allows
for a film-like color experience.
Installation flexibility and compatibility with any data, video or HDTV source 4

DW4Kc DW5K DW6KcDW8K
brightness
4250 ANSI lumens @ 200 VAC•
[4675 center lumens @ 200 VAC]
3700 ANSI lumens @ 110 VAC•
[3600 center lumens @ 110 VAC]
5300 ANSI lumens @ 200 VAC•
[5800 center lumens @ 200 VAC]
4100 ANSI lumens @ 110 VAC•
[4500 center lumens @ 110 VAC]
5600 ANSI lumens @ 200 VAC•
[6160 center lumens @ 200 VAC]
7500 ANSI lumens @ 200 VAC•
[8250 center lumens @ 200 VAC]
contrast 1600-2000:1 full field• • 400:1 min ANSI
uniformity 90% brightness uniformity across the screen•
Display
type
native resolution
3-chip 0.8” DMD•
HD2 (1280 x 720)•
Lamp
type
life
1kW CERMAX• ®Xenon pre-aligned lamp module 1.2kW CERMAX• ®Xenon pre-aligned lamp module
1500 hours (typical) lifetime• 1500 hours (typical) lifetime•
Input
signals
pixel clock
scan rates
HDTV formats VGA through to QXGA (2048 x 1536)• • Accepts all current HDTV/DTV formats
Multi-standard video decoder
• • Horizontal and vertical scaling, all inputs
210 MHz
•
15 kHz to 120 kHz Horizontal• • 23.97 Hz to 150 Hz Vertical
Inputs, control
and networking
RGBHV/YPbPr via 5 BNC• • DVI-I – digital/analog RGB/YPbPr (HDCP) •One composite video, one S-Video
Two option slots for analog/digital modules
• • 3 RS-232 ports and 1 RS-422 port •On-board ChristieNET™ connectivity (RJ45)
Built-in backlit keypad and IR remote control
•
Optical system Dust sealed, 3-Chip DMD Light Engine• • Motorized Horizontal and Vertical Lens Offset •Scheimpflug (tilt) Adjustment
Built-in Light Shutter
• • Tool-free Lens Insertion System
Lenses
fixed
zoom
offsets
0.8:1*, 1.32:1•
1.6-2.0:1, 2.0-2.7:1, 2.7-5.0:1, 5.0-8.0:1•
+/- 160% Vertical• • +/- 70% Horizontal •(* +/-110%V +/- 40%H)
Accessories
standard IR Keypad (w/batteries)• • Line Cord •User Manual
optional ChristieTWIST™ Image Warping and Edge-Blending module• •Input modules – Dual SD/HD-SDI, DVI and legacy interface modules
Wired remote control and RS-422
• • Remote IR sensor •Ethernet, RS-232, RS-422 cables •Service manual
KoRE™ 10-bit librarian
• • Lens adapter (for competitive lenses) •Stacker
Enhanced feature sets LiteLOC™• • Film-like color reproduction with Kc models •Comprehensive Color Adjustment (CCA™)
Built-in Edge Blending
• • Menus in five languages •50 Channel Memories •Auto Setup •Digital Keystone Correction
Power requirements
operating voltage
operating current
power
dissipation
100 VAC to 240 VAC ± @ 50/60 Hz• 200 VAC to 240 VAC ± @ 50/60 Hz•
10.4A @ 100V / 8A @ 200V• 10A @ 200V•
1600W maximum• 2000W maximum•
5460 BTU/hr• 6825 BTU/hr•
Dimensions
size
volume
weight
shipping weight
(L x W x H): 22.3 x 26.0 x 12.32” (566 x 660 x 313mm)•
7722 in• 3
72 lb (32.1 kg)• 75 lb (34 kg)•
115 lb (52 kg)• 120 lb (54.4 kg)•
Operating environment Temperature: 40 to 95º F (5 to 35º C)• • Humidity: 20 – 80% non-condensing
Regulatory approvals
This product conforms to the following regulations related to product safety, environmental requirements and electromagnetic compatibility (EMC):
• FCC Part 15, Subpart B Class A; CISPR22/EN55022; CISPR24/EN55024 •UL 60950-1 First Edition; CAN/CSA-C22.2 No 60950-1-03 First edition;
•IEC60950-1:2001 •2002/95/EC RoHS
Warranty 2 years parts and labor (including light engine)•
5TECHNICAL SPECIFICATIONS

DW4Kc DW5K DW6KcDW8K
brightness
4250 ANSI lumens @ 200 VAC•
[4675 center lumens @ 200 VAC]
3700 ANSI lumens @ 110 VAC•
[3600 center lumens @ 110 VAC]
5300 ANSI lumens @ 200 VAC•
[5800 center lumens @ 200 VAC]
4100 ANSI lumens @ 110 VAC•
[4500 center lumens @ 110 VAC]
5600 ANSI lumens @ 200 VAC•
[6160 center lumens @ 200 VAC]
7500 ANSI lumens @ 200 VAC•
[8250 center lumens @ 200 VAC]
contrast 1600-2000:1 full field• • 400:1 min ANSI
uniformity 90% brightness uniformity across the screen•
Display
type
native resolution
3-chip 0.8” DMD•
HD2 (1280 x 720)•
Lamp
type
life
1kW CERMAX• ®Xenon pre-aligned lamp module 1.2kW CERMAX• ®Xenon pre-aligned lamp module
1500 hours (typical) lifetime• 1500 hours (typical) lifetime•
Input
signals
pixel clock
scan rates
HDTV formats VGA through to QXGA (2048 x 1536)• • Accepts all current HDTV/DTV formats
Multi-standard video decoder
• • Horizontal and vertical scaling, all inputs
210 MHz
•
15 kHz to 120 kHz Horizontal• • 23.97 Hz to 150 Hz Vertical
Inputs, control
and networking
RGBHV/YPbPr via 5 BNC• • DVI-I – digital/analog RGB/YPbPr (HDCP) •One composite video, one S-Video
Two option slots for analog/digital modules
• • 3 RS-232 ports and 1 RS-422 port •On-board ChristieNET™ connectivity (RJ45)
Built-in backlit keypad and IR remote control
•
Optical system Dust sealed, 3-Chip DMD Light Engine• • Motorized Horizontal and Vertical Lens Offset •Scheimpflug (tilt) Adjustment
Built-in Light Shutter
• • Tool-free Lens Insertion System
Lenses
fixed
zoom
offsets
0.8:1*, 1.32:1•
1.6-2.0:1, 2.0-2.7:1, 2.7-5.0:1, 5.0-8.0:1•
+/- 160% Vertical• • +/- 70% Horizontal •(* +/-110%V +/- 40%H)
Accessories
standard IR Keypad (w/batteries)• • Line Cord •User Manual
optional ChristieTWIST™ Image Warping and Edge-Blending module• •Input modules – Dual SD/HD-SDI, DVI and legacy interface modules
Wired remote control and RS-422
• • Remote IR sensor •Ethernet, RS-232, RS-422 cables •Service manual
KoRE™ 10-bit librarian
• • Lens adapter (for competitive lenses) •Stacker
Enhanced feature sets LiteLOC™• • Film-like color reproduction with Kc models •Comprehensive Color Adjustment (CCA™)
Built-in Edge Blending
• • Menus in five languages •50 Channel Memories •Auto Setup •Digital Keystone Correction
Power requirements
operating voltage
operating current
power
dissipation
100 VAC to 240 VAC ± @ 50/60 Hz• 200 VAC to 240 VAC ± @ 50/60 Hz•
10.4A @ 100V / 8A @ 200V• 10A @ 200V•
1600W maximum• 2000W maximum•
5460 BTU/hr• 6825 BTU/hr•
Dimensions
size
volume
weight
shipping weight
(L x W x H): 22.3 x 26.0 x 12.32” (566 x 660 x 313mm)•
7722 in• 3
72 lb (32.1 kg)• 75 lb (34 kg)•
115 lb (52 kg)• 120 lb (54.4 kg)•
Operating environment Temperature: 40 to 95º F (5 to 35º C)• • Humidity: 20 – 80% non-condensing
Regulatory approvals
This product conforms to the following regulations related to product safety, environmental requirements and electromagnetic compatibility (EMC):
• FCC Part 15, Subpart B Class A; CISPR22/EN55022; CISPR24/EN55024 •UL 60950-1 First Edition; CAN/CSA-C22.2 No 60950-1-03 First edition;
•IEC60950-1:2001 •2002/95/EC RoHS
Warranty 2 years parts and labor (including light engine)•
Christie DW Series 6
Cornerstone Christian Faith Church, Chandler, AZ
Cornerstone presents cutting-edge, immersive graphics on three large
screens during worship services featuring contemporary Christian
rock music. The multi-sensory experience targets Cornerstone’s 5,000
congregants and takes the worship experience from the oral or the
visual to a true, fully-engaged multi-sensory experience with
highly-dynamic video content,” says Matt Card, Vice President
of Client Development with Clark ProMedia, the project’s consultant.

For the most current specification information, please visit www.christiedigital.com
Copyright 2008 Christie Digital Systems, Inc. All rights reserved. All brand names and product names are trademarks, registered trademarks
or tradenames of their respective holders. Canadian manufacturing facility is ISO 9001 and 14001 certified. Performance specifications are typical.
Due to constant research, specifications are subject to change without notice. Printed in Canada on recycled paper. 2308 Feb 08
Corporate offices Worldwide offices
USA – Cypress
ph: 714-236-8610
Canada – Kitchener
ph: 519-744-8005
United Kingdom
ph: [phone]
Germany
ph: [phone]
France
ph: [phone]
Hungary/Eastern Europe
ph: [phone]
Singapore
ph: [phone]
Shanghai
ph: [phone]
Beijing
ph: [phone]
Korea
ph: [phone]
Japan
ph: [phone]
