Chrysler Grand Caravan 2010 User manual

TABLE OF CONTENTS
SECTION PAGE
1
INTRODUCTION ............................................................3
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE ..............................9
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE ............................. 99
4
UNDERSTANDING YOUR INSTRUMENT PANEL ..................................209
5
STARTING AND OPERATING ................................................303
6
WHAT TO DO IN EMERGENCIES ............................................. 387
7
MAINTAINING YOUR VEHICLE ..............................................407
8
MAINTENANCE SCHEDULES .................................................459
9
IF YOU NEED CONSUMER ASSISTANCE ........................................ 477
10
INDEX ...................................................................487
1
2
3
4
5
6
7
8
9
10

INTRODUCTION
CONTENTS
䡵Introduction ........................... 4
䡵How To Use This Manual .................. 4
䡵Warnings And Cautions ................... 6
䡵Vehicle Identification Number .............. 6
䡵Vehicle Modifications/Alterations ............ 7
1

INTRODUCTION
Congratulations on selecting your new Chrysler Group
LLC vehicle. Be assured that it represents precision
workmanship, distinctive styling, and high quality - all
essentials that are traditional to our vehicles.
This Owner’s Manual has been prepared with the assis-
tance of service and engineering specialists to acquaint
you with the operation and maintenance of your vehicle.
It is supplemented by a Warranty Information Booklet,
located on the DVD, and various customer-oriented
documents. Please take the time to read these publica-
tions carefully. Following the instructions and recom-
mendations in this manual will help assure safe and
enjoyable operation of your vehicle.
NOTE: After you read the manual, it should be stored
in the vehicle for convenient referencing and remain
with the vehicle when sold, so that the new owner will
be aware of all safety warnings.
When it comes to service, remember that your authorized
dealer knows your vehicle best, has factory-trained tech-
nicians and genuine Mopar parts, and cares about your
satisfaction.
HOW TO USE THIS MANUAL
Consult the Table of Contents to determine which section
contains the information you desire.
Since the specification of your vehicle depends on the
items of equipment ordered, certain descriptions and
illustrations may differ from your vehicle’s equipment
The detailed index at the back of this Owner’s Manual
contains a complete listing of all subjects.

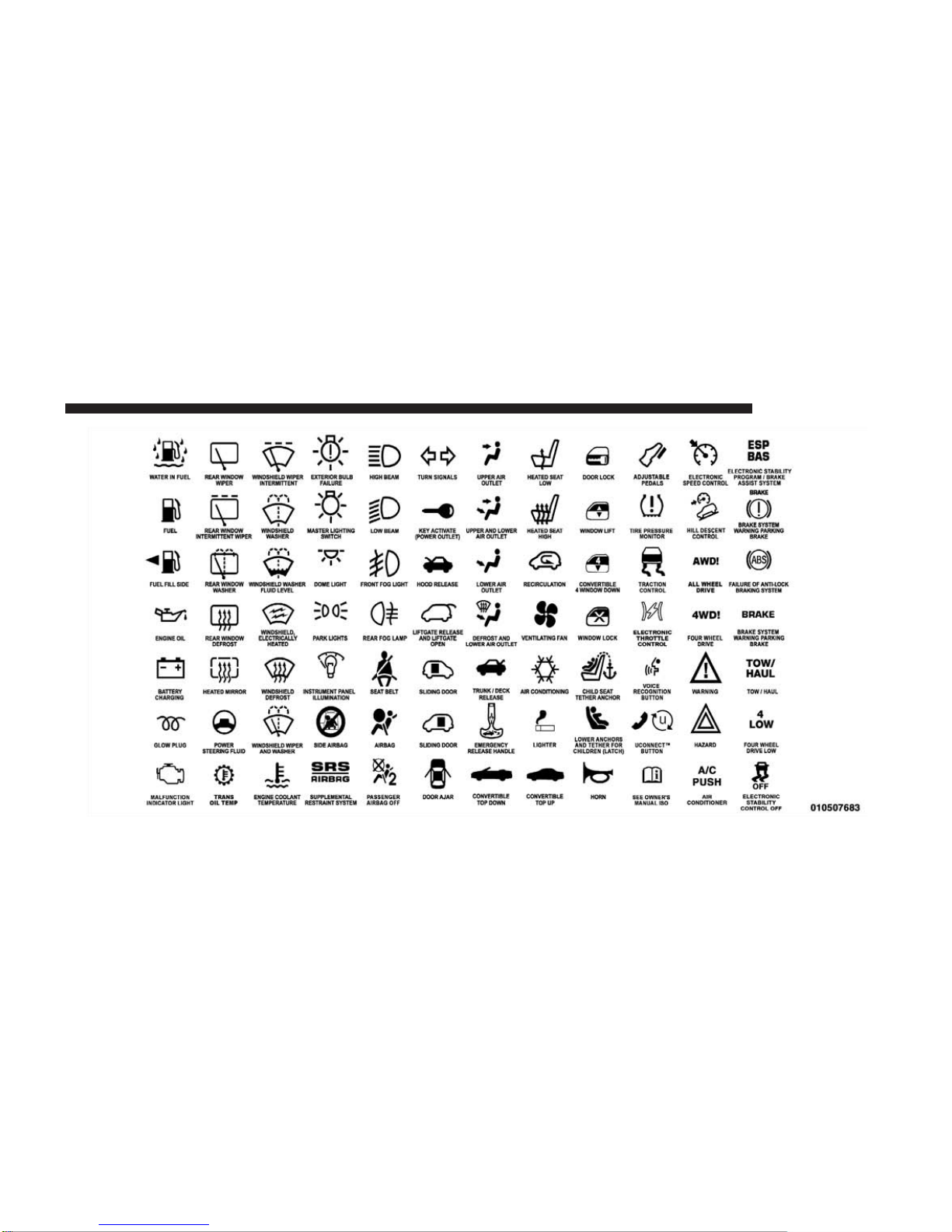

Consult the following table for a description of the
symbols that may be used on your vehicle or throughout
this Owner’s Manual:
4 INTRODUCTION

INTRODUCTION 5

WARNINGS AND CAUTIONS
This Owner’s Manual contains WARNINGS against op-
erating procedures that could result in an accident or
bodily injury. It also contains CAUTIONS against proce-
dures that could result in damage to your vehicle. If you
do not read this entire manual, you may miss important
information. Observe all Warnings and Cautions.
VEHICLE IDENTIFICATION NUMBER
The Vehicle Identification Number (VIN) is found on the
left front corner of the instrument panel, visible through
the windshield. This number also appears on the Auto-
mobile Information Disclosure Label affixed to a window
on your vehicle, the vehicle registration and title. NOTE: It is illegal to remove or alter the VIN.
Vehicle Identification Number
6 INTRODUCTION

VEHICLE MODIFICATIONS/ALTERATIONS
WARNING!
Any modifications or alterations to this vehicle could
seriously affect its roadworthiness and safety and
may lead to an accident resulting in serious injury or
death.
1
INTRODUCTION 7

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
CONTENTS
䡵A Word About Your Keys ................. 12
▫Wireless Ignition Node (WIN) ............ 12
䡵Sentry Key威.......................... 14
▫Replacement Keys ..................... 15
䡵Vehicle Security Alarm — If Equipped ........ 16
▫Rearming Of The System ................ 17
䡵Illuminated Entry System — If Equipped ...... 18
䡵Remote Keyless Entry (RKE) — If Equipped . . . 19
▫Using The RKE Transmitter .............. 20
䡵Remote Starting System — If Equipped ....... 27
▫How To Use Remote Start ............... 27
䡵Door Locks ........................... 30
▫Manual Door Locks ................... 30
▫Power Door Locks — If Equipped ......... 31
䡵Windows ............................ 35
▫Power Vent Windows — If Equipped ....... 35
▫Power Windows ...................... 35
2

䡵Sliding Side Door ...................... 40
▫Power Sliding Side Door — If Equipped ..... 40
▫Sliding Side Door Child Protection Lock ..... 44
䡵Liftgate ............................. 46
▫Power Liftgate — If Equipped ............ 47
䡵Occupant Restraints ..................... 50
▫Lap/Shoulder Belts .................... 51
▫Automatic Locking Retractors
(ALR) Mode — If Equipped .............. 57
▫Seat Belt Pretensioners — If Equipped ...... 58
▫Supplemental Rear Impact Active Head
Restraints (AHR) ...................... 58
▫Enhanced Seat Belt Use Reminder System
(BeltAlert威) ......................... 62
▫Seat Belts And Pregnant Women .......... 63
▫Seat Belt Extender ..................... 64
▫Supplemental Restraint System (SRS) -
Airbags ............................ 64
▫Airbag System Components .............. 65
▫Advanced Front Airbag Features .......... 65
▫Airbag Deployment Sensors And Controls . . . 70
▫Event Data Recorder (EDR) .............. 77
▫Integrated Child Booster Seat — If Equipped . . 78
▫Integrated Child Seat — If Equipped ....... 81
▫Child Restraints ...................... 81
10 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

䡵Rear Seat Delete Feature
(Commercial Vehicles Only) — If Equipped ..... 91
▫Restraining Infants And Small Children
With Seat Delete Feature
(Commercial Vehicles Only) .............. 92
䡵Engine Break-In Recommendations .......... 94
䡵Safety Tips ........................... 95
▫Transporting Passengers ................ 95
▫Exhaust Gas ......................... 95
▫Safety Checks You Should Make Inside The
Vehicle ............................. 96
▫Periodic Safety Checks You Should Make
Outside The Vehicle ................... 97
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 11

A WORD ABOUT YOUR KEYS
Your vehicle uses a keyless ignition system. This system
consists of a Key Fob with Remote Keyless Entry (RKE)
transmitter and a Wireless Ignition Node (WIN) with
integral ignition switch. You can insert the Key Fob into
the ignition switch with either side up.
Wireless Ignition Node (WIN)
The Wireless Ignition Node (WIN) operates similarly to
an ignition switch. It has four operating positions, three
with detents and one that is spring-loaded. The detent
positions are LOCK, ACC, and ON. The START position
is a spring-loaded momentary contact position. When
released from the START position, the switch automati-
cally returns to the ON position.
1 — LOCK
2 — ACCESSORY
3—ON
4 — START
12 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

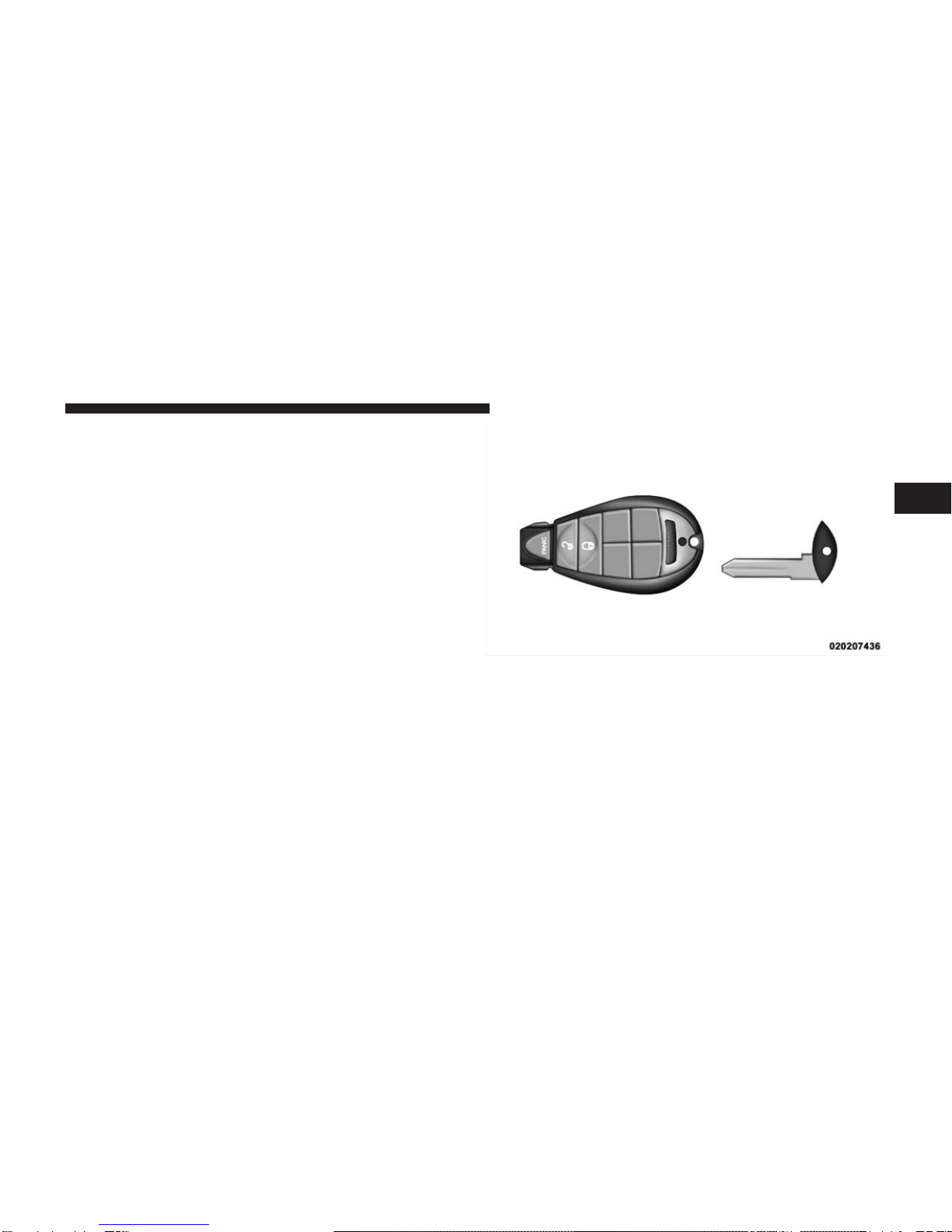

Key Fob
The Key Fob operates the ignition switch. It also contains
the Remote Keyless Entry (RKE) transmitter and an
emergency key, which stores in the rear of the Key Fob.
The emergency key allows for entry into the vehicle
should the battery in the vehicle or the RKE transmitter
go dead. The emergency key is also for locking the lower
glove compartment. You can keep the emergency key
with you when valet parking.
To remove the emergency key from the Key Fob, slide the
mechanical latch at the top of the Key Fob sideways with
your thumb and then pull the key out with your other
hand. NOTE: You can insert the double-sided emergency key
into the lock cylinder with either side up.
Removing Key Fob From Ignition
Place the shift lever in PARK. Turn the Key Fob to the
LOCK position and then remove the Key Fob.
Emergency Key Removal
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 13

NOTE: Power window switches will also remain active
for up to 90 seconds after the ignition switch has been
turned to LOCK, depending upon the accessory delay
setting. Opening the front door will cancel this feature.
WARNING!
NEVER leave children alone in a vehicle. Leaving
unattended children in a vehicle is dangerous for a
number of reasons. A child or others could be seri-
ously or fatally injured. Do not leave the Key Fob in
the ignition. A child could operate power windows,
other controls, or move the vehicle
CAUTION!
An unlocked car is an invitation to thieves. Always
remove the Key Fob from the ignition and lock all
doors when leaving the vehicle unattended.
Key-In-Ignition Reminder
Opening the driver’s door when the Key Fob is in the
ignition and the ignition switch position is LOCK or
ACC, a chime will sound to remind you to remove the
key.
NOTE: The Key-In-Ignition reminder only sounds
when the Key Fob is placed in the LOCK or ACC ignition
position.
SENTRY KEY姞
The Sentry Key威Immobilizer system prevents unautho-
rized vehicle operation by disabling the engine. The
system does not need to be armed or activated. Operation
is automatic, regardless of whether the vehicle is locked
or unlocked.
The system uses Key Fob with factory-mated Remote
Keyless Entry (RKE) transmitter and Wireless Ignition
Node (WIN) to prevent unauthorized vehicle operation.
Therefore, only Key Fobs that are programmed to the
14 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

vehicle can be used to start and operate the vehicle. The
system will shut the engine off in two seconds if an
invalid Key Fob is used to start the engine.
After turning the ignition switch to the ON position, the
Vehicle Security Light will turn on for three seconds for a
bulb check. If the light remains on after the bulb check, it
indicates that there is a problem with the electronics. In
addition, if the light begins to flash after the bulb check,
it indicates that someone used an invalid Key Fob to start
the engine. Either of these conditions will result in the
engine being shut off after two seconds.
If the Vehicle Security Light turns on during normal
vehicle operation (vehicle running for longer than 10 sec-
onds), it indicates that there is a fault in the electronics.
Should this occur, have the vehicle serviced as soon as
possible by an authorized dealer.
NOTE: The Sentry Key威Immobilizer system is not
compatible with aftermarket remote starting systems.
Use of these systems may result in vehicle starting
problems and loss of security protection.
All of the Key Fobs provided with your new vehicle have
been programmed to the vehicle electronics.
Replacement Keys
NOTE: Only Key Fobs that are programmed to the
vehicle electronics can be used to start and operate the
vehicle. Once an Key Fob is programmed to a vehicle, it
cannot be reprogrammed to any other vehicle.
CAUTION!
Always remove the Key Fobs from the vehicle and
lock all doors when leaving the vehicle unattended.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 15

At the time of purchase, the original owner is provided
with a four-digit Personal Identification Number (PIN).
Keep the PIN in a secure location. This number is
required for authorized dealer replacement of Key Fobs.
Duplication of Key Fobs may be performed at an autho-
rized dealer, this procedure consists of programming a
blank Key Fobs to the vehicle electronics. A blank Key
Fob is one that has never been programmed.
NOTE: When having the Sentry Key威Immobilizer
system serviced, bring all vehicle Key Fobs with you to
the authorized dealer.
Customer Key Programming
Programming of Key Fobs may be performed at an
authorized dealer.
General Information
The Sentry Key威system complies with FCC rules Part 15
and with RSS-210 of Industry Canada. Operation is
subject to the following conditions:
• This device may not cause harmful interference.
• This device must accept any interference that may be
received, including interference that may cause undes-
ired operation.
VEHICLE SECURITY ALARM — IF EQUIPPED
The Vehicle Security Alarm monitors the vehicle doors
for unauthorized entry and the ignition switch for unau-
thorized operation. When the alarm is activated, the
Vehicle Security Alarm provides both audible and visible
signals. For the first three minutes, the headlights, park
lamps and/or turn signals will flash and Vehicle Security
Light will flash repeatedly and the horn will sound. For
an additional 15 minutes, only the headlights, park lamps
and/or turn signals and Vehicle Security Light will flash.
16 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

The engine will run only if a valid key is used to start the
vehicle.
Rearming Of The System
The Vehicle Security Alarm will rearm itself after the 15
additional minutes of headlights and Vehicle Security
Light flashing, if the Vehicle Security Alarm has not been
disabled. If the condition which initiated the alarm is still
present, the Vehicle Security Alarm will ignore that
condition and monitor the remaining doors and ignition.
Arming The System
Remove the key from the ignition switch and either press
a power door lock switch while the driver or passenger
door is open, or press the LOCK button on the Remote
Keyless Entry (RKE) transmitter. After all the doors are
locked and closed, the Vehicle Security Light in the
instrument cluster will flash rapidly to signal that the
Vehicle Security Alarm is arming. The Vehicle Security
Light in the instrument panel cluster will flash rapidly for
about 16 seconds to indicate that the alarm is being set.
After the alarm is set, the Vehicle Security Light will flash
at a slower rate to indicate that the Vehicle Security
Alarm is armed.
NOTE: If the Vehicle Security Light stays on continu-
ously during vehicle operation, have the system checked
by your authorized dealer.
Disarm The System
Either press the UNLOCK button on the RKE transmitter
or insert a valid ignition key into the ignition switch.
NOTE:
• The driver’s door key cylinder and the liftgate button
on the RKE transmitter cannot arm or disarm the
Vehicle Security Alarm.
• The Vehicle Security Alarm remains armed during
liftgate entry. Pressing the liftgate button will not
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 17

disarm the Vehicle Security Alarm. If someone enters
the vehicle through the liftgate and opens any door the
alarm will sound.
• When the Vehicle Security Alarm is armed, the interior
power door lock switches will not unlock the doors.
The Vehicle Security Alarm is designed to protect your
vehicle; however, you can create conditions where the
system will give you a false alarm. If one of the previ-
ously described arming sequences has occurred, the
Vehicle Security Alarm will arm regardless of whether
you are in the vehicle or not. If you remain in the vehicle
and open a door, the alarm will sound. If this occurs,
disarm the Vehicle Security Alarm.
If the Vehicle Security Alarm is armed and the battery
becomes disconnected, the Vehicle Security Alarm will
remain armed when the battery is reconnected; the
exterior lights will flash, the horn will sound. If this
occurs, disarm the Vehicle Security Alarm.
Tamper Alert
If something has triggered the Vehicle Security Alarm in
your absence, the horn will sound three times when you
unlock the doors and the Vehicle Security Light will flash
for 30 seconds. Check the vehicle for tampering.
Security System Manual Override
The Vehicle Security Alarm will not arm if you lock the
doors using the manual door lock plunger.
ILLUMINATED ENTRY SYSTEM — IF EQUIPPED
The courtesy lights will turn on when you use the
Remote Keyless Entry (RKE) transmitter or open the
doors. This feature is only available if you have RKE.
The lights will fade to off after approximately 30 seconds
or they will immediately fade to off once the ignition
switch is turned ON.
18 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

NOTE:
• The front courtesy overhead console and liftgate lights
do not turn on if the dimmer control is in the interior
lights ON position (extreme top position).
• The Illuminated Entry System will not operate if the
dimmer control is in the extreme downward position.
REMOTE KEYLESS ENTRY (RKE) — IF
EQUIPPED
This system allows you to lock or unlock the doors and
liftgate, and activate the Panic Alarm, optional power
liftgate, left power sliding door, and right power sliding
door from distances up to approximately 66 ft (20 m)
using a hand-held Key Fob with RKE transmitter. The
RKE transmitter does not need to be pointed at the
vehicle to activate the system.
NOTE: Inserting the Key Fob with RKE transmitter into
the ignition switch disables all buttons on that RKE
transmitter; however, the buttons on the remaining RKE
transmitters will continue to work. Driving at speeds
5 mph (8 km/h) and above disables all RKE transmitter
buttons for all RKE transmitters.
Two RKE transmitters may be supplied with the vehicle.
Vehicles built without the powered options will be
equipped from the factory with three-button RKE trans-
mitters, and those built with power options will be
equipped with up to seven-button RKE transmitters.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 19

Using the RKE Transmitter
Three-button RKE transmitters will provide basic UN-
LOCK, LOCK and PANIC functions.
Seven-button RKE transmitters will provide functions
that allow the same basic operation as the three-button,
but may also be used to operate the power liftgate
(optional), power sliding doors, Remote Start feature
(optional). Some features can be programmed to the
customers preferences. For example, flash headlights or
sound horn on LOCK.
Key Fob With Three-Button RKE Transmitter
Key Fob With Seven-Button RKE Transmitter
20 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
