PY-1LEBARON4-DOORSOUTHAMPTON
PC-3NEWYORKERTOWN& COUNTRYWAGON
MyMopar.com

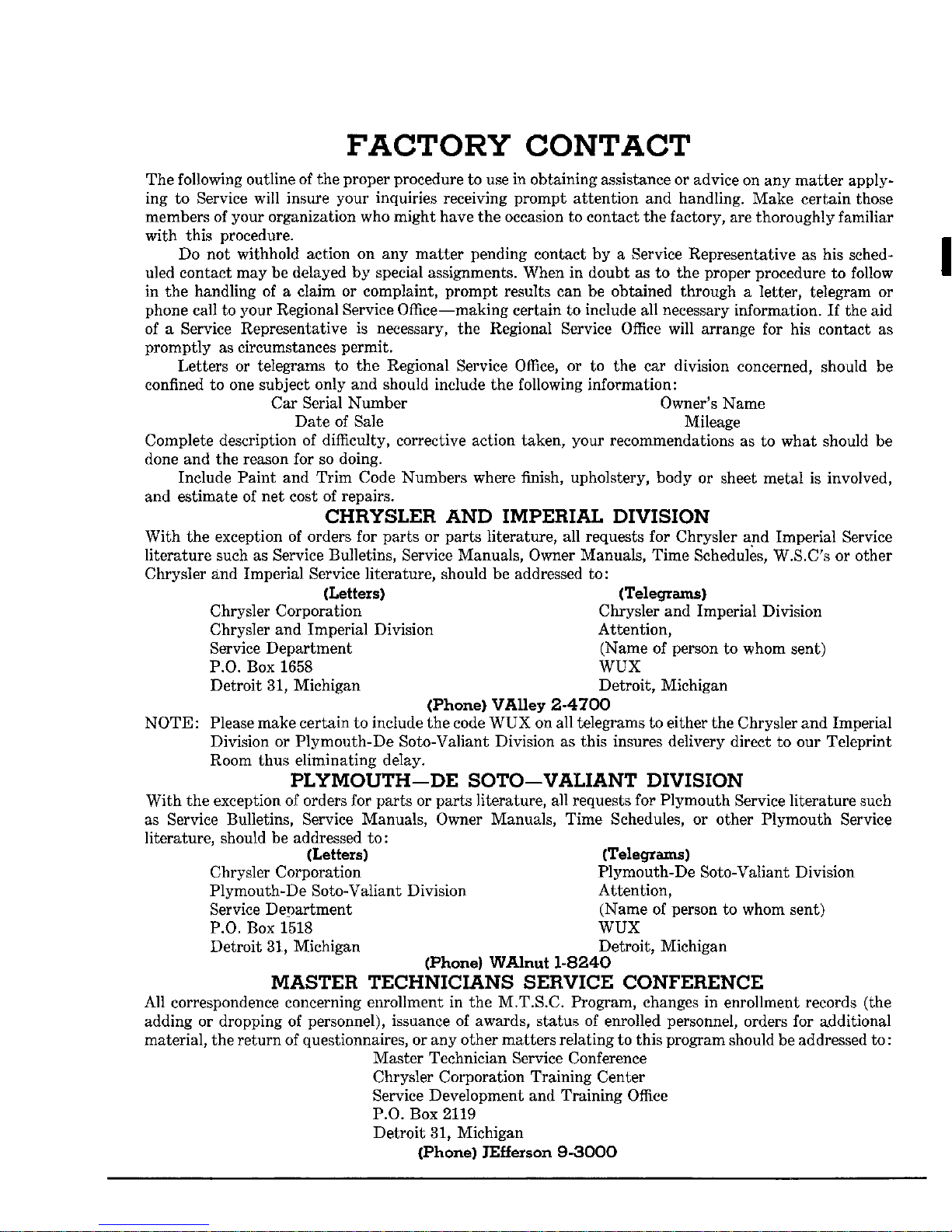

FACTORY CONTACT
The following outlineoftheproperproceduretouseinobtaining assistance oradviceonanymatterapply-
ing toService will insureyourinquiriesreceivingpromptattentionandhandling.Makecertain those
members ofyourorganizationwhomight have theoccasiontocontactthefactory,arethoroughlyfamiliar
with thisprocedure.
Do not withhold actiononanymatterpendingcontactbya Service Representative ashis sched-
uled contactmaybedelayedbyspecial assignments. Whenindoubtastotheproperprocedureto follow
in thehandlingofa claimorcomplaint,prompt results canbeobtainedthrougha letter,telegramor
phone call toyourRegionalServiceOffice—makingcertaintoincludeall necessary information.Iftheaid
of a Service Representative is necessary, theRegionalServiceOffice will arrange forhiscontactas
promptly as circumstances permit.
Lettersor telegrams totheRegionalService Office, ortothecardivisionconcerned,shouldbe
confined toonesubjectonlyandshouldincludethe following information:
CarSerialNumberOwner'sName
Dateof Sale Mileage
Completedescriptionof difficulty, correctiveactiontaken,yourrecommendationsastowhatshouldbe
done andthe reason forsodoing.
IncludePaintand Trim Code Numberswhere finish, upholstery,bodyor sheet metalisinvolved,
and estimate ofnet cost ofrepairs.
CHRYSLER AND IMPERIAL DIVISION
With theexceptionof orders for parts or parts literature,all requests forChryslerandImperialService
literaturesuchasServiceBulletins,ServiceManuals,OwnerManuals,Time Schedules, W.S.C'sorother
ChryslerandImperialServiceliterature,shouldbe addressed to:
(Letters)(Telegrams)
ChryslerCorporationChryslerandImperial Division
ChryslerandImperial Division Attention,
ServiceDepartment(Nameofpersontowhom sent)
P.O.Box1658WUX
Detroit 31,MichiganDetroit,Michigan
(Phone)VAlley 2-4700
NOTE: Please make certaintoincludethe code WUXonall telegrams toeithertheChryslerandImperial
Division orPlymouth-DeSoto-Valiant Division asthis insures deliverydirecttoourTeleprint
Room thus eliminatingdelay.
PLYMOUTH-DE SOTO-VALIANT DIVISION
With theexceptionof orders for parts or parts literature,all requests forPlymouthServiceliteraturesuch
asServiceBulletins,ServiceManuals,OwnerManuals,Time Schedules, orotherPlymouthService
literature,shouldbe addressed to:
(Letters)(Telegrams)
ChryslerCorporationPlymouth-DeSoto-Valiant Division
Plymouth-DeSoto-Valiant Division Attention,
ServiceDepartment(Nameofpersontowhom sent)
P.O.Box1518WUX
Detroit 31,MichiganDetroit,Michigan
(Phone) WAlnut 1-8240
MASTER TECHNICIANS SERVICE CONFERENCE
All correspondence concerningenrollmentintheM.T.S.C.Program, changes inenrollment records (the
addingordroppingofpersonnel), issuance ofawards, status ofenrolledpersonnel, orders foradditional
material, thereturnofquestionnaires,oranyother matters relatingtothisprogramshouldbe addressed to:
MasterTechnicianServiceConference
ChryslerCorporationTraining Center
ServiceDevelopmentandTrainingOffice
P.O.Box2119
Detroit 31,Michigan
(Phone)JEfferson9 3000
MyMopar.com

PARTS DIVISION
General
ALL ordersforpartsor accessories, emergencyorotherwise,shouldbeforwardeddirecttoyourusual
sourceofsupplyortothepartsplant listed belowservingthe area in which youarelocated.
To insureyourreceivingthepartsrequiredbyyoumore promptly, closeattentionshouldbegivento
theprocedure listed under"Ordering Information" and "Your Parts Orders'1intheintroductory front
pages ofallMoPar Parts Lists. Particularlywherepartsareorderedfora specificcar,itisveryessential
thatyourorderincludethecarserialandenginenumbers,and,inthe case of.bodyparts,thebodynumber.
CENTER LINE, MICHIGAN MARYSVILLE, MICHIGAN
Mall Aiiress: Mall Address:
Center Line Parts Plant Marysville Parts Plant
Chrysler MotorsCorporationChryslerMotorsCorporation
7000E.Eleven Mile RoadP.O.Box722
P.O.Box779Port Huron, Michigan
Detroit 31, Michigan Telephone—Port Huron
Telephone—Detroit Yukon 2-8561
Jefferson9-3000
SAN LEANDRO, CALIFORNIA
NEWARK, DELAWARE
Mall Address:
Mail Aiiress:Delaware Parts Plant
SanLeandro Parts PlantChryslerMotorsCorporation
PiTier
M°.t0rS CorP°mtion
SouthCollegeAvenue
1950DavisStreetp q gox-^o
SanLeandro, California Newark,Delaware
Telephone-SanLeandroTelephone-Newark
Sweetwood 8-6200Endicott8-2521
ATLANTA, GEORGIA
Mall Aiiress: KANSAS CITY, KANSAS
Atlanta Parts Plant
MaiI
Aiiress:
Chrysler MotorsCorporation
Kansas Clt^ PartsPlant
1150 Murphy Avenue,S.W.ChryslerMotorsCorporation
P O.Box10786Funston& Chrysler Roads
Atlanta 10,Georgia
Kansas City 15* Kansas
Telephone—Atlanta Telephone—Kansas City, Kansas
Plaza5-2531Fairfax 1-3300
PartsDivision.Literature
Requestfor Parts Division literaturesuchas Parts Books, Parts Price Lists, Parts Bulletins, etc.,should
beforwardeddirectto:ChryslerCorporation, Parts Division
P.O.Box1718
Detroit 31, Michigan
Attention: Parts Advertising Department
Shortage.of Accessories or OtherEquipment onNew Cars
Before placinganorderformissing accessories, otherpartsorequipment,onnew cars received,examine
thevehicleforthe presence ofa "backorder'1notice, which ifpresent, will be found attachedtothe
bracketfortheinsiderear view mirror. Suchback-orderedshortitems will beshipped from theassembly
plant assoonasstockisavailable,andshouldnotbeordered from the Parts Division.
EmergencyOrders
Wherea partrequiredforan"Emergency"isnotreadilyavailable from yourusualpartssource,anorder
plainly marked"EmergencyOrder"and including completedetailsontheneedforthematerial,should
beplaced with theabovepartsplantservingthe area In which youarelocatei.Orderssomarkedand
which are,inthe opinion ofthe Parts Division, fora bona fide immediateemergencyneed, will receive
emergencyhandling.Emergencyordersshouldnotbe forwariei tothe Division ServiceDepartment.
Should theoccasionarisethatthepartrequiredisnotavailableattheplantordered from, you will be
notified thatthepartisonback-order.Inthemeantime,yourorder will continuetoreceiveemergency
handling bythe Parts Division with shipmentbeingmadeaspromptlyasitisavailable.
MyMopar.com

LICENSE DATA
The following revisedmethodofnumberingvehiclesand
their engines made inDetroitandLosAngelesproduc-
tion Plants will beusedonthe1960Models.
This revision will providethe Sales Department with
the information desiredastomodel,year built andthe
serial number.
For Detroit built cars, thestartingvehiclenumber
will beas follows:
Windsor PC-1
Windsor Town & CountryPC-1
Saratoga PC-2
New YorkerPC-3
New Yorker Town & CountryPC-3
Chrysler 300FPC3-300
Imperial CustomPY-1
Imperial CrownPY-1
Imperial LeBaronJPY-1
Model
Serial Number.
81- 03100001
85-03100001
82- 03100001
83- 03100001
87-03100001
84- 03100001
91- 04100026
92- 04100026
93-04 .00026
\
Fig. 2—Vehicle Number
Thevehiclenumberisstampedona metalplateat-
tachedtothe left front doorbodyhinge pillar, asshown
in Figure2.
For L.A. built cars, thestartingvehicle will beas
follows:
Windsor
Saratoga
New Yorker
L. A. Identification
PC-181-05100001
PC-282-05100001
PC-383-05100001
Thestartingenginenumbers will beas follows:
Windsor
Saratoga
New Yorker
Chrysler 300F
Imperial
PR-38-8-4
PR-38-8-4
P -41-8-4
P =41-8-4
P -41-8-4
1.
4.
4-
i
HP
m
mm n
mm
m
. j6()>;!058
Fig. 3—Engine Number
Theenginenumberisstampedona boss onthetopside
of thecylinderblockjustbackofthewaterpump,as
shown inFigure3.
MyMopar.com

GENERAL DATA AND SPECIFICATIONS
Starting VehicleNumbers 1960 Models
Item BodyStyleDetroit
Los Angeles
PC-1 PC-2 PC-3 PY-1
FourDoor Sedan....81-03100001 81-05100001 Windsor
Town & Country....85-03100001
FourDoor Sedan....82-03100001
82-05100001 Saratoga
FourDoor Sedan....83-03100001 83-05100001 NewYorker
Town & Country....87-03100001
FourDoor Sedan....91-04100026
Imp. Custom
FourDoor Sedan....92-04100026
Imp. Crown
FourDoor Sedan....93-04100026
Imp. LeBaron
Wheelbase
FourDoor Sedan
122 126 126 129
Convertible Coupe . . 122
—
126 129
Two Door(hardtop). 122 126 126 129
Town & Country 122
—
126
—
FourDoor(hardtop) 122 126 126 129
Tread FourDoor
Sedan
61.0 61.0 61.2 61.8
(Front)
Convertible Coupe
61.0
—
61.2 61.8
Two Door(hardtop) 61.Q. 61.0 61.2 61.8
Town & Country 61.0
—
61.2
—
FourDoor(hardtop) 61.0 61.0 61.2 61.8
Tread FourDoor
Sedan
59.7 59.7 60.0 62.2
(Rear) Convertible Coupe
59.7
—
60.0 62.2
Two Door(hard top)... 59.7 59.7 60.0 62.2
Town & Country..... 59.7
—
60.0
—
FourDoor(hardtop) 59.7 59.7 60.0 62.2
Length with FourDoor Sedan
215.4 219.4 219.6
226.3
Bumper Convertible
Coupe
215.4
—
219.6
226.3
Two Door(hardtop) 215.4 219.4 219.6
226.3
Town & Country 216.0
—
220.0
—
FourDoor(hardtop) 215.4 219.4 220.0
226.3
Width with
FourDoor Sedan
79.4 79.4 79.4 80.1
Bumper Convertible
Coupe
79.4
—
79.4 80.1
Two Door(hard top)..
79.4 79.4 79.4 80.1
Town & Country 79.7
—
79.7
—
FourDoor(hardtop) 79.4 79.4 79.4 80.1
Rear Axle
FourDoor Sedan
2.93 2.93 2.93 2.93
with Convertible Coupe
2.93
—
2.93 2.93
Torque-
Two Door(hardtop). 2.93 2.93 2.93 2.93
Flite Town
& Country 2.93
—
2.93
—
Trans. FourDoor(hardtop) 2.93 2.93 2.93 2.93
Tire Size
FourDoor Sedan
8.00x14 8.50x14 9.00x14
8.20x15
Convertible Coupe
8.00x14
—
9.00x14
8.20x15
Two Door(hardtop) 8.00x14 8.50x14 9.00x14
8.20x15
Town & Country 8.50x14
—
9.00x14
—
FourDoor(hardtop) 8.00x14 8.50x14 9.00x14
8.20x15
MyMopar.com

LUBRICATIONCHART
PSF
EO
MP
HTF
EO
CI
Ci
CL
AA
MP
MP
UJ2
MP
SGL
PowerSteeringReservoir(CheckLevel)2,000Miles
ChangeEngine Oil 2,000 Miles
ChangeEngine Oil Filter4,000Miles
ManualSteeringGear(CheckLevel)2,000Miles,
MasterCylinderFluid(CheckLevel)2,000Miles
Install New FuelFilter(PaperElement)23,000Miles
EngineVentilationOutlet Air Cleaner2,000Miles
UpperBallJoints (2) 2,000Miles
LowerBallJoints (2) 2,000Miles
Tie Rod BallEnds (4) 2,000Miles
AutomaticTransmissionMaintenance10,000Miles
ManualTrans.(CheckLevel)(PS-1,PS-3only)
2,000Miles
ManualTransmissionDrain—Fill(PS-1, PS-3 only).
21,000miles
UniversalJoints—Disassemble—Clean21,000Miles.
RearAxle(CheckLevel)2,000Miles
(Drain and Refill)21,000Miles
RearAxle(CheckLevel)(SureGrip)2,000Miles
(Drain and Refill)21,000Miles
RECOMMENDEDTIREPRESSURES(COLD)
Front Rear*
DESOTO 22 22
CHRYSLER—Windsor PC-1
24
22*
SARATOGA PC-2
NEWYORKER PC-3
22 22*
*TOWN AND COUNTRY:
24 PSI (COLD)NORMALLOAD
28 PSI (COLD)HEAVYLOAD
NOTE: Cold tire pressures are listed above. Normal
driving will cause a pressure build up of 2 to 3
pounds; fast driving 4 to 6 pounds. Never re-
duce (bleed) built-up pressure in tires since
under-inflation will result when tires cool off.
For sustained high speed driving, add 5 pounds
pressure over the normal starting (cold) pressure.
KEY TO LUBRICANTS
AA AutomaticTrans.FluidType "A"
Suffix "A"
AF Anti-Freeze
AP Air Pressure
C CheckCondition of
CL ChassisLubricant
DCL Distributor Cam Lubricant
EO Engine Oil
HTF HighTemperatureBrakeFluid
MCL SpeedometerCableLubricant
ML Lubriplate
MP Multi-PurposeGearLubricant
PDO PenetratingDripless Oil
PSF PowerSteeringFluid
RR RustResistor
S ManifoldHeatControlValveSolvent
SGL SureGripLubricant
SL StainlessStickLubricant
WB WheelBearingLubricant—Medium
UJ2 UniversalJointLubricant
CHRYSLER
DESOTO
Generator2,000Miles
Distributor OilCup 2,000Miles.WickunderRotor
10,000Miles
Distributor Cam 10,000Miles
CleanCarburetor Air Cleaner,6,000Miles
Install New Carburetor Air CleanerElement
15,000Miles
ManifoldHeatControlValve2,000Miles
AutomaticTransmission(CheckFluidLevel)
2,000Miles
EngineVentilationInlet Air Cleaner2,000Miles
FrontWheelBearings—Remove—Clean—Repack
10,000Miles
GearShiftTube and LowerSupport (1)
(PS-1, PS-3only)2,000Miles
GearshiftLeverPivot—Remove—(PS-1,PS-3only)
Lubricate—Install10,000Miles
ClutchTorqueShaft (1) (PS-1,PS-3only)
2,000Miles
PARTSREQUIRING NO LUBRICATION
Rubberbushings
Oilitebearings
Rearsprings,bolts and shackles
Starterbearings
Carburetor air cleaner
Carburetorlinkage
Acceleratorpedallinkage
Steeringgeararmpivot
Gearshift and automatictransmissiondrive
selectorlinkage
Brake and clutchpedals, and linkage
Clutchreleasebearing
Idlerarmpivots
Upper and lowercontrol arm bearings
Fanbeltidlerpulley
Waterpump
Rearwheelbearings
60x1348
ENGINE OILRECOMMENDATIONS
Whenadding or changingengineoil, use lubricants
whichhaveboth theSAE designation andtheMS
Service Classification printed onthe container.High
quality,wellrefinedengineoilsusuallyhaveboth
classifications on thecontainers.Choice of brands
shouldinclude the reputation of
therefiner and
marketer.
Useoils for anticipatedtemperatures as follows:
Recommended Multi-Grade
Viscosity No. Options
Above + 32°F. SAE
30
SAE20W-40
SAE10W-30
Above+10°F. SAE
20W SAE20W-40
SAE10W-30
Above — 10°F. SAE
10W
SAE10W-30
SAE5W-20
Below — 10°F. SAE
5W
SAE5W-20
CAPACITIES
Engine Oil
5 qJs
(Add 1 qt. whenreplacingfilter or element)
CoolingSystem 1 6 qts.
(Add 1 qt.for heater)
RearAxle 3»/2 pis
Transmission(refill)
TorqueFlite 21
pts.
PowerFlite (D eSotoonly) 22pts.
Manual (De Sotoonly) 2Va
pts.
MyMopar.com

LUBRICATIONCHART
PSF
EO
HTF
EO
CL
CL
CL
AA
UJ2
MP
SGL
PowerSteeringReservoir(CheckLevel)2,000Miles
ChangeEngine Oil 2,000Miles
ChangeEngine Oil Filter4,000Miles
MasterCylinderFluid(CheckLevel)2,000Miles
Install New FuelFilter23,000Miles
EngineVentilationOutlet Air Cleaner2,000Miles
UpperBallJoints (2) 2,000Miles
LowerBallJoints (2) 2,000Miles
Tie Rod BallEnds (4) 2,000Miles
AutomaticTransmissionMaintenance10,000Miles
UniversalJoints—Disassemble—Clean.
21,000 Miles
RearAxle(CheckLevel)2,000Miles.
(Drain and Refill)21,000Miles
RearAxle(CheckLevel)(SureGrip)2,000Miles,
(Drain and Refill)21,000Miles
RECOMMENDEDTIREPRESSURES(COLD)
ALLMODELS
Front Rear
24 24
NOTE: Cold tire pressures are listed above. Normal
driving will cause a pressure build up of 2 to 3
pounds; fast driving 4 to 6 pounds. Never re-
duce (bleed) built-up pressure in tires since
under-inflation will result when tires coo/ off.
For sustained high speed driving, add 5 pounds
pressure over the normal starting (cold) pressure.
KEY TO LUBRICANTS
AA AutomaticTrans.FluidType
"A"
Suffix "A"
AF Anti-Freeze
AP AirPressure
C CheckCondition
of
CL ChassisLubricant
DCL Distributor
Cam Lubricant
EO Engine
Oil
HTF HighTemperatureBrakeFluid
MCL SpeedometerCableLubricant
ML Lubriplate
MP Multi-PurposeGearLubricant
PDO PenetratingDripless
Oil
PSF Power
SteeringFluid
RR RustResistor
S ManifoldHeatControlValveSolvent
SGL SureGripLubricant
SL StainlessStickLubricant
UJ2 UniversalJointLubricant
WB WheelBearingLubricant—Medium
IMPERIAL
60x1370
Generator OilCup 2,000Miles
Distributor OilCup 2,000Miles.WickunderRotor
10,000Miles
Distributor Cam 10,000Miles
CleanCarburetor Air Cleaner6,000Miles
Install New Carburetor Air CleanerElement
15,000Miles
ManifoldHeatControlValve2,000Miles
Part No. 1879318MoParManifoldHeat
ControlValveSolvent
AutomaticTransmission(CheckFluidLevel)
2,000Miles
EngineVentilationInlet Air Cleaner2,000Miles
FrontWheelBearings—Remove—Clean—Repack
10,000Miles
PARTSREQUIRING NO LUBRICATION
Rubberbushings
Oilitebearings
Rearsprings,bolts and shackles
Starterbearings
Carburetor air cleaner
Carburetorlinkage
Acceleratorpedallinkage
Steeringgeararmpivot
Gearshift and automatictransmissiondrive
selectorlinkage
Brakepedal and linkage
Idlerarmpivots
Upper and lowercontrol arm bushings
Fanbeltidlerpulley
Waterpump
Rearwheelbearings
ENGINE OIL RECOMMENDATIONS
Whenadding or changingengine oil,use lubricants
whichhave boththeSAE designation andtheMS
ServiceClassificationprinted onthe container.High
quality,wellrefinedengineoilsusuallyhaveboth
classifications onthe containers.Choice of brands
shouldinclude the reputation ofthe refiner and
marketer.
Useoils for anticipatedtemperatures as follows:
Recommended
Viscosity No.
Above+32°F. SAE30
Above+10°F. SAE20W
Above—10°F. SAE10W
Below—10°F. SAE5W
Multi-Grade
Options
SAE20W-40
SAE10W-30
SAE20W-40
SAE10W-30
SAE10W-30
SAE5W-20
SAE5W-20
CAPACITIES
Engine Oil
5qts.
(Add 1 qt. whenreplacingfilter or element)
CoolingSystem 1 6 qts.
(Add 1 qt.for heater)
RearAxle 3Vi pts.
Transmission(refill)
TorqueFlite 21 pts.
MyMopar.com

LUBRICATION AND MAINTENANCE — 1
Group 0
LUBRICATION
AND
MAINTENANCE
CONTENTS
Paragraph Page
Air Cleaners. 1 3
Body 2 3
Brakes- 3 4
Chassis Lubrication8 4
Cooling System9 5
Distributor - 105
EngineOil115
EngineOil Filter 125
Foot OperatedParkingBrake5 4
Generator136
Hydraulic System4 4
Lubrication Recommendations— 9
Manifold HeatControlValve146
Manual Transmission198
Parking BrakeLinkage, 7 4
PowerFlite andTorqueFliteTransmission187
Rear Axle 156
ServiceBrake6 4
Steering166
Power
Manual
10,000 Mile Lubrication176
Wheel Bearings208
MyMopar.com

DATA AND SPECIFICATIONS to
Make
No.
Cyl.
Model
Cooling
System
qt.(a)
Crank-
case
qt.(b)
Fuel
Tank
gallon
Transmission
Manual
pint
Power-
Flite
pint
Torque-
Flite
pint
Axle
Rear
pint
Tires
Size
Standard No.
EquipmentPlies
Pressure
Front
Rear (c)
Wheel
Width and
Flange
DeSoto
V-8
PS1-L
PS3-M
PC1-L
PC2-M
Chrysler
V-8
PC3-H
PY1-L
Imperial V-8 PY1-M
PY1-H
FireFlite
Adventurer 23
2%
22 8.00x 14
8.50x 14
Optional
22
Windsor 8.00x 14 24
Town & Country 22 8.50x14 24
Saratoga
8.50x 14 22
NewYorker 16 23
N/A N/A 21 31/2 9.00x 14 22
Town & Country 22 9.00x 14 22
Custom
Crown
23 8.20x 15 24
LeBaron
22
22
24
22
22
24
24
14x 5.5K
14x 5.5K
14x6K
14x6K
14x 6.5K
14x6.5K
15x6L
(a)
(b)
(c)
Add 1 quartfor heater.
Add 1 quartwhen filter or filter element is changed.
Town andCountry:28psiwhen fully loaded.
MyMopar.com

LUBRICATION AND MAINTENANCE — 3
Group 0
LUBRICATION AND MAINTENANCE
Lubricants areclassifiedandgradedaccordingto
standardsrecommendedbytheSocietyof Automo-
tive Engineers (SAE), theAmericanPetroleumIn-
stitute (API)andthe National Grease Institute
(NLGI).
The SAEgradenumberindicatestheviscosityor
fluidity of thelubricant.(Example,SAE30)engine
oils mayhavea dualnumber,oneof which isSAE
10W-30. This marking indicatesthattheoiliscom-
parabletoSAE10W,SAE20WandSAE30 grades
(seeParagraph00).
The APIdesignationsrelatetothetypeofservice
for which theengineoilisrecommended.Thethree
designationsare"MS," "MM" and "ML." All1960
carenginesrequiretheMS oils.
Both theSAEnumberandtheMSdesignation
should bemarkedonthecontainer.
The National Lubricating Grease Institute (NLGI)
makestherecommendationsfor greases bynumber-
ing them from 0 to6.Thenumbersrefertothe
consistency(orstiffness)ofthe grease.
1. AH CLEANE1S
Enginesrequire ventilation throughthe cylinder
headcoversandcrankcasetoremovecombustion
products. Airenterstheenginethroughtheoil
filler cap,whereanydustistrappedbytheoil-soaked
material inthecap(Fig.1).
FILTERMESH
I
y
FILLERPIPE
FILLER CAP
53x132
Fig. 1—Engine Ventilation Inlet AirCleaner
The aircleanershouldbecleanedinkeroseneand
reoiled with SAE30engineoilateachoilchange
period oroftener;industy areas as often as500
miles; inextremelydusty areas daily.
The paperelementcarburetoraircleanershould
becleanedas often asconditionswarrantbutnot
to exceed5,000 mile intervals;anda newelement
should beinstalledat15,000 mile intervals(Fig.2).
After removingtheaircleaner from thecarbu-
retor, cleanthehousingandcover with compressed
air. Using compressedair,gentlycleanthepaper
elementby holding theairnozzleatleasttwoinches
from theinsidescreen.Examinethepaperelement
for punctures.Discardanelementthathasas little
asa pin-point puncture.Examinethesoftplastic
sealer onboth sides oftheelement.Thesesealing
surfacesmustbesmoothand uniform.
2. BODY
The following partsshouldbelubricatedevery
2,000milesortwomonths,whicheveroccurs first.
Lubricate doorhingepins,innerandouterdoor
lock rotors, tail gatehingesandother hard-to-lubri-
cate places with driplesspenetratingoil.
Lubricate doorandtailgate lock strikerplatesand
dovetail surfaces with stainless stick lubricant.
Uselubriplateonallbearingsurfacesofthe fol-
lowing parts:doorchecks,brakepedalsandconnec-
tions topowercylinder, foot operatedparkingbrake,
decklid lock, torsionbarandhinges,tailgatelocks
and torsionbar roller camandlicenseplatepanel,
WING NUT
COVER-
SILENCER .
BODY
-COVERSTUD
FILTERELEMENT
Fig. 2-
... - 69 x 34
buret or Air Cleaner
MyMopar.com

4 —LUBRICATION AND MAINTENANCE
JCABLE
CONNECTOR
PIVOTS
RATCHETTEETH ^
PAWLSPRINGS
60x1020
Fig. 3—Foot Operated ParkingBrake Pedal
fuel tank access coverspringsandpinandhinge
andpin.
3.BRAKES
Adjustmentfornormal lining wear shouldbe made
whenthepedal goes morethanhalf-waytothe floor
in makingnormal stops. Thefoot-operatedparking
brake requires adjustmentwhenthepedaltravels
morethan414inches.
Brakeliningsshouldbeinspectedfor wear every
10,000miles,whenthefrontwheel bearings are
lubricated.
4. HYDRAULIC SYSTEM
.Check fluid in master cylinderat each lubrication
period.Replenish with brake fluid.
5. FOOT-OPERATED PARKING BRAKE
Eachtimethevehicleislubricated,applya thin film
60x820
i- - - .
Fig. 4—Chassis Lubrication
57x379
Fig. 5—Gearshift Tube andlower Support Lubrication
of Lubriplatetotheapply, release andpawlpivots,
thepawlsprings,the ratchet teethandthe cable
connector(Fig.3).
6.SERVICE BRAKE
Eachtimethecarislubricated,applya thin film
of Lubriplatetothepivotsandslidingcontact sur-
faces inthe brake pedal suspension mechanismand
connections topowercylinder.
7. PARKING BRAKE LINKAGE (External
ContractingType)
Eachtimethecarislubricatedthepivotpoints
shouldbelubricated with engine oil.
8.CHASSIS LUBRICATION
Apply chassis lubricanttothe following pressure
fittings toforcetheoldlubricantoutand fill thepart
with freshlubricant(Fig.4).
Both upper ball joints.
Both lower ball joints.
Both ball ends ofrighttierod.
Fig. 6—Clutch T©rque ShaftLubrication
MyMopar.com

LUBRICATION AND MAINTENANCE — 5
Both ball ends of left tierod.
Gearshifttubeandlowersupport assy. (Fig.5).
Clutch torqueshaft(Fig.6).
9. COOLMG SYSTEM
All modelsareequipped with a 180°thermostat.The
cooling systemshouldbedrainedandflushed inthe
spring andagaininthe fall.
Usecleanwaterandcorrosion inhibitor P/N00
in thesummer,ifanethylene-glycolantifreezesolu-
tion isnotdesired.Thecoolingsystemof cars
equipped with heater-airconditioning systems must
beprotectedtoat least +15°F. atalltimestoavoid
freezing the heater core.
Most antifreezesolutionscontaina corrosion inhib-
itor. However,inordertoprovideproperprotection
againstcorrosionofthecoolingsystem,a solution
of at least 20%antifreezemustbe used. A 20%
solution will provideantifreezeprotectionof -j-15°F.
for ethylene-glycoltypeantifreezeand +10°F. for
methanoltype.(Ifmethanoltypeantifreezeis used
a160 degree thermostatmustbeinstalled.)
NOTE: In some areasthewateravailablehasa
highmineral content. Suchwaterswhenaddedto
thecoolingsystemcancausecorrosionandpre-
maturedeteriorationofthecoolingsystemcom-
ponents unlessadequateprecautionarymeasuresare
taken.
10. DISTRIBUTOR
Eachtimethecarislubricated,put5 to10dropsof
SAE 10Wengineoilintheoilcup.
At 10,000milesor one-year intervalsapplySAE
10W oiltothe felt wicking underthedistributor
"ADD OIL" MARK
'TULL'! .V.ARK
52x 587
Fig. J—Engine Oil LevelIndicator(Dipstick)
rotor. Alsoapplycamlubricanttotherubbingblock
on thecontactbreakerarm.
11. ENGINE OIL
Original factory fill engineoilinnew cars is espe-
cially compoundedfornew engines andshouldbe
used throughoutthe first 1,000milesofoperation.
Theengineoil change period will vary widely
dependinguponthetypeofoperation,weathercon-
ditions andotheroperatingvariables.Short trip
driving in cold weatheror driving ondusty roads
canmakeoil changes advisableasfrequentlyas
every500miles, while cross-country driving day
afterday, with good oils, maypermit 5,000 milesof
operationbetween changes. Asa generalrule, aver-
age driving will indicatethattheengineoilshould
bechangedeverytwomonthsor2,000miles, which-
everoccurs first.
Theengineoillevelshouldbechecked each time
thecarisrefueled.Whentheleveldropsbelowthe
"Add Oil"markontheengineoillevelindicator
(dipstick) (Fig.7)theadditionofonequartofoil
will usuallybringthelevel within therunningrange.
When addingorchangingengine oil, uselubricants
which have boththeSAEdesignationandtheMS
ServiceClassificationprintedonthecontainer. High
quality, well refinedengineoilsusually have both
classificationsonthecontainers.Choiceof brands
shouldincludethereputationoftherefinerand
marketer.
Useoilsforanticipated temperatures as follows:
Above +32°F.
Above +10°F.
Above -10°F.
Below -10°F.
Recommended
ViscosityNo.
SAE 30
SAE 20W
SAE 10W
SAE 5W
Multi-Grade
Options
SAE 20W-40
SAE 10W-30
SAE 20W-40
SAE 10W-30
SAE 10W-30
SAE 5W-20
SAE 5W-20
Thecapacityoftheengineis5 quarts.Engineoil
additivesare unnecessary for cars innormaluse.
However,the engines in cars which are used infre-
quently andinshort trip driving areliabletorust.
Additive oilcontainsananti-rustmaterialas well
asananti-scuffproperty.Itshouldbe used aftera
major reconditioning,duringthebreak-inperiod.
12. ENGINE OIL FILTER
Theengineoil filter (Fig.8)protectstheengineby
trapping andholdingforeignmatterand abrasives
MyMopar.com

6 —LUBRICATION AND MAINTENANCE
TOOL K
58x239
Fig, 8—Engine Oil rife-
which maybe present intheoilbeforetheycan
reach critical pointsinthelubrication system. The
filter contains a by-pass valvewhich assures a full
supplyofoiltothe oiling system inthe event the
filter becomes clogged.
Operationindusty,smokey areas will requiremore
frequent filter changes thanthenormal 4,000 mile
orfour-month usage.
Filter change shouldincludeanadditionalquart
of oilandshouldcoincide with an engine oil change.
13. GENEIATOI
Eachtimethecarislubricated,put5 to10 drops of
SAE 10W engine oilin each oilcup(Fig.9).
14. MANIFOLD HEAT CONTROL VALVE
Eachtimethecarislubricated,apply Manifold Heat
Control ValveSolvent,MoPar Part Number 1879318
Fig. 9—Generator Lubrication
Rg. TIO-Manifold HeatControlValve
to each endofthevalveshaftwhenthemanifold
iscool.Workthevalvebackand forth a fewtimes
todistributethesolventandtobe sure thevalveis
free(Fig.10).
15. REAR AXLE
Checkthelubricantlevelat 2,000 mileor2 month
intervals, each timethecarislubricated.Replenish
whenlevelisbelowthe filler hole.Drainand refill
every20,000milesortwo years, whichever occurs
first. UseMulti-Purpose Gear Lubricant:SAE90
above -10°F.; SAE80below 10°F.; andSAE75
below -30°F.
Sure gripdifferentialsrequirereplenishment with
Sure GripLubricantMoPar Part Number1879414
anda drainand refill at20,000milesortwo year
intervals. Refill is3^2pints.
16.STEERING
a. PowerSteering
Checktheoillevelinthereservoir(whenoilisat
operating temperature) each timethecaris lubri-
cated. Replenishtothe full mark with power steer-
ing fluid, MoPar Part Number2084329.
b.ManualSteering
Checkthelubricantlevel each timethecaris lubri-
cated. Replenishwhenlevelisbelowthe filler hole.
UseMulti-Purpose Gear LubricantSAE90 above
-10°F.; SAE80below ™10oF., andSAE75below
-30°F.
17. 10,000 MILE OR ONCE A YEAR
WHICHEVER OCCURS FIRST
a. Speedometer Cable
Disconnectthe cable atthe speedometer andremove
theflexible driveshaft.Coattheshaft with all-
MyMopar.com

LUBRICATION AND MAINTENANCE — 7
weather speedometer cablelubricantandreinstall
Remove excess lubricant from top12inchesofcable
andtheferrulebeforeshaftiscompletelyinserted
in thecable.
b.Door Lock Cylinders
Apply Lubriplatesparingly.
c.Gearshift Lever (PS-1, PS-3only)
Removetherubberboot, pivot pinassemblyandthe
gearshiftlever.Lubricatethe ball endand pivot pin
areas generously with Lubriplate. Install the gear-
shift lever, pivot pinassemblyandtherubberboot.
d. Front Suspension
Both ends ofthetorsionbar rear anchorandthe
rear endofthe front anchorshould have a sufficient
amountofmulti-purpose grease topreventtheen-
tranceofwater,dustandmudorotherforeign
matter.
e.UniversalJoints
Universal jointsshouldberemoved,disassembled,
cleaned,inspected,andlubricated with fresh lubri-
cant.SeeGroup16.
f.HeadLamps
Checktheaimingofall head lamps.
g. Tires
Tiresshouldbeexaminedforabnormalwear,un-
usualwearpattern,foreignmaterialandlackof
adequate air pressure each timethecaris lubri-
cated.Suchconditionsindicatethatmechanical
correctionsare necessary orreflectunusual driving
habits.
ADD l PINT
4
K /
t
ILEFTFRONT
I
1
I
V
RIGHTFRONT
LEFTREAR .RIGHTREAR
\ a i
FULL /
/ /
CHECKWHEN HOT-
IDLING IN NEUTRAL
'60X819
Fig. 12—AutomaticTransmission Oil LevelIndicator
Uniform wearandmaximumtire life care may
beobtainedbyrotatingthe five tiresatregular
intervalsof3,000milesandevery6,000milesthere-
after(Fig.11).
18. POWE1FL1TEAND TOIQUEFLITE
TRANSMISSION
a. Fluid Level
The fluid levelshouldbecheckedevery1,000miles
or 2 months,whicheveroccurs first. Whenchecking,
theengineandtransmissionshouldbeatnormal
operatingtemperature.
(1)With theparkingbrakeonandtheengine
idling, depress each pushbuttonmomentarily,end-
ingwith the"N"(Neutral)buttonpushedin.
(2) The fluid levelshouldcheckatthe full mark,
or slightly below,butnever above the"F"mark
when theengineisatitsnormalwarmedcondition
describedabove.Addor delete fluid as necessary to
bring tothisprescribedlevel(Fig.12).
CAUTION
To preventdirtfromenteringthetransmissionafter
checkingorreplenishingfluid, makecertainthat
thedipstickcapisreseatedproperly onto thefiller
tube.
If itis necessary tocheckthe fluid levelwhenthe
transmissionis cold, the fluid levelshouldbeat,or
•TORQUE CONVERTERDRAIN
V 1
TRANSMISSIONDRAIN
Fig. 11—Tire Rotation
Fig. 13—Automatic TransmissionDrainPoints
MyMopar.com

8— LUBRICATION AND MAINTENANCE
slightly belowthe"AddOnePint"mark.Ifbelow,
addone pint of fluid thenrecheckthe level.
b. PeriodicMaintenance
The following maintenanceserviceshouldbeper-
formed every10,000milesofoperation,oroneyear,
whichever occurs first:
NOTE: Forserviceoperationsuchas;policecars,
and cars which frequentlytowtrailers,operatein
heavy traffic inhotweatheroroperatecontinuously
with abnormalloadsshouldhavemorefrequent
periodic maintenance.Automatictransmissionshould
not be idled in gear for long periods.
(1) Remove filler tube from transmissionoilpan
and allow transmissiontodrain(Fig.13).
(2) Remove flywheel access plateandremovethe
torqueconverterdrain plug and allow todrain.
(3) Replacethetorqueconverterdrain plug.
(4) Removetransmissionoilpan.Cleantheintake
screenandpan.
(5) Adjust thereversebandforPowerFliteor
thelow-reversebandforTorqueFlite.(SeeGroup
21.)
(6) Adjust the kickdown band.(SeeGroup21.)
(7) Adjust thepushbuttoncable.(SeeGroup21.)
(8) Reinstalltheintakescreen,oilpan,and filler
tube.Be sure tousea newgasket.
(9) Add five (5)quartsofAutomaticTrans-
mission Fluid, Type"A," Suffix "A"throughthe
filler tube.
(10) Startengineandaddapproximatelythree
(3) quartsmore while theengineidles.
(11) Allow engineto idle foratleasttwo(2)
minutes.
(12) Operateallpushbuttons,pausingmomen-
tarily ateach position, ending with the"N"(Neu-
tral) buttonpushedin.
(13) Add sufficient fluid to bring the fluid level
to the"AddOnePint"mark.
(14) Adjust line pressure tospecificationsout-
lined inGroup21.
(15) Adjust engine idle at475to500rpmin
Neutral.
(16) Adjust thetransmissionandcarburetor
throttle linkageforproper shift pattern.(SeeGroup
21.)
(17) Testcarperformance.
CAUTION
To prevent dirt from enteringthetransmission,
makecertainthatthedipstickcapisreplacedprop-
erly ontothe filler tube.
(18) PowerFlite Only: Ifstartingis difficult when
average temperaturesconsistentlyrangebelow
—10°F., replaceone(1)quartof fluid with refined
kerosene.Thisserviceshouldbeperformed only
once during thelow-temperature season. Thereafter,
necessary replenishmentofPowerFliteshouldbe
with AutomaticTransmission Fluid, Type"A,"
Suffix "A."
19. MANUAL TRANSMISSION (PS-1, PS-3 Only)
Checklubricant level at2,000milesortwomonth
intervals, eachtimethecarislubricated.Replenish
when level isbelowthe filler hole.
Drain and refill at20,000 mile ortwoyearinter-
vals, whicheveroccurs first.
UseMulti-PurposeLubricant:SAE80fortemper-
atures above —10°F., SAE75fortemperaturesbelow
-10°F. In warm territorieswhereSAE80isnot
available, SAE90maybeused.
20. WHEEL BEABJNGS
Rearwheelbearingsarepre-lubricatedandrequire
lubrication only astheaxleshaftsareremovedin
conjunction with otheroperations.
Front wheelbearingsshouldbecheckedevery
10,000milesoroncea year,whicheveroccurs first.
If thelubricantisemulsified,hashardenedoris
low inquantity,thebearingsshouldberemoved,
cleaned,inspectedandnewshort fiber wheelbearing
grease (medium)installed.Thehuband grease cap
should becleanedandtheinnersurfacescoated
lightly with grease.
To adjust front wheelbearings:
(1) Tightenadjustnutto180 inch pounds while
wheel is turning.
(2) Placenut lock ornut with onesetofslots
aligned with cotterpinholeinspindle.
(3) Backoff lock andnutP/2slots. (Hole in
spindle will becovered.)
(4) Removenut lock (donot turn nut)andre-
position lock socotterpincanbeinstalled.
(5) Install cotterpinand grease cap.
MyMopar.com

LUBRICATION AND MAINTENANCE — 9
LUBRICATION RECOMMENDATIONS
KEY
Key
AA
Automatic Trans. Fluid Type"A" Suffix "A"
MP
Manual Trans. Level (PS-1,PS-3 only)
AF Anti-Freeze MP
Rear Axle Level
AP Air Pressure
SGL
Rear Axle Level (Sure Grip)
C
CheckConditionof
EO
External ContractingParkingBrake
CL
Chassis Lubricant
Linkage
DCL
Distributor CamLubricant
CL
Upper Ball Joints(2)
EO
EngineOil
CL
Lower Ball Joints(2)
HTF
High TemperatureBrake Fluid
CL Tie Rod Ball Ends(4)
MCL
Speedometer CableLubricant
CL
Clutch TorqueShaft(1)(PS-1,PS-3 only)
ML Lubriplate
CL
Gear Shift TubeandLowerSupport(1)
MP Multi-Purpose Gear Lubricant
(PS-1, PS-3 only)
PDO
PenetratingDriplessOil
4,000 MILE — 4 MONTH INTERVALS
PSF PowerSteering
Fluid
ChangeEngineOil Filter
RR RustResistor
C
ServiceBrakeAdjustment
S
Manifold HeatControlValveSolvent
C
Parking BrakeAdjustment
SGL
Sure Grip Lubricant 6,000
MILE —6 MONTH INTERVALS
SL
StainlessStickLubricant
—
RotateTires
UJ
Universal JointLubricant
—
CleanCarburetorAirCleaner
WB
Wheel BearingLubricant—Medium
SEASONAL SERVICE
2,000 MILE —2 MONTH INTERVALS
AF-RR
Cooling System—Flush
Key
10,000 MILE — YEARLY INTERVALS
EO
ChangeEngineOil
C
Brake Lining forWear
EO
Engine Ventilation Inlet AirCleaner
WB
Front WheelBearings—Remove—Clean-
EO
Engine Ventilation OutletAirCleaner Repack
AA
Automatic TransmissionOil Level
AA
Automatic TransmissionMaintenance
EO
Distributor OilCup
MCL
Speedometer Cable—Remove—Lubricate—
EO
Generator
Install
S
Manifold HeatControlValve
DCL
Distributor Cam
HTF
MasterCylinder Fluid Level
EO
Wick underRotor
C
BrakeLinesand Hoses
ML
GearshiftLeverPivot—Remove-
MP Manual Steering Gear Level (PS-1,PS-3)
Lubricate—Install
PSF PowerSteeringReservoir
Level
C
HeadLampAim
ML
Hood Hingesand Lock
15,000 MILE INTERVALS
ML
Foot OperatedParkingBrakePedal
—
Install NewCarburetorAirCleanerElement
ML
Door Check 20,000
MILE —2 YEAR INTERVALS
PDO Hinges
MP
Manual Transmission Drain—Fill
PDO Lock Rotors—Inner—Outer
UJI
Cross andRollerU/JTS—Disassemble-
ML
Lock Cylinders Clean
ML
Deck Lid Lock, Hinges,TorsionBars UJ2 Ball andTrunnionU/JTS-Disassemble-
ML
LicensePlate—FuelAccessDoor Clean
PDO Tail Gate Hinges
MP
Rear Axle (Drain and Refill)
ML
Locks
SGL
(Sure Grip)
SL
Striker andDovetails
C
Front Suspension
ML
Torsion BarRollerCam 23,000
MILE INTERVALS
C Tires—Air—Wear—Foreign Matter
—
Install NewFuel Filter (Paper Element)
MyMopar.com

ACCESSORIES, RADIOS, HEATERS,MIRRORS, ETC. —1
Group 1
ACCESSORIES, RADIOS,HEATERS,
MIRRORS, ETC.
CONTENTS
RADIO
Paragraph Page
AntennaCompensatorAdjustment1411
Fader ControlPerformance1712
Foot SwitchforSearchTuning2013
Interference Elimination _-1612
Local andDistantPushButtons1913
Manual Antenna2113
Motorized Antenna2214
On-Off SwitchandVolumeControl1512
PushButtonAdjustment1813
RadioControls126
RadioRemovalandInstallation138
ServiceDiagnosis1 3
HEATER
HeaterBlower2616
Removal
Installation
HeaterCore2917
Removal
Installation
HeaterVacuumActuatorReplacement2717
Rear Window Defroster3018
Vent Deflector—Replacement2817
ServiceDiagnosis2315
AUTOMATICBEAMCHANGER
Aiming theAutomaticBeamChanger3519
Aiming the Scanner 3619
Driver Adjustments3419
Operation - 3318
ServiceDiagnosis- _ 3118
MyMopar.com

2— ACCESSORIES,RADIOS,HEATERS,MIRRORS,ETC.
MIRROR-MATICELECTRONIC
REAR VIEWMIRROR
Paragraph Page
Driver Adjustment- 4021
InspectionandTroubleShooting_ - 4222
Reassembly andInstallation4322
RemovalandDisassembly4121
ServiceDiagnosis3720
ELECTRIC CLOCK
Electric Clock4523
Removal
Installation
ServiceDiagnosis4523
REMOTE CONTROLOUTSIDE
MIRROR
Operation4623
Removal
Installation
AUTO-PILOT
Auto-Pilot 6431
Removal
Installation
Control CableAdjustment6532
LinkageAdjustment Procedure 6632
Operation6329
ServiceDiagnosis4724
RECORD CHANGER
Adjustments8036
Cleaning8138
Lubrication 8238
Operation7935
ServiceDiagnosis6733
MyMopar.com
