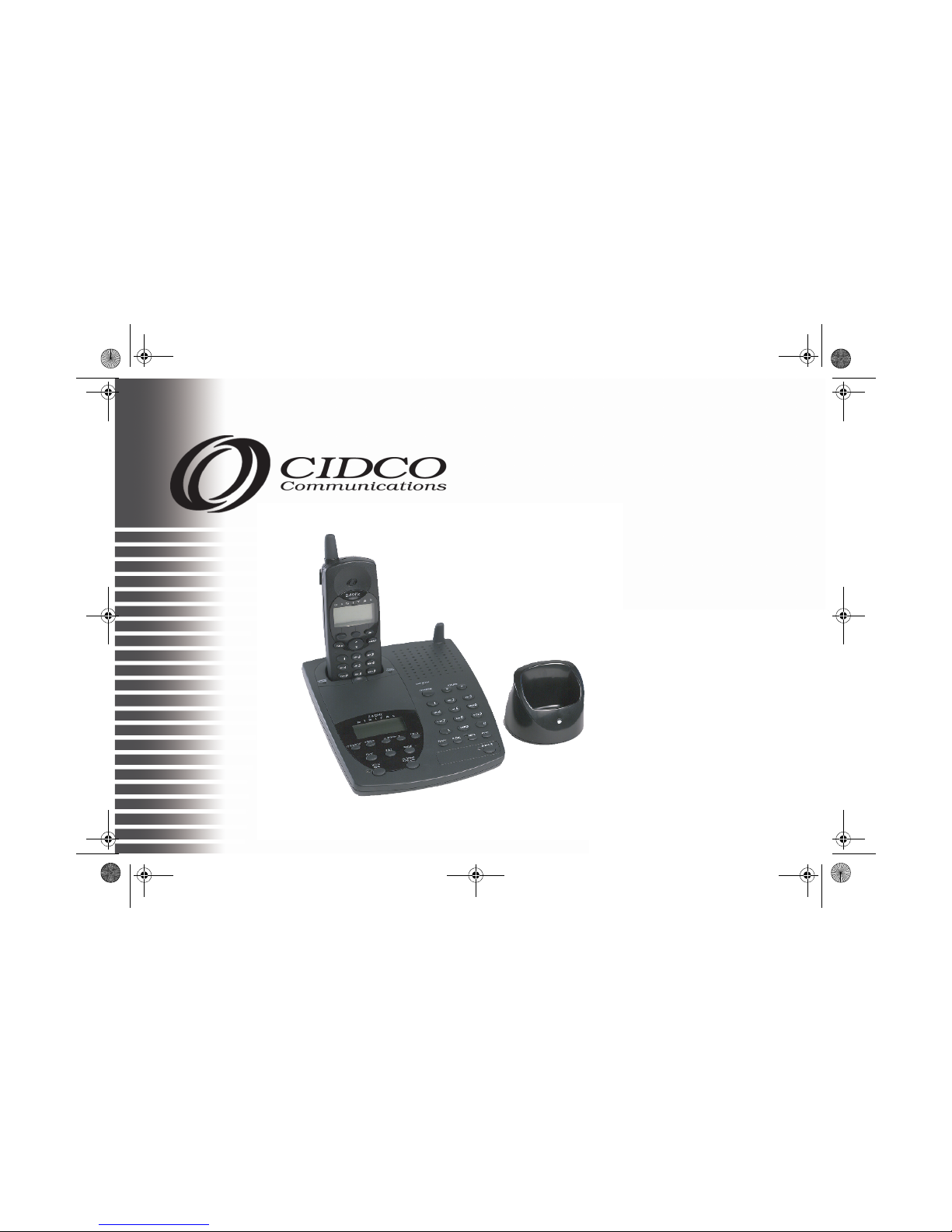

Cidco Communications D271 User manual

'
8VHU0DQXDO
2.4GHz
D271.book Page 1 Tuesday, July 24, 2001 11:05 AM

Copyright ©2001 CIDCO Communications, LLC. All Rights Reserved.
Part No. 105510-01 Rev. A
No part of this publication may be reproduced, copied, transcribed, stored in a retrieval system, or translated into any
language in any form, by any means without the prior written permission of CIDCO Communications, LLC.
D271.book Page 2 Tuesday, July 24, 2001 11:05 AM

TABLE OF CONTENTS i
TABLE OF CONTENTS
■ WARRANTY & SAFETY INSTRUCTIONS 1
■ INTRODUCTION 8
■ INSTALLING THE D271 9
■ FEATURES AND CONTROLS 13
■ USING THE D271 21
■USING THE DIRECTORY 27
■REVIEWING AND DELETING CALL RECORDS 30
■READING DISPLAY MESSAGES 31
■ TROUBLESHOOTING 33
D271.book Page i Tuesday, July 24, 2001 11:05 AM

D271 - 2.4GHz Cordless
WARRANTY & SAFETY INSTRUCTIONS 1
WARRANTY & SAFETY INSTRUCTIONS
CAUTION
CAUTION: To reduce the risk of fire or injury to
persons, read and follow these instructions:
■ Read and understand all instructions.
■ Follow all warnings and instructions marked on the unit
and in the User Manual(s).
■ Use only the battery type recommended in this manual.
■ Unplug this telephone from the wall outlet before
cleaning. Do not use liquid or aerosol cleaners, just
use a damp cloth for cleaning.
■ Do not place this telephone on an unstable cart, stand,
or table. It could fall, causing serious damage or
impeding operation.
■ Never place this telephone near or over a radiator or
heat register.
■ Only operate this telephone using the type of power
source listed on the marking label. If you are not sure
of the power supply of your home, consult your dealer
or local power company.
■ Do not overload wall outlets and extension cords as
this can result in the risk of fire or electrical shock.
■ Never push objects of any kind into this telephone as
they can touch dangerous voltage points or short out
parts that could result in a risk of fire or electrical
shock.
■ Take the phone to a qualified technician when it
requires repair work or service. To reduce the risk of
electrical shock, do not disassemble the telephone.
Opening or removing covers can expose you to
dangerous voltages or other risks. Incorrect re-
assembly can cause electrical shock during
subsequent use.
■ Unplug this telephone from the wall outlet and refer
servicing to qualified service personnel under the
following conditions:
- If the power supply cord or plug is damaged or
frayed.
- If liquid is spilled into the unit.
- If the unit is exposed to water.
- If the unit does not operate normally by
following the operating instructions.
- If the unit is dropped or the casing is
damaged.
- If the unit exhibits a distinct change in
performance.
SAVE THESE INSTRUCTIONS
D271.book Page 1 Tuesday, July 24, 2001 11:05 AM

D271 - 2.4GHz Cordless
WARRANTY & SAFETY INSTRUCTIONS 2
■ Avoid using the telephone during an electrical storm.
There can be a slight risk of electrical shock from
lightning.
■ Do not use the telephone to report a gas leak if the
leak is in the vicinity of the phone
■ Do not disassemble the unit. Opening or removing
covers can expose you to dangerous voltages or
other risks. Incorrect re-assembly can cause
electrical shock during subsequent use.
■ Unplug this unit from all connections and refer
servicing to qualified personnel when it requires
repair work, service, or under the following
conditions:
- If the power supply cord or plug is damaged
or frayed.
- If liquid is spilled into the unit.
- If the unit is exposed to water or rain.
- If the unit does not operate normally by
following the operating instructions.
- If the unit is dropped or the casing is
damaged.
- If the unit exhibits a distinct change in
performance.
■ Ultimate disposal of this product should be handled
according to all national laws and regulations.
WARNINGS
WARNING: To prevent fire or shock hazard,
do not expose this product to rain or mois-
ture.
CAUTION
CAUTION: To reduce the risk of electric
shock, DO NOT remove cover or back. No
user serviceable parts inside. Refer servicing
to qualified personnel.
This symbol is intended to alert you to the
presence of uninsulated dangerous
voltage within the product’s enclosure
that might be of sufficient magnitude to
constitute a risk of electric shock. Do not open the
product’s case.
This symbol is intended to inform you that
important operating and maintenance
instructions are included in the literature
accompanying this product.
!
D271.book Page 2 Tuesday, July 24, 2001 11:05 AM

D271 - 2.4GHz Cordless
3 WARRANTY & SAFETY INSTRUCTIONS
NEED TO KNOW
Important: Although cordless phones generally
require AC power to operate,your D271 phone
can provide operational backup in the case of the
power failure IF the spare battery is charged in
the base.
CAUTION
CAUTION: Changes or modification to this device
not expressly approved by CIDCO
Communications could void the user’s authority
to operate this equipment.
TELEPHONE WIRING AND JACK INSTALLA-
TION
■ Use caution when installing or modifying telephone
lines.
■ Never install telephone wiring during an electrical
storm.
■ Never install telephone jacks in wet locations unless
the jack is specifically designed for wet locations.
BATTERIES
■ Disconnect the telephone when replacing the battery
pack.
■ Use only 3.6V 800mAh Nickel Cadmium (Ni-Cad)
cordless telephone replacement battery pack (one
included with phone).
■ Do not dispose of the battery pack in a fire as it will
explode. Check with local codes for proper battery
disposal regulations.
■ Do not open or mutilate the battery pack. Released
electrolyte is corrosive and can cause damage to
the eyes or skin. It can be toxic, if swallowed.
■ Avoid contact with rings, bracelets, keys or other
metal objects, when handling batteries. These
objects could short out the battery or cause the
conductor to overheat resulting in burns.
■ Do not attempt to recharge the battery pack by
heating it. Sudden release of battery electrolyte can
cause burns or irritation to the eyes or skin.
■ Remove the battery pack if you do not plan to use the
phone for several months at a time. The batteries
could leak over that time.
■ Discard “dead”battery packs as soon as possible
because they are likely to leak into the phone.
■ Do not store this phone or battery pack in a high
D271.book Page 3 Tuesday, July 24, 2001 11:05 AM

D271 - 2.4GHz Cordless
WARRANTY & SAFETY INSTRUCTIONS 4
temperature area. Batteries stored in a freezer or
refrigerator should be protected from condensation
during storage and defrosting. Battery packs should
be stabilized at room temperature before using.
■ Your battery pack is rechargeable and
can be recycled once it outlives its
usefulness. Depending upon your local
and state law, it might be illegal to
dispose of this battery into a municipal
waste system. Check with your local solid
waste company or call 1-800-8-
BATTERY for information on Ni-Cd
battery recycling and disposal/
restrictions in your area.
FCC REQUIREMENTS
FCC Part 15 Information
This equipment complies with Part 15 of the FCC
rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any
interference received, including interference that
may cause undesired operation.
This equipment has been tested and found to
comply within the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits
provide reasonable protection against harmful
interference in a residential installation.
This equipment generates, uses and can radiate
radio frequency energy. If not installed and used in
accordance with the instructions, the equipment
might cause harmful interference to radio
communications. However, there is no guarantee
that interference will not occur in a particular
installation.
If this equipment does cause harmful interference
to radio or television reception, which can be
determined by turning the equipment off and on,
D271.book Page 4 Tuesday, July 24, 2001 11:05 AM

D271 - 2.4GHz Cordless
5 WARRANTY & SAFETY INSTRUCTIONS
the user is encouraged to try to correct the
interference by one or more of the following
measures:
■ Reorient or relocate the receiving antenna.
■ Increase the separation between the equipment and
receiver.
■ Connect the equipment into an outlet on a circuit
different from that to which the receiver is
connected.
■ Consult the dealer or an experienced radio/TV
technician for help.
CAUTION
CAUTION: Changes or modification to this
device not expressly approved by CIDCO
Communications could void the user’s
authority to operate this equipment.
FCC Part 68 Information
This telephone is hearing aid compatible.
This equipment complies with Part 68 of the FCC
rules. The FCC Part 68 label is located on the
bottom of the product. This label contains the
product’sFCC Registration Number and Ringer
Equivalence Number (REN). You must give this
information to your telephone company if they
request it from you.
Only use standard modular telephone jacks to
connect to the telephone network. The appropriate
outlet or jack is a USOC RJ11C or RJ11W, which
complies with FCC Part 68 Rules.
The REN is useful when trying to determine the
maximum number of devices you can connect to
your telephone line and still have those devices ring
when called. In most, but not all areas, the sum of
the RENs of all devices connected to one line should
not exceed five (5.0). To be certain of the number
of devices you can connect to your line, as
determined by the REN, contact your local
telephone company to determine the maximum
REN for your calling area.
If this device causes harm to the telephone
network, the telephone company will give you
advance notice if temporary discontinuance of
service is required. But if advance notice isn’t
practical, the telephone company will notify you as
soon as possible. Also, you will be advised of your
D271.book Page 5 Tuesday, July 24, 2001 11:05 AM

D271 - 2.4GHz Cordless
WARRANTY & SAFETY INSTRUCTIONS 6
right to file a complaint with the FCC if you believe it
is necessary.
The telephone company may make changes in its
facilities, equipment, operation, or procedures that
could affect the proper functioning of your
equipment. If they do, you will receive advanced
notice in order for you to make necessary changes
to maintain uninterrupted service.
This equipment may not be used on coin service
provided by the telephone company. Connection to
party lines is subject to state tariffs.
Repairs to this equipment can only be made by the
manufacturer, its authorized agents. If it appears
that this device is causing harm to the telephone
network, the telephone company might request
that the device be unplugged until the problem is
fixed. DO NOT DISASSEMBLE THIS EQUIPMENT.
WARRANTY
If your telephone is defective in material or
workmanship and you return it within one year from
the date of purchase, we will repair it, or, at our
option, we will replace it. If we repair it, we might
use reconditioned replacement parts or materials.
If we choose to replace it, we might substitute an
identical reconditioned unit. The repaired/replaced
unit is warranted for either (a) ninety days, or (b)
the remainder of your phone’s original one year
warranty, whichever is longer.
A. WHAT YOU NEED TO DO
To receive warranty service, you must provide proof
of purchase (your sales receipt) and date of
purchase.
B. WHAT THIS WARRANTY DOES NOT COVER
This warranty does not cover defects resulting from
accidents, alterations, failure to follow this manual’s
instructions, battery leakage, misuse, fire, flood,
and Acts of God.
We do not warrant this product to be compatible
with party lines, with all types of telephone
D271.book Page 6 Tuesday, July 24, 2001 11:05 AM

D271 - 2.4GHz Cordless
7 WARRANTY & SAFETY INSTRUCTIONS
equipment, or with your specific customer
premises equipment. Shipping costs to and from
authorized service centers are not covered.
We are not responsible for implied warranties,
including those of fitness for a particular purpose
and merchantability after the initial one year period.
We do not pay for loss of time, inconvenience, loss
of use of the product, or property damage caused
by this product or its failure to work, telephone
company service calls, or any other incidental or
consequential damages.
C. STATE LAW RIGHTS
Some states do not allow limitations on how long an
implied warranty lasts, or the exclusion of limitation
of incidental or consequential damages, so the
above exclusions might not apply to you. This
warranty gives you specific rights; you may also
have other rights, which can vary from state to
state.
D271.book Page 7 Tuesday, July 24, 2001 11:05 AM

D271 - 2.4GHz Cordless
INTRODUCTION 8
INTRODUCTION
D271 FEATURES
■ Speakerphone
■ New Message Indicator
■ Caller ID/Call Waiting ID
■ Stores up to 50 Caller ID Records
■ 50 Directory records
■ ?xx channels
■ Dedicated Keys for: Hold, Mute, Speakerphone,
Voice Mail, Redial/Pause, 7-10-11, Caller ID
and Directory.
■ Adjustable Ringer, Speakerphone and Handset
Volume Control
■ Hearing-aid Compatible
■ English and Spanish
■ Headset Jack
■ Call timer
■ Single key redialing
The D271 is a 2.4GHz cordless phone that incorporates your telephone company’s calling features, such as Caller ID,
Voice Mail and Call Waiting ID, to provide a powerful full function Caller ID cordless telephone.
D271.book Page 8 Tuesday, July 24, 2001 11:05 AM

D271 - 2.4GHz Cordless
9 INSTALLING THE D271
INSTALLING THE D271
CHECKING THE CONTENTS
Check to see that the following items are enclosed:
■ Telephone Base and Handset
■ Long Line Cord
■ Short Line Cord for Wall Mount
■ Line cord for Wall Mounted Charger
■ Wall Mounted Charger
■ AC Adapter
■ Belt Clip
■ User Manual
INSTALL THE BATTERY
Use this procedure to install or replace the battery.
Be sure to follow the battery specifications and safety
instructions. See “WARRANTY & SAFETY
INSTRUCTIONS”on page 1.
Use only 3.6V Nickel Cadmium (Ni-Cad) batteries in
this phone.
b. Press down on the battery cover and
slide the cover down to expose the
battery compartment.
c. Locate the batery terminals inside the
battery compartment and the
corresponding terminals on the battery
pack. Align the battery pack terminals
with the terminals in the battery
compartment.
d. To replace the battery cover, insert tab at
top of cover into slot in handset. With
cover aligned over the battery opening,
firmly press down until the cover snaps
into place.
NEED TO KNOW
Prior to first use, place the handset in the
cradle and charge the battery for at least
12 hours. The charge light on the base
comes on to tell you that the handset is
charging.
D271.book Page 9 Tuesday, July 24, 2001 11:05 AM

D271 - 2.4GHz Cordless
INSTALLING THE D271 10
CHOOSE ALOCATION FOR THE BASE UNIT
The base should be away from all other electronic
equipment such as a personal computer, microwave,
stereo, or television. It is also a good idea to place the
unit away from noisy areas, or from heat sources
such as a radiator or direct sunlight.
PLUG IN THE ADAPTER
a. Plug the adapter tip into the round jack
on the base and the other end into an
electrical outlet. Without AC power,
your phone will not operate.
b. Thread the cord through the clip on the
housing to prevent the cord from pulling
loose.
For wall mounting, plug in adapter after installation of
base.
INSTALL THE LINE CORD
NEED TO KNOW
Make sure the battery has charged for 12
hours before installing the line cord.
You can set your telephone on a tabletop
or mount it on the wall.
FOR TABLETOP USE
a. Plug the long line cord into the phone
jack marked TEL LINE.
b. Plug the other end of the line cord into
the wall jack.
FOR WALL MOUNTING
a. Plug the short line cord into the phone
jack marked TEL LINE.
b. Plug the other end of the line cord into
the wall jack.
c. Use the gap on the underside of the base
to gather any excess cord.
d. Hang the base over the wall mounting
bracket. This is either already mounted
on your wall or can be purchased where
telephone supplies are sold.
TURN ON THE PHONE
The base of your phone is on whenever the AC
adapter is plugged in to both the phone base and AC
outlet.
D271.book Page 10 Tuesday, July 24, 2001 11:05 AM

D271 - 2.4GHz Cordless
11 INSTALLING THE D271
ATTACH THE BELT CLIP
You can use the belt clip to hang the handset from
your belt.
a. Place the belt clip on the back of the
handset.
a. Align the tabs on the belt clip with the
slots on the handset.
a. Press the belt clip to the handset to snap
the tabs into the slots.
Make sure both tabs are securely snapped into the
handset slots.
SPARE BATTERY
Place the spare battery pack in the charger located in
the base of the D271. When the spare battery is in
the base and charged, it provides operational backup
during a power failure. Rotate battery packs as
needed. If the battery pack fails to charge, replace
with a new battery pack.
To install the spare battery, remove the cover below
the handset holder.
Purchase only 3.6V nickel cadmium (Ni-Cad) batteries
for your phone.
NEED TO KNOW
During power failure, the base functions
may not operate and caller id information
may not be accurate.
Spare Battery Charger
D271.book Page 11 Tuesday, July 24, 2001 11:05 AM

D271 - 2.4GHz Cordless
INSTALLING THE D271 12
ATTACH HEADSET (OPTIONAL)
A headset with a standard 2.5 mm plug may be used
with your new D271. Plug the headset into the
HEADSET jack on the side of the handset.
b. Press VOLUME or to adjust the
speakerphone volume.
D271.book Page 12 Tuesday, July 24, 2001 11:05 AM

D271 - 2.4GHz Cordless
13 FEATURES AND CONTROLS
FEATURES AND CONTROLS
TALK EXIT
MENU
REVIEW
CALLS DIR
DEF
3
MNO
6
2
1
ABC
JKL
5
4
8
7
0
*
TUV
OPER
PQRS
GHI
#
WXYZ
9
FLASH HOLD
SMITH JOHN
1-408-555-1234
2:40 7/12 CALLS
DELETE 7-10-11 SAVE
HANDSET FUNCTIONS
■ Talk Light indicates your phone is off hook or in
use. The light remains solid when the handset
is in use. This light will flash when using the
speakerphone or the handset is on hold.
■ Voice Mail Light flashes if you have messages in
your mailbox.
■ Talk Key is used to access the telephone line.
■ Calls Key provides one touch access to your
Caller ID Records.
■ Dir Key provides one touch access to your
Directory Records.
■ Exit/Menu Key allows you to setup your phone,
access your Caller ID Records and Directory
Records, and control the use of the Network
Services.
■ Review Key allows you to scroll thorugh
menu options and records.
■ Dial Pad numeric keys are used in the
conventional manner for dialing.
■ Flash Key allows Call Waiting subscribers to
switch between two calls.
D271.book Page 13 Tuesday, July 24, 2001 11:05 AM

D271 - 2.4GHz Cordless
FEATURES AND CONTROLS 14
■ Hold Key places the existing call on hold.
Depending on the handset’s mode, Caller ID,
Directory or idle, the display varies. The functions of
the 3 buttons below the display vary with the mode.
CALLER ID MODE
■ Delete Key is used to erase digits on the
display.It can also delete single or multiple
entries from the Caller ID records and
Directory.
■ 7-10-11 Key allows you to modify the format of a
call in a Call Record so that it will be in the
correct format to dial from your phone.
■ Save Key allows you to save information in the
diretory (??).
IDLE MODE
■ Redial/P Key recalls and dials the last phone
number dialed.
■ Voicemail Key allows you to access your voice
mail box.
DIRECTORY MODE
■ Delete Key see Caller ID mode.
■ Edit Key allows you to edit information in the
directory.
SMITH JOHN
1-408-555-1234
2:40 7/12 CALLS
DELETE 7-10-11 SAVE
3 NEW CALLS
2:40 7/12
REDIAL/P VOICEMAIL
SMITH JOHN
1-408-555-1234
DIR
DELETE EDIT
D271.book Page 14 Tuesday, July 24, 2001 11:05 AM

D271 - 2.4GHz Cordless
15 FEATURES AND CONTROLS
BASE FUNCTIONS Lights
■ Voice Mail flashes if you have messages in your
mailbox.
■ Line in Use comes on whenever this phone, or
any other telephone on the line, is being used.
■ Handset Charge comes on when the handset is
in the base.
■ Spare Charge comes on when the spare
battery is in the charger.
■ Speakerphone comes on when the
speakerphone is in use and flashes when on
hold.
■ Mute flashes indicating that the speakerphone
microphone is muted.
■ Talk indicates the phone is off hook or in use.
Keys
■ Volume Control Keys adjust the loudness of the
speakerphone, or the ringer.
■ Dial Pad numeric keys are used in the
conventional manner for dialing.
■ Flash Key allows Call Waiting subscribers to to
switch between two calls.
■ Redial/P Key recalls and dials the last phone
number dialed.
■ Mute Key mutes the speakerphone
23
56
89
0
7
4
1
GHI
PQRS
OPER
*
TUV
JKL
ABC DEF
MNO
WXYZ
#
LINE IN USE
VOLUMEPAGE/FIND
REDIAL/P MUTEFLASH HOLD
SPEAKERPHONE
TALK
SPARE
CHARGE
HANDSET
CHARGE
DELETESELECT 7-10-11 EDIT SAVE
CALLS DIR
REVIEW
VOICE
MAIL PLAY
EXIT
MENU
SMITH JOHN
1-408-555-1234
2:40 7/12 CALLS
D271.book Page 15 Tuesday, July 24, 2001 11:05 AM

D271 - 2.4GHz Cordless
FEATURES AND CONTROLS 16
microphone.
■ Hold Key places the existing call on hold.
■ Speakerphone/Talk Key allows you to turn on or
off the speakerphone and also dials the
number on the display.
■ Select Key allows you to select the displayed
option when in the Menu.
■ Delete Key is used to erase digits on the
display.It can also delete single or multiple
entries from the Caller ID records and
Directory.
■ 7-10-11 Key allows you to modify the format of a
call in a Call Record so that it will be in the
correct format to dial from your phone.
■ Edit Key allows you to edit information in the
directory.
■ Save Key allows you to save information in the
diretory (??).
■ Calls Key provides one touch access to your
Caller ID Records.
■ Dir Key provides one touch access to your
Directory Records.
■ Exit/Menu Key allows you to setup your phone,
access your Caller ID Records and Directory
Records, and control the use of the Network
Services.
■ Review Keys allow you to scroll thorugh menu
options and records.
■ Voice Mail Key allows you to access to your
Voice Mail. You must subscribe to this service
through your local telephone company.
DELETESELECT 7-10-11 EDIT SAVE
CALLS DIR
REVIEW
VOICE
MAIL PLAY
EXIT
MENU
SMITH JOHN
1-408-555-1234
2:40 7/12 CALLS
D271.book Page 16 Tuesday, July 24, 2001 11:05 AM

D271 - 2.4GHz Cordless
17 FEATURES AND CONTROLS
■ Play Key is used to play the messages in your
voice mail box once you have entered Voice
Mail.
WALL MOUNT HANDSET HOLDER
In addition to the the charging unit in the base, a wall
mounted charger is included with your phone for use
when the base is mounted to the wall. It must be
placed with 18 inches of the base in order to connect
the wires.(??)
PERSONALIZING YOUR PHONE
The D271 has many features to personalize your
phone - both as one time set up or for individual calls.
To view the options and to select the desired
configurations, select the EXIT/MENU key. - MENU
OPTONS - is displayed on the screen. The desired
option can be selected by scrolling through the list
and entering the indicated number. The following
table shows the specific number for each option.
OPTION Enter.....
NETWORK SERVS 1
MSG SCREENING 2
CALL ID PAGING 3
INTERCOM 4
CLR VMAIL LITE 5
RING ON/OFF 6
VMAIL SETUP 7
MISC OPTIONS 8
D271.book Page 17 Tuesday, July 24, 2001 11:05 AM
