Ciholas DWETH101 User manual
32-bit ARM Cortex-M7 RISC processor with FPU
300MHz Maximum Speed
2048kB Flash
16kB Cache
384kB SRAM
Decawave DW1000 Ultra-Wideband transceiver
IEEE802.15.4-2011 Compliant
6 RF bands from 3.5GHz to 6.5GHz
Data rates 110kbps-6.8Mbps
Up to 1023-byte packet length
Integrated Omni-directional UWB antenna
Motion Processing Unit (MPU)
16-bit 3-Axis Gyroscope 250-2000°/S
16-bit 3-axis Accelerometer ±2g up to ±16g
14-bit 3-axis Magnetometer ±4800T
Digital Motion Processing including low-power
quaternion
MEMS High Resolution Barometric Altimeter
24-bit 0.01hPa RMS
260-1260hPa absolute pressure range
16-bit temperature ±2°C absolute accuracy
Temperature and Humidity
±4% (max) Relative Humidity from 0 to 80%
±0.4% (max) Temperature from -10 to 125°C
Tri-Color LED Indicator
Integrated 10/100 Managed Switch
Compatible with Ciholas Chainable Powered Ethernet
(CPE)
FCC Certified in the United States under 47 CFR 15.250
CE marking in the European Union under EN 302 065-1
Description
A DWETH is an Ultra-Wideband (UWB) transceiver intended
for use with the Ciholas UWB (CUWB) Real Time Location
Systems (RTLS). In a typical CUWB RTLS the DWETH
operates as a static, or anchored, device providing
reference locations for the system. DWETH101 uses
Ethernet to provide reliable, high-bandwidth data
connectivity, and has a comprehensive set of on board
sensors. DWETH101 anchors contain a built-in Ethernet
switch and support Chainable Powered Ethernet (CPE),
allowing for a chain of devices to be powered via a single
source.
DWETH101 devices are FCC certified in the United States,
and have CE marking in the European Union.
1 Features
2 Ordering
Model Part Number Color Description
DWETH101 E00617-00697 White Two Port Chainable Power
DWETH101 E00617-00692 Black Two Port Chainable Power
Available from the Ciholas Webshop
Note: Not all hardware features are supported by CUWB System software. See CUWB.io documentation for specific feature support.
Ciholas, Inc.
3700 Bell Road
Newburgh, IN 47630 DWETH101 rev 1.2
Ciholas, Inc. Page 1 of 7
5 Operation
5.1 Power and Communication
DWETH101 is powered via CPE. To power and communicate with the device it should be plugged into a CPE compatible

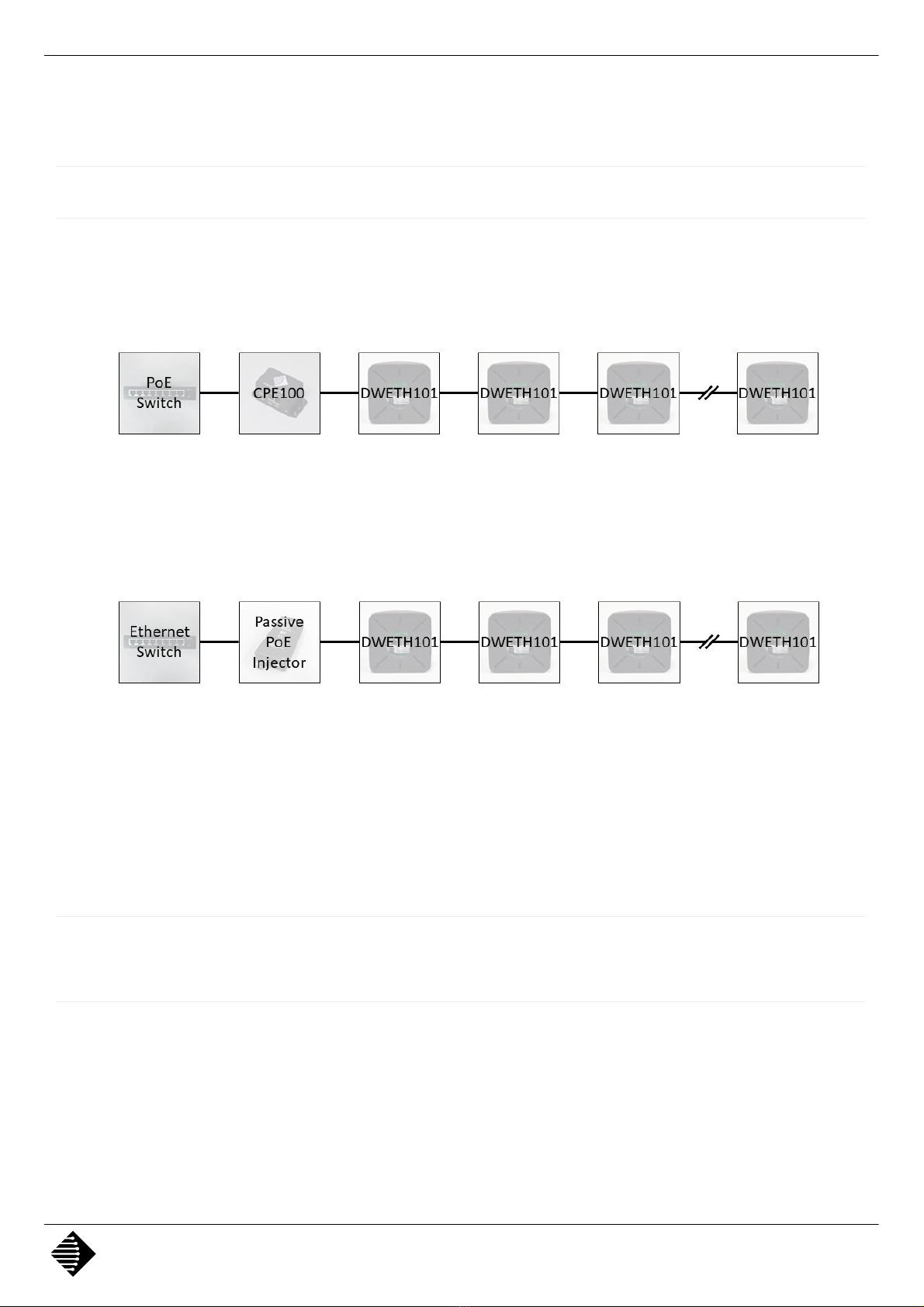

power source. The following diagram shows connection using a PoE compatible switch with CPE100 powering a chain:
The DWETH101 may also be powered using a passive injector with a standard (non-PoE compliant) switch:
On connection the DWETH101 will source power from the upstream CPE device and become a CPE provider on the other
Ethernet port.
Once plugged in the DWETH will attempt to gather network parameters using the DHCP protocol. If successful it will
announce its presence to the CUWB network server on the subnet provided by DHCP. If the DWETH111 fails to connect to
the DHCP server it will fall back on auto-IP parameters and announce its presence using those parameters.
5.2 Configuration
Details regarding DWETH setup and configuration for the CUWB RTLS can be found on the CUWB Documentation Site.
5.3 Sensor Data Reporting
DWETH101 has a variety of sensors and can be configured to transmit data from those sensors. Sensor data received by
the CUWB server is broadcast via the Ciholas Data Protocol (CDP) providing access to users.
DWETH101 Datasheet rev 1.2
Ciholas, Inc. Page 4 of 7
Sensor scaling and data rates can be configured for the following types of data:
Sensor Type Measurement Standard
3-Axis Accelerometer standard gravity (g)
3-Axis Gyroscope °/Second
3-Axis Magnetometer µTesla
Absolute Pressure hPascal
Temperature °C
Quaternions Unit Coefficients
5.4 LED Indication
The DWETH111 has tri-color (RGB) LEDs for conveying device state to users. In normal operation the device state can be
determined using the table below:
Network Status Color ON Time Period
ON Network Green 10mS 1.0S
OFF Network Green 10mS 10.0S
Power On Reset Blue 500mS N/A
1.
This table denotes normal LED operation. The CUWB network can be configured to show different patterns on the
LEDs
2.
Power On Reset (POR) occurs only on system reset. This will happen when charging a dead battery, on reboot after
firmware update, and when the device resets due to system watchdog.
The RGB LED also conveys error states to the user. An error is indicated by a 500mS red flash followed by a color
sequence. The following color sequences are used to decode error states:
Color Sequence Code Description
Red — White-White-White 7 DW1000 communication error
5.5 Error Handling
5.5.1 [CODE 7] - DW1000 communication error
This indicates that the DWETH firmware is unable to communicate with the UWB transceiver. To clear this error reset the
device by removing and reapplying power. If the problem persists please contact Ciholas for support.
5.6 Regulatory Compliance
FCC Certified in the United States under 47 CFR 15.250
CE marking in the European Union under EN 302 065-1
1
2
DWETH101 Datasheet rev 1.2
Ciholas, Inc. Page 5 of 7
5.6.1 Federal Communications Commission
FCC Notice (For US Customers):
FCC ID: 2ALIR-DWETH101
Model: DWETH101
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions:
1. This device may not cause harmful interference
2. This device must accept any interference received, including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/television technician to help.
Changes and modifications not expressly approved by Ciholas, Inc. can void your authority to operate this equipment
under Federal Communications Commissions rules.
5.6.2 European Conformity
Hereby, Ciholas declares that this device is in compliance with the essential requirements
and other provisions of Directive 2014/53/EU and Directive 2014/30/EU.
The full text of the EU declaration of conformity is available at the following internet
address:
DWETH101 Declaration of Conformity
5.7 Product Warnings
Before working or installing electrical equipment, be aware of the hazards involved with electrical circuitry
and be familiar with standard practices for preventing accidents
Usage of this product outside the parameters outlined in the user manual can result in bodily injury and
damage to this and other equipment. To prevent this, please follow all instructions in the user manual.
Installation of this equipment must comply with all local and national electrical codes.
Do not operate any wireless network devices near unshielded blasting caps or in an explosive environment
unless the devices have been modified to be especially qualified for such use.
DWETH101 Datasheet rev 1.2
Ciholas, Inc. Page 6 of 7
5.8 Ciholas Standard Software License and Warranty
Unless expressly stated otherwise, all Ciholas Standard Software constitutes original code and is subject to Ciholas
Software License (hereafter “the License”). Any use of Ciholas software must be in compliance with the License.
CIHOLAS SERVICES AND ALL INFORMATION, CONTENT, MATERIALS, PRODUCTS (INCLUDING SOFTWARE AND
HARDWARE) AND OTHER SERVICES MADE AVAILABLE THROUGH CIHOLAS ARE PROVIDED ON AN “AS IS” AND “AS
AVAILABLE” BASIS, UNLESS OTHERWISE SPECIFIED IN WRITING. CIHOLAS SERVICES INCLUDE, BUT ARE NOT LIMITED
TO, THE FOLLOWING: CIHOLAS.COM, CIHOLAS SHOP, FORUM.CIHOLAS.COM, CUWB.IO, AND ALL CIHOLAS PRODUCTS,
SOFTWARE AND HARDWARE. THE USE OF CIHOLAS SERVICES IS AT THE USER’S SOLE RISK.
EXCEPT AS EXPRESSLY PROVIDED IN THE CIHOLAS STANDARD WARRANTY POLICY STATEMENT, CIHOLAS HEREBY
EXPRESSLY DISCLAIMS ALL REPRESENTATIONS, CONDITIONS, AND WARRANTIES, WHETHER EXPRESS OR IMPLIED,
INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRANTIES OF TITLE, MERCHANTABILITY, NON-INFRINGEMENT, AND
FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL CIHOLAS BE LIABLE TO USER OR ANY OTHER PARTY FOR
ANY DIRECT, INDIRECT, GENERAL, SPECIAL, INCIDENTAL, CONSEQUENTIAL, EXEMPLARY, OR OTHER INJURIES AND/OR
DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE CIHOLAS SERVICES (INCLUDING, WITHOUT LIMITATION,
DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, LOSS OF INFORMATION, BREACH OR ANY OTHER
PECUNIARY LOSS), OR FROM ANY BREACH OF WARRANTY. NOTWITHSTANDING ANYTHING TO THE CONTRARY
CONTAINED IN THIS DISCLAIMER OF WARRANTY, THE MAXIMUM AGGREGATE AMOUNT TO WHICH THE USER IS ENTITLED
IS THE AMOUNT OF THE FEES PAID BY THE USER TO CIHOLAS.
CIHOLAS IS NOT LIABLE FOR ANY CONDUCT OF ANY USER OF CIHOLAS SERVICES NOR OF ANY APPLICATION OR USE OF
CIHOLAS SERVICES IN AN ILLEGAL MANNER OR TO COMMIT AN ILLEGAL ACT OR IN A JURISDICTION IN WHICH IT IS
ILLEGAL OR UNAUTHORIZED TO USE THESE SERVICES. IT IS THE RESPONSIBILITY OF THE USER OF CIHOLAS SERVICES
TO ESTABLISH THE LEGALITY OF ITS USE IN THE USER’S JURISDICTION.
6 More Information
Please visit the following links for more information and documentation regarding Ciholas UWB systems and products:
Documentation, installation, and usage instructions visit CUWB.io
To purchase Ciholas UWB products, please visit the Ciholas Shop
Ask other users questions and find community information in the Community Forum
Learn more about Ciholas services at www.ciholas.com
7 DWETH101 Datasheet Change Log
Version Date Change Description
1.0 2018-05-10 Initial Public Release
1.1 2018-06-04
Added Product Warnings
Added Warranty Disclaimer
Added IP Rating
Added UE Conformity Notes
Modified Operation Temperature Range
1.2 2018-08-03 Added block diagram to electrical section
