Cinego D-1000 User manual

User’s Guide
D-1000

2
Contents
3
Contents
Please read and save these instructions!
4 features
4 about DLP™ technology
5 playable formats
5 regional code
7 what’s included
8 remote
10 right/front view
11 right view
12 bottom view
13 left view
14 sub woofer (front)
15 sub woofer (back)
16 important safety instructions
17 Usage Notice
18 setting up your projector
18 find the ideal location for your
new projector
19 connecting your projector
19 connecting power
19 connecting your sub woofer
20 operating your projector
20 powering your projector
21 playing a DVD or Kodak Picture CD
with the remote
21 playing a DVD or Kodak Picture CD
without the remote

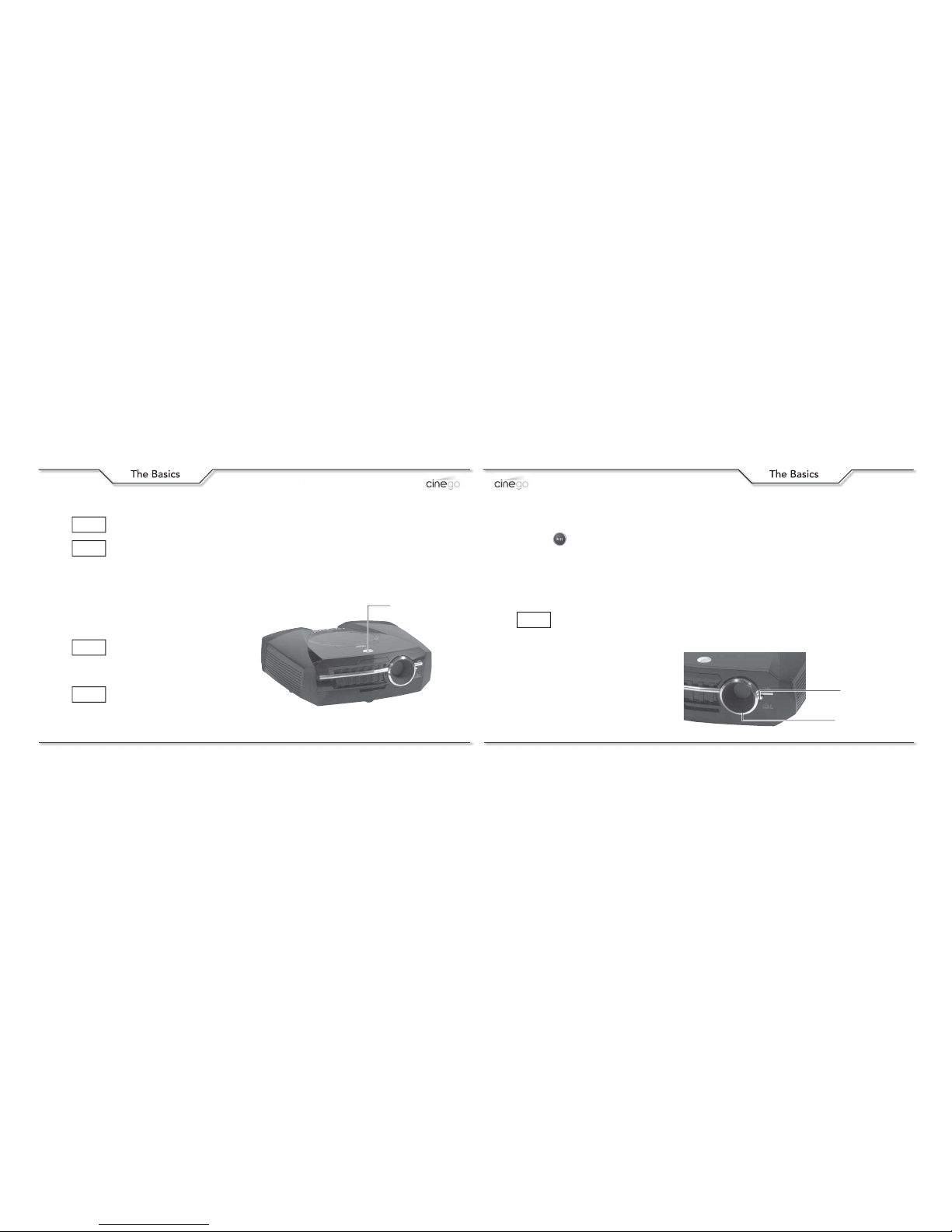

21 adjusting your projector
21 adjusting focus and zoom

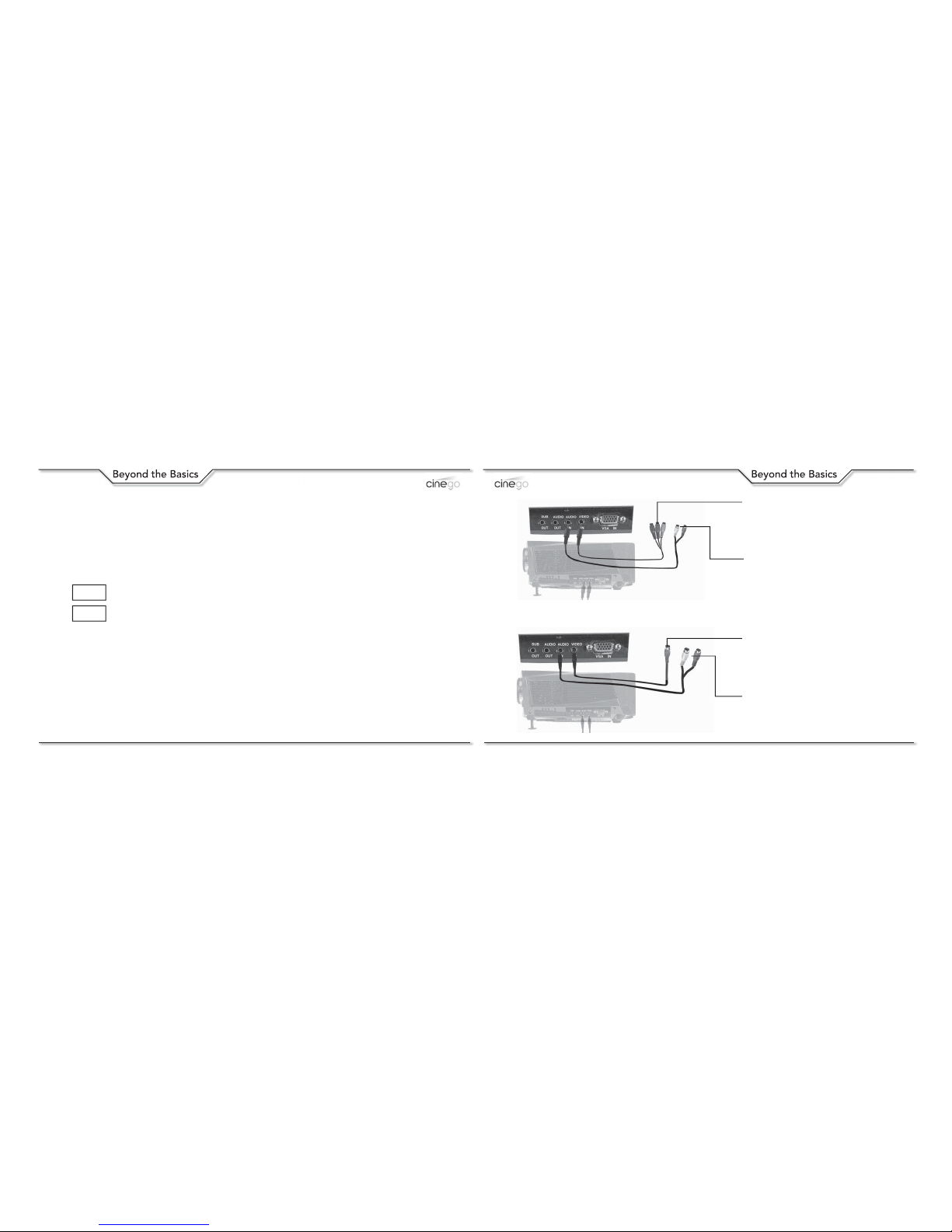

22 connecting your satellite or
HDTV system
24 connecting a digital video camera
24 connecting a gaming console
24 connecting a PC
26 connecting external computer speakers
27 advanced setup
27 finding the ideal height for
your projector
28 determining the ideal distance from
the screen
29 adjusting your projector
29 adjusting the shape of your picture
29 keystone
29 aspect ratio

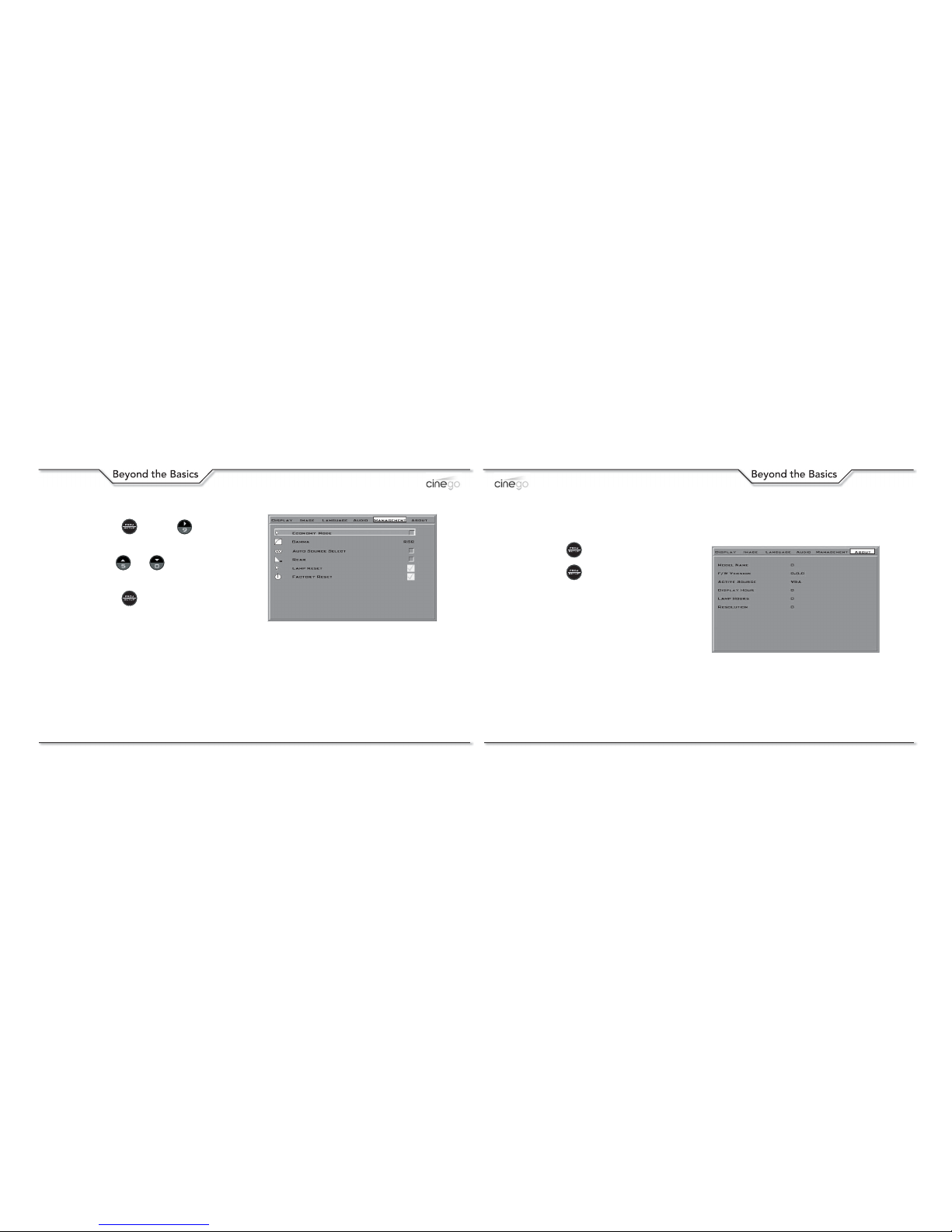

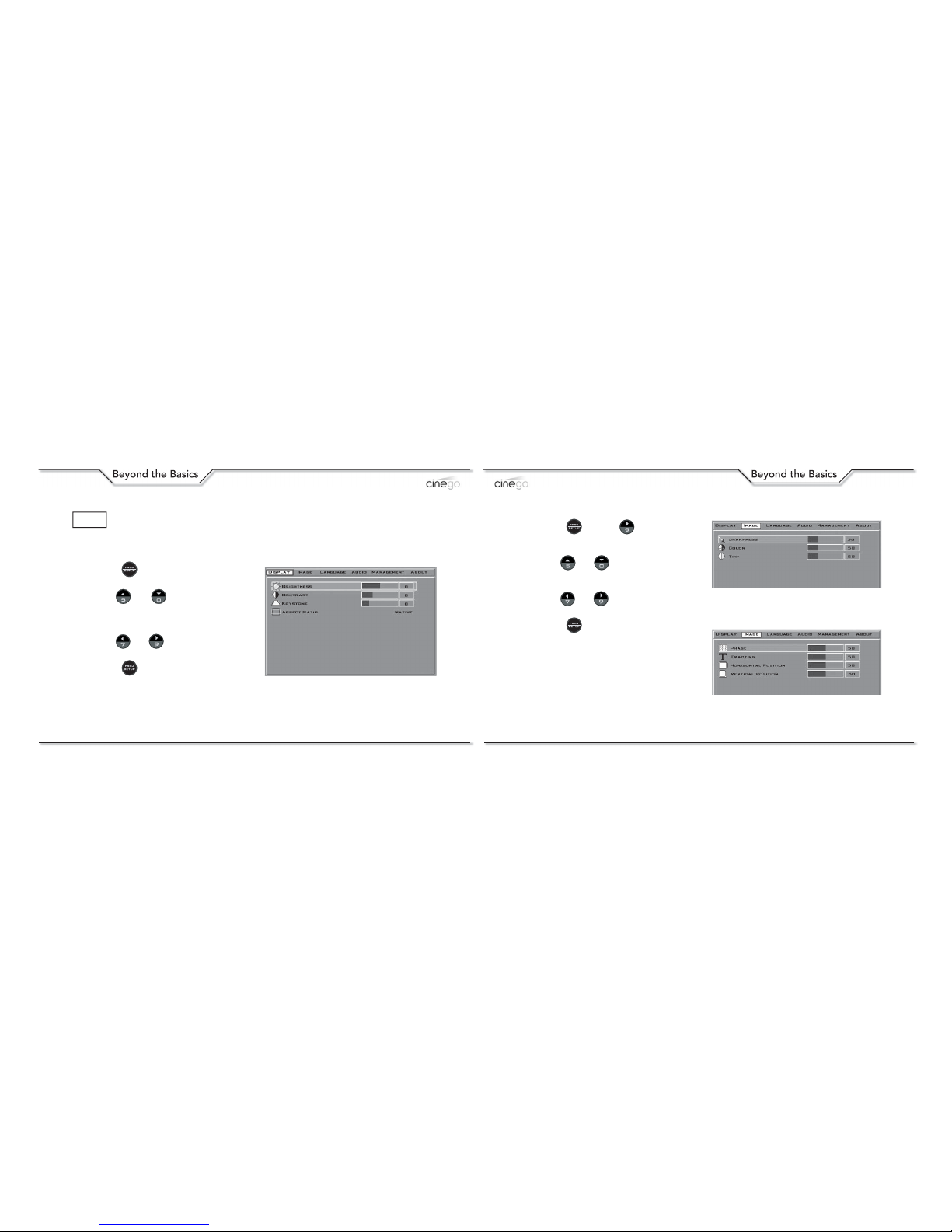

30 using the projector setup menus
30 display
31 image
32 language
33 audio
34 management
35 about
36 customizing your system

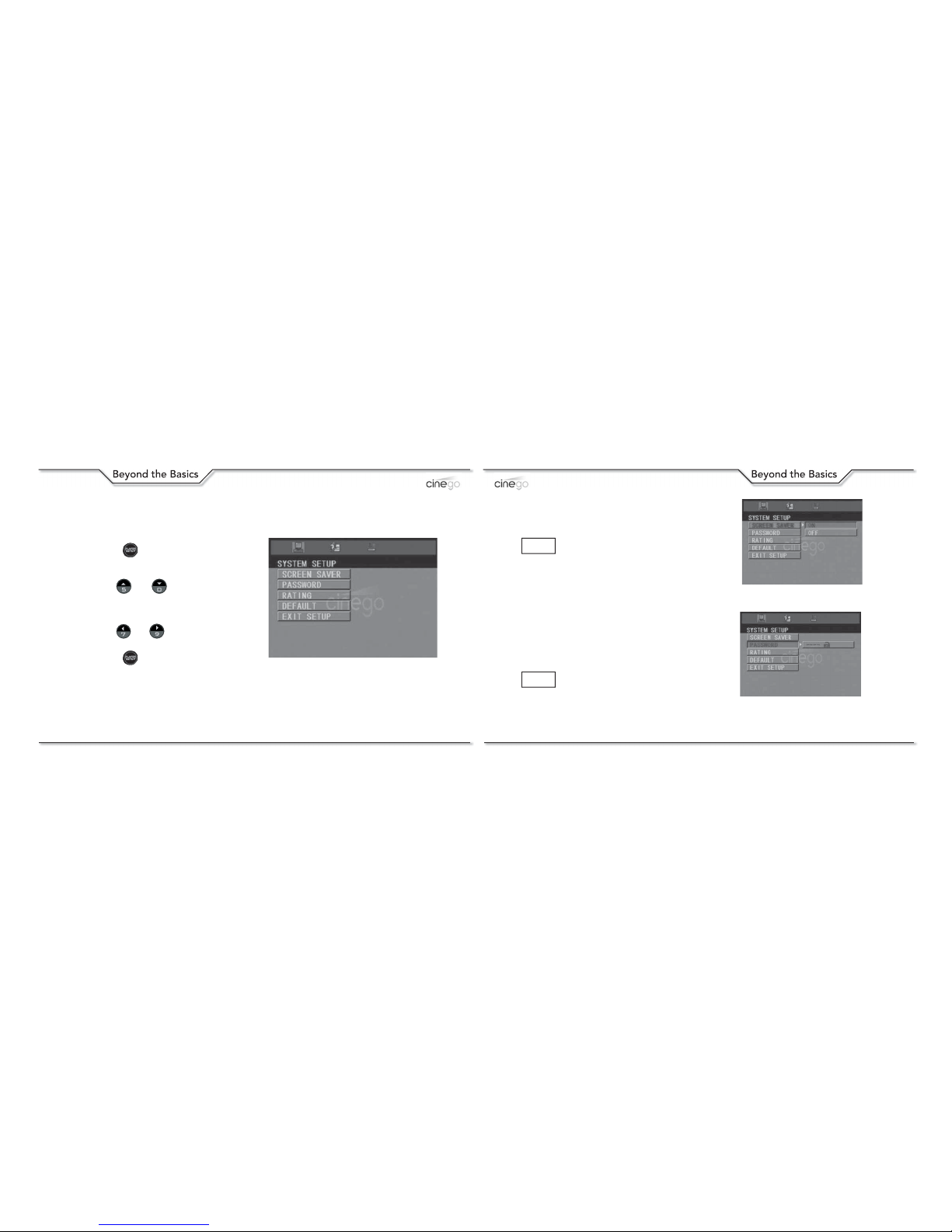

36 using the system setup menus
40 using the language setup menus
43 using the digital setup menus
45 changing the lamp module
47 changing the remote battery
48 caring for your projector
48 service and repair
49 the FCC wants you to know
50 warranty
50 notes on copyrights
51 frequently asked questions
54 ordering information
54 ordering accessories
54 ordering replacement lamps
55 product specifications
55 projector
55 sub woofer

4
The Basics
5
The Basics
features
about DLP™ technology
Thank you for purchasing a Cinego
projector. Cinego uses cutting-edge
technology to bring you the best quality
projection for your home theater.
clarity
DLP™ technology comes closer than any
other display solution to reproducing the
exact mirror image of its source material.
That’s why images projected by DLP™
technology are always crystal clear.
The DMD chip is probably the world’s most
sophisticated light switch. It contains a
rectangular array of up to 1.3 million hinge-
mounted microscopic mirrors; each of these
micromirrors measures less than one-fifth
the width of a human hair.
When a DMD chip is coordinated with a
digital video or graphic signal, a light source,
and a projection lens, its mirrors can reflect
an all-digital image onto a screen or other
surface. The DMD and the sophisticated
electronics that surround it are what we call
Digital Light Processing™ technology.
The thousands of mirrors making up the
Digital Micromirror Device at the heart of
DLP™ technology are spaced less than one
micron apart, resulting in a very high “fill
factor.” By minimizing the gaps between
pixels in a projected image, DLP™ projection
systems create a seamless digital picture
that’s sharp at any size—without the
pixellation or “screen door” effect apparent
in other technologies.
color
DLP™ technology reproduces a range of
colors up to eight times greater than that of
analog projection systems.
In televisions and home theater systems,
DLP™ projection creates rich blacks and
darker shades than is possible with other
technologies.
You may notice that this unit is not quite
as bright as a computer projector. This is
because its optical color system is tailored
for a cinematic experience.
reliability
DLP™ technology makes projectors, home
theater systems and televisions more
robust and more reliable.
tried and true
DLP™ technology is in use wherever visual
excellence is in demand. In fact, it’s the
only display solution that enables movie
projectors, televisions, home theater
systems and business projectors to create
an entirely digital connection between a
graphic or video source and the screen in
front of you.
The result is maximum fidelity: a picture
whose clarity, brilliance and color must be
seen to be believed.
playable formats
Your projector will play the following types
of discs:
• CD • CD-R/RW • DVD-R • VCD
• SVCD • DVD-RW • DVD+RW • DVD+R*
• DVD • Picture CD
*Some DVD+R discs may not be supported.
regional code
This DVD player is designed and
maunfactured for playback of region “1”
encoded DVD software. This unit can play
only DVD discs labeled “1” or “ALL”.
Clearly visible on the cover of
most DVDs, you’ll find a picture
of a globe with one or more
numbers on it. This number must
match your DVD player’s regional
code. Otherwise, the disc cannot
play properly.
NOTE

7
The Basics
what’s included
1Projector 7Sub Woofer
2Remote 8S-Video
Adapter
3Composite
Video Adapter 9Component Video Adapter
4Sub Woofer
Cable Quick Start
5Projector
Power Cord User’s Guide
6Audio Adapter
1
2
8
4
5
3
9
7
6

8
The Basics
9
The Basics

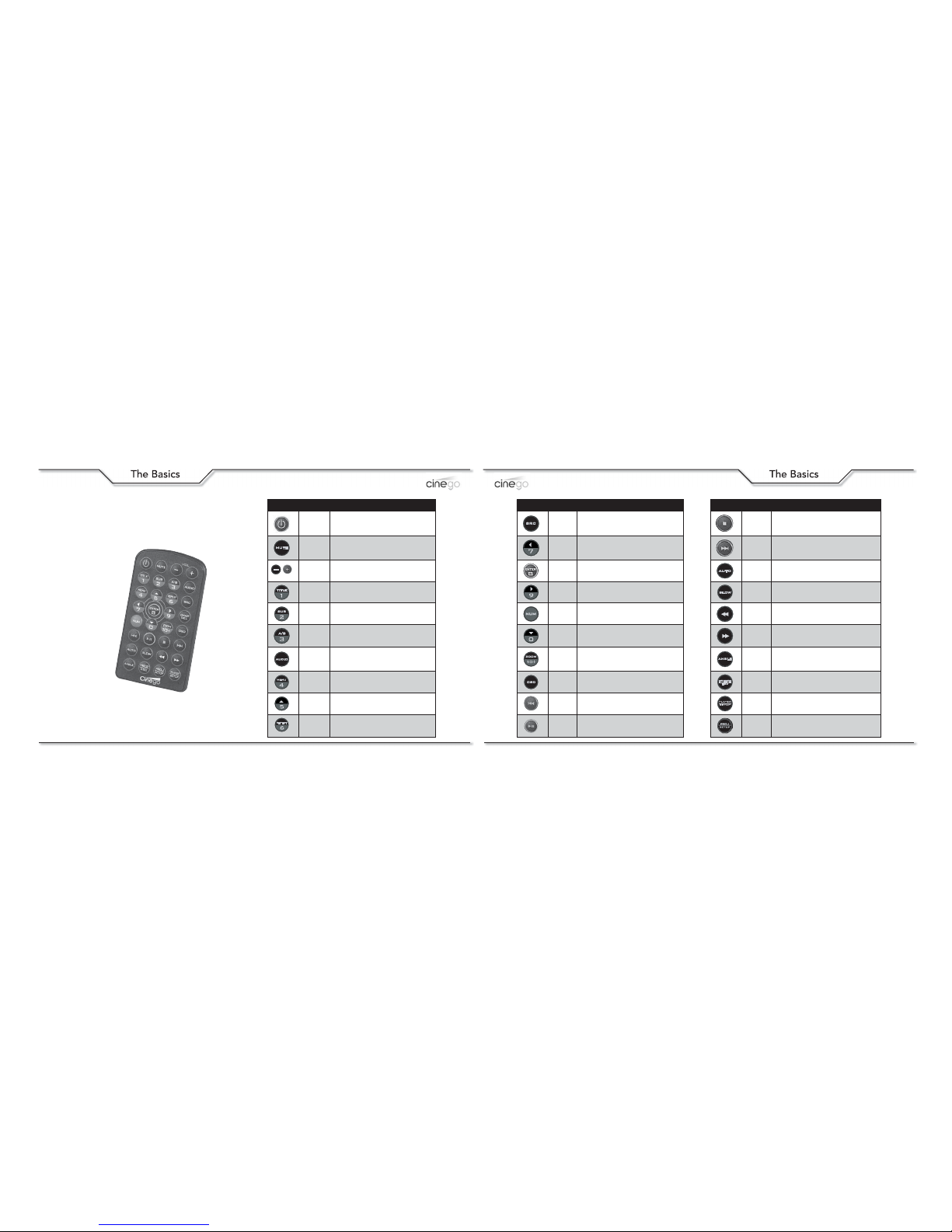

Button Name Function Button Name Function Button Name Function
Power Turns the projector on and off. SOURCE Toggles source. Stop Press once to hold at present
playing point.
Press twice to stop playing.
MUTE Turns off the audio. Left/7 Moves cursor to the left. Skip
forward Skips to next track or chapter.
Vol –
Vol +
Vol – decreases volume.
Vol + increases volume. ENTER/8 Makes selection. AUTO Automatically adjusts projector settings.
TITLE Displays title information. Right/9 Moves cursor to the right. SLOW Slow forward.
SUB Turns subtitle function on or off. NUM Press for secondary button
functions.
Fast
Backward
Scans track or chapter, going
forward.
A/B Defines a period of time to
repeat play. Down/0 Moves cursor down. Fast
Forward
Scans track or chapter, going
backward.
AUDIO Selects the audio language. ZOOM/
10+
ZOOM: Enlarges or reduceS-
Video image.
10+: ex. 11=NUM+10+1 ANGLE Selects DVD camera angle.
MENU Accesses main menu on DVD. OSD Displays chapter/title
information.
FREEZE
ESC
Pauses screen image or quits
the OSD menu.
Up/5 Moves cursor up. Skip
back
Skips to previous track or
chapter.
PLAYER
SETUP
Press to enter the DVD player’s
setup menu.
REPEAT Repeats track, chapter, title, or
disc.
Play/
Pause Press to play or pause. PROJECTOR
SETUP
Press to enter the projector’s
setup menu.
remote

10
The Basics
11
The Basics
right view
AUDIO
OUT
SUB
OUT
AUDIO
IN
VIDEO
IN
VGA
IN
right/front view
Play
Skip
back
SRC
(source)
Skip
forward
Stop
Power
Lens
Zoom
Ring
Focus
Ring
Push to
Open
Push to
adjust height
adjuster
Speakers

12
The Basics
13
The Basics

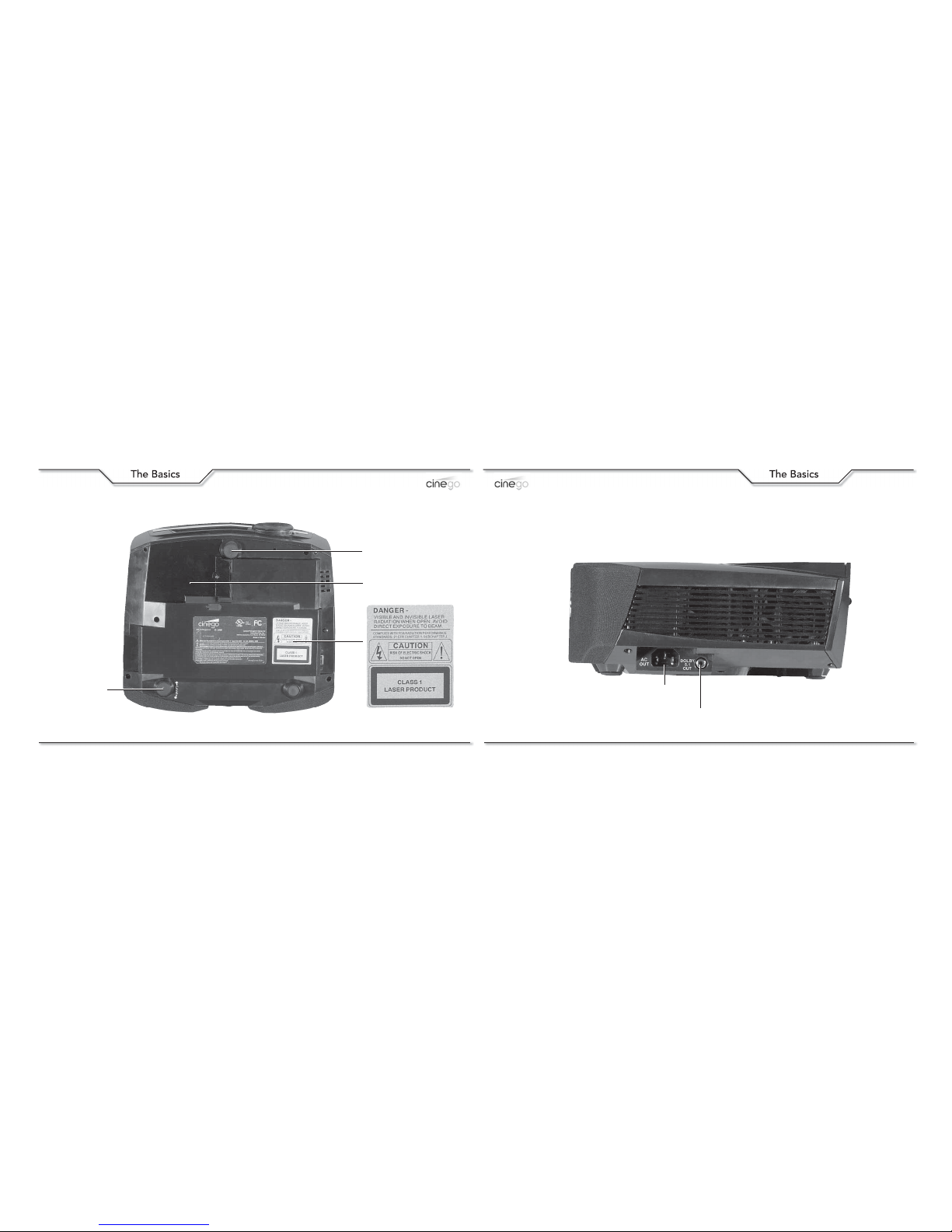

left view
AC
INPUT
DOLBY 5.1
OUT
bottom view
Rear
leveling
foot
Lamp module
compartment
Height
adjuster

14
The Basics
15
The Basics
sub woofer (front) sub woofer (back)
AC power
cord with
polarized
plug
Speaker
output
Line In
Power Switch
BASS
VOLUME

16
The Basics
17
The Basics
to page 51 for instructions on how to
change the lamp.
7. Use only the power cord provided and
make sure you use an AC outlet with a
protective safety ground terminal.
8. Do not block the ventilation openings.
9. Do not place any drinks on top of your
projector or sub woofer. Spilled liquids
may damage the projector or sub woofer.
10. Do not place the projector or sub woofer
on a hot surface.
11. Keep your projector or sub woofer away
from moisture and direct sunlight.
12. Handle the projector or sub woofer
carefully during transportation. Avoid
dropping it.
13. The lamp inside this product contains
mercury and must be recycled or disposed
of according to local, state, or federal laws.
14. Do not use the projector continuously for
more than four hours.
15. WARNING: Hot surface! Allow the
projector to cool for one hour before
touching its surface.
Usage Notice
Please read and follow these safety
instructions carefully. Inappropriate operation
may result in fire, electrical shock, or personal
injury and shorten the life span of your
projector or sub woofer.
1. Do not cover the lens while the lamp
lights up.
2. To protect your eyes, do not look directly
into the projector’s light source.
3. Make sure that you provide adequate
ventilation for the projector and sub
woofer. Do not block the ventilation holes
in the case.
4. To prevent electrical shock, never open
the projector or sub woofer case.
5. Before using the projector or sub woofer,
make sure the power cord is connected
to an AC outlet with a protective safety
ground terminal.
6. To replace the lamp, turn off the projector
and sub woofer and unplug the power
cord. To avoid burns, wait at least one
hour before opening the lamp door. Refer
important safety instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings.
Install in accordance with the manufacturer’s
instructions.
8. Do not install near any heat sources such
as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce
heat.
9. Protect the power cord from being walked
on or pinched particularly at plugs,
convenience receptacles, and the point
where they exit from the apparatus.
10. Only use attachments/accessories specified
by the manufacturer.
11. Unplug this apparatus during lightning
storms or when unused for long periods of
time.
12. Use only with the cart,
stand, tripod, bracket,
or table specified by the
manufacturer, or sold with
the apparatus. When a cart
is used, use caution when
moving the cart/apparatus
combination to avoid
injury from tip-over.
13. Refer all servicing to qualified service
personnel. Servicing is required when
the apparatus has been damaged in any
way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus
has been exposed to rain or moisture, does
not operate normally, or has been dropped.
14. WARNING: To reduce the risk of fire or
electric shock, do not expose this apparatus
to rain or moisture.
15. Apparatus shall not be exposed to dripping
or splashing and no objects filled with
liquids, such as vases, shall be placed on the
apparatus.

18
The Basics
19
The Basics
connecting your projector
connecting power
Connect your projector to a standard
AC wall outlet via the power cable.

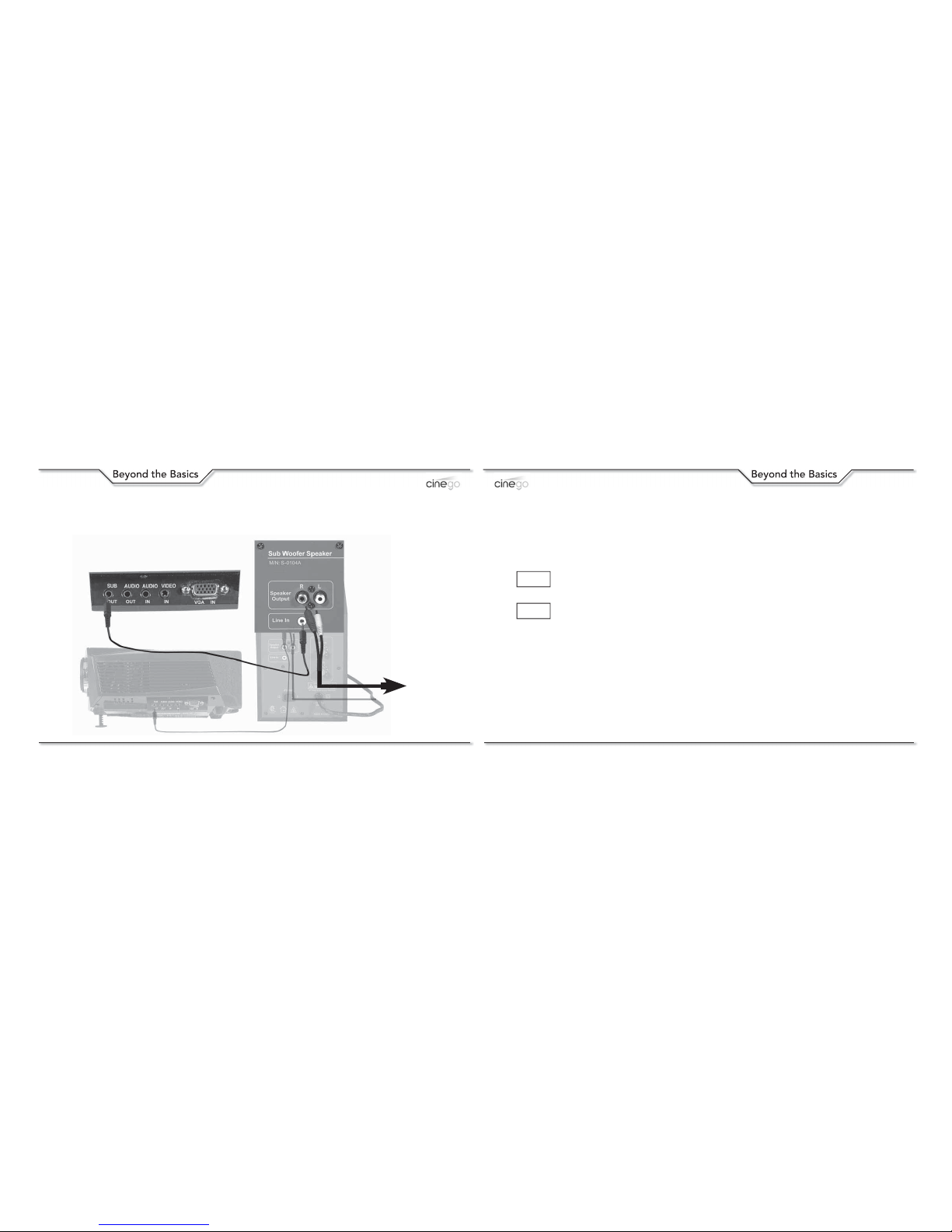

connecting your sub woofer
Connect your projector to your sub woofer
to experience higher-quality audio, via the
audio cable, as shown.
setting up your projector
find the ideal location for your new projector
Before you use your projector, be sure you carefully consider where you are going to place
it. Think about the size and shape of your screen, location of power outlets, and the distance
between the projector and the rest of your equipment.
CAUTION: DO NOT place your projector directly on a varnished wood surface. This
projector produces a large amount of heat over time and will discolor wood furniture.
CAUTION: DO NOT move your projector at all while the lamp is hot. Wait until your
projector has cooled before you change its position or adjust its height.
• Place your projector on a surface with adequate ventilation. Do not put it on thick carpeting,
which can restrict air flow, or near a heat source such as a heater vent or radiator, which can
cause it to overheat.
• Position your projector on a flat surface at a right angle to the screen. The projector must be
at least 39 inches from the projection screen.
• Your desired picture size will determine how far away from the screen you should position
your projector. The farther back you place the projector, the larger your picture will be (see
page 27).
NOTE
NOTE

20
The Basics
21
The Basics
playing a DVD or Kodak Picture CD with the remote
1. Turn on the projector.
2. Open the DVD compartment and place your DVD inside. Close the DVD compartment.
3. Press .
playing a DVD or Kodak Picture CD without the remote
1. Turn on the projector.
2. Open the DVD compartment and place your DVD inside. Close the DVD compartment.
3. Press play. If you are viewing a picture CD, you can use the arrow keys to change the
orientation of the pictures.
Some DVDs require that you navigate through a menu to play the DVD. Others will
allow you to bypass the menu by pushing play.
adjusting your projector
adjusting focus and zoom
1. Turn on the projector.
2. Rotate the focus ring until you
see a clear picture.
3. Rotate the zoom ring to adjust
picture size.
NOTE
Focus
Ring
Zoom
Ring
operating your projector
Before operating your projector, remove the lens cap.
If a DVD is inside the compartment when you press power, the projector will
automatically play the DVD.
powering your projector
To turn on your projector, make sure it is connected to a standard AC outlet via the power cord
and then press power.
To turn off the projector, press the power
button once. Push the power button once
more to confirm. The projector will then
enter a cooling cycle to preserve the lamp.
Once the projector enters its
cooling cycle, you cannot turn
it back on until the cooling
cycle has completed (about 3
minutes).
To maximize the life of the lamp,
do not unplug the projector
during the cooling cycle and do
not move it or adjust its height
until it has cooled.
NOTE
NOTE
NOTE
NOTE
Power
Button

22
Beyond the Basics
23
Beyond the Basics
You have now entered the Beyond the Basics section of this User’s Guide. Here, you will find
more advanced information about your projector and its functions.
advanced connections
You can connect other devices, such as tuner, HDTV source, satellite system, gaming console,
PC, or digital video camera to your Cinego. To prevent hum and other noise, use high-quality
cables.
Before you make any connections, ensure that the AC power cord is not plugged in.
After you have made your connections, press SRC (source) either on the projector or
on the remote.
connecting your satellite or HDTV system
1. Connect either the component video or the S-video adapter to your projector, as shown.
2. Connect the adapter to your HDTV, tuner, or satellite system’s cables, as shown. (Extra
cables not included.)
3. Connect sound from your projector directly to your HDTV, tuner, or satellite system via the
audio cable, as shown.
4. Press SRC (source).
NOTE
NOTE
Audio Adapter: connect to your
peripheral device’s audio cables.
Component Adapter: connect to
your device’s component cables.
Audio Adapter: connect to your
peripheral device’s audio cables.
S-Video Adapter: connect directly
to your device’s S-Video cable.

24
Beyond the Basics
25
Beyond the Basics
connecting a digital video camera
Connect your digital video camera to your projector via the composite cable adapter, as shown.
Your digital video camera must have composite outputs in order to connect to the
projector.
connecting a gaming console
1. Connect either the component video or composite video adapter to your projector, as
shown.
2. Connect the adapter to your gaming console, as shown.
3. Connect sound to your projector from your gaming console via the audio cable, as shown.
4. Press SRC (source).
connecting a PC
Connect your PC to your projector via a VGA cable. Cable not included.
NOTE
Audio Adapter: connect to your
peripheral device’s audio cables.
Composite Adapter: connect
directly to your device’s composite
cable.
Audio Adapter: connect to your
peripheral device’s audio cables.
Component Adapter: connect to
your device’s component cables.

26
Beyond the Basics
27
Beyond the Basics
advanced setup
finding the ideal height for your projector
The size and location of your screen and projector will determine the proper height of the
projector. To raise or lower the projector, use the foot as shown.
CAUTION: DO NOT place your projector directly on a varnished wood surface.
This projector produces a large amount of heat over time and may discolor wood
furniture.
CAUTION: DO NOT move your projector at all while the lamp is hot. Wait until your
projector has cooled before you change its position or adjust its height.
NOTE
connecting external computer speakers
1. Connect the projector to the subwoofer via the audio cable.
2. Connect your speakers to the subwoofer via audio cables, as shown below.
NOTE
To speakers

28
Beyond the Basics
29
Beyond the Basics
adjusting your projector
On Screen Display (OSD) Menus vary depending on what type of source you are using.
adjusting the shape of your picture
To adjust keystone and aspect ratio, access the Display menu as described below.
keystone
Keystone is a term we use to describe what happens when a projector is not aligned
properly with the screen, or when the projection screen has an angled surface. The
image shape resembles a trapezoid rather than a square.
aspect ratio
Aspect ratio is the ratio of the projected picture’s width to its height. For example,
the ratio of this rectangle is w:h.
Widescreen pictures have an aspect ratio of 16:9 (or sixteen by nine). Full screen
pictures have an aspect ratio of 4:3 (or four by three). DVD movies should be marked
either wide screen or full screen. We suggest that you set your aspect ratio to 16:9
for wide screen movies and 4:3 for full screen movies.
NOTE
h
w
determining the ideal distance from the screen
The size and location of your screen and projector will determine the proper height of the
projector. Use the table below to approximate the distance between the screen and projector.
The farther away from the screen you place your projector, the larger the picture will be.
CAUTION: DO NOT place your projector directly on a varnished wood surface.
This projector produces a large amount of heat over time and may discolor wood
furniture.
Diagonal Screen Size
(inches)
approximate Projection
Distance (inches)
22 39
28 48
55 96
70 120
NOTE

30
Beyond the Basics
31
Beyond the Basics
1. Press and then to access the
IMAGE menu.
2. Use and to select image
settings.
3. Use and to make adjustments.
4. Press once to access another
menu and twice to exit.
Video Menu (IMAGE)
VGA Menu (IMAGE)
using the projector setup menus
Video menus will appear when you are using any source, except for PC. VGA menus
will appear when your projector is connected to a PC.
display
1. Press to access the DISPLAY menu.
2. Use and to select brightness,
contrast, keystone, or aspect ratio of the
picture. See Glossary for definitions.
3. Use and to make adjustments.
4. Press once to access another menu
and twice to exit.
NOTE

32
Beyond the Basics
33
Beyond the Basics
audio
1. Press and then to access the
AUDIO menu.
2. Use and to select volume,
bass, treble, or to mute the projector.
3. Use and to make adjustments.
4. Press once to access another
menu and twice to exit.
language
1. Press and then to access the
LANGUAGE menu.
2. Use and to select your favorite
menu language.
3. Press once to access another menu
and twice to exit.

34
Beyond the Basics
35
Beyond the Basics
about
The ABOUT menu contains information regarding your Cinego. Access this screen to see how
many hours you have operated your projector and when the lamp needs to be changed.
1. Press to access the ABOUT menu.
2. Press once to access another
menu and twice to exit after you have
noted the necessary information.
management
1. Press and then to access the
MANAGEMENT menu.
2. Use and to make advanced
adjustments to the picture.
3. Press once to access another
menu and twice to exit.
• ECONOMY MODE: Decreases lamp brightness, makes the unit run more quietly, and makes the
lamp last longer. In Economy Mode, the lamp will last for about 3000 hours. In normal mode,
the lamp will last for about 2000 hours.
• GAMMA: Allows you to select the type of picture and coloring you prefer.
• AUTO SOURCE SELECT: Automatically selects your source.
• REAR: Projects a backwards image for rear projection application.
• LAMP RESET: After you replace the lamp, select this to reset the lamp life. (Does not reset
display hours, for warranty purposes.)
• FACTORY RESET: Select to return to factory settings. (Does not reset lamp life counter.)

36
Beyond the Basics
37
Beyond the Basics
• SCREEN SAVER: Turn the screen saver ON
or OFF. In screen saver mode, the screen
saver will turn on when the projector has
been set on pause for about 3 minutes.
Your projector is not susceptible to
screen burn-in of images.
• PASSWORD: Lock or unlock the parental
presets (ratings). Set the password by
pressing NUM and then each digit you
choose for your personalized password.
Go to RATING to create parental presets
(block certain ratings).
customizing your system
using the system setup menus
1. Press to access the SYSTEM SETUP
menu.
2. Use and to make your
selection. See below for a description of
each selection.
3. Use and to make adjustments.
4. Press once to exit.
If you forget your password, turn to
page 50. Clip these instructions out of
the User’s Guide and keep them in a
safe place.
NOTE
NOTE

38
Beyond the Basics
39
Beyond the Basics
• DEFAULT: Select RESTORE to return to
default settings.
• EXIT SETUP: Select to exit Player Setup
menus and return to your movie.
• RATIN G : Select the movie rating you would
like your projector to allow. Choose from
the following:
Security
Level Rating allowed
1 Kid Safe
2G
3PG
4 PG13
5PG-R
6R
7NC-17
8 Adult (Default-will play anything)
