The Cissell Manufacturing Company (Cissell) warrants all new equipment (and the original parts thereof)
to be free from defects in material or workmanship for a period of one (1) year from the date of sale thereof
toanoriginalpurchaser foruse, exceptas hereinafterprovided. Withrespect tonon-durable partsnormally
requiring replacement in less than one (1) year due to normal wear and tear, including, but not limited to,
cloth goods, valve discs, hoses, and iron cords, and with respect to all new repair or replacement parts for
Cissell equipment for which the one (1) year warranty period has expired, or for all new repair or
replacementpartsforequipmentotherthanCissellequipment,thewarrantyperiodislimitedtoninety(90)
daysfromdateofsale.ThewarrantyperiodoneachnewreplacementpartfurnishedbyCissellinfulfillment
ofthewarrantyonnewequipmentorpartsshallbefortheunexpiredportionoftheoriginalwarrantyperiod
on the part replaced.
With respect to electric motors, coin meters and other accessories furnished with the new equipment, but
not manufactured by Cissell, the warranty is limited to that provided by the respective manufacturer.
Cissell's total liability arising out of the manufacture and sale of new equipment and parts, whether under
thewarrantyorcausedbyCissell'snegligenceorotherwise,shallbelimitedtoCissellrepairingorreplacing,
atitsoption,anydefectiveequipmentorpartreturnedf.o.b.Cissell'sfactory,transportationprepaid,within
the applicable warranty period and found by Cissell to have been defective, and in no event shall Cissell be
liable for damages of any kind, whether for any injury to persons or property or for any special or
consequential damages. The liability of Cissell does not include furnishing (or paying for) any labor such
as that required to service, remove or install; to diagnose troubles; to adjust, remove or replace defective
equipment or a part; nor does it include any responsibility for transportation expense which is involved
therein.
The warranty of Cissell is contingent upon installation and use of its equipment under normal operating
conditions. The warranty is void on equipment or parts; that have been subjected to misuse, accident, or
negligent damage; operated under loads, pressures, speeds, electrical connections, plumbing, or conditions
other than those specified by Cissell; operated or repaired with other than genuine Cissell replacement
parts; damaged by fire, flood, vandalism, or such other causes beyond the control of Cissell; altered or
repaired in any way that effects the reliability or detracts from its performance, or; which have had the
identification plate, or serial number, altered, defaced, or removed.
No defective equipment or part may be returned to Cissell for repair or replacement without prior written
authorization from Cissell. Charges for unauthorized repairs will not be accepted or paid by Cissell.
CISSELL MAKES NO OTHER EXPRESS OR IMPLIED WARRANTY, STATUTORY OR OTHERWISE,
CONCERNING THE EQUIPMENT OR PARTS INCLUDING, WITHOUT LIMITATION, A WARRANTY
OF FITNESS FOR A PARTICULAR PURPOSE, OR A WARRANTY OF MERCHANTABILITY. THE
WARRANTIES GIVEN ABOVE ARE EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES, EXPRESS
ORIMPLIED.CISSELLNEITHERASSUMES, NORAUTHORIZESANY PERSONTOASSUMEFORIT,
ANY OTHER WARRANTY OR LIABILITY INCONNECTION WITH THEMANUFACTURE,USE OR SALE
OF ITS EQUIPMENT OR PARTS.
For warranty service, contact the Distributor from whom the Cissell equipment or part was purchased. If
the Distributor cannot be reached, contact Cissell.

Page 3Page 3
Page 3Page 3
Page 3
TT
TT
TABLE OF CONTENTSABLE OF CONTENTS
ABLE OF CONTENTSABLE OF CONTENTS
ABLE OF CONTENTS
GENERAL INFORMATION
Warranty ...................................................................................................................... 1
Cissi Form Finisher Features.....................................................................................3-4
SPECIFICATIONS
Motor, Steam Pressure,Weights.................................................................................. 4

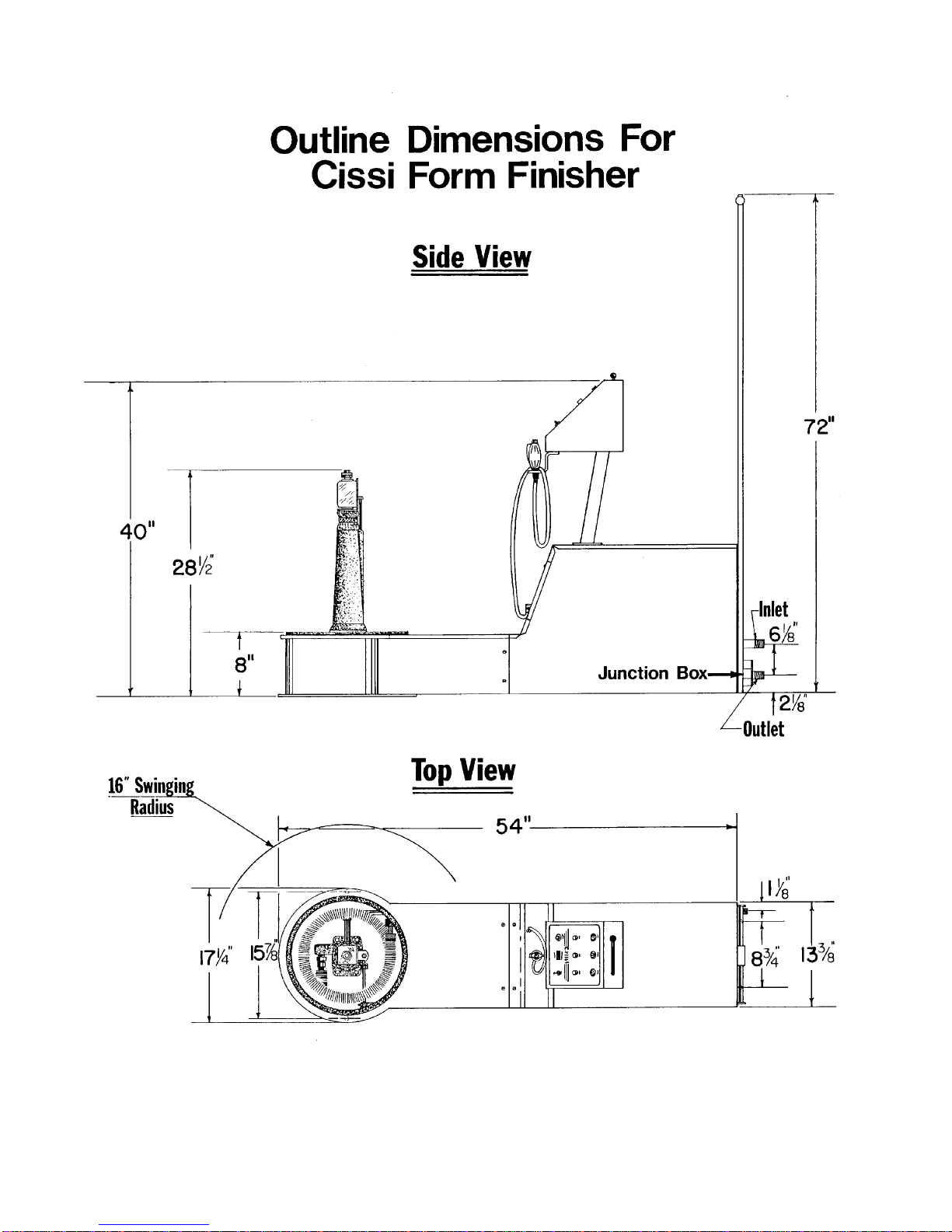

Outline Dimensions ..................................................................................................... 5
INSTALLATION AND OPERATION
Installation Instructions.............................................................................................. 6
Steam Piping Illustrations .........................................................................................7-8
Operating Instructions ..............................................................................................9-10
Overbag ....................................................................................................................... 11
ADJUSTMENTS AND SERVICE

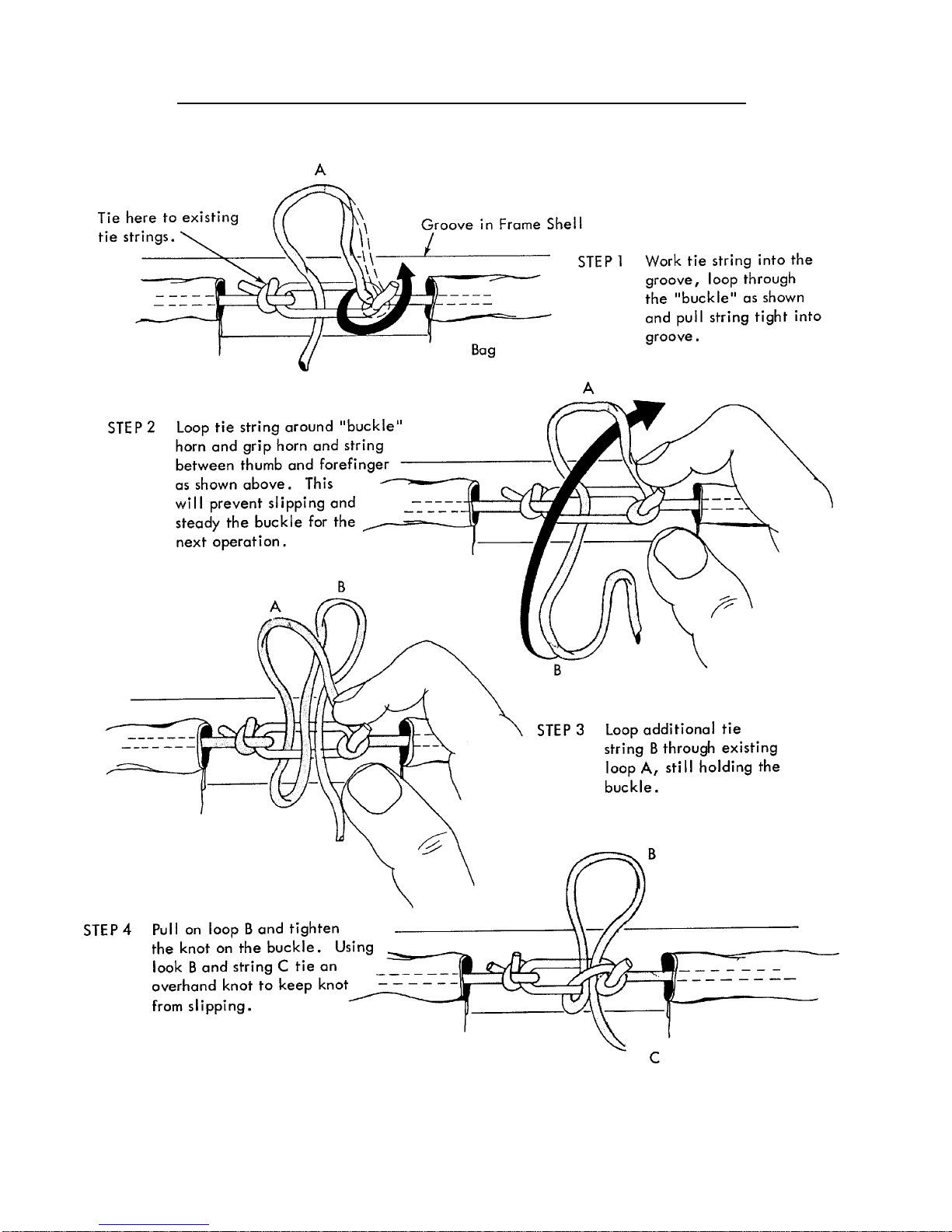

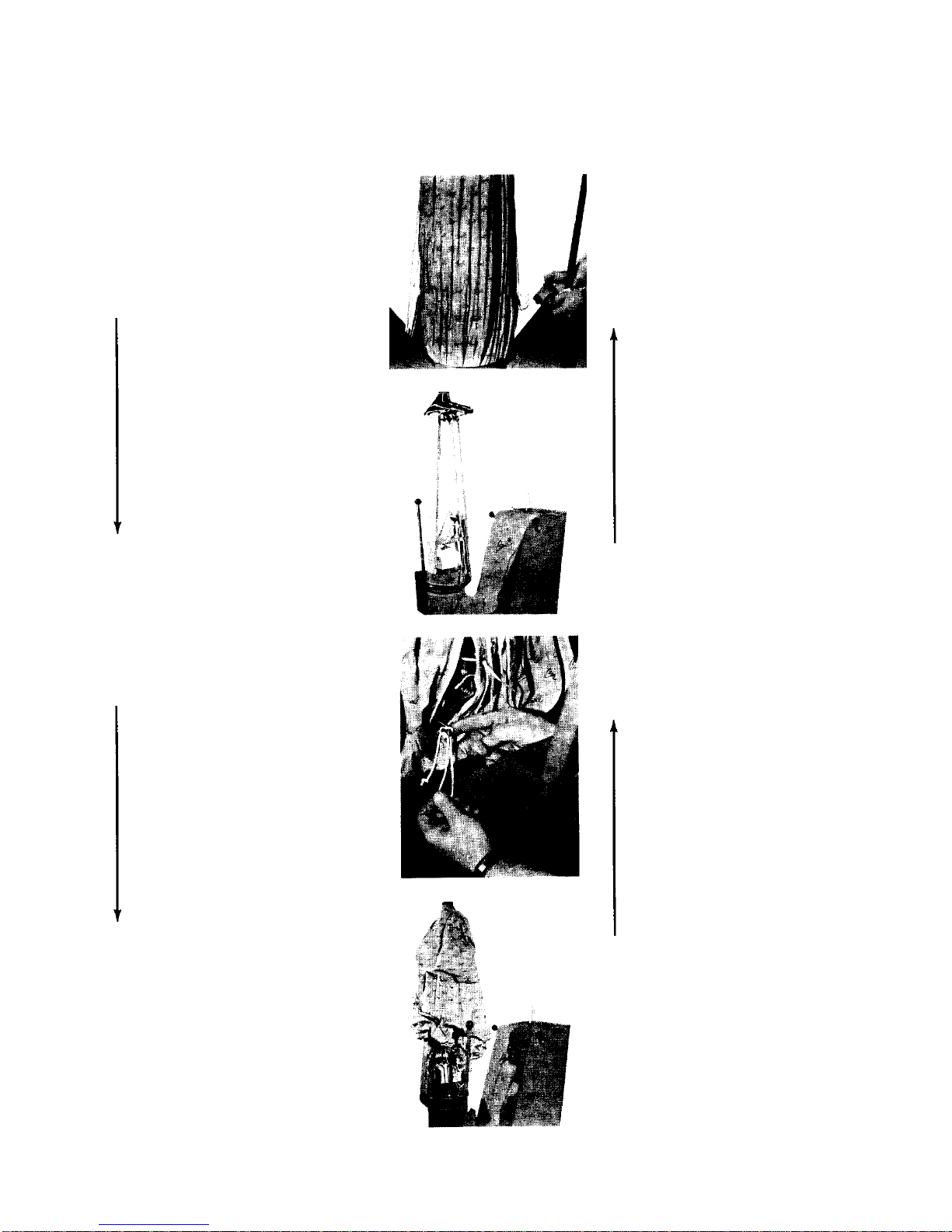

Changing Bag ...........................................................................................................12-13
Adjustment of Revolving Form Height ...................................................................... 14
Solenoid Linkage Adjustment .................................................................................... 15
Motor Mounting Dimensions ..................................................................................... 16
Trouble Shooting Charts ..........................................................................................17-20
ILLUSTRATED PARTS
Revolving Form ........................................................................................................... 21
Foot Switch.................................................................................................................. 22
Tower of Power Parts .................................................................................................. 23
Rear Base Assembly ................................................................................................... 24
Shallow Base............................................................................................................... 25
Valve Parts .................................................................................................................. 26

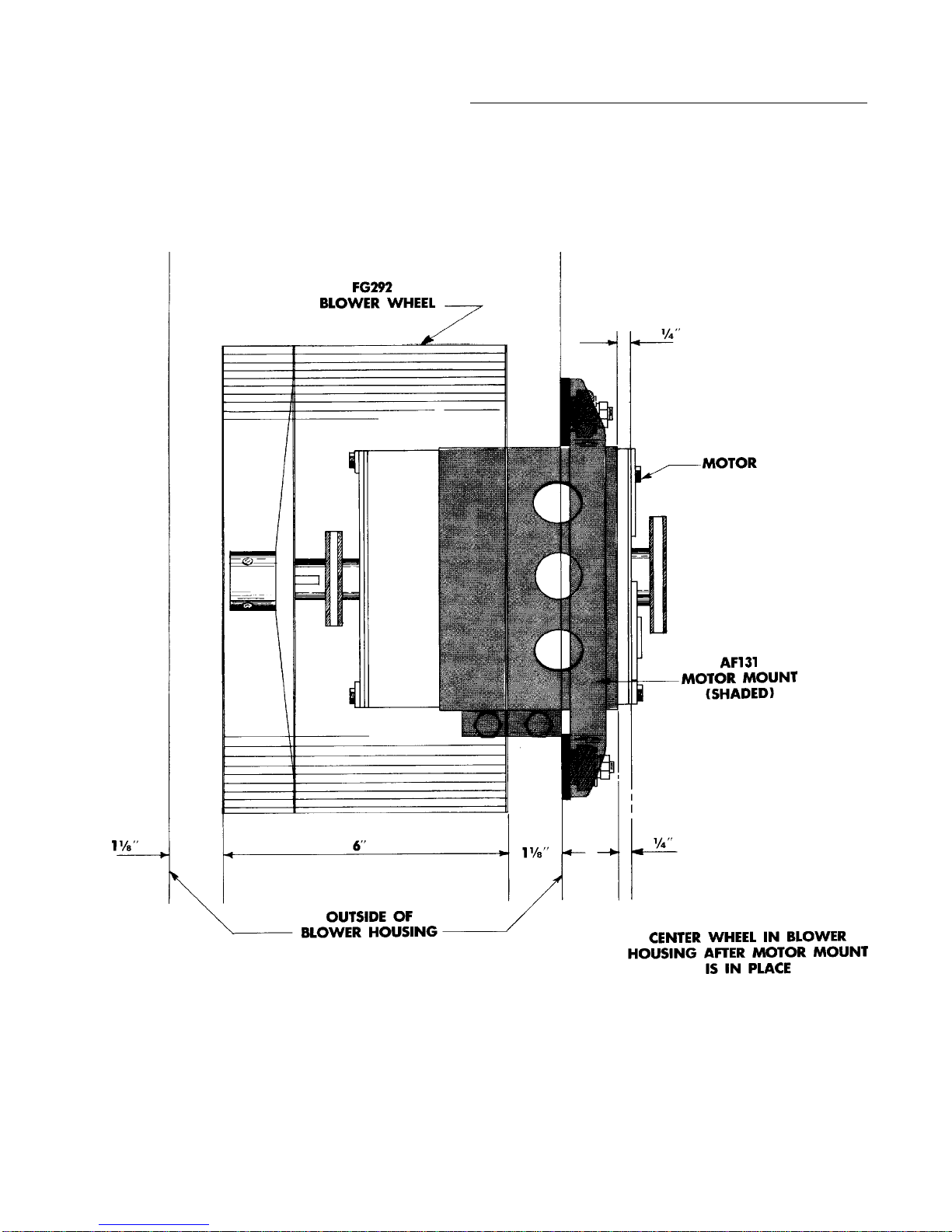

Blower, Motor, and Motor Mount................................................................................ 27
Jacket and Filter......................................................................................................... 28
Damper Control Assembly.......................................................................................... 29
Condenser Assembly and Tubing............................................................................... 30
Water Spray Gun ........................................................................................................ 31
Condenser ................................................................................................................... 32
Rear and Front Paddle Assemblies ............................................................................ 33
WIRING DIAGRAMS
Schematic .................................................................................................................... 34
Rear Base .................................................................................................................... 35
Control Box ................................................................................................................. 36

Page 4Page 4
Page 4Page 4
Page 4
CISSI FORM FINISHERCISSI FORM FINISHER
CISSI FORM FINISHERCISSI FORM FINISHER
CISSI FORM FINISHER
Loving Care for GarmentsLoving Care for Garments
Loving Care for GarmentsLoving Care for Garments
Loving Care for Garments
MODELSMODELS
MODELSMODELS
MODELS
CISSI BASE (FC);CISSI BASE (FC);
CISSI BASE (FC);CISSI BASE (FC);
CISSI BASE (FC);
FCFG with Geni Revolving Assembly
FCAF with Aire Form Revolving Assembly
FCCD with Form Finisher Revolving Assembly
FCCG with Finisher 6”Taller Revolving Assembly
Base can also be used with ANY Cissell Garment Manufacturer’s model revolving
assembly.
Buy the Cissi with your choice of assembly chosen from above; or, buy the Base only - to
use with any Cissell revolving assembly you have now.
CISSELL FINISHERCISSELL FINISHER
CISSELL FINISHERCISSELL FINISHER
CISSELL FINISHER
HELPS GIVE ORIGINAL LOOKHELPS GIVE ORIGINAL LOOK
HELPS GIVE ORIGINAL LOOKHELPS GIVE ORIGINAL LOOK
HELPS GIVE ORIGINAL LOOK
TT
TT
TOO
OO
O ANY GARMENTANY GARMENT
ANY GARMENTANY GARMENT
ANY GARMENT

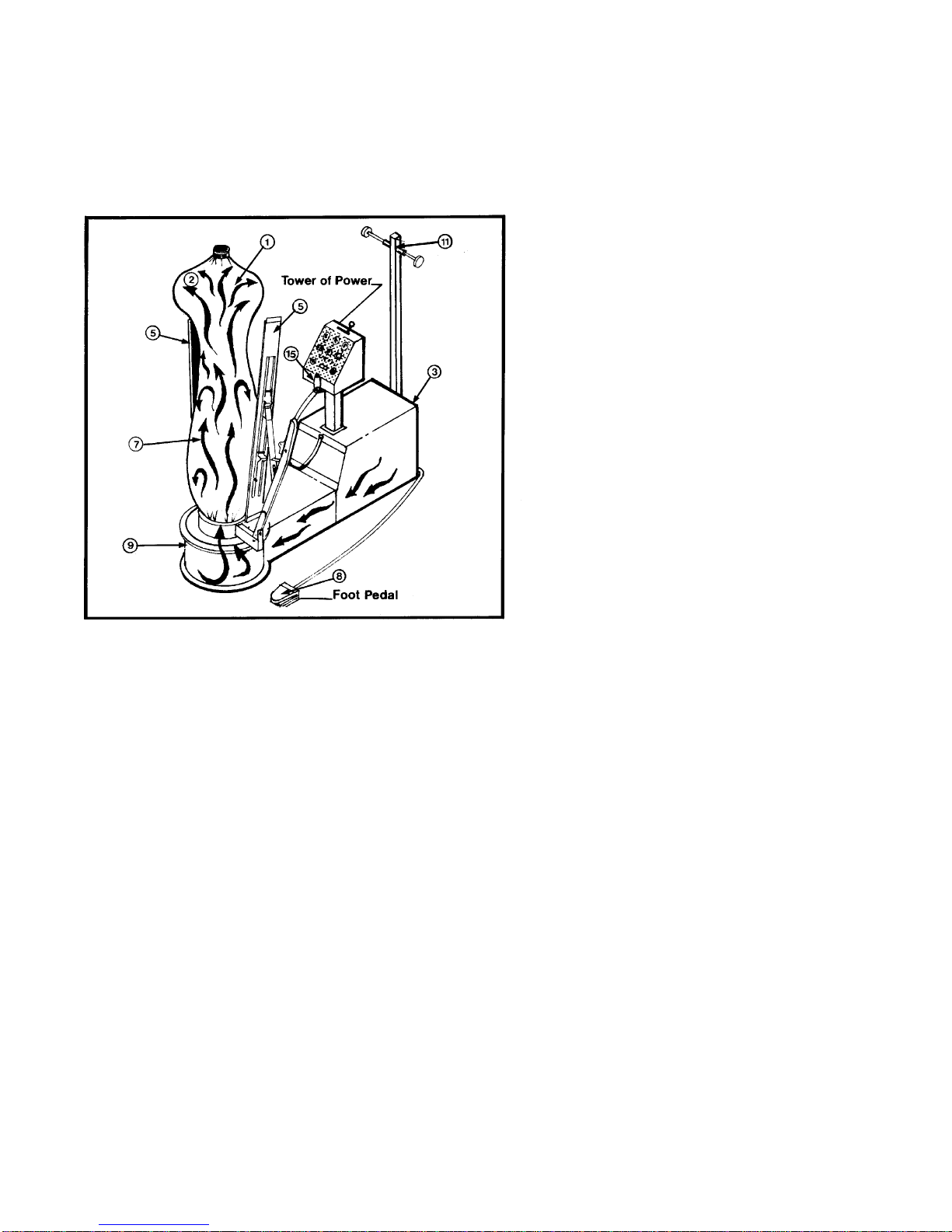

(1) Sturdy, stainless steel, rust-resis-
tant frame. (2) Controlled porosity
nylon bag for better steam and air
distribution. (3) Cleanable inlet air
filter reduces bag replacement; helps
keep garments clean. (4) Flow of air
shapes garment whether heavy or light
material. (5) Clamps. (6) Easily
adjustable steaming; conditioning and
drying controls. (7) Steam evenly
distributed throughout entire form. (8)
Easy to use foot pedal for starting. (9)
Low base makes entire form easy for
short operators to use. (10) Form
revolves 360 degrees. (11) Clothes rack
for hanging finished garments. (12)
Vent clamps. (13) Net overbag. (14)
Hand pad. (15) Water spray gun. (16)
Sleevers.
All parts quickly accessible for ease in
maintenance.
*Numbers 12, 13, 14 and 16 are not illustrated.

Page 5Page 5
Page 5Page 5
Page 5
TT
TT
TOWER FEAOWER FEA
OWER FEAOWER FEA
OWER FEATURESTURES
TURESTURES
TURES
• Steaming Timer w/Light
• Conditioning Timer w/Light
• Drying Timer w/Light
• Push Button Start Switch
• 3 Position Cycle Switch:
1. Steam and Air Conditioning, Drying;
2. Steaming, Conditioning, Drying;
3. Pre-steam Only
• Combination Sizing and Cancel Rocker Switch
• Water Spray Gun
• Air Damper Control
The flexibility of these controls on the new model Form Finisher permits the proper
steam/air cycles to quickly and efficiently finish heavy, or hard-woven, badly wrinkled
garments.
But cycle control is not the only new feature on the Form Finisher. Remember! This
Finisher offers the option of multiple revolving assemblies as noted on front side. The
choice is yours!
SPECIFICASPECIFICA
SPECIFICASPECIFICA
SPECIFICATIONSTIONS
TIONSTIONS
TIONS
Electric Motor: 1/2 HP,
1725 RPM, 115 Volt, 60
cycle, single phase 1/2 HP,
1425 RPM, 230 Volt, 50
cycle, Single Phase
Operating Steam Pressure 60 to
100 Pounds
Boiler HP: Approx. 2
Steam Supply Line: 1/2”
Steam Return Line: 1/2”
Depth: 54”
Height: 17” (to top of cabinet)
72” (to top of clothes rack)
36” (to top of controls)
Width: 17”
Net Weight: 226 Lbs. (approx.)
SHIPPING WEIGHTS:
Domestic: 300 pounds (approx.)
Export: (500 pounds (approx.)
Export: Shipping Dimensions:
66” (H); 71” (L); 25” (W)
Cubic Feet Export Crating:
67.8 (approx.)
Fully guaranteed for one year against manufacturer’s defects.

Page 6Page 6
Page 6Page 6
Page 6

Page 7Page 7
Page 7Page 7
Page 7
CISSICISSI
CISSICISSI
CISSI
Installation InstructionsInstallation Instructions
Installation InstructionsInstallation Instructions
Installation Instructions
Refer to illustration sheet
(1) UNCRATE MACHINE. Check the nameplate voltage and current, making sure
it is the same as the supply voltage and current.
(2) SET MACHINE IN POSITION.
(3) REMOVE THE REVOLVING FORM by holding the turning knob and the
opposite weight “bucket” and lifting approximately 22”.

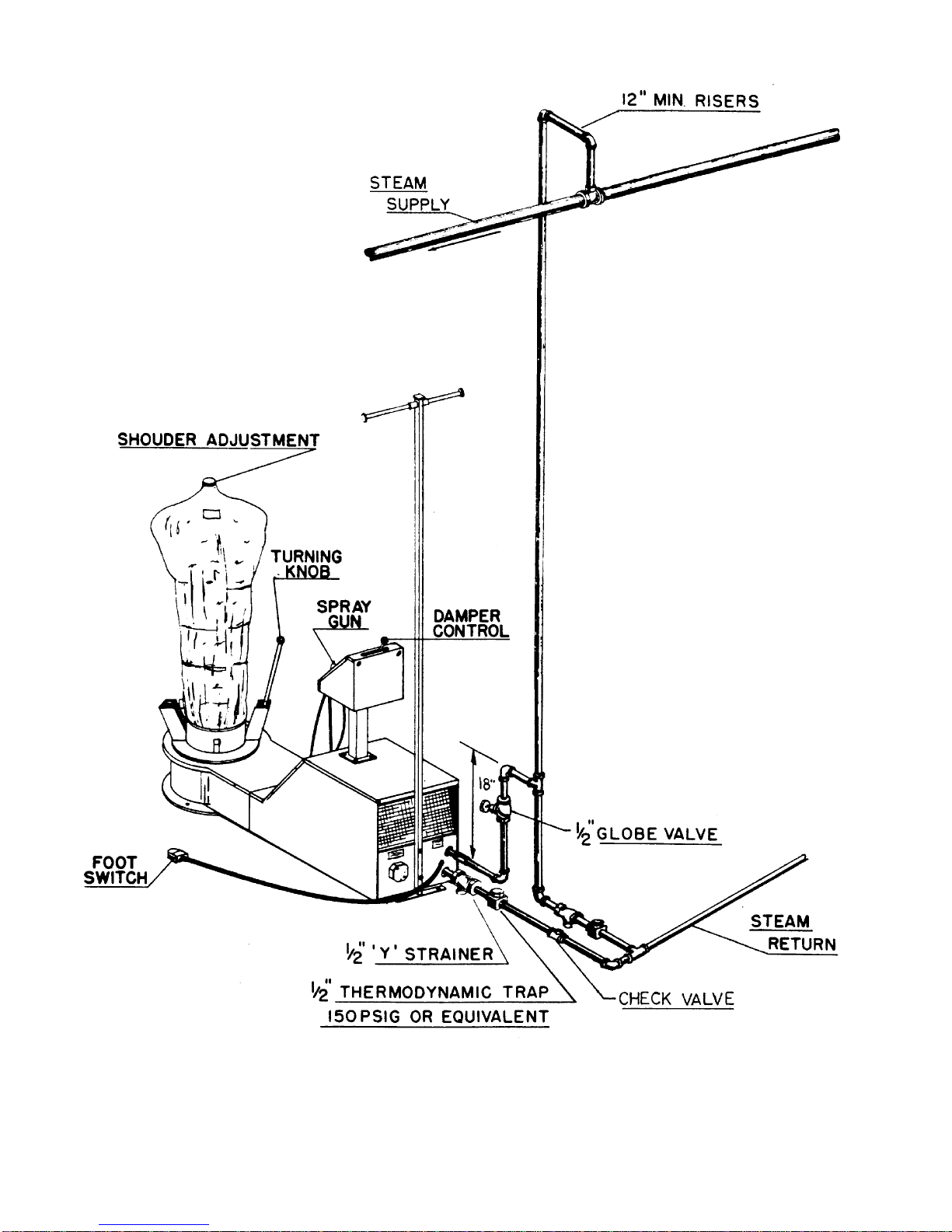

(4) CONNECT STEAM SUPPLY LINE as shown on next page.
(5) CONNECT RETURN LINE as shown on next page.
NOTE: Before final return line connection is made, open the steam supply
valve and blow all foreign matter out of the steam lines and
chamber. Failure to do so will cause trap to leak.
(6) MAKE ELECTRICAL CONNECTIONS in 3”junction box on rear of the
machine, according to applicable electric codes. Connections should include a
fused disconnect switch or circuit breaker with “slo-blow” characteristics and be
capable of carrying 15 amps 115 volts or 8 amps 230 volts.
(7) MAKE SURE THE CONDENSER VALVE IS OPEN (condenser located behind
the air filter) before connecting clothes tree.
(8) CONNECT CLOTHES TREE TO REAR OF BASE by the two 1/4” bolts.
(9) TURN ON ELECTRICAL POWERAND TEST THE MACHINE. Replace the
revolving assembly, remove the plastic protective bag, and open the return and
steam lines.

Page 8Page 8
Page 8Page 8
Page 8

Page 9Page 9
Page 9Page 9
Page 9

Page 10Page 10
Page 10Page 10
Page 10
OPERAOPERA
OPERAOPERA
OPERATION INSTRUCTIONS FORTION INSTRUCTIONS FOR
TION INSTRUCTIONS FORTION INSTRUCTIONS FOR
TION INSTRUCTIONS FOR “CISSI”“CISSI”
“CISSI”“CISSI”
“CISSI” FORM FINISHERFORM FINISHER
FORM FINISHERFORM FINISHER
FORM FINISHER
(Machine can be operated from either side).
1. Position garment on form and adjust shoulders. A knob on top of the form is used to
adjust the form shoulder width. Turn knob clockwise to increase shoulder width.
Turn knob clockwise to increase shoulder width.
2. Press white switch to “air on” to size the bag by moving the damper control on top of
the tower.
3. Set the time on each timer. Recommended is:
Steam: 6-9 seconds
Conditioning: 4-9 seconds
Drying: 12-16 seconds.
4. Either presteam or not; whatever your demands require.
5. Position the cycle switch for whatever cycle you desire. Recommend steaming,
conditioning, drying the central position of the switch.
6. Push the push-to-start switch or step on the foot switch and the cycle will
automatically sequence.
7. If you desire to cancel that cycle at any time, push the white switch toward the cycle
off location.

Page 11Page 11
Page 11Page 11
Page 11
CISSI FORM FINISHERCISSI FORM FINISHER
CISSI FORM FINISHERCISSI FORM FINISHER
CISSI FORM FINISHER
The “Tower of Power” is at your fingertips for all of the finishing combinations you will
ever need. All three timers (steaming, conditioning, drying) are adjustable from 0 to 30
seconds. The cycle switch provides (presteam only, steaming-conditioning-drying,
steam & air-conditioning-drying) which ever is required. The white switch allows you
to have air only for sizing and provides a cancel position to terminate the cycle at any
time. The automatic push-to-start switch is available on the tower or by the foot
switch. The lights will glow whenever you are in any of the timer periods. Damper
control lever is on top of tower.
Where possible, perform all touch-up of sleeves, collars, trim, etc., prior to finishing on
the Genie. In this way, differences in sheen will be eliminated from the garment.
GENERAL SUGGESTIONSGENERAL SUGGESTIONS
GENERAL SUGGESTIONSGENERAL SUGGESTIONS
GENERAL SUGGESTIONS
When finishing knits or soft unlined woolens, place net overbag on form before posi-
tioning garment. After garment is positioned on form, repeat Step #2 in Operating
Instructions. Push damper knob all the way to obtain full air pressure and repeat step
6 to start cycle.
To finish coats and other open front garments, use front paddle clamp to hold front of
garment in place. Use the hand vent clamps to hold rear vent or pleat.
When additional moisture is needed for hard set wrinkles, use the water spray gun,
spraying into the steam from a distance of approximately 15”. Rotate the garment to
the spray gun, using the turning knob on the revolving assembly.
Keep the nylon bag clean and in good repair. A vacuum cleanable air filter is provided
to help keep the bag clean. Vacuum clean the filter weekly. Remove nylon bag (see
detailed instructions) and wet clean as required. Repair holes or worn spots. To obtain
proper characteristics of cloth porosity, bag size, and control strings, use only genuine
Cissell replacement bags.

Page 12Page 12
Page 12Page 12
Page 12
NET OVERBAG FOR CISSELL STEAM-AIR FINISHERNET OVERBAG FOR CISSELL STEAM-AIR FINISHER
NET OVERBAG FOR CISSELL STEAM-AIR FINISHERNET OVERBAG FOR CISSELL STEAM-AIR FINISHER
NET OVERBAG FOR CISSELL STEAM-AIR FINISHER
(Either Genie or Garment Manufacturer’(Either Genie or Garment Manufacturer’
(Either Genie or Garment Manufacturer’(Either Genie or Garment Manufacturer’
(Either Genie or Garment Manufacturer’s Fs F
s Fs F
s Form having anorm having an
orm having anorm having an
orm having an ““
““
“AA
AA
A””
””
”type frame)type frame)
type frame)type frame)
type frame)
This overbag is for use ONLY when finishing sweaters or other soft garments that do
not require bag contact for proper finishing.
DO NOT use overbag with hard fabrics or heavy garments. Hard set wrinkles will not
be removed when using the overbag.
The Cissell overbag holds the form to a narrow size, thereby spreading steam and
gentle diffused air throughout the garment to eliminate distortion.
THE NET OVERBAG IS EASY TO USE
1. Place the net bag over the form so that it fully covers the standard nylon bag.
2. Place the garment on the form and operate the machine per standard
instructions, using “large size” setting for faster drying.
In general, garments including bonded knits and wool dresses can be finished without
the overbag.
When ordering additional net overbags, specify F816.

Page 13Page 13
Page 13Page 13
Page 13
CHANGING INSTRUCTIONSCHANGING INSTRUCTIONS
CHANGING INSTRUCTIONSCHANGING INSTRUCTIONS
CHANGING INSTRUCTIONS
F833 Bag with GENIE RevolvingF833 Bag with GENIE Revolving
F833 Bag with GENIE RevolvingF833 Bag with GENIE Revolving
F833 Bag with GENIE Revolving AssemblyAssembly
AssemblyAssembly
Assembly
TT
TT
TO REMOVE BAGO REMOVE BAG
O REMOVE BAGO REMOVE BAG
O REMOVE BAG
(1) Remove yellow
weights, 1 each
side.
(2) Raise the lower
control ring (inside
bag).
(3) Open zipper and
untie bottom string.
(4) Lift bag off over
revolving assembly
shoulder form.
TT
TT
TO REPLACE BAGO REPLACE BAG
O REPLACE BAGO REPLACE BAG
O REPLACE BAG
(4) Replace yellow
weights, one each
side, on end of
control strings.
(3) Lower the control
ring inside bag.
(2) Tie bottom string in
groove and close
zipper. Refer to
instructions on next
page for proper knot
when tying string.
Straighten bag until
control strings are at
the sides.
(1) Place bag over re-
volving assembly
shoulder form, with
front of bag toward
front of form.

Page 14Page 14
Page 14Page 14
Page 14
INSTRUCTIONS FORINSTRUCTIONS FOR
INSTRUCTIONS FORINSTRUCTIONS FOR
INSTRUCTIONS FOR TYING LOWERTYING LOWER
TYING LOWERTYING LOWER
TYING LOWER TIE STRINGTIE STRING
TIE STRINGTIE STRING
TIE STRING

Page 15Page 15
Page 15Page 15
Page 15
CISSELL STEAM-AIR FINISHERCISSELL STEAM-AIR FINISHER
CISSELL STEAM-AIR FINISHERCISSELL STEAM-AIR FINISHER
CISSELL STEAM-AIR FINISHER
INSTRUCTIONS FORINSTRUCTIONS FOR
INSTRUCTIONS FORINSTRUCTIONS FOR
INSTRUCTIONS FOR ADJUSTING HEIGHTADJUSTING HEIGHT
ADJUSTING HEIGHTADJUSTING HEIGHT
ADJUSTING HEIGHT
OF REVOLOF REVOL
OF REVOLOF REVOL
OF REVOLVING FORMVING FORM
VING FORMVING FORM
VING FORM
(Model FM** and Model FG2)(Model FM** and Model FG2)
(Model FM** and Model FG2)(Model FM** and Model FG2)
(Model FM** and Model FG2)
Should the revolving form “drag” on the base rather than turn freely, the form must be
raised.
Conversely, if the revolving form hides too high above the base, permitting steam to
escape from the space between the form and base,the form must be lowered.
WHEN AN ADJUSTMENT MUST BE MADE, REMOVE REVOLVING FORM BY
SIMPLY LIFTING IT STRAIGHT UP OFF THE BASE.
PROBLEM: Revolving Form “drags” on base.
TO CORRECT: Loosen F286 Bearing Lock Nut. Turn F287 Bearing Adjustment
ScrewCOUNTER-CLOCKWISE.
CHECK ADJUSTMENT: Replace revolving form on base. Rotate form. If perfectly
adjusted, form will rotate freely and snugly on felt seal
around top of base. If form is still too low...or too
high...repeat adjustment until it is correct.
PROBLEM: Revolving Form rides too high above base.
TO CORRECT: Loosen F286 Bearing Lock Nut. Turn F287 Bearing Adjustment
ScrewCLOCKWISE.
CHECK ADJUSTMENT: Replace revolving form on base. Rotate form. If perfectly
adjusted, form will rotate freely and snugly on felt seal
around top of base. If form is still too high...or too
low...repeat adjustment until it is correct.

Page 16Page 16
Page 16Page 16
Page 16
SOLENOID LINKAGESOLENOID LINKAGE
SOLENOID LINKAGESOLENOID LINKAGE
SOLENOID LINKAGE ADJUSTMENTADJUSTMENT
ADJUSTMENTADJUSTMENT
ADJUSTMENT
TO ADJUST STEAM VALVE AND SOLENOID LINKAGE:
1. Set steam valve extension bar and solenoid lever at 90º as shown and tighten set
screw.
Adjust steam valve adjusting nuts until 1/32” to 1/16” gap is obtained as shown
above and lock adjusting nuts tightly together.

Page 17Page 17
Page 17Page 17
Page 17
MOMO
MOMO
MOTT
TT
TOR MOUNTING DIMENSIONSOR MOUNTING DIMENSIONS
OR MOUNTING DIMENSIONSOR MOUNTING DIMENSIONS
OR MOUNTING DIMENSIONS

Page 18Page 18
Page 18Page 18
Page 18
CACA
CACA
CAUSEUSE
USEUSE
USE
1A Steam Supply Valve “OFF”
1B Electric power”OFF”
2A Start switch not released by
cam when control knob is
pushed
2B Loose wires
2C Incorrect voltage of electrical
parts
2D Defective start switch
2E Defective solenoid
2F Defective solenoid linkage
3A Solenoid linkage adjusted
incorrectly
3B Loose valve seat
3C Worn valve
4A Trap not operating
4B Trap installed incorrectly
4C Check valve installed wrong or
sticking
REMEDYREMEDY
REMEDYREMEDY
REMEDY
Open valve in steam supply line.
Inspect electric service for blown
fuses, loose conections. Turn main
disconnect “on”.
Align switch with centerline of
cam. Adjust switch away from
cam with adjusting nuts. Replace
panel, test and repeat if necessary.
Inspect and replace any loose
wires.
Inspect nameplate voltage and
voltage on electrical parts,
especially the solenoid. Replace
switch if necessary.
Check switch to see that it
operates and will carry current.
Replace switch if necessary.
Inspect solenoid. Replace if
necessary.
Check linkage between solenoid
and steam valve for broken or
loose parts. Repair or replace as
required. (See adjustment
instructions)
Inspect linkage and adjust
according to instructions. Tighten
all lock nuts and set screws.
Inspect and tighten seat if
required.
Inspect valve parts. Replace worn
parts as required.
Check size and operation of trap.
Repair or replace if required.
Check to see that direction of flow
in trap is correct and that trap is
correct and that trap is in or below
machine return line.
Check to see that direction of flow
is correct and valve not sticking.
SERVICE CHARTSERVICE CHART
SERVICE CHARTSERVICE CHART
SERVICE CHART
PROBLEMPROBLEM
PROBLEMPROBLEM
PROBLEM
(1) No Steam
(2) Blower motor will start, steam
won’t start
(3) Leaking steam valve
(4) Wet steam

Page 19Page 19
Page 19Page 19
Page 19
CACA
CACA
CAUSEUSE
USEUSE
USE
4D Strainer clogged
4E Return line turned off
4F Steam Cycle too long
4G Improperly installed steam
lines
4H Heavy condensate in supply
line
4I Machine not individually
trapped
4J Back pressure in return line
5A Steam too wet
5B Leak in finned tube or pipe
fitting
5C Leaking steam valve
6A Foreign object in blower wheel
6B Blower wheel out of balance
6C Motor bearings bad
6D Motor mount bent
6E Blower wheel loose on motor
shaft
7A No electrical power
REMEDYREMEDY
REMEDYREMEDY
REMEDY
Inspect strainer and clean if
necessary.
Open valve in condensate return
line.
Reduce amount of time set on
steam timer.
Check steam line installation to
see that “risers” are installed, as
shown on installation instructions.
Install a by-pass trap from supply
header to by-pass condensate to
return line.
Install a separate trap for each
machine.
Inspect all traps to see if one is
stuck open, or improperly in-
stalled. Perform steps necessary
to make return line drain by
gravity to condensate return tank.
See that return tank is adequately
vented.
See wet steam above.
Inspect machine and repair or
replace any leaking parts.
See leaking steam valve above.
Inspect wheel and remove any
foreign objects & lint.
Inspect wheel for loose balance
weights, out of round or damage,
replace if necessary.
Inspect motor to see if bearings
are tight and motor free turning.
Replace motor if necessary.
Inspect motor mount to see if
machine has been dropped in
transit, bending the mount, letting
the blower wheel hit the housing.
If so, inspect blower wheel for
damage. Replace either or both if
necessary.
Check to see that wheel is
mounted in center of housing, key
is in keyway if used, and both set
screws tight.
Check electrical service and be
sure main switch is “ON”; all wires
are tight and fuses are good.
PROBLEMPROBLEM
PROBLEMPROBLEM
PROBLEM
(4) Wet steam (Cont.)
(5) Water accumulates in base
(6) Excessive noise or vibration
(7) Blower motor won’t start,
machine won’t steam

Page 20Page 20
Page 20Page 20
Page 20
CACA
CACA
CAUSEUSE
USEUSE
USE
7B Incorrect supply voltage
7C Air switch not being operated
by cam lever
7D Defective air switch
7E Defective Automatic relay
7F Air timer set at 0 time
7G Defective blower relay
7H Defective blower motor
7I Loose wires
8 Defective start switch
9A Steam timer set at 0 time
9B Defective steam timer
9C Defective steam relay
REMEDYREMEDY
REMEDYREMEDY
REMEDY
Check power source. Voltage
phase and frequency must be the
same as specified on machine
nameplate.
Check lever and cam plate.
Replace either if required.
Check switch to see if it operates
and will carry current. Replace
switch if necessary.
Operating air switch should cause
automatic relay to operate. If
defective, replace relay.
Timer knob may slip on the shaft
and leave the timer set at 0 time.
Tighten knob set screw and set
timer and knob to suit, approx. 20
seconds.
Check to see if the blower relay
will operate. If not, replace relay.
Check motor to see if it will
operate on normal nameplate
electrical power. If not, replace the
motor.
Check to see that all wires and
connections are tight. If not,
replace the wires and tighten
connections.
Check switch to see that it oper-
ates and will carry current.
Replace switch if necessary.
Timer knob may slip on the shaft
and leave the timer set at 0 time.
Tighten knob set screw and set
timer and knob to suit, approx. 8
seconds.
Check timer operation. See if
timer switch operates properly. If
not, replace timer.
Check to see if relay will operate
on rated current and if contacts
will carry current. If not, replace
relay.
PROBLEMPROBLEM
PROBLEMPROBLEM
PROBLEM
(7) Blower motor won’t start,
machine won’t steam (Cont.)
(8) Blower motor won’t start,
machine steams continuously
after air switch is operated.
(9) Blower motor will start,
machine steams only while
control knob is pushed.
