Safeline SL6+ User manual
www.safeline-group.com
01.2019 © 2019 SafeLine and all the SafeLine products and
accessories are copyrighted by law.
Complies to EN81–28 and EN81–70 standards.
PATENT 08163634.2
Lift Emergency Telephone
SL6+ v.3.30 EN
SL6+
Manual
2
SL6+ v.3.30 EN
Introduction
Content Introduction
Technical data 3
General information 4
Overview
Description of the bus system 5
System overview 5
Overview SL6+ main unit 6
Installation
Overview SL6+ voice station 7
Mounting 9
Wiring diagram SL6+ main unit 10
Wiring diagram voice station 11
Wiring diagram voice station screw terminals 12
Activating the SIM card 13
Startup
LED indication front panel 14
LED indication for pictogram in car 15
Startup procedure 16
Conguration
Congure with Safeline CONNECT 17
Parameters unique for SafeLine CONNECT 18
Conguration with PC 19
Conguration with telephone 20
Remote conguration with telephone: Step 1 21
Remote conguration with telephone: Step 2 22
On-site conguration with telephone 23
Conguration examples 24
Parameter list 25
Relay functions 32
Operating
"DB Special" relay function 33
Calling with SafeLine SL6+ 34
Intercom between main station and voice station 34
Outgoing call 34
Emergency calling process 35
Fallback 36
Fallback LMS codes 37
Fire mode 38
Service
Battery function 39
Troubleshooting main unit 40
Troubleshooting voice station 41
Related test procedures 42
Internal operational failures 42
Certicate
Declaration of conformity 43
3
SL6+ v.3.30 EN
Introduction
SafeLine SL6+
Power Supply voltage: 12 VDC, current drain nominal 15 mA
Inputs 10-30 VDC, 5 mA, optically isolated
Pictogram outputs Max 100 mA, 24 VDC, transistor outputs, open collector
IP code COP: IP00
COP2, Surface- or ush mounted units: IP40
To reach safety level IP4X, suitable additional protection have to be
installed onsite.
Max cable length 0,22 mm² cable: 100 m
0,75 mm² cable: 250 m
Operating temperature +5 C° — 40 C°
Air humidity 30% — 90% RH
Technical data voice station
Power Supply voltage: 230 VAC, 50 Hz, min: 6,4 W, max: 9,4 W
Battery Battery voltage: 12 VDC lead battery
Capacity: 1,2 Ah
Charge: 13,65 VDC, max. 200 mA
Emergency light Emergency light output: 12 VDC max 500 mA
Emergency signal Acoustic emergency signal output: 12 VDC max 200 mA
Inputs 10-30 VDC, 5 mA, optically isolated
Antenna connector SMA (female)
Size SL6+: 241 x 160 x 47 mm (L x W x H)
SL6+ Mini: 244 x 113 x 52 mm (L x W x H)
Weight 1.7 kg
Relay outputs Max 1 A/30 VDC. volt free relay outputs.
IP code IP20
Audio les Format WAVE-8 or 16kHz, 16 bit mono, max 16 sec/le
Bluetooth Bluetooth 4.0
BLE 2,4 GHz, (2402 – 2480 MHz), Max 2dBm
Operating temperature +5 C° — +40 C°
Air humidity 30% — 90% RH
Interface Boards *SL6-GSM-BOARD:
- Micro SIM, 15 x 12 x 0,76 mm
- Supports 2G
- Requires SW 3.40 or later
*GSM-R/EGSM900/GSM1800
- RF output power: Class 4 [2 W] for GSM-R/EGSM-R /EGSM900,
Class 1 [1 W] for GSM1800
*IF-BOARD-4G
- Micro SIM, 15 x 12 x 0,76 mm
- Supports 2G, 3G and 4G
- Requires SW 4.45 or later
Technical data main unit
4
SL6+ v.3.30 EN
Introduction
This unit was built with state-of-the-art technology and to
generally recognised safety related technical standards currently app-
licable. These installation instructions are to be followed by all people
working with the unit, in both installation and maintenance.
It is extremely important that these installation instructions are made
available at all times to the relevant technicians, engineers or servicing
and maintenance personnel. The basis prerequisite for safe handling
and trouble free operation of this system is a sound knowledge of the
basic and special safety regulations concerning conveyor technology,
and elevators in particular. The unit may only be used for its intended
purpose. Note in particular that, no unauthorised changes or additions
may be made inside the unit or individual components.
Exclusion of liability
The manufacturer is not liable with respect to the buyer of this product
or to third par ties for damage, loss, costs or work incurred as a result of
accidents, misuse of the product, incorrect installation or illegal chang-
es, repairs or additions. Claims under warrant y are likewise excluded in
such cases. The technical data is the latest available. The manufacturer
accepts no liabilit y arising from printing errors, mistakes or changes.
Declaration of conformity
Download ”The declaration of conformity” at our website:
www.safeline-group.com
Safety Precautions!
- Only trained professionals, who are authorised to work on the equip-
ment, should install and con gure this product.
- This quality product is dedicated for the lift industry. It has been
designed and manufactured to be used for its speci ed purpose only.
If it is to be used for any other purpose, SafeLine must be contacted in
advance.
- It should not be modi ed or altered in any way, and should only be
installed and con gured stric tly following the procedures described in
this manual.
- All applicable health and safety requirements and equipment
standards should be considered and strictly adhered to when installing
and con guring this product.
- Af ter installation and con guration this product and the operation
of the equipment should be fully tested to ensure correct operation
before the equipment is returned to normal use.
Electrical and electronic products may contain materials, parts and
units that can be dangerous for the environment and human health.
Please inform yourself about the local rules and disposal collection
system for electrical and electronic products. The correct disposal of
your old product will help to prevent negative consequences for the
environment and human health.
General
information
5
SL6+
2
1
SL6+ v.3.30 EN
Overview
This unit was built with state-of-the-art technology and to
generally recognised safety related technical standards currently app-
licable. These installation instructions are to be followed by all people
working with the unit, in both installation and maintenance.
It is extremely important that these installation instructions are made
available at all times to the relevant technicians, engineers or servicing
and maintenance personnel. The basis prerequisite for safe handling
and trouble free operation of this system is a sound knowledge of the
basic and special safety regulations concerning conveyor technology,
and elevators in particular. The unit may only be used for its intended
purpose. Note in particular that, no unauthorised changes or additions
may be made inside the unit or individual components.
Exclusion of liability
The manufacturer is not liable with respect to the buyer of this product
or to third par ties for damage, loss, costs or work incurred as a result of
accidents, misuse of the product, incorrect installation or illegal chang-
es, repairs or additions. Claims under warrant y are likewise excluded in
such cases. The technical data is the latest available. The manufacturer
accepts no liabilit y arising from printing errors, mistakes or changes.
Declaration of conformity
Download ”The declaration of conformity” at our website:
www.safeline-group.com
Safety Precautions!
- Only trained professionals, who are authorised to work on the equip-
ment, should install and con gure this product.
- This quality product is dedicated for the lift industry. It has been
designed and manufactured to be used for its speci ed purpose only.
If it is to be used for any other purpose, SafeLine must be contacted in
advance.
- It should not be modi ed or altered in any way, and should only be
installed and con gured stric tly following the procedures described in
this manual.
- All applicable health and safety requirements and equipment
standards should be considered and strictly adhered to when installing
and con guring this product.
- Af ter installation and con guration this product and the operation
of the equipment should be fully tested to ensure correct operation
before the equipment is returned to normal use.
Electrical and electronic products may contain materials, parts and
units that can be dangerous for the environment and human health.
Please inform yourself about the local rules and disposal collection
system for electrical and electronic products. The correct disposal of
your old product will help to prevent negative consequences for the
environment and human health.
General
information
System
overview
The SL6+ system consists of a main unit and up to six connected
voice stations. The system is based on a two-way system according to
EN81-28 and uses a bus system for communication between main unit
and stations. The bus system consists of four wires: two for transfering
voice and data, and two for power supply.
Use the adress selector to set a unique adress for each station, ranging
from 1-6. It is important that each station have a unique address set so
the system is able to reach all specic voice stations.
Description of
the bus system
Lift pit
Car unit/Fire unit*
Car top
Fire unit*
Fire unit*
Fire unit*
* Fire unit optional placement
6
23a 3b 3c 4
12
6
8
1
5
10
7
9
13
11
SL6+ v.3.30 EN
Overview

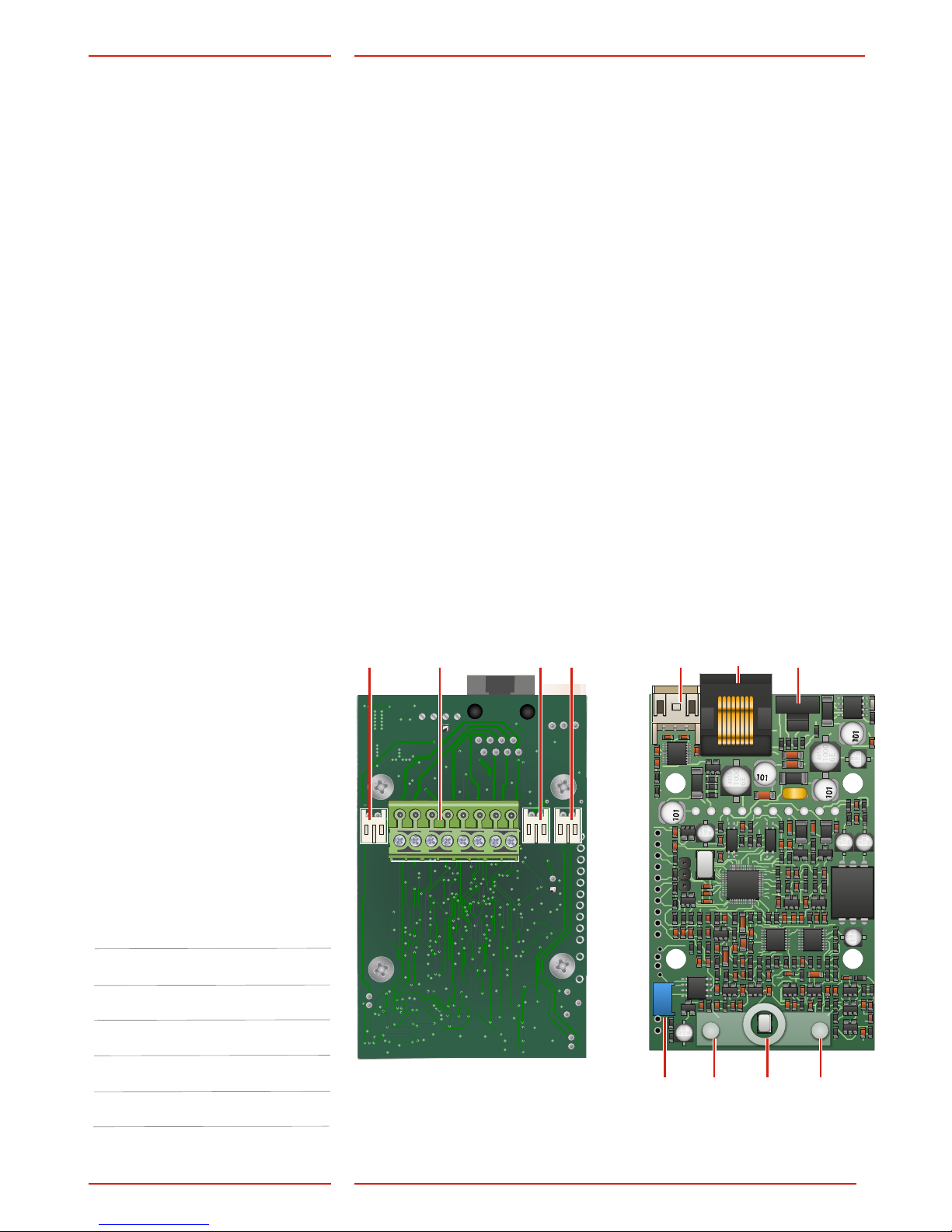

1. RJ12 connector for optional
telephone handset
For conguration and
intercom communication.
Can also be used for external
calls. Any standard analogue
tone dial telephone can be
used.
2. Reset button
• Reset all alarms.
• Terminates a phone call in
progress.
• Triggers self test.
• Activates display of GSM
signal strength.
• Triggers battery test.
3. LED indicators
a. Mains power
b. Active alarm/battery
status
c. PSTN/GSM net call status
4. USB Mini B PC connection
For rmware update and
conguration.
5. RS232 PC connection
For conguration.
6. Screw terminal for optional
telephone handset
For conguration and
intercom communication.
Can also be used for external
calls. Any standard analogue
tone dial telephone can be
used.
7. Slot for optional card
CANopen-Lift
(*SL6-CAN-BOARD)
8. Connector for external
system speaker
9. GND
10. Terminals
11. 12 V Batter y, 1,2 Ah
12. Slot for GSM interface board
13. Battery slot for RTC, Real
Time Clock
(not yet implemented)
Overview SL6+
main unit
7
ADDRESS
J2
LOCAL BUTTON
BUS A
BUS B
OUT A (YELL.)
OUT B (GREEN)
INPUT A
INPUT B
EMG LIGHT +
HEARING LOOP
BUS GND
BUS 12V
J4 J3
-
RS2
5 7
44553
1000
6E
44553
1000
6E
44553
1000
6E
44553
1000
6E
44553
1000
6E
44553
1000
6E
44553
1000
6E
44553
1000
6E
BUS-STATION
WWW.SAFELINE.SE
K1
K2
K3
K4
K5
K6
K7
K8
K9
K10
P6
P4
P5
P2
P3
P7
6
9 10 11
2
13 4
8
SL6+ v.3.30 EN
Installation
Local button*
Only N/O.
Connected with *Cable13.
Screw connector terminals*
Emergency light*
Is connected with *Cable13.
Hearing loop*
Is connected with *Cable13.
RS232 PC connection
For rmware update.
Terminal RJ45
Input/output, bus connection,
power and external pictogram.
Address selector
Selects the bus address for the
unit.
Volume control
Pictogram yellow
Microphone
Pictogram green
* Note: This connection may
not be present depending
on your product.
Change the default address
settings using SafeLine Pro
or SafeLine CONNECT.
Overview SL6+
voice station
Address Unit
1 Car unit
2 Top unit
3 Lift pit unit
4 Fire unit
5 Fire unit
6 Fire unit
Default address setting:
1.
2.
3.
4.
5.
6.
7.
8.
9.
11.
10.
8
345
8
1
6
ADDRESS: 1
VOLUME
sw version
serial number
2
7
8
SL6+ v.3.30 EN
Installation

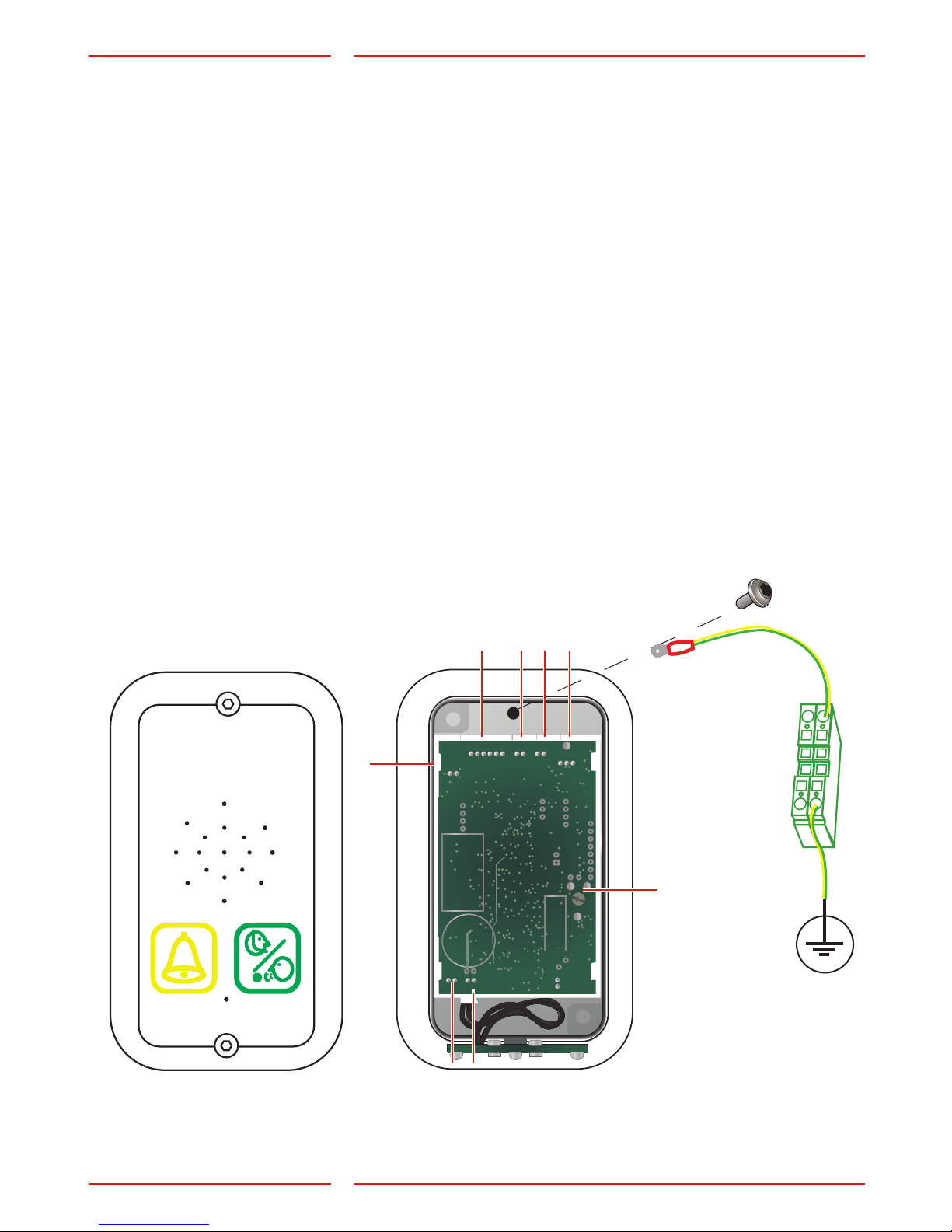

1. Address selector
Fixed value set to 1 (car unit).
2. Connections
3. Pictogram output
4. Additional alarm button, N/O
5. RS232 PC connection
6. Volume control
7. Emergency light, only for SLB-SM-Pic-Light
8. Hearing loop
Overview SL6+
voice station
9
SafeLine SL6
0,1m2
>> 1.5 m >> 1.5 m
>> 1.5 m
73274
1000
6F
100
35V
TP5 TP11 TP9 TP3 TP12
TP7 TP4 TP6 TP8 TP10 TP1
SIM Card
43254
100
35V
63432
1000
6F
SIM Card
SL6+ v.3.30 EN
Installation
If GSM interface is installed it
has priority. If no active SIM
card is used, GSM interface
should be disabled.
Mounting
Mounting main unit
Install the main unit in the machine room. Mount the SL6 main unit
to a stable surface (eg. wall, controller cabinet), using appropriate
screws. No termination resistance is needed at the ends of the bus.
To avoid GSM interference: place the main unit, the stations and the
GSM antenna at least 1,5 meters apart. The antenna must be placed
on a metallic (ear thed) surface of at least 150x150 mm and be placed
standing (vertical).

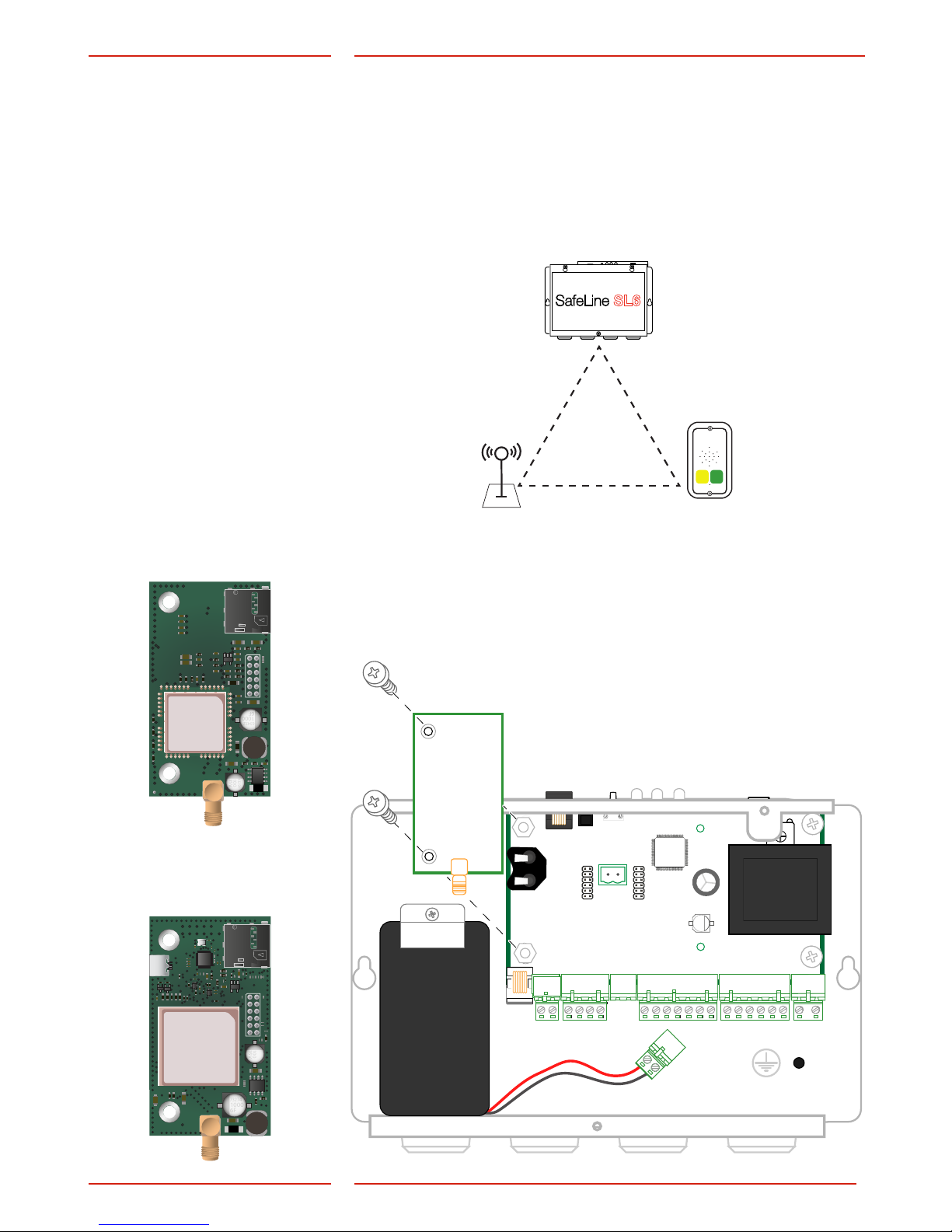

Mounting additional circuit board
Unplug the main power and battery before performing any changes.
Circuit boards that can be mounted are *SL6-GSM-BOARD or
*IF-BOARD-4G (please refer to technical data, page 2, for detailed
information).
*SL6-GSM-BOARD
with Micro SIM Card
*IF-BOARD-4G
with Micro SIM Card
10
PSTN (RJ12)
PSTN
PSTN
VOICE STATIONS
VOICE STATIONS
VOICE STATIONS
VOICE STATIONS
COM. 1
N/C 1
N/O 1
N/O 2
N/C 2
COM. 2
230 VAC L
230 VAC N
A
B
C
D
E
F
SL6+ v.3.30 EN
Installation
Wiring diagram
SL6+ main unit
* Input 1 and 2 are congurable N/O or N/C inputs with SafeLine Pro
or CONNECT. For conguration details, se tabel to the left.
** Maximum 200 mA on the emergency bell output.
*** Maximum 500 mA on the emergency light output.
Phone line, RJ12
Relay 1 Common
Relay 1 N/C
Relay 1 N/O
Phone line
Phone line
Bus 12 VDC
Bus GND
Bus A
Bus B
Battery +12 VDC
Battery 0 VDC
+12 VDC
Input 2*
(congurable)
Input 1*
(congurable)
Emerg. bell +**
Emerg. bell –**
Emerg. light +***
230 VAC L
230 VAC N
Emerg. light –***
Relay 2 Common
Relay 2 N/C
Relay 2 N/O
Connect the SL6 through a 63 mA fuse to terminal F, with a cable of
at least 1,5 mm².
Supply voltage for the SL6
must go through an all-pole
main switch in accordance with
EN81-20.
Connect the protective earth connection to the enclosure, with a
cable of at least 1,5mm².
Input 1 and 2 options
NONE
LMS/SMS
FILTER
CLEAR/MAINTENANCE
FIRE MODE (default input 2)
ALARM BUTTON (default input 1)
11
MAX 630 kg
1
2
3
10 s
B
(-)
(-)
MAX 630 kg
1
2
3
10 s
B
(
-
)
(
-
)
8
7
6
5
4
3
2
1
B1 Bus 12VDC
B2 GND
B3 bus A
B4 bus B
RJ45 / JST
B3 bus A
B4 bus B
B2 bus GND
B1 bus 12V
Not in use
Not in use
Screw terminal
MAX 630 kg
1
2
3
10 s
B
(-)
(-)
8
7
6
5
4
3
2
1
B1 Bus 12V
B2 GND
B3 bus A
B4 bus B
RJ45 / JST
B3 bus A
B4 bus B
B2 bus GND
B1 bus 12V
Not in use
Not in use
Screw terminal
SL6+ v.3.30 EN
Installation
Wiring diagram

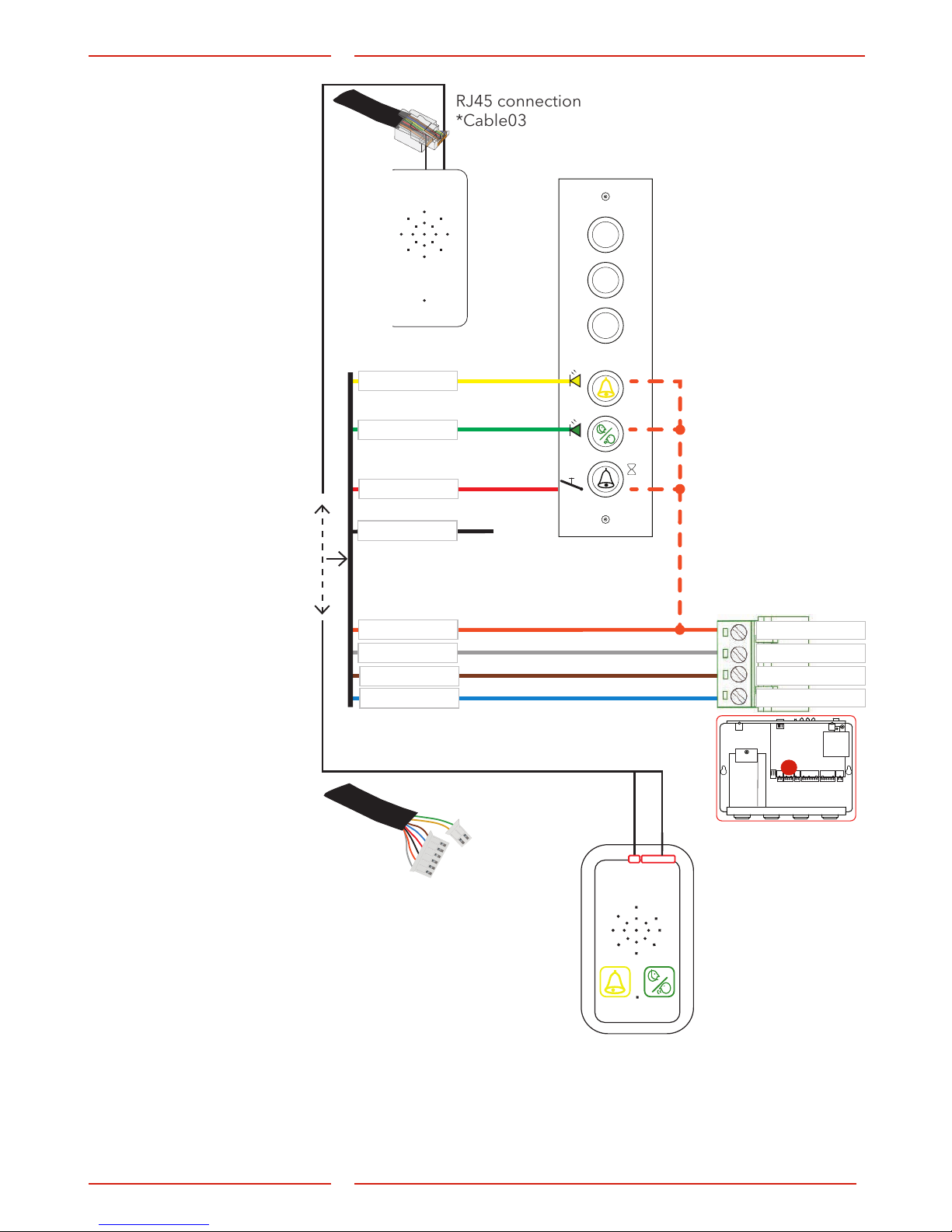

voice station
*Input A is congured with either:
• SafeLine Pro or CONNECT, N/O (default) or N/C.
• Parameter *89*, please refer to the corresponding code in
the ”Parameter List”.
Grey
Orange
Black
Red
Yellow
Green
Blue
Brown
Input B, not in use
Input A, alarm button
(optional)
Output A, yellow pictogram
(optional)
Output B, green pictogram
(optional)
B2 bus GND
B1 bus 12 VDC
B4 bus B
B3 bus A
ONLY WHEN USING
EXTERNAL PICTOGRAM
AND ALARM BUTTON
JST connection
*Cable18
RJ45 connection
*Cable03
12
8
7
6
5
4
3
2
1
RJ12
SL6+ v.3.30 EN
Installation
Wiring diagram
voice station
screw terminals
*Input A is congured with either:
• SafeLine Pro N/O (default) or N/C.
• Parameter *89*, please refer to the corresponding
code in the ”Parameter List”.
Connecting the

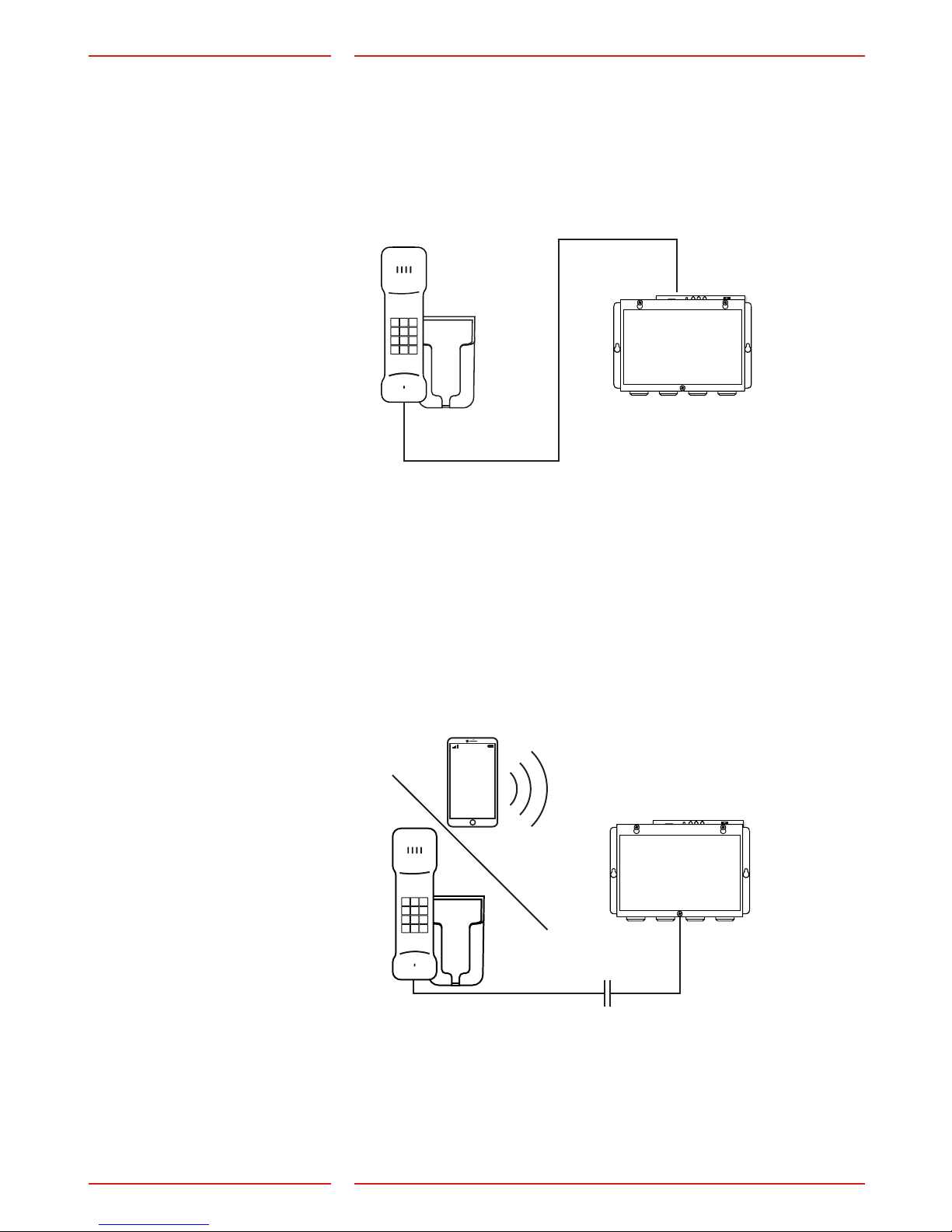

telephone line
Connect the telephone line parallell in universal terminals or the
RJ-plug, see picture above. It’s possible to connect up to nine
SL6+ main units to the same telephone line.
In order to access the unit remotely, it needs to be assigned a unit
number. Please refer to parameter *82* in the “Parameter List” for
more information.
Phone line is connected via RJ12 or terminal A through the
following:
1
2
3
4
5
6
Input
Not in use
Output
Output
Not in use
Input
7. Bus GND
8. Bus 12 VDC
6. Not in use
5. Input A*, alarm button
4. Output B, green
pictogram
3. Output A, yellow pictogram
1. Bus A
2. Bus B
A common mode choke must be
used (2,2mH) for telephone line.
13
SL6+ v.3.30 EN
Installation
3. Output A, yellow pictogram
The SL6+ can only recognize the PIN code if the
code is set to “1234”, “0000”, “1111” or if it is
deactivated. If set to anything else, the SL6+ can
not use the SIM card.
If the PIN code is set to “1234”, “0000”or
deactivated, the SIM card can be used on
any of SafeLine's GSM products.
Setting the PIN code
1. Insert the SIM card in an ordinary cell phone. In the phone's
security set tings, change the PIN to “1234”. If not possible, set
the PIN code to “0000” or, if available, set the ”PIN code request”
option to “OFF”.
2. Verify the PIN code by switching your phone off and on again.
3. Make a call from your phone to verify that the SIM card is active.
4. Make a call to the SL6+ after insertion to ensure there is a proper
connection.
"1111" PIN code
If the PIN is set to “1111”, the code will be randomly generated by the
SafeLine GSM unit and memorized. This is a safety measure, making
sure the SIM card will only work with the selected SafeLine GSM unit.
To change the PIN again, use the PUK code provided to you by your
mobile services provider for setting up a new PIN.
If you want to upload a new SIM card for the GSM unit with a new “1111”
PIN, you will rst need to upload a SIM card with PIN code “1234” or
“0000” to clear the old code in memory.
Activating the
SIM card
Note: If you enter the wrong
PIN code 3 times, the SIM card
will be blocked, requiring PUK
code to unblock. If so, the SL6+
can not be started and LED3 will
turn red.
14
SL6+ v.3.30 EN
Startup
LED 1
LED 2
LED 3
Reset
LED
1 2 3
GSM SIGNAL
STRENGTH
= 100 %
>= 85 %
>= 70 %
>= 55 %
>= 30 %*
>= 15 %
>= 0 %
*Minimum signal strength
for using GSM interface.
LED indication
front panel
Continuous green Mains power supply OK
Flashing red (400/400 ms) Battery operated, with power to the emergency light.
Continuous red Battery operated, no power to the emergency light.
LED 1 indicates the power supply status
Light off No active alarm/batter y OK.
Rapidly ashing yellow Active alarm not reset.
(200/200 ms)
Flashing red (400/400 ms) Battery check in progress.
Continuous red Battery test failure/no battery connected.
LED 2 indicates active alarm and battery condition
Flashing green (100/100 ms) Fire mode activated.
Flashing green (400/400 ms) Call connection in progress.
Slowly ashing green Telephone line connected.
(200/4600 ms) GSM network OK.
Continuous green Call connected.
Flashing yellow (100/100 ms) Incoming call.
Flashing red (400/400 ms) PSTN: No telephone line connected.
GSM: Searching for GSM network.
Continuous red No SIM card (when using GSM).
LED 3 indicates the phone line's status
Press for 3 sec Show GSM signal strength (see table below).
Press 3 times Start a self test (battery + bus initialization).
Press once Resets an active alarm. Aborts calls in progress.
Press 5 sec - release SL6+ turns off. NOTE! Refers to battery powered only!
Reset button
15
SL6+ v.3.30 EN
Startup

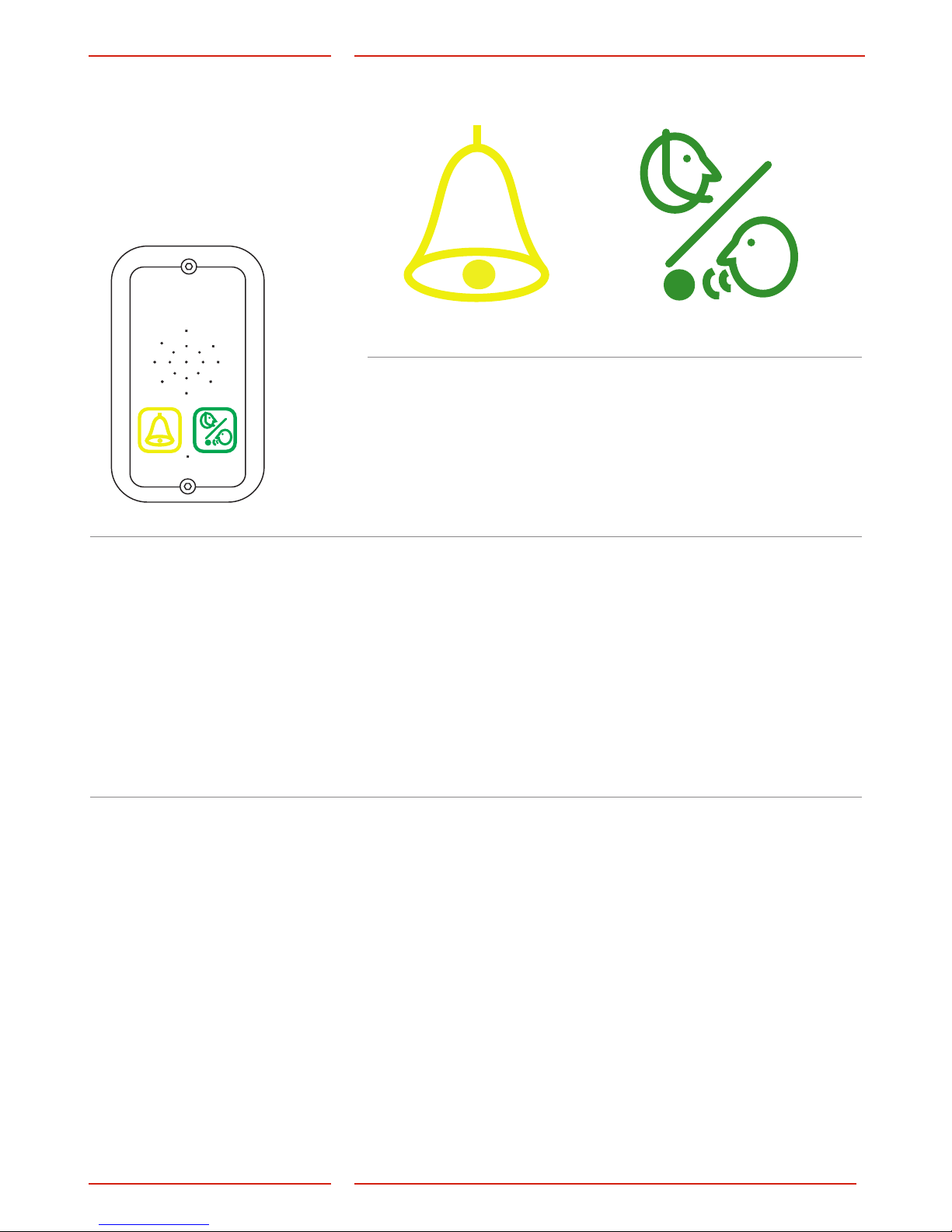

LED indication
for pictogram
in car
Yellow LED Green LED
Call in progress
The yellow pictogram LED is lit
as soon as the alarm button is
pressed.
Call connected
The green pictogram LED turns
on as soon as the SafeLine unit
detects a responding voice.
The LED is turned off when the
call is terminated.
Standard (*78*0#) Yellow LED Green LED
Light off No alarm activated Telephone line not OK.
Flashing slowly Flashing once every 5 seconds
Telephone line not OK.
Flashing once every 5 seconds
Unit is OK.
Flashing quickly Flashing twice every second
Alarm button active.
Flashing two times every 5
seconds
Alarm lter activated.
Continuous light Activated alarm. Remains lit
until reset.
Call connected.
Strictly EN81-28 (*78*1#) Yellow LED Green LED
Flashing Flashing twice every second
Alarm button active.
Continuous light Activated alarm. Remains lit
until reset.
Call connected.
16
123456
SL6+ v.3.30 EN
Startup

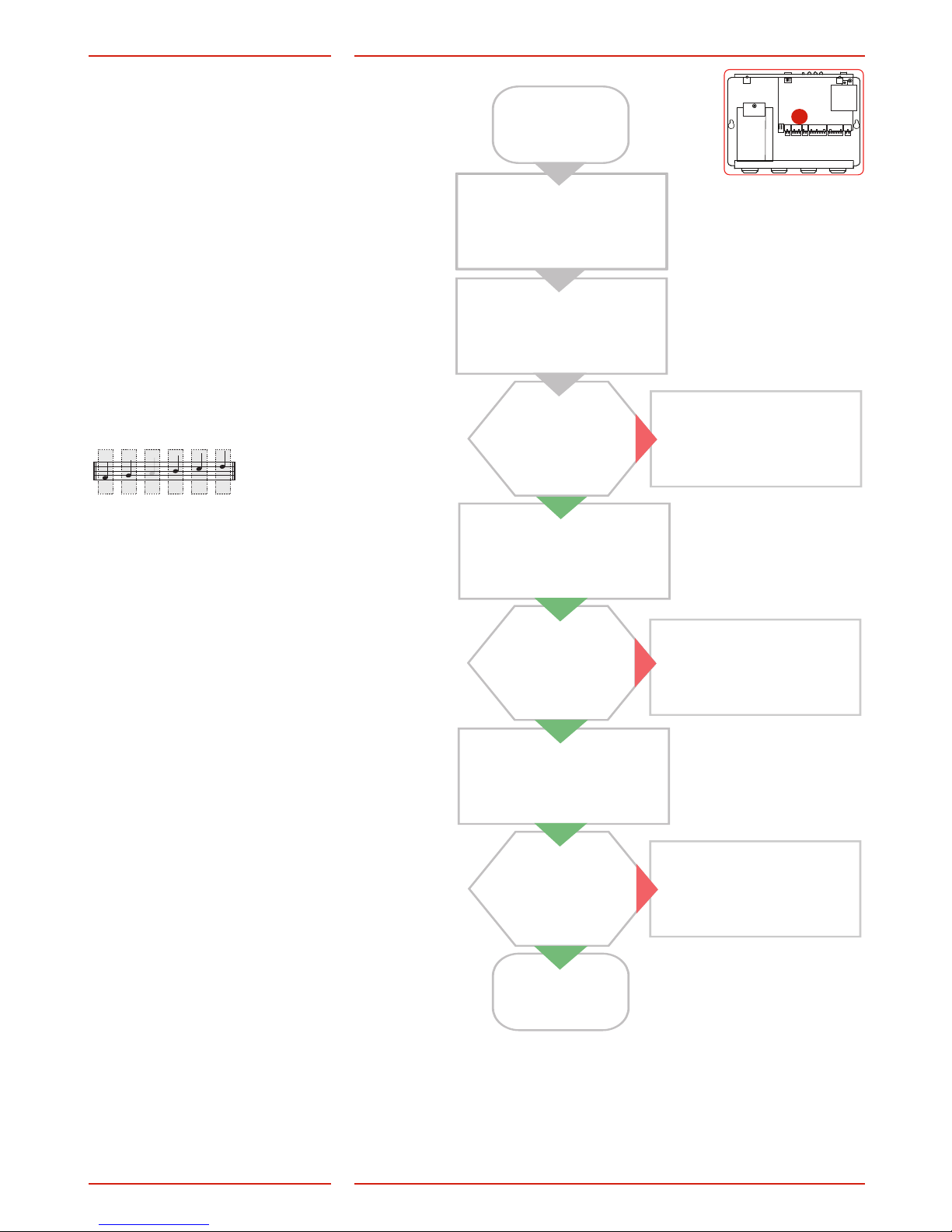

1. Upon star tup: a tone se-
quence is heard in the system
speaker
2. Check 230 VAC mains power.
3. SL6+ main unit searches
for
stations connected to the bus.
For every voice station found,
a beep sound is heard in the
system speaker.
4. Refer to chapter:
Troubleshooting voice station.
5. When a working telephone
line is connected or a GSM net is
available, LED 3 is ashing green
every 5 seconds.
6. Refer to chapter: Trouble-
shooting main unit.
Example: found all voice stations
except for number 3.
Startup
procedure
Connect 230 VAC
LED 1
turns green?
Number of beeps
OK?
LED 3 ashing
green?
Unit communication
failure
Connect the battery
Startup ready
Startup the SL6+
SL6+ checks for valid
telephone line or GSM net
SL6+ searches for
connected bus units
No telephone line
or GSM net.
No 230 VAC
or broken unit
NOTE: The unit will not start at
battery connection only.
17
SL6+ v.3.30 EN
Conguration
Android iPhone
Android iPhone

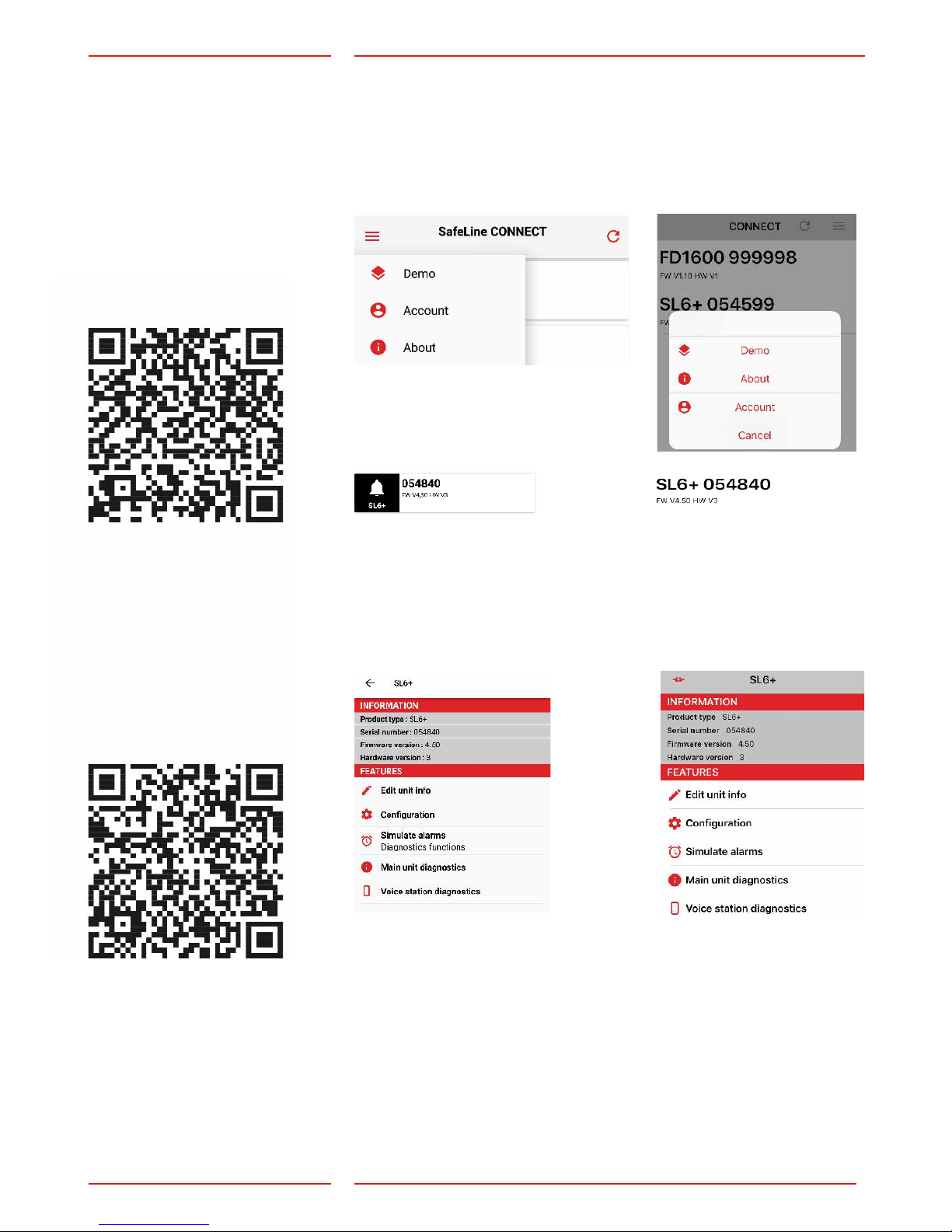

Press the SL6+ icon. To access a device it must have a programmed
password or have been restarted within 10 minutes. Every time the
device is powered on, the device’s bluetooth is open for 10 min-
utes, allowing you to program a password for the unit. Note: some
devices are quicker than other to nd the devices nearby. If the
device doesn’t appear on the screen, try waiting a bit longer.
When accessing a SL6+ you can see the device information at the top.
Android iPhone
You can then select:
Edit unit info
– This is the name and phone number of the device and how the
device is found.
Conguration:
– Here you congure all the functions for voice stations, in- and
outputs etc.
Simulate alarms:
– Here it is possible to simulate an alarm, battery failure, callback,
stuck button etc.
Main unit diagnostics:
– See current status of the device (for example: battery status, active
alarms, mains status, etc.)
Voice station diagnostics:
– Se current status of voice stations.
Congure
with Safeline
CONNECT
The SafeLine CONNECT app
is used to congure and
surveil your SafeLine devices.
Apple store, iPhone
Google play, Android
Download SafeLine CONNECT from Google Play or the Apple App
Store. To fully use the app’s features you must register an account.
In the upper corner you can access a menu containing account
information, patch notes and a demo mode. To register an account:
select account and then ”Register new account”. You will then be
redirected to a site where you register your product key.
18
SL6+ v.3.30 EN
Introduction
Parameters
unique for
SafeLine
CONNECT
Certain settings can only be congured with the SafeLine CONNECT
app. Below is a list of func tions unique for the app and where to nd
them. Text in red = SafeLine CONNECT paths.
Test alarm interval (per day/hour)
Conguration -> ID- and telephone numbers -> Test alarm -> Test
alarm interval
• Adjustable interval, either per day or per hour, between alarm
test. If both values are set to 0, alarm tests are off.
View current GSM operator in the SafeLine CONNECT app
Main unit diagnostics -> Operator name
• Command that lets you view your current operator. Not available
= GSM net not available. Unit busy = unit is busy with ongoing call.
Congure number of outgoing call retries
Conguration -> Calls -> Max outgoing call retries
• Max Outgoing Call Retr y – can be set from 4-12 tries. 12 = Default.
Applies to all t ypes of calls excluding the test dialogue in the Safe-
Line CONNECT app/SL Pro (2 calls).
Emergency button check (requires built-in magnet button)
In- and outputs -> Relay 1/2 -> Emergency button check
• During emergency button check, the relay is activated for
3 seconds, waiting for emergency button signal. If main unit does
not receive message, a ”stuck button” alarm will be sent.
“Battery test active” function
Main unit diagnostics -> Battery test active
• Test function shown in the SafeLine CONNECT app, to view if a
battery test is in progress.
Emergency light car Top/Pit
Conguration -> Voice stations -> Emergency light car top/pit
• Emergency Light Top/Pit (On/Of f), Default = Off. If activated, the
emergency light turns on for voice stations marked Top/Pit during
mains power failure.
Fallback alarms
Conguration -> System -> Fallback -> PSTN/GSM Fallback
• Priority PSTN/GSM. Default = disabled. Choose which inter face
is prioritized and activates transmission of LMS correlating to the
Fallback function.
• Fallback alarm delay: 1 - 10 minutes.
Dual test alarms (On/Of f), Default = Off. When ac tivated, both
PSTN and GSM interfaces will send test alarms.
Disable test call through cong. handset:
Conguration -> Calls -> Cong-handset test call
• "Cong-handset test call" (On/Of f). Default = On. 0 = turns off
outgoing calls through handset.
19
SafeLine SL6
SafeLinePro SafeLine SL6
SafeLine SL6
SafeLine SL6
SafeLine
ProLink SafeLine SL6
SafeLinePro
SL6+ v.3.30 EN
Conguration
Conguration with SafeLine Pro

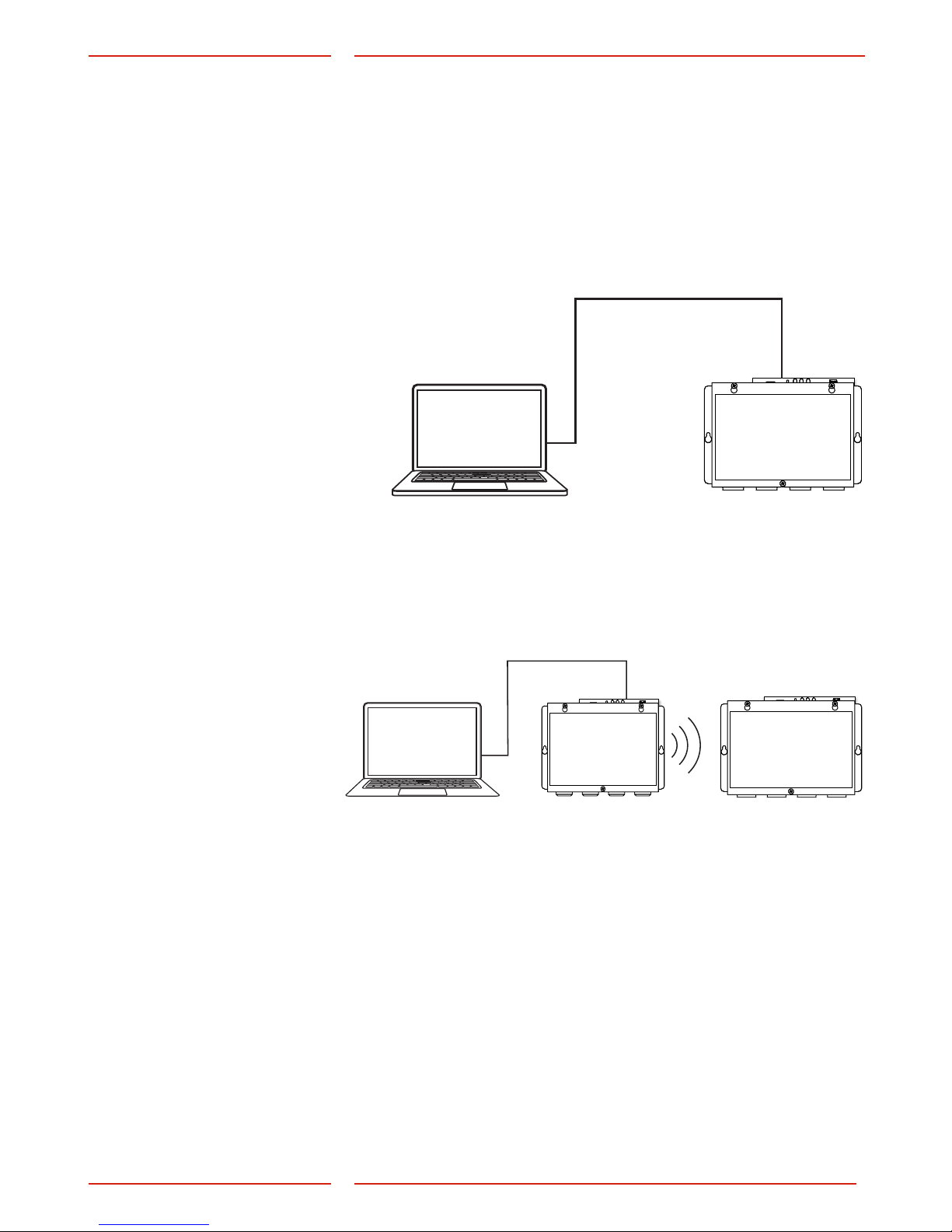

The unit can be congured at the ofce prior to the installation or on
site after installation. The conguration sof tware SafeLine Pro can be
downloaded from www.safeline-group.com. The conguration cable
is provided by SafeLine.
Remote conguration with SafeLine Pro/ProLink
The unit can also be remotely congured at the ofce after installation.
Connect a SafeLine ProLink modem with a phone line to a computer
with SafeLine Pro and a serial cable.
Conguration
with PC
20
SafeLine SL6
SafeLine SL6
1 2 3
45 6
78 9
0
*#
1 2 3
45 6
78 9
0
*#
SafeLine SL6
SafeLine SL6
SL6+ v.3.30 EN
Conguration
On-site conguration with telephone
For conguration, you can use any PSTN tone dial phone.
• Plug the handset into the RJ12 contact of the main station (see
"Screw terminal for optional telephone handset" on page 6).
• Enter conguration codes on the handset keypad.
Remote conguration with telephone
For remote conguration, you can use any PSTN tone dial phone.
• Dial the phone number of the SL6+.
• Enter the function codes on the phone keypad to start
conguration (password has to be entered, see "Parameter list"
(page 25).
Conguration
with telephone
Conguration methods och
conguration codes with a
telephone is described on the
following pages under "Remote
conguration with telephone"
and "On-site conguration with
telephone".
Other manuals for SL6+
3
Table of contents
Other Safeline Telephone manuals
