Citizen C20502 User manual

Product Description
181 Channel Tuner
AV/DVD Input
AV Output
MTS/AV Stereo Sound
Channel Recall
Closed Caption Display
Remote Control
On/Off Timer
Parental Control
RF IN Jack
S-Video Input
Selectable Picture Modes
Selectable Sound Modes
Trilingual On Screen Display (OSD)
AVC - Auto Volume Correction
USER MANUAL
C20502

1
W
ARNING
T
o reduce the risk of fire or electric shock, do not expose this product to rain or moisture.
T
he apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as
v
ases, shall be placed on the apparatus.
C
aution: To prevent electric shock, match wide blade of plug to wide slot, fully insert.
R
efer to the identification/rating label located on the back panel of your product for its proper operating
v
oltage.
C
aution: Using video games or any external accessory with fixed images for extended periods of
t
ime can cause them to be permanently imprinted on the picture tube (or projection TV picture
t
ubes). ALSO, some network/program logos, phone numbers, etc. may cause similar damage. This
d
amage is not covered by your warranty.
C
able TV Installer: This reminder is provided to call your attention to Article 820-40 of the National
E
lectrical Code (Section 54 of the Canadian Electrical Code, Part 1) which provides guidelines for proper
g
rounding and, in particular, specifies that the cable ground shall be connected to the grounding system of
t
he building as close to the point of cable entry as practical.
C
ustomer Record
Y
ou will find the model number and chassis number of your TV on the back of your TV set. Record these
n
umbers in the spaces provided below. Refer to them whenever you call customer service or your dealer
r
egarding this product.
M
odel Number: Chassis Number:
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION
Caution: To reduce the risk of electric shock, do not
remove cover (or back). No user serviceable parts
inside. Refer servicing to qualified service personnel.
This symbol indicates "dangerous voltage"
inside the product that presents a risk of
electric shock or personal injury.
This symbol indicates important
instructions accompanying the product.
I
nstruction Manual

IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two
blades with one wider than the other. A grounding type plug has two blades and a third grounding
prong. The wide blade or third prong is provided for your safety. If the provided plug does not fit into
your outlet, consult an electrician for replacement of the obsolete outlet.
10.Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles
,
and the point where they exit from the apparatus.
11.Only use attachments/accessories specified by the manufacturer.
12.Use only the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with
the apparatus. When a cart is used, use caution when moving the cart/apparatus
combination to avoid injury from tip-over.
13.Unplug this apparatus during lightning storms or when unused for long periods of time.
14.Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate
normally, or has been dropped.
15.Warning - This TV should only be serviced by an authorized and properly trained technician.
Opening the cover or other attempts by the user to service this TV may result in serious injury
or death from electrical shock, and may increase the risk of fire.
FCC Warning
Class B Computing Device
Information to User
This equipment has been tested and found to comply with the limits for a Class B Digital Device pursuant
to part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference t
o
radio communications. However, there is no guarantee that interference will not occur in a particular
installation. lf this equipment receives interference while off and on, the user is encouraged to try to correc
t
the interference by one or more of the following measures:
1) Reorient or relocate the receiving antenna.
2) lncrease the separation between the equipment and TV.
3) Connect the equipment into an outlet on a circuit different from that to which the TV is connected.
4) Consult the dealer or an experienced radio/TV technician for help and for additional suggestions.
The user may find the following booklet prepared by the Federal Communications Commission helpful:
"How to Identify and Resolve Radio - TV Interference Problems". This booklet is available from the US
Government Printing Office. Washington, D.C. 20402, Stock No. 004-000-00345-4.
FCC Warning
The user is cautioned that changes or modifications not expressly approved by the manufacturer could
void the user's authority to operate the equipment.
Note: In order for an installation of the product to maintain compliance with the limits for a Class B Device
,
shielded cables must be used.
I
nstruction Manual
2

INTRODUCTION
Safety Instructions..............................................................................................................................................1
Specifications......................................................................................................................................................3
Feature Descriptions ..........................................................................................................................................4
Front and Rear Unit Profiles ..............................................................................................................................5
Remote Control Features ..................................................................................................................................6
INSTALLATION
Connecting the Antenna ....................................................................................................................................7
Installing the Remote Control Batteries..............................................................................................................7
Connecting A/V Equipment
Input from Device to TV ..............................................................................................................................8
Output from TV to Device ............................................................................................................................8
FUNCTIONS & FEATURES
Turn On/Off ........................................................................................................................................................9
Basic Functions ..................................................................................................................................................9
Function Selection Menus
Picture Menu................................................................................................................................................9
Audio Menu..................................................................................................................................................9
Tuner Menu................................................................................................................................................10
Timer Menu................................................................................................................................................10
System Menu ............................................................................................................................................10
Useful Remote Control Features......................................................................................................................12
Programming the Remote Control....................................................................................................................13
TROUBLESHOOTING GUIDE.................................................................................................................................17
TABLE OF CONTENTS
SPECIFICATIONS
I
nstruction Manual
Television System
Channel Coverage
Cable TV Coverage
Channels Preset
Antenna Input
Screen Size
Audio Output
Total Harmonic Distortion
Power Source
Unit Weight
Unit Dimensions
Power Consumption
NTSC-M
VHF 2-13, UHF 14~69
Mid Band (A-8~A-1, A~I);
Super Band (J~W)
Hyper Band (AA~ZZ, AAA, BBB)
Ultra Band (65~94, 100~125)
181
75 ohm (unbalanced)
20"
3W + 3W
<7%
~120Vac 60Hz
25 kg
585 x485 x 460 mm
110W
3

PACKING LIST
Parts
Colour TV Receiver
Remote Control
Operation Manual
AAAAlkaline Batteries
Warranty
QTY
1
1
1
2
1
Feature Descriptions
181 Channel Tuner - total number of channels the TV can receive: 2-69 in Air mode, or 1-125 in Cable
mode
AV/DVD Input (Rear) - input designed for use with A/V devices, such as a VCR or DVD player
AV Output (Rear) - output signals from TV to devices such as a VCR
MTS/AV Stereo Sound - stereo sound for superior TV viewing experience
Channel Recall - instant return to the last channel viewed
Closed Caption Display - feature that displays the closed captions or text of a TV broadcast
Remote Control - A wireless remote control unit for the TV
On/Off Timer - feature that allows the user to set a timer to turn on/off the TV
Parental Control - feature that allow parents to block out selected type of programming
RF IN Jack - standard coaxial antenna jack
S-Video Input - input designed for greater clarity and sharpness; also known as S-VHS
Selectable Picture Modes - preset standards for TV display: Memory, Theater and Normal
Selectable Sound Modes - preset standards for TV sound: Memory, Speech, Music and Theater
Trilingual On Screen Display (OSD) - TV's on screen display, can be either English, French or Spanish
AVC - Auto Volume Correction
I
nstruction Manual
4

F
ront panel

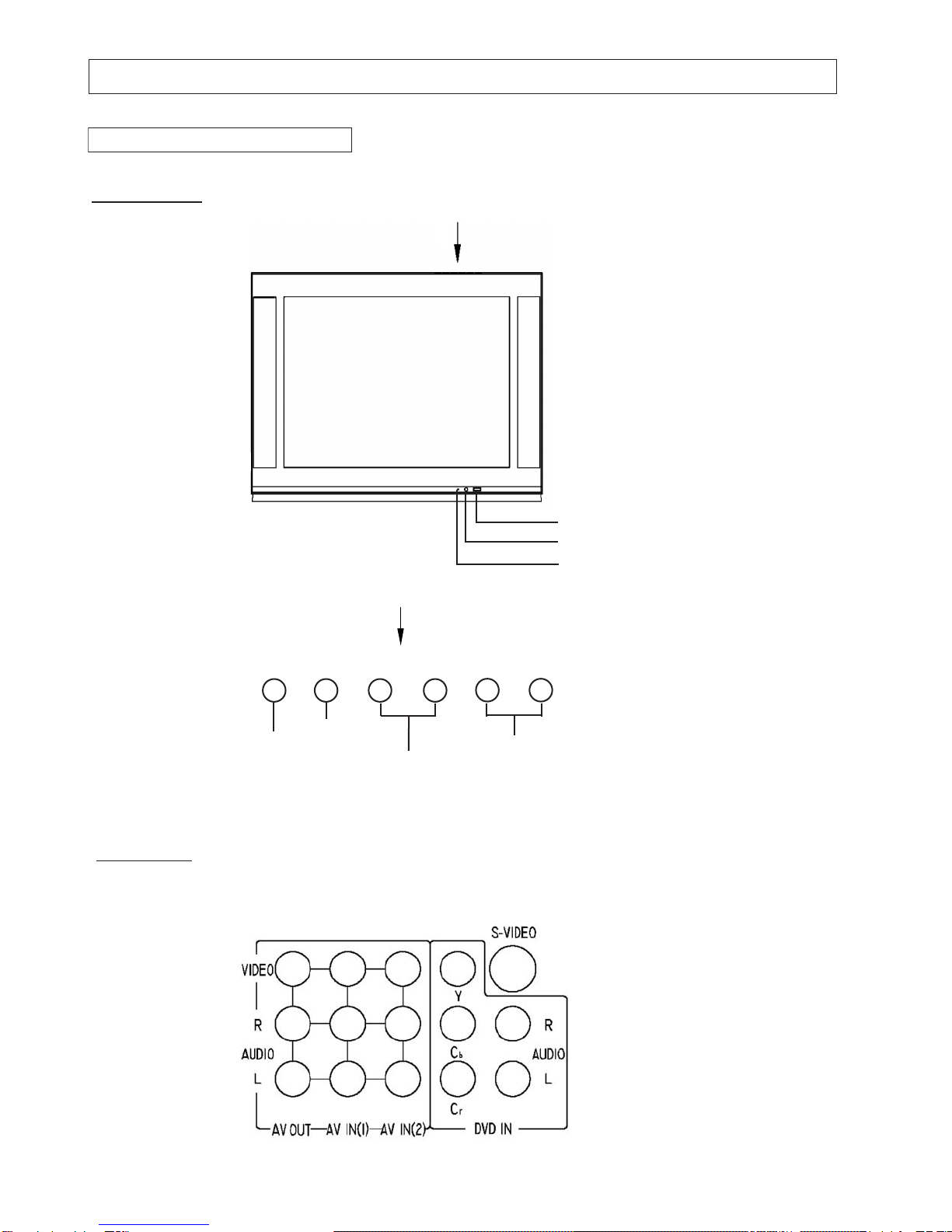

Rear panel
F
ront and Rear Unit Profiles
I
nstruction Manual
POWER
INFRARED SENSOR
POWER INDICATOR
TV/VIDEO SELECT
VOLUME DOWN/UP
CHANNEL DOWN/UP
MENU SELECT
VIDEO - CH +
MENU - VOL +
A
A
5

STANDBY Turns on/off the TV
KEYPAD Used to select channels by number
CH + / - Used to change the current channel
RECALL Returns to the last channel viewed
SCAN Scans all the active channels
CC Activates Closed Captioning
PICTURE Selects the various Picture Modes
SOUND Selects the various Sound Modes
LED Indicator light
FUNCTION Used for volume control and child lock
100+ Three digit select
VIDEO Cycles through the Video/TV modes
VOL + / - Used to adjust the volume level
DISPLAY Brings up the TV/Video display
TIMER Accesses the Timer menu
STEREO Selects the Stereo modes among On/L/R
MUTE Mutes or restores the TV volume
MENU Brings up the main Menu
ARROWS Used to navigate the TV menus
FUNCTION
STANDBY
KEYPAD 100+
TIMER
SCAN
SOUND
CC
CH + / -
VOL + / -
MENU
STEREO
DISPLAY
MUTE
VIDEO
ARROWS
RECALL
R
emote Control Features
I
nstruction Manual
LED
6

INSTALLATION
- Please read the safety instructions in this manual completely before installation.
- Install your TV in an area where direct sunlight will not fall upon the screen.
- Soft, indirect light is best for television viewing.
- Allow enough space (at least 4 in.) between the TV and any walls or enclosures for proper ventilation.
- Optimum television viewing distance is 3-5 times the screen's size.
Auto-Degaussing
Color television can be easily affected by magnetism, which shows as color distortion on the screen. If your TV is
affected by nearby magnetic components or appliances, turn it off for a few minutes. The built-in auto-degaussing
circuit will eliminate the magnetic interference.
Auto off when no signal received
The TV set will automatically enter into Standby mode when the following conditions are met.
1.TV is in antenna mode.
2.Current channel has no signal.
3.No key is pressed within 15 minutes.
Connecting the Antenna
I
nstruction Manual
Notes:
1. It is recommended that a 75 ohm coaxial cable be used in order to
eliminate interference and noise which may occur due to nearby radio
transmissions.
2. The antenna cable should not be tied together with other wiring.
3. Set up a lightning rod and check it regularly when an outdoor antenna
is used.
1. Remove the battery compartment lid.
2. Insert two AAA batteries (included). Make sure the positive (+) and
negative (-) polarities are correctly aligned.
3. Reattach the battery lid.
Notes:
1. Alkaline batteries are recommended for longer life.
2. Always replace both batteries at the same time.
3. Do not expose batteries to fire or break them open.
4. To avoid battery leakage, remove batteries from the remote control
when it is not being used for a long period of time.
Installing the Remote Control Batteries
7

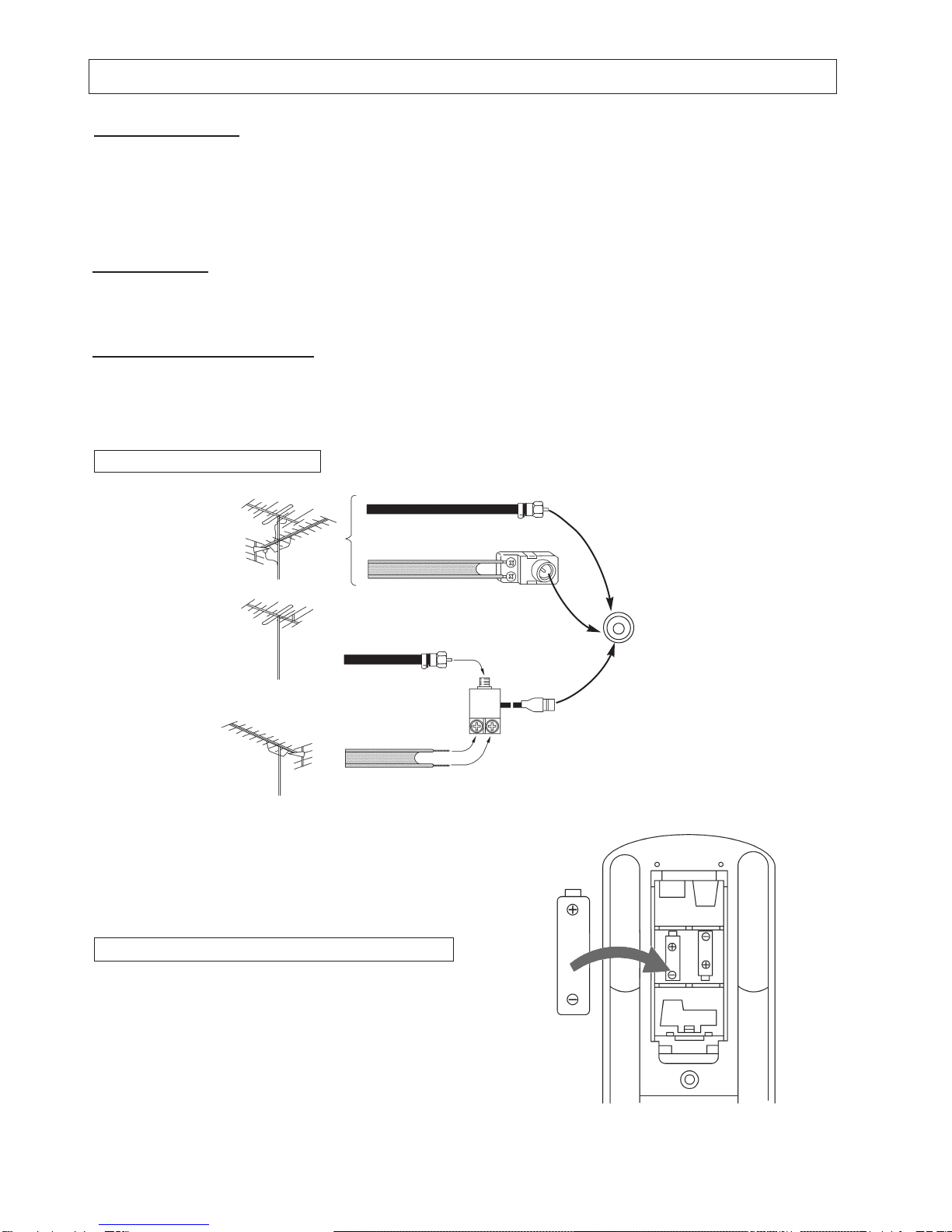

75-ohm coaxial cable (not supplied)
300-ohm twin-lead cable (not supplied)
OR
Antenna adapter
(not supplied)
VHF
UHF
or Cable
VHF
UHF
RF Input
(back of TV unit)
OR
U/V mixer
(not supplied)

INSTALLATION (continued)
Connecting A/V Equipment

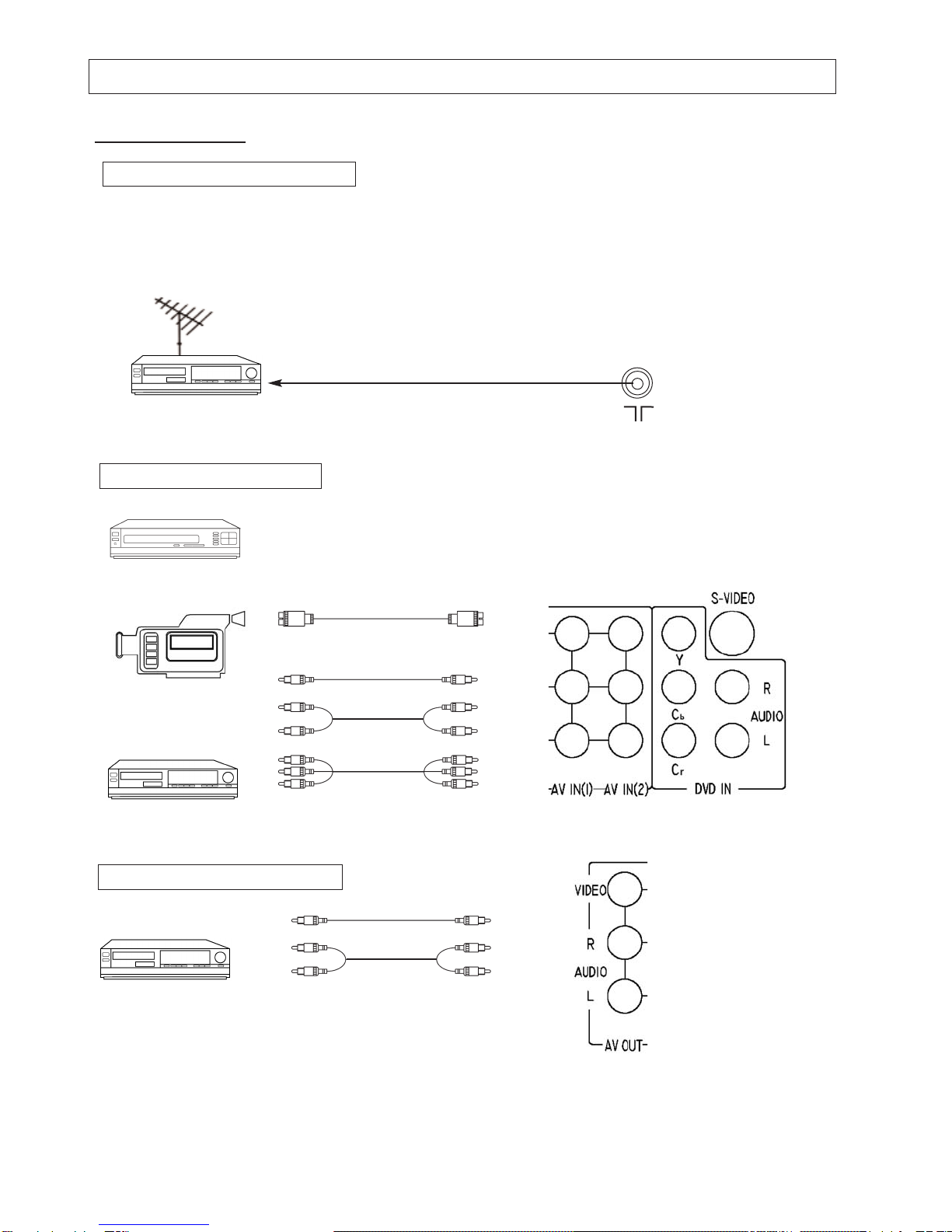

The following are diagrams showing basic instructions for attaching external equipment, like a VCR or
DVD player, to your TV set. Please refer to operation manuals of external audio/video equipment that
will be connected to your set for additional instructions. PLEASE TURN OFF ALL POWER BEFORE
CONNECTING DEVICES TOGETHER.
Connect VCR's RF OUT terminal to the RF IN jack located on the real panel of the TV.
Coaxial Cable
VCR
AUDIO/VIDEO OUT
DVD Player
Camcorder
VCR
AUDIO/VIDEO IN
VCR
With S - VIDEO Terminal
VIDEO Yellow
White
Yellow
White
White
Yellow
White
RF IN
Output from TV to Device
Input from Device to TV
AUDIO
VIDEO
AUDIO Red
Red Red
Red
DO NOT connect both composite (yellow video terminal) and S-Video terminal. Use only
one of the two. Also, remember to connect the audio cables when using S-Video.
I
nstruction Manual
YCbCr
8
Yellow

F
UNCTIONS & FEATURES
Turn On/Off
1. Turn On
Plug in the power cord, and press the POWER key on the TV to turn on the TV.
2. Standby
While the TV is on, pressing the STANDBY key on the remote control will put the TV in Standby mode. T
o
turn the TV on again, press the STANDBY key. To completely turn off the power to the TV set, press th
e
POWER key on the TV.
Changing the Channel
While in Tuner mode, press the CH +/ - keys to change the channel, or use the numeric keypad to enter
a
new channel.
Adjusting the Volume
To adjust the volume, press the VOL +/ - keys. Also, you may press the FUNCTION (F) key along with th
e
VOL +/ - keys to adjust the volume in increments or decrements of 4.
Muting the Volume
To mute the volume, press the MUTE key. To restore the volume, press MUTE again or press the VOL + ke
y.
Basic Functions
Function Selection Menus
Features
This menu allows you to adjust the various picture settings. Use the
up or down arrow key to move between the various settings, and the
left or right arrow key to adjust them.
Tint:-31 (more purplish) to +31 (more greenish)
Brightness: 0 (dimmest) to 63 (brightest)
Contrast: 0 (minimum contrast) to 63 (maximum contrast)
Color: 0 (minimum color) to 63 (maximum color)
Sharp:0 (minimum sharpness) to 63 (maximum sharpness)
Picture Menu
To change the setting of any function, press the MENU key to bring up the main menu. Press the up or dow
n
arrow key to highlight the desired sub-menu and press the left or right arrow key to access. While in the su
b-
menu, use the up or down arrow key to select the item and the left or right arrow to adjust the setting. Pres
s
the MENU key to return to the main menu and exit.
While in the setup menu, CH-/+ and VOL-/+ keys on the front panel will function as the down/up/left/rig
ht
arrow keys on the remote control.
Audio Menu
Features
This menu allows you to adjust the various audio settings. Use the
up or down arrow key to move between the various settings, and the
left or right arrow key to adjust them.
Bass: 0 (less Bass) to 63 (more Bass)
Treble: 0 (less Treble) to 63 (more Treble)
Balance: L31 (Left Dominance) to R31 (Right Dominance)
Surround: Off; Low (slight surround effect); High (marked
surround effect)
AVC: Off, On
MTS: Refer to description about the STEREO key
Bass
Treble
Balance
Surround
AVC
MTS
31
31
00
Audio
Low
Off
Mono
Tint
Brightness
Contrast
Color
Sharp
00
31
31
31
31
I
nstruction Manual
9

FUNCTIONS & FEATURES (continued)
Tuner Menu
Note: This menu is only accessible while the TV is in Tuner mode.
Channel:This feature allows you to change the channel displaying on
screen. Use the left or right arrow key or the numeric keypad to change
the channel.
Add/Erase: This feature allows you to add or remove the channel
currently display on screen to the "active channel list" . Active channel list
is the list of channel that is available by pressing the CH+/- keys. Use the
left or right arrow key to add or erase.
Antenna: This feature sets the TV tuner to an Air antenna or a Cable
antenna. Please use Air mode when using an over-the-air antenna; use
Cable mode for a cable hookup. Use the left or right arrow key to select
between the two options.
Auto Program: This feature will setup the Active channel list for the user.
The list will include only the channels with a signal detected. Press the
right arrow key to begin and the left arrow key to stop the process.
Channel
Add/Erase
Antenna
Auto Program
2
Add
Ai
r
Tuner
Stop Start
Press the TIMER key on the remote control to access this menu.
Time
This feature allows you to set the clock on the TV.
On Time
This feature allows you to preset a time when the TV set will turn on.
On Channel
This feature allows you to preset the channel on display when the
On Time is activated.
Off Time
This feature allows you to preset a time when the TV set will turn off.
Timer Menu
Time --:--
On Time --:--
On Channel -
Off Time --:--
Timer
Language
This feature allows you to pick a language used for the on screen display
(OSD). Use the left or right arrow key to select the language of your
choice - English (Eng.), French (Fra.) or Spanish (Esp.).
Blue Back
This feature gives you the option to display a blue background on the TV
screen when there is no signal present. Use the left or right arrow key to
toggle between on and off.
CCD/Text
Closed caption is a feature that allows your TV set to display, on screen,
the dialogue, narration, and sound effect of a TV program. It also allows
you to display teletext signal. Text and caption will be displayed at either
the top or the bottom of the screen. There is nine different setting for
closed caption. You can set it to one of the 4 Closed Caption settings
(CC1-4), one of the 4 Text settings (T1-4), or set this feature to off
(CCD/Text Off).
System Menu
System
Language
Blue Back
CCD/Text
Parental Guide
MPAA - X TV - MA
Fra. Esp.
On
Off
On
Eng.
I
nstruction Manual
Notes: A Closed Caption signal may not be display under the following conditions:
-When there is no Closed Caption/Text signal to decode
-When the signal is weak or altered (due to interference or poor reception)
-When viewing a dubbed video tape
10

Parental Guide
This feature allows parents to block certain programs from being
viewed, based on the programs' rating. In order to access this
menu, you must first enter a pass code. The factory default is 6688.
Enter the pass code while the Parental Guide is highlighted. Now,
with Parental Guide set as On, press the right arrow key to access
the TV Rating grid.
TV Rating
Using the up or down arrow key to navigate between the
ratings, press the MENU key to block out a particular rating
completely. Or, if you wish, press the down arrow key to
highlight an individual rating (anywhere a Uis displayed in the
middle of the grid.) Pressing the MENU key with one of these
individual ratings highlighted will block only programs that
feature that particular aspect. See the TV rating diagram at
right for an example. TV ratings are defined in the charts
below:
MPAA Rating
Press the right arrow key while in the TV Rating grid to
access this grid. Use the up or down arrow key to navigate
between the MPAA ratings. Pressing the MENU key with a
rating highlighted will block that particular rating from being
shown on this TV. A Bwill show in red next to the blocked
rating. Please note that blocking a lower rating (for example,
PG) will block all higher ratings (PG-13, R, NC-17, X.)
Pass Code Menu
This menu allows you to change the access code for the
Parental Guide functions of the TV set. Press the MENU key
when Pass Code Control is highlighted. This will turn on or off
the Pass Code function. With the Pass Code function ON,
you can also change the Pass Code. Use the down arrow key
to highlight Pass Code, then enter the new Pass Code using
the numeric keypad.
Note: The factory default pass code of 6688 is also the
override code, in case you forget your new pass code.
System Menu (continued)
Movie Rating
GU
PG U
PG-13 U
RU
NC-17 U
XU
MPAA - Rating
Age Defined as
TV - Y All Children
TV - Y7 Directed to Older Children (over 7)
TV - G General Audience
TV - PG Parental Guidance Suggested
TV - 14 Parents Strongly Cautioned
TV - MA Mature Audience Only
Contents Defined as
FV Fantasy Violence
D Sexual Dialogue
L Adult Language
S Sexual Situations
V Violence
F
UNCTIONS & FEATURES (continued)
Age Based Rating
Language Fra. Esp.
Blue Back On
CCD/Text Off
Parental Guide On
MPAA-X TV-MA
System
Enter Pass Code - - - -
Rating FV D L S V
TV-Y U
TV-Y7 U U
TV-G U
TV-PG U U U U U
TV-14 B B B B B
TV-MA B B B B
TV-Rating
Age Based Rating
Eng.
Enter Pass Code - - - -
Pass Code Menu
Pass Code Control
Pass Code 6688
I
nstruction Manual
11

Useful Remote Control Features
D
ISPLAY
T
his key allows you to display the current information of the TV screen on the upper right hand corner of th
e
s
creen. (channel, antenna mode, time, video, etc.)
T
IMER
T
his key allows you to directly access the Timer menu. For an explanation of this menu features, please se
e
p
age 10.
S
CAN
P
ress the SCAN key twice, and the TV will begin to scan through all active channels. To stop the Scan
,
p
ressing any key can interrupt scanning. Please note that Scan will only work in Antenna mode.
P
ICTURE
Y
our TV has factory preset picture modes that allow you to optimize yourTV viewing.To activate these pictur
e
m
odes, press the PICTURE key, and you can choose among Memory, Theater and Normal.
S
OUND
P
ress the SOUND key repeatedly, and you can choose among Memory, Speech, Music and Theater.
R
ECALL
T
his key will allow you to return to the last channel you were viewing. Pressing it again will return you to th
e
c
hannel you just left.
C
C
P
ressing the CC key will activate the currently selected Closed Captions or Text under the System Menu
.
P
ressing it again will turn off the Closed Caption.
V
IDEO
T
his key allows you to toggle between antenna and different video modes.
C
hild Lock
T
he Child Lock feature prevents unauthorized viewing of the TV. To activate, press and hold the F key, an
d
t
hen press MUTE. You should see a key symbol appear on the screen. This will lock out all remote function
s
(
except for Standby). To unlock the TV, press and hold the F key and press MUTE. This will unlock the TV
.
P
lease note that the only way to activate or deactivate the Child Lock feature is via remote control - pleas
e
i
nsure that it is stored securely.
0
-9/100+
P
ress the 0-9 and 100+ keys to enter channel numbers directly (2-69 in the Air mode or 1-125 in the Cab
le
m
ode).
1
.To choose a one-digit channel number, press the 0 key, then press another Channel Number key to sele
ct
a
desired number. 2.To choose a two-digit channel number, enter a first-digit and then a second digit.
3
.To choose a three-digit channel number, press the 100+ key so that 1- - appears on the screen, then ente
r
t
he next digit one and two.
S
TEREO
I
n the TV mode, the TV can automatically identify MTS
s
tereo modes among Mono, Stereo, Stereo/SAP and
M
ono/SAP.
W
hen receiving signals from external equipment in the
V
ideo mode, Stereo is defined as default. Press the
S
TEREO key to set Input to Stereo, L or R.
F
UNCTIONS & FEATURES (continued)
I
nstruction Manual
Signal Received Press STEREO key
Mono Mono
Stereo Stereo, Mono
Stereo/SAP Stereo, SAP, Mono
Mono/SAP Mono, SAP
12

Program the Remote Control
T
o program the remote control
1
.Press and hold the TV, VCR/DVD, SAT/CAB or AUX key for over 2 seconds until the INDlCATOR on
the remote controI turns off. Release the key (the INDICATOR will light again) and the remote contro
I
enters the PROGRAMMlNG mode.
2
.Use the 0 - 9 keys to enter three - digit code number for your equipment. lf the correct code number
is entered, the INDICATOR bIinks three times. If you enter a code not listed beIow, or you press any
other keys than SEARCH and 100 +, the lNDICATOR turns off.
T
o search codes
1
.Press and hoId the TV, VCR/DVD, SAT/CAB or AUX key for over 2 seconds until the INDICATOR
turns off. ReIease the key (the INDICATOR wiII light again) and the remote controI enters the
PROGRAMMING mode.
2
.Press the SEARCH key.
3
.Press the CH+/- keys to search codes downwards or upwards. Each time you press the CH+/- keys,
the code number decreases or increases by 1 whiIe the remote controI sends the code number for
STANDBY key on your device.
lf the desired code number is found, press the 100 + key to program the code for your device until
the lNDICATOR bIinks three times. Then the remote controI exits from the PROGRAMMING mode
and returns to normal operation. Or press any other key to exit from the PROGRAMMING mode afte
r
the INDICATOR bIinks rapidly eight times, and the operation is not active.
T
o check the current code number
1
.Press and hold the TV, VCR/DVD, SAT/CAB or AUX key for over 2 seconds until the lNDlCATOR
turns off. ReIease the key (the INDlCATOR wiII Iight again) and the remote control enters the
PROGRAMMlNG mode.
2
.Press the 100 + key.
3
.You may read the code number according to the INDICATOR display status as foIlows.
N
otes:
1
.If there is no operation within 20 seconds during the steps mentioned above, the remote controI
will automaticalIy exit from the appropriate operation.
2
.If only your TV does not respond to the remote control, try 000 for your TV. If the batteries are weak
or exhausted, the remote control can't function,either.
F
UNCTIONS & FEATURES (continued)
I
nstruction Manual
Code Number LED Display Status
(2 sec. time interval between every two digits.)
First-digit Second-digit Third-digit First-digit Second-digit Third-digit
0 0 0 Blinks rapidly once Blinks rapidly once Blinks rapidly once
1 0 6 Blinks once Blinks rapidly once Blinks six times
0 4 3 Blinks rapidly once Blinks four times Blinks three times
1 5 0 Blinks once Blinks five times Blinks rapidly once
13

I
nstruction Manual
DVD codes
LD codes
Brand
APEX
ChangHong
Aiwa
Hitachi
JVC
Magnvox
Mitsubishi
Panasonic
Philips
Pioneer
Proscan
RCA
Sanyo
Sony
Toshiba
300,395
300,301,302,303
312
313
309,314
308
307
315, 386
308,316,317,318
306,311
310
310
319
305,320,321
304
Code Number
Code Number
Brand
322
326,327
328
323,324,325
Magnavox
Panasonic
Pioneer
Sony
14

I
nstruction Manual
Dynatech
Electrohome
Electrophonic
Emerson
Fisher
Funai
GE
Go Video
Goldstar
Goodmans
Gradiente
Grundig
Harley Davidson
Harman Kardon
Hinari
Hitachi
Instant Replay
JC Penney
Jensen
JVC
Kenwood
Kodak
Lloyd
Logik
LXI
Magnavox
Marantz
Marta
MEI
Memorex
MGA
Minolta
Mitsubishi
Brand
Admiral
Aiwa
Akai
Amstrad
ASA
Audio Dynamics
Audiovox
Broksonic
Bush
Calix
Candle
Canon
Capeheart
Carver
CCE
Citizen
Craig
Curtis Mathes
Daewoo
Daytron
DBX
Dimensia
Code Number
373
340,387,388
350,379
340
357
334,374
376
375,377
339
376
336,376
361,362
349
343
379
336,337,376,379
331,337,376
332,336,361,372
349,363,377,379,380
349
334,374
384
Brand
Motorola
MTC
Mutitech
NEC
Nikko
Olympus
Optimus
Optonica
Panasonic
Pentax
Perdio
Philco
Philips
Pilot
Pioneer
Portland
Proscan
Quasar
Radio Shack
Radix
Randex
RCA
Realistic
Ricoh
Salora
Samsung
Sanky
Sansui
Sanyo
SBR
Schneider
Scott
Sears
Sharp
Shintom
Sony
STS
Sylvania
Symphonic
Tandy
Tashiko
Tatung
Teac
Technics
Tekknika
Toshiba
Totevision
Vector Research
Victor
Videosonic
Video Concepts
Wards
XR-1000
Yamaha
Zenith
Code Number
373
340,378
337,339,340,378
333,334,336,350,352,358,364,374
376
383
373,376
346
335,348,361,365,366
336,342,347
340
343,344,361
343,346,357,361
376
334,342,352,358,374
349
332,372
354,355,361
329,330,331,341,346,373,376,378,381
376
376
332,337,342,347,365,372
340,341,346,361,373,376,378,381
369
356
337,363
373
334,350,352,353
331
357
339
338,345,375,377
329,331,341,342,347,351,376
330.346,381
339
367,368,369,370,371
347
340,343,344,345,356,361,378
340,378
340
340,376
333,350,353
333,340,350,378
348,361
340,361,376,378
338,341,342,345,356,363
337,376
334,364
334,358
337
334
378
333,334,336,350,364
370,371
330,331,337,338,339,340,342,346,347,361,373,376,378,381
340
300,330,376,381,395
376
330,338,340,345,375,376,377,381
329,331,340,341,351
377
332,337,361,372
359,360,389
336,376,379
339
378
357
378
364
339
340,342,347,350
385
333,334,337,347,350,361,364,374,376
342,350
333,334,336,350,352,358,374
333,334,336,350,352,358,374
376
340,378
339
376,390,391,392,393,394
343,344,357,361
333,334,336,343,357,361,374
376
361
331,340,361,373,376,378
330,345,356,381
342,347
330,342,345,352,356,358,381
V
CR codes
15

I
nstruction Manual
CABLE codes
Brand
ChangHong
ABC
General Instrument
hamiln
Hytex
Jerrold
Movie Time
NSC
Oak
Code Number
500
508,509,510,511
525
541,542,545,546,547
508
506,510,511,512,513,520,525,548,549,550
515
515
501,508,516
502,507,544
514
503,504,517
524
504,505,518,519
511
509,512
515
508
514,515
504,521,522,523
Panasonic
Philips
Pioneer
RCA
Scientific Atlantic
StarCom
Tocom
TV86
United Artists
Viewstar
Zenith
SAT codes
Brand
GE
Genernal Electric
Hitachi
Hughes
JVC
Magnavox
Panasonic
Philips
Proscan
RCA
Sony
Toshiba
Code Number
528,531,532
526
534,535
537,538
533
536
543
536
528,531,532
528,531,532,540
529,539
527,530
AMP codes
Code Number
700,701
702
709
709
706,712
708
704
710
703,704
708
710
707,713
702,705
710
711
706
Brand
ChangHong
Aiwa
Carver
Fisher
JVC
Magnavox
Memorex
Panasonic
Pioneer
Proton
Quasar
RCA
Sony
Techniques
Toshiba
Victor
16

Check the following guide for a possible correction to a problem before contacting customer service.
Symptoms Correction
No power
No picture
No sound
No TV signal
Stripe or purple interfe-
rence appears in the
screen.
Picture becomes
snowy.
Picture with multi-image
TV channel not received
Black box appears on
screen.
Remote control
doesn't operate.
Verify the power cables plug into an outlet with power.
Verify the connection from the DVD/VCR video output to the TV video input
is secure.Then switch TV to the appropriate Video mode.
Verify an antenna cable is securely connected to the RF in jack.
Connect the audio cables into the terminals securely.
Verify the connection from the DVD/VCR audio output to the TV audio input.
Then switch to the appropriate mode on the receiver. Refer to your audio
amplifier owner's manual.
Verify the volume is at an appropriate level and the mute feature is not on.
Make sure MTS feature is properly set.
Verify the TV is set to Antenna mode.
Make sure the antenna is securely connected to the RF in jack.
Unplug the TV from the wall for 30 seconds, then plug in and try again.
Unplug the antenna connection from the back of the TV, unplug the TV from
the wall, wait 30 seconds, then try again.
Verify the speakers around the TV set are shielded.
Verify the antenna lead wire is in working condition.
Verify the antenna is connected securely to the RF in jack.
Move the antenna around to minimize multi-images.
Make sure the Air/Cable setting is correct.
Channel may be locked with the block channel feature, such as Parental Contro
l.
Check Add/Erase feature, as channel may have been erased during set up.
Verify Closed Caption feature is off.
Batteries may be weak. Replace batteries.
Make sure nothing is in between the remote and the remote sensor.
T
ROUBLESHOOTING GUIDE
I
nstruction Manual
No stereo or foreign
language received Make sure MTS feature is properly set.
17

CITIZEN WARRANTY
Consumer Electronics Products
Thank you for choosing Citizen!
Citizen Electronics gives the following express warranty to the original consumer purchaser or gift recipie
nt
for this Citizen brand product, when shipped in its original container and sold or distributed in Canada b
y
Citizen Electronics or by an Authorized Citizen Dealer:
Citizen Electronics warrants that this product is free, under normal use and maintenance, from any defec
ts
in material and workmanship. If any such defects should be found in this product within the applicab
le
warranty period, Citizen Electronics shall, at its option, repair or replace the product as specified herei
n.
Replacement parts furnished in connection with this warranty shall be warranted for a period equal to th
e
unexpired portion of the original equipment warranty.
This warranty shall not apply to:
a. Any defects caused or repairs required as a result of abusive operation, negligence, acciden
t,
improper installation or inappropriate use as outlined in the owner's manual.
b. Any Citizen product tampered with, modified, adjusted or repaired by any party other than Citize
n
Electronics or Citizen's Authorized Service Centres.
c. Damage caused or repairs required as a result of the use with items not specified or approved b
y
Citizen Electronics, including but not limited to head cleaning tapes and chemical cleaning agents.
d. Any replacement of accessories, glassware, consumable or peripheral items required through norm
al
use of the product including but not limited to earphones, remote controls, AC adapters, batterie
s,
temperature probe, stylus, trays, filters, cables and paper.
e. Any cosmetic damage to the surface or exterior that has been defaced or caused by normal wea
r
and tear.
f. Any damage caused by external or environmental conditions, including but not limited t
o
transmission line/power line voltage or liquid spillage.
g. Any product received without appropriate model, serial number and CSA/cUL markings.
h. Any products used for rental or commercial purposes.
i. Any installation, setup and/or programming charges.
Should this Citizen product fail to operate during the warranty period, warranty service may be obtained upo
n
delivery of the Citizen product together with proof of purchase and a copy of this LIMITED WARRANT
Y
statement to an Authorized Citizen Service Centre. In-home warranty service may be provided at Citize
n
Electronics' discretion on any Citizen television with the screen size of 27" or larger. This warranty constitute
s
the entire express warranty granted by Citizen Electronics and no other dealer, service centre or their age
nt
or employee is authorized to extend, enlarge or transfer this warranty on behalf of Citizen Electronics. To th
e
extent the law permits, Citizen Electronics disclaims any and all liability for direct or indirect damages o
r
losses or for any incidental, special or consequential damages or loss of profits resulting from a defect
in
material or workmanship relating to the product, including damages for the loss of time or use of this Citize
n
product or the loss of information. The purchaser will be responsible for any removal, reinstallatio
n,
transportation and insurance costs incurred. Correction of defects, in the manner and period of tim
e
described herein, constitute complete fulfillment of all obligations and responsibilities of Citizen Electronics
to
the purchaser with respect to the product and shall constitute full satisfaction of all claims, whether based o
n
contract, negligence, strict liability or otherwise.
WARRANTY PERIODS: Parts & Labour (exceptions noted)
.Audio Products: 1 Year (Remote Control, if applicable - 90 Days)
.DVD Products: 1 Year (Remote Control - 90 Days)
.LCD & Plasma Display TV: 1 Year (Remote Control - 90 Days)
.Microwave Ovens: 1 Year
.Television Products: 1 Year (Remote Control - 90 Days)
.VCR Products: 1 Year (Remote Control - 90 Days, Video Heads - 6 Months)
To obtain the name and address of the nearest Authorized Citizen Service Centre or Dealer, please contac
t:
CITIZEN ELECTRONICS, 455 Gordon Baker Road Toronto, Ontario, Canada M2H 4H2 or visit our web sit
e:
www.citizen-electronics.com
For more information on this Warranty or Service Locations, please call [phone] or toll free 1-800-663
-
5954, Monday to Friday 9:00am - 5:00pm Eastern Standard Time.
