CIVIQ Aquafil Hydrobank Configuration guide

Aquafil Hydrobank
Installation and Cleaning Instructions
Issued: April 2021
W civiq.com.au E [e-mail] P 1300 600 300

CIVIQ
Public-use Products
TM
Healthier, Happier
Communities
W civiq.com.au E [e-mail] P 1300 600 300
Installation details
Aquafil® Hydrobank Triple
Step 1.
Remove the top and bottom panels by unscrewing all M6 screws and M5 screws for the hinges.
When removing the Top Panel disconnect hoses from the bottle rell nozzles.
Step 2.
Screw a timber support to the wall. This will assist you in resting the Hydrobank unit while you
mark out the holes for the mounting screws. Make sure the timber is level.
See Step 3 for heights of timber.
Pushing tube in before
pulling it out helps to
release tube
Push in collet
to release tube
Tube is secured
in position
Simply push in
tube to attach
Installation Details
top panel
Issued: April 2021

CIVIQ
Public-use Products
TM
Healthier, Happier
Communities
W civiq.com.au E [e-mail] P 1300 600 300
Junior’s height from
ground: 700mm
Senior’s height from
ground: 900mm
Junior’s Timber
height from
ground: 80mm
Senior’s Timber
height from
ground: 280mm
Step 4.
NOTE: The following is a two-man operation.
Place unit on pre-xed timber support. Drill & bolt to wall at 2 locations to hold the unit in place
to enable drilling of all screw holes.
See step 5 for xing details
Step 3.
NOTE: Junior and Senior have different heights
Drill & bolt to wall at
these 2 locations
Installation details
Aquafil® Hydrobank Triple
Step 1.
Remove the top and bottom panels by unscrewing all M6 screws and M5 screws for the hinges.
When removing the Top Panel disconnect hoses from the bottle rell nozzles.
Step 2.
Screw a timber support to the wall. This will assist you in resting the Hydrobank unit while you
mark out the holes for the mounting screws. Make sure the timber is level.
See Step 3 for heights of timber.
Pushing tube in before
pulling it out helps to
release tube
Push in collet
to release tube
Tube is secured
in position
Simply push in
tube to attach
Issued: April 2021

CIVIQ
Public-use Products
TM
Healthier, Happier
Communities
W civiq.com.au E [e-mail] P 1300 600 300

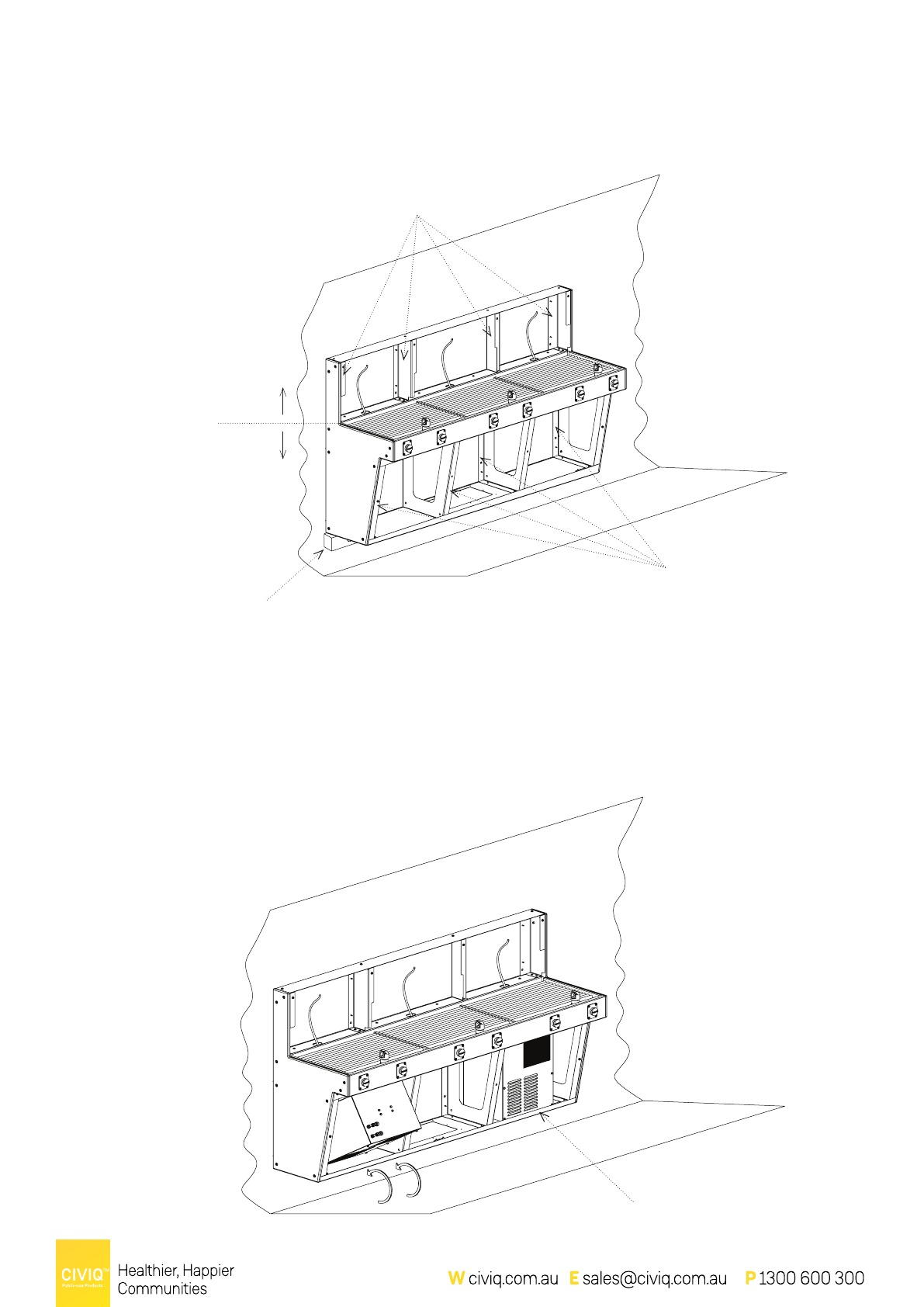

Step 5.
Remove timber support after the unit is xed to the wall.
NOTE: - Minimum xings to the top wall is 4 bolts at the top module ( 1 bolt per bracket)
- Minimum xings to the wall is 8 bolts at the bottom module ( 2 bolts per bracket)
Bottom brackets
Top
module
Bottom
module
Remove timber support after unit is xed
to the wall.
Top brackets
Step 6.
For chiller option: Place the chiller at approximately 50° angle then pull bottom forward and
push top back as shown by the arrows, until unit is upright.
NOTE: For water connection details please see chiller installations for more details
Bring the chiller forward against
the inside lip Issued: April 2021

CIVIQ
Public-use Products
TM
Healthier, Happier
Communities
W civiq.com.au E [e-mail] P 1300 600 300
Filter head
Chiller 2
1/2 BSP water inlet
Chiller 1

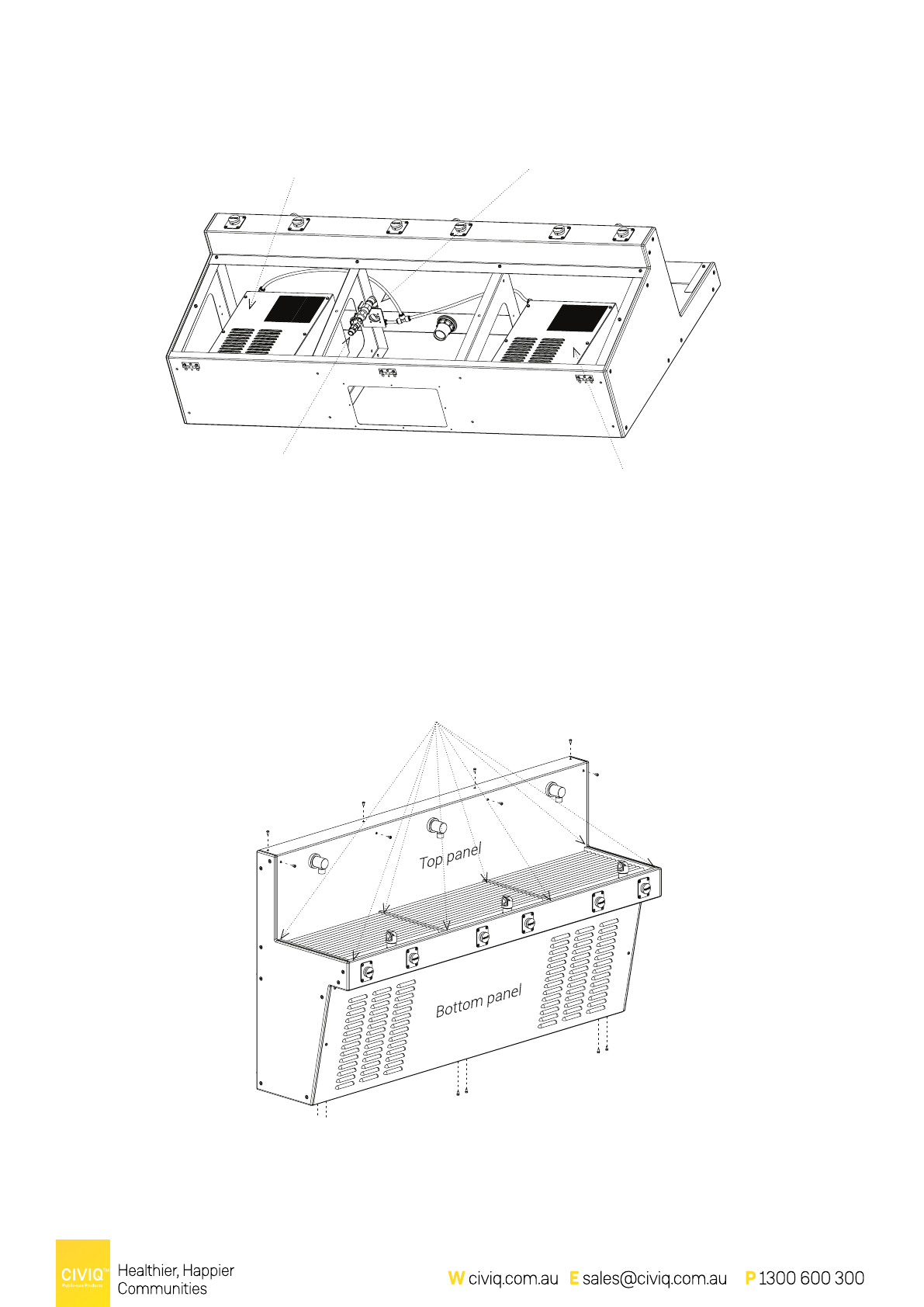

Step 7.
Water connection details: Connect water to chiller 1 and chiller 2 and connect lter head.
(for lter models only) before connecting to water mains.
Step 8.
Connect the hoses to the bottle rell nozzles, t Top Panel then put screws back on.
Put the Bottom Panels back on after connection of hoses.
NOTE: Ensure that there is no leaks before tting the Bottom Panel.
Plastic parts must be inline with the notches at the
top panel & the button bracket
8-10 Giffard Street, Silverwater NSW 2128 Wcivi Q .com.au Esales@civi Q .com.au P 1300 600 300
Public-use Products
top panel
bottom panel.
Issued: April 2021

CIVIQ
Public-use Products
TM
Healthier, Happier
Communities
W civiq.com.au E [e-mail] P 1300 600 300
Aqual Hydrobank comes with optional sensor activation for
new units as well as a retrot option.
Sensor Activated units
Issued: April 2021

CIVIQ
Public-use Products
TM
Healthier, Happier
Communities
W civiq.com.au E [e-mail] P 1300 600 300
Sensor Activated units
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
A A
B B
C C
D D
E E
F F

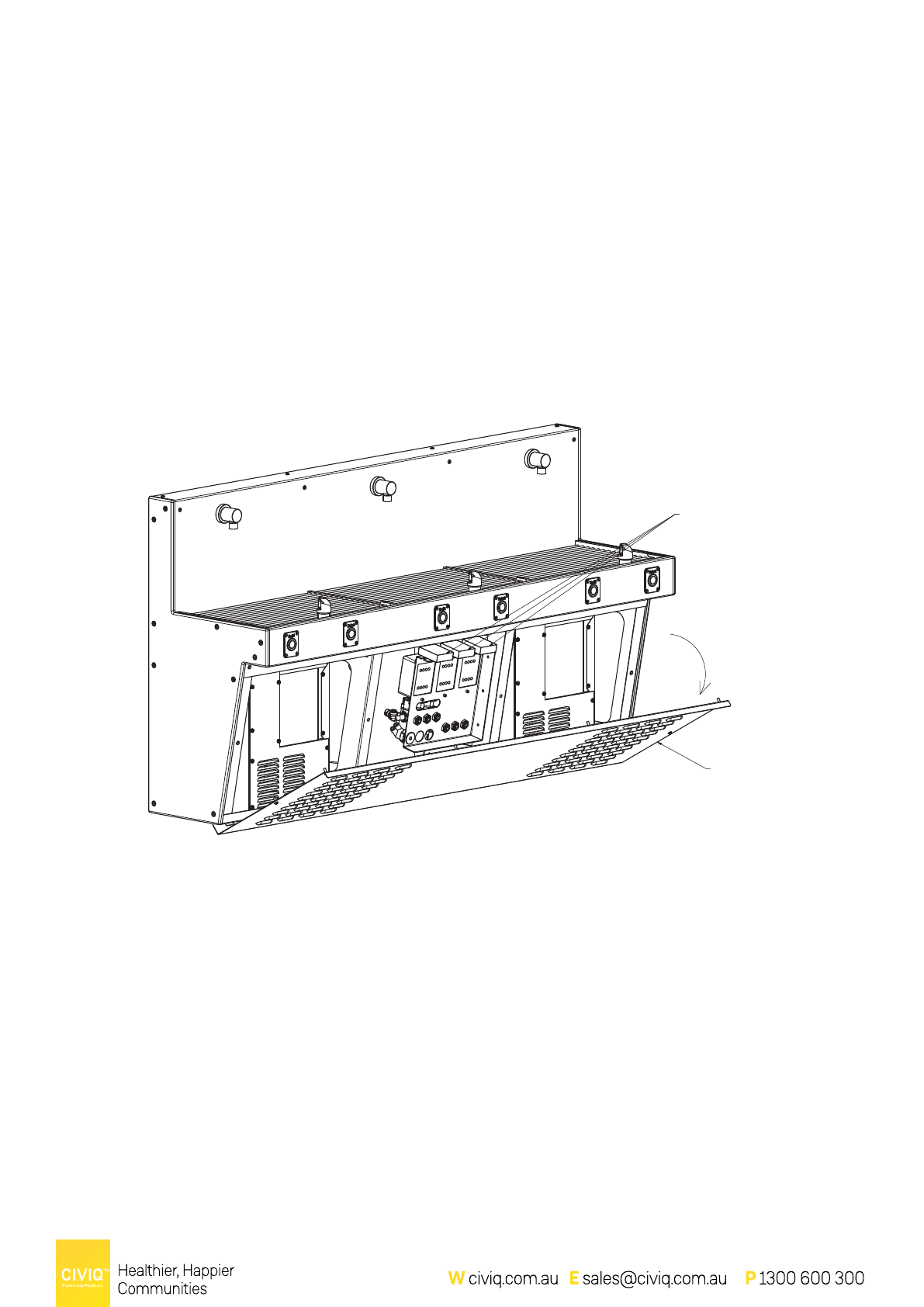

BATTERY BOXES
ACCESS TO BATTERY BOX
LOWER ACCESS PANEL
Remove the lower access panel to
access the battery box
Issued: April 2021

CIVIQ
Public-use Products
TM
Healthier, Happier
Communities
W civiq.com.au E [e-mail] P 1300 600 300
The Aqual Hydrobank is made with hard-wearing stainless steel, which means it can
withstand the harsh outdoor environment.
Regular maintenance is required to ensure that your product performs at 100% all of
the time.
Disclaimer: These instructions are for the Hydrobank v2 model onwards. If you have an older model
of the Hydrobank, please get in touch with our sales team for cleaning instructions.
Cleaning and Maintenance
Issued: April 2021

CIVIQ
Public-use Products
TM
Healthier, Happier
Communities
W civiq.com.au E [e-mail] P 1300 600 300
Stainless steel is easy to clean compared to many other materials. Washing with soap
or a mild detergent and warm water followed by a clean water rinse is usually quite
adequate for domestic and architectural equipment. An enhanced appearance will
be achieved if the cleaned surface is nally wiped dry. Specic methods of cleaning
are as in the table on the next page. These are recommendations only, and it must
be recognised that there are risks associated with all cleaning operations. All such
treatments must be evaluated by the user.
Recommendations for Cleaning of
Specific Products
PROBLEM CLEANING AGENT COMMENTS
Routine cleaning
All nishes
Soap or mild detergent and
water. (preferably warm)
Sponge, rinse with clean
water, wipe dry if
necessary. Follow polish
lines.
Fingerprints
All nishes
Soap and warm water or
organic solvent (eg acetone,
alcohol, methylated spirits)
Rinse with clean water and
wipe dry. Follow polish
lines.
Stubborn stains and
discolouration.
All nishes.
Mild cleaning solutions. Ensure
any proprietary cleaners state
compatibility with stainless
steel. Phosphoric acid cleaners
may also be effective.
Use rag, sponge or bre
brush (soft nylon or natural
bristle. An old toothbrush
can be useful). Rinse well
with clean water and wipe
dry. Follow polish lines.
Lime deposits from
hard water.
Solution of one part vinegar to
three parts water.
Soak in solution then brush
to loosen. Rinse well with
clean water.
Oil or grease marks.
All nishes.
Organic solvents (eg. acetone,
alcohol, methylated spirits,
proprietary “safety solvents”).
Baked-on grease can be
softened beforehand with
ammonia.
Clean after with soap and
water, rinse with clean
water and dry. Follow polish
lines.
Issued: April 2021

CIVIQ
Public-use Products
TM
Healthier, Happier
Communities
W civiq.com.au E [e-mail] P 1300 600 300
Aqual Hydrobank - Under Grill Cleaning Instructions
Issued: April 2021
1

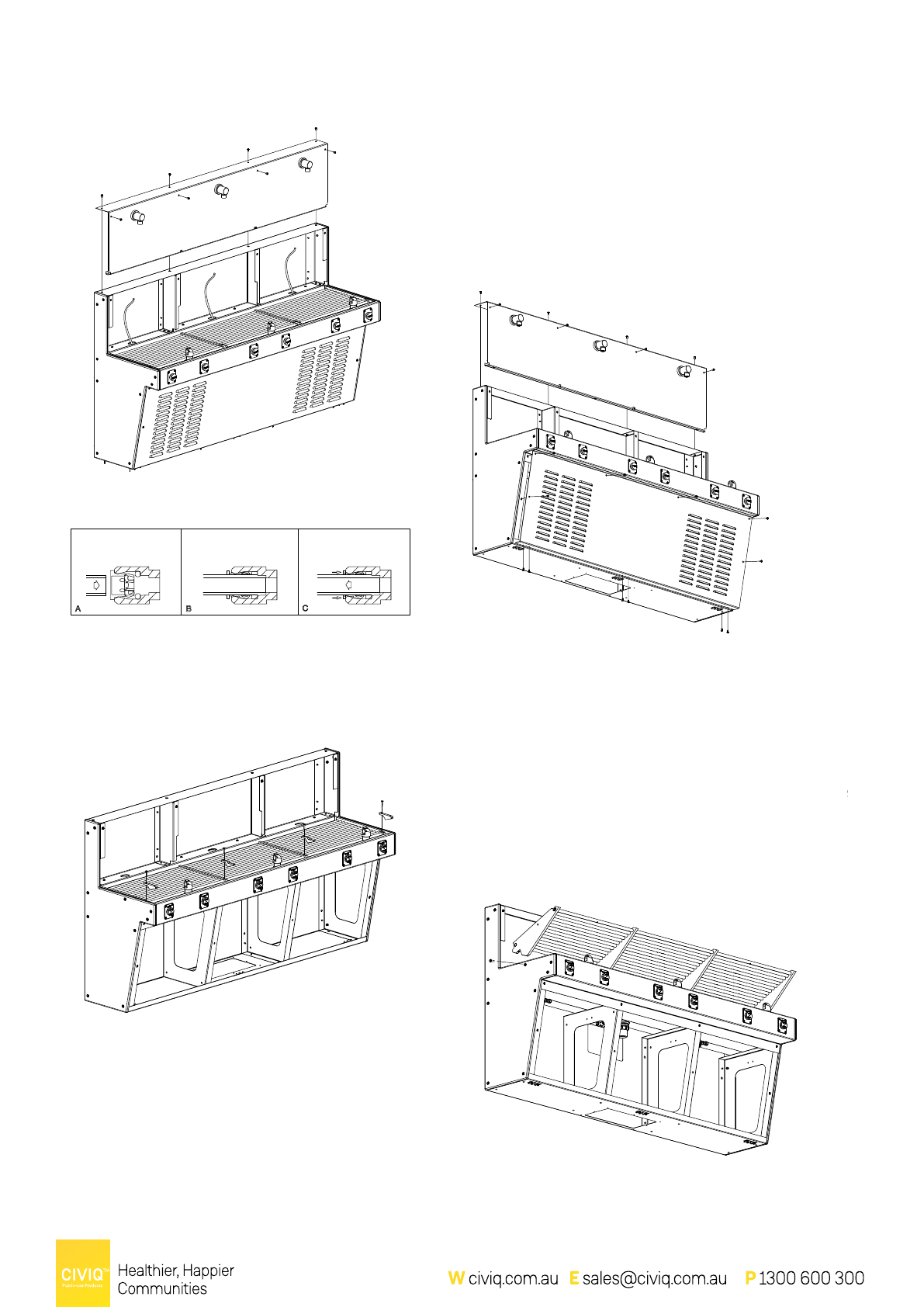

Remove the Top and Bottom panels by unscrewing
all M6 screws and M5 screws for the hinges.
When removing the Top Panel disconnect hoses
from the bottle refill nozzles.
Top Panel
Bottom
Panel
HYDROBANK ASSEMBLY INSTRUCTIONS
CIVIQ.DOC-14-01-2021-V2
2
Remove Metal Locks by unscrewing all 4 x M6
screws
Unscrew both Side Panels 2 x M6 and remove the
Grill
HYDROBANK ASSEMBLY INSTRUCTIONS
CIVIQ.DOC-14-01-2021-V2
Remove the Top and Bottom panels by unscrewing
all M6 screws and M5 screws for the hinges.
When removing the Top Panel disconnect hoses from
the bottle rell nozzles.
Remove Metal Locks by unscrewing all 4 x M6
screws
Unscrew both Side Panels 2 x M6 and remove the
Grill
OPERATION OF QUICK CONNECT FITTINGS
SIMPLY PUSH IN
TUBE TO ATTACH
TUBE IS SECURED
IN POSITION
PUSH IN COLLET
TO RELEASE TUBE
PSUHING TUBE IN BEFORE
PULLING IT OUT HELPS TO
RELEASE TUBE
Step 1.
Step 2.

CIVIQ
Public-use Products
TM
Healthier, Happier
Communities
W civiq.com.au E [e-mail] P 1300 600 300
Issued: April 2021
3

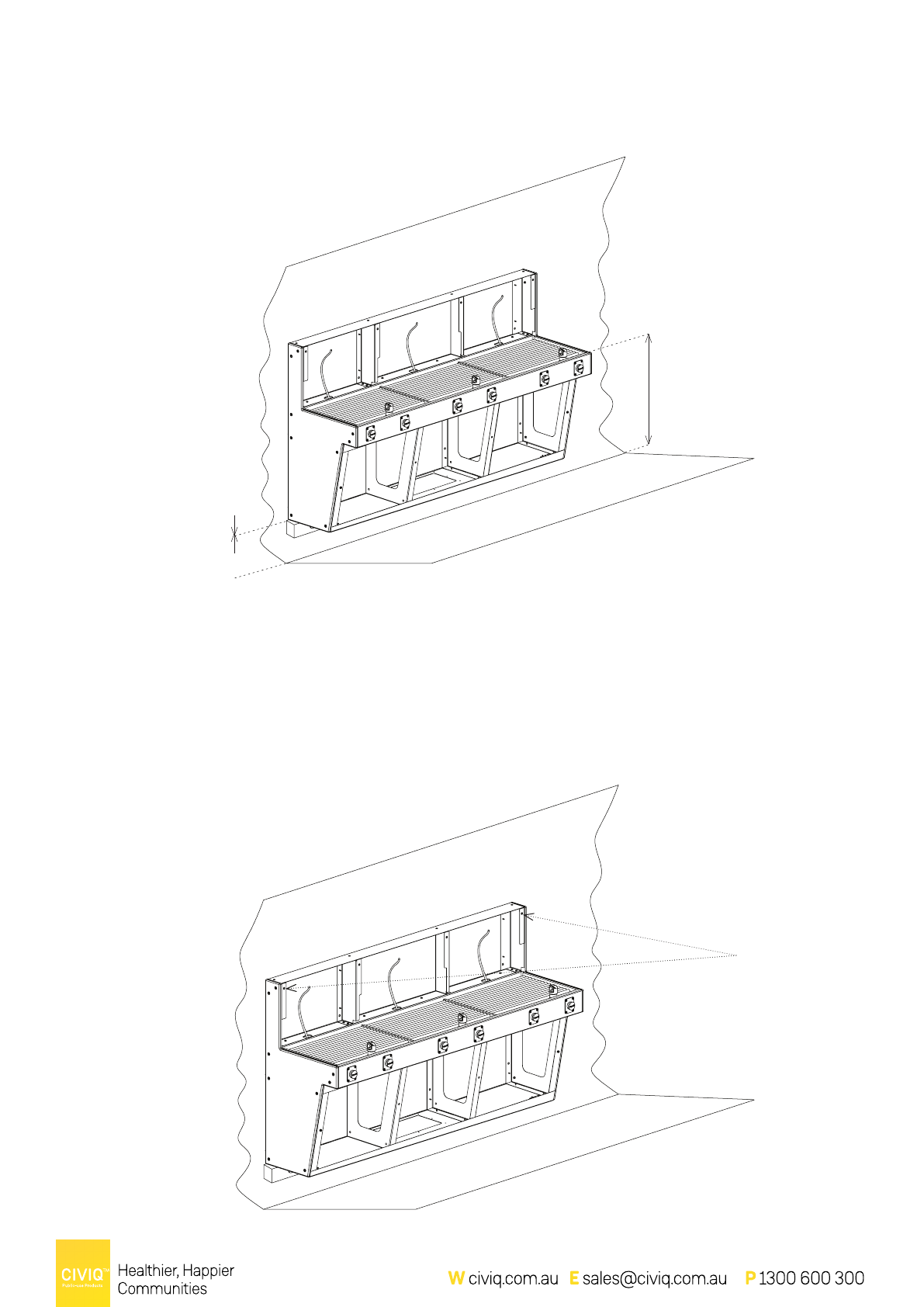

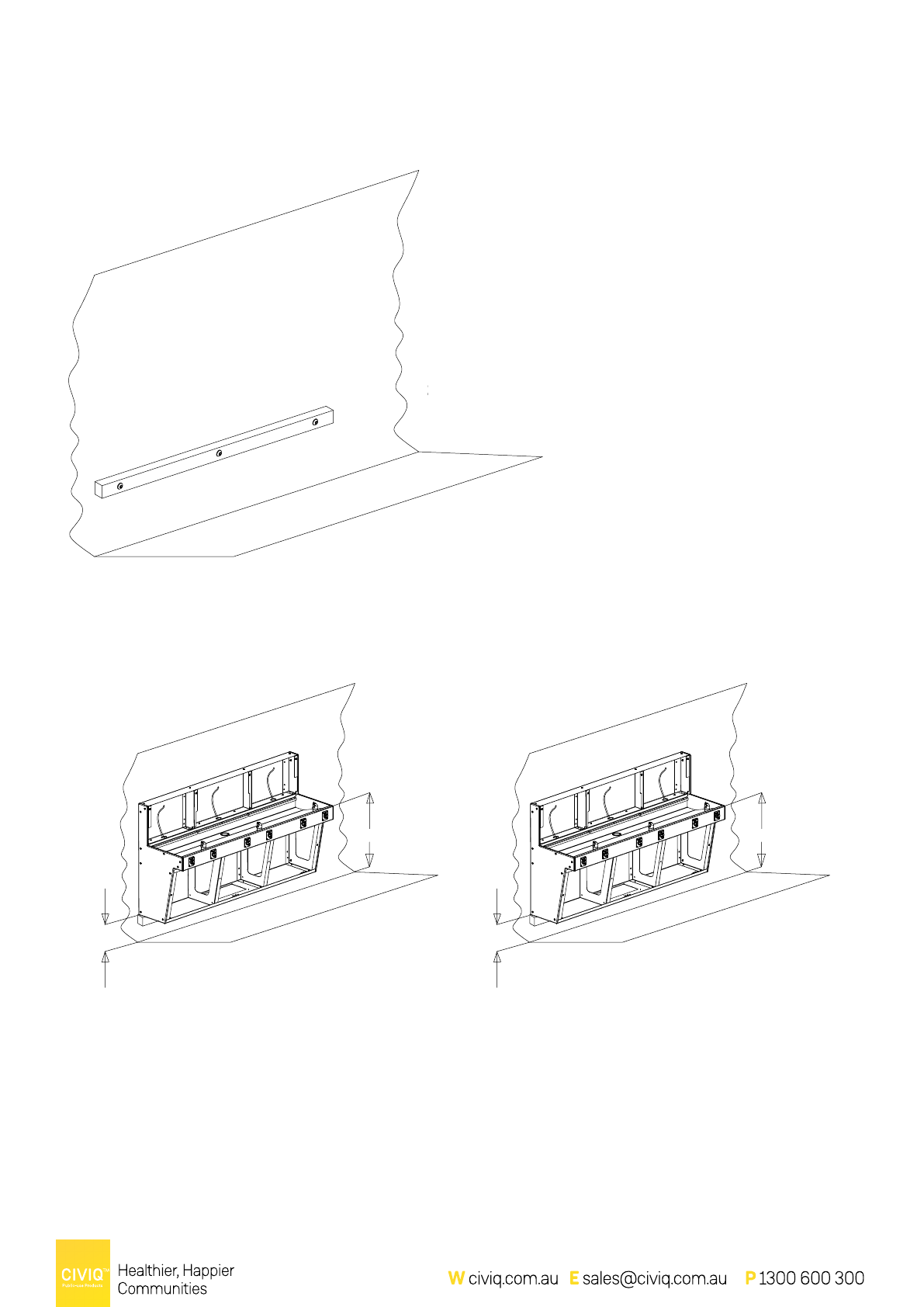

Screw a timber support to the wall. This will assist
you in resting the TMB unit while you mark out the
holes for the mounting screws.
Make sure timber is level.
See Step 4 for heights for timber.
HYDROBANK ASSEMBLY INSTRUCTIONS
CIVIQ.DOC-14-01-2021-V2
4
Height for Juniors at
700mm from ground
Timber 80mm
from the ground
Height for Seniors at
900mm from ground
Timber 280mm
from the ground
HYDROBANK ASSEMBLY INSTRUCTIONS
CIVIQ.DOC-14-01-2021-V2
Screw a timber support to the wall. This will assist
you in resting the TMB unit while you mark out the
holes for the mounting screws.
Make sure timber is level.
See Step 4 for heights for timber.
Height for Juniors at
700mm from ground
Height for Juniors at
700mm from ground
Timber 80mm
from the ground
Timber 280mm
from the ground
Step 4.
Step 3.

CIVIQ
Public-use Products
TM
Healthier, Happier
Communities
W civiq.com.au E [e-mail] P 1300 600 300
Issued: April 2021

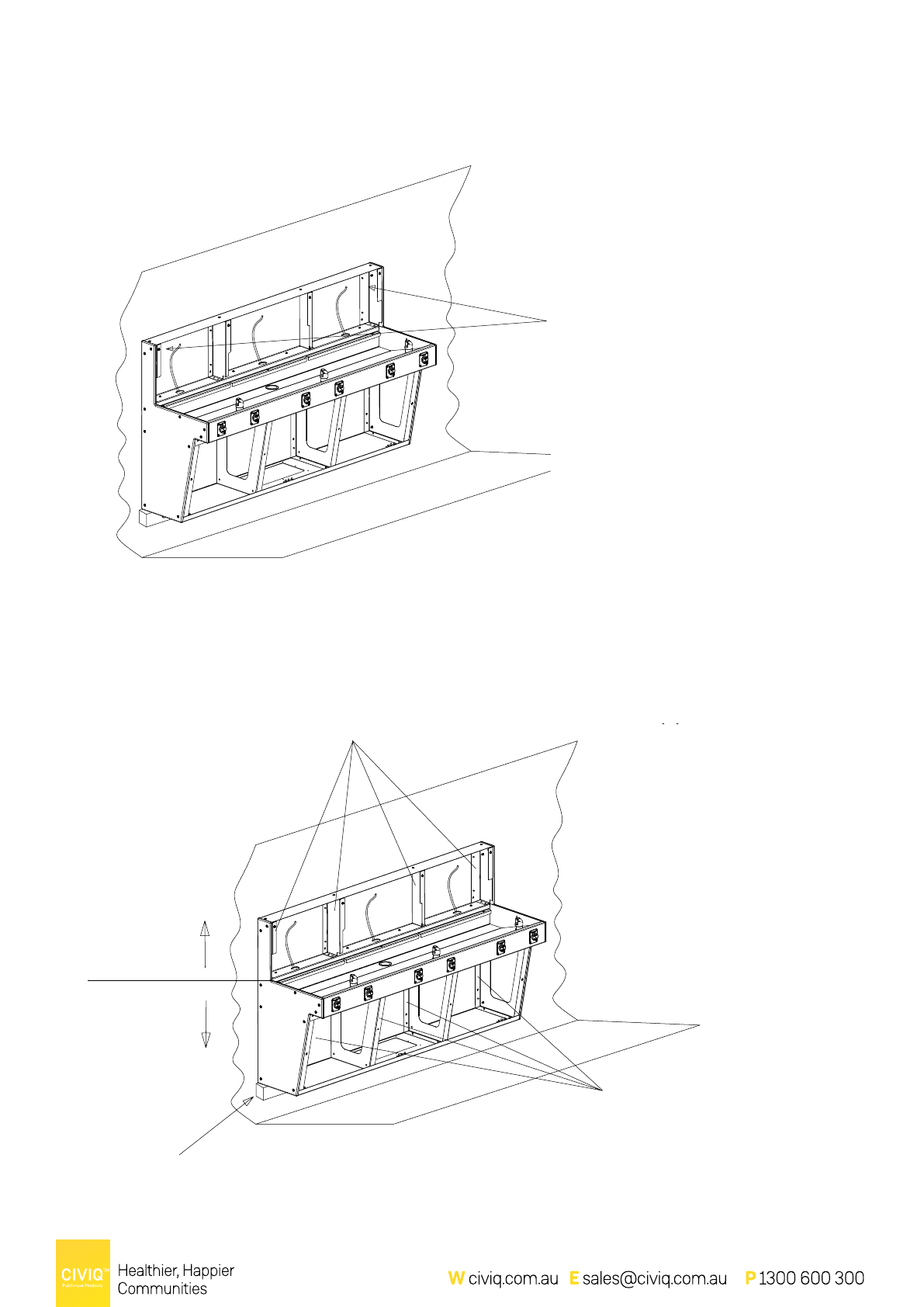

Drill & bolt to wall at 2 locations
to hold the unit in place to enable
drilling of all screw holes.
5
NOTE:
The following is a two-man
operation.
Place unit on pre-fixed timber
support.
See Step 6 for fixing details.
HYDROBANK ASSEMBLY INSTRUCTIONS
CIVIQ.DOC-14-01-2021-V2
Remove timber support after unit is
fixed to the wall.
6
NOTES:
- minimum fixings to the
wall is 4 bolts at the top
module (1 bolt per
bracket)
- minimum fixings to the
wall is 8 bolts at the
bottom module (2 bolts
per bracket)
TOP MODULE
BOTTOM
MODULE
Top Brackets
Bottom Brackets
HYDROBANK ASSEMBLY INSTRUCTIONS
CIVIQ.DOC-14-01-2021-V2
NOTE:
The following is a two-man
operation.
Place unit on pre-xed timber
support.
Drill & bolt to wall at 2 locations
to hold the unit in place to enable
drilling of all screw holes.
See Step 6 for xing details.
Top Brackets
Bottom Brackets
Remove timber support after unit is
xed to the wall.
NOTES:
• Minimum xings to the
wall is 4 bolts at the top
module (1 bolt per bracket)
• Minimum xings to the
wall is 8 bolts at the
bottom module (2 bolts per
bracket)
BOTTOM
MODULE
TOP MODULE
Step 6.
Step 5.

CIVIQ
Public-use Products
TM
Healthier, Happier
Communities
W civiq.com.au E [e-mail] P 1300 600 300
Issued: April 2021

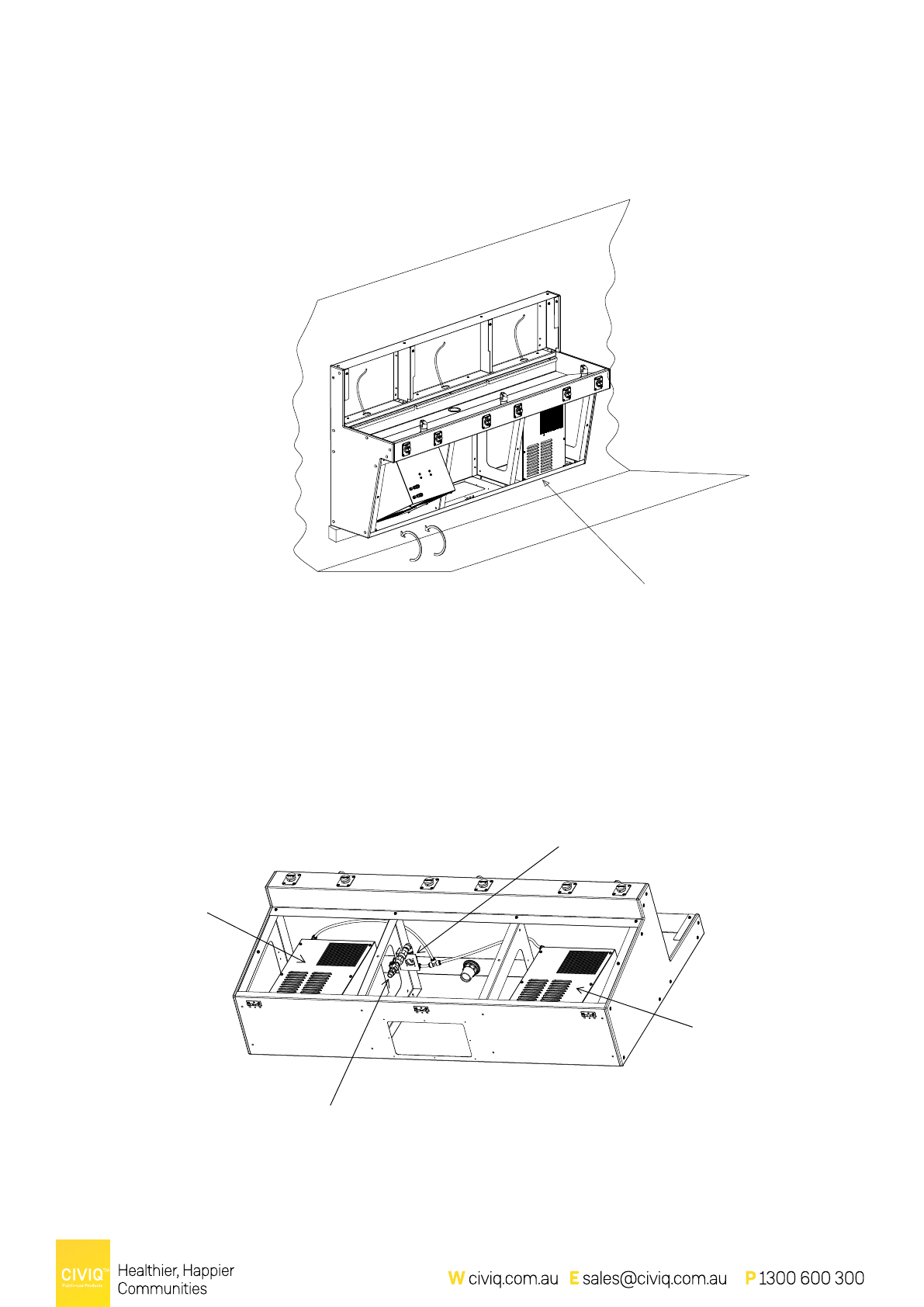

7FOR CHILLER OPTION:
Place the chiller at approximately 50°
angle then pull bottom forward and push
top back as shown by the arrows, until
unit is upright.
NOTES:
For water connection details please
see chiller installations for more
details.
Bring the chiller forward against inside lip
HYDROBANK ASSEMBLY INSTRUCTIONS
CIVIQ.DOC-14-01-2021-V2
8Water connection details:
Connect water to Chiller 1 and Chiller 2
and connect filter to filter head (for
filter models only) before connecting
to water mains.
12BSP WATER INLET
FILTER HEAD
CHILLER 1
CHILLER 2
HYDROBANK ASSEMBLY INSTRUCTIONS
CIVIQ.DOC-14-01-2021-V2
Step 8.
Step 7.
FOR CHILLER OPTION:
Place the chiller at approximately 50°
angle then pull bottom forward and push
top back as shown by the arrows, until
unit is upright.
Water connection details:
Connect water to Chiller 1 and Chiller 2
and connect lter to lter head (for
lter models only) before connecting
to water mains.
NOTES:
For water connection details please
see chiller installations for more
details.
Bring the chiller forward against inside lip
Filter Head
Chiller 2
1/2 BSP WATER INLET
Chiller 1

CIVIQ
Public-use Products
TM
Healthier, Happier
Communities
W civiq.com.au E [e-mail] P 1300 600 300
Issued: April 2021
9Reconnect hoses to the bottle refill
nozzles.
Place the Top Panel back use all 8 x
m6 screws
then put the Bottom Panels back on
HYDROBANK ASSEMBLY INSTRUCTIONS
CIVIQ.DOC-14-01-2021-V2
As an option place drain strainer*
10
*optional
HYDROBANK ASSEMBLY INSTRUCTIONS
CIVIQ.DOC-14-01-2021-V2
Reconnect hoses to the bottle rell
nozzles.
Place the Top Panel back use all 8 x
m6 screws
then put the Bottom Panels back on
As an option place drain strainer*
*Optional
Step 10.
Step 9.
OPERATION OF QUICK CONNECT FITTINGS
SIMPLY PUSH IN
TUBE TO ATTACH
TUBE IS SECURED
IN POSITION
PUSH IN COLLET
TO RELEASE TUBE
PSUHING TUBE IN BEFORE
PULLING IT OUT HELPS TO
RELEASE TUBE

CIVIQ
Public-use Products
TM
Healthier, Happier
Communities
W civiq.com.au E [e-mail] P 1300 600 300
Issued: April 2021
11
Place New Grill in an angle and slide the
plastics into the square slots.
Slide the Metal Locks into the square slots.
then tighten using 4 x M5 screws.
Screw both Side Panels 2 x M6
HYDROBANK ASSEMBLY INSTRUCTIONS
CIVIQ.DOC-14-01-2021-V2
Place New Grill in an angle and slide the
plastics into the square slots.
Slide the Metal Locks into the square slots.
then tighten using 4 x M5 screws.
Screw both Side Panels 2 x M6
Step 11.

- Drinking fountains and bottle refill stations
- Outdoor Showers
- Notice boards and Poster Displays
- Wayfinding Signage
- Bicycle Security and Repair Stations
- Handwashing stations
Other CIVIQ Products Other CIVIQ Services
- Customer design and manufacture
- Installation
- Maintenance
- Drinking fountains and bottle refill stations
- Outdoor Showers
- Notice boards and Poster Displays
- Wayfinding Signage
- Bicycle Security and Repair Stations
- Handwashing stations
Other CIVIQ Products Other CIVIQ Services
- Customer design and manufacture
- Installation
- Maintenance
- Drinking fountains and bottle refill stations
- Outdoor Showers
- Notice boards and Poster Displays
- Wayfinding Signage
- Bicycle Security and Repair Stations
- Handwashing stations
Other CIVIQ Products Other CIVIQ Services
- Customer design and manufacture
- Installation
- Maintenance
- Drinking fountains and bottle refill stations
- Outdoor Showers
- Notice boards and Poster Displays
- Wayfinding Signage
- Bicycle Security and Repair Stations
- Handwashing stations
Other CIVIQ Products Other CIVIQ Services
- Customer design and manufacture
- Installation
- Maintenance
- Drinking fountains and bottle refill stations
- Outdoor Showers
- Notice boards and Poster Displays
- Wayfinding Signage
- Bicycle Security and Repair Stations
- Handwashing stations
Other CIVIQ Products Other CIVIQ Services
- Customer design and manufacture
- Installation
- Maintenance
- Drinking fountains and bottle refill stations
- Outdoor Showers
- Notice boards and Poster Displays
- Wayfinding Signage
- Bicycle Security and Repair Stations
- Handwashing stations
Other CIVIQ Products Other CIVIQ Services
- Customer design and manufacture
- Installation
- Maintenance
Other CIVIQ Products Other CIVIQ Services
- Drinking fountains and bottle refill stations
- Outdoor Showers
- Notice boards and Poster Displays
- Wayfinding Signage
- Bicycle Security and repair Stations
- Handwashing Stations
- Custom design and manufacture
-Installation
-Maintenance
8-10 Giffard St
Silverwater
NSW 2128
Level 9
440 Collins St
Melbourne
VIC 3000
Level 54
111 Eagle St
Brisbane
QLD 4000
1/10 Albert Ave
Broadbeach
QLD 4218
48 Magpie St
Singleton
NSW 2330
CIVIQ.COM.AU 1300 600 300 [email protected]
Public-use Products
Who we’ve worked with
CIVIQ’s Brand Promises
Lead Free
Plumbing
Australian
Designed &
Manufactured
Custom
Design
Capacity
Ten Year
Structural
Warranty
Fully Certified
Products
