Honeywell Lyric Thermostat
Driver Release Notes
Content
Introduction......................................................................................................1
Installing the Lyric thermostat..........................................................................3
Connecting the Lyric thermostat to ClareHome...............................................4
Adding and removing the thermostat in ClareHome........................................4
Pairing and removing the thermostat in FusionPro........................................10
Contact information .......................................................................................15
Last modified: 11/19/20
Introduction
The Honeywell Lyric line is a set of smart thermostats. The Lyric thermostats
have been tested and certified for integration with the ClareHome system.
By integrating the Lyric thermostat to a ClareHome control system, your
customers can send commands to the thermostat to change its modes, cool and
heat settings, and fan status from their mobile iOS devices or Android
smartphone.
When integrating the Lyric thermostat into your ClareHome project, no wires or
extra connections are necessary. Install the Lyric according to its documentation,
and then connect it directly to home network’s Wi-Fi.
The Lyric thermostat integrates with the ClareHome system in a way similar to
existing HVAC drivers. All HVAC drivers share a common UI to keep user
experiences consistent.

DOC ID - 1579 • Rev 06 2 / 15
Supported Honeywell Lyric thermostats models
T-5 Smart
RCHT8610WF2006
RCHT8610WF2014
RCHT8610WF3005
RCHT8612WF2005
RCHT8612WF2015
RCHT8612WF3006
T-6 Pro Smart
TH6220WF2006
TH6320WF2003
T-9 Smart
RCHT9510WFW2001
RCHT9510WFW2017
RCHT9610WFSW2003
RCHT9610WFSW2019
Round Smart
TH8732WFH5002
RCH9310WF5003
RCH9310WF5011

DOC ID - 1579 • Rev 06 3 / 15
The Following figure shows the Lyric controls on the ClareHome UI.
Figure 1: User interface of the Honeywell Lyric thermostat
(1) Temperature setting displays on the ClareHome UI in Fahrenheit.
(2) Change the Heat set point by tapping the up/down arrow.
(3) Change the Cool set point by tapping the up/down arrow.
(4) Change the Operation mode by tapping the desired radio button.
(5) Change the Fan mode by tapping the desired radio button.
Installing the Lyric thermostat
A qualified installation technician should install the Lyric thermostat. Refer to the
documentation included with your Lyric devices. Clare Controls does not assume
any responsibility for damages caused by improper installation or connection to
the network. Register your thermostat on the Lyric website/app before adding
and configuring the device in the ClareHome app.

DOC ID - 1579 • Rev 06 4 / 15
Connecting the Lyric thermostat to ClareHome
Use the Honeywell Lyric app. Once the app is installed, follow the displayed on-
screen instructions for thermostat and account setup.
Adding and removing the thermostat in ClareHome
Once you have installed and setup the thermostat using the Honeywell Lyric app,
add and configure it with the ClareHome app.
Notes
•An internet connection is required when adding a Lyric device. It cannot be
added when the CLIQ.mini is in AP mode.
•You will need the homeowner’s Honeywell Lyric account credentials.
•The Honeywell Lyric thermostats must be added and configured on the
Honeywell website before they can be added to ClareHome.
To add the thermostat in the ClareHome app:
1. Tap the ClareHome app’s Devices page.

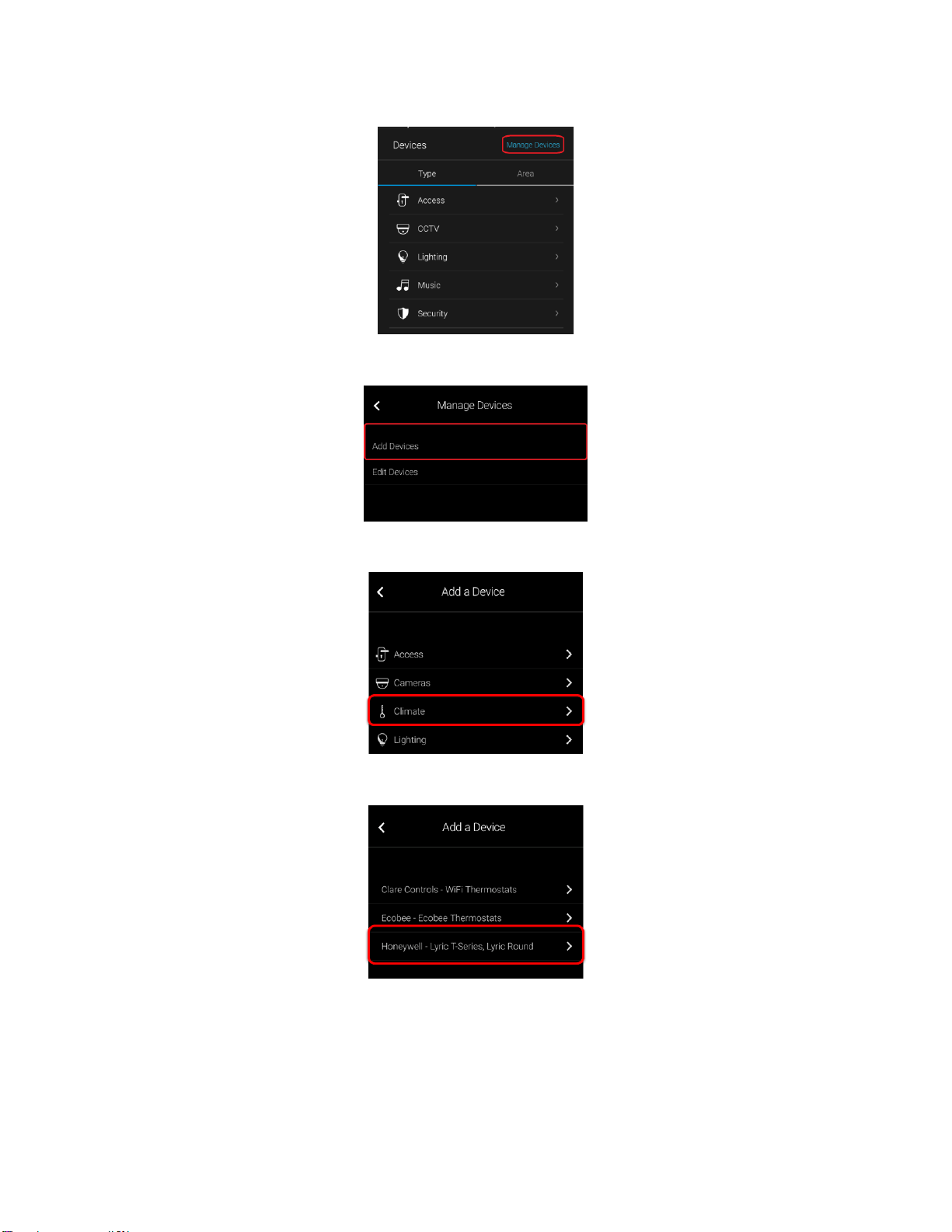

DOC ID - 1579 • Rev 06 5 / 15
2. Tap Manage Devices.
3. Tap Add Devices.
4. Select the device category, Climate.
5. Tap Honeywell –Lyric T-Series, Lyric Round.

DOC ID - 1579 • Rev 06 6 / 15
6. Read the displayed Device Authorization message, and then tap Authorize
Device.

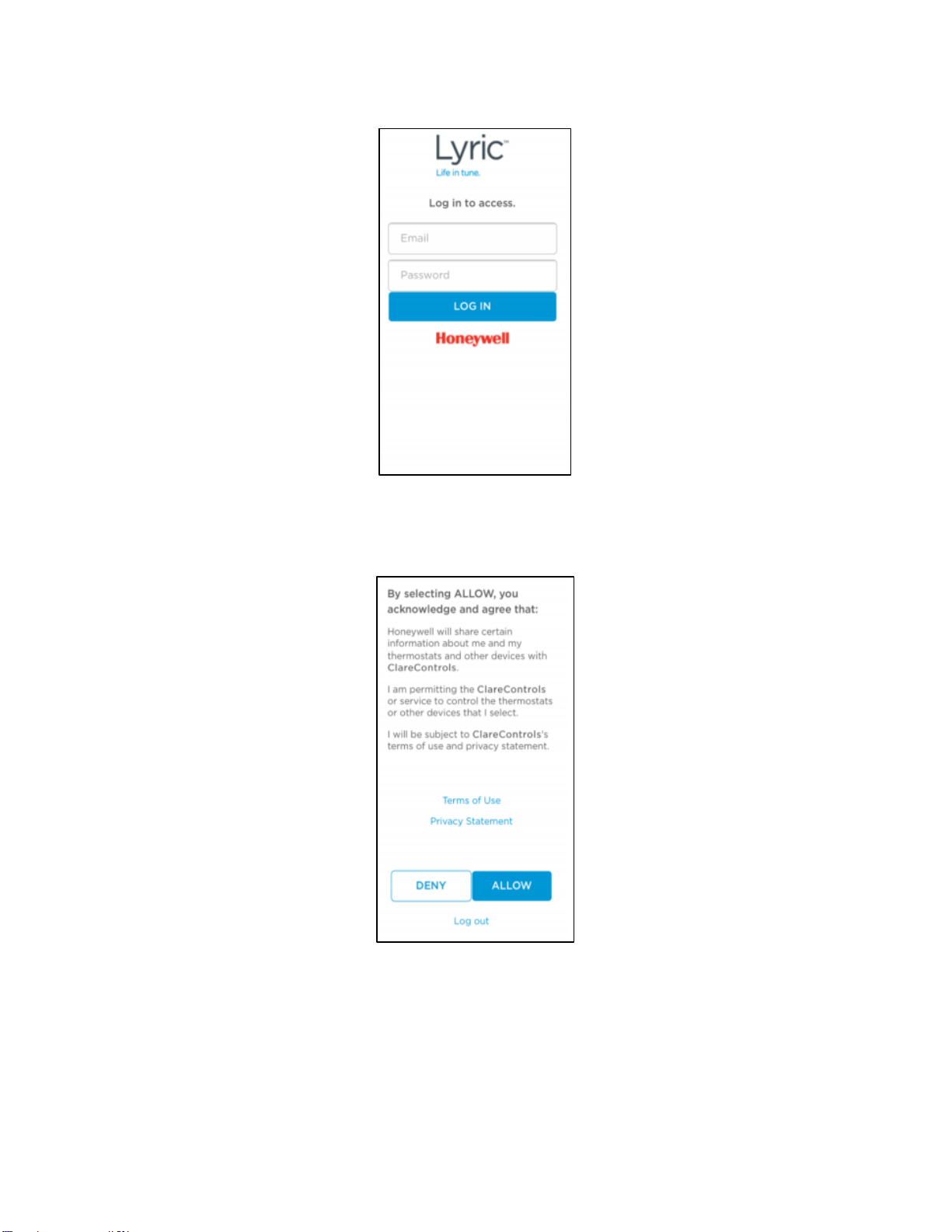

DOC ID - 1579 • Rev 06 7 / 15
The Lyric Login page displays.
7. Login with the credentials created using the Honeywell app.
You are prompted to authorize ClareHome access to the Honeywell
thermostat.
8. Tap Allow, and then select the desired available thermostat devices.

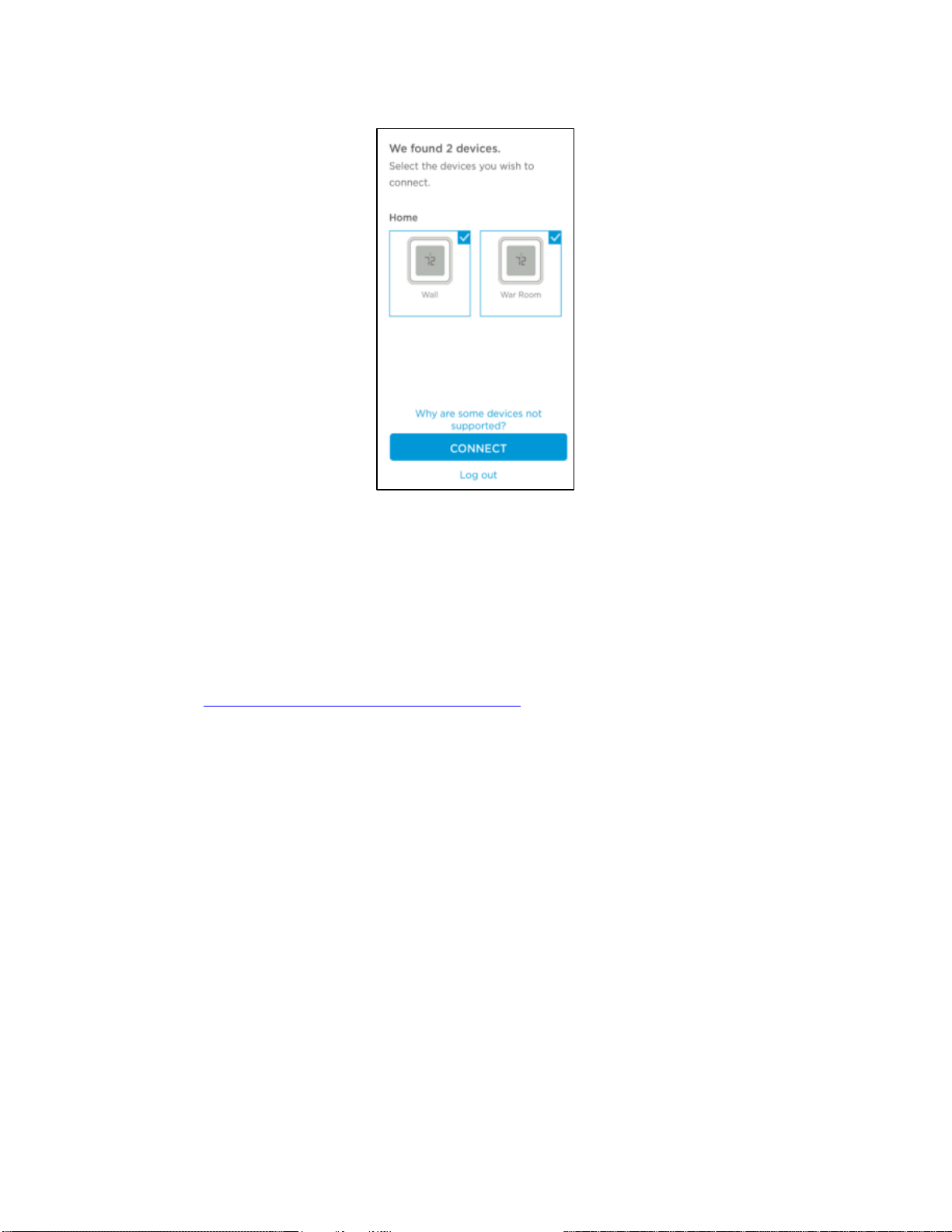

DOC ID - 1579 • Rev 06 8 / 15
Note: Each device added this way appears on this Clare Controls account.
9. Tap CONNECT.
Once the devices are authorized, a success message displays, the
thermostats are now accessible in the ClareHome app.
10.Once paired in, the Edit Device page displays.
Customize the device name and location as desired, tapping Save when
done.
Note: For scenes, notifications, schedules, and automations configuration,
see ClareHome App Guide (DOC ID 1750).

DOC ID - 1579 • Rev 06 9 / 15
To remove the thermostat in the ClareHome app:
1. Tap the ClareHome app’s Devices page.
2. Tap Manage Devices.
3. Tap Edit Devices.

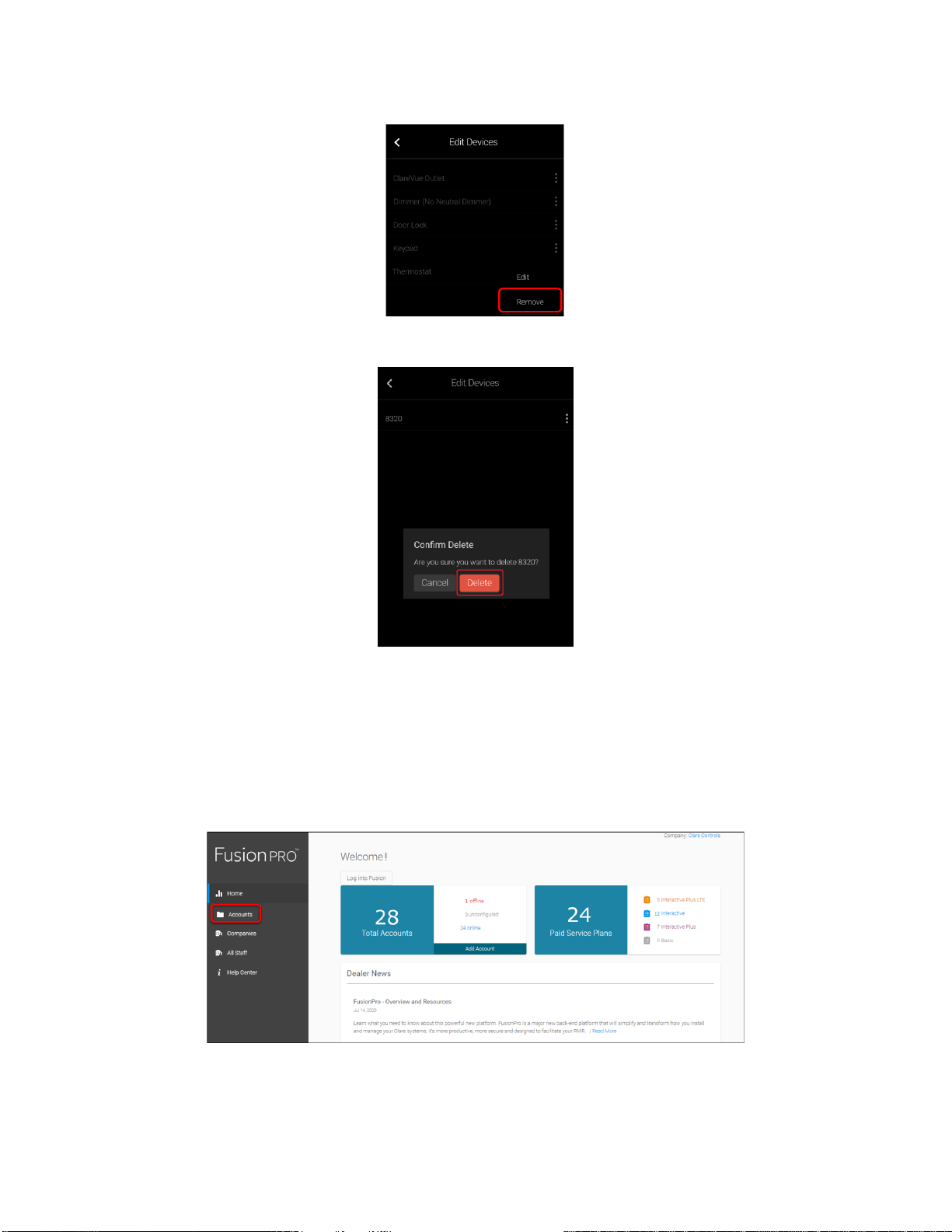

DOC ID - 1579 • Rev 06 10 / 15
4. Tap the 3 dots next to the thermostat, and then tap Remove.
5. Tap Confirm.
Pairing and removing the thermostat in FusionPro
Pair the thermostat to the project.
To add the thermostat in FusionPro:
1. Click Accounts in the side menu.

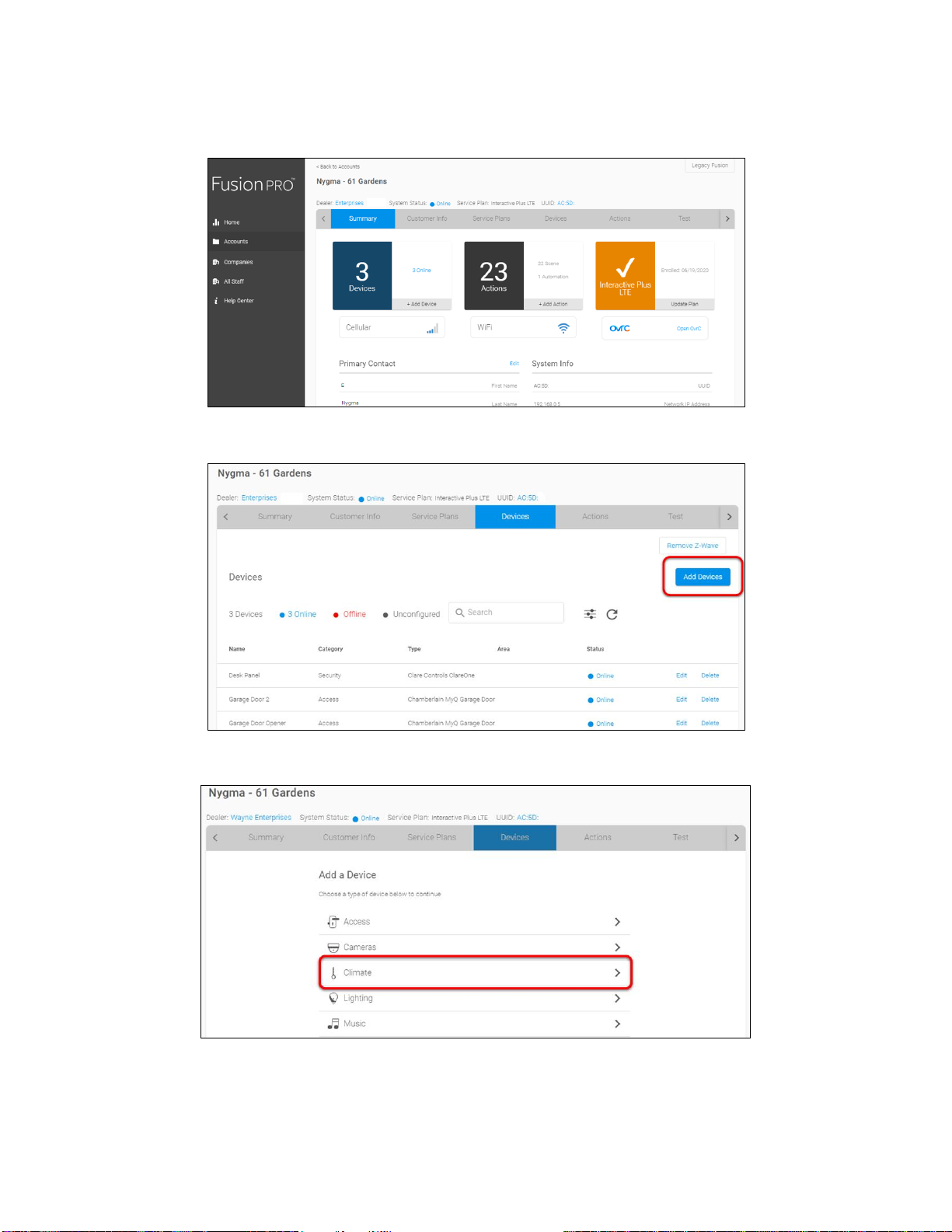

DOC ID - 1579 • Rev 06 11 / 15
2. Locate the desired account in the list, and then click View.
The Account sub-menu is now available.
3. Click the Devices tab, and then click Add Devices.
4. Select the device category (Climate).

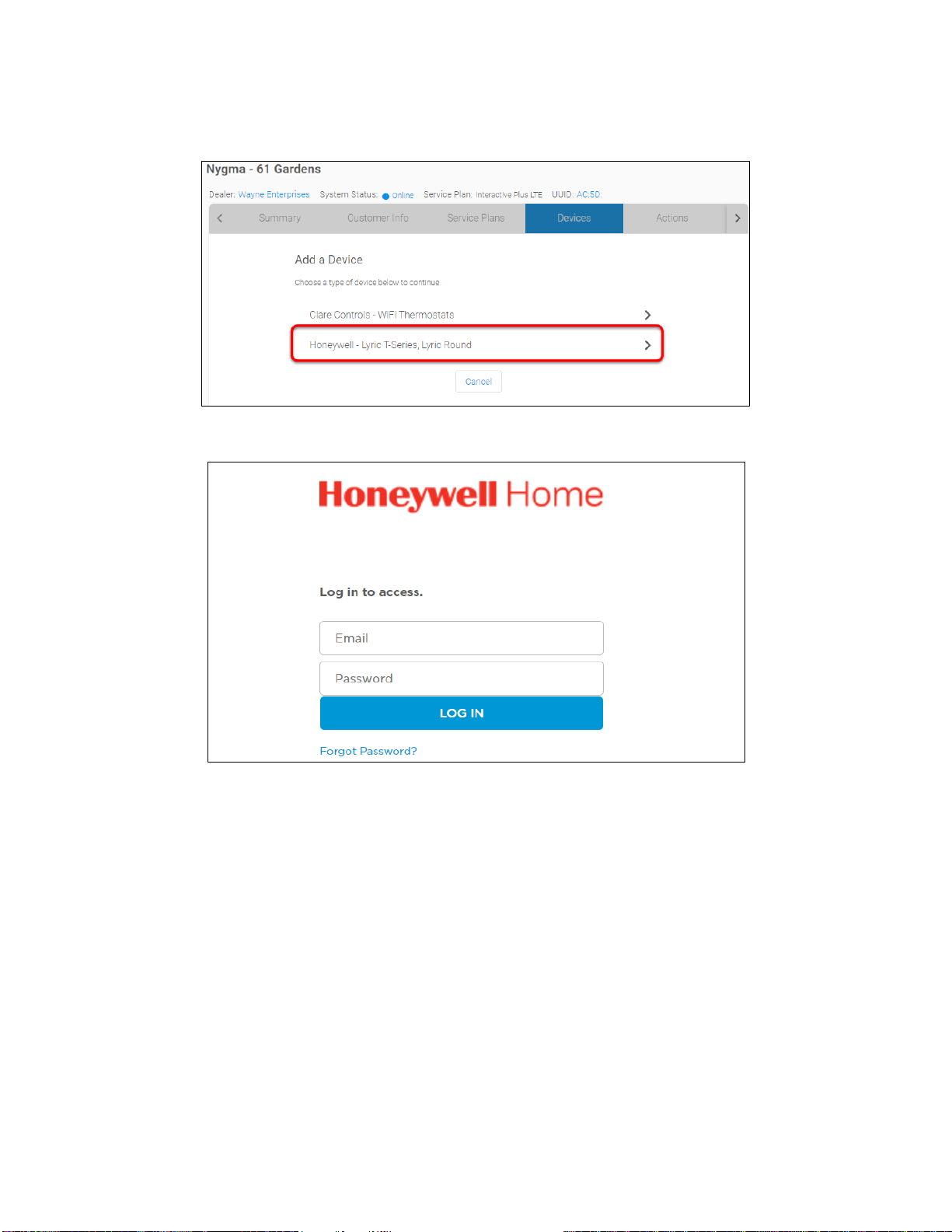

DOC ID - 1579 • Rev 06 12 / 15
5. Click Honeywell –Lyric T-Series, Lyric Round.
The Lyric Login page displays.
6. Login with the credentials created using the Honeywell app.
You are prompted to authorize ClareHome access to the Honeywell
thermostat.

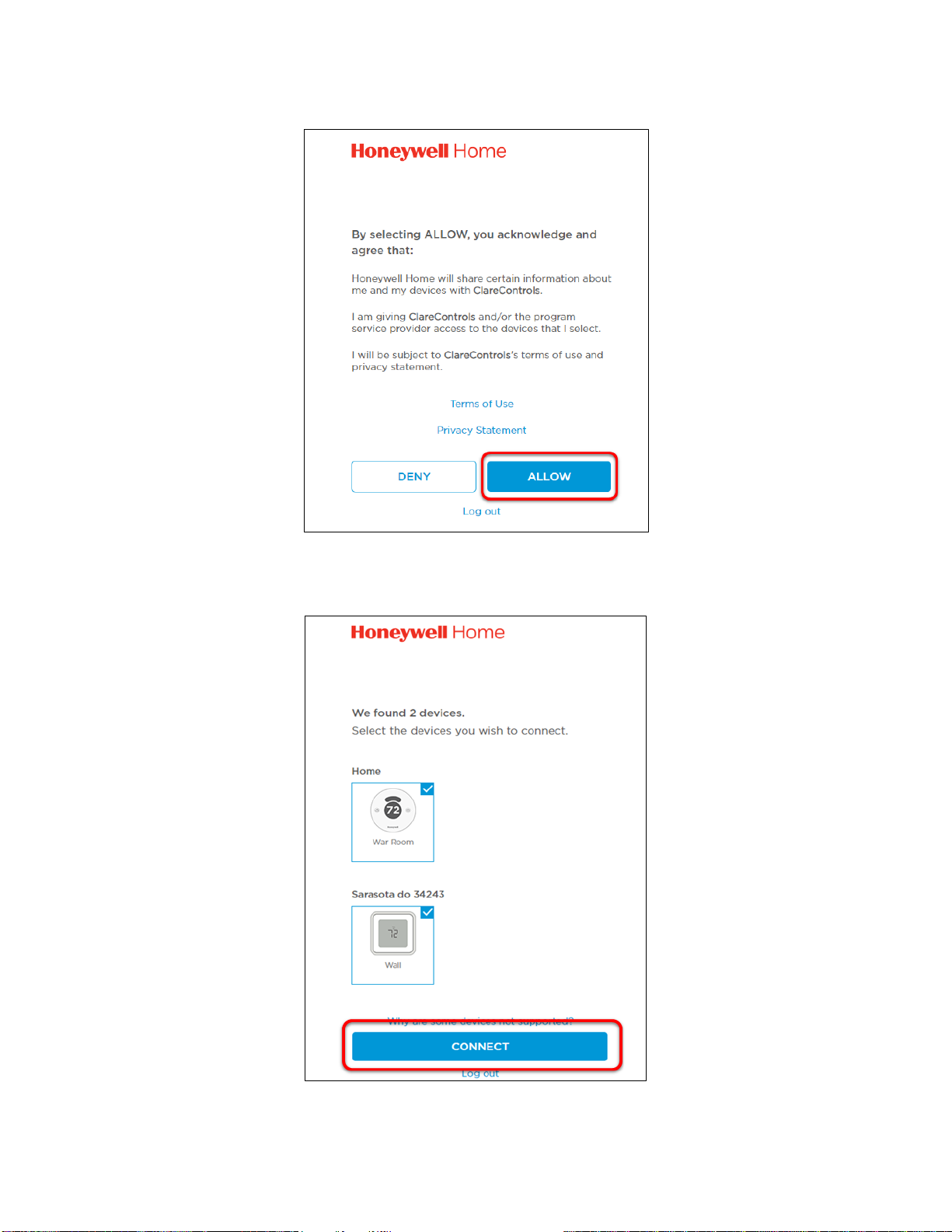

DOC ID - 1579 • Rev 06 13 / 15
7. Click Allow.
8. Select the desired available thermostat devices.
Note: Each device added this way appears on this Clare Controls account.
9. Click CONNECT.

DOC ID - 1579 • Rev 06 14 / 15
Once the devices are authorized, a success message displays, the
thermostats are now accessible in the ClareHome app.
10.Once paired in, the Edit Device page displays.
Customize the device name and location as desired, tapping Save when
done.
Note: For scenes, notifications, schedules, and automations configuration,
see ClareHome App Guide (DOC ID 1750).
To remove the thermostat with FusionPro:
1. Click Accounts in the side menu.
2. Locate the desired account in the list, and then click View.
The Account sub-menu is now available.

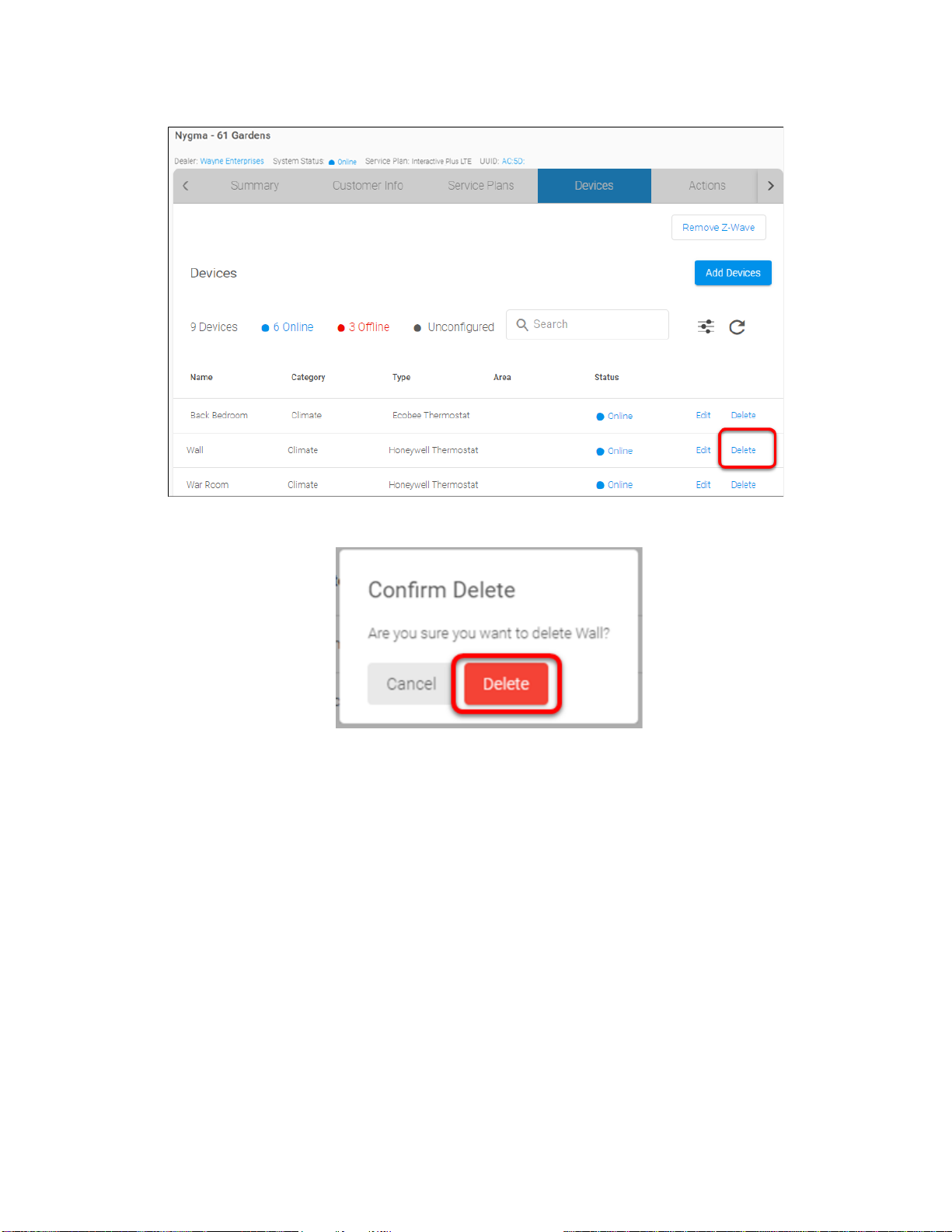

DOC ID - 1579 • Rev 06 15 / 15
3. Click the Devices tab, and then click Delete next to the desired device.
4. Click Delete to confirm.
