Owner's manual
Manual de instrucciones
DXZ47SMP
CD/MP3/WMA RECEIVER WITH CeNET CONTROL
AUTORADIO CD/MP3/WMA ICOMMANDE CaNET
RECEPTOR CD/MP3/WMA CON CONTROL CeNET

qui
~
'~A~I~~
READY
appareiis numeriques de Classe o.ux
RI"~
ID3TAG
une
en instructions,
il peut provoquer
sur les liaisons ro.ejIOiPh<Jmques. Ceci ne garantit par pour auto.nt qu'une installation r.~'rtI0! !llt~!"O
provoquera aucune !nterfen::n(~e.
Si des interferences sur 10. reception andes ou television,
peut mettant !'appareil hors tension puis sous tension, rutiliso.teuf invite
consulter son revendeur ou
un technicien exprimente en radio/television pour lui demander conseiL

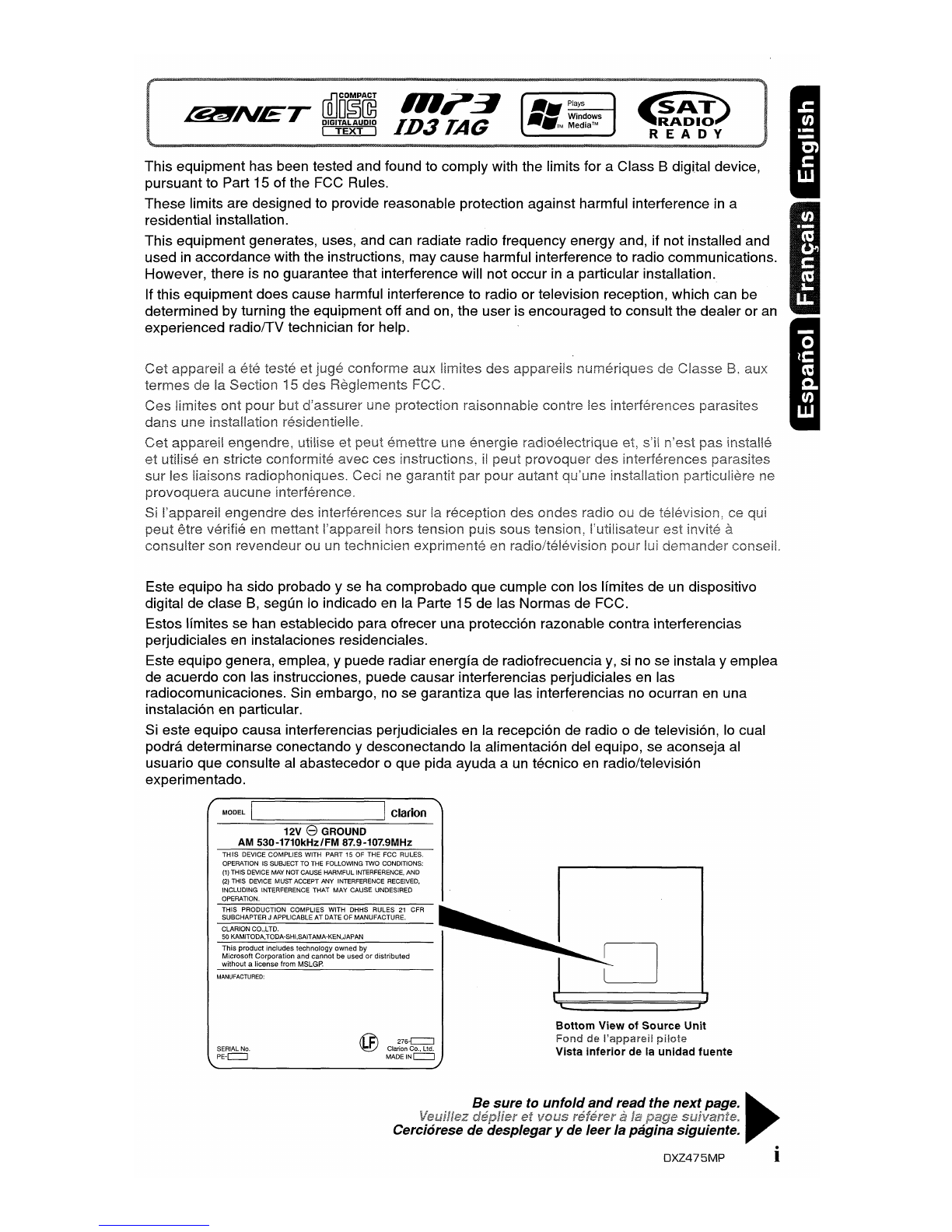

This equipment has been tested and found to comply with the limits for aClass Bdigital device,
pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a
residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in aparticular installation.
If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the
user is encouraged to consult the dealer or an
experienced radiolTV technician for help.
Este equipo ha sido probado yse ha comprobado que cumple con los Ifmites de un dispositivo
digital de
c1ase B, segun 10 indicado en la Parte 15 de las Normas de FCC.
Estos Ifmites se han establecido para ofrecer
una protecci6n razonable contra interferencias
perjudiciales en instalaciones residenciales.
Este equipo genera, emplea, ypuede radiar energia de radiofrecuencia
y, si no se instala yemplea
de acuerdo con las instrucciones, puede causar interferencias perjudiciales en las
radiocomunicaciones. Sin embargo, no se garantiza que las interferencias no ocurran en una
instalaci6n en particular.
Si este equipo causa interferencias perjudiciales en la recepci6n de radio 0de televisi6n, 10 cual
podra determinarse conectando ydesconectando la alimentaci6n del equipo, se aconseja al
usuario que consulte al abastecedor 0que pida ayuda aun tecnico en radio/televisi6n
experimentado.
MODEL IIclarion
12V eGROUND
AM 530-1710kHz/FM 87.9-107.9MHz
THIS DEVICE COMPliES WITH PART 15 OF THE FCC RULES.
OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS:
(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND
(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED,
INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED
OPERATION.
THIS PRODUCTION
COMPliES WITH DHHS RULES 21 CFR
SUBCHAPTER J APPliCABLE AT DATE OF MANUFACTURE.
CLARION CO.,LTD.
50 KAMITODA,TODA-SHI,SAITAMA-KEN,JAPAN
This product includes technology owned by
Microsoft Corporation and cannot be used or distributed
without alicense from
MSLGP.
SERIAL No.
PE-c:=J
276-c=J
Clarion Co., Ltd.
MADEINc=J
Bottom View of Source Unit
l'apparei!
Vista inferior de la unidad fuente
Be sure to unfold and read the next page. ~
VeuiJlez depUer et 'fIOUS referer ala page suivante.
Cerciorese de desplegaryde leerla
pagina siguiente.
DXZ475MP i

/Unidad fuente
With the FLIP DOWN PANEL opened / Ouvrez PANNEAU tHJuL.HWHUit._iI-
Apertura del PANEL ABATIBLE
Note: Be sure to unfold this page and refer to the front diagrams as you read each chapter.
Remarque: Veuifiez depf/er cette page et vaus rMerer aux schemas quand vaus fisez chaqu8 chap/trs.
Nota: Cuando lea los caprtulos, despliegue esta pagina y consulte los diagramas.
ii DXZ475MP

CLARION PRODUCT REGISTRATION INFORMATION
For USA and Canada only
www.clarion.com
Dear Customer:
Congratulations on your purchase of aClarion mobile electronic products. We are
confident that you'll enjoy your Clarion experience.
There are many benefits to registering your product. We invite you to visit our website at
www.clarion.com to register your Clarion product.
We have made product registration simple with our easy to use website. The registration
form is short and easy to complete. Once you're registered, we can keep you informed of
important product information.
Register at www.clarion.com -it's easy to keep your Clarion product
up to date.
INFORMATIONS DE L'ENREGISTREMENT DE PRODUITS CLARION
Pour les Etas Unis et Ie Canada seulement
www.clarion.com
Cher client:
Nous vous remercions d'avoir achete ce produit electronique mobile Clarion. Nous
sommes confiants que vous apprecierez votre experience Clarion.
II y a beaucoup d'avantage aenregistrer votre produits. Nous vous invitons avisiter notre
site Web www.clarion.com pour enregistrer votre produit Clarion.
Nous avons facilite la tache d'enregistrement de produit simple et facile grace anotre
site Web.
Le formulaire d'enregistrement est court et facile acompleter. Lorsque vous
etes enregistrer, nous pouvons vous tenir informe des informations important de produits.
Enregistrer awww.clarion.com -c'est facile de mettre ajour votre produit Clarion.
INFORMACIONDEL REGISTRO DE PRODUCTO DE CLARION
Para USA YCanada nomas
www.clarion.com
Querido Cliente:
Felicitaciones por
su compra de producto electr6nico m6vil de Clarion. Estamos seguros
que usted gozara de
su experiencia con el producto de Clarion.
Hay muchas ventajas
al registrar su producto. Le invitamos aque visite nuestro sitio en
internet www.clarion.com para registrar su producto de Clarion.
Hemos hecho el registro de producto facil en nuestro sitio. La forma de registro es corta
yfacil de completar. Una vez que
10 registre, podremos proporcionarle la informaci6n de
su producto.
Registrese
en www.clarion.com -es facil mantener su producto de Clarion actualizado.
iii DXZ475MP

Thank you for purchasing this Clarion product.
*Please read this owner's manual in its entirety before operating this equipment.
*After reading this manual, be sure to keep it in ahandy place (e.g., glove compartment).
*Check the contents of the enclosed warranty card and keep it carefully with this manual.
*This manual includes the operating procedures of the iPod® interface, CD/DVD changer, Satellite
Radio Receiver and TV tuner connected via the CeNET cable. The iPod interface,
CD/DVD changer
and TV tuner have their own manuals, but no explanations for operating them are described.
"iPod" is atrademark of Apple Computer, Inc., registered in the U.S. and other countries.
Contents
CONTROLS..........•................................................................................................•.....•.......................... ii
1. FEATURES ~ 2
2. PRECAUTIONS 2
Flip Down Panel ~ 2
Handling Compact Discs 3
3. NOMENCLATURE ' 4
Names of the Buttons and Their Functions 4
Display Items 5
LCD Screen 5
4. DCP 6
5. REMQTE CONTROL 7
Inserting the Battery 7
Functions of Remote Control Unit Buttons 8
6. OPERATIONS 10
Basic Operations 10
Radio Operations 13
CD/MP3/WMA Operations 15
Operations Common to Each Mode 19
7. OPERATIONS OF ACCESSORIES .........................................................................................•.... 22
iPod BB Operations 22
Satellite Radio Operations 24
CD Changer Operations 26
DVD Changer Operations 27
TV Operations
~ 27
8. IN CASE OF DIFFICULTV 28
9. ERROR DISPLA VS 29
10. SPECIFICATIONS 30
DXZ475MP 1

•Flip Down High Visibility 2-Line Display
•4ch/4V RCA Output
•Built-in LPF/HPF
2. RRBCAUTIONS
1. When the inside of the car is very cold and
the player is used soon afterswitching on the
heater moisture may form on the disc or the
optical parts of the player and proper
playback may not be possible. If moisture
forms on the disc, wipe it off with asoft cloth.
If moisture forms on the optical parts of the
player, do not use the player for about one
hour. The condensation will disappear
naturally allowing normal operation.
2. Driving on extremely bumpy roads which
cause severe vibration may cause the sound
to skip.
3. This unit uses aprecision mechanism. Even
in the event that trouble arises, never open
the case, disassemble the unit, or lubricate
the rotating parts.
Flip Down Panel
USE OF CONTROLS, ADJUSTMENTS, OR
PERFORMANCE OF PROCEDURES OTHER
THAN THOSE SPECIFIED HEREIN, MAY
RESULT IN HAZARDOUS RADIATION
EXPOSURE.
THE COMPACT DISC PLAYER SHOULD NOT
BE ADJUSTED OR REPAIRED BY ANYONE
EXCEPT PROPERLY QUALIFIED SERVICE
PERSONNEL.
CHANGES OR MODIFICATIONS NOT
EXPRESSLY APPROVED BY THE
MANUFACTURER FOR COMPLIANCE
COULD VOID THE USER'S AUTHORITY TO
OPERATE THE EQUIPMENT.
INFORMATION FOR USERS:
CHANGES OR MODIFICATIONS TO THIS
PRODUCT NOT APPROVED BY THE
MANUFACTURER
WILL VOID THE
WARRANTY AND
WILL VIOLATE FCC
APPROVAL.
.When
opening and closing the FLIP DOWN
PANEL, be careful
not to catch your fingers.
They
could be injured.
1. Always use this unit with the FLIP DOWN
PANEL closed.
2. Do not force operations or use this device
abnormally when opening
or closing the
FLIP DOWN PANEL.
This unit uses aflip-down structure that makes possible large-size displays.
3. Do not use the FLIP DOWN PANEL as atray
to place objects on when it is open.
4. When closing the FLIP DOWN PANEL, do
not press the [OPEN] button.
5. Strong impacts to the operating or display
section can cause damage or deformation.
6. If the FLIP DOWN PANEL does not open
fully, gently open it with your hand.
2DXZ475MP

Handling Compact Discs
Use only compact discs bearing the ~~~ or
ffi]D~@ mark.
~
Do not play heart-shaped, octagonal, or other
specially shaped compact discs.
Some CDs recorded"in CD-R/CD-RW mode
may not be usable.
Handling
•Compared to ordinary music CDs, CD-R and
CD-RW discs are both easily affected by high
temperature and humidity and some of CD-R
and CD-RW discs may not be played.
Therefore, do not leave them for along time
in the car.
•New discs may Ball-point pen
have some
roughness Roughness
around the
edges. If such
discs are used,
the player may
not work or the
sound may
skip. Use aball-point pen or the like to
remove any roughness from the edge of the
disc.
•Never stick labels on the surface of the
compact disc or mark the surface with a
pencil or pen.
•Never
playa compact disc with any
cellophane tape or other glue on it or with
peeling off marks. If you try to play such a
compact disc, you may not be able to get it
back out of the CD player or it may damage
the CD player.
•Do not use compact discs that have large
scratches, are misshapen, cracked, etc. Use
of such discs may cause misoperation or
damage.
•To remove acompact disc from its storage
case, press down on the center of the case
and lift the disc out, holding it carefully by the
edges.
•Do not use commercially available CD
protection sheets or discs equipped with
stabilizers, etc. These may damage the disc
or cause breakdown of the internal
mechanism.
Storage
•Do not expose compact discs to direct
sunlight or any heat source.
•Do not expose compact discs to excess
humidity or dust.
•Do not expose compact discs to direct heat
from heaters.
Cleaning
To remove fingermarks and dust, use asoft
cloth and wipe
in astraight line from the
center of the compact disc to the
circumference.
Do not use any solvents, such as
commercially available cleaners, anti-static
spray, or thinner to clean compact discs.
After using special compact disc cleaner, let
the compact disc dry off well before playing
it.
DXZ475MP 3

3. NOMENClATURE
Note:
•Be sure to read this chapter referring to the front diagrams of chapter {{CONTROLS" on page ii (unfold).
Names of the Buttons and Their Functions
[OPEN] button
•Deeply push in [OPEN] button to unlock the
flip down panel.
[DIRECT] buttons
•Store astation into memory or recall it directly
while
in the radio mode.
[SCN] button
•Perform scan play for 10 seconds of each
track while
in the CD/MP3IWMA mode.
•Press and hold the button for 1second or
longer to perform folder scan play while
in the
MP3IWMA mode.
[RPT] button
•Perform repeat play while in the CD/MP3/
WMAmode.
•Press and hold the button for 1second or
longer to perform folder repeat play while
in
the MP3IWMA mode.
[ROM] button
•Perform random play while in the CD/MP3/
WMAmode.
•Press and hold the button for 1second or
longer to perform folder random play while
in
the MP3IWMA mode.
[SRC] button
•Press the button to turn on the power.
•Press and hold the button for 1second or
longer to turn off the power.
•Switch the operation mode among the radio
mode, etc.
[~J~] button
•Perform preset scan while in the radio mode.
When the button is pressed and held, auto
store is performed.
•Play or pause atrack while
in the CD/MP3/
WMAmode.
•Confirm various settings.
[IR RECEIVER]
•Receiver for remote control unit. (Operating
range: 30°
in all directions)
[AUX] input jack
•The input jack for connecting an external
device.
4DXZ475MP
[ROTARY] knob
•Adjust the volume by turning the knob
clockwise
or counterclockwise.
[BND] button
•Switch the band, or seek tuning or manual
tuning while
in the radio mode.
•
Playa first track while in the CD/MP3IWMA
mode.
•Press the button to change the character.
[.I'] (SOUND) button
•Use the button to switch to the sound adjust
mode.
•Press and hold the button for 1second or
longer to turn
on or off the MAGNA BASS
EXTEND mode.
[DISP] button
•Switch the display indication.
•Press and hold the button for 1second or
longer to enter the adjust mode.
[ISR] but.ton
• RecalliSR radio station in memory.
•Press and hold the button for 2seconds or
longer: Store current station into ISR memory
(radio mode only).
[~], [~] buttons
•Select astation while in the radio mode or
select atrack while
in the CD/MP3IWMA
mode.
This button is used to make various settings.
•Press and hold the button for 1second or
longer to enter the fast-forward or fast-
backward mode.
[~] (UP), [T] (ON) buttons
•Select the folder while in the MP3IWMA
mode.
• Use the buttons to perform various settings.
[~] (EJECT) button
•Eject adisc when it is loaded into the unit.
[CD SLOT]
•CD insertion slot.

\,
,.
\.
,.
II
,.
"
I.
II
Operation status indication
Titles, Source, function, setting, clock, etc.
are displayed.
..... ..
..... .
..... .
. .... ..........
H.H H.H H.H H.H H.H H.H H.H H.H H.H H.H
..................................................
..... .
..... .
..... ..
Operation status indication
Titles, frequency, band, channel,
play time, etc. are displayed.
DisplayItems
III STilI :Stereo indication
~
~x :MAGNA BASS EXTEND indication
EI!lD :Mute indication
.&..:Z-Enhancer indication
~~~
:Disc No. indication
:Preset channel indication
(1 to 6)
:Satellite indication
:Channel indication
:Category indication
:Disc or Folder random/repeat/scan indication
:Random indication
:Repeat indication
:Scan indication
:MP3 indication
:WMA indication
:Manual indication
:Enter indication
SAT
[Q[)
ICATI
C:~:
LRPT
L
SCN
MANU
m:o
~
~
LCD Screen
In extreme cold, the screen movement may slow down and the screen may darken, but this is normal.
The screen will recover when it returns to normal temperature.
DXZ475MP 5

4. OCR
The control panel can be detached to prevent
theft. When detaching the control panel, store it
in the DCP (DETACHABLE CONTROL PANEL)
case to prevent scratches.
We recommend taking the DCP with you when
leaving the car.
Removing the DCP
1. Press the [SRC] button for 1second or
longer to turn off the power.
2. Deeply push in [OPEN] button to unlock the
flip down panel.
*If the flip down panel does not open fully,
gently open it with your hand.
3. Pull the DCP toward you and remove it.
4. Close the HOLD FLAP.
Be sure to close the HOLD FLAP for safety
when removing the DCP.
6DXZ475MP
Attaching the DCP
1. Insert the right side of the DCP into the main
unit.
2. Insert the left side of the DCP into the main
unit.
Storing the DCP in the DCP Case
Hold the DCP, in the orientation as shown in the
figure below, and put it into the supplied DCP
case. (Ensure the DCP is
in the correct
orientation.)
•The DCP can easily be damaged by
shocks. Afterremoving it, be careful not to
drop it or subject it to strong shocks.
• If the FLIP DOWN PANEL is kept open, the
DCP may drop due to vibration of the car.
This results in damage to the DCP. So
close the FLIP DOWN PANEL or remove
the DCP to store into the case.
•The connector connecting the source unit
and the DCP is an extremely important
part. Be careful not to damage it by
pressing on it with fingernails,
screwdrivers, etc.
Note:
• If the DCP is dirty, wipe off the dirt with asoft, dry
cloth only.

s. RE::MOTE:: CONTROL
Inserting the Battery
CD Turn over the remote control unit and slide
the cover in the direction indicated by the
arrow in the illustration.
®Insertthe battery (CR2025) into the insertion
guides, with the printed side (+) facing
upwards.
®Press the battery in the direction indicated by
the arrow so that it slides into the
compartment.
@Replace the cover and slide in until it clicks
into place.
Notes:
Misuse may result in rupture of the battery,
producing leakage
of fluid and resulting in personal
injury or damage to surrounding materials. Always
follow these safetyprecautions:
•Use only the designatedbattery.
•When replacing the battery, insertproperly, with
+/- polarities orientedcorrectly.
•Do
not subjectbattery to heat, or dispose of in fire
or water. Do not attempt to disassemble the
battery.
•Dispose of usedbatteries properly.
Insertion guide
DXZ475MP 7

[!],[']
Functions of Remote Control Unit Buttons
*Some buttons on the remote control unit have different functions from the corresponding buttons on the main
unit.
r-Signal transmitter
~---SRC --.......ND 1
[SRC]---;I~I QA ~:"-"";";"'II--[BND]
.---;..,;:....--[~II ]
II~ ~ ... II [\+Ill.[~l
w~~ , II
[MUTE]-~II-~» ~-----:-:-II--[DISP] .
USR]-.f
JII
£) Q ~ [ROM]
seN RPT ~M II
[SCN] PS/AS "_fVTR_~ __ [RPT]
clarion
•Sharedmodes
[SRC] button
•Press the button to turn on the power.
Press and hold the button for 1second or
longer to turn off the power.
•Use to alternate operation mode among the
various modes.
[£.], [T] buttons
•Increases and decreases volume.
[MUTE] button
•Turns mute function on and off.
[ISR] button
•Recalls ISR radio station stored in memory.
•Press and hold the button for 2seconds or
longer to store current station
in ISR memory
(radio mode only).
[DISP] button
•Press to alternate between main display, title
display and clock time display.
8DXZ475MP
•'Radio/Satellite Radio modes
[BND] button
•Switches reception band.
[~], [~~] buttons
•Moves preset channels up and down.
[SeN] button
•Press to perform preset scan.
•Press and hold the button for 2seconds or
longer to perform auto store.
•
In the Satellite Radio mode, press once to
perform category scan; hold depressed for 1
second or longer to perform preset scan.
•CD/MP3/WMA modes
[BND] button
•Press to play the first track.
[~], [~~] buttons
•Press to move the tracks up and down.
•Press and hold the button for 1second or
longer to perform fast-forward/fast-backward.

Functions of Remote Control Unit Buttons
[~II] button
•Switches between playback and pause.
[SCN] button
•Press to perform scan play.
•When in MP3IWMA mode, press and hold the
button for 1second or longer to perform
folder scan play.
[RPT] button
•Press to perform repeat play.
•When in MP3IWMA mode, press and hold the
buttonfor 1second or longer to perform
folder repeat play.
[ROM] button
•Press to perform random play.
•When in MP3IWMAmode, press and hold the
button for 1second or longer to perform
folder random play.
•CD changerlDVD changermodes
[BND] button
•Press to switch to next disc in a~cending
order.
[I~<lllII], [~] buttons
•Press to move the tracks up and down.
•Press and hold the button for 1second or
longer to perform fast-forward/fast-backward.
[~II] button
•Switches between playback and pause.
[SCN] button
•Press to perform scan play.
•Press and hold the button for 1second or
longer to perform disc scan play.
[RPT] button
•Press to perform repeat play.
•Press and hold the button for 1second or
longer to perform disc repeat play.
[ROM] button
•Press to perform random play.
•Press and hold the button for 1second or
longer to perform disc random play.
•iPod BB mode
[~<lllII], [~] buttons
•Press to move the tracks up and down.
•Press and hold the button for 1second or
longer to perform fast-forward/fast-backward.
[~II] button
•Switches between playback and pause.
[RPT] button
•Press to perform repeat play.
•Press and hold the button for 1second or
longer to perform all repeat play.
[ROM] button
•Press to perform random play.
•Press and hold the button for 1second or
longer to perform all random play.
• TVmode
[BND] button
•Switches reception band.
[~], [~] buttons
•Moves preset channels up and down.
[SCN] button
•Press to perform preset scan.
•Press and hold the button for 2seconds or
longer to perform auto store.
[ROM] button
•Press to alternate between TV and VTR.
DXZ475MP 9

6. OPERATIONS
Note:
• Be sure to read this chapter referring to the front diagrams of chapter "CONTROLS" on page ii (unfold).
Basic Operations
Be sure to lower the volume before
switching
off the unit power or the ignition
key. The
unit remembers its last volume
setting.
If you switch the power off with the
volume up, when you switch the power back
on, the sudden
loud volume may hurt your
hearing and damage the unit.
Turning on/off the power
Note:
• Be careful about using this unit foralong time
without running the engine. If you drain the car's
battery too far, you may not be able to start the
engine
and this can reduce the service life of the
battery.
1. Press the [SRC] button.
2. The illumination and display on the unit light
up. The unitautomatically remembers its last
operation mode and will automatically switch
to display that mode.
3. Press and hold the [SRC] button for 1
second or longer to turn off the power for the
unit.
Note:
• System check
The first time this unit is turned on after the wire
connections
are completed, it must be checked
what equipment is connected. When the power is
turned on, the "SYSTEM CHECK" appears in the
display, then the
unit returns to the clock display
mode. The system
check starts within the unit.
When the
system check is complete, press the
[SRCj button again.
10 DXZ475MP
Selecting amode
1. Press the [SRC] button to change the
operation mode.
2. Eac~ time you press the [SRC] button, the
operation mode changes
in the following
order:
Radio
~ (Satellite radio) ~ CD/MP3IWMA
~ (iPod SS) ~ (CD changer) ~ (DVD
changer)
~ (TV) ~ AUX ~ Radio ...
*External equipment not connected with
CeNET is not displayed.
Adjustingthe volume
1. Turning the [ROTARY] knob clockwise
increases the volume; turning it
counterclockwise decreases the volume.
*The volume level is from 0(minimum) to 33
(maximum).
SWitching the display
Press the [DISP] button to select the desired
display.
*Once selected, the preferred display becomesthe
display default. When afunction adjustment such
as volume is made, the screen will momentarily
switch to that function's display, then revert back
to the preferred display several seconds after the
adjustment.
*If the button operation is performed with the
screen saver function on, the operation display
corresponding to the button operation is shown
for about 30 seconds and the display returns to
the screen saver display.
For details, refer to the subsection "Turning the
screen saver function
on or off" in section
"Operations Common to Each Mode".
•When the power is turned off
Each time you press the [DISP] button, the
clock time appears
or disappears in the display.

Basic Operations
Sound Adjustment
You can adjust asound effect or tone quality to
your preference.
To change sound setting
1. Press the [..1'] button to switch to the
sound adjustment selection display.
*The factory default sound setting is "Z-
EHCR".
2. Then press the [~] or [~] button to
select the sound adjustment mode.
Each time you press the
[~] or [~]
button, the sound adjustment mode
changes as following order:
"Z-EHCR" +--+ "BASS" +--+ "TREBLE" +--+
"BALANCE" +--+ "FADER" +--+ "REAR/S-W"
+--+ "S-W VOL" +--+ "HPF"
3. Press the [.] or [T] button to adjust the
selected audio mode.
* In the case of display blinking "ENT", you
can press the
[~J~ ]button to adjust the -
setting value.
4. After completing settings, press the [..I']
button to return to the previous mode.
•Setting the Z-Enhancer
This unit are provided with 3types of sound
tone effects stored
in memory.
Select the one you prefer.
*The factory default setting is "OFF".
2-1. Select "Z-EHCR".
3-1. Each time you press the [.] or [T]
button, the tone effect changes in the
following order:
"EXCITE" +--+ "IMPACT" +--+ "B-B09ST" +--+
"OFF"
EXCITE :bass and treble emphasized
mid deemphasized
IMPACT :bass and treble emphasized
B-BOOST :bass emphasized
OFF :no sound effect
When "EXCITE" is set:
3-2. Press the [~J~] button.
3-3. Press the
[.] or [T] button to adjust the
bass and treble
in the range of +3 to -3.
*The factory default setting is "0".
3-4. Press the [~J~] button to -return to previous
mode.
When "IMPACT" is set:
3-2. Press the [~J~] button.
3-3. Press the
[.] or [T] button to adjust the
bass and treble
in the range of +3 to -3.
*The factory default setting is "0".
3-4. Press the [~J~] button to return to previous
mode.
When "B-BOOST" is set:
3-2.'Press the [~J~] button.
3-3. Press the [.] or [T] button to adjust the
bass
in the range of +3 to -3.
*The factory default setting is "0".
3-4. Press the [~J~] button to return to previous
mode.
• Adjusting the bass _
This adjustment can be performed only when
the Z-Enhancer is set to "OFF".
2-1. Select "BASS".
3-1. Press the [.] or [T] button to adjust the
bass.
*The factory default setting is "0".
(Adjustment range: +8 to
-8)
• Adjusting the treble
This adjustment can be performed only when
the Z-Enhancer is set to "OFF".
2-1. Select "TREBLE".
3-1. Press the [.] or [T] button to adjust the
treble.
*The factory default setting is "0".
(Adjustment range:
+7 to -7)
• Adjusting the balance
2-1. Select "BALANCE".
3-1. Press the [.] or [T] button to adjust the
balance of the right and left speakers.
*The factory default setting is "CENTE R"
(center). (Adjustment range: RIGHT12 to
LEFT12 (right 12 to left 12))
DXZ475MP 11

Basic Operations
• Adjusting the fader
2-1. Select "FADER".
3-1. Press the [
.. ]or [T] button to adjust the
balance of the rear and front speakers.
*The factory default setting is "CENTE R"
(center). (Adjustment range: FRONT12 to
REAR12 (front 12 to rear 12))
•Setting the subwoofer
You can set the low pass filter of subwoofer.
2-1. Select "REARIS-W".
3-1. Each time press the [
.. ]or [T] button to
select the setting, the setting changes
in
the following order:
"LPF 120" +--+ "LPF 80" +--+ "LPF 50" +--+
"REAR"
*The factory default setting is "REAR" (rear).
• Adjusting the subwoofer output
volume
You can adjustthe volume outputfrom the unit's
subwoofer output terminal.
This adjustment can be performed only when
the "REARIS-W" is set to "LPF 120", "LPF 80"
or "LPF 50".
2-1. Select "S-W VOL".
3-1. Press the [
.. ]or [T] button to increases
or decreases the subwoofer volume.
*The factory default setting is "0".
(Adjustment range: +6 to
-6)
*When the volume level is more than 30, the
subwoofer volume adjustment value can not
reach +6.
• Adjusting the high pass filter
2-1. Select "HPF".
3-1. Each time you press the [
.. ]or [T] button
to select the setting.
The setting changes
in the following order:
"120Hz" H"THROUGH"
*The factory default setting is "THROUGH"
(through).
12 DXZ475MP
•Setting the MAGNA BASS EXTEND
The MAGNA BASS EXTEND does not adjust
the low frequencies like the normal sound
adjustment function, but emphasizes the deep
bass frequencies to provide you with adynamic
sound.
*The factory default setting is "OFF" (off).
1. Press and hold the Llllr,] button for 1second
or longer to turn on the MAGNA BASS
EXTEND effect. "M-B EX" lights in the
display.
2. Press and hold the [.I"] button for 1second
or longer to turn off the MAGNA
BASS
EXTEND effect. "M-B EX" goes off.
Note:
•During SOUND adjustmentmode, if no operation
is performedfor more than 10seconds, this mode
can be cancelled
and return to previous mode.

Radio Operations
Listening to the radio
1. Press the [SRC] button and select the radio
mode. The frequency appears
in the display.
2. Press the [BND] button and select the radio
band. Each time the button is pressed, the
radio reception band changes
in the
following order:
FM1 .. FM2" FM3 .. AM" FM1 ...
3. Press the [~] or [~] button to tune in the
desired station.
Tuning
There are 3types of tuning mode available,
seek tuning, manual tuning and preset tuning.
Seek tuning
1. Press the [BND] button and select the
desired band (FM or AM).
*If "MANU" is lit in the display, press and hold
the [BND] button for 1second or longer.
"MANU"
in the display goes off and seek
tuning is now available.
2. Press the [~] or [~] button to
automatically seek astation.
When the
[~] button is pressed, the station
is sought
in the direction of higher
frequencies; if the
[~] button is pressed,
the station is sought
in the direction of lower
frequencies.
Manual tuning
There are 2ways available: Quick tuning and
step tuning.
When you are
in the step tuning mode, the
frequency changes one step at atime.
In the
quick tuning mode, you can quickly tune the
desired frequency.
1. Press the [BND] button and select the
desired band (FM or AM).
*If "MANU" is not lit in the display, press and
hold the [BND] button for 1second or longer.
"MANU" is lit
in the display and manual tuning
is now available.
2. Tune into astation.
• Quick tuning
Press and hold the [~] or [~] button for 1
second or longer to tune
in astation.
•Step tuning
Press the [~] or [~] button to manually tune
in astation.
Recalling apresetstation
Atotal of 24 preset positions (6-FM1, 6-FM2, 6-
FM3, 6-AM) exists to store individual radio
stations
in memory. Pressing the corresponding
[DIRECT] button or the [
... ] / [T] button recalls
the stored radio frequency automatically.
1. Press the [BND] button and select the
desired band (FM or AM).
2. Press the corresponding [DIRECT] button or
the [
... ] / [T] button to recall the stored
station.
Note:
•Press and holdone of the [DIRECT] buttons for2
seconds
or longer to store thatstation into preset
memory.
Manual memory
1. Selectthe desired station with seektuning or
manual tuning.
2. Press and hold one of the [DIRECT] buttons
for 2seconds or longer to store the current
station into preset memory.
Auto store
Auto store is afunction for storing up to 6
stations that are automatically tuned
in
sequentially. If 6receivable stations cannot be
received, apreviously stored station remains
unoverwritten at the memory position.
1. Press the [BND] button and select the
desired band (FM or AM).
2. Press and hold the [~N~] button for 2seconds
or longer. The stations with good reception
are stored automatically to the preset
channels.
DXZ475MP 13

Radio Operations
Preset scan
Preset scan receives the stations stored in
preset memory in order. This function is useful
when searching for adesired station
in memory.
1. Press the [~NI~] button.
2. When adesired station is tuned in, press the
[~J~] button again to continue receiving that
station.
Note:
•Be careful not to press and hold the lrJ~ Jbutton
for2seconds
or longer, otherwise the auto store
function is engaged and the unitstarts storing
stations.
14 DXZ475MP
Instantstation recall (ISR)
Instant station recall is aspecial radio preset
that instantly accesses afavorite radio station at
atouch of abutton. The ISR function even
operates with the unit
in other modes.
elSR memory
1. Select the station that you wish to store in
ISR memory.
2. Press and hold the [ISR] button for 2
seconds or longer.
eRecalling astation with ISR
In any mode, press the [ISR] button to turn on
the radio function and tune the selected radio
station. "ISR" appears
in the display. Press the
[ISR] button again to return to the previous
mode.

COIMP31WMA Operations
MP31WMA
What is MP3?
M P3 is an audio compression method and
classified into audio layer 3 of MPEG standards.
This audio compression method has penetrated
into PC users and become astandard format.
This MP3 features the original audio data
compression to about 10 percent of its initial
size with ahigh sound quality. This means that
about 10 music CDs can be recorded on aCD-
Rdisc or CD-RW disc to allow along listening
time without having to change CDs.
What is WMA?
WMA is the abbreviation of Windows Media
Audio, an audio file format developed by
Microsoft Corporation.
Notes:
•Ifyou playa file with DRM (Digital Rights
Management)
for WMA remaining ON, no audio
is output (The WMA indicatorblinks).
•Windows MediaTM, and the Windows ®logo are
trademarks,
or registered trademarks of Microsoft
Corporation in the United States and/orother
countries.
•To disable DRM (Digital Rights
Management)
1. When using Windows Media Player 8, click
on TOOLS -. OPTIONS -. COPY MUSIC
tab, then under COPY SETTINGS, unclick
the check box for PROTECT CONTENT.
Then, reconstruct files.
2. When using Windows Media Player 9, click
on TOOL -. OPTIONS -. MUSIC RECORD
tab, then under Recording settings, unclick
the Check box for RECORD PROTECTED
MUSIC. Then, reconstruct files.
Personally constructed WMA files are used
at your own responsibility.
Precautions when creating MP31
WMAdisc
•Usable sampling rates and bit rates
1. MP3: Sampling rate 8kHz-48 kHz,
Bit rate: 8kbps-320 kbps /VBR
2. WMA: Bit rate 48 kbps-192 kbps
•File extensions
1. Always add afile extension ".MP3" or
".WMA" to MP3 or WMA file by using single
byte letters. If you add afile extension other
than specified or forget to add the file
extension, the file cannot be played.
2. Files without MP3IWMA data will not play.
The indication "- -:- -" appears in the play
time display if you attempt to play files
without MP3IWMA data.
•Logical format (File system)
.1. When writing MP3IWMA file on aCD-R disc
or CD-RW disc, please select "IS09660 level
1, 2or JOLIET or Romeo" as the writing
software format. Normal play may not be
possible if the disc is recorded on another
format.
2. The folder name and file name can be
displayed as the title during MP3IWMA play
but the title must be within 64 single byte
alphabetical letters and numerals (including
an extension).
3. Do not affix aname to afile inside afolder
having the same name.
•Folder structure
1. Adisc with afolder having more than 8
hierarchical levels will be impossible.
•Number of files or folders
. 1. Up to 255 files can be recognized per folder.
Up to 510 files can be played.
2. Tracks are played in the order that they were
recorded onto adisc. (Tracks might not
always be played in the order displayed on
the PC.)
3. Some noise may occur depending on the
type of encoder software used while
recording.
DXZ475MP 15

CDIMP3IWMA Operations
Set the type
of file to beplayed
(multi-session function)
When asingle disc holds both normal CD type
tracks and MP3IWMA type tracks, use this
command to select which type of track to play.
*Default setting is "MULTI-SESS CD".
•When only one type of track (either music CD
or MP3/WMA) is recorded on adisc, selecting
either type will allow playback of the disc.
•When playing CCCD (copy-control CDs), set
to
CD type.
1. Press and hold the [BND] button for 1
second or longer.
Each time the button is held pressed
in this
way, the playback type alternates between
CD type and MP3IWMA type.
•MULTI·SESS CD
When playing music CD only.
•MULTI·SESS MP3
When playing music MP3IWMA only.
2. When setting is completed, remove the disc
and reinsert it.
Disc-In-Play function
As long as the ignition key is turned to the ON or
ACC position, this function allows you to turn
the power to the unit and start playing the disc
automatically when the disc is inserted even if
the power is not turned on.
•Do not try to put your hand or fingers in
the disc insertion slot. Also never insert
foreign objects into the slot.
•Do not insert discs where adhesive comes
out from cellophane tape or arental CD
label, or discs with marks where
cellophane tape or rental CD labels were
removed. It may be impossible to extract
these discs from the unit and they may
cause the unit to break down.
16 DXZ475MP
Backup Eject function
Just pressing the [~] button, ejects the disc
even if the power to the unit was not turned on.
1. Press the [OPEN] button to open the FLI P
DOWN PANEL.
Note:
• If the FLIP DOWN PANEL will not open far
enough, open
it gently with your hand.
2. Press the [~] button. Remove the disc after
it is ejected.
3. Close the FLIP DOWN PANEL.
Note:
•Always close the FLIP DOWN PANEL once you
take outthe disc.
Listening to a disc alreadyloaded
in the
unit
Press the [SRC] button to select the CD/MP31
WMAmode.
When the unit enters the CD/MP3IWMA mode,
play starts automatically.
If there is no disc loaded, the indication "NO
DISC" appears in the title display.
The mode changes each time the [SRC] button
is pressed. (Modes are not displayed for
equipment that is not connected.)
Radio -+ (Satellite radio) -+ CD/MP3IWMA -+
(iPod BB) -+ (CD changer) -+ (DVD changer)
-+ (TV) -+ AUX -+ Radio ...
Loadinga CD
1. Press the [OPEN] button to access the CD
SLOT behind the FLIP DOWN PANEL.
2. Insert aCD into the centre of the CD SLOT
with the labeled side facing up. The CD plays
automatically after loading.
Notes:
•Never insert foreign objects into the CD SLOT.
•
If the CD is not inserted easily, there maybe
another CD in the mechanism
or the unitmay
require service. lillCOMPACT
rllCOMPACT oorcmu
•Discs not bearing the ~PAL~~ or ~ mark and
CD-ROMs cannotbe played
by this unit.
•Some CDs recorded in CD-R/CD-RWmode may
not be usable.
3. Close the FLIP DOWN PANEL.
