Clarion DXZB6SMP User manual

Owner's manual
Mode
d'emploi
Manual de instrucciones
DXZB6SMP
CD/MP3IWMA ReceiverICeNET &Touch Panel Control
Recepteur CD/MP3IWMAICeNET et ecran de contrale tactile
Receptor de CD/MP3IWMAIControl en panel tactil yCeNet

Thank you for purchasing this Clarion product.
*Please read this owner's manual in its entirety before operating this unit.
*After reading this manual, be'sure to keep it in ahandy place (e.g., glove compartment).
*Check the contents of the enclosed warranty card and keep it carefully with this manual.
*This manual includes the operating procedures of the CD changer and TV tuner connected via the
CeNET cable. The CD changer and TV tuner have their own manuals, but no explanations for
operating them are described.
Contents
1. FEATURES 2
2. PRECAUTIONS 3
Motorized Face 4
Handling Compact Discs 4
3. CONTROLS 5
4. NOMENCLATURE 6
Names of the Buttons and their Functions 6
Operations when External Equipment is Connected to this Unit 7
Touch Panel Buttons....................................................................................................................... 8
Touch Panel Operations 9

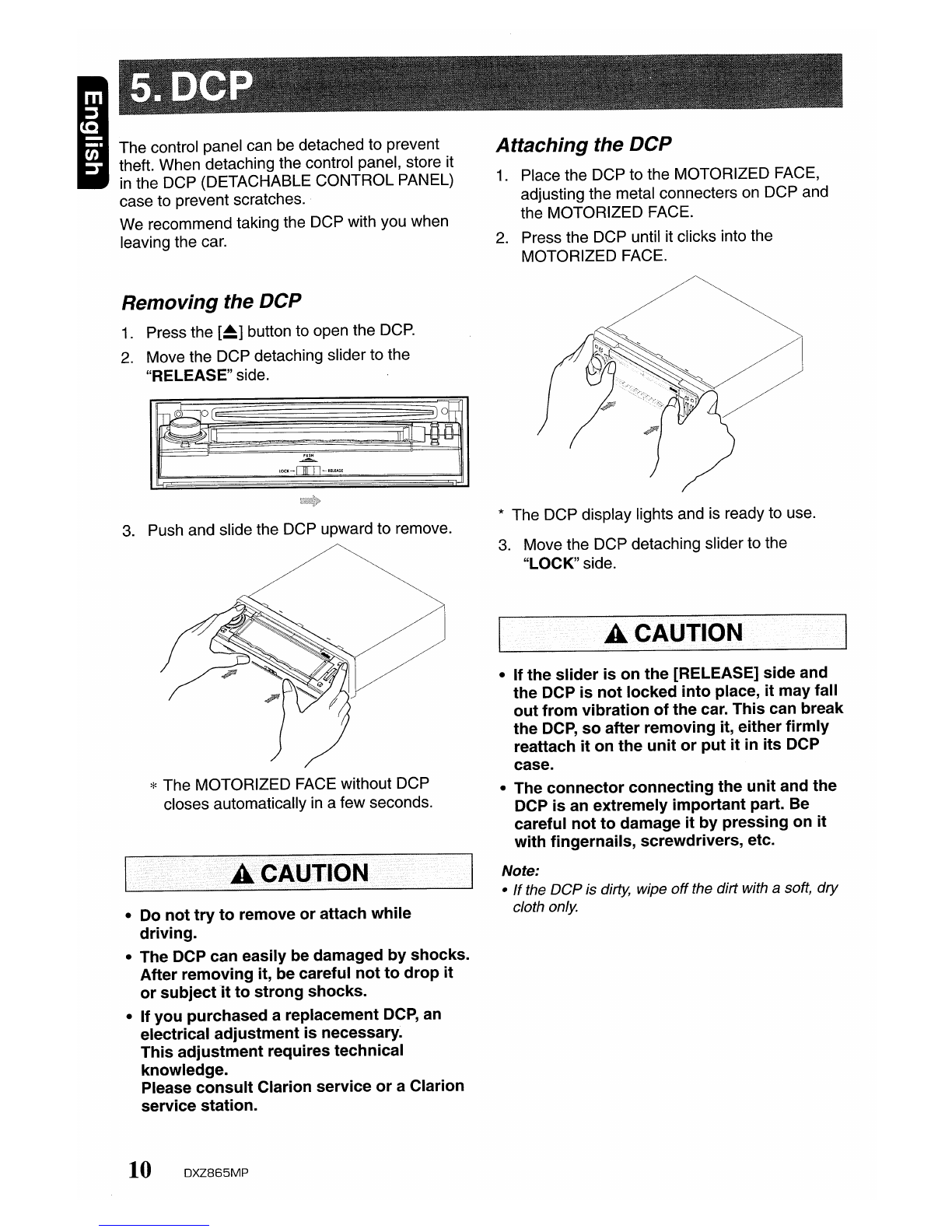

5. DCP 10
6. REMOTE CONTROL 11
Inserting the Battery 11

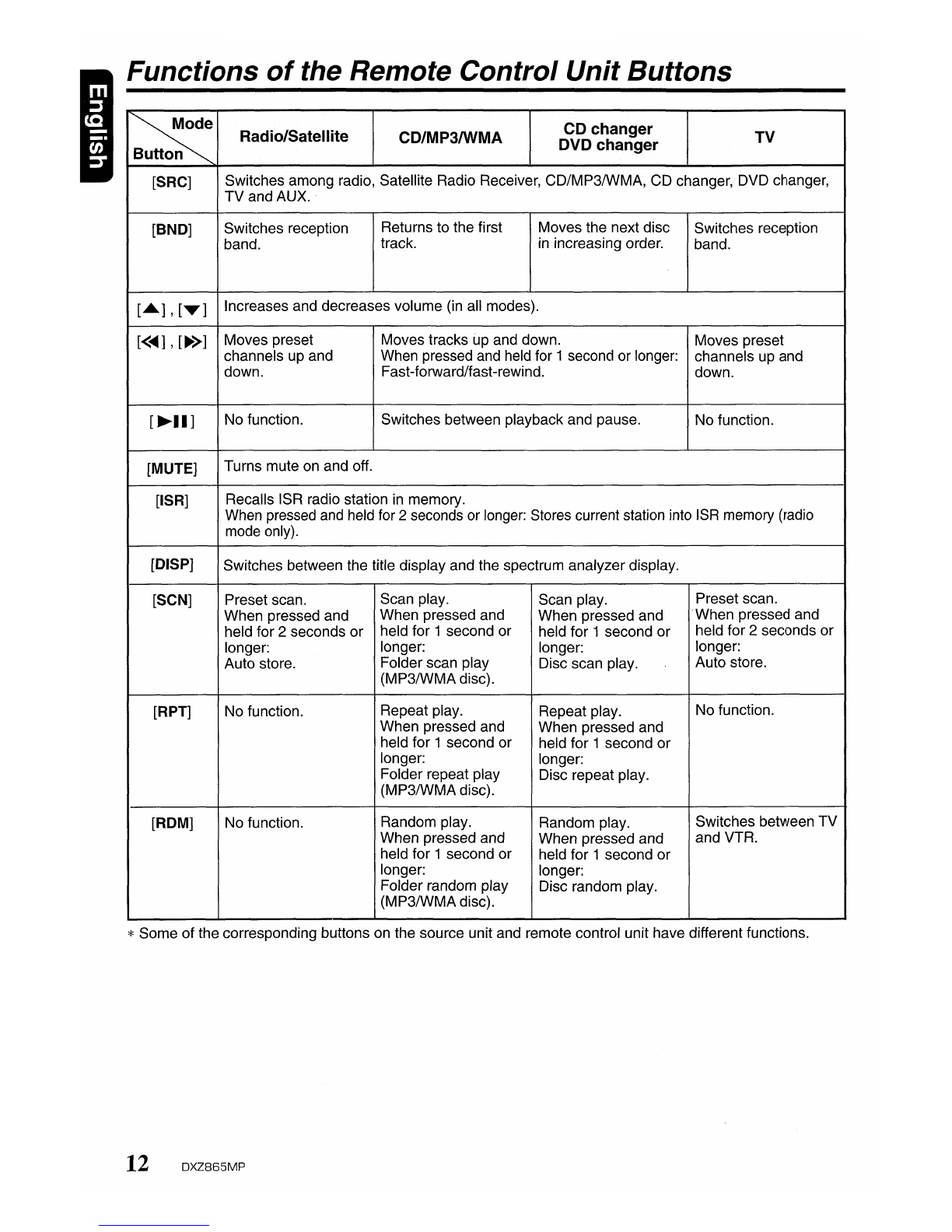

Functions of Remote Control Unit Buttons 12
7. OPERATIONS 13

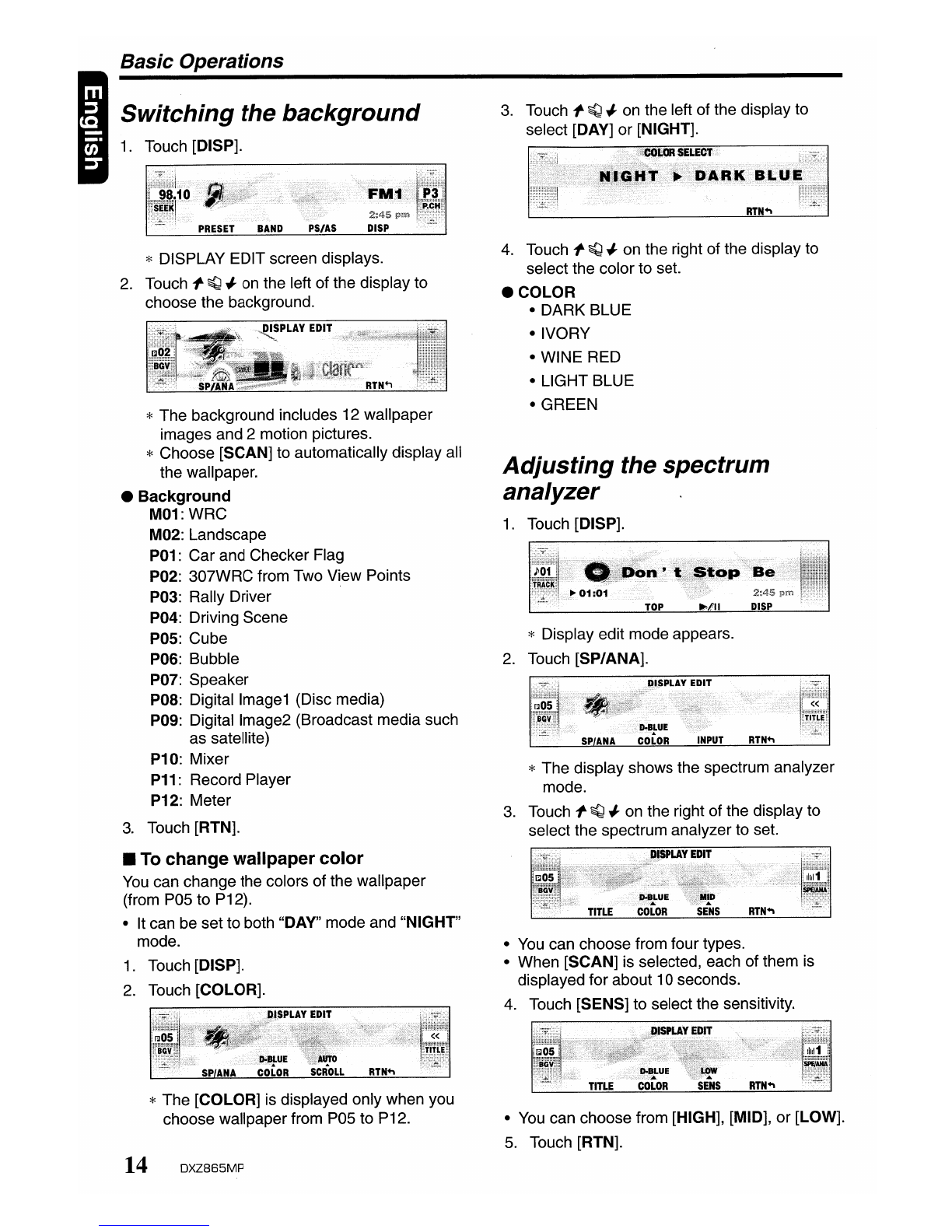

Basic Operations.................................................................................................................... 13
Radio Operations.................................................................................................................... 16

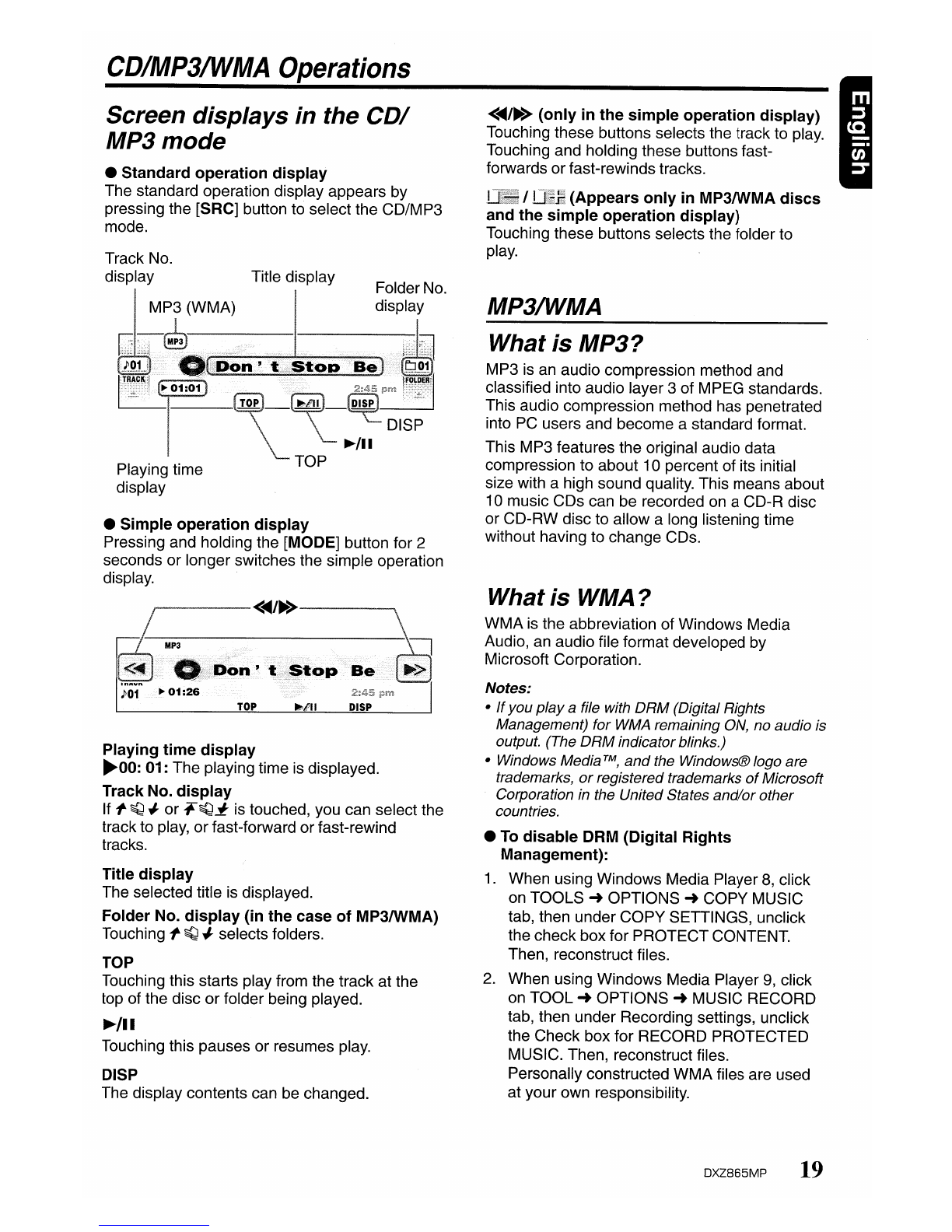

CD/MP3IWMA Operations 19
Sound Adjustment 24
Common Operations 27
8. OPERATIONS OF ACCESSORIES 35
CD Changer Operations............................................................................................................... 35
TV Operations 38
9. IN CASE OF DIFFICULTY 41
10. ERROR DISPLAYS 43
11. SPECIFICATIONS 44
~ ~ ;:-§ffE = [Q]DO~ru3
DIGITAL AUDIO
c=mrr=l
~
'~A~IO"l
READY
• "O
ptimedia" :256 full color 4.2 inch TFT display &Touch panel control
•"ADF (Anti Distortion Filter)" &2band parametric equalizer
•Motorized Detachable Faceplate with Blue Illumination
2 DXZ865MP

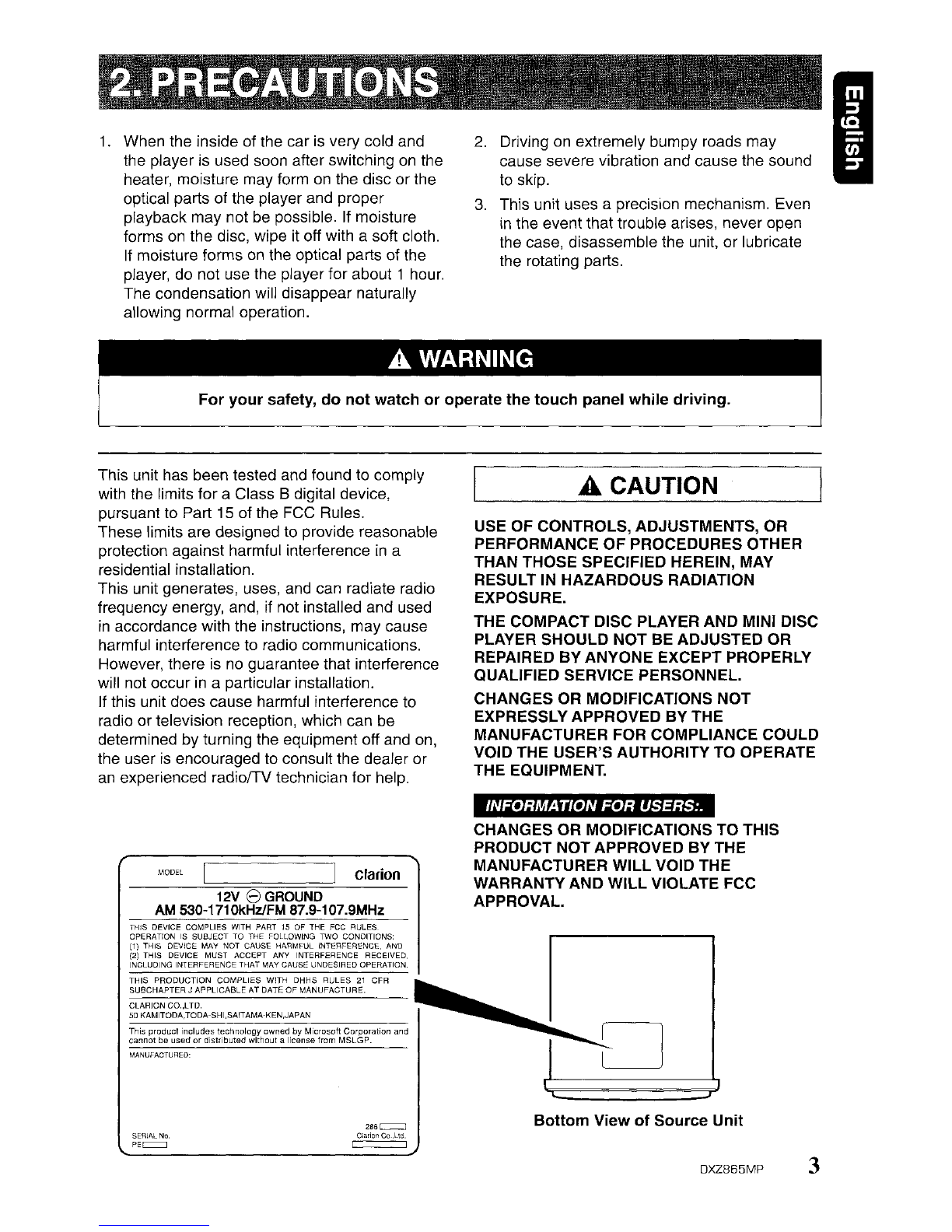

1. When the inside of the car is very cold and
the player is used soon after switching
on the
heater, moisture may form
on the disc or the
optical parts of the player and proper
playback may not be possible.
If moisture
forms
on the disc, wipe it off with asoft cloth.
If moisture forms
on the optical parts of the
player, do not use the player for about 1hour.
The condensation will disappear naturally
allowing normal operation.
2. Driving on extremely bumpy roads may
cause severe vibration and cause the sound
to skip.
3. This unit uses aprecision mechanism. Even
in the event that trouble arises, never open
the case, disassemble the unit, or lubricate
the rotating parts. I
For your safety, do not watch or operate the touch panel while driving.
This unit has been tested and found to comply
with the limits for aClass 8digital device,
pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable
protection against harmful interference
in a
residential installation.
This unit generates, uses, and can radiate radio
frequency energy, and, if not installed and used
in accordance with the instructions, may cause
harmful interference to radio communications.
However, there is
no guarantee that interference
will not occur
in aparticular installation.
If this unit does cause harmful interference to
radio or television reception, which can be
determined by turning the equipment off and on,
the user
is encouraged to consult the dealer or
an experienced rad\olTV technician for help.
ACAUTION
USE OF CONTROLS, ADJUSTMENTS, OR
PERFORMANCE
OF PROCEDURES OTHER
THAN THOSE SPECIFIED HEREIN, MAY
RESULT IN HAZARDOUS RADIATION
EXPOSURE.
THE COMPACT DISC PLAYER AND MINI DISC
PLAYER SHOULD NOT BE ADJUSTED OR
REPAIRED BY ANYONE EXCEPT PROPERLY
QUALIFIED SERVICE PERSONNEL.
CHANGES OR MODIFICATIONS NOT
EXPRESSLY APPROVED BY THE
MANUFACTURER FOR COMPLIANCE COULD
VOID THE USER'S AUTHORITY TO OPERATE
THE EQUIPMENT.
INFORMATION
FOR USERS:.
12V 8 GROUND
AM 530~1710kHzlFM 87.9-107.9MHz
MODEL
clarion
CHANGES OR MODIFICATIONS TO THIS
PRODUCT NOT APPROVED BY THE
MANUFACTURER WILL VOID THE
WARRANTY AND WILL VIOLATE FCC
APPROVAL.
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES
OPERATION
IS SUBJECT TO THE FOLLOWING roo CONDITIONS:
(1) THIS DEVICE MAY NOT CAUSE HARMFUL INlERFERENCE. AND
(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED
INCLUDING
INlERFERENCE THAT MAY CAUSE UNDESIRED OPERAlION:
THIS PRODUCTION COMPLIES WITH DHHS RULES 21 CFR
SUBCHAPTER J APPLICABLE AT DAlE OF MANUFACTURE.
CLARION CO.,LTO.
50 KAMITODA,TODA-SHI,SAITAMA-KEN,JAPAN
~~~5n~;~~U~~~~c~rd~i~t~~~~t~~~ih~~;:~i~~n~~cr~5~ftM~r~~ration and
MANUFACTURED'
SERIAL No
PEc::=:::J
286c::::::=J
C\;:HicI"ICo.,Ltd.
c::==:=:::J
Bottom View of Source Unit
DXZ865MP 3

Motorized Face
This unit uses aMOTORIZED FACE to make
large screen displays possible.
When you use the MOTORIZED FACE,
be sure
to close
it.
ACAUTION
BE CAREFUL NOT TO GET YOUR FINGERS
CAUGHT WHEN OPENING AND CLOSING
THE MOTORIZED FACE.
1. For safety's sake, always close the
MOTORIZED FACE before leaving this unit
unused for aprolonged period or switching
OFF the ignition
key.
If you switch OFF the ignition key with the
MOTORIZED FACE tilted, the MOTORIZED
FACE does not close.
Handling Compact Discs
Use only compact discs bearing the ill]m~~ or
ffi)Do~[Q3 DIGITAL AUDID
EM:J mark.
Do not play heart-shaped, octagonal, or other
specially shaped compact discs.
Some CDs recorded
in the CD-R/CD-RW mode
may not be usable.
Handling
•Compared to ordinary music CDs, CD-R and
CD-RW discs are both easily affected by high
temperature and humidity and some CD-R and
CD-RW discs may not be playable. Therefore,
do not leave them for along time
in the car.
•New discs may
have some Ball-point pen
roughness
around the Roughness
edges. If such discs
are used, the player
may not work or the sound
may skip. Use aball-point pen
or the like to remove any
roughness from the edge of the disc.
•Never stick labels on the surface of the
compact disc or mark the surface with apencil
or pen.
•Never
playa compact disc with any cellophane
tape or other glue on it or with peeling off
marks. If you try to play such acompact disc,
you may not
be· able to remove it from the CD
player
or it may damage the CD player.
4 DXZ865MP
2. Before the MOTORIZED FACE closes, there
may be abraking sound from the safety
mechanism. This
is normal.
3. If you move the MOTORIZED FACE by hand,
this may start play.
To correct this play, with
the power for the unit ON, press the
[~]
button to close the MOTORIZED FACE.
4. After adisc is ejected, the MOTORIZED
FACE automatically returns to the tilted or
closed state. If there
is any obstruction when
the MOTORIZED FACE tries to close, the
safety mechanism is triggered and the
MOTORIZED FACE returns to the open
state. If this happens, remove the
obstruction, then press the
[~] button.
5. To avoid scratching the compact disc, keep
the 12 or 8cm CD level when loading or
removing it.
•Do not use compact discs that have large
scratches, are misshapen, cracked, etc. Use of
such discs may cause misoperation or
damage.
•
To remove acompact disc from its storage
case, press down on the center of the case
and lift the disc out, holding it carefully by the
edges.
•Do not use commercially available CD
protection sheets or discs equipped with
stabilizers, etc. These may damage the disc or
break the internal mechanism.
Storage
•Do not expose compact discs to direct sunlight
or any heat source.
•Do not expose compact discs to excess
humidity
or dust.
•Do not expose compact discs to direct heat
from heaters.
Cleaning
• To remove fingermarks and dust, use asoft
cloth and wipe in astraight line from the center
of the compact disc to the circumference.
•Do not use any solvents, such as commercially
available cleaners, anti-static spray, or thinner
to clean compact discs.
•After using special compact disc cleaner, let
the compact disc dry off well before playing
it.

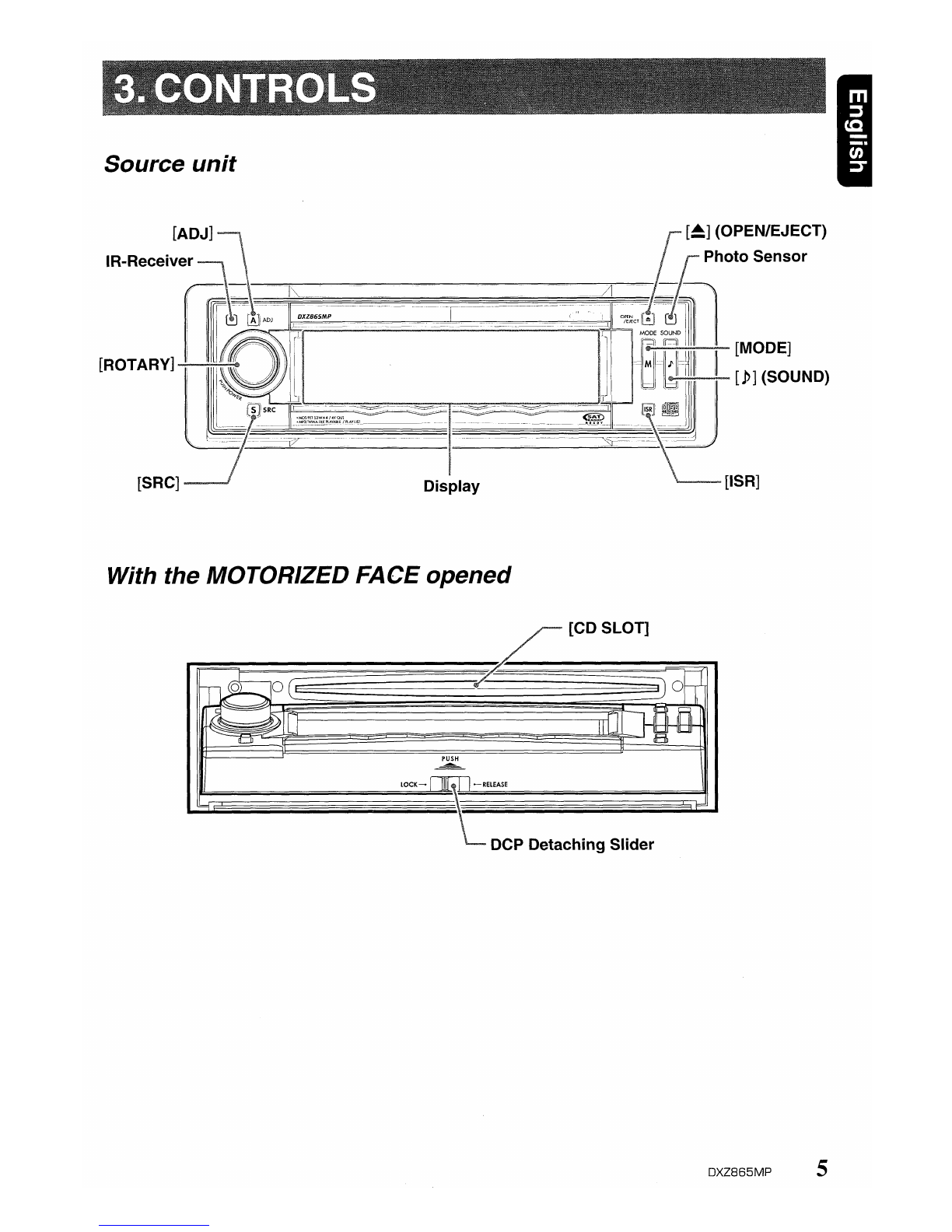

Source unit
II~"""""""'~- [MODE]
II~~:-- [1>] (SOUND)
[ISR]
With the MOTORIZED FACE opened
DCP Detaching Slider
~[CDSLOn
====0
3~
iDRO@
Ii-~~IIJ
II LJI
1n n
~l..'=-
l~llUJ
a=n
p~
LOCK- rlJ{f;Tl-RELEASE
==j L
OXZ865MP 5

II Names of the Buttons and their Functions
IR~Receiver
•Receiver for remote control unit. (Operating
range: 30°
in all directions)
[ADJ] button
•Use this button to set or adjust the various
settings
in the adjust mode.
[~] (OPEN/EJECT) button
•Open/closes the control panel.
To eject adisc, open the control panel first, and
then press this button once again.
Photo Sensor
•This sensor detects the brightness inside your
car. When the auto-dimmer function
is set to
"AUTO", the brightness of the display
is
dimmed according to the brightness detected
by this sensor.
[MODE] button
•Use this button to play in scan, repeat, or
random mode.
•Press and hold this button for 2seconds or
longer to switch between standard and simple
operation displays.
[ 1> ](SOUND) button
•Use this button for setting or adjusting various
settings such
as ADF.
[ISR] (Instant Station Recall) button
•Immediately calls up afavorite radio station
regardless of the current mode. (This
is the
ISR function.)
You can store radio stations to
the [ISR] button by holding this button down for
2seconds or longer
in the radio mode.
[SRC] button
•Switches among sound sources as shown
below.
Radio'" (Satellite) ... CD/MP3 ...
(CD changer) (DVD changer)
... (TV) ...
AUX-+ Radio .
Note:
External equipment not connected with GeNETis
not displayed.
6 DXZ865MP
[ROTARY] knob
•Press the knob to turn the power ON.
•Press the knob to turn the power
OFF.
•Turn the knob to adjust the volume.
[CD SLOT]
• CD insertion slot.
DCP Detaching Slider
•Removes the DCP.
Display
•Displays the various information that indicates
the operating state of this unit such
as tuning/
play state and indicators.
•
You can operate the display by touching or
touching
+~~ the surface. (ct. page 9)

Operations when External Equipment is Connected to this Unit
•When the CD/DVD changer is
connected
*For details, see the section "CD changer
operations" (ct. page 35). For the DVD
changer, refer to the Owner's Manual
provided with the DVD changer.
•When the TV is connected
*For details, see the section "TV
operations" (ct. page 38).
•When the Satellite Radio Re-
ceiver is connected
*For details, refer to the Owner's Manual
provided with the Satellite Radio Receiver.
I
DXZ865MP 7

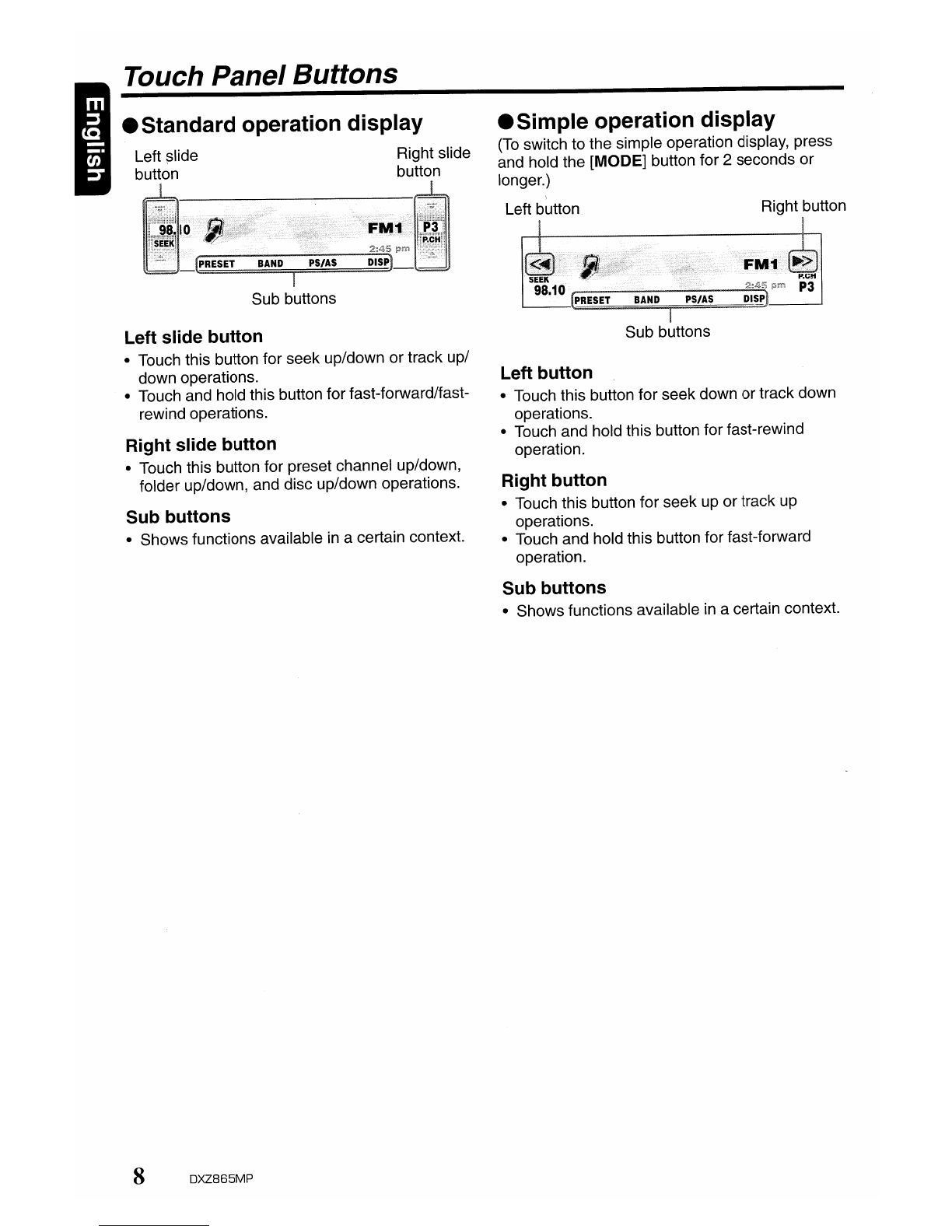

_Standard operation display
Sub buttons
_Simple operation display
(To switch to the simple operation display, press
and hold the [MODE] button for 2seconds or
longer.)
)
Left button Right button
Right button
•Touch this button for seek up or track up
operations.
•Touch and hold this button for fast-forward
operation.
Left button
•Touch this button for seek down or track down
operations.
•Touch and hold this button for fast-rewind
operation.
Right slide
button
Sub buttons
Left
~Iide
button
Touch Panel Buttons
Right slide button
•Touch this button for preset channel up/down,
folder up/down, and disc up/down operations.
Sub buttons
•Shows functions available in acertain context.
Left slide button
•Touch this button for seek up/down or track up/
down operations.
•Touch and hold this button for fast-forward/fast-
rewind operations.
Sub buttons
•Shows functions available in acertain context.
8 DXZ865MP

Touch Panel Operations
Atouch panel display is used as the display on
this unit. You can operate this display just by
touching it with your fingertip. There are four
main display operations as follows:
Touch
Touch the display with your fingertip and take it
away within 1second. This
is the most basic
operation when operating the display.
Touch and hold
Touch the display with your fingertip and hold it
on the display for 1or 2seconds or longer. Do
not move your finger while you are touching the
display.
Touch~~~
Touch the display with your fingertip, and move
your finger to the up (t )or down (! )with your
fingertip still touching the display, and take your
fingertip away within 1second. This operation
is
used, for example, selecting tracks or discs.
Touch"" ~ ~
Touch the display with your fingertip, and move
your finger to the up (t )or down (! )with your
fingertip still touching the display, and keep your
~ fingertip on the display. The current operation
continues for the time your fingertip
is held on
the display. This operation
is used, for example,
for fast-forwarding/fast-rewinding tracks.
DISP
DXZ865MP 9

The control panel can be detached to prevent
theft. When detaching the control panel, store it
in the DCP (DETACHABLE CONTROL PANEL)
case to prevent scratches.
We recommend taking the DCP with you when
leaving the car.
Removing the DCP
1. Press the [~] button to open the DCP.
2. Move the DCP detaching slider to the
"RELEASE" side.
3. Push and slide the DCP upward to remove.
*The MOTORIZED FACE without DCP
closes automatically
in afew seconds.
•Do not try to remove or attach while
driving.
•The DCP can easily be damaged by shocks.
After removing it, be careful not to drop it
or subject it to strong shocks.
•If you purchased areplacement DCP, an
electrical
adjustment is necessary.
This adjustment requires technical
knowledge.
Please
consult Clarion service or aClarion
service station.
10 DXZ865MP
Attaching the DCP
1. Place the DCP to the MOTORIZED FACE,
adjusting the metal connecters
on DCP and
the MOTORIZED FACE.
2. Press the DCP until it clicks into the
MOTORIZED FACE.
*The DCP display lights and is ready to use.
3. Move the DCP detaching slider to the
"LOCK" side.
A •. · •• CA·UTIO··N
•If the slider is on the [RELEASE] side and
the DCP is not locked into place, it may fall
out from vibration of the car. This can break
the DCP, so after removing it, either firmly
reattach it on the unit or put it in its DCP
case.
•The
connector connecting the unit and the
DCP is an extremely important part. Be
careful
not to damage it by pressing on it
with fingernails, screwdrivers, etc.
Note:
• If the DCPis dirty, wipe off the dirt with asoft, dry
cloth only.

Remote control unit
Receiver for remote control unit
Operating range: 30°
in all directions
.~ Signal transmitter
[SRC] ~ 0> G1[BND]
II '~A::' II [~II]
[!],[f] [II:F[<~],[~]
[MUTE] II EHb G II [DISP]
II MUTEAR DISP II
USR]j II 1?~'----i-:-II--[RDM]
[SeN] [RPT]
clarion
Inserting the Battery
1. Turn over the remote control unit and slide the
cover
in the direction indicated by the arrow in the
illustration.
2. Insert the battery (CR2025) into the insertion
guides, with the printed side (+) facing upwards.
3. Press the battery in the direction indicated by the
arrow so that it slides into the compartment.
4. Replace the cover and slide in until it clicks into
place.
Notes:
Misuse may result in rupture of the battery, producing
leakage
of fluid and resulting in personal injury ordamage
to surrounding materials. Always follow these safety
precautions:
•Use only the designated battery .
•When replacing the battery, insertproperly, with +/-
polarities oriented correctly.
•Do notsubjectbattery to heat, or dispose of in fire or
water. Do not attemptto disassemble the battery.
•Dispose of usedbatteries properly.
Insertion guide
DXZ865MP 11

Functions of the Remote Control Unit Buttons
~
Button Radio/Satellite CD/MP3IWMA
CD changer TV
DVD changer
[SRC] Switches among radio, Satellite Radio Receiver, CD/MP3/WMA, CD changer, DVD changer,
TV and AUX.
[BND] Switches reception Returns to the first Moves the next disc Switches reception
band. track. in increasing order. band.
[.],[T]
Increases and decreases volume (in all modes).
[<... ],[~>]
Moves preset Moves tracks up and down. Moves preset
channels up and When pressed and held for 1second or longer: channels up and
down. Fast-forward/fast-rewind. down.
[~II]
No function. Switches between playback and pause. No function.
[MUTE] Turns mute on and off.

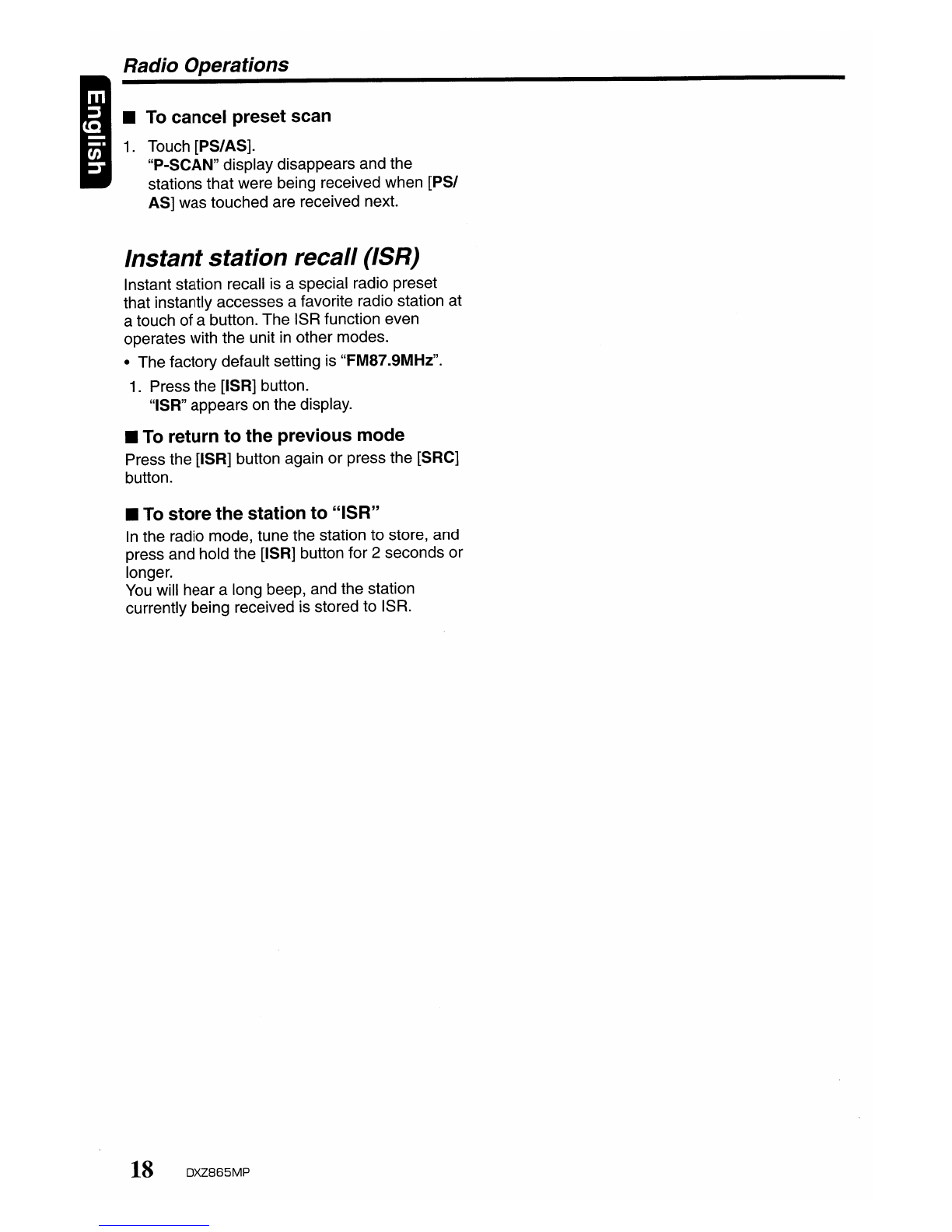

[ISR] Recalls ISR radio station in memory.
When pressed and held for 2seconds or longer: Stores current station into ISR memory (radio
mode only).
[DISP] Switches between the title display and the spectrum analyzer display.
[SCN] Preset scan. Scan play. Scan play. Preset scan.
When pressed and When pressed and When pressed and .When pressed and
held for 2seconds
or
held for 1second or held for 1second or held for 2seconds or
longer: longer: longer: longer:
Auto store. Folder scan play Disc scan play. Auto store.
(MP3/WMAdisc).
[RPT] No function. Repeat play. Repeat play. No function.
When pressed and When pressed and
held for 1second or held for 1second
or
longer: longer:
Folder repeat play Disc repeat play.
(MP3/WMA disc).
[ROM] No function. Random play. Random play. Switches between
TV
When pressed and When pressed and and VTR.
held for 1second or held for 1second
or
longer: longer:
Folder random play Disc random play.
(MP3/WMA disc).
*Some of the corresponding buttons on the source unit and remote control unit have different functions.
12 DXZ865MP

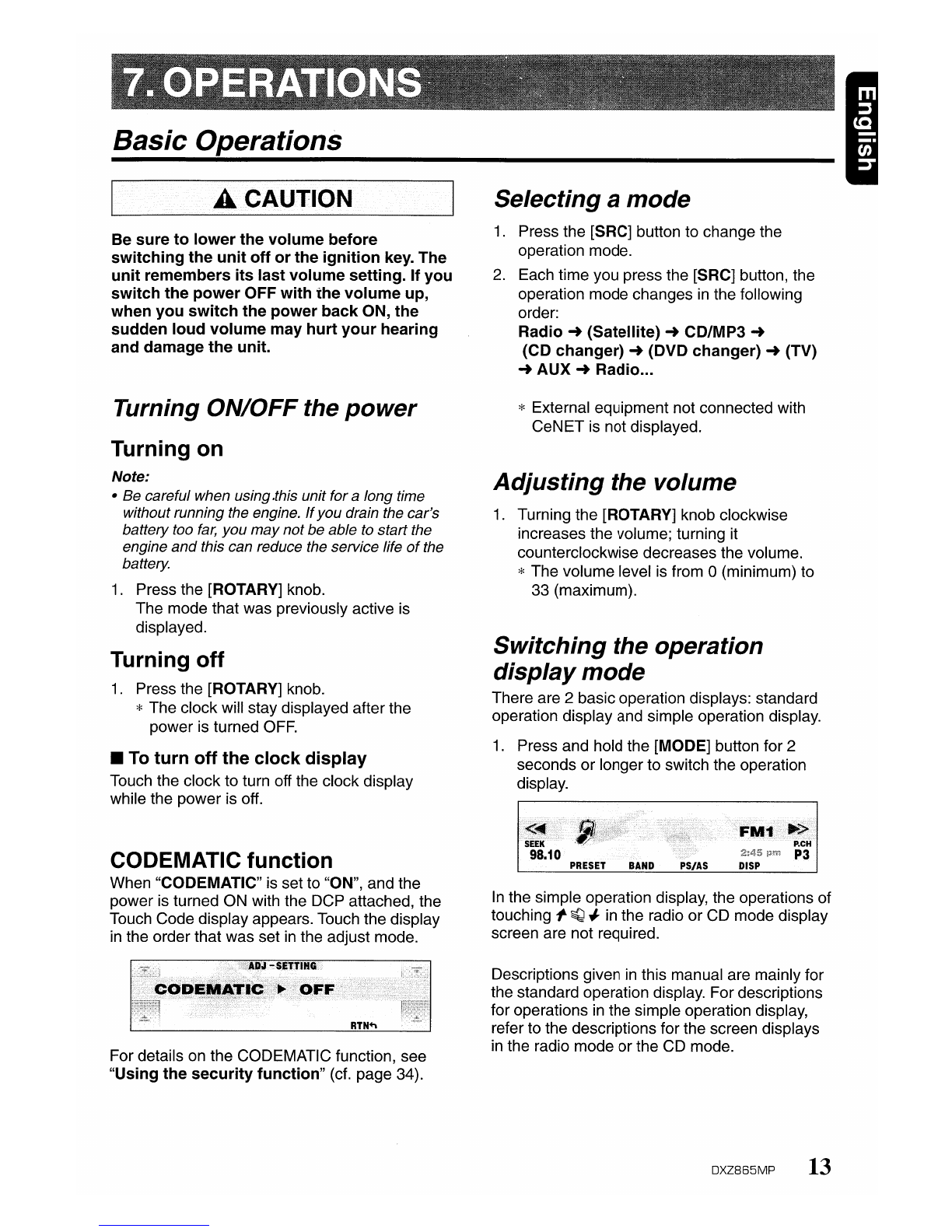

Basic Operations
.a· •• · •• iCA.UTION
Be sure to lower the volume before
switching the unit off or the ignition key. The
unit remembers its last volume setting. If you
switch the power OFF with the volume up,
when
you switch the power back ON, the
sudden loud volume may hurt your hearing
and damage
the unit.
Turning ON/OFFthe power
Turning on
Note:
•Be careful when using.this unit for along time
without running the engine. If you drain the car's
battery too
far, you may not be able to start the
engine
and this can reduce the service life of the
battery.
1. Press the [ROTARY] knob.
The mode that was previously active is
displayed.
Turning off
1. Press the [ROTARY] knob.
*The clock will stay displayed after the
power is turned
OFF.
•To turn off the clock display
Touch the clock to turn off the clock display
while the power is off.
CODEMATIC function
When "CODEMATIC" is set to "ON", and the
power is turned ON with the DCP attached, the
Touch Code display appears. Touch the display
in the order that was set in the adjust mode.
For details on the CODEMATIC function, see
"Using the security function" (cf. page 34).
Selecting a mode
1. Press the [SRC] button to change the
operation mode.
2. Each time you press the [SRC] button, the
operation mode changes
in the following
order:
Radio ~ (Satellite) ~ CD/MP3 ~
(CD changer) ~ (DVD changer) ~ (TV)
~ AUX ~ Radio...
*External equipment not connected with
CeNET
is not displayed.
Adjusting the volume
1. Turning the [ROTARY] knob clockwise
increases the volume; turning it
counterclockwise decreases the volume.
*The volume level is from 0(minimum) to
33 (maximum).
Switching the operation
display mode
There are 2basic operation displays: standard
operation display and simple operation display.
1. Press and hold the [MODE] button for 2
seconds or longer to switch the operation
display.
In the simple operation display, the operations of
touching I'
~ # in the radio or CD mode display
screen are not required.
Descriptions given
in this manual are mainly for
the standard operation display. For descriptions
for operations
in the simple operation display,
refer to the descriptions for the screen displays
in the radio mode or the CD mode.
DXZ865MP 13

Basic Operations
Switching the background
1. Touch [DISP].
*DISPLAY EDIT screen displays.
2. Touch l' ~ ~ on the left of the display to
choose the background.
*The background includes 12 wallpaper
images and 2motion pictures.
*Choose [SCAN] to automatically display all
the wallpaper.
•Background
M01: WRC
M02: Landscape
P01: Car and Checker Flag
P02: 307WRC from Two View Points
P03: Rally Driver
P04: Driving Scene
pos: Cube
P06: Bubble
P07: Speaker
POS: Digital Image1 (Disc media)
p~g: Digital Image2 (Broadcast media such
as satellite)
P10: Mixer
P11: Record Player
P12: Meter
3. Touch [RTN].
• To change wallpaper color
You can change the colors of the wallpaper
(from P05 to P12).
•It can be set to both "DAY" mode and "NIGHT"
mode.
1. Touch [DISP].
2. Touch [COLOR].
*The [COLOR] is displayed only when you
choose wallpaper from P05 to P12.
14 DXZ865MP
3. Touch l' ~ ~ on the left of the display to
select [DAY] or [NIGHT].
4. Touch l' ~ ~ on the right of the display to
select the color to set.
•COLOR
•DARK BLUE
•IVORY
•WINE RED
•LIGHT BLUE
•GREEN
Adjusting the spectrum
analyzer
1. Touch [DISP].
*Display edit mode appears.
2. Touch [SP/ANA].
*The display shows the spectrum analyzer
mode.
3. Touch l' ~ ~ on the right of the display to
select the spectrum analyzer to set.
•
You can choose from four types.
•When [SCAN] is selected, each of them is
displayed for about 10 seconds.
4. Touch [SENS] to select the sensitivity.
•
You can choose from [HIGH], [MID], or [LOW].
5. Touch [RTN].

Switching the title display
You can display stored information such as disc
titles or track titles when playing back music
in
CD or CD changer mode.
1. Touch [DISP] while atitle is shown.
*Display edit mode appears.
2. Touch [TITLE].
*Title edit mode appears.
3. Touch 1'- ~ -I on the right of the display to
choose the kind of title to show.
*The title you have chosen is displayed. If it
is too long to fit into the display, it
automatically scrolls.
4. Touch [SCROLL].
•Select [AUTO] to scroll the title repeatedly.
•Select [ONCE] to scroll the title only once.
Notes:
• You cannot set the scroll options in User title
mode.
5. Touch [RTN].
•CD
mode (MP3/WMA)
Folder
title (when using afolder) ~ Play
list (when using aplay list) ~ Track title
~ Album TAG ~ Artist TAG ~ TitleTAG ~
Folder title (when using afolder)...
Notes:
•MP3 supports 103 Tags V2.3/2.2 /1.1/1.0.
• Tag displays give priority to V2.3 /2.2.
•In the case of album Tags for WMA, the
information written into the extension headeris
displayed.
•OnlyASCII characters can be displayed in Tags.
Basic Operations
DXZ865MP 15

Radio Operations
Screen displays in the radio
mode
•Standard operation display
The standard operation display appears by
pressing the [SRC] button and selecting the
radio mode. Preset No.
Title display display
Reception
band display
•Simple operation display
Pressing and holding the [MODE] button for 2
seconds or longer switches the simple operation
display.
Frequency display
The frequency currently being received is
displayed
..
Touching :'~.r or l' ~ -J on the left slide
button
in the standard operation display allows
you to perform seek tuning or manual tuning.
Preset No. display
Touching l' ~ -J on the right slide button in the
standard operation display selects apreset
memory.
Title display
Displays the name of the broadcast channel
currently being received.
Reception band display
AM: AM band name
FM1: FM band name
PRESET
Touching this displays apreset memory No. list.
16 DXZ865MP
BAND
Touching this switches the reception band.
Touching and holding this for 1second or longer
switches between the manual tuning mode and
the seek tuning mode.
PS/AS
Touching this starts apreset scan.
Touching and holding this for 2seconds or
longer starts
an auto store.
Touching this during the preset scan/auto scan
ends the operation.
DISP
The display contents can be changed.
<~/~> (only in the simple operation display)
Touching these enables seek tuning or step
tuning (in the manual tuning mode).
Touching and holding these enables quick
tuning (in the manual tuning mode).
Listening to the radio
1. Press the [SRC] button to select the radio
mode.
Each press of the [SRC] button switches the
mode as follows:
Radio -+ (Satellite) -+ CD/MP3 -+
(CD Changer) -+ (DVD Changer) -+ (TV)
-+ AUX -+ Radio ...
*The mode of equipment that is not
connected is not displayed.
2. Touch [BAND] to switch the reception band.
Each touch of [BAND] switches the
reception band as follows:
FM1 -+ FM2 -+ FM3 -+ AM -+ FM1 ...
Tuning
There are 3types of tuning mode available,
seek tuning, manual tuning and preset tuning.

Seek tuning
Seek tuning is afunction for automatically
tuning stations with good reception.
1. Touch and hold [BAND] for 1second or
longer if "MANU" is displayed.
Automatic tuning is possible when "SEEK" is
displayed.
2. Touch l' ~ -I on the frequency display.
"SEEK UP"/"SEEK DOWN"
is displayed,
and tuning starts.
Tuning automatically stops at stations with
good reception.
• To cancel tuning
1. Touch l' ~ -I on the frequency display
again.
Manual tuning
There are 2ways available: quick tuning and
step tuning.
In the step tuning mode, the frequency changes
1step at atime.
In the quick tuning mode, you
can quickly tune the desired frequency.
1. Touch and hold [BAND] for 1second or
longer if "SEEK"
is displayed.
Manual tuning
is possible when "MANU" is
displayed.
2. Operate the frequency display to tune to a
frequency on which there
is abroadcast.
•Step tuning
Touch l' ~ -I on the frequency display.
• Quick tuning
Touch ~~.r on the frequency display. Tuning
stops when you take your finger away from the
panel.
Recalling a preset station
Recalling apreset station is afunction for tuning
pre:stored stations.
1. Touch [PRESET].
The preset memory No. list
is displayed.
2. Touch the preset memory No.
* In the standard operation display, preset
No. can also be tuned by touching
l' ~ -I.
• To cancel tuning
1. Touch [RTN].
Radio Operations
Preset memory
Atotal of 24 preset positions (6-FM1, 6-FM2, 6-
FM3, 6-AM) exists to store individual radio
stations
in memory.
1. Touch [BAND] to switch the reception band.
2. Operate the frequency display to tune to a
frequency to store.
3. Touch [PRESET].
The preset memory No. list
is displayed.
4. Touch and hold the preset No. to store the
station to for 2seconds or longer.
You will hear along beep, and the station is
stored
in memory.
Auto store
Auto store is afunction for storing up to 6
stations that are automatically tuned
in
sequentially.
1. Touch and hold [PS/AS] for 2seconds or
longer.
"A-STORE" is displayed.
*Stations with good reception are
automatically searched, and are stored to
preset memory (No.1 to No.6)
in order
from the station having the lowest
frequency.
Notes:
•When auto store is performed, stations stored to
memoryso far are cleared.
•When there are fewer than 6stations with good
reception, low frequencies are automatically
returned
to, and auto store is performedagain. If
there are fewer than 6stations even afterauto
store is performed twice, stations storedso far
remain in memory.
Preset scan
Preset scan is afunction for receiving stations in
the order that they are currently stored to preset
No. so that broadcasts can be checked.
1. Touch [PS/AS].
"P-SCAN" is displayed.
*The currently stored stations are received
in order for 7seconds or longer each.
Stations with poor reception are skipped,
and the next station is received.
DXZ865MP 17

Radio Operations
• To cancel preset scan
1. Touch [PS/AS].
"P-SCAN" display disappears and the
stations that were being received when [PSI
AS] was touched are received next.
Instant station recall (ISR)
Instant station recall is aspecial radio preset
that instantly accesses afavorite radio station at
atouch of abutton. The ISR function even
operates with the unit
in other modes.
•The factory default setting is "FM87.9MHz".
1. Press the [ISR] button.
"ISR" appears on the display.
•To return to the previous mode
Press the [ISR] button again or press the [SRC]
button.
• To store the station to "ISR"
In the radio mode, tune the station to store, and
press and hold the [ISR] button for 2seconds or
longer.
You will hear along beep, and the station
currently being received is stored to ISR.
18 DXZ865MP

CDIMP3IWMA Operations
Screen displays in the COl
MP3mode
•Standard operation display
The standard operation display appears by
pressing the [SRC] button to select the CD/MP3
mode.
MP3IWMA
<~/~> (only in the simple operation display)
Touching these buttons selects the track to play.
Touching and holding these buttons fast-
forwards or fast-rewinds tracks.
II(Appears only in MP3IWMA discs
and the simple operation display)
Touching these buttons selects the folder to
play.
Folder
No.
display
Title display
Track No.
display
MP3
Playing time
display
•Simple operation display
Pressing and holding the [MODE] button for 2
seconds or longer switches the simple operation
display.
............-----<~/~>------..
Playing time display
~OO: 01: The playing time is displayed.
Track No. display
If
l' ~ /r or ~~~ is touched, you can select the
track to play, orfast-forward or fast-rewind
tracks.
Title display
The selected title is displayed.
Folder No. display (in the case of MP3IWMA)
Touching
l' ~ /r selects folders.
TOP
Touching this starts play from the track at the
top of the disc
or folder being played.
~/II
Touching this pauses or resumes play.
DISP
The display contents can be changed.
What is MP3?
MP3 is an audio compression method and
classified into audio layer 3of MPEG standards.
This audio compression method has penetrated
into
PC users and become astandard format.
This MP3 features the original audio data
compression to about 10 percent of its initial
size with ahigh sound quality. This means about
10 music CDs can be recorded
on aCD-R disc
or CD-RW disc to allow along listening time
without having to change CDs.
What is WMA?
WMA is the abbreviation of Windows Media
Audio, an audio file format developed by
Microsoft Corporation.
Notes:
• If you playa file with DRM (Digital Rights
Management) for
WMA remaining ON, no audio is
output. (The DRMindicatorblinks.)
•Windows MediaTM,
and the Windows® logo are
trademarks,
or registered trademarks of Microsoft
Corporation in the United States and/orother
countries.
• To disable DRM (Digital Rights
Management):
1. When using Windows Media Player 8, click
on TOOLS
~ OPTIONS ~ COpy MUSIC
tab, then under COPY SETTINGS, unclick
the check box for PROTECT CONTENT.
Then, reconstruct files.
2. When using Windows Media Player 9, click
on TOOL
~ OPTIONS ~ MUSIC RECORD
tab, then under Recording settings, unclick
the Check box for RECORD PROTECTED
MUSIC. Then, reconstruct files.
Personally constructed WMA files are used
at your own responsibility.
DXZ865MP 19

CDIMP3IWMA Operations

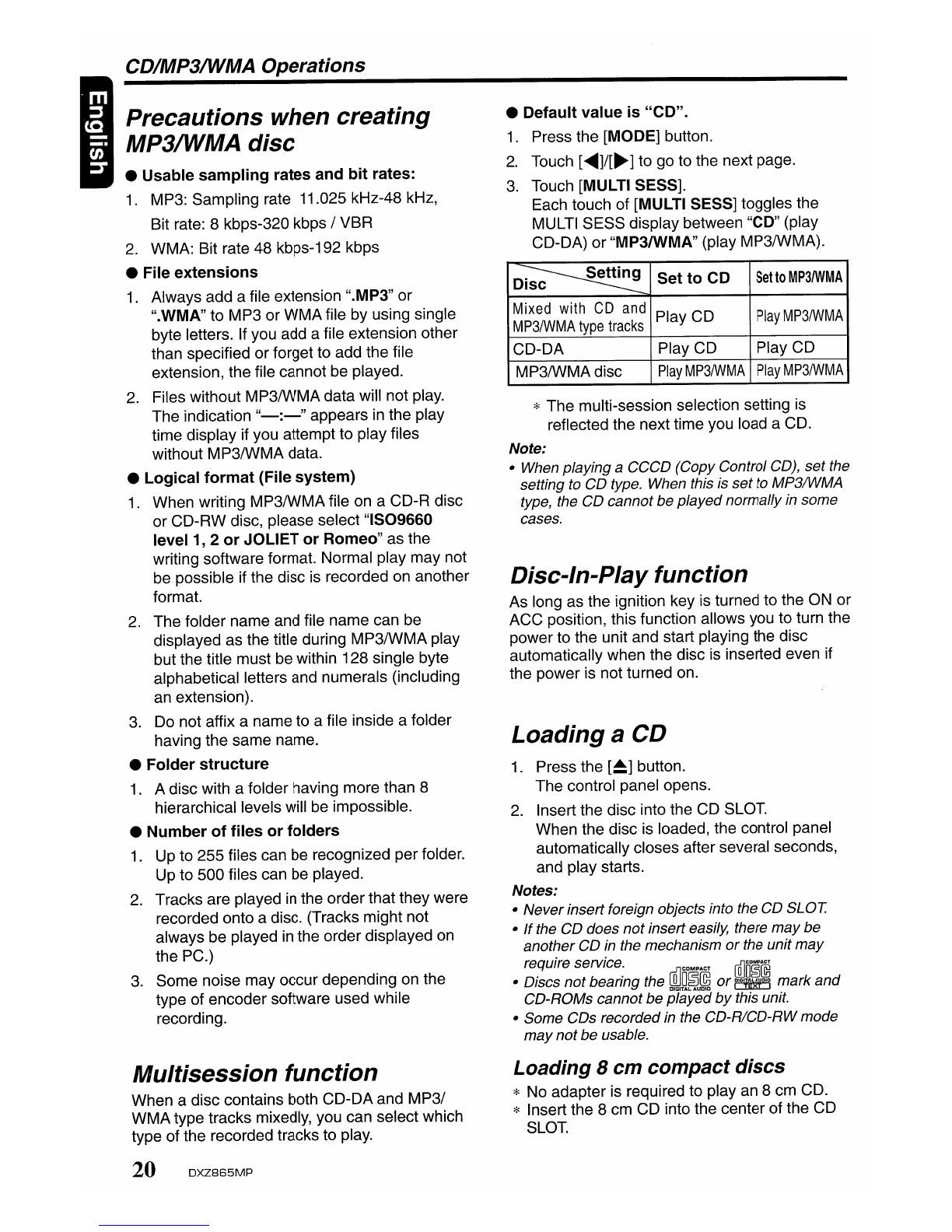

Precautions when creating
MP3IWMA disc
•Usable sampling rates and bit rates:
1. MP3: Sampling rate 11.025 kHz-48 kHz,
Bit rate: 8kbps-320 kbps IVBR
2. WMA: Bit rate 48 kbps-192 kbps
•File extensions
1. Always add afile extension ".MP3" or
".WMA" to MP3 or WMA file by using single
byte letters. If you add afile extension other
than specified or forget to add the file
extension, the file cannot be played.
2. Files without MP3IWMAdata will not play.
The indication
"-:-" appears in the play
time display if you attempt to play files
without MP3IWMA data.
•Logical format (File system)
1. When writing MP3IWMA file on aCD-R disc
or CD-RW disc, please select "IS09660
level 1, 2
or JOLIET or Romeo" as the
writing software format. Normal play may not
be possible if the disc
is recorded on another
format.
2. The folder name and file name can be
displayed as the title during MP3IWMA play
but the title must be within 128 single byte
alphabetical letters and numerals (including
an extension).
3. Do not affix aname to afile inside afolder
having the same name.
•Folder structure
1. Adisc with afolder having more than 8
hierarchical levels will
be impossible.
•Number of files or folders
1. Up to 255 files can be recognized per folder.
Up to 500 files can be played.
2. Tracks are played in the orderthat they were
recorded onto adisc. (Tracks might not
always be played
in the order displayed on
the PC.)
3. Some noise may occur depending on the
type of encoder software used while
recording.
Multisession function
When adisc contains both CD-DA and MP31
WMAtype tracks mixedly, you can select which
type of the recorded tracks to play.
20 DXZ865MP
•Default value is "CD".
1. Press the [MODE] button.
2. Touch [<llIIIIII]/[~] to go to the next page.
3. Touch [MULTI SESS].
Each touch of [MULTI SESS] toggles the
MULTI SESS display between "CD" (play
CD-DA) or "MP3/wMA" (play MP3IWMA).
~
Set to CD
Set to MP3IWMA
ISC
Mixed with CD and
Play CD
Play MP3IWMA
M P3/WMA type tracks
CD-DA Play CD Play CD
MP3IWMA disc
Play MP3IWMA
Play MP3IWMA
*The multi-session selection setting is
reflected the next time you load aCD.
Note:
•When playing aCCCD (Copy Control CD), set the
setting to CD type. When this is set to MP3IWMA
type, the CD cannot be played normally in some
cases.
Disc-In-Play function
As long as the ignition key is turned to the ON or
ACC position, this function allows you to turn the
power to the unit and start playing the disc
automatically when the disc is inserted even if
the power is not turned on.
Loading aCD
1. Press the [~] button.
The control panel opens.
2. Insert the disc into the CD SLOT.
When the disc is loaded, the control panel
automatically closes after several seconds,
and play starts.
Notes:
•Neverinsert foreign objects into the CD SLOT.
• If the CD does not insert easily, there may be
anotherCD in the mechanism or the unit may
require service. "nCOMPACT ffim~~
•Discs notbearing the ~U~t~ or ~ mark and
CD-ROMs cannotbe played by this unit.
•Some CDs recorded in the CD-R/CD-RWmode
may not be usable.
Loading 8 cm compact discs
*No adapter is required to play an 8cm CD.
*Insert the 8cm CD into the center of the CD
SLOT.
