Clarion JC-215R-51 User manual

-1- JC-215R-51
Published by Service Dept.
Printed in Japan
Clarion Co., Ltd.
ExportDivision-22-3,Shibuya2-chome,Shibuyaku,Tokyo,150-8335Japan Tel:[phone]
ServiceDept.-50kamitoda,Toda-shi,Saitama,335-8511Japan Tel:[phone] FAX:[phone]-5713-00 Jan.1999 P
Service Manual
Model
ch
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
MHz
26.965
26.975
26.985
27.005
27.015
27.025
27.035
27.055
27.065
27.075
27.085
27.105
27.115
27.125
27.135
27.155
27.165
27.175
27.185
27.205
ch
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
MHz
27.215
27.225
27.255
27.235
27.245
27.265
27.275
27.285
27.295
27.305
27.315
27.325
27.335
27.345
27.355
27.365
27.375
27.385
27.395
27.405
YAM AHA
YAMAHA Motorcycle Genuine
CB Radio
JC-215R-51
(Genuine No. 4XY-88182-00)
■SPECIFICATIONS
General
Power supply voltage:13.8V DC
Ground: Negative
Consumption current: 2.0A or below
(at transmission)
Back-up consumption current:
1.0mA or below
Frequency range: 26.965MHz to 27.405MHz(40ch)
Frequency tolerance: 0.005％or less
Radio wave type: A3E
Antenna impedace: 50Ω
Dimensions(mm): 105(W)×35(H)×150(D)
Weight: 620g
Transmitter section
Power output: 4.0W
Transmission S/N: 40dB or higher
Modulation sensitivity:−40dBV±3dB
Receiver section
Practical sensitivity: 6dBμV or below(S/N 10dB)
S/N: 35dB or higher
Distortion factor: 8％or below
Squelch sensitivity: Thershold;8dBμV or below
Tight;25dBμV or higher
Audio output level: 0.5V or higher
■NOTE
※We cannot supply PWB with component parts in prin-
ciple. When a circuit on PWB has failure, please re-
pair it by component parts base. Parts which are not
mentioned in service manual are not supplied.
※Specification and design are subject to change with-
out notice for further improvement.
■COMPONENT
JC-215R-51
Main unit −−−−− 1

-2-
JC-215R-51

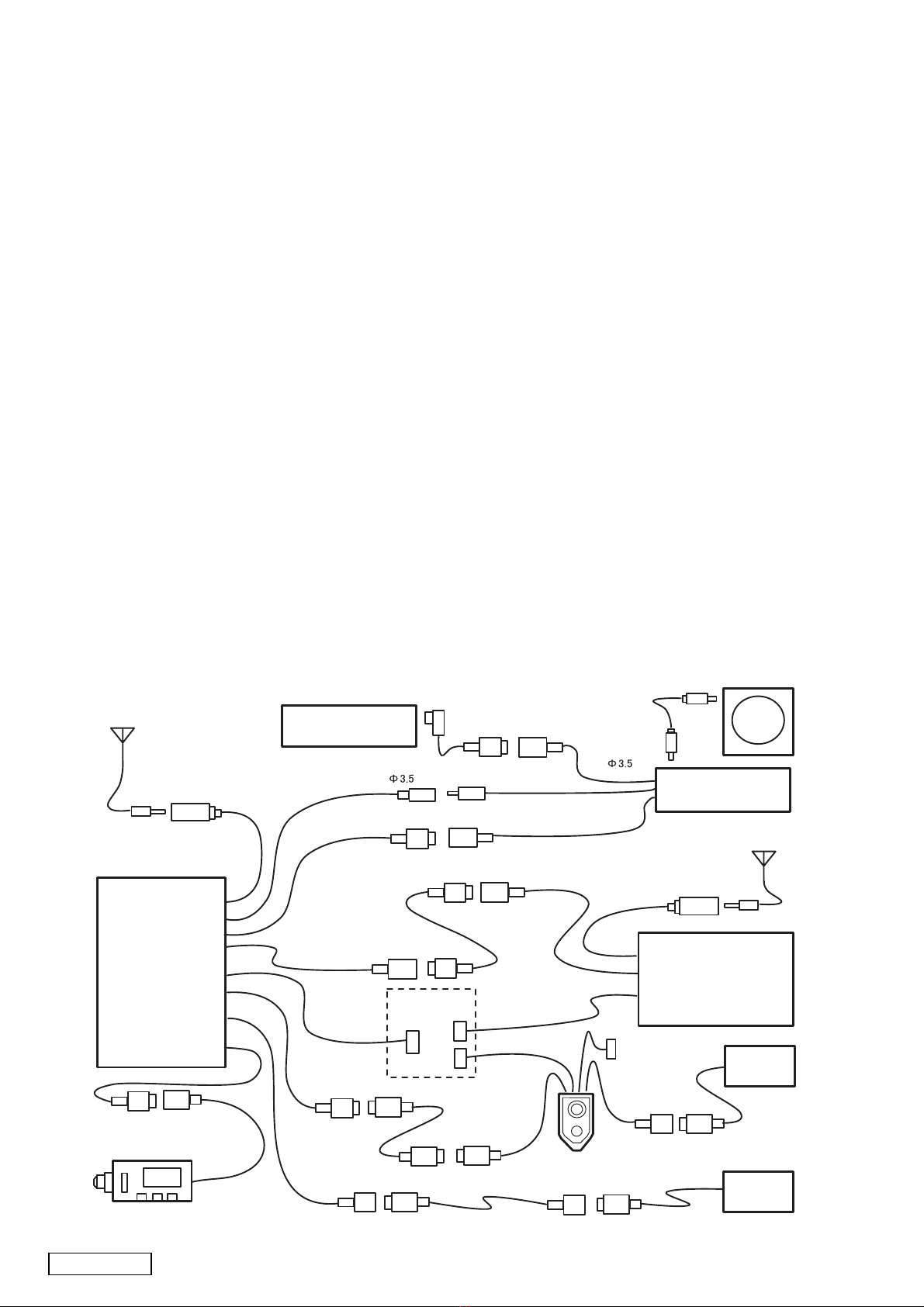

■WIRE CONNECTIONS
M.C.U
ER -1129V-A CB
JC -215R -51
RADIO
ANTENNA RECEPTACLE
(JASO )
STEREO M INI
JA C K ( )
13P DIN CONNECTOR
(FEM ALE)
13P DIN
CONNECTOR
(M ALE)
18P SO CKET
CB ANTENNA
RECEPTACLE
(JASO )
3P SOCKET
13P DIN CONNECTOR
(FEM ALE)
BODY
HARNESS
CB
ANTENNA
AM /FM RADIO
ANTENNA CD AUTO CHANGER
CASSETTE DECK
13P DIN
CONNECTOR
(FEM ALE)
13P DIN CONNECTOR(M ALE)
STEREO M INIPLUG
5P D IN
CONNECTOR
(FEM ALE)
REAR REM O TE
CONTROLLER RCB-128
FRO N T REM O TE CO N TRO LLER
RCB-127
5P D IN
CONNECTOR
(M ALE)
6P SOCKET
REAR
HEAD-SET
FRO N T
HEAD-SET
5P D IN
CONNECTOR
(FEM ALE)
5P DINCONNECTOR
(M ALE)
5P DIN CONNECTOR(M ALE)
5P D IN
CONNECTOR
(FEM ALE)
2P SOCKET
TO SPEAKER
13P DIN
CONNECTOR
(M ALE)
13P D IN
CONNECTOR
(FEM ALE)
PORTABLE
PLAYER
STEREO
MINIJACK
()
■To engineers in charge of repair
or inspection of our products.
Before repair or inspection, make sure to fol-
low the instructions so that customers and En-
gineers in charge of repair or inspection can
avoid suffering any risk or injury.
1. Use specified parts.
The system uses parts with special safety features
against fire and voltage. Use only parts with equiva-
lent characteristics when replacing them.
The use of unspecified parts shall be regarded as re-
modeling for which we shall not be liable. The onus of
product liability (PL) shall not be our responsibility in
cases where an accident or failure is as a result of
unspecified parts being used.
2. Place the parts and wiring back in their original posi-
tions after replacement or re-wiring.
For proper circuit construction, use of insulation tubes,
bonding,gaps to PWB, etc, is involved. The wiring con-
nection and routing to the PWB are specially planned
using clamps to keep away from heated and high volt-
age parts. Ensure that they are placed back in their
original positions after repair or inspection.
If extended damage is caused due to negligence dur-
ing repair, the legal responsibility shall be with the re-
pairing company.
3. Check for safety after repair.
Check that the screws, parts and wires are put back
securely in their original position after repair. Ensure
for safety reasons there is no possibility of secondary
ploblems around the repaired spots.
If extended damage is caused due to negligence of
repair, the legal responsibility shall be with the repair-
ing company.
4. Caution in removal and making wiring connection to
the parts for the automobile.
Disconnect the battery terminal after turning the igni-
tion key off. If wrong wiring connections are made with
the battery connected, a short circuit and/or fire may
occur. If extensive damage is caused due to negli-
gence of repair, the legal responsibility shall be with
the repairing company.
5. Cautions regarding chips.
Do not reuse removed chips even when no abnormal-
ity is observed in their appearance. Always replace
them with new ones. (The chip parts include resis-
tors, capacitors, diodes, transistors, etc). The nega-
tive pole of tantalum capacitors is highly susceptible
to heat, so use special care when replacing them and
check the operation afterwards.
6. Cautions in handling flexible PWB
Before working with a soldering iron, make sure that
the iron tip temperature is around 270℃. Take care
not to apply the iron tip repeatedly(more than three
times)to the same patterns. Also take care not to ap-
ply the tip with force.
7. Turn the unit OFF during disassembly and parts re-
placement. Recheck all work before you apply power
to the unit.

-3- JC-215R-51
■EXPLANATION OF IC
■MB89133APFM-G449 052-9203-01 CB Transceiver Control
1. Outward Form : 48 pins QFP
2. Terminal Description
pin 1 : AVCC : −: Positive supply voltage for A/D converter.
pin 2 : RST : IN : Reset signal input.
pin 3 : MOD0 : −: Not in use.
pin 4 : MOD1 : −: Not in use.
pin 5 : X0 : −: Clock
pin 6 : X1 : −: 4.194MHz
pin 7 : VCC : −: Positive supply voltage.
pin 8 : X0A : −: Not in use.
pin 9 : X1A : −: Not in use.
pin 10 : N.C. : −: Not in use.
pin 11 : N.C. : −: Not in use.
pin 12 : N.C. : −: Not in use.
pin 13 : N.C. : −: Not in use.
pin 14 : N.C. : −: Not in use.
pin 15 : POP SW : O : Pop noise killer control signal output.
pin 16 : RX SW : O : RX audio switch control signal output.
pin 17 : POWER 8V : O : 8V power supply control signal output.
pin 18 : TEST OUT : O : Not in use.
pin 19 : GND : −: Ground.
pin 20 : TEST IN : IN : Not in use.
pin 21 : VCO SHIFT : O : VCO sift signal output. "H"= TX , "L"= RX
pin 22 : TX ON : O : TX ON signal output.
pin 23 : RX ON : O : RX ON signal output.
pin 24 : PLL LE : O : PLL load enable signal output.
pin 25 : PLL DATA : O : PLL data output.
pin 26 : PLL CLK : O : PLL clock output.
pin 27 : PLL LOCK : IN : PLL lock signal input.
pin 28 : PTT : IN : PTT signal input.
pin 29 : N.C. : −: Not in use.
pin 30 : N.C. : −: Not in use.
pin 31 : N.C. : −: Not in use.
pin 32 : N.C. : −: Not in use.
pin 33 : CB KEY_ : IN : CBKey request signalinput.Negativelogic.
pin 34 : AUDIO MUTE : O : Audio mute signal output.
pin 35 : BEEP : O : Beep sound output.
pin 36 : START KEY_ : IN : Start key signal input. Negative logic.
pin 37 : CB RESET : IN : CB reset signal input.
pin 38 : IGNIT SW_ : IN : Ignition switch signal input. Negative logic.
pin 39 : C2B CE : O : Chip enable signal output of Serial data
communication line.
pin 40 : C2B SI : IN : Serial data input.
pin 41 : C2B SO : O : Serial data output.
pin 42 : C2B CLK : O : Clock out ofSerialdatacommunication line.
pin 43 : AVSS : −: Ground for A/D converter.
pin 44 : AVREF : −: Reference voltage for A/D converter.
pin 45 : POWER 5V : O : 5V power supply control signal output.
pin 46 : N.C. : −: Not in use.
pin 47 : N.C. : −: Not in use.
pin 48 : SQ LEVEL : IN : Input terminal of SQ level detector.
■ADJUSTMENTS
Adjusting VCO
1. Set CB channel to CH20(27.205MHz).
2. Connect a DC voltmeter to TP101(V.CONT).
3. Adjust L113 so that the voltmeter reading becomes
2.0±0.05V while trasmitting(TX), and adjust L114 so
that the volmeter reading becomes 2.0±0.05V while
receiving a signal(RX).
Adjusting TX power
1. Set CB channel to CH20(27.205MHz), and connect
a power meter to ANT.
2. Turn the core of L106 so that it moves top.
3. Adjust VR101 so that the power becomes maximun.
4. Adjust IFT105,L111 and L109 in this order so that
the power becomes maximun.
5. Adjust L104 so that the power becomes maximum.
6. Adjust VR101 so that the powermeter reading be-
comes 3.7±0.05W.
7. Make sure that the power is 3.2 to 4.0W when CB
channel is set CH1 and CH40.
Adjusting modulation
1. Set CB channel to CH20(27.205MHz).
2. Connect low frequency oscillator to the MIC-IN ter-
minal of the DIN connector, and set the oscillator's
output to 1kHz,100mV.
3. Adjust VR102 so that the depth of modulation at this
time becomes 70％.
4. Set the cscillator's output to 1kHz,10mV.
5. Adjust VR103 so that the depth of modulation at this
time becomes 50％.
Adjusting receive sensitivity
1. Set CB channel to 20CH(27.205MH), set SQ level to
1, and set VOL level to 10.
2. Connect SSG to ANT(set SSG output to 70dBμ), and
connect an AC voltmeter(synchroscope) to the audio
output. Adjust IFT4,IFT103,IFT106,IFT101 and L102
in this order so that the audio output becomes maxi-
mum.
3. Make sure that S/N is more than 10dB when CB chan-
nel is set CH20 and SSG output is set 5dBμ.
Adjusting squelch
1. Set CB channel to CH20(27.205MHz), and set SSG
output to 10dBμ.
2. Connect a DC voltmeter to TP102(SQ).
3. Adjust VR104 so that the voltmeter reading becomes
1.6±0.05V.
4. Threshold sensitivity
Set CB channel to CH20(27.205MHz), set VOL level
to 10, and set SSG output to 4dBμ
Make sure that the waveform disappeares when SQ
level is set 1 to 2.
5. Tight sensitivity
Set CB channel to CH20(27.205MHz), set SQ level
to 20, set VOL level to 10, and set SSG output to 0dB
μ. Increase SSG output, and make sure that the
waveform appeares when SSG output is et 25dBμ.

-4-
JC-215R-51

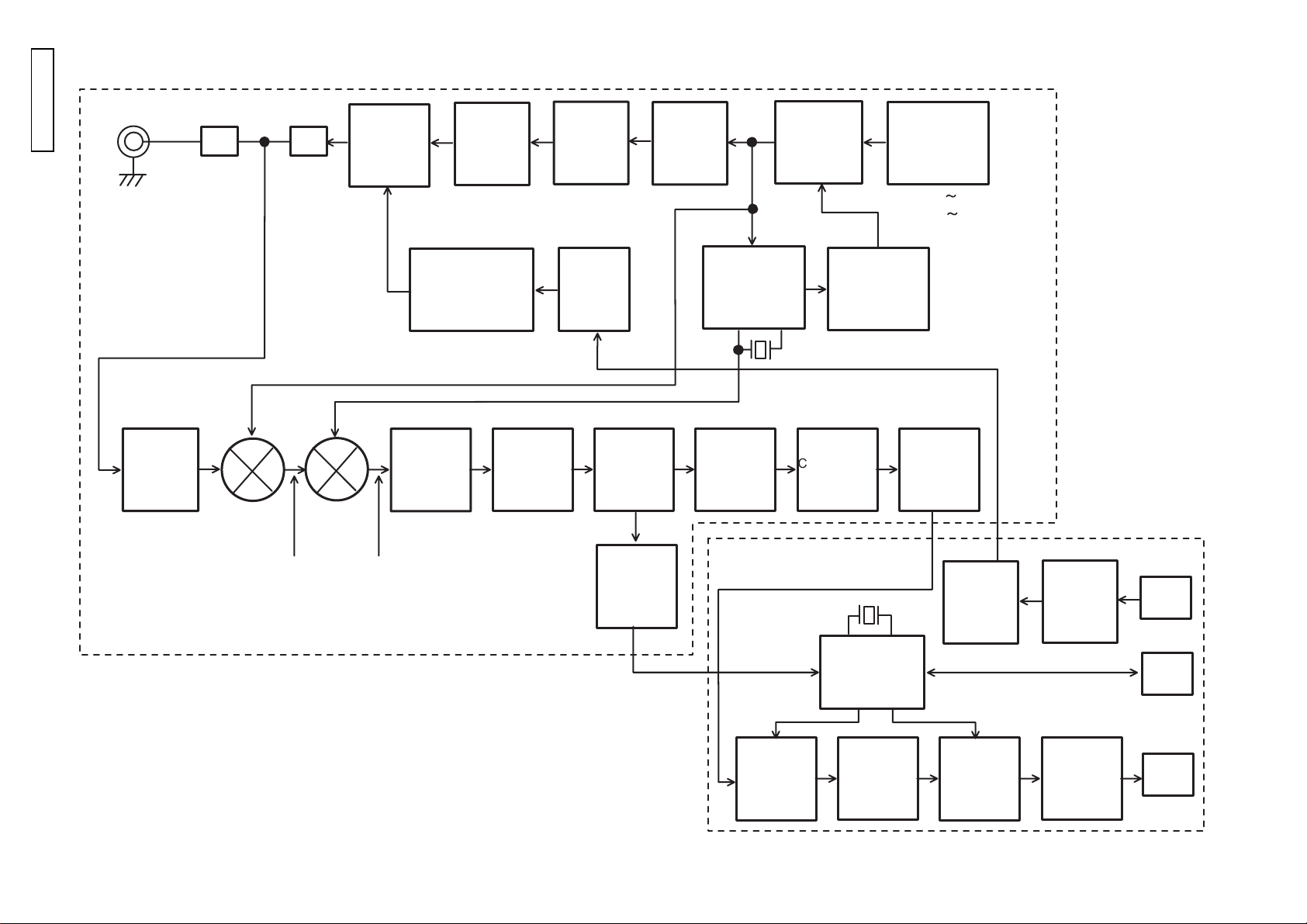

■BLOCK DIAGRAM
RF CIRCUIT
CB ANT RF POW ER
AM P
Q106
2SC 1945
DRIVER
AM P
Q108
2SC 2166
RF AM P
Q110
2SC 2088
RF AM P
Q 113,114
2SC 2712
MOD AMP
Q 111 2SA817
Q 102 2S C 1959
Q 103 2SA 1869
ALC
IC 1 0 1
TA 2011S
PLL
IC 1 0 3
PLL2001S
LPF
VCO
Q 121,124
2SC 2404
D108HVU17
SHIFT SW
Q126
2SC 2714
LPF
Q 125,127
2SC 2712
TX :26.965 27.405M H z
R X:16.275 16.715M H z
10.24M H z
RF AM P
Q104
2SK 302
IF A M P
Q 111,112
2SC 2404
MIXER MIXER
Q107
2SC 2408
Q109
2SC 2408
10.69M H z 450kH z
DET
D106
1SS 119
NOISE
BLANKER
D107
1SS 198
AF AM P
Q120
2SC 2714
AM NO ISE
CANCELLER
IC 1 0 2
TA2051FN
AF AM P
IC 1 1 1
N JM 4558M
LPF
SQ DET
Q117
2SC 2712
SQ SW
Q101
DTC123JK
IC 1 0 1
TC4W 66F
AF AM P
IC 1 0 2
N JM 4558M
E VOL
IC 1 0 4
LC 75391M
AF AM P
& LPF
IC 1 0 5
N JM 4558M
CPU
IC 1 0 8
M B89133AP FM
-G 4 9 9
HPF &
AF AM P
IC 1 0 3
N JM 4558M
AF AM P
IC 1 0 6
N JM 4558M
AUDIO
OUT
MIC
IN
TO
MCU
AUDIO CIRCUIT
4.19M H z

-5- JC-215R-51
NO. PART NO. DESCRIPTION Q'TYNO. PART NO. DESCRIPTION Q'TY
Side view of RF PWB
■EXPLODED VIEW・PARTS LIST
1 313-1671-00 CASE 1
2 347-5347-00 GASKET 1
3 331-1965-00 BOTTOM PLATE 1
4 039-1344-00 AUDIO PWB 1
(WITHOUT COMPONENT)
5 313-1672-00 HEATSINK A 1
6 039-1345-00 RF PWB 1
(WITHOUT COMPONENT)
7 313-1673-00 HEATSINK B 1
8 855-3434-01 EXTENSION LEAD 1
8-1 714-3010-87 MACHINE SCREW(M3×10) 2
9 716-1779-00 SCREW(M3×8) 9
10 732-3006-11 SEMS SCREW(M3×6) 6
11 714-3006-11 MACHINE SCREW(M3×6) 7
12 286-9160-00 SETPLATE 1
13 331-2064-00 SHIELD CASE A 1
14 331-2065-00 SHIELD CASE B 1
15 335-0833-01 LEAD HOLDER 1
1
12
2
3
94
10
10
10
11
11
11
7
5
6
11
10
10
10
15
8-1
8
9
9
13
14
Coil
6

-6-
JC-215R-51
REF No. PART No. DESCRIPTION REF No. PART No. DESCRIPTION REF No. PART No. DESCRIPTION
■ELECTRICAL PARTS LIST

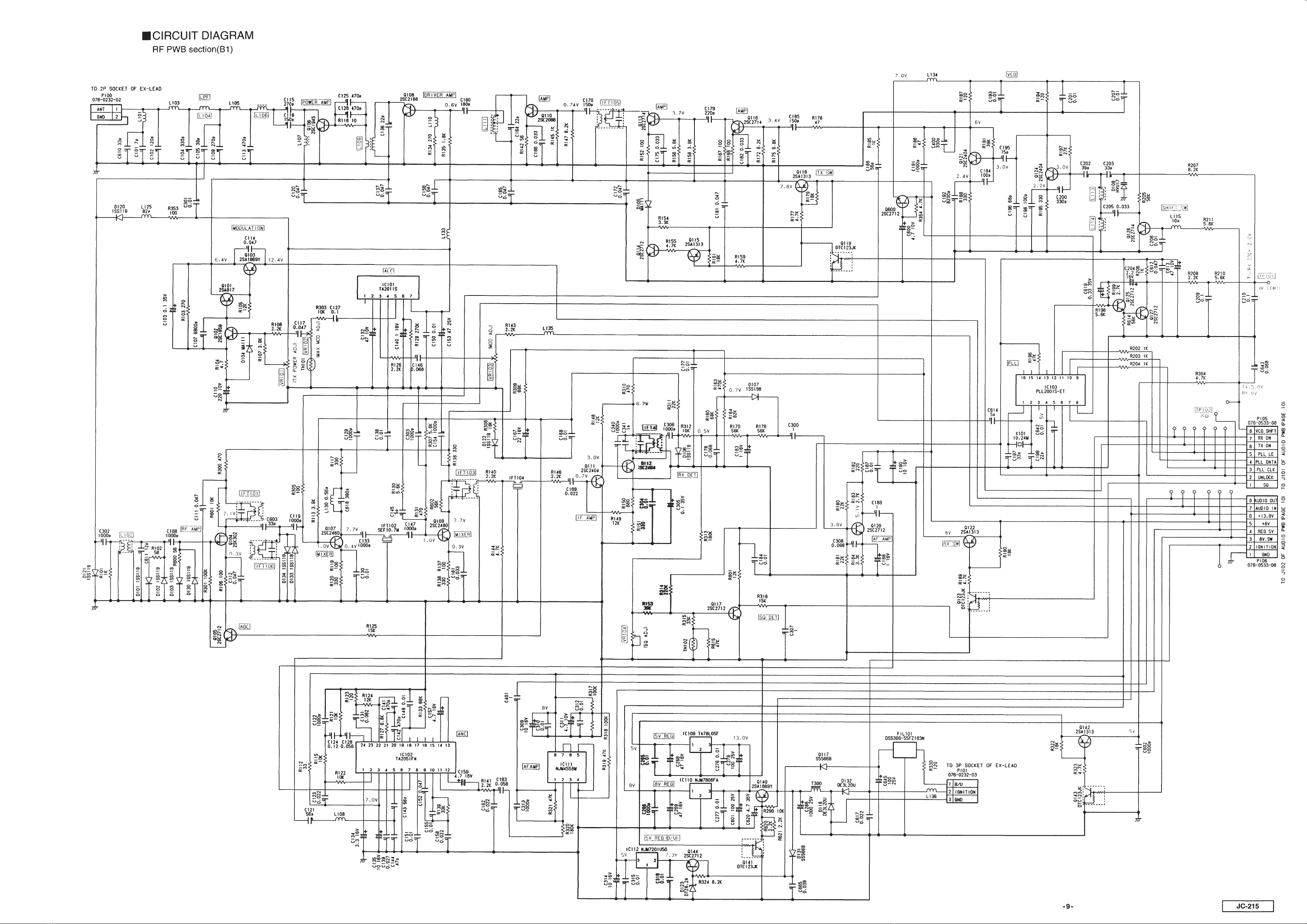

RF PWB section(B1)
C101 176-7097-00 7pF CH
C102 043-0298-00 120pF
C103 042-0397-06 35V0.1μF
C104 043-0298-03 330pF
C105 176-3901-00 39pF CH
C107 173-6821-11 6800pF J
C108 178-1022-78 1000pF
C109 043-0298-02 270pF
C110 184-2273-21 10V220μF
C111 178-4732-78 0.047μF
C112 178-4732-78 0.047μF
C113 043-0299-00 470pF
C114 178-4732-78 0.047μF
C115 043-0298-02 270pF
C116 043-0298-01 150pF
C117 178-4732-78 0.047μF
C119 178-1022-78 1000pF
C120 178-4732-78 0.047μF
C121 176-5601-00 56pF CH
C122 178-1022-78 1000pF
C123 178-2232-78 0.022μF
C124 178-1242-78 0.12μF
C125 178-4712-78 470pF
C126 043-0299-00 470pF
C127 178-1042-78 0.1μF
C128 178-5632-78 0.056μF
C129 178-1022-78 1000pF
C130 178-1032-78 0.01μF
C131 178-8232-78 0.082μF
C132 042-0472-00 10V47μF
C133 178-1022-78 1000pF
C134 042-0398-03 16V3.3μF TAN
C135 042-0403-01 16V10μF TAN
C136 176-2201-00 22pF CH
C137 178-4732-78 0.047μF
C138 178-1032-78 0.01μF
C139 178-2732-78 0.027μF
C140 042-0397-00 16V1μF TAN
C141 178-4712-78 470pF
C142 178-4712-78 470pF
C143 176-5601-00 56pF CH
C144 176-4701-00 47pF CH
C145 176-5096-00 5pF CH
C146 178-6832-78 0.068μF
C147 178-1022-78 1000pF
C148 178-1032-78 0.01μF
C150 178-1032-78 0.01μF
C151 178-1032-78 0.01μF
C152 178-4732-78 0.047μF
C153 184-4763-41 25V47μF
C154 178-1022-78 1000pF
C155 178-1032-78 0.01μF
C156 178-4732-78 0.047μF
C157 042-0416-00 16V4.7μF
C158 178-2232-78 0.022μF
C159 042-0416-00 16V4.7μF
C160 176-1811-00 180pF CH
C161 178-3332-78 0.033μF
C162 178-2232-78 0.022μF
C163 178-5632-78 0.056μF
C164 176-2201-00 22pF CH
C165 178-4732-78 0.047μF
C166 178-3332-78 0.033μF
C167 042-0406-03 16V22μF
C168 178-1032-78 0.01μF
C169 178-2232-78 0.022μF
C170 176-1511-00 150pF CH
C172 178-4732-78 0.047μF
C175 178-3332-78 0.033μF
C177 178-1032-78 0.01μF
C178 178-6832-78 0.068μF
C179 178-2212-78 220pF
C181 178-4732-78 0.047μF
C182 178-3332-78 0.033μF
C183 042-0397-00 16V1μF TAN
C184 178-1032-78 0.01μF
C185 176-1511-00 150pF CH
C186 176-5601-00 56pF CH
C187 178-1032-78 0.01μF
C188 042-0397-00 16V1μF TAN
C189 178-1055-79 1μF
C190 042-0403-01 16V10μF TAN
C191 178-1022-78 1000pF
C192 178-8222-78 8200pF
C193 178-1032-78 0.01μF
C194 176-1011-00 100pF CH
C195 176-1501-00 15pF CH
C196 176-6801-00 68pF CH
C197 176-3301-00 33pF CH
C198 176-1011-00 100pF CH
C199 176-2201-00 22pF CH
C200 178-3312-78 330pF
C201 178-1032-78 0.01μF
C202 176-3901-00 39pF CH
C203 176-3301-00 33pF CH
C204 042-0423-01 16V2.2μF
C205 178-3332-78 0.033μF
C207 178-1032-78 0.01μF
C208 178-1032-78 0.01μF
C209 178-1042-78 0.1μF
C210 178-1042-78 0.1μF
C265 178-1032-78 0.01μF
C266 178-1022-78 1000pF
C268 163-4763-30 16V47μF
C269 163-4763-30 16V47μF
C276 178-1032-78 0.01μF
C277 178-1032-78 0.01μF
C279 184-1073-41 25V100μF
C286 184-1083-41 25V1000μF
C300 178-1055-79 1μF
C301 178-1032-78 0.01μF
C302 178-1022-78 1000pF
C303 178-1022-78 1000pF
C304 178-1032-78 0.01μF
C305 042-0397-06 35V0.1μF
C306 178-1022-78 1000pF
C307 178-1055-79 1μF
C308 178-6832-78 0.068μF
C309 042-0403-01 16V10μF TAN
C310 178-1032-78 0.01μF
C311 042-0423-04 10V 4.7μF
C312 178-1032-78 0.01μF
C313 178-1022-78 1000pF
C314 042-0403-01 16V10μF TAN
C315 178-1032-78 0.01μF
C316 178-1032-78 0.01μF
C340 178-1022-78 1000pF
C341 176-1096-00 1pF CK
C400 178-3312-78 330pF
C401 178-1055-79 1μF
C600 042-0423-04 10V 4.7μF
C601 184-1073-41 25V100μF
C602 178-1022-78 1000pF
C603 176-3301-00 33pF CH
C610 176-3301-00 33pF CH
C611 176-1201-00 12pF CH
C612 178-4732-78 0.047μF
C613 042-0472-00 10V47μF
C614 176-5096-00 5pF CH
C617 178-2232-78 0.022μF
C618 178-3912-78 390pF
C619 042-0397-02 35V0.33μF
C620 163-4753-50 35V4.7μF
C642 178-1032-78 0.01μF
C643 178-6832-78 0.068μF
C645 184-1073-41 25V100μF
C665 178-3932-78 0.039μF
D101 001-0330-00 1SS119
D102 001-0330-00 1SS119
D103 001-0330-00 1SS119
D104 001-0516-00 MA111
D105 001-0516-00 MA111
D106 001-0330-00 1SS119
D107 001-0361-10 1SS198
D108 001-3204-90 HVU17-TR
D117 001-0360-00 S5566B
D118 001-0601-00 DE3L2OU
D120 001-0330-00 1SS119
D121 001-0330-00 1SS119
D122 001-0330-00 1SS119
D123 001-0574-43 DTZ8.2A
D130 001-0330-00 1SS119
D131 001-0360-00 S5566B
D132 001-0601-00 DE3L2OU
D133 001-0330-00 1SS119
D134 001-0330-00 1SS119
FIL101 060-0264-10 0.01μF EMI
IC101 051-5808-00 TA2011S
IC102 051-4200-90 TA2051FN
IC103 051-6207-08 PLL2001S-ET
IC109 051-0352-01 TA78L05F
IC110 051-0718-10 NJM7808FA
IC111 051-0350-55 NJM4558M
IC112 051-1461-00 NJU7201U50
IFT101 005-0922-00 27MHz
IFT102 005-0967-00 10.7MHz
IFT103 005-0750-00 IFT
IFT104 005-2503-00 SFPS450H6 450kHz
IFT105 005-0922-00 27MHz
IFT106 005-0922-00 27MHz
IFT4 005-0753-00 IFT
L101 010-2046-00 0.22μH
L102 010-2039-00 27MHz
L103 010-2159-00 COIL
L104 010-2159-00 COIL
L105 010-2159-00 COIL
L106 010-1792-00 COIL
L107 010-2160-00 9μH
L108 010-2052-00 2.2mH
L109 010-2158-00 0.32mH
L110 010-2046-24 22μH
L111 010-4209-00 0.32μH
L113 010-4207-00 1μH
L114 010-4208-00 1.2μH
L115 010-2199-74 10μH J
L125 010-2046-31 82μH
L130 010-2199-59 0.56μH J
L133 010-2285-05 BLM21A102S
L134 010-2285-05 BLM21A102S
L135 010-2285-05 BLM21A102S
L136 060-0198-00 2BF113T-01
P100 076-0232-02 2P
P101 076-0232-03 3P
P105 076-0533-08 8P
P106 076-0533-08 8P
Q101 100-0817-00 2SA8170
Q102 102-1959-00 2SC1959
Q103 100-1869-25 2SA1869Y
Q104 108-0302-50 2SK302Y.GR
Q105 102-2712-00 2SC2712
Q106 102-1945-00 2SC1945
Q107 192-2480-00 2SC2480-T,S-TX
Q108 102-2166-00 2SC2166

-7- JC-215R-51
REF No. PART No. DESCRIPTION REF No. PART No. DESCRIPTION REF No. PART No. DESCRIPTION
REF No. PART No. DESCRIPTION REF No. PART No. DESCRIPTION REF No. PART No. DESCRIPTION
Q109 192-2480-00 2SC2480-T,S-TX
Q110 102-2086-00 2SC2086
Q111 102-2404-00 2SC2404B,C,D
Q112 102-2404-00 2SC2404B,C,D
Q113 102-2714-25 2SC2714Y
Q114 102-2712-00 2SC2712
Q115 100-1313-00 2SA1313O,Y
Q116 102-2714-25 2SC2714Y
Q117 102-2712-00 2SC2712
Q118 100-1313-00 2SA1313O,Y
Q119 125-2020-05 DTC123JK
Q120 102-2712-00 2SC2712
Q121 102-2404-00 2SC2404B,C,D
Q122 100-1313-00 2SA1313O,Y
Q123 125-2020-05 DTC123JK
Q124 102-2404-00 2SC2404B,C,D
Q125 102-2712-00 2SC2712
Q126 102-2714-25 2SC2714Y
Q127 102-2712-00 2SC2712
Q140 100-1869-25 2SA1869Y
Q141 125-2020-05 DTC123JK
Q142 100-1313-00 2SA1313O,Y
Q143 125-2020-05 DTC123JK
Q144 102-2712-00 2SC2712
Q600 102-2712-00 2SC2712
R101 117-1021-10 1/10W 1kΩ
R102 117-5601-10 1/10W 56Ω
R103 117-2711-10 1/10W 270Ω
R104 117-4791-10 1/10W 4.7Ω
R105 117-1231-10 1/10W 12kΩ
R106 117-1011-10 1/10W 100Ω
R107 117-3921-10 1/10W 3.9kΩ
R108 117-2221-10 1/10W 2.2kΩ
R112 117-3301-10 1/10W 33Ω
R113 117-3921-10 1/10W 3.9kΩ
R115 117-1031-10 1/10W 10kΩ
R116 117-1001-10 1/10W 10Ω
R117 117-3311-10 1/10W 330Ω
R119 117-1011-10 1/10W 100Ω
R120 117-3311-10 1/10W 330Ω
R121 117-1031-10 1/10W 10kΩ
R122 117-1031-10 1/10W 10kΩ
R123 117-1211-10 1/10W 120Ω
R124 117-1231-10 1/10W 12kΩ
R125 117-1531-10 1/10W 15kΩ
R126 117-2221-10 1/10W 2.2kΩ
R127 117-6821-10 1/10W 6.8kΩ
R129 117-2741-10 1/10W 270kΩ
R130 117-5621-10 1/10W 5.6kΩ
R131 117-4711-10 1/10W 470Ω
R133 117-6831-10 1/10W 68kΩ
R134 117-2711-10 1/10W 270Ω
R135 117-1821-10 1/10W 1.8kΩ
R136 117-3311-10 1/10W 330Ω
R137 117-1011-10 1/10W 100Ω
R138 117-3311-10 1/10W 330Ω
R139 117-3331-10 1/10W 33kΩ
R140 117-2221-10 1/10W 2.2kΩ
R141 117-2221-10 1/10W 2.2kΩ
R142 117-5601-10 1/10W 56Ω
R143 117-2221-10 1/10W 2.2kΩ
R144 117-4721-10 1/10W 4.7kΩ
R145 117-1021-10 1/10W 1kΩ
R146 117-2221-10 1/10W 2.2kΩ
R147 117-8221-10 1/10W 8.2kΩ
R148 117-1231-10 1/10W 12kΩ
R149 117-1231-10 1/10W 12kΩ
R150 117-6811-10 1/10W 680Ω
R151 117-3311-10 1/10W 330Ω
R152 117-1011-10 1/10W 100Ω
R153 117-3931-10 1/10W 39kΩ
R154 117-3321-10 1/10W 3.3kΩ
R155 117-4721-10 1/10W 4.7kΩ
R156 117-5621-10 1/10W 5.6kΩ
R158 117-3921-10 1/10W 3.9kΩ
R159 117-4721-10 1/10W 4.7kΩ
R160 117-6831-10 1/10W 68kΩ
R161 117-1831-10 1/10W 18kΩ
R163 117-4741-10 1/10W 470kΩ
R164 117-8231-10 1/10W 82kΩ
R167 117-1011-10 1/10W 100Ω
R168 117-1011-10 1/10W 100Ω
R170 117-5631-10 1/10W 56kΩ
R172 117-8221-10 1/10W 8.2kΩ
R175 117-6821-10 1/10W 6.8kΩ
R176 117-5631-10 1/10W 56kΩ
R177 117-4721-10 1/10W 4.7kΩ
R178 117-4701-10 1/10W 47Ω
R179 117-1831-10 1/10W 18kΩ
R180 117-2231-10 1/10W 22kΩ
R181 117-2231-10 1/10W 22kΩ
R182 117-2211-10 1/10W 220Ω
R183 117-2721-10 1/10W 2.7kΩ
R184 117-3321-10 1/10W 3.3kΩ
R185 117-1021-10 1/10W 1kΩ
R186 117-4701-10 1/10W 47Ω
R187 117-1211-10 1/10W 120Ω
R188 117-3311-10 1/10W 330Ω
R189 117-4721-10 1/10W 4.7kΩ
R190 117-1831-10 1/10W 18kΩ
R191 117-3931-10 1/10W 39kΩ
R194 117-1211-10 1/10W 120Ω
R195 117-3311-10 1/10W 330Ω
R196 117-4731-10 1/10W 47kΩ
R197 117-2731-10 1/10W 27kΩ
R198 117-5621-10 1/10W 5.6kΩ
R199 117-2721-10 1/10W 2.7kΩ
R202 117-1021-10 1/10W 1kΩ
R203 117-1021-10 1/10W 1kΩ
R204 117-1021-10 1/10W 1kΩ
R205 117-5631-10 1/10W 56kΩ
R206 117-1021-10 1/10W 1kΩ
R207 117-8221-10 1/10W 8.2kΩ
R208 117-2221-10 1/10W 2.2kΩ
R210 117-5621-10 1/10W 5.6kΩ
R211 117-5621-10 1/10W 5.6kΩ
R290 117-1031-10 1/10W 10kΩ
R300 117-4711-10 1/10W 470Ω
R301 117-1041-10 1/10W 100kΩ
R303 117-1031-10 1/10W 10kΩ
R304 117-4721-10 1/10W 4.7kΩ
R305 117-1011-10 1/10W 100Ω
R307 117-5621-10 1/10W 5.6kΩ
R308 117-1831-10 1/10W 18kΩ
R309 117-6831-10 1/10W 68kΩ
R310 117-4711-10 1/10W 470Ω
R311 117-2231-10 1/10W 22kΩ
R312 117-1031-10 1/10W 10kΩ
R313 117-1841-10 1/10W 180kΩ
R314 117-2241-10 1/10W 220kΩ
R315 117-3331-10 1/10W 33kΩ
R316 117-1531-10 1/10W 15kΩ
R317 117-1041-10 1/10W 100kΩ
R318 117-1041-10 1/10W 100kΩ
R319 117-4731-10 1/10W 47kΩ
R320 117-1841-10 1/10W 180kΩ
R321 117-4731-10 1/10W 47kΩ
R322 117-1831-10 1/10W 18kΩ
R323 117-4721-10 1/10W 4.7kΩ
R324 117-8221-10 1/10W 8.2kΩ
R330 111-1211-91 1/4WS 120Ω
R353 117-1011-10 1/10W 100Ω
R354 117-4721-10 1/10W 4.7kΩ
R600 117-5601-10 1/10W 56Ω
R601 117-1031-10 1/10W 10kΩ
R602 117-5631-10 1/10W 56kΩ
R614 117-5631-10 1/10W 56kΩ
R615 117-4731-10 1/10W 47kΩ
R620 111-2221-91 1/4WS 2.2kΩ
R621 111-2221-91 1/4WS 2.2kΩ
R801 117-1231-10 1/10W 12kΩ
T300 009-0603-00 CHOKE
TH101 002-0186-10 DTN-D501K
TH102 002-0216-08 DTN-T203T333KS
VR101 012-4864-11 220kΩ
VR102 012-4864-05 4.7kΩ
VR103 012-4864-05 4.7kΩ
VR104 012-4864-11 220kΩ
X101 061-1070-00 10.24MHz

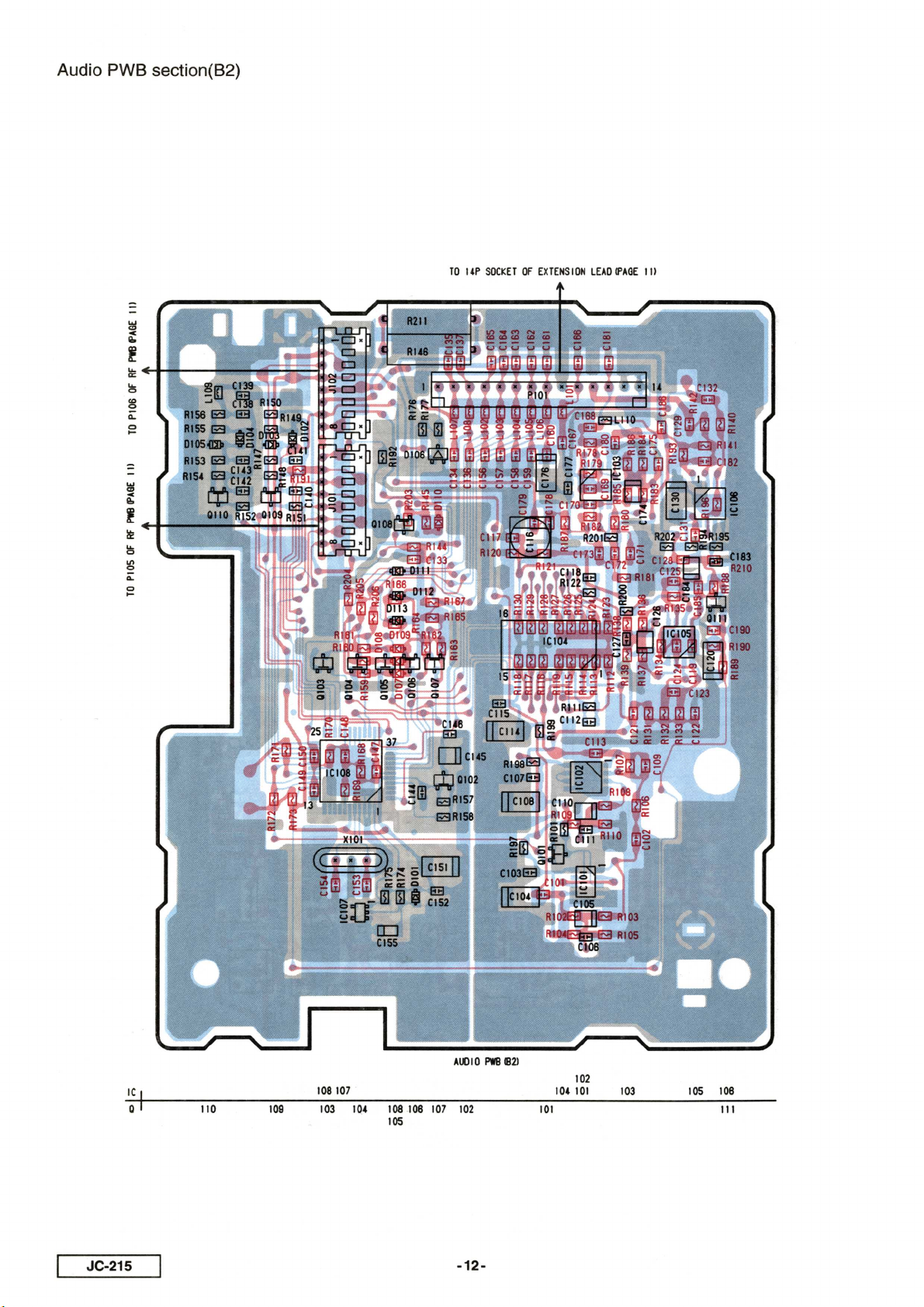

Audio PWB section(B2)
C101 178-1055-79 1μF
C102 178-1055-79 1μF
C103 178-1032-78 0.01μF
C104 042-0403-01 16V10μF TAN
C105 042-0416-02 10V10μF
C106 178-1032-78 0.01μF
C107 178-1032-78 0.01μF
C108 042-0403-01 16V10μF TAN
C109 178-1022-78 1000pF
C110 042-0416-02 10V10μF
C111 178-1032-78 0.01μF
C112 178-3322-78 3300pF
C113 178-1055-79 1μF
C114 042-0403-01 16V10μF TAN
C115 178-1032-78 0.01μF
C116 163-4763-30 16V47μF
C117 178-1032-78 0.01μF
C118 178-3322-78 3300pF
C119 178-1032-78 0.01μF
C120 042-0403-01 16V10μF TAN
C121 178-1055-79 1μF
C122 178-8222-78 8200pF
C123 178-1822-78 1800pF
C124 178-1055-79 1μF
C125 178-3912-78 390pF
C126 042-0416-02 10V10μF
C127 178-1032-78 0.01μF
C128 178-1055-79 1μF
C129 178-1055-79 1μF
C130 042-0403-01 16V10μF TAN
C131 178-1032-78 0.01μF
C132 178-1055-79 1μF
C133 178-1032-78 0.01μF
C134 178-1032-78 0.01μF
C135 178-1032-78 0.01μF
C136 178-1032-78 0.01μF
C137 178-1032-78 0.01μF
C138 178-1032-78 0.01μF
C139 178-1032-78 0.01μF
C140 178-1032-78 0.01μF
C141 178-1022-78 1000pF
C142 178-1032-78 0.01μF
C143 178-1022-78 1000pF
C144 178-1032-78 0.01μF
C145 042-0416-02 10V10μF
C146 178-1032-78 0.01μF
C147 178-1042-78 0.1μF
C148 178-1042-78 0.1μF
C149 178-1822-78 1800pF
C150 178-4732-78 0.047μF
C151 042-0403-01 16V10μF TAN

-8-
JC-215R-51
REF No. PART No. DESCRIPTION REF No. PART No. DESCRIPTION REF No. PART No. DESCRIPTION
C152 178-1032-78 0.01μF
C153 176-6801-00 68pF CH
C154 176-6801-00 68pF CH
C155 042-0397-06 35V0.1μF
C156 178-2212-78 220pF
C157 178-2212-78 220pF
C158 178-2212-78 220pF
C159 178-2212-78 220pF
C160 178-2212-78 220pF
C161 178-2212-78 220pF
C162 178-2212-78 220pF
C163 178-2212-78 220pF
C164 178-2212-78 220pF
C165 178-2212-78 220pF
C166 178-2222-78 2200pF
C167 178-2222-78 2200pF
C168 178-1055-79 1μF
C169 178-6812-78 680pF
C170 178-1055-79 1μF
C171 178-1032-78 0.01μF
C172 178-1032-78 0.01μF
C173 178-1032-78 0.01μF
C174 042-0416-02 10V10μF
C175 178-1032-78 0.01μF
C176 042-0403-01 16V10μF TAN
C177 178-1032-78 0.01μF
C178 178-1032-78 0.01μF
C179 178-1055-79 1μF
C180 178-1032-78 0.01μF
C181 178-1032-78 0.01μF
C182 178-1522-78 1500pF
C183 178-1032-78 0.01μF
C184 042-0416-02 10V10μF
C185 178-1055-79 1μF
C186 178-2222-78 2200pF
C190 178-1055-79 1μF
D101 001-0516-00 MA111
D102 001-0528-30 MA8051-H
D103 001-0516-00 MA111
D104 001-0528-30 MA8051-H
D105 001-0516-00 MA111
D106 001-0367-00 1SS226
D107 001-0516-00 MA111
D108 001-0516-00 MA111
D109 001-0516-00 MA111
D110 001-0528-23 MA8043-M
D111 001-0584-25 MA8091
D112 001-0584-25 MA8091
D113 001-0584-25 MA8091
IC101 051-7100-08 TC4W66F-TE12L
IC102 051-0350-55 NJM4558M
IC103 051-0350-55 NJM4558M
IC104 051-5010-90 LC75391M
IC105 051-0350-55 NJM4558M
IC106 051-0350-55 NJM4558M
IC107 051-5403-08 S-80725-SN-DN-T1
IC108 052-9203-01 MB89133APFM-
G499
J101 074-1142-08 8P
J102 074-1142-08 8P
L101 010-2285-05 BLM21A102S
L102 010-2285-05 BLM21A102S
L103 010-2285-05 BLM21A102S
L104 010-2285-05 BLM21A102S
L105 010-2285-05 BLM21A102S
L106 010-2285-05 BLM21A102S
L107 010-2285-05 BLM21A102S
L108 010-2285-05 BLM21A102S
L109 010-2285-05 BLM21A102S
L110 010-2285-05 BLM21A102S
P101 076-0232-14 14P
Q101 125-2020-05 DTC123JK
Q102 100-1313-00 2SA1313O,Y
Q103 125-2017-07 RN1427
Q104 125-2017-07 RN1427
Q105 125-2017-07 RN1427
Q106 102-2712-00 2SC2712
Q107 102-2712-00 2SC2712
Q108 102-2712-00 2SC2712
Q109 102-2712-00 2SC2712
Q110 102-2712-00 2SC2712
Q111 102-3326-00 2SC3326
R101 117-4731-10 1/10W 47kΩ
R102 117-4731-10 1/10W 47kΩ
R103 117-4731-10 1/10W 47kΩ
R104 117-1031-10 1/10W 10kΩ
R105 117-1031-10 1/10W 10kΩ
R106 117-2231-10 1/10W 22kΩ
R107 117-2231-10 1/10W 22kΩ
R108 117-4731-10 1/10W 47kΩ
R109 117-1031-10 1/10W 10kΩ
R110 117-1031-10 1/10W 10kΩ
R111 117-1031-10 1/10W 10kΩ
R112 117-8231-10 1/10W 82kΩ
R113 117-8231-10 1/10W 82kΩ
R114 117-8231-10 1/10W 82kΩ
R115 117-8231-10 1/10W 82kΩ
R116 117-8231-10 1/10W 82kΩ
R117 117-8231-10 1/10W 82kΩ
R118 117-8231-10 1/10W 82kΩ
R119 117-8231-10 1/10W 82kΩ
R120 117-1031-10 1/10W 10kΩ
R121 117-1031-10 1/10W 10kΩ
R122 117-1031-10 1/10W 10kΩ
R123 117-8231-10 1/10W 82kΩ
R124 117-8231-10 1/10W 82kΩ
R125 117-8231-10 1/10W 82kΩ
R126 117-8231-10 1/10W 82kΩ
R127 117-8231-10 1/10W 82kΩ
R128 117-8231-10 1/10W 82kΩ
R129 117-8231-10 1/10W 82kΩ
R130 117-8231-10 1/10W 82kΩ
R131 117-1031-10 1/10W 10kΩ
R132 117-1031-10 1/10W 10kΩ
R133 117-1031-10 1/10W 10kΩ
R134 117-2721-10 1/10W 2.7kΩ
R135 117-6831-10 1/10W 68kΩ
R136 117-2221-10 1/10W 2.2kΩ
R137 117-2221-10 1/10W 2.2kΩ
R138 117-1031-10 1/10W 10kΩ
R139 117-1231-10 1/10W 12kΩ
R140 117-2231-10 1/10W 22kΩ
R141 117-2231-10 1/10W 22kΩ
R142 117-2231-10 1/10W 22kΩ
R144 117-4731-10 1/10W 47kΩ
R145 117-1031-10 1/10W 10kΩ
R146 114-2711-21 2W 270Ω
R147 117-4721-10 1/10W 4.7kΩ
R148 117-4721-10 1/10W 4.7kΩ
R149 117-1031-10 1/10W 10kΩ
R150 117-1031-10 1/10W 10kΩ
R151 117-4731-10 1/10W 47kΩ
R152 117-4731-10 1/10W 47kΩ
R153 117-4721-10 1/10W 4.7kΩ
R154 117-4721-10 1/10W 4.7kΩ
R155 117-1031-10 1/10W 10kΩ
R156 117-1031-10 1/10W 10kΩ
R157 117-1831-10 1/10W 18kΩ
R158 117-3321-10 1/10W 3.3kΩ
R159 117-1031-10 1/10W 10kΩ
R160 117-1031-10 1/10W 10kΩ
R161 117-1031-10 1/10W 10kΩ
R162 117-1031-10 1/10W 10kΩ
R163 117-1031-10 1/10W 10kΩ
R164 117-1031-10 1/10W 10kΩ
R165 117-1031-10 1/10W 10kΩ
R166 117-4721-10 1/10W 4.7kΩ
R167 117-4721-10 1/10W 4.7kΩ
R168 117-1041-10 1/10W 100kΩ
R169 117-1031-10 1/10W 10kΩ
R170 117-3331-10 1/10W 33kΩ
R171 117-4721-10 1/10W 4.7kΩ
R172 117-4721-10 1/10W 4.7kΩ
R173 117-8231-10 1/10W 82kΩ
R174 117-1041-10 1/10W 100kΩ
R175 117-1041-10 1/10W 100kΩ
R176 117-5631-10 1/10W 56kΩ
R177 117-1011-10 1/10W 100Ω
R178 117-6821-10 1/10W 6.8kΩ
R179 117-2231-10 1/10W 22kΩ
R180 117-1021-10 1/10W 1kΩ
R181 117-2731-10 1/10W 27kΩ
R182 117-1241-10 1/10W 120kΩ
R183 117-1031-10 1/10W 10kΩ
R184 117-1031-10 1/10W 10kΩ
R185 117-4731-10 1/10W 47kΩ
R186 117-4731-10 1/10W 47kΩ
R187 117-1021-10 1/10W 1kΩ
R188 117-3311-10 1/10W 330Ω
R189 117-1031-10 1/10W 10kΩ
R190 117-1031-10 1/10W 10kΩ
R191 117-2221-10 1/10W 2.2kΩ
R192 117-4721-10 1/10W 4.7kΩ
R193 117-1011-10 1/10W 100Ω
R194 117-2231-10 1/10W 22kΩ
R195 117-2231-10 1/10W 22kΩ
R196 117-2231-10 1/10W 22kΩ
R197 117-4701-10 1/10W 47Ω
R198 117-4701-10 1/10W 47Ω
R199 117-4701-10 1/10W 47Ω
R200 117-4701-10 1/10W 47Ω
R201 117-4701-10 1/10W 47Ω
R202 117-4701-10 1/10W 47Ω
R203 117-4721-10 1/10W 4.7kΩ
R204 117-1011-10 1/10W 100Ω
R205 117-1011-10 1/10W 100Ω
R206 117-1011-10 1/10W 100Ω
R210 117-1841-10 1/10W 180kΩ
R211 114-2711-21 2W 270Ω
X101 060-0130-50 LST4.19MGW
