Icom IC-F4TR User manual

S-13606MS-CD
© 2000 Icom Inc.
6-9-16, Kamihigashi, Hirano-ku, Osaka 547-0002, Japan
UHF TRUNKED RADIO
iC-f4tr
iC-f4tr

REPAIR NOTES
1. Make sure a problem is internal before disassembling the transceiver.
2. DO NOT open the transceiver until the transceiver is disconnected from its power source.
3. DO NOT force any of the variable components. Turn them slowly and smoothly.
4. DO NOT short any circuits or electronic parts. An insulated tuning tool MUST be used for all adjustments.
5. DO NOT keep power ON for a long time when the transceiver is defective.
6. DO NOT transmit power into a signal generator or a sweep generator.
7. ALWAYS connect a 40 dB or 50 dB attenuator between the transceiver and a deviation meter or spectrum analyser when
using such test equipment.
8. READ the instructions of test equipment thoroughly before connecting equipment to the transceiver.
To upgrade quality, all electrical or mechanical parts
and internal circuits are subject to change without
notice or obligation.
DANGER
NEVER connect the transceiver to an AC outlet or to a
DC power supply that uses more than 10 V. This will ruin
the transceiver.
DO NOT expose the transceiver to rain, snow or any
liquids.
DO NOT reverse the polarrities of the power supply
when connecting the tranceiver.
DO NOT apply an RF signal of more than 20 dBm (100
mW) to the antenna connector. This could damage the
transceiver’s front end.
ORDERING PARTS
Be sure to include the following four points when ordering
replacement parts:
1. 10-digit order numbers
2. Component part number and name
3. Equipment model name and unit name
4. Quantity required
<SAMPLE ORDER>
1110001810 S.IC TA7368F IC-F4TR MAIN UNIT 1 piece
8810009560 Screw PH B0 2 ×6 ZK IC-F4TR CHASSIS 6 pieces
Addresses are provided on the inside back cover for your
convenience.
INTRODUCTION
This service manual describes the latest service information
for the IC-F4TR UHF TRUNKED RADIO at the time of
publication.
6-9-16, Kamihigashi, Hirano-ku, Osaka 547-0002, Japan
Phone : [phone]
Fax : [phone]
Communication Equipment
Himmelgeister Str. 100, D-40225 Düsseldorf, Germany
Phone : [phone] Fax : [phone]
URL : http://www.icomeurope.com
Unit 9, Sea St., Herne Bay, Kent, CT6 8LD, U.K.
Phone : [phone] Fax : [phone]
URL : http://www.icomuk.co.uk
Zac de la Plaine, Rue Brindejonc des Moulinais
BP 5804, 31505 Toulouse Cedex, France
Phone : [phone] Fax : [phone]
URL : http://www.icom-france.com
Crta. de Gracia a Manresa Km. 14,750
08190 Sant Cugat del Valles Barcelona, SPAIN
Phone : [phone] Fax : [phone]
URL : http://www.icomspain.com
<
Corporate Headquarters
>
2380 116th Avenue N.E., Bellevue, WA 98004, U.S.A.
Phone : [phone] Fax : [phone]
URL : http://www.icomamerica.com
<
Customer Service
>
Phone : [phone]
A.C.N. 006 092 575
290-294 Albert Street, Brunswick, Victoria, 3056, Australia
Phone : [phone] Fax : [phone]
URL : http://www.icom.net.au
6F No. 68, Sec. 1 Cheng-Teh Road, Taipei, Taiwan, R.O.C.
Phone : [phone] Fax : [phone]
3071 #5 Road, Unit 9, Richmond, B.C., V6X 2T4, Canada
Phone : [phone] Fax : [phone]
URL : http://www.icomcanada.com
24 keys 7 keys

TABLE OF CONTENTS
SECTION 1 SPECIFICATIONS
SECTION 2 INSIDE VIEWS
SECTION 3 DISASSEMBLY INSTRUCTION
SECTION 4 CIRCUIT DESCRIPTION
4 – 1 RECEIVER CIRCUITS ................................................................................................................... 4 – 1
4 – 2 TRANSMITTER CIRCUITS ............................................................................................................ 4 – 2
4 – 3 PLL CIRCUIT ................................................................................................................................. 4 – 3
4 – 4 POWER SUPPLY CIRCUITS ......................................................................................................... 4 – 3
4 – 5 CPU PORT ALLOCATIONS ........................................................................................................... 4 – 4
SECTION 6 PARTS LIST
SECTION 7 MECHANICAL PARTS AND DISASSEMBLY

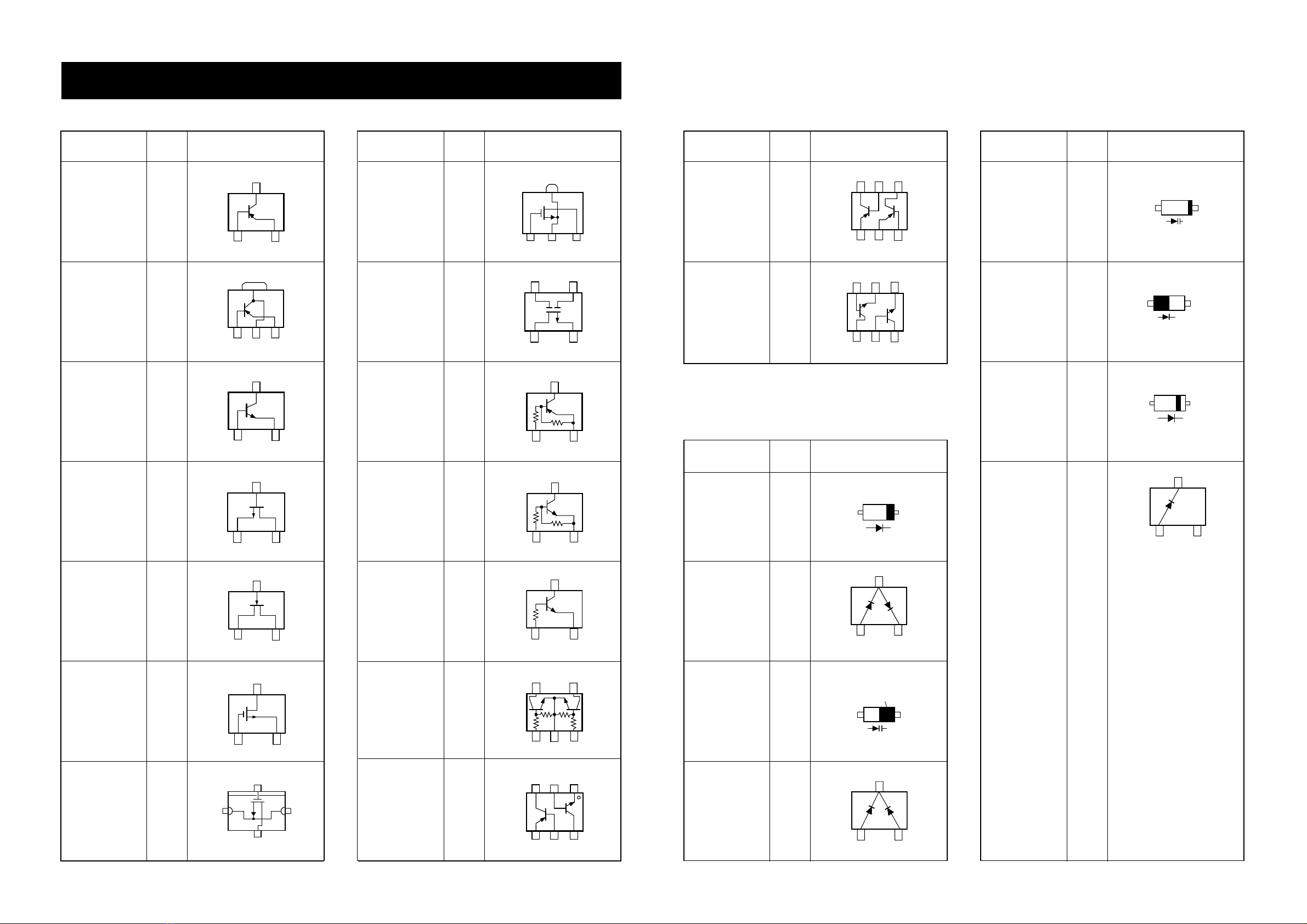

SECTION 8 SEMI-CONDUCTOR INFORMATIONS

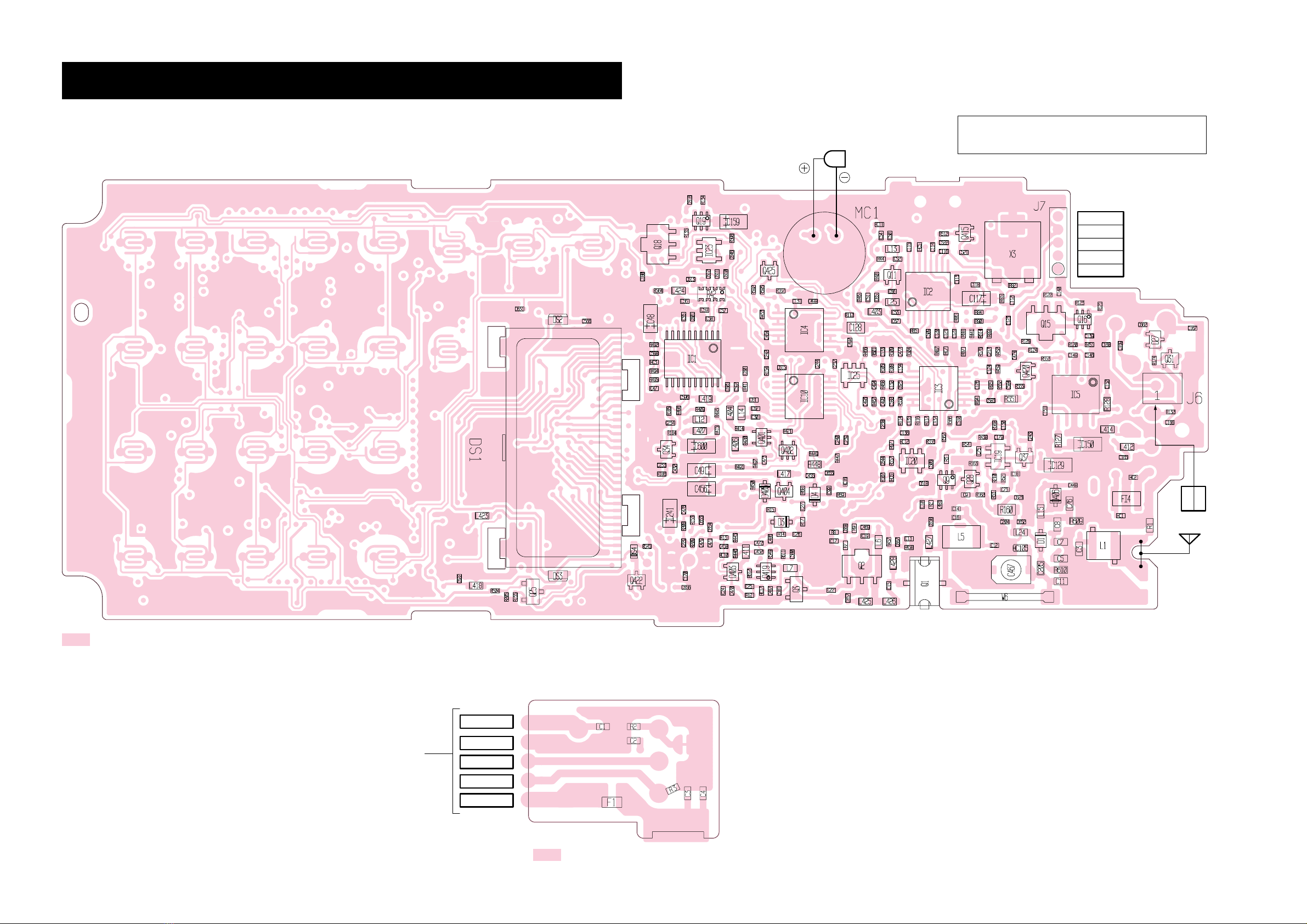

SECTION 9 BOARD LAYOUTS
9 – 1 MAIN UNIT ..................................................................................................................................... 9 – 1
9 – 2 VR BOARD .................................................................................................................................... 9 – 1
SECTION 10 BLOCK DIAGRAM
SECTION 11 VOLTAGE DIAGRAM

All stated specifications are subject to change without notice or obligation.
‘‘GENERAL
Frequency coverage : 450.000–490.000 MHz
Type of emission : 16K0F3E (25 kHz)
11K0F3E (12.5 kHz)
Antenna impedance : 50 Ωnominal
Power supply requirement : 9.6 V DC (negative ground; supplied battery pack)
Current drain at 9.6 V DC (approx.) : Transmit 1.4 A (at 4 W)
700 mA (at 1W)
Receive 280 mA (max. audio)
110 mA (stan-by)
Frequency error : ±2.5 ppm
Usable temperature range : –30˚C to +60˚C; +22˚F to +140˚F
Dimensions (proj. not included) : 57(W) ×140(H) ×37(D) mm; 21⁄4(W) ×51⁄2(H) ×115⁄32(D) inch
Weight (BP-196) : 390 g; 13.8 oz
‘‘TRANSMITTER
Output power : High 4 W
Low 1 W
Modulation system : Variable reactance frequency modulation
Max. frequency deviation : ±5.0 kHz (25 kHz)
±2.5 kHz (12.5 kHz)
Spurious emissions : 70 dB typical
Adjacent channel power : 75 dB typical (25 kHz)
70 dB typical (12.5 kHz)
Transmitter audio distortion : Less than 5 % at 1 kHz, 60 % deviation
Residual modulation : 40 dB (25 kHz)
34 dB (12.5 kHz)
Limitting charact of modulator : 60–100 % of max.deviation
Ext. microphone connector : 3-conductor 2.5(d) mm (1⁄10")/2 kΩ
‘‘RECEIVER
Receive system : Double-conversion superheterodyne system
Intermediate frequencies : 1st IF 47.250 MHz, 2nd IF 450 kHz
Sensitivity : 0.3 µV at 12 dB SINAD
Squelch sencitivity (at threshold) : 0.3 µV typical
Adjcent channel selectivity : 70 dB typical (25 kHz)
65 dB typical (12.5 kHz)
Spurious response : 70 dB typical
Inter moduration rejection ratio : 75 dB typical
Hum and noise : 48 dB typical (25 kHz)
34 dB typical (12.5 kHz)
Audio output power (at 9.6 V DC) : 500 mW typical at 5% distortion with an 8 Ωload
Ext. speaker connecter : 3-conductor 3.5(d) mm (1⁄8")/8 Ω
Measurements made in accodance with EIA/TIA-603
SECTION 1 SPECIFICATIONS
1 - 1

2 - 1
SECTION 2 INSIDE VIEWS
• MAIN UNIT
Low-pass filter circuit
PLL reference TCXO
(X1: CR-667 15.6 MHz)
RF amplifier
(Q12: 3SK293)
T/R switching diodes
(D3, D4: MA77)
CPU
(IC17: HD64F2144FA20)
EEPROM
(IC7: X25128SI-2.7T6)
DTMF encode
(IC15: PCD3312CT)
DTMF IC
(IC24: LC73872M-TRM)
LCD driver
(IC18: LC75834W)
VCO circuit
APC controller
(IC19: TA75S01F)
Microphone mute
(IC21: TC7S66FU)
PLL IC
(IC1: SA7025DK-T)
Microphone
amplifier
(IC3: NJM2902V)
FM IF IC
(IC2: TA31136FN)
Antenna switching
diodes (D1, D8*,
D406: MA77)
Power amplifier
(Q1: 2SK2595AXTB)
1st mixer circuit
(Q13: 3SK241 R)
1st IF filter
(FI1: FL-296)
Note: * Located under side of the point.
TOP VIEW BOTTOM VIEW

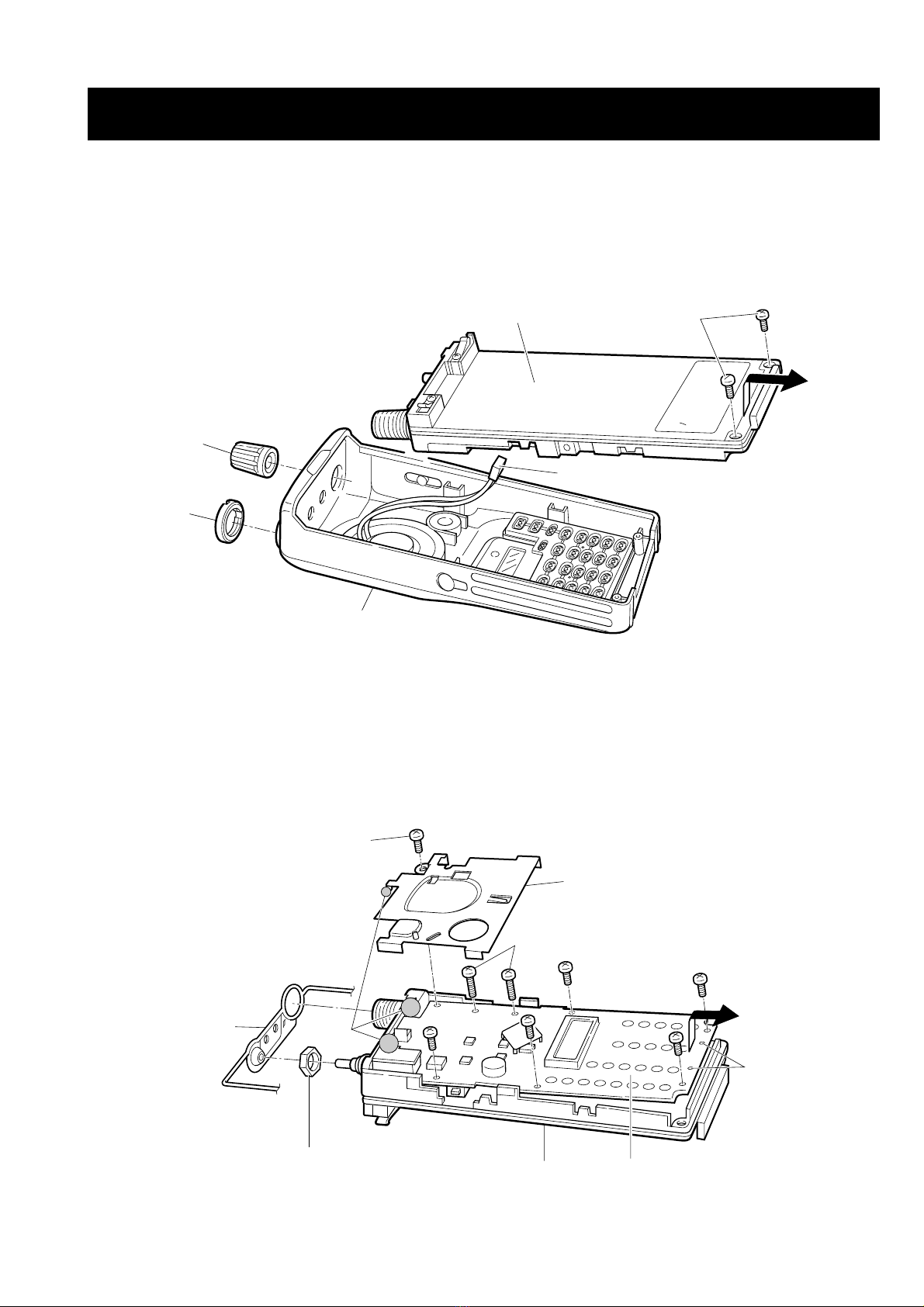

SECTION 3 DISASSEMBLY INSTRUCTION
• Removing the cassis panel
1Unscrew 1 nut A, and remove 1 nob B.
2Unscrew 2 screws C.
3Take off the chassis in the direction of the arrow.
4Unplug J6 to separate front panel and chassis.
• Removing the MAIN unit
1Remove the sealing rubber.
2Unsolder 3 points D, and unscrew 1 nut E.
3Unscrew 2 screws Fand 6 screws G(silver, 2 mm) to separate the chassis and MAIN unit.
4Take off the MAIN unit in the direction of the arrow.
3 - 1
Chassis C(nickel, 2 mm) × 2
J6 (Speaker connector)
Front panel
ANut
BKnob
F(black, 2 mm) ×2
Guide holes
Shield cover
G
G
MAIN unit
Sealing rubber
ENut Chassis
G
G
G
D
G(silver, 2 mm) ×6

SECTION 4 CIRCUIT DESCRIPTION
4 - 1
4-1 RECEIVER CIRCUITS
4-1-1 ANTENNA SWITCHING CIRCUIT
Received signals are passed through the low-pass filter
(L1–L3, C3–C5, C7). The filtered signals are applied to the
λ⁄4type antenna switching circuit (D406, D8).
The antenna switching circuit functions as a low-pass filter
while receiving. However, its impedance becomes very high
while D406 and D8 are turned ON. Thus transmit signals are
blocked from entering the receiver circuits. The antenna
switching circuit employs a λ⁄4type diode switching system.
The passed signals are then applied to the RF amplifier cir-
cuit.
4-1-2 RF CIRCUIT
The RF circuit amplifies signals within the range of frequen-
cy coverage and filters out-of-band signals.
The signals from the antenna switching circuit are amplified
at the RF amplifier (Q12) after passing through the tunable
bandpass filter (D10, L17). The amplified signals are applied
to the 1st mixer circuit (Q13) after out-of-band signals are
suppressed at the tunable bandpass filter (D401, L18, D11,
L402, D12, L19).
Varactor diodes are employed at the bandpass filters that
track the filters and are controlled by the CPU (IC17) via the
expander IC (IC10) using T1–T4 signals. These diodes tune
the centre frequency of an RF passband for wide bandwidth
receiving and good image response rejection.
4-1-3 1ST MIXER AND 1ST IF CIRCUITS
The 1st mixer circuit converts the received signal into a fixed
frequency of the 1st IF signal with a PLL output frequency.
By changing the PLL frequency, only the desired frequency
will pass through a crystal filter at the next stage of the 1st
mixer.
The signals from the RF circuit are mixed at the 1st mixer
(Q13) with a 1st LO signal coming from the VCO circuit to
produce a 47.25 MHz 1st IF signal.
The 1st IF signal is applied to a crystal filter (FI1) to sup-
press out-of-band signals. The filtered 1st IF signal is
applied to the IF amplifier (Q400), then applied to the 2nd
mixer circuit (IC2, pin 16).
4-1-4 2ND IF AND DEMODULATOR CIRCUITS
The 2nd mixer circuit converts the 1st IF signal into a 2nd IF
signal. A double conversion superheterodyne system (which
converts receive signals twice) improves the image rejection
ratio and obtains stable receiver gain.
The 1st IF signal from the IF amplifier is applied to the 2nd
mixer section of the FM IF IC (IC2, pin 16), and is mixed with
the 2nd LO signal to be converted into a 450 kHz 2nd IF sig-
nal.
The FM IF IC contains the 2nd mixer, limiter amplifier, quad-
rature detector and active filter circuits. A 2nd LO signal
(46.8 MHz) is produced at the PLL circuit by tripling it’s ref-
erence frequency.
The 2nd IF signal from the 2nd mixer (IC2, pin 3) passes
through ceramic filters (FI2, FI3) during narrow channel
spacing selection or FI2 only (bypassing FI3) during wide
channel spacing selection to remove unwanted heterodyned
frequencies. It is then amplified at the limiter amplifier (IC2,
pin 5) and applied to the quadrature detector (IC2, pins 10,
11) to demodulate the 2nd IF signal into AF signals.
4-1-5 AF CIRCUIT
AF signals from the FM IF IC (IC2, pin 9) are applied to the
analog switch (IC4, pin 1) via the high-pass filter circuits
(IC3a, pins 3, 1 and IC3b, pins 5, 7). The output signals from
pin 11 (IC4) are applied to the AF power amplifier (IC5, pin
4) after being passed through the [VOL] control (VR board,
R1).

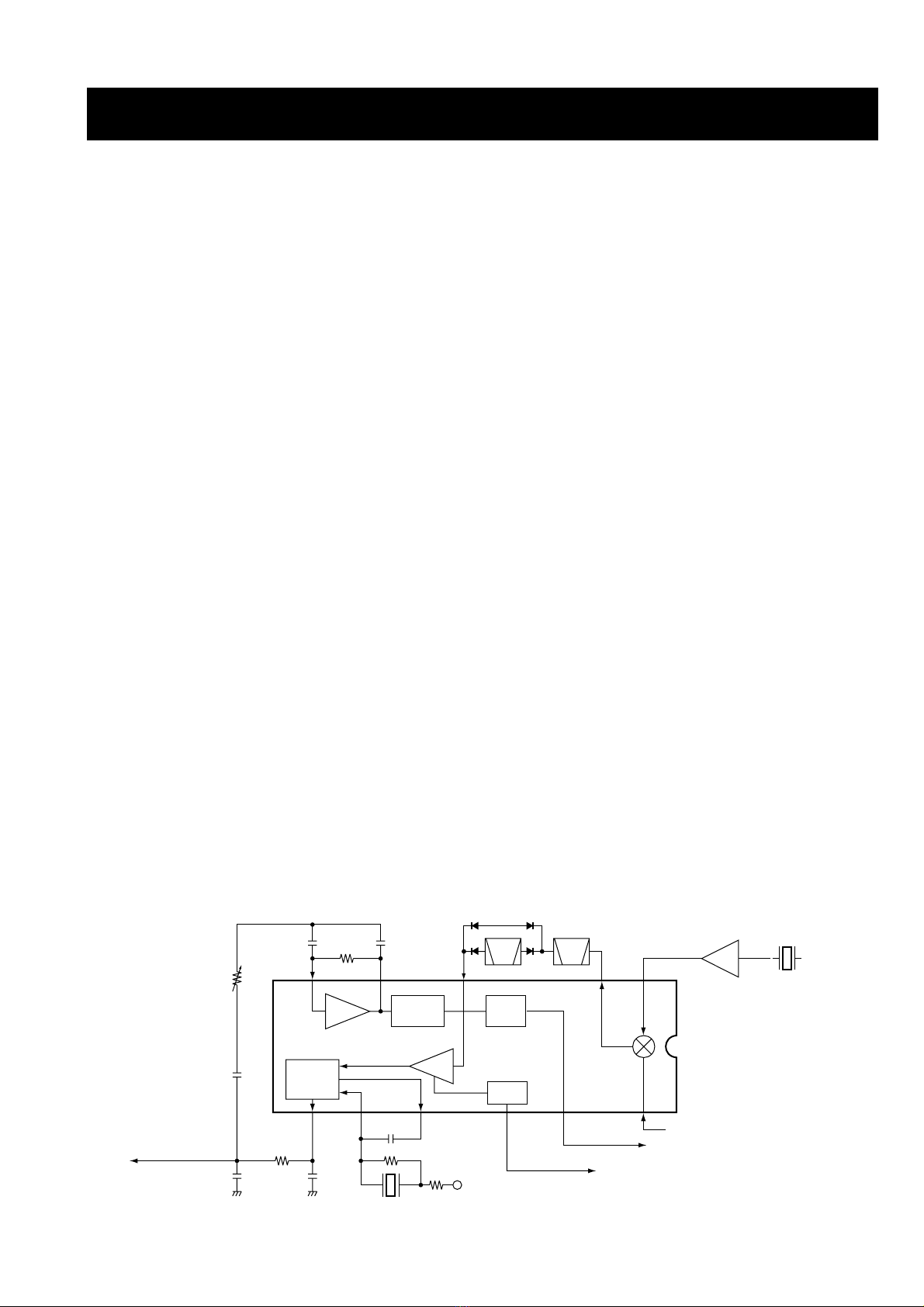

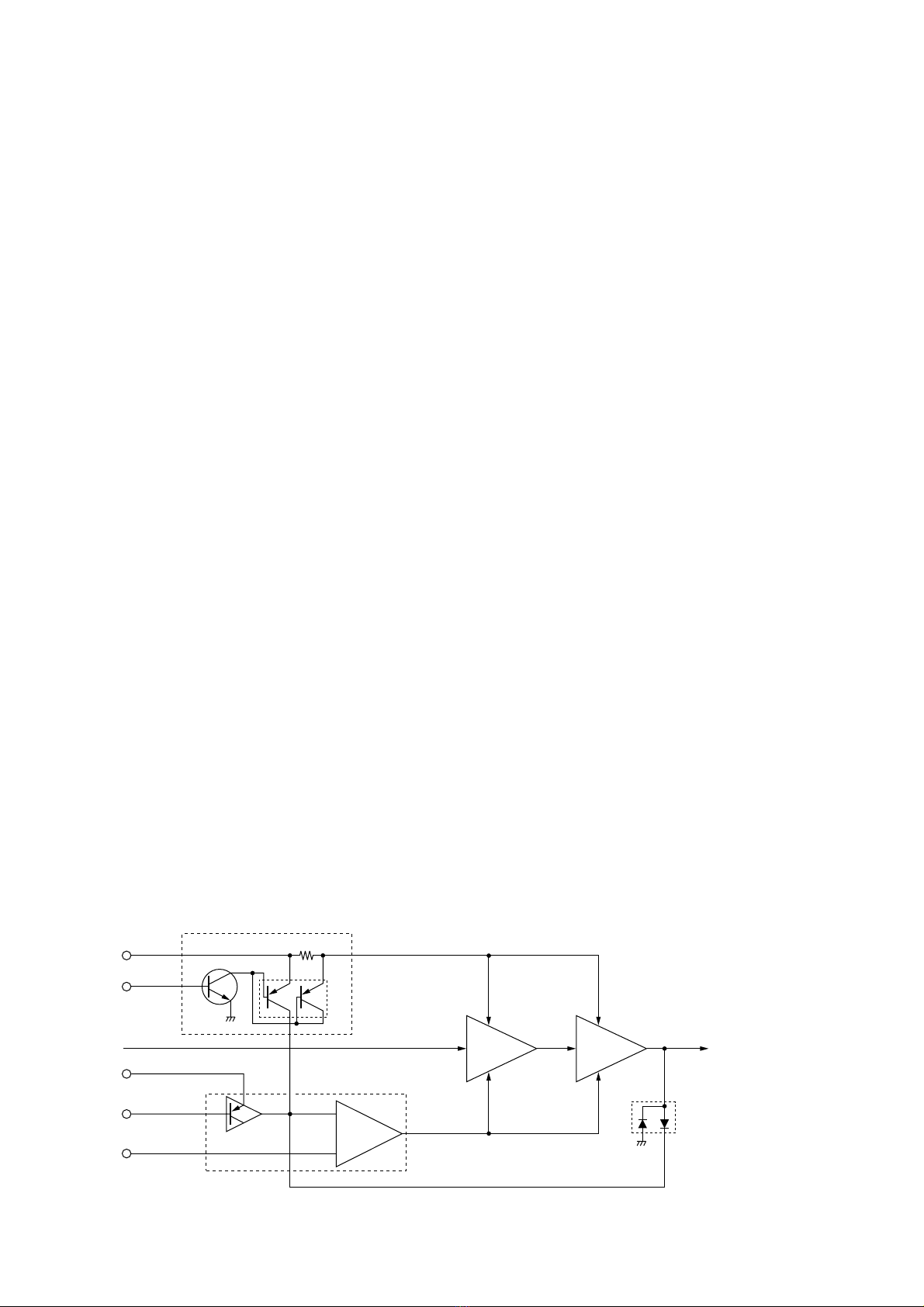

• 2nd IF and demodulator circuits
Mixer
16
Limiter
amp.
2nd IF filter
450 kHz X1
15.6 MHz
46.8 MHz
IC2 TA31136FN
12 1st IF from the IF amp.
"RSSI" signal to the CPU pin 39
11109
87
AF signal "DETIN" R5
X3
Squelch level
adjustment pot
R92
2
Active
filter
Noise
detector
FM
detector
13
"NOISE" signal to the CPU pin 32
RSSI
Noise
comp.
×3
Tripler
Q11
FI2
5
FI3
3

4 - 2
The applied AF signals are amplified at the AF power ampli-
fier circuit (IC5, pin 4) to obtain the specified audio level. The
amplified AF signals, output from pin 10, are applied to the
internal speaker (SP1) via the [SP] jack when no plug is con-
nected to the jack.
4-1-6 SQUELCH CIRCUIT
A squelch circuit cuts out AF signals when no RF signals are
received. By detecting noise components in the AF signals,
the squelch switches the AF mute switch.
A portion of the AF signals from the FM IF IC (IC2, pin 9) are
applied to the active filter section (IC2, pin 8) where noise
components are amplified and detected with an internal
noise detector. The squelch level adjustment pot (R92) is
connected in parallel to the active filter input (pin 8) to con-
trol the input noise level.
The active filter section amplifies noise components. The fil-
tered signals are rectified at the noise detector section and
converted into “NOISE”(pulse type) signals at the noise
comparator section (IC2, pin13). The “NOISE”signal is
applied to the CPU (IC17, pin 32).
The CPU detects the receiving signal strength from the
number of the pulses, and outputs an “RMUTE”signal from
pin 94. This signal controls the analog switch (IC4) to cut the
AF signal line.
4-2 TRANSMITTER CIRCUITS
4-2-1 MICROPHONE AMPLIFIER CIRCUIT
The microphone amplifier circuit amplifies audio signals with
+6 dB/octave pre-emphasis characteristics from the micro-
phone to a level needed for the modulation circuit.
The AF signals from the microphone are applied to the
microphone amplifier circuit (IC3c, pin 10). The amplified AF
signals are passed through the deviation adjustment pot
(R584), analog switch (IC4, pins 2–4) and low-pass filter cir-
cuit (IC3d, pins 13, 14). The filtered AF signals are applied
to the modulator circuit after being passed through the ana-
log switch (IC4, pins 8–10) and the modulation balance
adjustment pot (R119).
4-2-2 MODULATION CIRCUIT
The modulation circuit modulates the VCO oscillating signal
(RF signal) using the microphone audio signal.
The audio signals change the reactance of a diode (D404)
to modulate an oscillated signal at the TX-VCO circuit (Q7).
The oscillated signal is amplified at the buffer-amplifiers (Q6,
Q4), then applied to the T/R switching circuit (D3, D4).
4-2-3 DRIVE/POWER AMPLIFIER CIRCUITS
The signal from the TX-VCO circuit passes through the T/R
switching circuit (D3) and is amplified at the buffer (Q403)
pre-drive (Q3), drive (Q2) and power (Q1) amplifiers to
obtain 4 W of RF power (at 9.6 V DC). The amplified signal
passes through the antenna switching circuit (D1), and low-
pass filter and is then applied to the antenna connector.
The bias current of the drive (Q2) and power (Q1) amplifiers
is controlled by the APC circuit.
4-2-4 CURRENT DETECTOR CIRCUIT
The current detector circuit (Q9, Q28) detects the total dri-
ving current of the drive and the power amplifiers, using the
current sensor (R161). The differential amplifier (Q9) detects
the voltage difference of the current sensor input and output
voltages, then outputs control voltage to the CPU (IC17, pin
41).
4-2-5 POWER DETECTOR CIRCUIT
The power detector circuit (D2) detects the transmit power
output level and converts it into DC voltage. The detected
signal is applied to the APC circuit (IC19).
4-2-6 APC CIRCUIT
The APC circuit (IC19, Q37) protects the drive and the
power amplifiers from excessive current drive, and selects
HIGH or LOW output power.
The signal output from the power detector circuit (D2) is
applied to the differential amplifier (IC19, pin 3), and the “T4”
signal from the expander (IC10, pin 14), controlled by the
CPU (IC17), is applied to the other input for reference.
• APC circuit
Q1
Power
amp.
Q2
Driver
amp.
IC3a
+
–
T5
VCC
Q9Q28
R161
RF signal
from PLL to antenna
T4
TMUT
Q37
S5V
Current sensor circuit
APC control circuit
Power detector
D2

4 - 3
When the driving current is increased, input voltage of the
differential amplifier (IC19, pin 3) will be increased. In such
cases, the differential amplifier output voltage (pin 4) is
decreased to reduce the driving current.
4-3 PLL CIRCUIT
A PLL circuit provides stable oscillation of the transmit fre-
quency and receive 1st LO frequency. The PLL output com-
pares the phase of the divided VCO frequency to the refer-
ence frequency. The PLL output frequency is controlled by
the divided ratio (N-data) of a programmable divider.
The PLL circuit contains a separate TX-VCO circuit (Q7,
D403, L405, C418, C421–C423, C475) and RX-VCO circuit
(Q8, D5, L11, C410–C414). The oscillated signal is amplified
at the buffer-amplifiers (Q6, Q4) and then applied to the T/R
switching circuit (D3, D4). The signal from the TX-VCO cir-
cuit is applied to the drive amplifier circuit and the RX-VCO
signal to the 1st mixer circuit via the attenuator
(R447–R449).
A portion of the VCO signal from the buffer amplifier (Q6) is
amplified at the buffer amplifier (Q5) and is then fed back to
the PLL IC (IC1, pin 5).
The PLL IC contains a prescaler, programmable counter,
programmable divider phase detector and etc. The entered
signal is divided at the prescaler and programmable counter
section by the N-data ratio from the CPU. The divided signal
is detected on phase at the phase detector using the refer-
ence frequency.
If the oscillated signal drifts, its phase changes from that of
the reference frequency, causing a lock voltage change to
compensate for the drift in the oscillated frequency.
4-4 POWER SUPPLY CIRCUITS
VOLTAGE LINE
•PLL circuit
Shift register
×3
Prescaler
Phase
detector
Loop
filter
Programmable
counter
Programmable
divider
X1
15.6 MHz
46.8 MHz signal
to the FM IF IC
8
Q7, Q8
VCO circuit
Buffer
Q6
Buffer
Q4
Buffer
Q5
Tripler
1
2
3
PLLSK
PLLSO
PLLST
to transmitter circuit
to 1st mixer circuit
D4
D3
14 5
Q11
IC1 SA7025DK-T
Line
HV
VCC
CPU5
5V
T5
R5
S5
OPT
Description
The voltage from the attached battery pack.
The same voltage as the HV line (battery volt-
age) which is controlled by the power switch
([VOL] control).
Common 5 V converted from the VCC line by
the reference regulator circuit (IC6). The output
voltage is applied to the CPU (IC17) and the 5V
regulator circuit.
Common 5 V converted from the VCC line by
the 5 V regulator circuit (Q18, Q19) using the
reference regulator (IC6).
5 V for transmitter circuits regulated by the T5
regulator circuit (Q22).
5 V for receiver circuits regulated by the R5 reg-
ulator circuit (Q21).
Common 5 V converted from the 5V line by the
S5 regulator circuit (Q20).
The same voltage as the 5V line for the optional
HM-75A or HS-51 through a resistor (R132).

4 - 4
4-5 PORT ALLOCATIONS
CPU (IC17)
1
5
10
11
13
14
16
18
19
20
21
26
29
32
33
38
39
40
41
42
43
44
49
50
51
52
RES
MD1
CSHIFT
MODEL
RXD
TXD
DTMFSO
DTMFCK
DAST
DTACK
DTSD
SN RX
BWC
NOISE
MMUTE
BATIN
RSSI
TEMPS
ISENS
LVIN
TDET
SAUD
MSO
MSI
MSCK
R5C
Input port for the reset signal.
Input port for writing control signal.
Low : Writing to CPU (IC17)
Outputs CPU clock shift signal.
Input port for model detect signal.
Input port for the cloning data from the
buffer (D27).
Output port for the cloning data to the
buffer (Q31).
Outputs data signal for the DTMF
encoder (IC15).
Outputs clock signal for the DTMF
encoder (IC15).
Outputs strobe signals to the expander
IC (IC10).
Input port for the DTMF clock signal
from the DTMF decoder (IC24).
Input port for the DTMF decoding sig-
nal from the DTMF decoder (IC24).
I/O port for the optional unit.
Outputs bandwidth control signal for
the data filter (IC12).
Input port for noise signals (pulse-
type) for noise squelch operation.
Outputs mic. audio mute control signal
to the audio switch (IC25).
High : While DTMF signals are being
transmitted, etc.
Input port for battery voltage detection.
Input port for receiving signal strength
level detection.
Input port for the internal temperature
detection.
Input port for the current detection sig-
nal from the current sensor circuit (Q9,
Q28, R161).
Input port for PLL lock voltage.
Input port for the subaudible tone
decoding.
Output port for the subaudible tone
Outputs serial signal for the LCD dri-
ver, EEPROM and etc.
Input port for serial signal from the
LCD driver, EEPROM and etc.
Outputs clock signal for the LCD dri-
ver, EEPROM and etc.
Outputs R5 regulator control signal.
Low: While receiving
53
54
55
57
60
62
63
64
65
78
79
81
84
85
90
91
93
94
95
96
97
98
99
BEEP
T5C
TMUT
VCOSW
ULOCK
PLLST
PLLSO
PLLSK
W/N
CLR/
CODE
OPTB
BKLED
RMUTE
AFON
PTTIN
TXLED
S5C
FSW
SN TR
EEPCS
XTXD
XRXD
DTSTD
Outputs beep audio signals.
Outputs T5 regulator control signal.
Low: While transmitting
Outputs transmit mute signal.
High : During unlock or while muted
Outputs VCO switching signal.
High : While transmitting
Input port for the PLL unlock signal.
High : During unlock
Outputs strobe signals for the PLL IC
(IC1).
Outputs data signal for the PLL IC
(IC1).
Outputs clock signal for the PLL IC
(IC1).
Outputs N/W switch control signal.
High : While narrow is selected
I/O port for the optional unit.
I/O port for the optional unit.
Outputs LCD backlight control signal.
High : LCD backlight is ON
Outputs the analog switch (IC4) con-
trol signal (incl. beep).
Low :
While squelched, etc.
Outputs the control signal for the AF
amplifier regulator circuit.
High: While AF amp. is activated.
Input port for the PTT control signal
from the PTT control switch (Q17).
Outputs TX LED control signal.
Outputs S5 regulator control signal.
Outputs high-pass filter’s characteris-
tics select signal.
High : During CTCSS operation
I/O port for the optional unit.
Outputs chip select signal for EEP-
ROM.
Output port for the programming data
to a flash writter.
Input port for the programming data
from a flash writter.
Input port for data signal from DTMF
decoder (IC24).
Pin Port Description
number name
Pin Port Description
number name

S.=Surface mount
[MAIN UNIT][MAIN UNIT]
IC1 1130009130 S.IC SA7025DK-T
IC2 1110003490 S.IC TA31136FN (D,EL)
IC3 1110003780 S.IC NJM2902V-TE1
IC4 1130008090 S.IC BU4066BCFV-E1
IC5 1110001810 S.IC TA7368F (TP1)
IC6 1180001940 S.IC S-81250SGUP-DQD-T1
IC7 1130008400 S.IC X25128SI-2.7T6
IC10 1110003690 S.IC M62354GP 75EC
IC11 1110004880 S.IC S-80842ALNP-EA6-T2
IC12 1110003780 S.IC NJM2902V-TE1
IC13 1130006220 S.IC TC4W53FU (TE12L)
IC15 1130007770 S.IC PCD3312CT
IC16 1130006220 S.IC TC4W53FU (TE12L)
IC17 1140007600 S.IC HD64F2144FA20
IC18 1130009090 S.IC LC75834W
IC19 1110002750 S.IC TA75S01F (TE85R)
IC20 1110002750 S.IC TA75S01F (TE85R)
IC21 1130007020 S.IC TC7S66FU (TE85R)
IC22 1130008560 S.IC TC75S51F (TE85L)
IC23 1110002750 S.IC TA75S01F (TE85R)
IC24 1130009700 S.IC LC73872M-TRM
IC25 1110002750 S.IC TA75S01F (TE85R)
Q1 1560000950 S.FET 2SK2595AXTB
Q2 1560000960 S.FET 2SK2596BXTL
Q3 1530002620 S.TRANSISTOR 2SC3585 R44-T2B
Q4 1530003310 S.TRANSISTOR 2SC5107-O (TE85R)
Q5 1530003310 S.TRANSISTOR 2SC5107-O (TE85R)
Q6 1530003310 S.TRANSISTOR 2SC5107-O (TE85R)
Q7 1530002920 S.TRANSISTOR 2SC4226-T2 R25
Q8 1530002920 S.TRANSISTOR 2SC4226-T2 R25
Q9 1590002160 S.TRANSISTOR XP6401-(TX)
Q11 1530002060 S.TRANSISTOR 2SC4081 T107 R
Q12 1580000730 S.FET 3SK293 (TE85L)
Q13 1580000680 S.FET 3SK241-R (TX)
Q15 1520000460 S.TRANSISTOR 2SB1132 T100 R
Q16 1590001190 S.TRANSISTOR XP6501-(TX) .AB
Q17 1590002530 S.TRANSISTOR UN911H (TX)
Q18 1520000460 S.TRANSISTOR 2SB1132 T100 R
Q19 1590001190 S.TRANSISTOR XP6501-(TX) .AB
Q20 1510000580 S.TRANSISTOR 2SA1362-GR (TE85R)
Q21 1510000580 S.TRANSISTOR 2SA1362-GR (TE85R)
Q22 1510000580 S.TRANSISTOR 2SA1362-GR (TE85R)
Q23 1530002060 S.TRANSISTOR 2SC4081 T107 R
Q25 1530000160 S.TRANSISTOR 2SC2712-Y (TE85RTEM)
Q27 1520000460 S.TRANSISTOR 2SB1132 T100 R
Q28 1530002060 S.TRANSISTOR 2SC4081 T107 R
Q31 1590000660 S.TRANSISTOR DTC144TU T107
Q34 1560000540 S.FET 2SK880-Y (TE85R)
Q37 1590000720 S.TRANSISTOR DTA144EUA T106
Q400 1530002600 S.TRANSISTOR 2SC4215-O (TE85R)
Q401 1590001400 S.TRANSISTOR XP1214 (TX)
Q402 1590001400 S.TRANSISTOR XP1214 (TX)
Q403 1530003310 S.TRANSISTOR 2SC5107-O (TE85R)
Q404 1530002850 S.TRANSISTOR 2SC4116-BL (TE85R)
Q405 1590000430 S.TRANSISTOR DTC144EUA T106
Q407 1590000720 S.TRANSISTOR DTA144EUA T106
Q413 1590000430 S.TRANSISTOR DTC144EUA T106
Q415 1590000430 S.TRANSISTOR DTC144EUA T106
Q417 1590000430 S.TRANSISTOR DTC144EUA T106
Q419 1590001650 S.TRANSISTOR XP4601 (TX)
Q420 1560000810 S.FET 2SK1069-4-TL
Q422 1590000430 S.TRANSISTOR DTC144EUA T106
Q425 1560000810 S.FET 2SK1069-4-TL
Q426 1560000810 S.FET 2SK1069-4-TL
Q427 1560000840 S.FET 2SK1829 (TE85R)
D1 1790000620 S.DIODE MA77 (TX)
D2 1790000490 S.DIODE HSM88AS-TR
D3 1790000620 S.DIODE MA77 (TX)
D4 1790000620 S.DIODE MA77 (TX)
D5 1720000370 S.VARICAP HVU350TRF
D8 1790000620 S.DIODE MA77 (TX)
D10 1720000370 S.VARICAP HVU350TRF
D11 1720000370 S.VARICAP HVU350TRF
D12 1720000370 S.VARICAP HVU350TRF
D15 1790001250 S.DIODE MA2S111-(TX)
D24 1750000130 S.DIODE DA204U T107
D25 1790000670 S.DIODE SB07-03C-TB
D27 1750000130 S.DIODE DA204U T107
D400 1790001210 S.DIODE 1SS375-TL
D401 1720000370 S.VARICAP HVU350TRF
D402 1790001210 S.DIODE 1SS375-TL
D403 1720000370 S.VARICAP HVU350TRF
D404 1720000520 S.VARICAP 1T365-01-T8A
D405 1720000360 S.DIODE HSU88TRF
D406 1790000620 S.DIODE MA77 (TX)
D407 1790001250 S.DIODE MA2S111-(TX)
D408 1790001250 S.DIODE MA2S111-(TX)
D409 1790000620 S.DIODE MA77 (TX)
D410 1160000060 S.DIODE DAN202U T107
D411 1160000060 S.DIODE DAN202U T107
D412 1750000520 S.DIODE DAN222TL
D413 1790001250 S.DIODE MA2S111-(TX)
FI1 2010002310 S.MONOLITH FL-296 (47.250 MHz)
FI2 2020001580 S.CERAMIC PBFC450P15D
FI3 2020001570 S.CERAMIC PBFC450P9D
FI4 2040001440 S.LC NFM60R20T152
X1 6050010960 S.XTAL CR-667 (15.600 MHz)
X2 6050009870 S.XTAL CR-567 (9.8304 MHz)
X3 6070000210
S.DISCRIMINATOR CDBCA450CX24
X4 6060000550 S.CERAMIC PBRC 3.58AR
L1 6200005780 S.COIL 33CS-Y655LY-03K=P3
L2 6200005770 S.COIL 33CS-Y655LY-04K=P3
L3 6200005770 S.COIL 33CS-Y655LY-04K=P3
L5 6110003230 S.COIL LA-515
L6 6200009070 S.COIL LQW1608A18NG00
L7 6200005700 S.COIL ELJRE 22NG-F
L8 6200005710 S.COIL ELJRE 27NG-F
L9 6200005710 S.COIL ELJRE 27NG-F
L11 6200003690 S.COIL MC152-E558ANA-100051=P3
L12 6200003550 S.COIL MLF1608A 4R7K-T
L13 6200003960 S.COIL MLF1608A 1R0K-T
L14 6200005680 S.COIL ELJRE 15NG-F
L15 6200009220 S.COIL LQW1608A15NG00
L17 6200002320 S.COIL LQN 1A 8N8J04
L18 6200002320 S.COIL LQN 1A 8N8J04
L19 6200002320 S.COIL LQN 1A 8N8J04
L20 6200004480 S.COIL MLF1608D R82K-T
L21 6200005740 S.COIL ELJRE 47NG-F
L22 6200004660 S.COIL MLF1608A 1R8K-T
L24 6200004480 S.COIL MLF1608D R82K-T
L25 6200004480 S.COIL MLF1608D R82K-T
L26 6200003590 S.COIL EXCCL3225U1
L27 6200003590 S.COIL EXCCL3225U1
L400 6200007740 S.COIL LQN21A 47NJ04
L401 6200009220 S.COIL LQW1608A15NG00
L402 6200002320 S.COIL LQN 1A 8N8J04
L403 6200004780 S.COIL MLF1608A 1R5K-T
L404 6200004780 S.COIL MLF1608A 1R5K-T
L405 6200004110 S.COIL MC152-E558ANA-100050
L406 6200004780 S.COIL MLF1608A 1R5K-T
L407 6200003550 S.COIL MLF1608A 4R7K-T
L409 6200003550 S.COIL MLF1608A 4R7K-T
L410 6200003960 S.COIL MLF1608A 1R0K-T
L411 6200005710 S.COIL ELJRE 27NG-F
L412 6200003960 S.COIL MLF1608A 1R0K-T
L414 6200003540 S.COIL MLF1608D R22K-T
L415 6200003590 S.COIL EXCCL3225U1
L417 6200003550 S.COIL MLF1608A 4R7K-T
L418 6200004780 S.COIL MLF1608A 1R5K-T
L419 6200004780 S.COIL MLF1608A 1R5K-T
6 - 1
SECTION 6 PARTS LIST
REF ORDER DESCRIPTION
NO. NO.
REF ORDER DESCRIPTION
NO. NO.

S.=Surface mount
R125 7030005600 S.RESISTOR ERJ2GEJ 273 X (27 kΩ)
R126 7030009320 S.RESISTOR ERJ2GEJ 4R7 X (4.7 Ω)
R127 7030003200 S.RESISTOR ERJ3GEYJ 100 V (10 Ω)
R128 7030003200 S.RESISTOR ERJ3GEYJ 100 V (10 Ω)
R130 7030005090 S.RESISTOR ERJ2GEJ 104 X (100 kΩ)
R131 7030005000 S.RESISTOR ERJ2GEJ 471 X (470 Ω)
R132 7030005000 S.RESISTOR ERJ2GEJ 471 X (470 Ω)
R133 7030005120 S.RESISTOR ERJ2GEJ 102 X (1 kΩ)
R134 7030007290 S.RESISTOR ERJ2GEJ 222 X (2.2 kΩ)
R135 7030005050 S.RESISTOR ERJ2GEJ 103 X (10 kΩ)
R137 7030005040 S.RESISTOR ERJ2GEJ 472 X (4.7 kΩ)
R139 7030005040 S.RESISTOR ERJ2GEJ 472 X (4.7 kΩ)
R141 7030005040 S.RESISTOR ERJ2GEJ 472 X (4.7 kΩ)
R144 7030005060 S.RESISTOR ERJ2GEJ 333 X (33 kΩ)
R146 7030005090 S.RESISTOR ERJ2GEJ 104 X (100 kΩ)
R147 7030005110 S.RESISTOR ERJ2GEJ 224 X (220 kΩ)
R148 7030005090 S.RESISTOR ERJ2GEJ 104 X (100 kΩ)
R149 7030005050 S.RESISTOR ERJ2GEJ 103 X (10 kΩ)
R153 7030005120 S.RESISTOR ERJ2GEJ 102 X (1 kΩ)
R154 7030008290 S.RESISTOR ERJ2GEJ 183 X (18 kΩ)
R155 7030004980 S.RESISTOR ERJ2GEJ 101 X (100 Ω)
R156 7030000160 S.RESISTOR MCR10EZHJ 15 Ω(150)
R157 7030000160 S.RESISTOR MCR10EZHJ 15 Ω(150)
R158 7030005050 S.RESISTOR ERJ2GEJ 103 X (10 kΩ)
R160 7030000290 S.RESISTOR MCR10EZHJ 180 Ω(181)
R161 7030007330 S.RESISTOR ERJ1WRSJR15U (0.15 Ω)
R162 7030005120 S.RESISTOR ERJ2GEJ 102 X (1 kΩ)
R163 7030005060 S.RESISTOR ERJ2GEJ 333 X (33 kΩ)
R164 7030009140 S.RESISTOR ERJ2GEJ 272 X (2.7 kΩ)
R165 7030008400 S.RESISTOR ERJ2GEJ 182 X (1.8 kΩ)
R167 7030005090 S.RESISTOR ERJ2GEJ 104 X (100 kΩ)
R174 7030007340 S.RESISTOR ERJ2GEJ 153 X (15 kΩ)
R176 7030008410 S.RESISTOR ERJ2GEJ 392 X (3.9 kΩ)
R178 7030008410 S.RESISTOR ERJ2GEJ 392 X (3.9 kΩ)
R181 7030005090 S.RESISTOR ERJ2GEJ 104 X (100 kΩ)
R182 7510001240 S.THEMISTOR ERTJ0EV 473 J (47K)
R184 7030005050 S.RESISTOR ERJ2GEJ 103 X (10 kΩ)
R185 7030005120 S.RESISTOR ERJ2GEJ 102 X (1 kΩ)
R186 7030005240 S.RESISTOR ERJ2GEJ 473 X (47 kΩ)
R205 7030005030 S.RESISTOR ERJ2GEJ 152 X (1.5 kΩ)
R208 7030005090 S.RESISTOR ERJ2GEJ 104 X (100 kΩ)
R209 7030005090 S.RESISTOR ERJ2GEJ 104 X (100 kΩ)
R210 7030007290 S.RESISTOR ERJ2GEJ 222 X (2.2 kΩ)
R214 7030008010 S.RESISTOR ERJ2GEJ 123 X (12 kΩ)
R215 7030005520 S.RESISTOR RR0816R-334-D (330 kΩ)
R216 7030005630 S.RESISTOR RR0816R-154-D (150 kΩ)
R400 7030005090 S.RESISTOR ERJ2GEJ 104 X (100 kΩ)
R403 7030009320 S.RESISTOR ERJ2GEJ 4R7 X (4.7 Ω)
R404 7030005110 S.RESISTOR ERJ2GEJ 224 X (220 kΩ)
R405 7030005050 S.RESISTOR ERJ2GEJ 103 X (10 kΩ)
R406 7030008280 S.RESISTOR ERJ2GEJ 271 X (270 Ω)
R407 7030005310 S.RESISTOR ERJ2GEJ 124 X (120 kΩ)
R408 7030005120 S.RESISTOR ERJ2GEJ 102 X (1 kΩ)
R409 7030005530 S.RESISTOR ERJ2GEJ 100 X (10 Ω)
R410 7030007300 S.RESISTOR ERJ2GEJ 332 X (3.3 kΩ)
R411 7030009140 S.RESISTOR ERJ2GEJ 272 X (2.7 kΩ)
R412 7030009320 S.RESISTOR ERJ2GEJ 4R7 X (4.7 Ω)
R413 7030009320 S.RESISTOR ERJ2GEJ 4R7 X (4.7 Ω)
R414 7030005000 S.RESISTOR ERJ2GEJ 471 X (470 Ω)
R415 7030005530 S.RESISTOR ERJ2GEJ 100 X (10 Ω)
R416 7030007300 S.RESISTOR ERJ2GEJ 332 X (3.3 kΩ)
R417 7030007300 S.RESISTOR ERJ2GEJ 332 X (3.3 kΩ)
R419 7030009320 S.RESISTOR ERJ2GEJ 4R7 X (4.7 Ω)
R420 7030009280 S.RESISTOR ERJ2GE 391 X (390 Ω)
R421 7030005050 S.RESISTOR ERJ2GEJ 103 X (10 kΩ)
R422 7030005110 S.RESISTOR ERJ2GEJ 224 X (220 kΩ)
R424 7030005050 S.RESISTOR ERJ2GEJ 103 X (10 kΩ)
R438 7030005230 S.RESISTOR ERJ2GEJ 334 X (330 kΩ)
R439 7030005050 S.RESISTOR ERJ2GEJ 103 X (10 kΩ)
R441 7510001290 S.THEMISTOR ERTJ0ER 472 J (4.7K)
R442 7030005050 S.RESISTOR ERJ2GEJ 103 X (10 kΩ)
R443 7030005050 S.RESISTOR ERJ2GEJ 103 X (10 kΩ)
R444 7030005050 S.RESISTOR ERJ2GEJ 103 X (10 kΩ)
R445 7030004990 S.RESISTOR ERJ2GEJ 221 X (220 Ω)
R446 7030005720 S.RESISTOR ERJ2GEJ 563 X (56 kΩ)
R447 7030005000 S.RESISTOR ERJ2GEJ 471 X (470 Ω)
R448 7030003210 S.RESISTOR ERJ3GEYJ 120 V (12 Ω)
R449 7030005000 S.RESISTOR ERJ2GEJ 471 X (470 Ω)
R450 7030007290 S.RESISTOR ERJ2GEJ 222 X (2.2 kΩ)
R451 7030005160 S.RESISTOR ERJ2GEJ 105 X (1 MΩ)
R452 7030009320 S.RESISTOR ERJ2GEJ 4R7 X (4.7 Ω)
[MAIN UNIT][MAIN UNIT]
L420 6200004780 S.COIL MLF1608A 1R5K-T
L421 6200004780 S.COIL MLF1608A 1R5K-T
L422 6200004780 S.COIL MLF1608A 1R5K-T
L423 6200004780 S.COIL MLF1608A 1R5K-T
L424 6200004780 S.COIL MLF1608A 1R5K-T
L425 6200005650 S.COIL ELJRE 8N2Z-F
L426 6200005650 S.COIL ELJRE 8N2Z-F
L427 6200005670 S.COIL ELJRE 12NG-F
L428 6200006770 S.COIL ELJRE 1N5Z-F
R1 7030003670 S.RESISTOR ERJ3GEYJ 823 V (82 kΩ)
R2 7030005050 S.RESISTOR ERJ2GEJ 103 X (10 kΩ)
R3 7030005120 S.RESISTOR ERJ2GEJ 102 X (1 kΩ)
R7 7030004980 S.RESISTOR ERJ2GEJ 101 X (100 Ω)
R8 7030005210 S.RESISTOR ERJ2GEJ 822 X (8.2 kΩ)
R9 7030005210 S.RESISTOR ERJ2GEJ 822 X (8.2 kΩ)
R12 7030005220 S.RESISTOR ERJ2GEJ 223 X (22 kΩ)
R13 7030005530 S.RESISTOR ERJ2GEJ 100 X (10 Ω)
R14 7030004980 S.RESISTOR ERJ2GEJ 101 X (100 Ω)
R15 7030005050 S.RESISTOR ERJ2GEJ 103 X (10 kΩ)
R17 7030005040 S.RESISTOR ERJ2GEJ 472 X (4.7 kΩ)
R18 7030005240 S.RESISTOR ERJ2GEJ 473 X (47 kΩ)
R19 7030004980 S.RESISTOR ERJ2GEJ 101 X (100 Ω)
R20 7030005070 S.RESISTOR ERJ2GEJ 683 X (68 kΩ)
R21 7030004990 S.RESISTOR ERJ2GEJ 221 X (220 Ω)
R22 7030005070 S.RESISTOR ERJ2GEJ 683 X (68 kΩ)
R23 7030004990 S.RESISTOR ERJ2GEJ 221 X (220 Ω)
R40 7030007060 S.RESISTOR ERJ2GEJ 684 X (680 kΩ)
R41 7030005580 S.RESISTOR ERJ2GEJ 560 X (56 Ω)
R42 7410000950 S.ARRAY EXB-V8V 102 JV (1 kΩ)
R44 7030007570 S.RESISTOR ERJ2GEJ 122 X (1.2 kΩ)
R46 7030009320 S.RESISTOR ERJ2GEJ 4R7 X (4.7 Ω)
R52 7030005090 S.RESISTOR ERJ2GEJ 104 X (100 kΩ)
R53 7030005050 S.RESISTOR ERJ2GEJ 103 X (10 kΩ)
R54 7030005100 S.RESISTOR ERJ2GEJ 154 X (150 kΩ)
R59 7030004980 S.RESISTOR ERJ2GEJ 101 X (100 Ω)
R62 7030005110 S.RESISTOR ERJ2GEJ 224 X (220 kΩ)
R63 7030005050 S.RESISTOR ERJ2GEJ 103 X (10 kΩ)
R64 7030005110 S.RESISTOR ERJ2GEJ 224 X (220 kΩ)
R65 7030005050 S.RESISTOR ERJ2GEJ 103 X (10 kΩ)
R66 7030005100 S.RESISTOR ERJ2GEJ 154 X (150 kΩ)
R67 7030005050 S.RESISTOR ERJ2GEJ 103 X (10 kΩ)
R68 7030005050 S.RESISTOR ERJ2GEJ 103 X (10 kΩ)
R69 7030005120 S.RESISTOR ERJ2GEJ 102 X (1 kΩ)
R70 7030005040 S.RESISTOR ERJ2GEJ 472 X (4.7 kΩ)
R72 7030005240 S.RESISTOR ERJ2GEJ 473 X (47 kΩ)
R75 7030008280 S.RESISTOR ERJ2GEJ 271 X (270 Ω)
R77 7030004980 S.RESISTOR ERJ2GEJ 101 X (100 Ω)
R82 7030007290 S.RESISTOR ERJ2GEJ 222 X (2.2 kΩ)
R83 7030009320 S.RESISTOR ERJ2GEJ 4R7 X (4.7 Ω)
R84 7030004970 S.RESISTOR ERJ2GEJ 470 X (47 Ω)
R85 7030005030 S.RESISTOR ERJ2GEJ 152 X (1.5 kΩ)
R86 7030005090 S.RESISTOR ERJ2GEJ 104 X (100 kΩ)
R87 7030009270 S.RESISTOR ERJ2GEJ 821 X (820 Ω)
R88 7030005230 S.RESISTOR ERJ2GEJ 334 X (330 kΩ)
R89 7030005050 S.RESISTOR ERJ2GEJ 103 X (10 kΩ)
R90 7030005030 S.RESISTOR ERJ2GEJ 152 X (1.5 kΩ)
R92 7310004110 S.TRIMMER EVM-1YSX50 B54 (503)
R94 7030007350 S.RESISTOR ERJ2GEJ 393 X (39 kΩ)
R95 7030007290 S.RESISTOR ERJ2GEJ 222 X (2.2 kΩ)
R97 7030005060 S.RESISTOR ERJ2GEJ 333 X (33 kΩ)
R98 7030005230 S.RESISTOR ERJ2GEJ 334 X (330 kΩ)
R99 7030007340 S.RESISTOR ERJ2GEJ 153 X (15 kΩ)
R100 7030008400 S.RESISTOR ERJ2GEJ 182 X (1.8 kΩ)
R103 7030008010 S.RESISTOR ERJ2GEJ 123 X (12 kΩ)
R104 7030005090 S.RESISTOR ERJ2GEJ 104 X (100 kΩ)
R105 7030004990 S.RESISTOR ERJ2GEJ 221 X (220 Ω)
R107 7030005110 S.RESISTOR ERJ2GEJ 224 X (220 kΩ)
R108 7030008300 S.RESISTOR ERJ2GEJ 184 X (180 kΩ)
R109 7030005120 S.RESISTOR ERJ2GEJ 102 X (1 kΩ)
R112 7030005090 S.RESISTOR ERJ2GEJ 104 X (100 kΩ)
R114 7030005060 S.RESISTOR ERJ2GEJ 333 X (33 kΩ)
R116 7030005120 S.RESISTOR ERJ2GEJ 102 X (1 kΩ)
R117 7030008400 S.RESISTOR ERJ2GEJ 182 X (1.8 kΩ)
R119 7310004090 S.TRIMMER EVM-1YSX50 B14 (103)
R120 7030005070 S.RESISTOR ERJ2GEJ 683 X (68 kΩ)
R121 7030005120 S.RESISTOR ERJ2GEJ 102 X (1 kΩ)
R122 7030009700 S.RESISTOR ERJ2GEJ 202 X (2 kΩ)
R123 7030007290 S.RESISTOR ERJ2GEJ 222 X (2.2 kΩ)
R124 7030009140 S.RESISTOR ERJ2GEJ 272 X (2.7 kΩ)
6 - 2
REF ORDER DESCRIPTION
NO. NO.
REF ORDER DESCRIPTION
NO. NO.

S.=Surface mount
[MAIN UNIT][MAIN UNIT]
R453 7030005230 S.RESISTOR ERJ2GEJ 334 X (330 kΩ)
R455 7030005090 S.RESISTOR ERJ2GEJ 104 X (100 kΩ)
R456 7030005030 S.RESISTOR ERJ2GEJ 152 X (1.5 kΩ)
R457 7030008010 S.RESISTOR ERJ2GEJ 123 X (12 kΩ)
R458 7030005600 S.RESISTOR ERJ2GEJ 273 X (27 kΩ)
R459 7030005220 S.RESISTOR ERJ2GEJ 223 X (22 kΩ)
R460 7030004990 S.RESISTOR ERJ2GEJ 221 X (220 Ω)
R464 7030008410 S.RESISTOR ERJ2GEJ 392 X (3.9 kΩ)
R465 7030007250 S.RESISTOR ERJ2GEJ 220 X (22 Ω)
R466 7030009320 S.RESISTOR ERJ2GEJ 4R7 X (4.7 Ω)
R467 7030005240 S.RESISTOR ERJ2GEJ 473 X (47 kΩ)
R468 7030005110 S.RESISTOR ERJ2GEJ 224 X (220 kΩ)
R469 7030009140 S.RESISTOR ERJ2GEJ 272 X (2.7 kΩ)
R470 7030005090 S.RESISTOR ERJ2GEJ 104 X (100 kΩ)
R471 7030005240 S.RESISTOR ERJ2GEJ 473 X (47 kΩ)
R472 7030005240 S.RESISTOR ERJ2GEJ 473 X (47 kΩ)
R473 7030005090 S.RESISTOR ERJ2GEJ 104 X (100 kΩ)
R474 7030005230 S.RESISTOR ERJ2GEJ 334 X (330 kΩ)
R480 7030005230 S.RESISTOR ERJ2GEJ 334 X (330 kΩ)
R481 7030005090 S.RESISTOR ERJ2GEJ 104 X (100 kΩ)
R482 7030008010 S.RESISTOR ERJ2GEJ 123 X (12 kΩ)
R483 7030007340 S.RESISTOR ERJ2GEJ 153 X (15 kΩ)
R484 7030005220 S.RESISTOR ERJ2GEJ 223 X (22 kΩ)
R485 7030009140 S.RESISTOR ERJ2GEJ 272 X (2.7 kΩ)
R486 7030008010 S.RESISTOR ERJ2GEJ 123 X (12 kΩ)
R487 7030007340 S.RESISTOR ERJ2GEJ 153 X (15 kΩ)
R491 7030009700 S.RESISTOR ERJ2GEJ 202 X (2 kΩ)
R492 7030009710 S.RESISTOR ERJ2GEJ 203 X (20 kΩ)
R493 7030008010 S.RESISTOR ERJ2GEJ 123 X (12 kΩ)
R494 7030008410 S.RESISTOR ERJ2GEJ 392 X (3.9 kΩ)
R495 7030005530 S.RESISTOR ERJ2GEJ 100 X (10 Ω)
R496 7030009700 S.RESISTOR ERJ2GEJ 202 X (2 kΩ)
R497 7030009700 S.RESISTOR ERJ2GEJ 202 X (2 kΩ)
R498 7030008010 S.RESISTOR ERJ2GEJ 123 X (12 kΩ)
R500 7030005240 S.RESISTOR ERJ2GEJ 473 X (47 kΩ)
R503 7030005090 S.RESISTOR ERJ2GEJ 104 X (100 kΩ)
R504 7030007300 S.RESISTOR ERJ2GEJ 332 X (3.3 kΩ)
R505 7410000950 S.ARRAY EXB-V8V 102 JV (1 kΩ)
R508 7030005240 S.RESISTOR ERJ2GEJ 473 X (47 kΩ)
R509 7030007350 S.RESISTOR ERJ2GEJ 393 X (39 kΩ)
R512 7030008400 S.RESISTOR ERJ2GEJ 182 X (1.8 kΩ)
R514 7030008290 S.RESISTOR ERJ2GEJ 183 X (18 kΩ)
R516 7030005090 S.RESISTOR ERJ2GEJ 104 X (100 kΩ)
R517 7030005090 S.RESISTOR ERJ2GEJ 104 X (100 kΩ)
R519 7410000750 S.ARRAY EXB-V4V 104JV (100 kΩ)
R520 7030005090 S.RESISTOR ERJ2GEJ 104 X (100 kΩ)
R521 7030005220 S.RESISTOR ERJ2GEJ 223 X (22 kΩ)
R522 7030005600 S.RESISTOR ERJ2GEJ 273 X (27 kΩ)
R523 7030005600 S.RESISTOR ERJ2GEJ 273 X (27 kΩ)
R524 7030005600 S.RESISTOR ERJ2GEJ 273 X (27 kΩ)
R525 7410000770 S.ARRAY EXB-V4V 102 JV (1 kΩ)
R526 7410000850 S.ARRAY EXB-V4V 151 JV (150 Ω)
R527 7410000950 S.ARRAY EXB-V8V 102 JV (1 kΩ)
R528 7410000950 S.ARRAY EXB-V8V 102 JV (1 kΩ)
R529 7030005120 S.RESISTOR ERJ2GEJ 102 X (1 kΩ)
R530 7410000770 S.ARRAY EXB-V4V 102 JV (1 kΩ)
R531 7030005120 S.RESISTOR ERJ2GEJ 102 X (1 kΩ)
R532 7410000770 S.ARRAY EXB-V4V 102 JV (1 kΩ)
R533 7410000770 S.ARRAY EXB-V4V 102 JV (1 kΩ)
R534 7410000950 S.ARRAY EXB-V8V 102 JV (1 kΩ)
R535 7410000770 S.ARRAY EXB-V4V 102JV (1 kΩ)
R536 7030005120 S.RESISTOR ERJ2GEJ 102 X (1 kΩ)
R537 7030005120 S.RESISTOR ERJ2GEJ 102 X (1 kΩ)
R538 7030005090 S.RESISTOR ERJ2GEJ 104 X (100 kΩ)
R539 7410000950 S.ARRAY EXB-V8V 102 JV (1 kΩ)
R540 7410000950 S.ARRAY EXB-V8V 102 JV (1 kΩ)
R545 7030008370 S.RESISTOR ERJ2GEJ 561 X (560 Ω)
R547 7030005720 S.RESISTOR ERJ2GEJ 563 X (56 kΩ)
R548 7410000730 S.ARRAY EXB-V8V 104 JV (100 kΩ)
R549 7030005240 S.RESISTOR ERJ2GEJ 473 X (47 kΩ)
R550 7030005070 S.RESISTOR ERJ2GEJ 683 X (68 kΩ)
R551 7030007600 S.RESISTOR RR0816R-913-D (91 kΩ)
R552 7030007290 S.RESISTOR ERJ2GEJ 222 X (2.2 kΩ)
R553 7030005090 S.RESISTOR ERJ2GEJ 104 X (100 kΩ)
R555 7030005240 S.RESISTOR ERJ2GEJ 473 X (47 kΩ)
R556 7030009320 S.RESISTOR ERJ2GEJ 4R7 X (4.7 Ω)
R557 7030006610 S.RESISTOR ERJ2GEJ 394 X (390 kΩ)
R558 7030006610 S.RESISTOR ERJ2GEJ 394 X (390 kΩ)
R559 7410000770 S.ARRAY EXB-V4V 102 JV (1 kΩ)
R560 7410000750 S.ARRAY EXB-V4V 104 JV (100 kΩ)
R561 7030005120 S.RESISTOR ERJ2GEJ 102 X (1 kΩ)
R562 7030005090 S.RESISTOR ERJ2GEJ 104 X (100 kΩ)
R563 7030005050 S.RESISTOR ERJ2GEJ 103 X (10 kΩ)
R564 7030005220 S.RESISTOR ERJ2GEJ 223 X (22 kΩ)
R565 7030009320 S.RESISTOR ERJ2GEJ 4R7 X (4.7 Ω)
R566 7030009530 S.RESISTOR ERJ2GEJ 270 X (27 Ω)
R567 7030004980 S.RESISTOR ERJ2GEJ 101 X (100 Ω)
R568 7030004980 S.RESISTOR ERJ2GEJ 101 X (100 Ω)
R569 7030004980 S.RESISTOR ERJ2GEJ 101 X (100 Ω)
R571 7030005040 S.RESISTOR ERJ2GEJ 472 X (4.7 kΩ)
R572 7030005220 S.RESISTOR ERJ2GEJ 223 X (22 kΩ)
R573 7030004980 S.RESISTOR ERJ2GEJ 101 X (100 Ω)
R574 7030005110 S.RESISTOR ERJ2GEJ 224 X (220 kΩ)
R575 7030005120 S.RESISTOR ERJ2GEJ 102 X (1 kΩ)
R578 7030008290 S.RESISTOR ERJ2GEJ 183 X (18 kΩ)
R579 7410000770 S.ARRAY EXB-V4V 102JV (1 kΩ)
R581 7030007350 S.RESISTOR ERJ2GEJ 393 X (39 kΩ)
R582 7030004980 S.RESISTOR ERJ2GEJ 101 X (100 Ω)
R584 7310004090 S.TRIMMER EVM-1YSX50 B14 (103)
R585 7030005220 S.RESISTOR ERJ2GEJ 223 X (22 kΩ)
R586 7030005220 S.RESISTOR ERJ2GEJ 223 X (22 kΩ)
R587 7030005220 S.RESISTOR ERJ2GEJ 223 X (22 kΩ)
R589 7030005090 S.RESISTOR ERJ2GEJ 104 X (100 kΩ)
R590 7030009320 S.RESISTOR ERJ2GEJ 4R7 X (4.7 Ω)
R591 7030008010 S.RESISTOR ERJ2GEJ 123 X (12 kΩ)
R592 7030005720 S.RESISTOR ERJ2GEJ 563 X (56 kΩ)
R593 7030005060 S.RESISTOR ERJ2GEJ 333 X (33 kΩ)
R594 7030005090 S.RESISTOR ERJ2GEJ 104 X (100 kΩ)
R595 7030005090 S.RESISTOR ERJ2GEJ 104 X (100 kΩ)
R596 7030004980 S.RESISTOR ERJ2GEJ 101 X (100 Ω)
R597 7030005040 S.RESISTOR ERJ2GEJ 472 X (4.7 kΩ)
R598 7030005240 S.RESISTOR ERJ2GEJ 473 X (47 kΩ)
R599 7030005240 S.RESISTOR ERJ2GEJ 473 X (47 kΩ)
R600 7030005050 S.RESISTOR ERJ2GEJ 103 X (10 kΩ)
R601 7030005090 S.RESISTOR ERJ2GEJ 104 X (100 kΩ)
R602 7030007340 S.RESISTOR ERJ2GEJ 153 X (15 kΩ)
R603 7030008400 S.RESISTOR ERJ2GEJ 182 X (1.8 kΩ)
R604 7030005170 S.RESISTOR ERJ2GEJ 474 X (470 kΩ)
R605 7030008300 S.RESISTOR ERJ2GEJ 184 X (180 kΩ)
R606 7030009320 S.RESISTOR ERJ2GEJ 4R7 X (4.7 Ω)
R607 7030009320 S.RESISTOR ERJ2GEJ 4R7 X (4.7 Ω)
R608 7030005090 S.RESISTOR ERJ2GEJ 104 X (100 kΩ)
R609 7030003500 S.RESISTOR ERJ3GEYJ 332 V (3.3 kΩ)
R610 7030003500 S.RESISTOR ERJ3GEYJ 332 V (3.3 kΩ)
R611 7030005240 S.RESISTOR ERJ2GEJ 473 X (47 kΩ)
R612 7030007280 S.RESISTOR ERJ2GEJ 331 X (330 Ω)
R613 7510001240 S.THEMISTOR ERTJ0EV 473 J (47K)
R614 7030005050 S.RESISTOR ERJ2GEJ 103 X (10 kΩ)
R615 7030009290 S.RESISTOR ERJ2GEJ 562 X (5.6 kΩ)
R616 7510001240 S.THEMISTOR ERTJ0EV 473 J (47K)
R617 7030008010 S.RESISTOR ERJ2GEJ 123 X (12 kΩ)
R618 7030005050 S.RESISTOR ERJ2GEJ 103 X (10 kΩ)
R619 7030005170 S.RESISTOR ERJ2GEJ 474 X (470 kΩ)
C3 4030006990 S.CERAMIC C1608 CH 1H 080D-T-A
C4 4030009500 S.CERAMIC C1608 CH 1H 0R5B-T-A
C5 4030009920 S.CERAMIC C1608 CH 1H 050B-T-A
C7 4030009530 S.CERAMIC C1608 CH 1H 030B-T-A
C8 4030010760 S.CERAMIC C1608 CH 1H 331J-T-A
C9 4030014490 S.CERAMIC ECUE1E331KBQ
C10 4030014490 S.CERAMIC ECUE1E331KBQ
C11 4030006990 S.CERAMIC C1608 CH 1H 080D-T-A
C12 4030014490 S.CERAMIC ECUE1E331KBQ
C13 4030014490 S.CERAMIC ECUE1E331KBQ
C14 4030016790 S.CERAMIC ECJ0EB1C103K
C15 4030014160 S.CERAMIC ECUE1H270JCQ [24 keys]
4030009780 S.CERAMIC C1005 CH 1E 270J-T-A [7 keys]
C16 4030014490 S.CERAMIC ECUE1E331KBQ
C17 4030014490 S.CERAMIC ECUE1E331KBQ
C18 4030014490 S.CERAMIC ECUE1E331KBQ
C19 4030014490 S.CERAMIC ECUE1E331KBQ
C20 4030014490 S.CERAMIC ECUE1E331KBQ
C21 4510005310 S.ELECTROLYTIC ECEV1CA220SR
C22 4030014060 S.CERAMIC ECUE1H3R5BCQ
C24 4030014490 S.CERAMIC ECUE1E331KBQ
C25 4030014120 S.CERAMIC ECUE1H100CCQ
C26 4030014490 S.CERAMIC ECUE1E331KBQ
C27 4030014080 S.CERAMIC ECUE1H050BCQ
C28 4030014130 S.CERAMIC ECUE1H120JCQ
C30 4030014130 S.CERAMIC ECUE1H120JCQ
C31 4030014080 S.CERAMIC ECUE1H050BCQ
6 - 3
REF ORDER DESCRIPTION
NO. NO.
REF ORDER DESCRIPTION
NO. NO.

S.=Surface mount
[MAIN UNIT][MAIN UNIT]
C32 4030014490 S.CERAMIC ECUE1E331KBQ
C33 4030014490 S.CERAMIC ECUE1E331KBQ
C42 4030014490 S.CERAMIC ECUE1E331KBQ
C47 4030014200 S.CERAMIC ECUE1H101JCQ
C48 4550006410 S.TANTALUM ECST1VY334R
C50 4030014490 S.CERAMIC ECUE1E331KBQ
C51 4030014120 S.CERAMIC ECUE1H100CCQ
C52 4030016790 S.CERAMIC ECJ0EB1C103K
C53 4030014080 S.CERAMIC ECUE1H050BCQ
C54 4030016930 S.CERAMIC ECJ0EB1A104K
C55 4030014490 S.CERAMIC ECUE1E331KBQ
C56 4030014180 S.CERAMIC ECUE1H470JCQ
C57 4030014180 S.CERAMIC ECUE1H470JCQ
C58 4030014180 S.CERAMIC ECUE1H470JCQ
C59 4030014180 S.CERAMIC ECUE1H470JCQ
C60 4030014490 S.CERAMIC ECUE1E331KBQ
C61 4030014090 S.CERAMIC ECUE1H060CCQ
C62 4030014090 S.CERAMIC ECUE1H060CCQ
C63 4030014120 S.CERAMIC ECUE1H100CCQ
C65 4030014070 S.CERAMIC ECUE1H040BCQ
C66 4030014070 S.CERAMIC ECUE1H040BCQ
C67 4030014050 S.CERAMIC ECUE1H030BCQ
C71 4030014490 S.CERAMIC ECUE1E331KBQ
C73 4030016950 S.CERAMIC ECJ0EB1A473K
C75 4030016790 S.CERAMIC ECJ0EB1C103K
C76 4030011770 S.CERAMIC C1608 CH 1H 060B-T-A
C77 4030014050 S.CERAMIC ECUE1H030BCQ
C78 4030014090 S.CERAMIC ECUE1H060CCQ
C79 4030014070 S.CERAMIC ECUE1H040BCQ
C83 4030014420 S.CERAMIC ECUE1H0R5BCQ
C84 4030014490 S.CERAMIC ECUE1E331KBQ
C85 4030014090 S.CERAMIC ECUE1H060CCQ
C86 4030014050 S.CERAMIC ECUE1H030BCQ
C87 4030014180 S.CERAMIC ECUE1H470JCQ
C88 4030014490 S.CERAMIC ECUE1E331KBQ
C89 4030014420 S.CERAMIC ECUE1H0R5BCQ
C90 4030014490 S.CERAMIC ECUE1E331KBQ
C91 4030014080 S.CERAMIC ECUE1H050BCQ
C92 4030014110 S.CERAMIC ECUE1H080CCQ
C93 4030014490 S.CERAMIC ECUE1E331KBQ
C94 4030014420 S.CERAMIC ECUE1H0R5BCQ
C95 4030014490 S.CERAMIC ECUE1E331KBQ
C96 4030014100 S.CERAMIC ECUE1H070CCQ
C97 4030014070 S.CERAMIC ECUE1H040BCQ
C98 4030014150 S.CERAMIC ECUE1H220JCQ
C99 4030014490 S.CERAMIC ECUE1E331KBQ
C104 4030016950 S.CERAMIC ECJ0EB1A473K
C105 4030014490 S.CERAMIC ECUE1E331KBQ
C106 4030014120 S.CERAMIC ECUE1H100CCQ
C107 4030014490 S.CERAMIC ECUE1E331KBQ
C108 4030016790 S.CERAMIC ECJ0EB1C103K
C109 4030014110 S.CERAMIC ECUE1H080CCQ
C110 4030014490 S.CERAMIC ECUE1E331KBQ
C112 4030013850 S.CERAMIC ECUE1E102KBQ
C113 4030013850 S.CERAMIC ECUE1E102KBQ
C114 4030013850 S.CERAMIC ECUE1E102KBQ
C115 4030014200 S.CERAMIC ECUE1H101JCQ
C116 4030014190 S.CERAMIC ECUE1H680JCQ
C117 4550006700 S.TANTALUM ECST1AY106R
C118 4030014490 S.CERAMIC ECUE1E331KBQ
C120 4030016930 S.CERAMIC ECJ0EB1A104K
C121 4030014220 S.CERAMIC ECUE1E471KBQ
C122 4030014220 S.CERAMIC ECUE1E471KBQ
C123 4030013850 S.CERAMIC ECUE1E102KBQ
C124 4030016950 S.CERAMIC ECJ0EB1A473K
C126 4030016950 S.CERAMIC ECJ0EB1A473K
C128 4030012600 S.CERAMIC C2012 JB 1A 105M-T-A
C129 4550006540 S.TANTALUM ECST1CY475R
C130 4030014490 S.CERAMIC ECUE1E331KBQ
C131 4030016790 S.CERAMIC ECJ0EB1C103K
C132 4030016930 S.CERAMIC ECJ0EB1A104K
C133 4030016930 S.CERAMIC ECJ0EB1A104K
C134 4030014330 S.CERAMIC ECUE1H221JCQ
C135 4030017030 S.CERAMIC ECJ0EB1A273K
C136 4030017050 S.CERAMIC ECUE1E272KBQ
C137 4030017040 S.CERAMIC ECJ0EB1A333K
C139 4030016930 S.CERAMIC ECJ0EB1A104K
C140 4030016930 S.CERAMIC ECJ0EB1A104K
C144 4030013850 S.CERAMIC ECUE1E102KBQ
C145 4510004630 S.ELECTROLYTIC ECEV1CA100SR
C146 4030013850 S.CERAMIC ECUE1E102KBQ
C147 4030014490 S.CERAMIC ECUE1E331KBQ
C148 4030016930 S.CERAMIC ECJ0EB1A104K
C149 4030016960 S.CERAMIC ECJ0EB1C183K
C150 4550006200 S.TANTALUM ECST0JY106R
C151 4030014180 S.CERAMIC ECUE1H470JCQ
C152 4030016950 S.CERAMIC ECJ0EB1A473K
C153 4550006670 S.TANTALUM ECST1AD107R
C154 4550006320 S.TANTALUM ECST0JY475R
C155 4510004630 S.ELECTROLYTIC ECEV1CA100SR
C156 4030013850 S.CERAMIC ECUE1E102KBQ
C157 4030013850 S.CERAMIC ECUE1E102KBQ
C158 4510004540 S.ELECTROLYTIC ECEV0JA470SR
C159 4550006320 S.TANTALUM ECST0JY475R
C160 4030016790 S.CERAMIC ECJ0EB1C103K
C161 4030016790 S.CERAMIC ECJ0EB1C103K
C162 4030016790 S.CERAMIC ECJ0EB1C103K
C163 4030014490 S.CERAMIC ECUE1E331KBQ
C164 4030014490 S.CERAMIC ECUE1E331KBQ
C165 4030014490 S.CERAMIC ECUE1E331KBQ
C166 4030014490 S.CERAMIC ECUE1E331KBQ
C167 4030014180 S.CERAMIC ECUE1H470JCQ
C168 4030014490 S.CERAMIC ECUE1E331KBQ
C169 4030014490 S.CERAMIC ECUE1E331KBQ
C170 4030014490 S.CERAMIC ECUE1E331KBQ
C171 4030013850 S.CERAMIC ECUE1E102KBQ
C172 4030014490 S.CERAMIC ECUE1E331KBQ
C173 4510004640 S.ELECTROLYTIC ECEV1CA470SP
C174 4510005430 S.ELECTROLYTIC ECEV0JA220SR
C175 4510005430 S.ELECTROLYTIC ECEV0JA220SR
C176 4510005430 S.ELECTROLYTIC ECEV0JA220SR
C177 4550006170 S.TANTALUM ECST1AY225R
C179 4030016790 S.CERAMIC ECJ0EB1C103K
C180 4030014180 S.CERAMIC ECUE1H470JCQ
C181 4030014180 S.CERAMIC ECUE1H470JCQ
C182 4030014180 S.CERAMIC ECUE1H470JCQ
C183 4030014180 S.CERAMIC ECUE1H470JCQ
C184 4030014180 S.CERAMIC ECUE1H470JCQ
C185 4030014180 S.CERAMIC ECUE1H470JCQ
C186 4030013850 S.CERAMIC ECUE1E102KBQ
C187 4030013850 S.CERAMIC ECUE1E102KBQ
C189 4030013850 S.CERAMIC ECUE1E102KBQ
C190 4030013850 S.CERAMIC ECUE1E102KBQ
C191 4030016930 S.CERAMIC ECJ0EB1A104K
C193 4030014100 S.CERAMIC ECUE1H070CCQ
C194 4030014150 S.CERAMIC ECUE1H220JCQ
C195 4030014170 S.CERAMIC ECUE1H330JCQ
C196 4030016790 S.CERAMIC ECJ0EB1C103K
C197 4030014490 S.CERAMIC ECUE1E331KBQ
C200 4030014490 S.CERAMIC ECUE1E331KBQ
C201 4030014490 S.CERAMIC ECUE1E331KBQ
C202 4030014490 S.CERAMIC ECUE1E331KBQ
C204 4030014490 S.CERAMIC ECUE1E331KBQ
C205 4030007040 S.CERAMIC C1608 CH 1H 180J-T-A
C206 4030009570 S.CERAMIC C1608 CH 1H 0R3B-T-A
C207 4030014490 S.CERAMIC ECUE1E331KBQ
C208 4030014490 S.CERAMIC ECUE1E331KBQ
C209 4030016930 S.CERAMIC ECJ0EB1A104K
C210 4030016930 S.CERAMIC ECJ0EB1A104K
C211 4550006320 S.TANTALUM ECST0JY475R
C212 4030016930 S.CERAMIC ECJ0EB1A104K
C217 4030016950 S.CERAMIC ECJ0EB1A473K
C223 4030016790 S.CERAMIC ECJ0EB1C103K
C224 4030016790 S.CERAMIC ECJ0EB1C103K
C229 4030016930 S.CERAMIC ECJ0EB1A104K
C230 4550006140 S.TANTALUM ECST1EY474R
C231 4030016930 S.CERAMIC ECJ0EB1A104K
C232 4030016930 S.CERAMIC ECJ0EB1A104K
C233 4030014490 S.CERAMIC ECUE1E331KBQ
C234 4030014490 S.CERAMIC ECUE1E331KBQ
C237 4030016790 S.CERAMIC ECJ0EB1C103K
C238 4030016790 S.CERAMIC ECJ0EB1C103K
C239 4030016790 S.CERAMIC ECJ0EB1C103K
C240 4030016790 S.CERAMIC ECJ0EB1C103K
C241 4550006200 S.TANTALUM ECST0JY106R
C242 4030016790 S.CERAMIC ECJ0EB1C103K
C243 4030014180 S.CERAMIC ECUE1H470JCQ
C244 4030016790 S.CERAMIC ECJ0EB1C103K
C400 4030014120 S.CERAMIC ECUE1H100CCQ
C401 4030014180 S.CERAMIC ECUE1H470JCQ
C402 4030014110 S.CERAMIC ECUE1H080CCQ
C403 4030014180 S.CERAMIC ECUE1H470JCQ
6 - 4
REF ORDER DESCRIPTION
NO. NO.
REF ORDER DESCRIPTION
NO. NO.

S.=Surface mount
[MAIN UNIT][MAIN UNIT]
C404 4030014490 S.CERAMIC ECUE1E331KBQ
C405 4030014070 S.CERAMIC ECUE1H040BCQ
C406 4030014110 S.CERAMIC ECUE1H080CCQ
C407 4030014490 S.CERAMIC ECUE1E331KBQ
C408 4030014490 S.CERAMIC ECUE1E331KBQ
C410 4030014110 S.CERAMIC ECUE1H080CCQ
C412 4030008190 S.CERAMIC C1608 UJ 1H 040C-T-A
C413 4030014090 S.CERAMIC ECUE1H060CCQ
C414 4030014100 S.CERAMIC ECUE1H070CCQ
C415 4030016790 S.CERAMIC ECJ0EB1C103K
C416 4030014490 S.CERAMIC ECUE1E331KBQ
C417 4030014420 S.CERAMIC ECUE1H0R5BCQ
C418 4030014290 S.CERAMIC ECUE1H090CCQ
C419 4030016820 S.CERAMIC ECUE1HR75BCQ
C421 4030008210 S.CERAMIC C1608 UJ 1H 060D-T-A
C422 4030014080 S.CERAMIC ECUE1H050BCQ
C423 4030014080 S.CERAMIC ECUE1H050BCQ
C424 4030014490 S.CERAMIC ECUE1E331KBQ
C426 4030013850 S.CERAMIC ECUE1E102KBQ
C427 4030014420 S.CERAMIC ECUE1H0R5BCQ
C432 4030013850 S.CERAMIC ECUE1E102KBQ
C436 4030014490 S.CERAMIC ECUE1E331KBQ
C447 4510005320 S.ELECTROLYTIC ECEV0JA101SP
C448 4030014130 S.CERAMIC ECUE1H120JCQ
C449 4030014180 S.CERAMIC ECUE1H470JCQ
C450 4030014070 S.CERAMIC ECUE1H040BCQ
C451 4030014140 S.CERAMIC ECUE1H150JCQ
C452 4030014050 S.CERAMIC ECUE1H030BCQ
C455 4030014120 S.CERAMIC ECUE1H100CCQ
C456 4550006200 S.TANTALUM ECST0JY106R
C458 4030014490 S.CERAMIC ECUE1E331KBQ
C459 4030014050 S.CERAMIC ECUE1H030BCQ
C460 4030014490 S.CERAMIC ECUE1E331KBQ
C463 4030016790 S.CERAMIC ECJ0EB1C103K
C464 4030014180 S.CERAMIC ECUE1H470JCQ
C466 4030014490 S.CERAMIC ECUE1E331KBQ
C467 4610001590 S.TRIMMER TZC03R100A110 10P
C468 4030012600 S.CERAMIC C2012 JB 1A 105M-T-A
C469 4030014180 S.CERAMIC ECUE1H470JCQ
C470 4030014180 S.CERAMIC ECUE1H470JCQ
C471 4030014490 S.CERAMIC ECUE1E331KBQ
C472 4030016930 S.CERAMIC ECJ0EB1A104K
C473 4030014490 S.CERAMIC ECUE1E331KBQ
C474 4030016930 S.CERAMIC ECJ0EB1A104K
C475 4030014000 S.CERAMIC ECUE1H1R5BCQ
C476 4030014180 S.CERAMIC ECUE1H470JCQ
C477 4030014180 S.CERAMIC ECUE1H470JCQ
C479 4030014180 S.CERAMIC ECUE1H470JCQ
C481 4030014490 S.CERAMIC ECUE1E331KBQ
C483 4030014490 S.CERAMIC ECUE1E331KBQ
C486 4030014080 S.CERAMIC ECUE1H050BCQ
C487 4030014180 S.CERAMIC ECUE1H470JCQ
C491 4550006450 S.TANTALUM ECST1EY105R
C493 4030016760 S.CERAMIC ECUE1E472KBQ
C494 4030016760 S.CERAMIC ECUE1E472KBQ
C495 4030016760 S.CERAMIC ECUE1E472KBQ
C496 4030014490 S.CERAMIC ECUE1E331KBQ
C497 4030014180 S.CERAMIC ECUE1H470JCQ
C499 4030014180 S.CERAMIC ECUE1H470JCQ
C500 4030016790 S.CERAMIC ECJ0EB1C103K
C501 4030016790 S.CERAMIC ECJ0EB1C103K
C502 4030016920 S.CERAMIC ECUE1H222KBQ
C503 4030016930 S.CERAMIC ECJ0EB1A104K
C504 4550006300 S.TANTALUM ECST1AY475R
C505 4030017060 S.CERAMIC ECUE1E332KBQ
C506 4030016790 S.CERAMIC ECJ0EB1C103K
C507 4030016790 S.CERAMIC ECJ0EB1C103K
C508 4030016790 S.CERAMIC ECJ0EB1C103K
C509 4030016790 S.CERAMIC ECJ0EB1C103K
C510 4030016930 S.CERAMIC ECJ0EB1A104K
C511 4030016790 S.CERAMIC ECJ0EB1C103K
C513 4030014180 S.CERAMIC ECUE1H470JCQ
C514 4030014180 S.CERAMIC ECUE1H470JCQ
C515 4030014180 S.CERAMIC ECUE1H470JCQ
C516 4030014180 S.CERAMIC ECUE1H470JCQ
C517 4030014180 S.CERAMIC ECUE1H470JCQ
C518 4030016790 S.CERAMIC ECJ0EB1C103K
C519 4030016930 S.CERAMIC ECJ0EB1A104K
C520 4030016930 S.CERAMIC ECJ0EB1A104K
C521 4030014490 S.CERAMIC ECUE1E331KBQ
C522 4030013850 S.CERAMIC ECUE1E102KBQ
C523 4030014180 S.CERAMIC ECUE1H470JCQ
C524 4030016930 S.CERAMIC ECJ0EB1A104K
C525 4030016930 S.CERAMIC ECJ0EB1A104K
C526 4030014180 S.CERAMIC ECUE1H470JCQ
C527 4030014180 S.CERAMIC ECUE1H470JCQ
C528 4030014180 S.CERAMIC ECUE1H470JCQ
C529 4030014180 S.CERAMIC ECUE1H470JCQ
C530 4030014180 S.CERAMIC ECUE1H470JCQ
C531 4030014180 S.CERAMIC ECUE1H470JCQ
C532 4030014180 S.CERAMIC ECUE1H470JCQ
C533 4030014180 S.CERAMIC ECUE1H470JCQ
C534 4030014180 S.CERAMIC ECUE1H470JCQ
C535 4030014180 S.CERAMIC ECUE1H470JCQ
C536 4030014180 S.CERAMIC ECUE1H470JCQ
C537 4030014180 S.CERAMIC ECUE1H470JCQ
C538 4030014230 S.CERAMIC ECUE1E681KBQ
C539 4030014180 S.CERAMIC ECUE1H470JCQ
C542 4030014180 S.CERAMIC ECUE1H470JCQ
C543 4030014180 S.CERAMIC ECUE1H470JCQ
C544 4030014180 S.CERAMIC ECUE1H470JCQ
C545 4030014180 S.CERAMIC ECUE1H470JCQ
C546 4030014180 S.CERAMIC ECUE1H470JCQ
C547 4030014180 S.CERAMIC ECUE1H470JCQ
C548 4030014180 S.CERAMIC ECUE1H470JCQ
C549 4030014180 S.CERAMIC ECUE1H470JCQ
C550 4030014180 S.CERAMIC ECUE1H470JCQ
C551 4030014180 S.CERAMIC ECUE1H470JCQ
C552 4030014180 S.CERAMIC ECUE1H470JCQ
C553 4030014180 S.CERAMIC ECUE1H470JCQ
C554 4030014180 S.CERAMIC ECUE1H470JCQ
C555 4030014180 S.CERAMIC ECUE1H470JCQ
C556 4030014180 S.CERAMIC ECUE1H470JCQ
C557 4030014180 S.CERAMIC ECUE1H470JCQ
C558 4030014180 S.CERAMIC ECUE1H470JCQ
C560 4030014180 S.CERAMIC ECUE1H470JCQ
C561 4030014180 S.CERAMIC ECUE1H470JCQ
C562 4030014180 S.CERAMIC ECUE1H470JCQ
C563 4030016930 S.CERAMIC ECJ0EB1A104K
C564 4030016930 S.CERAMIC ECJ0EB1A104K
C565 4030016930 S.CERAMIC ECJ0EB1A104K
C566 4030016930 S.CERAMIC ECJ0EB1A104K
C567 4030014180 S.CERAMIC ECUE1H470JCQ
C568 4030014180 S.CERAMIC ECUE1H470JCQ
C570 4030014180 S.CERAMIC ECUE1H470JCQ
C571 4030014180 S.CERAMIC ECUE1H470JCQ
C572 4030014180 S.CERAMIC ECUE1H470JCQ
C573 4030016790 S.CERAMIC ECJ0EB1C103K
C574 4030014220 S.CERAMIC ECUE1E471KBQ
C575 4030014180 S.CERAMIC ECUE1H470JCQ
C576 4030014180 S.CERAMIC ECUE1H470JCQ
C577 4030016930 S.CERAMIC ECJ0EB1A104K
C580 4030014490 S.CERAMIC ECUE1E331KBQ
C581 4030014490 S.CERAMIC ECUE1E331KBQ
C582 4030014170 S.CERAMIC ECUE1H330JCQ
C583 4030016950 S.CERAMIC ECJ0EB1A473K
C584 4030016950 S.CERAMIC ECJ0EB1A473K
C585 4030014180 S.CERAMIC ECUE1H470JCQ
C586 4030014180 S.CERAMIC ECUE1H470JCQ
C589 4030016930 S.CERAMIC ECJ0EB1A104K
C590 4030016790 S.CERAMIC ECJ0EB1C103K
C591 4030014180 S.CERAMIC ECUE1H470JCQ
C592 4030014180 S.CERAMIC ECUE1H470JCQ
C593 4030014180 S.CERAMIC ECUE1H470JCQ
C594 4030016930 S.CERAMIC ECJ0EB1A104K
C595 4030016930 S.CERAMIC ECJ0EB1A104K
C596 4030016930 S.CERAMIC ECJ0EB1A104K
C597 4030014490 S.CERAMIC ECUE1E331KBQ
C598 4030014490 S.CERAMIC ECUE1E331KBQ
C600 4550006810 S.TANTALUM ECST1VY473R
C601 4030016790 S.CERAMIC ECJ0EB1C103K
C602 4030014180 S.CERAMIC ECUE1H470JCQ
C603 4030016930 S.CERAMIC ECJ0EB1A104K
C604 4030014490 S.CERAMIC ECUE1E331KBQ
C605 4030016930 S.CERAMIC ECJ0EB1A104K
C606 4030014180 S.CERAMIC ECUE1H470JCQ
C607 4030014180 S.CERAMIC ECUE1H470JCQ
C608 4550006170 S.TANTALUM ECST1AY225R
C609 4030016930 S.CERAMIC ECJ0EB1A104K
C610 4030014180 S.CERAMIC ECUE1H470JCQ
C611 4030014180 S.CERAMIC ECUE1H470JCQ
C612 4030014180 S.CERAMIC ECUE1H470JCQ
6 - 5
REF ORDER DESCRIPTION
NO. NO.
REF ORDER DESCRIPTION
NO. NO.

[MAIN UNIT][MAIN UNIT]
C613 4030014180 S.CERAMIC ECUE1H470JCQ
C614 4030014220 S.CERAMIC ECUE1E471KBQ
C615 4030014180 S.CERAMIC ECUE1H470JCQ
C616 4030014220 S.CERAMIC ECUE1E471KBQ
C617 4030014220 S.CERAMIC ECUE1E471KBQ
C618 4030014490 S.CERAMIC ECUE1E331KBQ
C619 4030014180 S.CERAMIC ECUE1H470JCQ
C622 4030014180 S.CERAMIC ECUE1H470JCQ
C623 4030014490 S.CERAMIC ECUE1E331KBQ
C624 4030014180 S.CERAMIC ECUE1H470JCQ
C625 4030014180 S.CERAMIC ECUE1H470JCQ
C626 4030014180 S.CERAMIC ECUE1H470JCQ
C627 4030014180 S.CERAMIC ECUE1H470JCQ
C628 4030014180 S.CERAMIC ECUE1H470JCQ
C629 4030014180 S.CERAMIC ECUE1H470JCQ
C630 4030014180 S.CERAMIC ECUE1H470JCQ
C631 4030014180 S.CERAMIC ECUE1H470JCQ
C632 4030014180 S.CERAMIC ECUE1H470JCQ
C633 4030014180 S.CERAMIC ECUE1H470JCQ
C634 4030014490 S.CERAMIC ECUE1E331KBQ
C635 4030014490 S.CERAMIC ECUE1E331KBQ
C636 4030014180 S.CERAMIC ECUE1H470JCQ
C637 4030014180 S.CERAMIC ECUE1H470JCQ
C638 4030014180 S.CERAMIC ECUE1H470JCQ
C639 4030014180 S.CERAMIC ECUE1H470JCQ
C640 4030014490 S.CERAMIC ECUE1E331KBQ
C641 4030014280 S.CERAMIC ECUE1H0R3BCQ
C642 4030014420 S.CERAMIC ECUE1H0R5BCQ
C643 4030016820 S.CERAMIC ECUE1HR75BCQ
C644 4030016750 S.CERAMIC ECUE1H910JCQ
C645 4550006320 S.TANTALUM ECST0JY475R
C646 4030016930 S.CERAMIC ECJ0EB1A104K
C647 4030014490 S.CERAMIC ECUE1E331KBQ
C648 4550006690 S.TANTALUM ECST1AC476R
C651 4030012610 S.CERAMIC C2012 JB 1C 474K-T-A
C652 4030013850 S.CERAMIC ECUE1E102KBQ
C653 4030014490 S.CERAMIC ECUE1E331KBQ
C654 4030014490 S.CERAMIC ECUE1E331KBQ
C655 4030013850 S.CERAMIC ECUE1E102KBQ
C656 4030014490 S.CERAMIC ECUE1E331KBQ
C657 4030014070 S.CERAMIC ECUE1H040BCQ
C658 4030014050 S.CERAMIC ECUE1H030BCQ
C659 4030016930 S.CERAMIC ECJ0EB1A104K
C662 4030014200 S.CERAMIC ECUE1H101JCQ
C665 4030016930 S.CERAMIC ECJ0EB1A104K
C666 4030016930 S.CERAMIC ECJ0EB1A104K
C667 4030014180 S.CERAMIC ECUE1H470JCQ
C668 4030014180 S.CERAMIC ECUE1H470JCQ
J2 6450001680 CONNECTOR HSJ1122-010010
J3 6450001690 CONNECTOR HSJ1456-01-220
J4 6450000870 CONNECTOR HEC2711-01-020
J6 6510007080 CONNECTOR PI28A-02M
J7 6910010850 CONNECTOR IMSA-9230B-1-05Z080-T
J8 6510021330 S.CONNECTOR AXK530145P
DS1 5030001640 LCD LM-1761B
DS2 5010000160 S.LED LNJ310M6URA
DS3 5010000160 S.LED LNJ310M6URA
DS4 5040002190 S.LED LNJ808R8ERA
MC1 7700002160 MICROPHON KUC3523-040245
S1 2230000900 S.SWITCH JPM1990-2013R
SP1 2510000960 SPEAKER K036NA500-26
W1 7030003860 S.JUMPER ERJ3GE JPW V
W2 7030003860 S.JUMPER ERJ3GE JPW V
W6 6910012670 S.JUMPER MJ-0.4
W10 7030003860 S.JUMPER ERJ3GE JPW V [24 keys] only
W12 7030003860 S.JUMPER ERJ3GE JPW V
W13 7030003860 S.JUMPER ERJ3GE JPW V
W14 7030003860 S.JUMPER ERJ3GE JPW V
W15 7030003860 S.JUMPER ERJ3GE JPW V
W16 7030003860 S.JUMPER ERJ3GE JPW V
W17 7030003860 S.JUMPER ERJ3GE JPW V
WS1 8600035811 CABLE FX1923 P01MA-1
EP1 0910050625 PCB B 5229E
EP2 8930042590 LCD CONTACT SRCN-1922-SP-N-W
R1 7210002950 VARIABLE RV-312
R2 7030004980 S.RESISTOR ERJ2GEJ 101 X (100 Ω)
R3 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ)
C1 4030014180 S.CERAMIC ECUE1H470JCQ
C2 4030014180 S.CERAMIC ECUE1H470JCQ
C3 4030014180 S.CERAMIC ECUE1H470JCQ
C4 4030014490 S.CERAMIC ECUE1E331KBQ
F1 5210000710 S.FUSE KAB 2402 322 NA29
EP1 0910050634 PCB B 5230D
6 - 6
REF ORDER DESCRIPTION
NO. NO.
REF ORDER DESCRIPTION
NO. NO.
S.=Surface mount
[VR BOARD]
REF ORDER DESCRIPTION
NO. NO.

7 - 1
Screw abbreviations: PH: Pan head B0: Self-tapping
NI : Nickel ZK: Black
SECTION 7 MECHANICAL PARTS AND DISASSEMBLY
7-1 CABINET PARTS 7-2 ACCESSORIES
MP1 8010016822 1922 chassis-2 1
MP2 8210014731 1922 front panel (B) assembly [24 keys] 1
8210015161 2066 front panel (A) assembly [7 keys] 1
MP4 8210014330 1922 contact base 1
MP5 8610010420 Knob N-261 1
MP6 8930051540 1922 10-key (B) [24 keys] 1
8930043970 2065 7-key [7 keys] 1
MP7 8930042070 1922 MIC cap 1
MP9 8930042030 1922 main seal 1
MP10 8110006050 1922 OPT cover 1
MP11 8930042050 1922 DC cap 1
MP12 8930042090 1922 plus terminal 1
MP13 8930042080 1922 minus terminal 1
MP17 8310048520 1922 window plate (I) 1
MP19 8930051530 1922 rear sheet (AV) 1
MP21 8930042350 1922 MIC sheet 1
MP22 8930042560 1922 OPT sheet 1
MP24 8830001250 Nut ANT connector-101 1
MP25 8830001010 Hex nut (A) 1
MP26 8810000100 Screw PH M2 ×4 ZK 2
MP27 8810009510 Screw B0 2 ×4 NI-ZU (BT) 6
MP28 8810009510 Screw PH B0 2 ×4 NI-ZU (BT) 1
MP29 8810009510 Screw PH B0 2 ×4 NI-ZU (BT) 2
MP30 8810009560 Screw PH B0 2 ×6 ZK (BT) 2
MP31 8810009560 Screw PH B0 2 ×6 ZK (BT) 2
MP34 8930043210 1922 A-rear sheet 1
MP36 8950004671 ANT connector-101A 1
MP37 8510011260 1923 shield cover 1
MP38 8930043760 1923 MIC seal 1
MP39 8930052330 Sponge (GN) 1
MP40 8930043610 Isolating sheet (EZ) 1
REF ORDER DESCRIPTION
NO. NO. QTY.
[CHASSIS PARTS]
EP1
Optional product Antenna FA-SC56U-2 1
EP2
Optional product Battery BP-196 1
MP1
Optional product 1922 belt clip 1
REF ORDER DESCRIPTION QTY.
NO. NO.
EP2 EP1
MP1 MP2
DS1 5030001640 LCD LM-1761B 1
SP1 2510000960 K036NA500-26A27 1
EP2 8930042590 LCD contact SRCN-1922-SP-N-W 1
MP1 8510011111 1922 VCO case-1 1
MP2 8930042060 1922 LCD holder 1
MP3 8210014380 1922 Reflector 1
MP4 8410002081 1922 PA heatsink-1 1
MP6 8510011180 1923 VCO cover 1
MP7 8510011230 1923 VCO shield 1
MP8 8930046590 Sponge (FO) 1
MP9 8510009971 1591 shield plate-1 1
MP10 8930038670 Ferrite sheet 1
REF ORDER DESCRIPTION
NO. NO. QTY.
[MAIN UNIT]

7 - 2
MP2 (C)
MP5 (C)
MP7 (C)
MP24 (C)
MP11 (C)
MP17 (C)
MP2 (M)
DS1 (M)
MP3 (M)
EP2 (M)
MP30 (C)
MP21 (C)
MP38 (C)
MP37 (C)
SP1 (M)
MP27 (C)
VR BOARD
MP27 (C)
MP7 (M)
MAIN UNIT
MP27 (C)
MP27 (C)
MP1 (M)
MP8 (M)
MP6 (M)
MP4 (M)
MP10 (M)
MP31 (C)
MP13 (C)
MP1 (C)
MP39 (C)
MP10 (C)
MP34 (C)
MP19 (C)
MP22 (C)
MP29 (C)
MP12 (C)
MP36 (C)
MP4 (C)
MP25 (C)
MP40 (C)
MP28 (C)
MP9 (C)
Note
(M): MAIN UNIT
(C): CHASSIS
MP27 (C)
MP9 (M)
7 keys
24 keys
MP2 (C)
MP6 (C)
MP26 (C)
MP6 (C)

8 - 1
SECTION PARTS LISTSECTION 8 SEMI-CONDUCTOR INFORMATIONS
8 - 1 TRANSISTORS AND FET’S
8 - 2 DIODES
NAME SYMBOL INSIDE VIEW NAME SYMBOL INSIDE VIEW
2SA1362-GR AEG
C
BE
2SB1132 - R BAR
BE
C
C
2SC2712 - Y LY
2SC3585 R44 R44
2SC4081 - R BR
2SC4116 - BL LL
2SC4215 - O QO
2SC4226 - R25 R25
2SC5107 - O MFO
BE
C
2SK2595AXTB AX
G
D
S
S
2SK2596BXTL BX
GD
S
S
DTA144EU 16
UN911H 6P
BE
C
XP1214 9H
C1 C2
EB1 B2
XP4601 5C
E1
E2
B1
C1
C2
B2
XP6401 5O
E2E1 B2
C1 C2
B1
XP6501 - AB 5N
DTC114EUA 14
2SK1069-4-TL FJ
B1
E1
C2 C1
B2 E2
BE
C
2SK1829 KI
SD
G
DTC144TU T107 06
BE
C
D
GS
2SK880 - Y XY
G
SD
3SK239XR - TL XR
3SK241 - R DU
3SK293 UF
SD
G1G2
NAME SYMBOL INSIDE VIEW
NAME
SYMBOL INSIDE VIEW
NAME
SYMBOL INSIDE VIEW
1T365-01 pink
line
AC
pink
1SS375 FH
DA204U K
HSM88AS C1
AC
DAN202U N
A1
C
A2
1SS353 C
HSU88TRF 9
MA2S111 A
AC
HVU350TRF 4
AC
SB07-03C-TB J
A
C
MA77 4B
AC
MA111 1B
DAN222TL N-4
AC

Surface
Surface
VCC
GND
VLOUT
VLIN
HV
VR unit
SP
SPG
J6
to SP1
ANTENNA
MICROPHONE
5
1
5
1
MAIN unit
J7
VCC
GND
VL OUT
VL IN
HV
J7
9 - 1
SECTION 9 BOARD LAYOUTS
9 - 1 MAIN UNIT The combination of this page and the next page shows
the unit layout in the same configuration as the actual
P.C. Board.
• TOP VIEW
9 - 2 VR BOARD
• TOP VIEW
