Grass Trimmer
Grästrimmer
Gresstrimmer
Ruohotrimmeri
Rasentrimmer
Art.no Model
18-3677 AJ57
31-1629 AJ57 Ver. 20180917

2
English
Grass Trimmer
Art.no 18-3677, 31-1629 Model AJ57
Please read theentire instruction manual before use and then save it for future reference. We
reserve theright for any errors in text or images and any necessary changes made to technical
data. In theevent of technical problems or other queries, please contact our Customer Services
(see address details on theback).
Safety
General power tool safety warnings
Warning: Read all safety warnings and all instructions. Failure to follow thewarnings
and instructions may result in electric shock, fire and/or serious injury.
SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE.
Theterm “power tool” in thewarnings refers to your mains-operated (corded) power tool or
battery-operated (cordless) power tool.
1) Work area safety
a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in thepresence of flammable
liquids, gases or dust. Power tools create sparks which may ignite thedust or fumes.
c) Keep children and bystanders away while operating apower tool. Distractions can
cause you to lose control.
2) Electrical safety
a) Power tool plugs must match theoutlet. Never modify theplug in any way. Do not use
any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching
outlets will reduce risk of electric shock.
b) Avoid body contact with grounded surfaces, such as pipes, radiators, ranges
and refrigerators. There is anincreased risk of electric shock if your body is earthed or
grounded.
c) Do not expose power tools to rain or wet conditions. Water entering apower tool will
increase therisk of electric shock.
d) Do not abuse thecord. Never use thecord for carrying, pulling or unplugging
thepower tool. Keep cord away from heat, oil, sharp edges or moving parts.
Damaged or entangled cords increase therisk of electric shock.
e) When operating apower tool outdoors, use anextension cord suitable for outdoor use.
Use of acord suitable for outdoor use reduces therisk of electric shock.
f) If operating apower tool in adamp location is unavoidable, use aresidual current device
(RCD) protected supply. Use of anRCD reduces therisk of electric shock.

3
English
3) Personal safety
a) Stay alert, watch what you are doing and use common sense when operating apower
tool. Do not use apower tool while you are tired or under theinfluence of drugs,
alcohol or medication. Amoment of inattention while operating power tools may result in
serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment
such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate
conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure theswitch is in theoff-position before connecting
to power source and/or battery pack, picking up or carrying thetool. Carrying power
tools with your finger on theswitch or energising power tools that have theswitch on invites
accidents.
d) Remove any adjusting key or wrench before turning thepower tool on. Awrench or
akey left attached to arotating part of thepower tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better
control of thepower tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves
away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for theconnection of dust extraction and collection facilities,
ensure these are connected and properly used. Use of dust collection can reduce dust-
related hazards.
4) Power tool use and care
a) Do not force thepower tool. Use thecorrect power tool for your application.
Thecorrect power tool will do thejob better and safer at therate for which it was designed.
b) Do not use thepower tool if theswitch does not turn it on and off. Any power tool that
cannot be controlled with theswitch is dangerous and must be repaired.
c) Disconnect theplug from thepower source and/or thebattery pack from thepower
tool before making any adjustments, changing accessories, or storing power tools.
Such preventive safety measures reduce therisk of starting thepower tool accidentally.
d) Store idle power tools out of thereach of children and do not allow persons unfamiliar
with thepower tool or these instructions to operate thepower tool. Power tools are
dangerous in thehands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of
parts and any other condition that may affect thepower tool’s operation. If damaged,
have thepower tool repaired before use. Many accidents are caused by poorly maintained
power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting
edges are less likely to bind and are easier to control.
g) Use thepower tool, accessories and tool bits etc. in accordance with these instructions,
taking into account theworking conditions and thework to be performed. Use of
thepower tool for operations different from those intended could result in ahazardous situation.

4
English

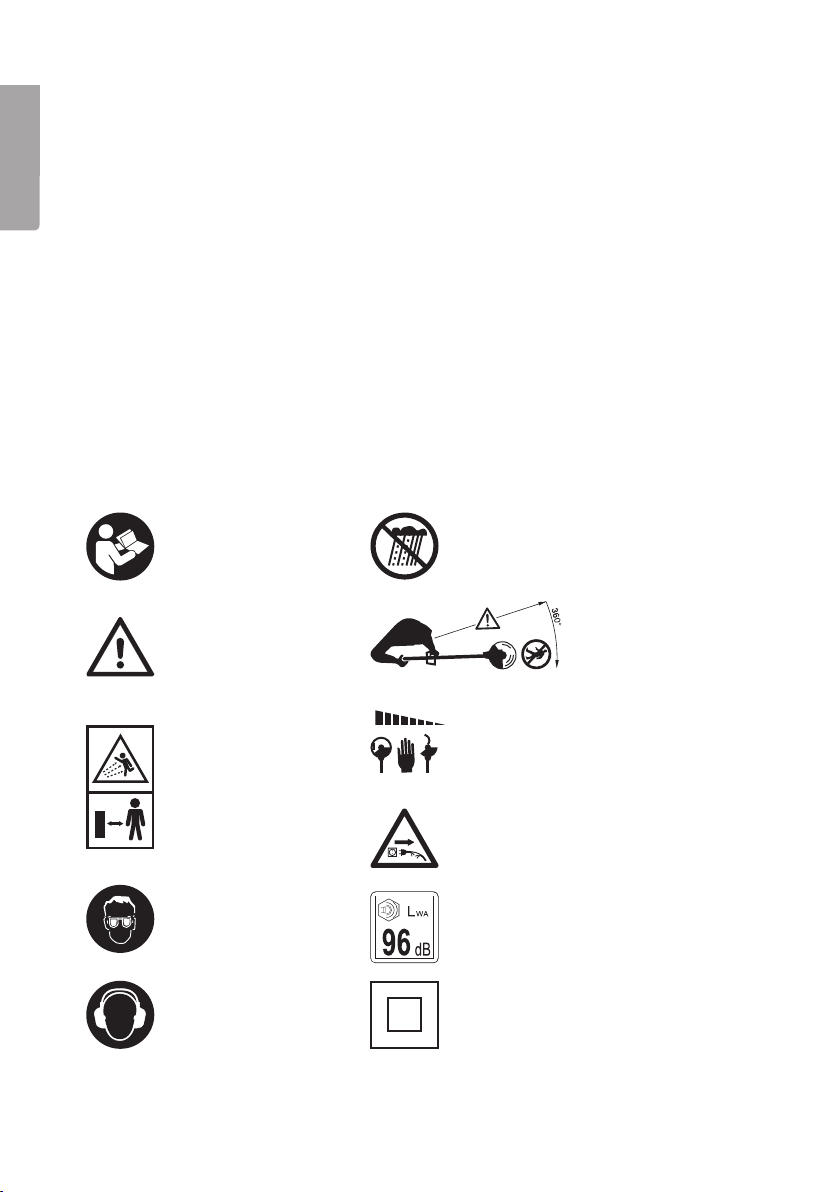

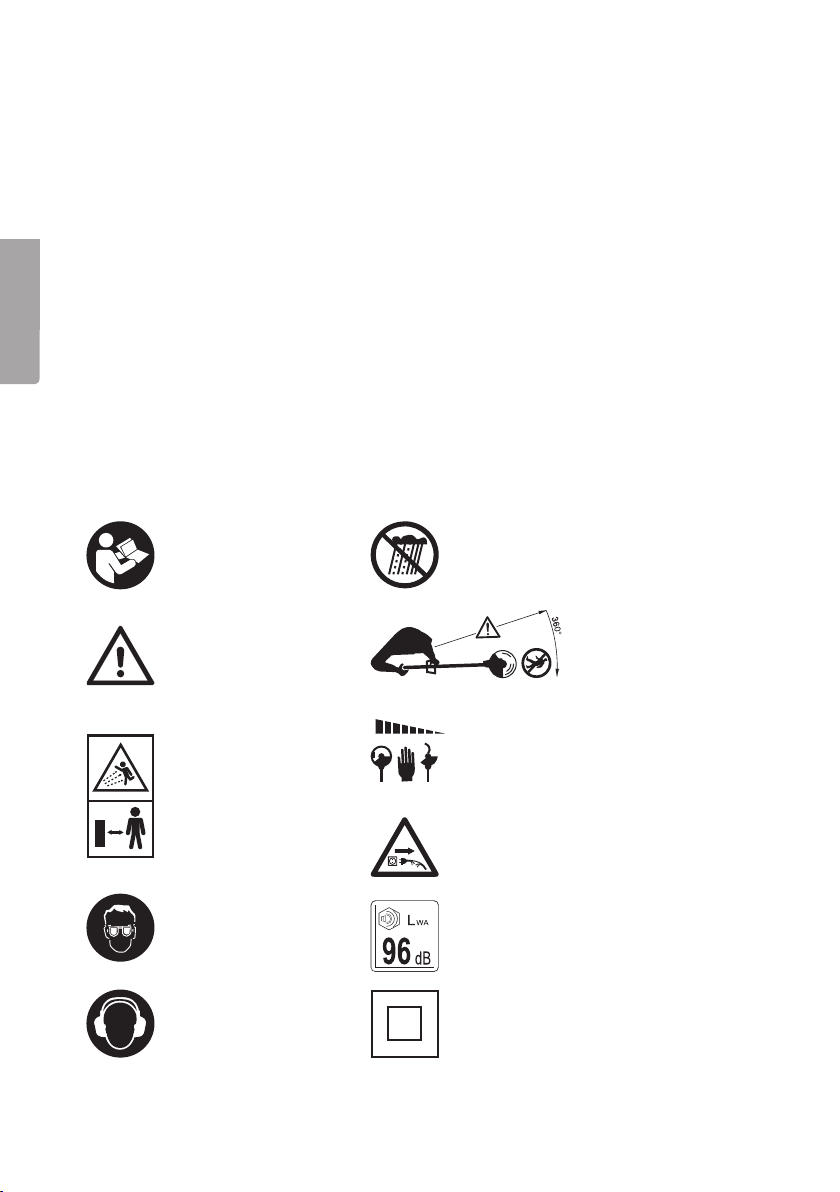

Read theinstruction
manual.
Warning: warning for
apossible hazard which
could lead to serious
personal injury and/or
damage to theproduct if
thewritten instructions are
not followed.
Objects ejected by
theproduct can hit
theoperator or other
persons in thevicinity
and cause damage to
property. Wear suitable
clothing and shoes.
Wear eye protection.
Wear ear protection.
Keep all persons at
asafe distance from
thegrass trimmer.
Warning: Thetrimmer head will continue
to rotate after themotor has been turned
off. Do not attempt to stop thetrimmer
head with hands or feet, let it stop by itself.
Switch theproduct off and unplug it from
thewall socket immediately if themains lead
has been damaged, during maintenance or
other type of accident or injury.
Guaranteed maximum sound level.
Class II product. Double-insulated.
5) Battery tool use and care
a) Recharge only with thecharger specified by themanufacturer. Acharger that is suitable
for one type of battery pack may create arisk of fire when used with another battery pack.
b) Use power tools only with specifically designated battery packs. Use of any other
battery packs may create arisk of injury and fire.
c) When the battery pack is not in use, keep it away from other metal objects, like
paper clips, coins, keys, nails, screws or other small metal objects, that can make
aconnection from one terminal to another. Shorting thebattery terminals together may
cause burns or afire.
d) Under abusive conditions, liquid may be ejected from thebattery; avoid contact.
If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally
seek medical help. Liquid ejected from thebattery may cause irritation or burns.
6) Service
a) Repairs and service should only be performed by qualified persons, and only with
original spare parts. This guarantees thesafety of thepower tool.
Symbols and instructions
Do not use theproduct in damp or wet
weather or during athunderstorm.

5
English
Specific safety instructions for grass trimmers
Warning:
• This product is not intended for use by persons (including children) with reduced physical sensory
or mental capabilities or lack of experience and knowledge of this manual. Local regulations
may restrict theage of theoperator.
• Never use thegrass trimmer very close to anyone, especially children or animals.
• Theproduct is only designed for trimming grass. Use of theproduct for apurpose other than
that for which it was intended could result in aninjury or hazardous situation.
• Avoid directing thetrimmer head towards immovable objects when thetrimmer head is
spinning. Avoid operating thegrass trimmer on gravel paths, gravel covered yards or other
places where stones could be ejected.
• Only use thegrass trimmer with parts and accessories recommended by themanufacturer.
• Never attach metal cutting blades to this grass trimmer.
• Keep hands and feet away from thetrimmer head and line at all times and especially when
switching themotor on.
• Thetrimmer guard must always be fitted before thegrass trimmer is used. Theproduct must
not be used if theguard is damaged or if themains lead is defective.
Warning for electric shock:
• Theuse of anextension lead designed for outdoor use decreases therisk of electric shocks.
• Never connect theproduct to theelectricity mains using adamaged extension lead. Never
touch adamaged mains lead until theproduct has been unplugged from thewall socket.
Doing so will result in therisk of anelectric shock.
• Keep thetrimmer head away from theextension lead during use. Adamaged mains lead can
result in anelectric shock.
• Theproduct should only be connected to anearthed wall socket with 230 V, 50/60 Hz
mains protected by a30mA residual current device (RCD).
Important:
• Keep proper footing and balance at all times. Always hold thegrass trimmer firmly using both
the front and rear handles.
• Do not overreach. Keep proper footing and balance at all times. Never run when using this product.
• Keep theventilation openings of thetrimmer head free from debris. Remove any grass or leaves.
• Store theproduct in acool, dry place out of children’s reach when not in use.
• Wear sturdy footwear, long trousers, safety glasses and gloves.
• Always disconnect theproduct from thewall socket if:
- you leave thetrimmer unattended
- you remove grass and leaves that have become stuck
- you inspect, clean or work on theproduct
- you make any adjustments
- theproduct begins to vibrate abnormally

6
English
1
2
3
4
5
6
7
8
9
10
11
12
• If thegrass trimmer has been subjected to any shocks or impacts it must be checked for
damage. Any defect or damage must be repaired before thegrass trimmer is used. Make
sure that thetrimmer head is securely fastened on. If it is loose or damaged thegrass
trimmer must not be used.
Safety instructions
• Theproduct is only intended for private, non-commercial use.
• If themains lead is damaged in any way it must be replaced by aqualified electrician.
• Always inspect thegrass trimmer before use.
• All repairs must be carried out by qualified service technicians using original spare parts.
• Before starting to use thegrass trimmer, check thearea to be trimmed for foreign objects
such as stones or cables.
• Only use thegrass trimmer in good light conditions.
• Make sure that you are familiar with all thecontrols and settings before using thegrass trimmer.

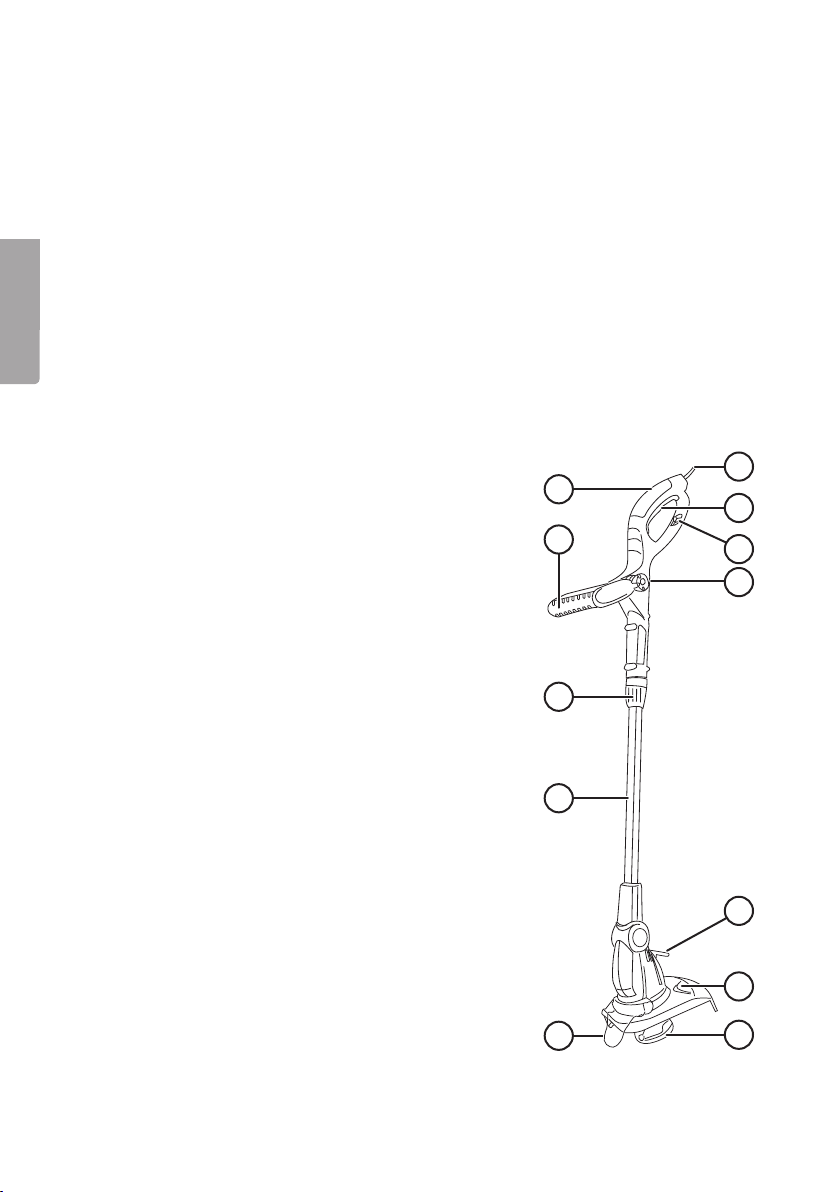

Product description
1. Plant guard
2. Shaft
3. Shaft locking knob
4. Front handle
5. Rear handle
6. Mains lead
7. Power trigger
8. Extension lead bracket
9. Screw/locking nut for adjusting thefront handle angle
10. Pedal for adjusting thetrimmer head angle to one of its
3 fixed positions
11. Trimmer guard
12. Cutting line head and spool

7
English
Assembly
Warning:
• Do not connect thegrass trimmer to anelectrical socket until it is completely assembled.
Information
• When sold, thegrass trimmer shaft is contracted. This is adelivery position, to enable theproduct
to fit into thebox. Thefirst time thetelescopic shaft is extended, it passes anon-return pawl
creating anew end-stop.

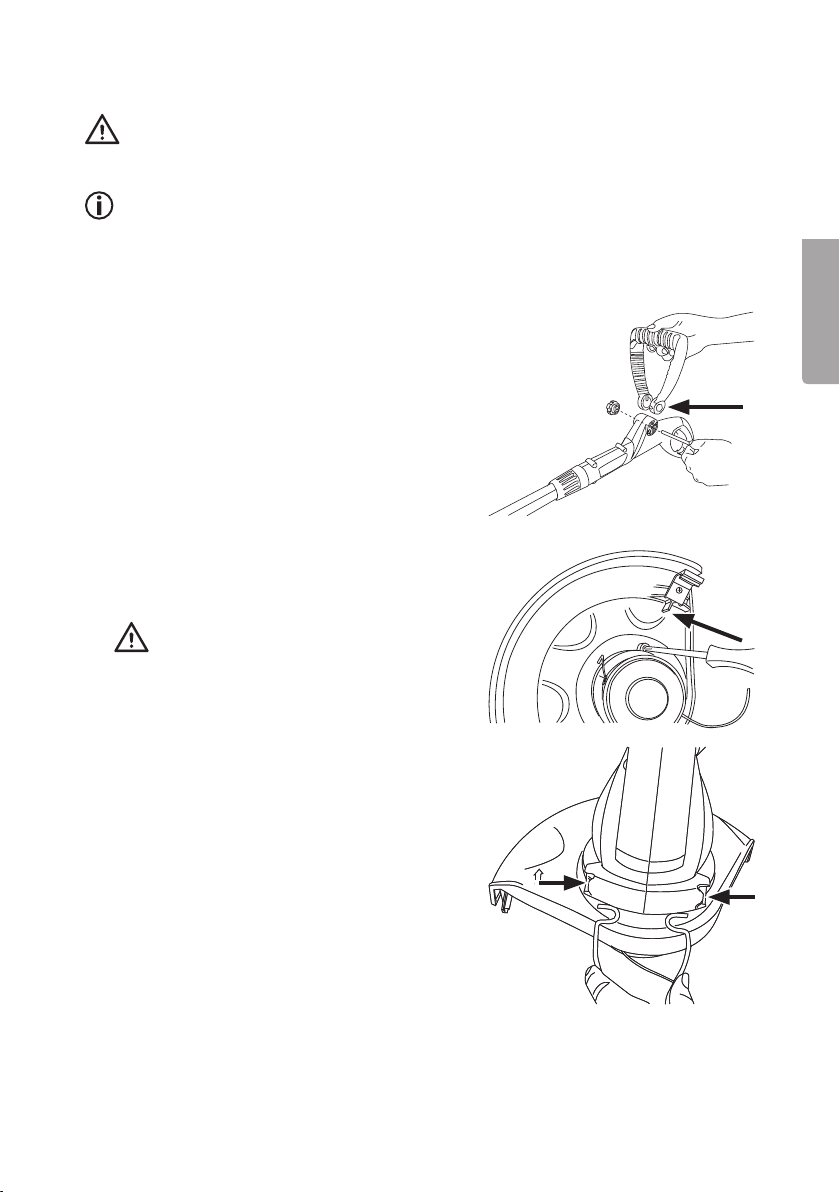

1. Carefully pull theends of thefront handle (4)
apart until they can be lined up with thebracket
on thegrass trimmer. Note: Theend with
thehexagonal hole (arrow on thepicture) should
be on theside shown in thepicture.
2. Push in thescrew (9) from theside with
thehexagonal hole and screw on thelocking nut
by hand on theother side.
3. Push thetrimmer head through thehole in
thetrimmer guard (11). Thetrimmer guard only fits
one way, theheel of thetrimmer head must be in
thegroove of theguard.
4. Fasten thetrimmer guard using the2 screws.
Warning: Theblade on theguard is very sharp
and should be handled with extreme care
(shown by arrow).
5. Pull theends of theplant guard (1) apart and push
them in through theslots on thetrimmer head
above thetrimmer guard.

8
English

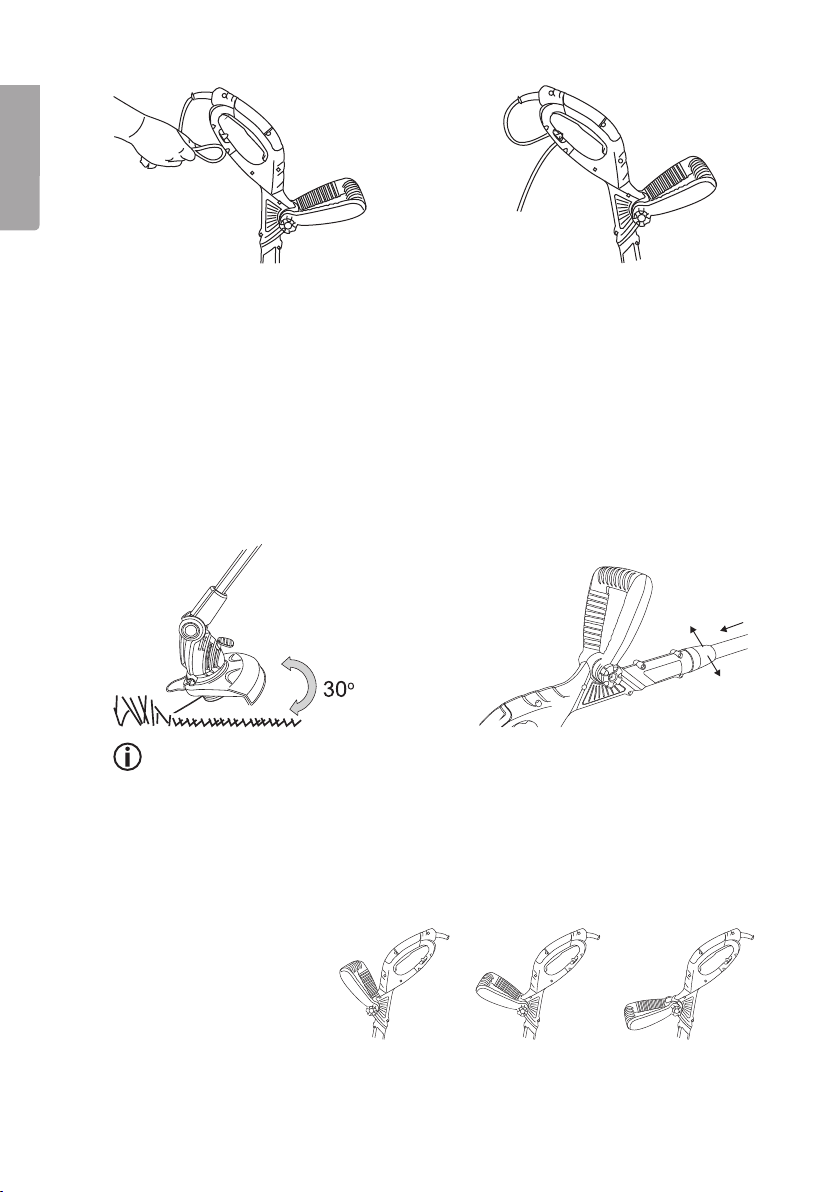

8. Plug thegrass trimmer lead into theextension lead.
Note: Plug theextension lead into awall outlet when it is time to use thetrimmer.
Set-up
Adjusting thelength of theshaft
1. Screw thelocking knob (3) afew turns anticlockwise.
2. Pull out or push in theshaft (2) to adjust it to theheight of theuser.
6. Make aloop out of 20–25 cm of
theextension lead and attach it to
thebracket (8) on thehandle.
7. Tighten theloop on thebracket.
Information
When thelength of theshaft is set correctly,
theunderside of thetrimmer head should be
just above the ground at anangle of 30° when
the trimmer is held using both handles.
3. Tighten thelocking knob
(clockwise direction).
Front handle angle
1. Screw thelocking nut (9)
afew turns anticlockwise.
2. Carefully pull theends of
thefront handle apart until
they can be tilted forward/
backward to thedesired
position.
3. Tighten thelocking nut
(clockwise direction).

9
English

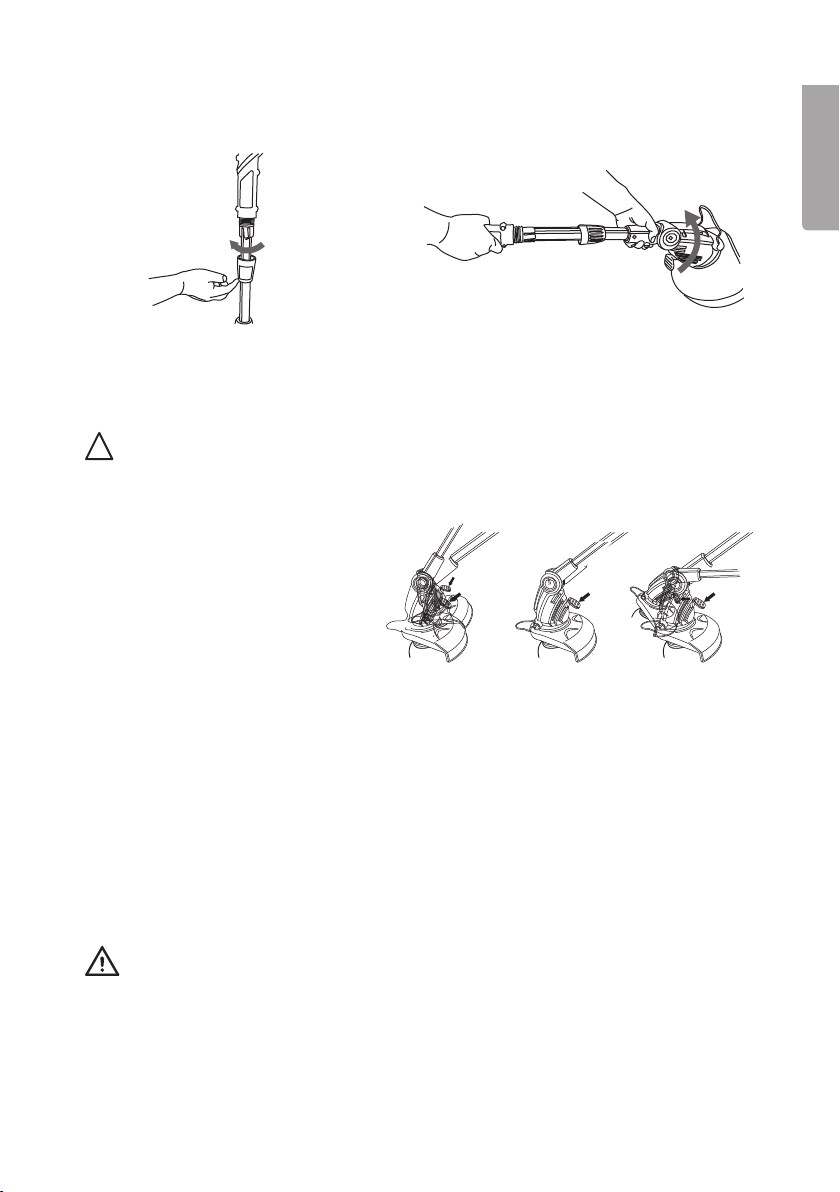

Trimmer head angle
Set the angle of the trimmer head (12) to 0° for normal trimming or to 90° for edge trimming.
1. Completely release thelocking
knob on theshaft.
2. Twist theshaft to thedesired angle 0° or 90°,
themarkings on theshaft indicate which way
you should turn it.
3. Screw on thelocking knob and tighten it securely.
Important: When edge trimming, theplant guard (1) must be folded out.
Angle of theshaft towards thetrimmer head
1. Step on thepedal (10) with your foot.
2. Angle theshaft upwards to choose
thestandard position or downwards
to be able to get closer, under
afence, bushes, etc.
3. Release thepedal to lock theposition
(there are 3 fixed positions).
Instructions for use
Preparations
1. Follow thesteps in theAssembly and Set-up sections.
2. Plug theextension lead plug into awall socket.
3. Hold thegrass trimmer firmly with your left hand on thefront handle and theright hand on
therear handle (5). Thegrass trimmer must be held at aslight distance from your right-hand
side.
4. Stand straight, don’t lean forward and always consider your posture. Stand in awide stance
for optimum balance.
Warning:
• Turn off thegrass trimmer and unplug it from thewall socket before any maintenance or
inspection of thegrass trimmer which needs to be done while working.

10
English
Important:
• Check regularly during work that no grass, twigs, etc. have got stuck around thedrive shaft,
which can lead to theline slot getting clogged.
• Do not use this product if thegrass is wet as it can clog theline feed and thetrimmer guard
interior and also weaken theline feed operation. This can also lead to arisk of theuser
slipping or getting injured.

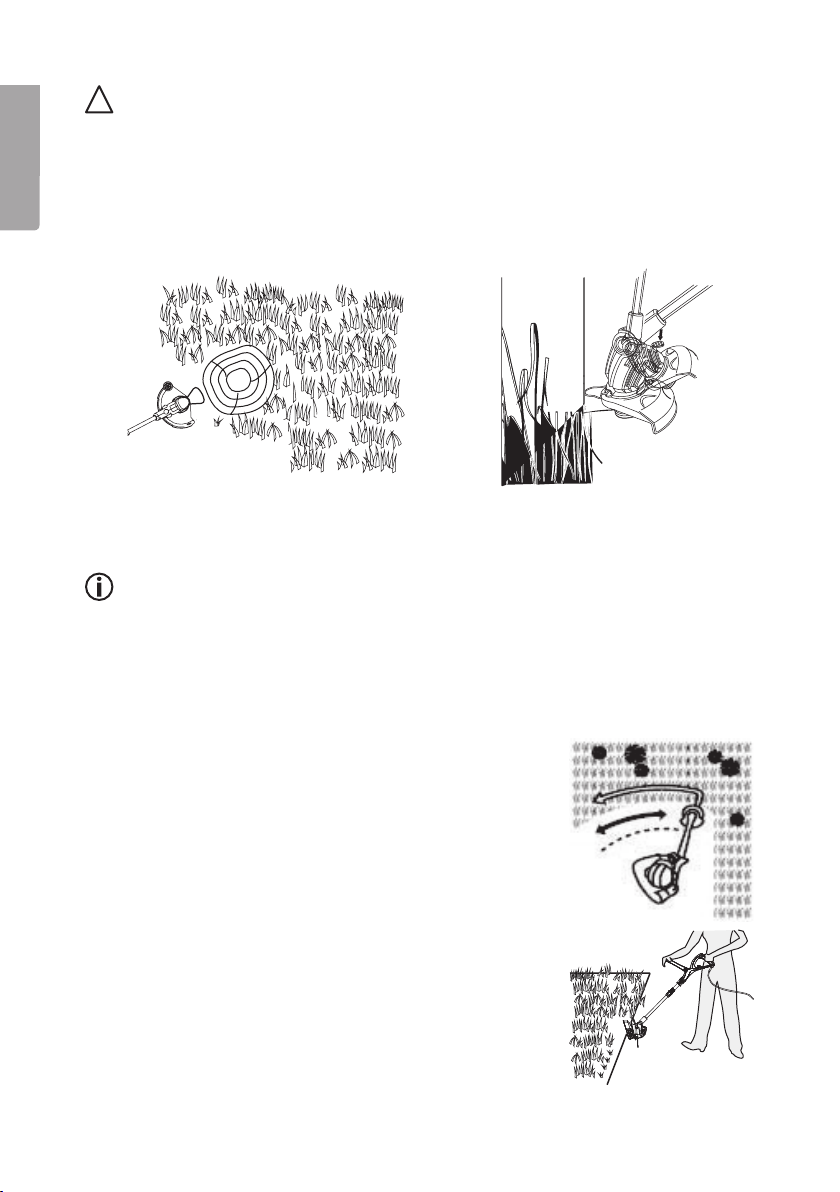

• Open up theplant guard if you are using thegrass trimmer near:
- Trees, bushes, etc. thetrimmer
line can damage sensitive bark
and fence posts.
- Walls, curbstones, etc.
Information
• Trim long grass in several stages for thebest results.
• Check thelength of theline regularly. Feed more line if it is too short.
• Do not let theunderside of thetrimmer head touch thesurface when in use.
Normal trimming (trimmer head angle 0°)
1. Press in thepower trigger (7) to start thegrass trimmer.
2. In aslow gentle sweeping motion move thetrimmer head in
ahalf-circle from left to right and back to thestarting position.
3. Start thenext sweeping movement at theedge of where you have
just trimmed and repeat until you have covered theentire area.
4. Release thepower switch to turn off thegrass trimmer.
Edge trimming (trimmer head angle 90°)
1. Press in thepower trigger to start thegrass trimmer.
2. Place thetrimmer head along theedge of where you want to trim.
3. Release thepower switch to turn off thegrass trimmer.
