CLEAR DESIGN BLADE 120 DEGREE BL-4 User manual

Includes Add-ons A1 | A2 | A5 | A6 | A7
BLADE 120 DEGREE
WORKSTATION
B L– 4
*General Guide | See Master Plan

B L–1 – BLADE 120 Degree Workstation............................................... 1
BLADE 120 Degree Pod of 6 ..................................................................11
Add-Ons
A1 – BLADE Cable Tray (Leg Mounted).............................................. 3
A2 – Surface Mounted Dividers ............................................................ 7
A6 – Laminate Surface-Height End Panel........................................15
A7 – Laminate Divider-Height End Panel ......................................... 17
A8 – Steel Inset End Panels...................................................................19
EDITION CODE
120 DEGREE
BLADE

QTY PRODUCT CODE
3BL48
6BLPB1
3KIT-120
Includes: 120 Degree post leg and triangle box
3Main Surface
PARTS LIST
120 DEGREE
BLADE

Place the triangle box on the post leg and secure with 4 bolts.
Next, attach the corner protector on corner that will be facing
toward user when desk is in use.
Insert the beam tabs into the leg brackets. Guide the beam tabs
into the bracket holes, there should be no gap between the beam
and legs. Using a rubber mallet, hammer the beam to lock in place.
1 |ASSEMBLE 120 DEGREE POST LEG
2 |CONNECT END LEGS, POST LEGS AND BEAMS
120 DEGREE
BLADE
1

3 |BOLT DOWN BEAM-TO-LEG LOCK PLATES
4 |MEASURE TO APPROXIMATE LEG SPACING
15”
15”1 5”
31”
31”
31”
31” 31”
31”
120 DEGREE
BLADE
Place and secure beam lock plates, be sure there is no gap
between the beam and the leg or plates will not fit.
Insert the screw through the overlapping beam slots and into the
black plastic piece. Slightly tighten the screw but DO NOT fully
tighten.
2

CABLE TR AY BL–4 | A1
PARTS LIST
IF WORKSTATIONS HAVE POWER, REFER TO BL-8 BL ADE POWER
GUIDE
QTY PRODUCT CODE
1BCTLM (set of 2)
1BTEC or BNTEC (set of 2) *if applicable
1120 Leg Bracket
3

2 |INSERT BEAM LOCK
Adjust BLADE cable tray to approximate width of surface. Insert
the screw through the overlapping beam slots and into the black
plastic piece. Slightly tighten the screw with only a few turns. DO
NOT fully tighten.

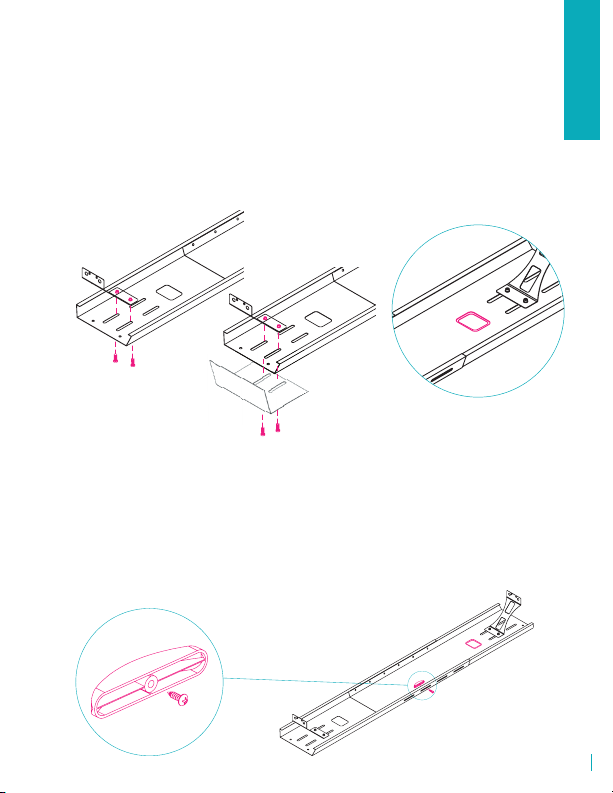

1 | ATTACH CABLE TRAY HANGERS AND END CAPS*
Align slots on the cable tray and secure with 2 bolts from the
bottom. These hangers will mount to a blade workstation. Insert
Beam Grommet Covers.
*NOTE: End Caps (BTEC) are optional, follow the same install
process with or without end caps.
CABLE TRAY
OPTIONAL
4

3 |LEG MOUNT CABLE TRAY
Insert tabs of connector bracket into the triangle post leg lots, then
use 2 screws to connect the cable tray hanger to bracket. Secure
other end of tray directly to BLADE end leg using 2 screws.
Tighten beam lock.
CABLE TRAY
OPTIONAL
5

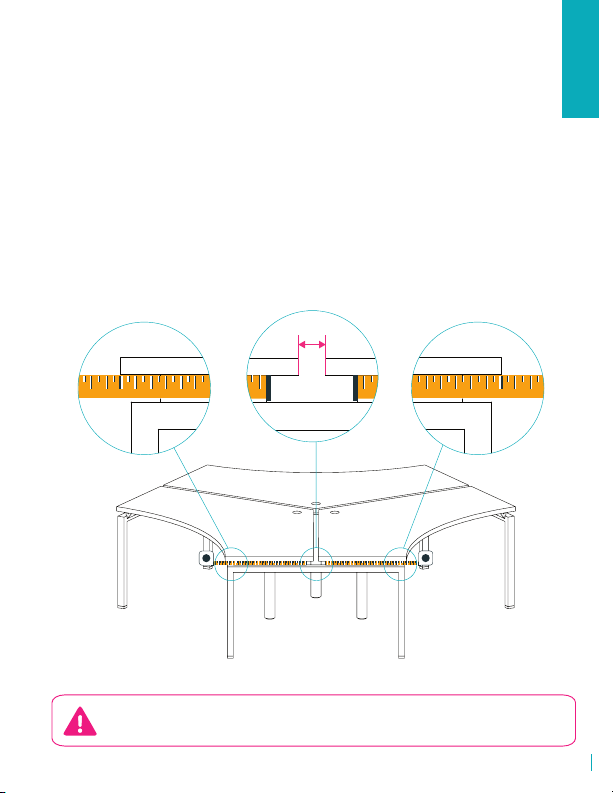

THESE MEASUREMENTS MAY VARY SLIGHTLY DUE TO PRODUCTION
TOLERANCES.
XX
XX
1 5/8”
Measure from the inner surface of the leg bracket to the outer edge
of the surface.
Option 1: If you are installing dividers or monitor arms leave a 1 5/
8”
space between surfaces, full width should be 21 7 /
8”
Option 2: If you are not installing dividers or monitor arms leave a
0” space between surfaces, full width should be 21 1/16”
5 |SURFACE INSTALLATION
120 DEGREE
BLADE
6

120 DEGREE
BLADE

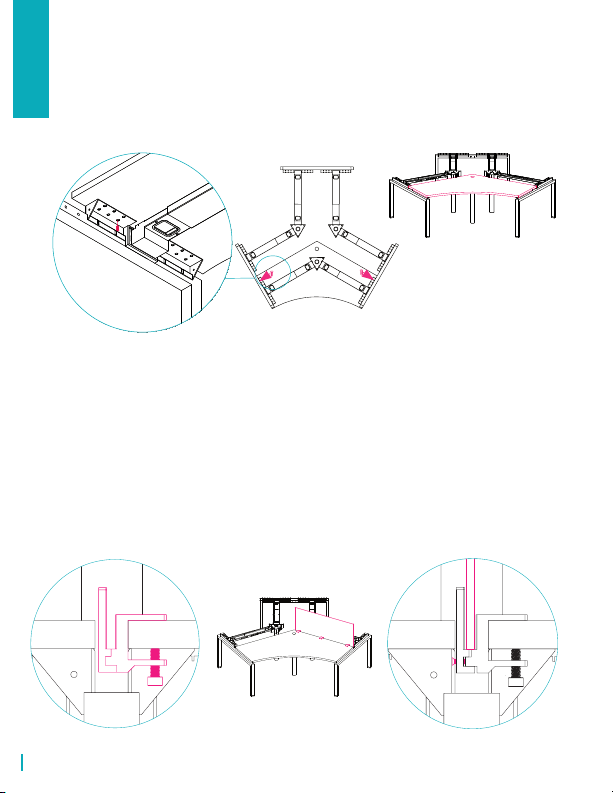

6 |SECURE FIRST SURFACE
Position the surface on the desk frame. Align the outer side of the
surface flush and parallel with the outer side of the end leg. Insert
wood screws into the leg brackets and secure to the underside of
the surface.
7 |PLACE AND SECURE FIRST DIVIDER
Clamp bracket to the surface's right edge and tighten the vertical
bolt against the surface to secure the bracket. Repeat for all
brackets.
Lower screen into brackets and tighten horizontal bolt to clamp the
brackets onto the screens.
7

120 DEGREE
BLADE

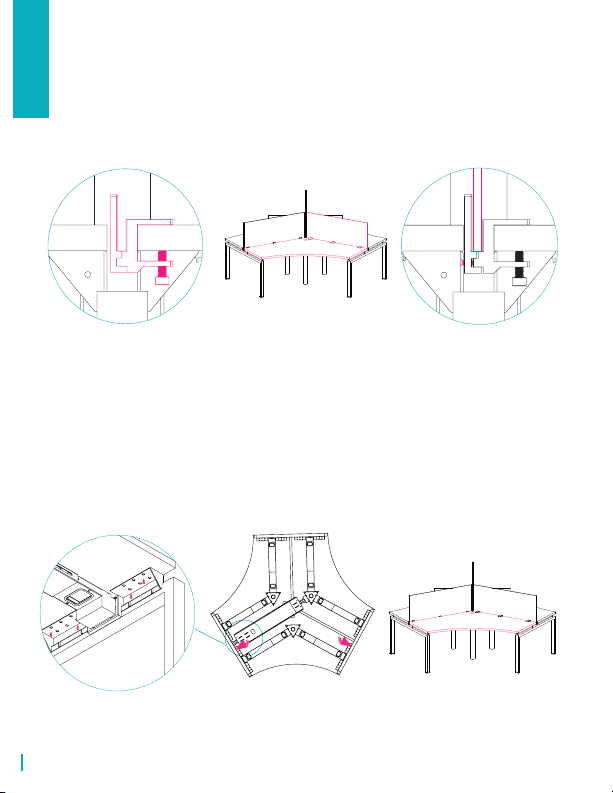

8 |SECURE SECOND SURFACE
Position the surface on the desk frame. Align the outer side of the
surface flush and parallel with the outer side of the end leg. Insert
wood screws into the leg brackets and secure to the underside of
the surface.
9 |SECURE SECOND DIVIDER
Clamp bracket to the surface's right edge and tighten the vertical
bolt against the surface to secure the bracket. Repeat for all
brackets.
Lower screen into brackets and tighten horizontal bolt to clamp
the brackets onto the screens.
8

120 DEGREE
BLADE
10 |SECURE THIRD DIVIDER
Position the surface on the desk frame. Align the outer side of the
surface flush and parallel with the outer side of the end leg. Insert
wood screws into the leg brackets and secure to the underside of
the surface.
11 |THIRD SURFACE
Clamp bracket to the surface's right edge and tighten the vertical
bolt against the surface to secure the bracket. Repeat for all
brackets.
Lower screen into brackets and tighten horizontal bolt to clamp the
brackets onto the screens.
9

120 DEGREE
BLADE

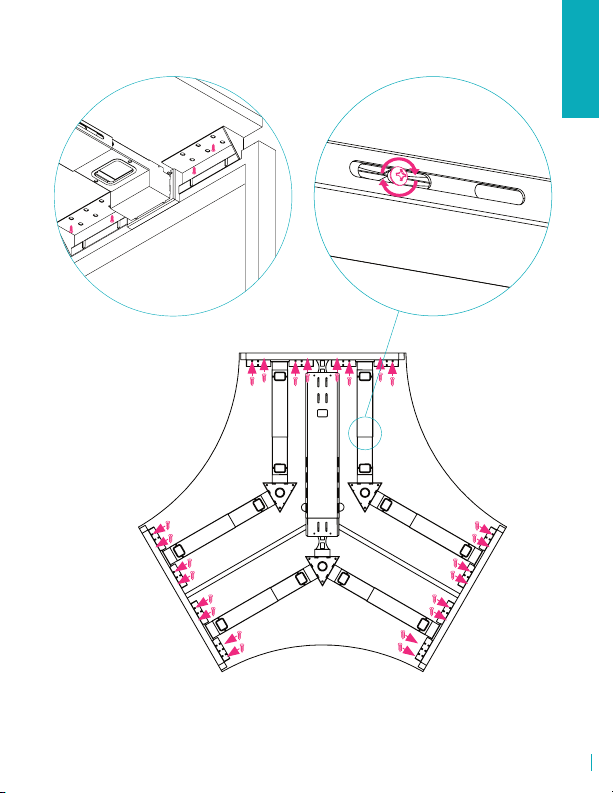

12 |FINAL SCREW AND TIGHTEN BEAM LOCKS
10

120 DEGREE
BLADE
PODS OF 6 OR MORE
Build an Intermediate leg; this will replace one of the end legs and
you will be able to attach another pod. Repeat all steps for a Pod of
3 as needed.
Align bracket with leg holes and bolt in place. Connect 4 brackets
to the leg. Insert 2 bolts per bracket to secure in place.
48"
11

120 DEGREE
BLADE
31”
15”
15” 15”
15” 15”
15”
32.5”
31”
32.5”
32.5”
31”
32.5”
31”
31”
31”
31” 31”

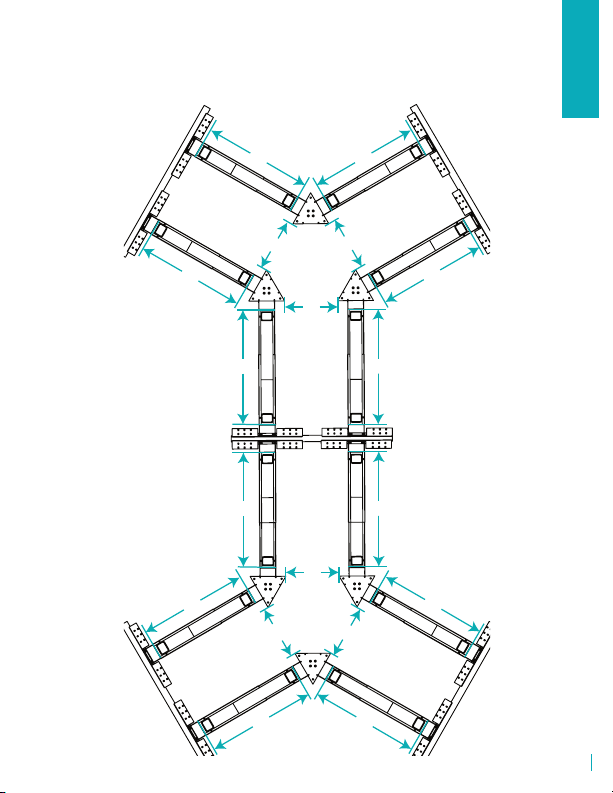

MEASURE APPROXIMATE LEG SPACING
NOTE: The leg spacing will be adjusted as you position the
surfaces.
12

120 DEGREE
BLADE
1 5/8”
MEASURE APPROXIMATE LEG SPACING
Measure from the inner surface of the leg bracket to the outer edge
of the surface.
Option 1: If you are installing dividers or monitor arms leave a 1 5/
8”
space between surfaces, full width should be 21 7 /
8”
Option 2: If you are not installing dividers or monitor arms leave a
0” space between surfaces, full width should be 21 1/16”
THERE MEASUREMENTS MAY VARY SLIGHTLY DUE TO PRODUCTION
TOLERANCES.
13

120 DEGREE
BLADE
12 |FINAL SCREW AND TIGHTEN BEAM LOCKS
14

END PANELS BL–4 | A6
PARTS LIST
QTY PRODUCT CODE
8LEPBL1
1GBEPLH## or WABEPSH.(A-D)
* Quantities are for one panel
15

END PANEL
OPTIONAL
Align Flush
1 | SECURE BRACKET FOR OUTER PANELS TO END
LEGS
2 | ATTACH END PANEL
Attach four brackets to each BLADE end leg using the self-tapping
screws.
The front of the bracket will align flush with outside edge of the
leg.
Slide end panels into place and adjust until flush with bracket. Use
2 wood screws to secure panel to each bracket.
16

END PANELS BL–4 | A7
PARTS LIST
QTY PRODUCT CODE
8LEPBL1
1GBEPSS## or WABEPDH.(A-D)
* Quantities are for one panel
17
