1.0 INTRODUCTION
1.1 Scope of manual
1.1.1 These instructions cover set-up, operation, and
replacement parts for the CMS Remote Alarm.
1.1.2 This alarm is a potential life saving instrument. To
assure its performance it must be properly installed and
maintained. Before installing and using the alarm, all
personnel involved with the operation and maintenance
must read this manual and the applicable carbon
monoxide monitor manual noted below.
CMS-1 Carbon Monoxide Monitor .... Manual no. 23301
CMS-2 Carbon Monoxide Monitor .... Manual no. 22925
1.2 Safety Alerts
1.2.1 Clemco uses safety alert signal words, based on
ANSI Z535.4-2011, to alert the user of a potentially
hazardous situation that may be encountered while
operating this equipment. ANSI's definitions of the signal
words are as follows:
This is the safety alert symbol. It is
used to alert you to potential physical
injury hazards. Obey all safety
messages that follow this symbol to
avoid possible injury or death.
NOTICE
Notice indicates information that is considered
important, but not hazard-related, if not
avoided, could result in property damage.
CAUTION
Caution indicates a hazardous situation that, if
not avoided, could result in minor or moderate
injury.
WARNING
Warning indicates a hazardous situation that, if
not avoided, could result in death or serious
injury.
DANGER
Danger indicates a hazardous situation that, if
not avoided, will result in death or serious
injury.
1.3 Description
1.3.1 The 12 volt DC remote alarm is a high-intensity,
red-lens strobe light and high decibel horn. Use the
remote alarm in high noise areas or where the CO
monitor cannot be placed in a conspicuous location. The
alarm does not require an external power source when
correctly connected to a CMS monitor. The alarm
sounds and the strobe light flashes whenever the CO
monitor goes into an alarm condition. Using additional
cable, the alarm may be placed up to 150 ft. from the
monitor.
1.4 Components

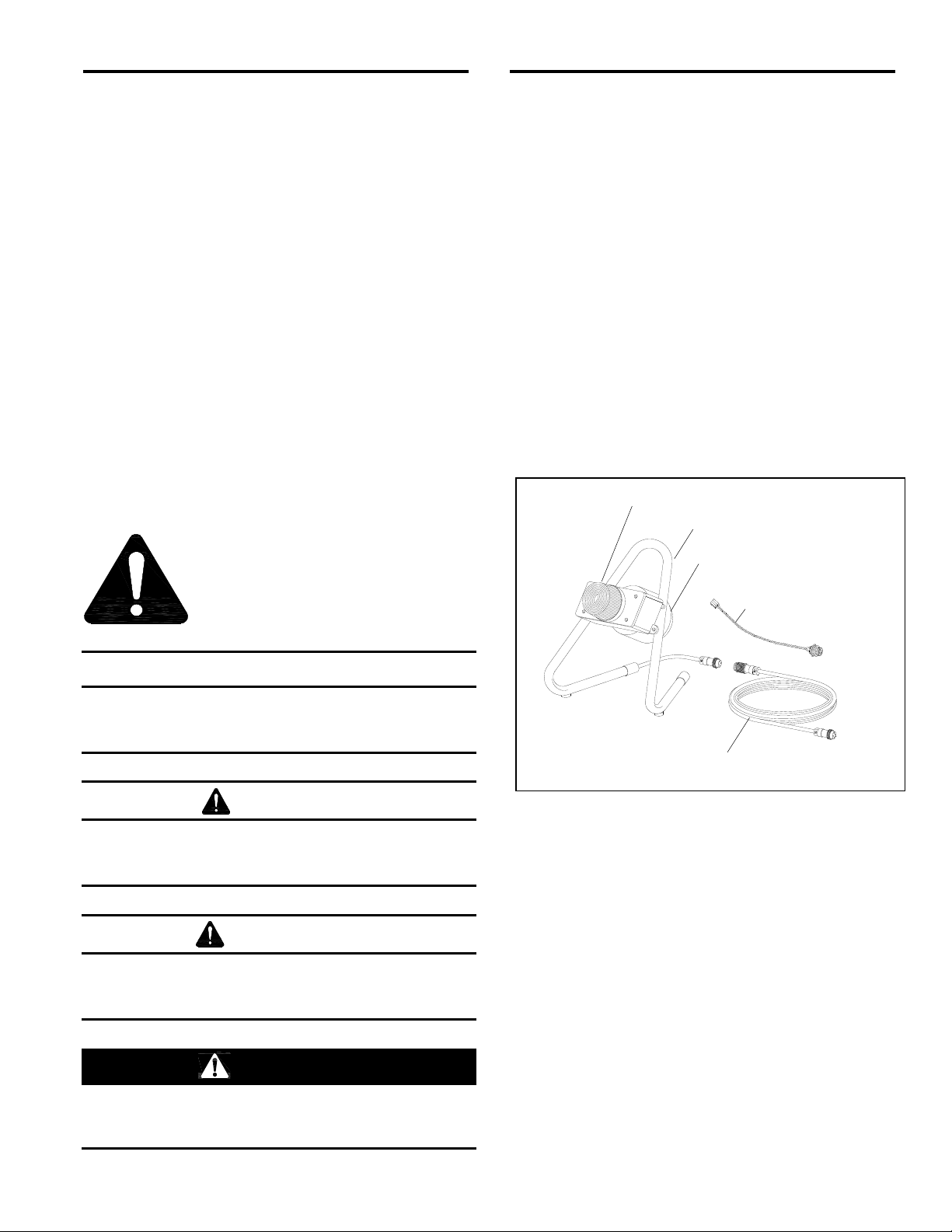

1.4.1 The primary components of the remote alarm are
shown in Figure 1. The alarm package includes the
alarm case with strobe light and horn, stand, 50-ft. cable
with connectors, and a wire assembly with pin socket
and cable connector.
Figure 1
2.0 SET-UP
2.1 Disconnect all electrical power to the monitor.
2.2 Open the case to access the interior faceplate.
2.3 CMS-1: Remove the four screws and remove the
faceplate, being careful not to disconnect wires or
tubing.
CMS-2: Loosen the closing screw located in the
center of the lower edge of the faceplate and swing the
faceplate up to access the inside of the case.
2.4 Remove the plug from the hole located on the
bottom of the CMS-1 case, and on the right side of the
CMS-2 case. Ref. Figure 2 (CMS-2 is shown for
reference).
Horn
Stand w/ Pigtail
Alarm Wire Assembly
Strobe Light
50 Ft. Cable
w/ Connectors

CMS REMOTE ALARM Page 2
© 2019 CLEMCO INDUSTRIES CORP.  www.clemcoindustries.com  Manual No. 22978, Rev C, 06/19
2.5 String the plug end of the alarm wire through the
case opening and slide the retaining nut onto the wire,
as shown in Figure 2. Push the cable connector firmly
into the case and tighten the retaining nut to secure.
Figure 2
2.6 Plug the alarm-wire socket onto the unused alarm
post (J3 or J4 on CMS-1) (J3 or J5 on CMS-2) located
on the circuit board, as shown in Figure 3.
Figure 3
3.0 Operation
3.1 The remote alarm does not require any special
mounting, and it will operate in any position. The stand
may be used free standing or used to hang the alarm in
a conspicuous place so any alarm condition will be
noticed.
WARNING
The remote alarm must be in a conspicuous
place to ensure that any alarm condition is
observed. DO NOT mount inside a blast room.
The alarm case and cable are not designed to
withstand the continual impact of abrasive that
takes place inside a blast room. For additional
external alarms, refer to the monitor manual for
instructions for installing external alarm
devices. With auxiliary terminals and a relay,
the monitor may be interlocked with other
devices, such as the compressor shut-down, to
additionally safeguard against an unobserved
alarm.
3.2 Place the alarm in a conspicuous location within
cable reach of the monitor. With additional cable, the
alarm may be place up to 150 ft. from the monitor.
3.3 Connect cable to the monitor and the alarm:
Before connecting the cable connectors, make sure they
are correctly aligned by lining-up the locators of each
connector, as shown in Figure 4. Route the cable to
ensure that there will be no contact with ground traffic or
high reach equipment.
Figure 4
3.4 Refer to the monitor operations manual and test
the alarm using the same process for testing the
monitor’s internal alarms.
4.0 REPLACEMENT PARTS
Description Stock No.
Remote alarm kit, complete ................................... 22909
Strobe Light ............................................................ 22984
Horn ....................................................................... 22985
Wire assembly ....................................................... 22986
Cable with connectors, 50 ft. ................................. 22910
Stand assembly with pigtail ................................... 22987
Remove plug, and
string alarm wire
through opening.
Tighten retaining nut.
Swing faceplate up.
Locator Rise
Locator Channel
Align locators before connecting
Alarm-wire Socket
Alarm-wire Socket
Remote Alarm Post (J3 or J5)
CMS-1 Circuit Board
CMS-2 Circuit Board
Remote Alarm Post (J3 or J4)
