Clever Life S-71917 User manual

Stinger Sensor Light Security Camera
Installation & Operating Manual Version. 001
S-71917 (Tuya version) camera wall light operating instruction
⚫Technical data:
Model: S-71917
Material: ABS+PC+Aluminum
Power:33W
Color Temperature(k):3000K
Luminous Flux(lm): 2500lm
Protection Grade:IP44
Motion sensor detection angle:270°
Max sensor distance:6m
PIR sensor:20-20000lux
Light time: 3s-7mins
Input voltage:100-240V
IP Camera
1、1/4 HD CMOS image sensor
2、Lens: 3.6mm f2.0 ( 270°(H), 100°(V) )
3、Night Vision：11 IR LED
4、Resolution: 1920*1080(HD)
⚫Installation:
1. To choose the mounting location, make sure the camera light illuminates the
desired area.
2. Depending on the mounting height (roughly at 6.5ft) the motion detector has a
detection range of max. 39.4ft with a detection angle of 270°.
3. Be sure the motion detector is not illuminated by street lighting at night. This can
influence the motion sensor.
4. Loosen the one screws in the front of main, rotate the switch to the right and
rotate the base to the left unit to release the mounting plate, then remove the two
screws on the mounting plate and loosen the mounting bracket.
5. Screw the mounting bracket to the junction box, and fix the base with screws, then
fit the main unit onto the base.
6. Rotate and adjust the camera light to illuminate the desired area.
7. Turn the control knob TIME to adjust the duration of the illumination. The lighting
duration can be adjusted from approx. 3 seconds to 7 minutes (+/-10%).
8. Turn the control knob LUX to adjust the daylight level: At the position, the motion
detector only reacts at night. In the position, the motion detector also responds at
daylight levels.

Stinger Sensor Light Security Camera
Installation & Operating Manual Version. 001

Stinger Sensor Light Security Camera
Installation & Operating Manual Version. 001

Stinger Sensor Light Security Camera
Installation & Operating Manual Version. 001

Stinger Sensor Light Security Camera
Installation & Operating Manual Version. 001
⚫Set up
1. Equipment connected to the power supply:
Turn on the camera, after 10 seconds, the speaker starts; after 15 seconds, the infrared work
detects; after 20 seconds, the infrared PCBA red LED lights up and flashes regularly; after 30
seconds, the PTZ starts detection, first left and right, then Up and down; after 40 seconds, the
camera plays the startup completion tone.
2. Install the APP –CleverLife Home
Scan the QR code on the outer packaging, automatically enter the app store, download the
CleverLife Home APP software, and install. Use the email account to register a CleverLife Home
account.
IOS , ANDROID APP QR CODE.
3. Add the camera:
A. Click [Add device] in the main screen or [+] in the upper right corner.
B. Select [Security Sensor] - [Smart Camera].

Stinger Sensor Light Security Camera
Installation & Operating Manual Version. 001
4. Two methods to connect the camera.

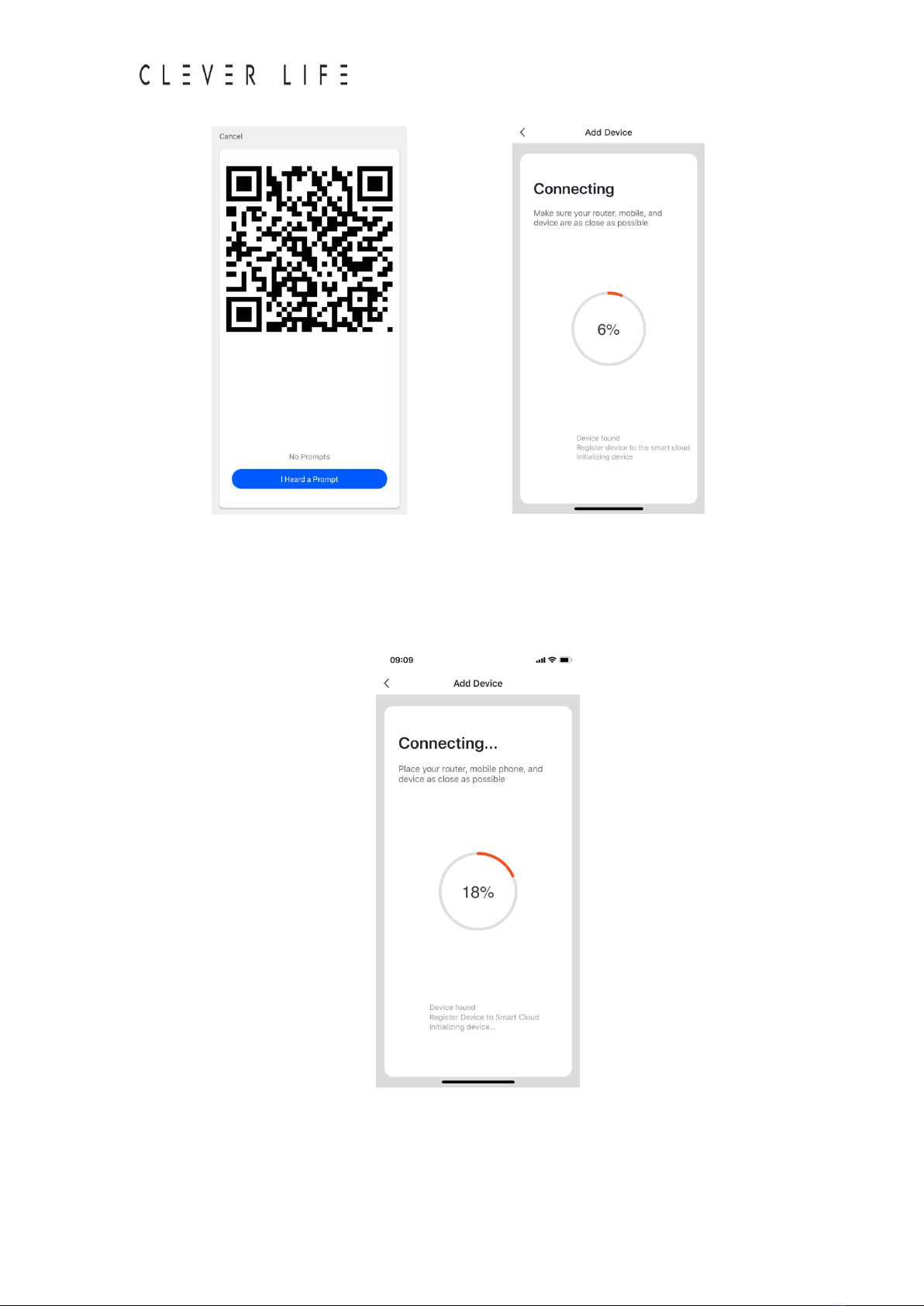

A. QR Code Net-pairing: Use the camera to scan the QR Code on the mobile phone, which
contains net-pairing information. Ensure the device is in pairing mode and indicator light
is flashing, confirm and select next. Enter the Wi-Fi Network & password (ensure you
connect to a 2.4GHz network), select Next, the mobile phone displays a QR code. Hold
the mobile phone 15 to 20cm in front of the camera to scan the QR code.
When the camera emits a ‘Dingdong’ tone, press the “I Heard a Prompt”button and keep
the phone as close as possible to the camera, the camera is automatically connected.

Stinger Sensor Light Security Camera
Installation & Operating Manual Version. 001
A. Smart Configuration: Click the “Other Mode”on the top right, chose “Smart
Configuration”. The mobile phone will broadcast network configuration information. After
receiving the information, the device will connect to the router. Place your router, mobile
phone and camera as close as possible.
After the camera is successfully connected, the APP pops up [Add device Success], you can
choose options in the interface according to your needs, and then click Finish.

Stinger Sensor Light Security Camera
Installation & Operating Manual Version. 001
Note: To reset the device press and hold the button on the bottom of the camera (next to the
SD card Slot) for 5 seconds or until a sound is heard. This will factory reset the device
network settings.
⚫Operation
Press here to
open the audio.
Quick
screenshoot.
Playback ( need
insert TF card )
To control the moving
camera head.
Press here to
speak to visitors.
Record video, saved
phone gallery.
Press the pen to
enter settings.
Adjust motion detection
sensitivity level.

Stinger Sensor Light Security Camera
Installation & Operating Manual Version. 001
⚫Settings
⚫Note
Each camera can only be connected to one CleverLife Home account (for example, if the A
camera has been bound to the A account, the A camera will not be able to bind to the B
account or the C account). If other users want to connect the camera, you need to share the
camera by A account. If want to change the account, the corresponding camera in the A
account needs to be deleted, restore the camera to the factory settings, then reconnect
following the above-mentioned steps.
Here to name
your camera.
Share your camera to
your family members.
Here to set up basic function,
indicator, flip screen, time watermark,
IR night vision.
Switch on/off the motion
detection and adjust the
sensitivity.
Click here to remove the
device.
If you want to reset the
camera, remove the device
first, then press the RESET
button on the camera for 10
seconds.
