Clifford G5 11CX 562C User manual

[ The science of security ]
[ User guide ]
CLIFFORDCLIFFORD
MD
S e c u r i t y s y s t e m a n d c o n v e n i e n c e
11CX
562C Series
11CX
562C Series

i
©2004 Directed Electronics, Inc.
Limited Consumer Warranty
For a period of one calendar year from the date of purchase of this device, Directed
Electronics, Inc. promises to the ORIGINAL PURCHASER to repair or replace (with a
comparable reconditioned model), free of cost, any electronic control module which
proves to be defective in workmanship or material under normal use, SO LONG AS THE
SYSTEM WAS SOLD, INSTALLED, AND SERVICED BY A PROFESSIONAL AUTO INSTALLER,
AND REMAINS IN THE CAR IN WHICH THE SYSTEM WAS ORIGINALLY INSTALLED. If war-
ranty service is necessary you must have a clear copy of your sales receipt contain-
ing all of the information shown on the following page.
After the first calendar year, from the date of purchase of this device, Directed
Electronics, Inc., promises to the ORIGINAL PURCHASER to repair or replace (with a
comparable reconditioned model) any electronic control module which proves to be
defective in workmanship or material under normal use FOR A CHARGE OF $45.00,
SO LONG AS THE SYSTEM WAS SOLD, INSTALLED, AND SERVICED BY A PROFESSIONAL
AUTO INSTALLER, AND REMAINS IN THE CAR IN WHICH THE SYSTEM WAS ORIGINALLY
INSTALLED. If warranty service is necessary you must have a clear copy of your sales
receipt containing all of the information shown on the following page.
This warranty contains the entire agreement relating to warranty and supersedes all
previous and contemporaneous representations or understandings, whether written or
oral. IN ANY EVENT, DIRECTED ELECTRONICS, INC. IS NOT LIABLE FOR THE THEFT OF
THE VEHICLE AND/OR ITS CONTENTS.
This warranty is void if the product has been damaged by accident, unreasonable use,
neglect, improper service or other causes not arising out of defects in materials or
construction. This warranty is nontransferable and does not apply to any unit that
has been modified or used in a manner contrary to its intended purpose and does not
cover batteries. The unit in question must be returned to the manufacturer, postage
prepaid. This warranty does not cover labor costs for the removal, diagnosis, trou-
bleshooting or reinstallation of the unit. For service on an out-of-warranty product a
flat rate fee by model is charged. Contact your authorized dealer to obtain the ser-
vice charge for your unit.
These systems are a deterrent against possible theft. Directed Electronics, Inc. is not
offering a guarantee or insuring against the theft of the automobile or its contents
and disclaims any liability for the theft of the vehicle and/or its contents. Directed
Electronics does not authorize any person to create for it any other obligation or lia-
bility in connection with this security system.

ii ©2004 Directed Electronics, Inc.
TO THE MAXIMUM EXTENT ALLOWED BY LAW, ANY AND ALL WARRANTIES ARE EXCLUD-
ED BY THE MANUFACTURER AND EACH ENTITY PARTICIPATING IN THE STREAM OF COM-
MERCE THEREWITH. THIS EXCLUSION INCLUDES BUT IS NOT LIMITED TO THE EXCLU-
SION OF ANY AND ALL WARRANTY OF MERCHANTABILITY AND/OR ANY AND ALL WAR-
RANTY OF FITNESS FOR A PARTICULAR PURPOSE AND/OR ANY AND ALL WARRANTY OF
NON-INFRINGEMENT OF PATENTS, IN THE UNITED STATES OF AMERICA AND/OR
ABROAD. NEITHER THE MANUFACTURER OR ANY ENTITIES CONNECTED THEREWITH
SHALL BE RESPONSIBLE OR LIABLE FOR ANY DAMAGES WHATSOEVER, INCLUDING BUT
NOT LIMITED TO ANY CONSEQUENTIAL DAMAGES, INCIDENTAL DAMAGES, TOWING,
REPAIR, REPLACEMENT, DAMAGES FOR LOSS OF TIME, LOSS OF EARNINGS, COMMERCIAL
LOSS, LOSS OF ECONOMIC OPPORTUNITY AND THE LIKE. NOTWITHSTANDING THE
ABOVE, MANUFACTURER DOES OFFER A LIMITED WARRANTY TO REPLACE OR REPAIR
THE CONTROL MODULE AS DESCRIBED ABOVE. Some states do not allow limitations on
how long an implied warranty will last or the exclusion or limitation of incidental or
consequential damages. This warranty gives you specific legal rights, and you may
also have other rights which vary from state to state.
IMPORTANT NOTE:
This product warranty is automatically void if its date code or serial number is
defaced, missing, or altered. This warranty will not be valid unless you have com-
pleted the warranty card and mailed it to Directed Electronics, Inc. within 10 days
after purchase to the address listed on the warranty registration card.
Make sure you have all of the following information from your dealer:
A clear copy of the sales receipt, showing the following:
■Date of purchase
■Your full name and address
■Authorized dealer's company name and address
■Type of system installed
■Year, make, model and color of the automobile
■Automobile license number
■Vehicle identification number
■All security options installed on automobile
■Installation receipts

1
©2004 Directed Electronics, Inc.
Limited Lifetime Consumer Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . i
Standard Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
What is Included . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Important Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
System Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Your Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
FCC/ID Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Transmitter Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Standard Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Using Your System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Arming. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Disarming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Disabling the Starter Kill Without a Transmitter . . . . . . . . . . . . . . . . . . . . . 7
Valet® Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Panic Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Rapid Resume Logic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Programming Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Glossary of Terms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Convenience Expansions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Quick reference guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Table of Contents

2©2004 Directed Electronics, Inc.
Standard Configuration
controls the Lock/Panic ON/Panic OFF function.
controls the Disarm function.
controls Silent Mode™and an Auxiliary Output.

3
©2004 Directed Electronics, Inc.
What is Included
■The control module
■An receiver/antenna
■Two four-button transmitters
■The status LED indicator light
■A push-button Valet®switch
■Your warranty registration
■A shut-down toggle switch
Important Information
Congratulations on the purchase of your remote start keyless entry
system. Due to the complexity of this system, it must be installed
by an authorized dealer only. Installation of this product by any-
one other than an authorized dealer voids the warranty. All deal-
ers are provided with a preprinted dealer certificate to verify that
they are authorized.
By carefully reading this Owner's Guide prior to using your system,
you will maximize the use of this system and its features.
You can print additional or replacement copies of this manual by
accessing the Directed Electronics internet website at
www.directed.ca.

4©2004 Directed Electronics, Inc.
The system requires no specific maintenance. Your remote is powered
by a small, lightweight 3-volt lithium battery that will last approx-
imately one year under normal use. When the battery begins to weaken,
operating range will be reduced and the LED on the remote will dim.
Your warranty registration must be completely filled out and
returned within 10 days of purchase. Your product warranty
will not be validated if your warranty registration is not returned.
Make sure you receive the warranty registration from your dealer.
It is also necessary to keep your proof of purchase, which reflects
that the product was installed by an authorized dealer.
This device complies with Part 15 of FCC rules. Operation is subject
to the following conditions: (1) This device may not cause harmful
interference, and (2) This device must accept any interference re-
ceived, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate this device.
FCC/ID Notice
Your Warranty
System Maintenance

5
©2004 Directed Electronics, Inc.
Transmitter Functions
The receiver uses a computer-based learn routine to learn the
transmitter buttons. This makes it possible to assign any specific
transmitter button, or combination of buttons, to any receiver
function. The transmitter initially comes programmed with the
Standard Configuration, but may also be customized by an autho-
rized dealer. The transmitter buttons indicated in all of the
instructions in this manual correspond to a Standard Configuration
transmitter.
Button
The lock and panic functions are controlled by pressing on the
transmitter for one second.
Button
The unlock function is controlled by pressing on the trans-
mitter for one second.
Button
Silent Mode™and an optional auxiliary function are controlled
by pressing . Silent Mode works by pressing for less
than one second.
Standard Configuration

6©2004 Directed Electronics, Inc.
Using Your System
Pressing for one second arms the system by activating the
starter kill. The horn will honk and the parking lights (optional)
will flash once to confirm arming of the system. While the system
is armed, the status LED will flash once per second. The Failsafe®
Starter Kill will also prevent the vehicle’s starter from cranking.
The system can also be programmed to arm the optional Failsafe®
Starter Kill automatically (called Passive Mode). If the system has
been programmed for Passive Mode, the Failsafe®Starter Kill will
automatically activate 30 seconds after the ignition has been
turned off. After the ignition has been turned off, the status LED
will flash rapidly to indicate that the system is in Passive Mode.
If Passive Mode has been programmed on, then it is also possible
to program the system for Passive Locking. With Passive Locking,
the vehicle doors lock automatically at the same time that the Failsafe®
Starter Kill is activated. If Passive Locking is programmed on, care
must be taken to prevent the keys from being locked in the vehicle.
Arming

7
©2004 Directed Electronics, Inc.
Pressing for one second disarms the system. The horn will honk
twice and the parking lights (optional) will flash twice to confirm
disarming of the system. The optional Failsafe®Starter Kill will be
deactivated. The status LED will turn off, unless the system is pro-
grammed for Passive Mode. In Passive Mode, the status LED will
flash rapidly when the system is disarmed. This indicates that the
system will re-engage the starter kill in 30 seconds unless the igni-
tion is turned on.

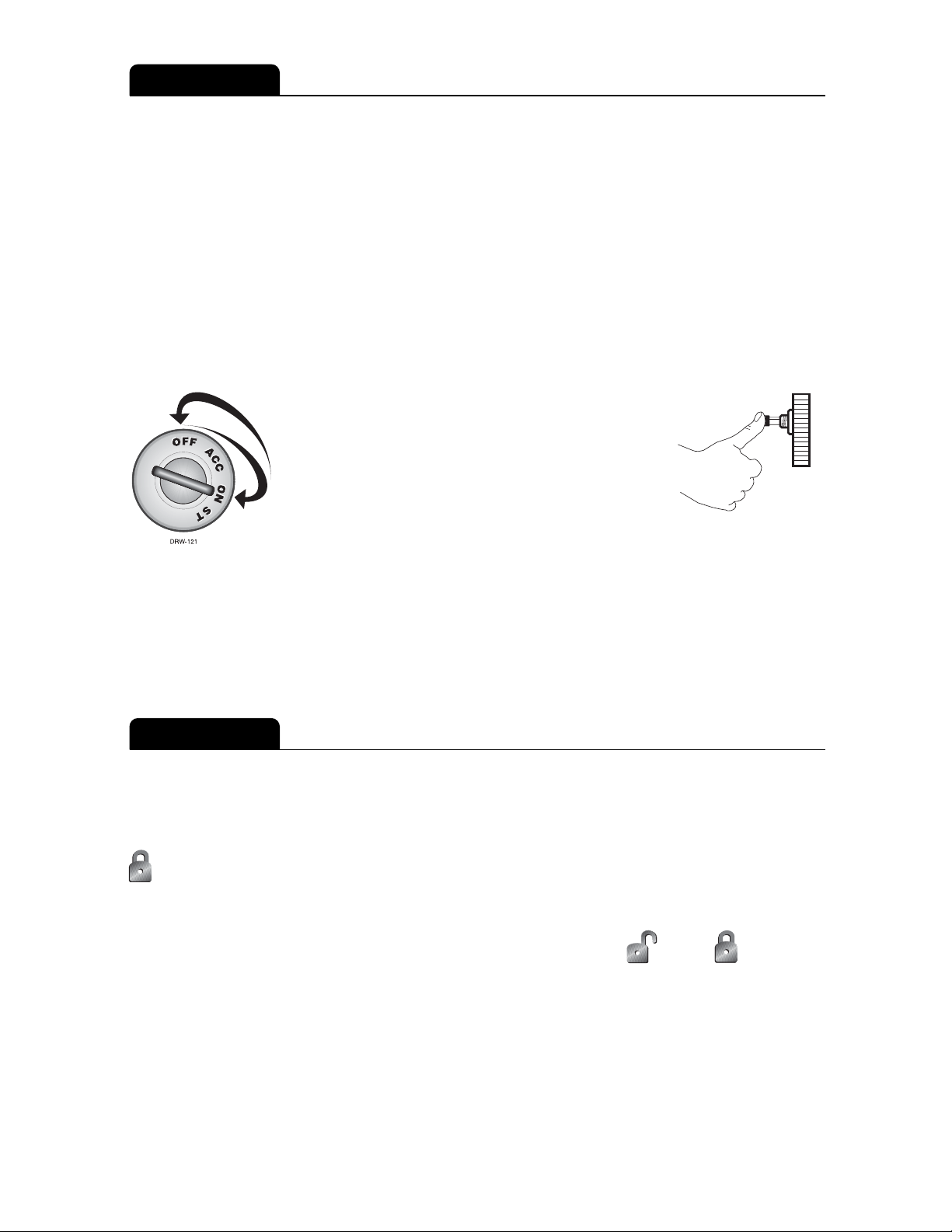

If your remote transmitter is lost or damaged, you can manually
override the starter kill. To do this, you must have the vehicle's
ignition key and know where the Valet®switch is located. Be sure
to check with the installer for the location of the Valet®switch.
To override the starter kill, turn
the ignition on and press the
Valet®switch within 10 seconds.
The status LED will stop flashing
and the vehicle should start. If it does not start,
you may have waited too long; turn the ignition off and repeat the
process.
LOCATION OF VALET®SWITCH_____________________________
DRW-35
Disabling the Starter Kill Without a Transmitter
Disarming

8©2004 Directed Electronics, Inc.
You can prevent your system from automatically activating the
Failsafe®Starter Kill by using Valet®Mode. This is very useful when
washing the vehicle or having it serviced. In Valet®Mode, the
starter kill cannot be activated, even with the transmitter, but all
convenience functions will continue to work normally.
To enter or exit Valet®Mode:
1. Turn the ignition on.
2. Turn the ignition off.
3. Press and release the Valet®
switch within 10 seconds.
The status LED will light steadily if you are entering Valet®Mode
and will turn off if you are exiting Valet®Mode.
If you are threatened in or near your vehicle, you can attract
attention by triggering the system with your transmitter. Just press
for 1.5 seconds to enter Panic Mode. In Panic Mode, the horn
will honk and the parking lights (optional) will flash for 30 sec-
onds. To stop Panic Mode at any time, press , or on the
transmitter.
NOTE: In order for Panic Mode to be effective, the vehicle’s horn as well
as the vehicle's parking lights must be connected.
Panic Mode
DRW-35
Valet®Mode

9
©2004 Directed Electronics, Inc.
Rapid Resume Logic
This Directed Electronics system will store its current state to non-
volatile memory. If power is lost and then reconnected the system
will recall the stored state from memory. This means if the unit is
in Valet®Mode and the battery is disconnected for any reason, such
as servicing the car, when the battery is reconnected the unit will
still be in Valet Mode. This applies to all states of the system
including arm, disarm, and Valet Mode.
Programming Options
Programming options control your system's normal, operational
set-up. Most options do not require additional parts, but some may
require additional installation labor. This system's programming
options are listed below, with the factory default settings in bold:
■Passive Mode or Active Mode. In Passive Mode the Failsafe®
Starter Kill will automatically activate 30 seconds after the
ignition has been turned off.
■The horn honk confirmations for locking and unlocking can be
programmed on or off. In order for this feature to be pro-
grammed on, the horn must be connected to the system.

10 ©2004 Directed Electronics, Inc.
Glossary of Terms
Control Unit: The “brain” of your system. Usually hidden under-
neath the dash area of the vehicle. It houses the microprocessor
which monitors your vehicle and controls all system functions.
Failsafe®Starter Kill: An automatic switch controlled by your sys-
tem which prevents the vehicle’s starter from cranking whenever
the system is armed. The vehicle is never prevented from cranking
when the system is disarmed, in Valet®Mode, or if the starter kill
switch itself fails. Your system has feature-ready circuitry for the
starter kill, however installation may require additional labor.
LED: A red light mounted at a discretionary location inside the
vehicle. It is used to indicate the status of your system.
Transmitter: A hand-held, remote control which operates the var-
ious functions of your system.
Valet®Switch: A small push button mounted at a discretionary
location inside the vehicle. It is used to override the Failsafe®
Starter Kill when a transmitter is lost or damaged, or to enter or
exit Valet®Mode.

11
©2004 Directed Electronics, Inc.
Convenience Expansions
Listed below are some of the many expansion options available for
use with your system. Some options may require additional parts
and/or labor. Please consult with your dealer for a complete list of
options available for use with this system.
Domelight Supervision: The domelight will illuminate for 30
seconds each time the system is disarmed using the transmitter.
This is useful for seeing inside the vehicle at night prior to
entering it.

12 ©2004 Directed Electronics, Inc.

13
©2004 Directed Electronics, Inc.
Notes

14 ©2004 Directed Electronics, Inc.

15
©2004 Directed Electronics, Inc.
QUICK REFERENCE GUIDE:
To lock using your remote
■To arm the system press for one second. The doors will lock (if con-
nected). The LED will begin to flash. The Failsafe®Starter Kill will pre-
vent the vehicle’s starter from cranking if it has been installed. The ve-
hicle’s horn (if connected) will honk and the parking lights will flash
once to confirm arming of the system.
To unlock using your remote
■To disarm the system press for one second. The doors will unlock (if
connected). The Failsafe®Starter Kill will
be deactivated and the vehicle’s horn (if connected) will honk twice and
the parking lights will flash twice.
Disabling the Failsafe®Starter Kill without a transmitter
■Turn on the ignition. Press and release the Valet®switch within 10 sec-
onds. The LED will stop flashing and the vehicle should start. Be sure to
check with the installer for the location of the Valet®switch.
To enter or exit Valet®Mode
■Turn the ignition to the "ON" position. Turn the ignition back off. Press
and release the Valet®switch within 10 seconds. The status LED will
light steadily if you have entered Valet®Mode. To exit Valet®Mode,
repeat the steps above. The LED will turn off when exiting Valet®Mode.
To activate Panic Mode
■Press and hold for 1.5 seconds.
Location of Shutdown Switch______________________________
Cut along dotted line and fold for a quick and easy reference to keep in your purse or wallet.
✂
✂

The company behind this system is Directed Electronics, Inc.
Since its inception, Directed Electronics, Inc. has had one purpose, to provide con-
sumers with the finest vehicle security and car stereo products and accessories
available. The recipient of nearly 100 patents and Innovations Awards in the field of
advanced electronic technology, Directed Electronics, Inc. is ISO 9001 registered.
Quality Directed Electronics products are sold and serviced throughout North America
and around the world.
Call [phone] for more information about our products and services.
Directed Electronics, Inc.
188 St-François Xavier, Delson, Qc
www.directed.ca
© 2004 Directed Electronics, Inc. - All rights reserved
11CX 562C 9/4
Directed Electronics is committed to delivering world class quality products
and services that excite and delight our customers.
