Clifford Cyber arrow 3 User manual

World-ClassAutoSecurity TM

D:\corel\DRAW\COVERS\Cov-cybs.cdr

Thursday, March 19, 1998 8:36:50 AM

Color profile: _DEFAULT.CCM - AGFA-AccuSet Series

Composite

Table of Contents

Standard Features of the Cyber 3 . . . . . . . . . . . . . . . . . . . 3

Your 4-button/12-channel remote controls . . . . . . . . . . . . . . 6

How to use your keychain remote control . . . . . . . . . . . . . . . . 6

What each button/channel does . . . . . . . . . . . . . . . . . . . 7

Anti-CodeGrabbing (ACG) with Random Code Encryption . . . . 8

Enhanced AutoArming™ . . . . . . . . . . . . . . . . . . . . . . . . 9

AutoArming enable/disable . . . . . . . . . . . . . . . . . . . . . . . . 9

AutoArm & Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Instant AutoArming bypass . . . . . . . . . . . . . . . . . . . . . . . . . 9

Valet mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

To enable valet mode . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

To exit valet mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Remote controlled valet mode entry and exit . . . . . . . . . . . . . . 9

Keyless entry in valet mode . . . . . . . . . . . . . . . . . . . . . . . . 9

How to interpret the chirps and parking light flashes . . . . . . . . 10

Selectable starter/ignition interrupt . . . . . . . . . . . . . . . . . . 10

AutoLock and AutoUnLock™ . . . . . . . . . . . . . . . . . . . . . 10

Dual-level tampering warning . . . . . . . . . . . . . . . . . . . . . 10

Smart trunk release option . . . . . . . . . . . . . . . . . . . . . . . 10

Table of Contents (cont.)

Smart AutoTesting™ . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Specific malfunction identification . . . . . . . . . . . . . . . . . . . . . 11

Automatic malfunction bypass . . . . . . . . . . . . . . . . . . . . 11

TotalRecall™ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Smart prior intrusion attempt alert . . . . . . . . . . . . . . . . . . 12

Piezo Sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

FACT — False Alarm Control and Test . . . . . . . . . . . . . . . . 12

High-output siren . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Long-term chirp silencing . . . . . . . . . . . . . . . . . . . . . . . . . 12

Remote controlled chirp muting . . . . . . . . . . . . . . . . . . . . . . 12

SmartPowerUp™ II . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

User-selectable features . . . . . . . . . . . . . . . . . . . . . . 13-14

EXAMPLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Adding new remote controls . . . . . . . . . . . . . . . . . . . . . 14

How to erase the codes of lost or stolen remote controls . . . . . . 15

Standard Features of the Cyber 3

✔Lifetime Warranty — For as long as you own the vehicle, Clifford will repair or

replace the control unit and remote controls free of charge (see warranty card for

full details).

✔FACT™—False Alarm Control and Test — One of many patented Clifford

innovations, FACT absolutely, positively ends recurring false alarms.

✔A Pair of 4-Button/12-Channel Remote Controls — Fingertip command from

a typical range of 100 feet.

✔Anti-CodeGrabbing™ (ACG) with Random Code Encryption— A

code-grabber is a new device that lets a thief record and capture off the air from a

distance the digital code transmitted by your remote control whenever you arm

your car. When you leave, the thief replays the code to disarm the alarm and

unlock your car’s doors. ACG with Random Code Encryption makes thieves’

code-grabbers completely useless, because each time you press the button on

your remote control a different random code is transmitted, yet the system will

flawlessly recognize and respond to your transmitter’s new code and ignore all

others.

✔Full-Time Remote Panic with Automatic Door Locking and Unlocking— If

you feel threatened, you can, with just a fingertip touch on your remote control,

sound the siren, flash the parking lights and unlock your vehicle’s power door

locks for quick entry into your car without fumbling with your keys. If you press

the panic button while driving, the siren will sound, the lights will flash and the

doors will lock to shield you from the assailant.

✔Remote Controlled Valet Mode— You can command the system to enter or exit

valet mode with just a press of button from 100 feet away. Parking light flashes

confirm valet mode entry and exit.

✔Remote Door Locking and Unlocking — No more fumbling with keys in the dark

or bad weather! A press of a button on the remote simultaneously arms Cyber 3

and locks your car’s power locks. Another press disarms and unlocks.

User-Selectable AutoLock/AutoUnLock™ — Automatically locks the doors the

instant you start the engine, and unlocks the doors when you park.

Deluxe Remote Keyless Entry in Valet Mode — Use your remote control to lock

and unlock the car doors and remotely activate system accessories even while

the system is in valet mode.

✔Built-In Parking Light Flasher — Visually confirms door lock and system status.

Standard Features of the Cyber 3 (cont.)

✔Remote Controlled Courtesy Lighting — For your personal safety and

convenience, when you remotely disarm your Cyber 3, the interior lights turn on

and stay on until you start the engine or 30 seconds, whichever occurs first.

✔Dual-Mode Chirp Silencing— Your choice of either long-term chirp silencing

or remote controlled chirp muting whenever you wish.

✔Enhanced User-Selectable AutoArming™— Automatically arms itself

“passively” if you forget. May qualify you for an insurance discount that could

pay for the system (consult your insurance company).

AutoArming Enable/Disable — You may disable or re-enable AutoArming

with just a few flicks of a switch.

AutoArm & Lock™ — You may set the system to automatically lock the doors

every time the system AutoArms.

Instant AutoArm Bypass — Just two quick turns of the ignition switch will

bypass AutoArming for one cycle — perfect when fueling the vehicle. The

AutoArming feature is automatically restored the next time you park your

vehicle.

✔Smart Remote Trunk Release Capability — An electronic interlock assures

that the optional remote trunk release can be activated only when the system is

disarmed. To further prevent any possibility of unintentional opening of the

trunk, the interlock also makes sure that the trunk release cannot be remotely

activated while driving.

✔All Electronic Piezo Sensor— An all-electronic vibration/impact sensor that

delivers the utmost reliability and provides more accurate discrimination between

genuine intrusion attempts and non-threatening conditions (like a large truck

passing by) that cause other sensors to false alarm.

✔Patented Smart AutoTesting™—Automatically tests all system triggers and

sensors every time you remotely arm and warns you if you accidentally arm your

Cyber 3 system with the hood or trunk open. If there is a genuine trigger or

sensor malfunction, the system will specifically identify the problem, thereby

eliminating time-consuming and costly trouble-shooting.

✔Patented Malfunction AutoBypass™ —In the unlikely event of a trigger or

sensor malfunction, your Cyber 3 will automatically bypass the malfunction and

arm all other points to continue relentless protection of your vehicle.

Standard Features of the Cyber 3 (cont.)

✔TotalRecall™— Cyber 3’s memory stores the identity of the last trigger or

sensor activated. This provides an invaluable diagnostic means, since, whenever

you wish, the system will visually identify the last activated trigger or sensor.

✔Patented Smart Prior Intrusion Attempt Alert — When you return to your

vehicle and remotely disarm your Cyber 3, a special chirp and parking light flash

sequence will audibly and visually alert you from a distance if an intrusion

attempt was foiled while you were away. Your Cyber 3 will even identify the

specific trigger or sensor that detected the intrusion attempt.

✔High-Output Siren — Loud siren wail for 30 seconds when the alarm detects an

intrusion attempt. The system then automatically resets and rearms.

✔Patented Remote Control Code Learning — Just a few flicks of a switch lets

you match to the system up to 4 different 12-channel Clifford ACG remote

controls. Just as easily, a lost or stolen remote control can be deleted from the

system memory.

✔Control Unit with 5 Channels— For remote controlled system operation and

remote controlled accessories.

✔Advanced CMOS Microcomputer —Very large scale integration (VLSI)

microprocessor commands and monitors all system functions more than

1,000,000 times per second, yet it draws less power than the vehicle’s clock, so it

won’t deplete your car battery like other alarms.

✔Selectable Starter/Ignition Interrupt — You may choose either a fault-proof

mode, which lets you start the engine even in the unlikely event of a system

malfunction, or ultra-secure mode that ensures a thief won’t be able to start the

vehicle even if he finds the system control unit and disconnects it!

✔Hood/Trunk Trigger Input— For full perimeter protection of the engine

compartment and trunk contents (may require optional pin switches).

✔High-Luminescence LED Status Indicator — Adds visual deterrence and

identifies system status.

✔Patented SmartPowerUp™ II — When power to the system is disconnected, the

system’s non-volatile memory always remembers the last state (armed, disarmed

or valet mode) and returns to that state when power is restored. So if a thief

disconnects the power and then restores it in an attempt to start the car, the

system will re-arm and instantly sound the siren while immobilizing the vehicle.

Your 4-button/12-channel remote controls

The 4-button/12-channel remote controls are ultra-sophisticated miniature radio

transmitters powered by a tiny 12-volt battery. Range is up to 100 feet. A weak

remote control battery will reduce range. Electrical interference and even sunspots

can interrupt the signal from your remote control to the system. If this happens,

repeatedly press the remote control button (this works better than holding the button

down). The 4-button/12-channel remote control is the key to your system. It has

Clifford’s Anti-CodeGrabbing™ (ACG) technology for the ultimate protection

against “code-grabbing” devices (see page 8). You will use your remote control to

arm and disarm the system, lock and unlock the doors, activate the panic feature,

enable/exit valet mode, command options such as a remote trunk release, power

window operation, electric garage door interface and even remote starting of the

engine and heater or air conditioner, among other options.

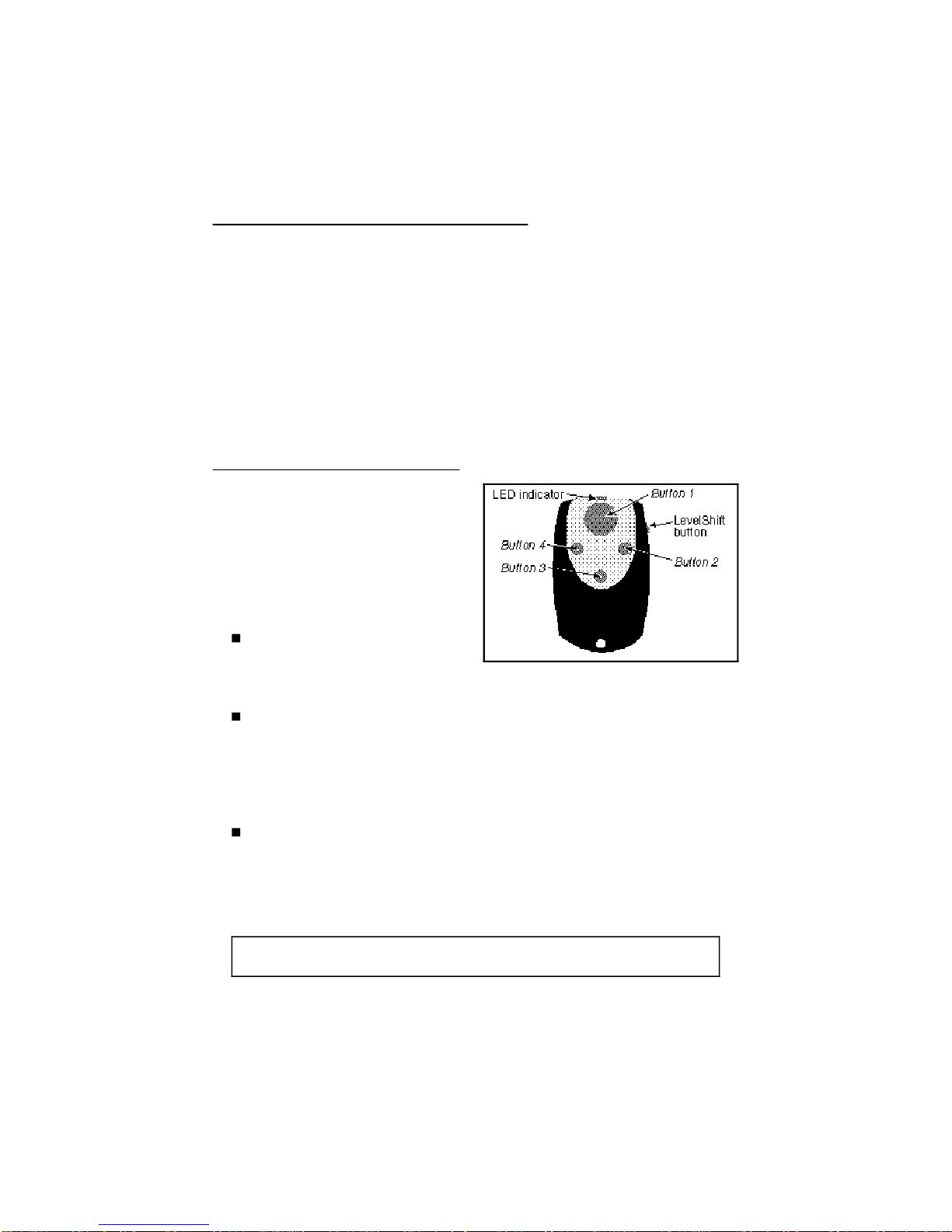

How to use your keychain remote control

Your remote control can individually

command up to 12 different system

functions and options. It’s like having a

TV with 12 channels. You change

channels (functions) with your keychain

remote control. But instead of putting 12

buttons on the remote, we made it easy:

To transmit either channel 1, 2, 3 or 4:

Just press either button 1, 2, 3 or 4.

For instance, to transmit channel 3, press button 3. While you transmit, the

LED indicator will blink once every second: this indicates level 1.

To transmit either channel 5, 6, 7 or 8: Press the LevelShift button once. This

shifts buttons 1–4 to level 2 (channels 5–8). Then press the desired button

within the next 7 seconds. For instance, to transmit channel 5, press the

LevelShift button once, then press button 1. While you transmit, you’ll notice

that the LED indicator blinks twice, pauses, blinks twice, etc.: this indicates

level 2.

To transmit channel 9, 10, 11 or 12: Press the LevelShift button twice. This

shifts buttons 1–4 to level 3 (channels 9–12). Then press the corresponding

button within the next 7 seconds. For instance, to transmit channel 12, press

the LevelShift button twice, then press button 4. While you transmit, you’ll

notice that the LED blinks three times, pauses, blinks three times, etc.: this

indicates level 3.

NOTE: One second after you stop transmitting level 2 or level 3 (channels 5–12),

the remote control automatically returns to level 1 (channels 1–4).

What each button/channel does

Your Cyber 3 remote controls come pre-programmed so that certain channels

command certain functions. If you wish, you can actually assign any channel to any

function (see pages 13-14). The following chart indicates what each remote control

channel number does, and how to transmit each channel number.

Factory settings of the 12 remote control channels

Transmitting

channel

number: Causes the system to: Press the

LevelShift

button?

How

many

times?

Press

button

number

1arm or disarm and lock or unlock the doors no —1

2optionally pop the trunk (if the system is disarmed) no —2

3silently arm or disarm no —3

4activate optional accessory function #1 no —4

5remotely enter or exit valet mode (see page 9) yes once 1

6activate optional accessory function #2 yes once 2

7activate optional accessory function #3 yes once 3

8activate optional accessory function #4 yes once 4

9activate optional accessory function #5 yes twice 1

10 activate optional accessory function #6 yes twice 2

11 activate optional accessory function #7 yes twice 3

12 activate optional accessory function #8 yes twice 4

TO ARM

THE SYSTEM . . . . . . . Press button 1 (channel 1) once. You will hear two chirps and

the parking lights will flash twice. The dashboard LED will

flash repeatedly and the car doors will automatically lock.

TO DISARM

THE SYSTEM . . . . . . . Press button 1 (channel 1) again. One chirp and one parking

light flash confirms disarming. In addition, the doors will

automatically unlock and the interior lights will turn on and

stay on for 30 seconds or until you start the engine, whichever

occurs first.

TO SILENTLY

ARM OR DISARM. . . Press button 3 (channel 3). The system will arm or disarm

with all the indications noted above except the chirp

acknowledgments.

TO ACTIVATE

THE PANIC

FEATURE . . . . . . . . . .

Press button 1 (channel 1) for 3 seconds. The parking lights

will flash repeatedly and the siren will blare for 30 seconds or

until you press button 1 again to turn it off. If the ignition is on

(indicating you are in the car), the doors will automatically

lock to prevent an assailant from entering. If the ignition is

off, the doors will unlock, allowing you to enter immediately

without fumbling with your keys.

TO REMOTELY

OPEN THE TRUNK . . . Button 2 (channel 2) can optionally pop the trunk when the

system is disarmed. Pressing button 2 while the system is

armed will not activate this option to ensure against false

alarms.

TO ACTIVATE

OTHER OPTIONS

REGARDLESS OF

ALARM STATE. . . . . . .

Button 4 (channel 4) and channels 6–12 (see How to use your

keychain remote control on page 6) can activate accessories

such as the IntelliStart remote engine starter, remote power

window control, electric garage door and entry gate opener(s),

Cyber 3 systems on your other vehicles, etc.

What about

channel 5? . . . . . . . .Channel 5 controls remote valet mode entry/exit (see page 9).

Anti-CodeGrabbing™ (ACG) with Random Code Encryption

A Clifford exclusive that protects you and your automobile from the most effective

and onerous car stealing device ever used by car thieves — a code-grabber.

Code-grabbers are far more effective and efficient than scanning. Unlike scanners

that sequentially transmit one digital code after another until they hit the correct

code to disarm the alarm (a process that may take minutes to years depending on the

system’s total number of codes), code-grabbers literally record, from hundreds of

feet away, the code sent by your car alarm remote control. Then the thief simply

plays back the code when you’re gone, instantly disarming the alarm and unlocking

the doors. It’s like giving the thief your car keys. Non-Clifford alarms can be

defeated that easily. In contrast, Clifford systems use complex digital signal

processing and unbreachable encryption to randomly change the digital code every

time you use the remote control. Your remote will never transmit the same code

twice, and the control unit will never accept the same code twice. Thus the code

recorded and played back by the thief’s code-grabber will never be accepted by your

Cyber 3. Only ACG can make a car alarm impervious to code-grabbing, and only

Clifford systems have ACG with Random Code Encryption.

Enhanced AutoArming™

If this feature is enabled and you forget to remotely arm, Cyber 3 automatically arms

itself 30 seconds after the doors are closed. For your convenience, if you re-open any

door(s) within the 30-second countdown, AutoArming will restart from the beginning

once all doors are closed. Cyber 3 has these additional AutoArming features:

AutoArming enable/disable: If you prefer, you may deactivate or reactivate

the AutoArming feature. See User-selectable features on pages 13-14.

AutoArm & Lock: To ensure you can’t accidentally lock your keys inside the

car, the system is factory-set not to lock the doors upon AutoArming. To

change this setting, see User-selectable features on pages 13-14.

Instant AutoArming bypass: Prevents AutoArming when fueling the vehicle

and other times when you wish to temporarily bypass AutoArming. To do so,

rapidly turn the ignition switch to “ON” then “OFF” twice. You will hear a

single siren chirp to confirm that the system will not AutoArm. Your Cyber 3

will revert to its normal operating mode when you next start the engine.

Valet mode

Whenever the system is put in valet mode, all of the system’s security features are

switched off. At various times, you will need to turn the system off. For instance,

when having your car serviced, washed or parked by a valet.

NOTE: If you temporarily lose the use of your remote controls, you can disarm

the system by enabling valet mode.

To enable valet mode

1. Turn the ignition switch to its “ON” position or start the engine.

2. Flip the valet switch. The system’s LED will glow for on-going confirmation.

To exit valet mode

1. Turn the ignition switch to its “ON” position or start the engine.

2. Flip the valet switch. The system’s LED will turn off to confirm that the system

is in its normal operating mode.

Remote controlled valet mode entry and exit

You can remotely enable or exit valet mode via your remote control. Just transmit

channel 5 (one press of the side LevelShift button, then button 1). In addition to the

previously noted indications, two parking light flashes will confirm that you have

remotely enabled valet mode, while a single flash confirms exiting of valet mode.

Keyless entry in valet mode

Even in valet mode, you can still remotely convenience features. Press button 1 as if

disarming and the doors will unlock (indicated by one parking light flash) and the

interior light will turn on. Press button 1 again and the doors lock (two flashes).

How to interpret the chirps and parking light flashes

When you use the remote control, the system responds with chirps and parking light

flashes. These chirp/flash acknowledgments mean:

Selectable starter/ignition interrupt

At the time of installation, you can select whether your Cyber 3 interrupts the starter

line or the ignition line. The starter/ignition interrupt will be set in either Fault-Proof

mode, which lets you start the engine even in the unlikely event of a complete

system failure, or Super-Security mode that ensures a thief won’t be able to start the

engine even if he cuts all the wires or finds the system control unit and disconnects

it. Changing the mode requires a minor relay wiring change and installer-only

programming. Your local Authorized Clifford Dealer can make the changes for you.

AutoLock/AutoUnLock™

For your safety and that of your passengers, the vehicle doors will automatically

lock the instant you turn on the ignition to start the engine (see User-selectable

features on pages 13-14). When you turn the ignition off to shut down the engine,

the AutoUnLock feature automatically unlocks the doors.

Dual-level tamper warning

You may set the system to issue a rapid five-chirp warning, instead of the full alarm,

whenever the system detects tampering. If there is any further tampering, or if a

door, the hood or the trunk is opened at any time, your system will sound the full

alarm. See User-selectable features on page 13-14.

Smart trunk release option

If the remote trunk release feature was installed, you may use remote control button

2 to remotely pop the trunk. Your system has a built-in electronic interlock to

prevent unintentional activation of the remote trunk release when you drive, or

when the system is armed.

Chirps/flashes Meaning

1Your system is disarmed or you have remotely exited valet mode (see page 9)

2Your system is armed or you have remotely engaged valet mode (see page 9)

2 and then 4 Armed but a door is open or one of the sensors is malfunctioning (see page 11)

3Disarmed but there was an intrusion attempt while you were away (see page 12)

4Armed but the hood or trunk is ajar (see page 11)

Smart AutoTesting™

Each time you remotely arm your Cyber 3, it automatically performs an extensive

test of all system triggers and sensors. If the hood or trunk is open when you

remotely arm, the system will immediately alert you of the problem by sounding 4

chirps and 4 parking light flashes instead of the usual 2 and 2 (simply disarm, shut

the hood or trunk and re-arm to reactivate monitoring of that trigger point). If a door

is ajar or if a sensor is malfunctioning, you will receive the usual 2 chirps and 2

flashes, then, 5 seconds later, there will be 4 chirps and 4 flashes. (The door ajar

warning will not work on vehicles that have factory-delayed courtesy lights).

NOTE: Since this is a warning indication, you will hear the 4 chirps even if you

have the chirp muting feature turned on.

Specific malfunction identification: The system can also indicate the specific

malfunctioning trigger or sensor. If you get the 4-chirp/4-flash signal upon

arming, perform the following to identify the malfunctioning trigger or sensor:

1. Remotely disarm, then turn on the ignition. The LED status indicator inside your

vehicle will be blinking, pause, then repeat.

2. Count the number of blinks in one cycle between pauses (for your convenience,

the blink cycle repeats a total of 5 times) and refer to the chart below:

* If your vehicle has a factory-installed feature that turns off or dims the interior courtesy lights

several seconds after you exit the vehicle, the system cannot provide this indication.

Automatic malfunction bypass

The system automatically bypasses any faulty point and arms all other triggers and

sensors to provide the utmost possible protection until you can have the system

serviced by your local Authorized Clifford Dealer.

TotalRecall™

The system’s memory records the identity of the last activated or malfunctioning

trigger or sensor, which allows your installer to instantly track down a malfunction.

To identify the trigger or sensor held in memory, use the following procedure:

1. With the ignition OFF, flick the valet switch.

2. Press button 1 to “arm” the system, then again to “disarm.”

3. The LED will blink 1–3 times. For your convenience, the blink cycle will pause

and repeat a total of 5 times. Refer to the chart above.

Number of LED blinks between pauses Trigger/sensor indication

1 blink Piezo Sensor

2 blinks* Door trigger*

3 blinks Hood or trunk trigger

Smart prior intrusion attempt alert

If you hear three chirps when you remotely disarm, it means that a trigger or sensor

was activated in your absence. When you enter the vehicle and turn on the ignition

(or start the engine), the LED will blink 1–3 times, pause, then repeat the blink cycle

4 more times. Count the number of blinks in one cycle and refer to the chart on page 11.

Piezo Sensor

The Piezo Sensor that detects intrusion-related vibrations and impacts.

FACT™— False Alarm Control and Test

With FACT, you’ll never experience repeated false alarms. If the siren goes off, DO

NOT remotely disarm the system; allow it to run for the full siren duration. Before

sounding the siren a second time, the system automatically checks for another

activated trigger to verify that an intrusion is in progress. Should the siren sound

again, you will know for sure that someone is tampering with your vehicle. (To

disable FACT, see User-selectable features on pages 13-14.)

High-output siren

Loud siren wail when the system detects an intrusion. Your Cyber 3 also provides

these additional features:

Long-term chirp silencing: Whenever you wish, you may silence your Cyber

3’s arm and disarm chirps until you decide to restore them. The parking light

flashes will continue to provide visual confirmation of remote controlled

arming and disarming. See User-selectable features on pages 13-14.

Remote controlled chirp muting: Remote controlled chirp muting capabilities

are especially valuable when parking late at night in a quiet residential area or

any other time when you want to arm or disarm silently. To arm or disarm

silently, simply press button 3 on your remote control instead of the usual

button 1.

SmartPowerUp™ II

If power to the system is ever removed, SmartPowerUp II ensures the system will

automatically restore itself to its previous state when power is restored. So if a thief

disconnects the power and then restores it in an attempt to start the car, the system

will re-arm and instantly sound the siren while immobilizing the vehicle. If your

vehicle is to be serviced by a mechanic, just put the system in valet mode via the

remote control (see Remote controlled valet mode entry and exit on page 9). If the

mechanic needs to interrupt power, your system will automatically return to its valet

mode state when power is restored; there will be no alarm activation and no need to

provide your mechanic with your remote control and instructions on how to use it.

User-selectable features

Your Cyber 3 vehicle security system allows you to set many of its features to your

own personal preferences. We have made the programming procedures very simple:

to make a change, you just flick the valet switch a few times. The system comes

from the factory with all of its features pre-programmed as noted in the table below

and on the next page. To change any of the settings, use the following procedure. To

restore the feature to its factory setting, just repeat the procedure:

1. Select the feature you wish to program from the table below and on the following

page. Note the number of flicks and chirps.

2. Turn your vehicle’s ignition switch to its “ON” position.

3. Immediately flick the valet switch back and forth, counting the number of chirps

you hear. Stop when you reach the number of chirps associated with the feature

you wish to program.

4. If noted, perform the “Secondary action.”

5. Wait 3 seconds. You will hear 1-5 chirps (as noted in the “Program completion

confirmation” column) and the LED will turn off. Turn the ignition off.

6. Repeat steps 1-5 for any other features you wish to program.

Feature Factory

setting

# of

flicks &

chirps

Secondary

action

Program

completion

confirmation Result

AutoArming ON 4—1 chirp = OFF
