CLIMAVENETA AW HT 0031 Operating instructions

INSTALLATION - USER - MAINTENANCE MANUAL
High temperature air/water heat pump
for heating water up to 65°C and
operation with outside temperatures
down to -20°C.
Domestic hot water production and
built-in water circuit assembly.
GB
AW HT
0031÷0071

2AW HT GB 05/2009
U I A
User
Installer
Assistance
Important
Prohibition
Danger voltage
Danger high temperatures
INDEX U I A
The manufacturer reserves the right to modify the data in this manual without warning.
The following symbols are used in this publication and inside the unit:
General warnings 2
Definitions 3
Waiver of liability 3
Fundamental safety rules 3
Receiving and handling the product 4
Description of standard unit 5
Dimensional drawings 6
Water connections 7
Water circuit data 9
Electrical connections 11
Mains power supply connections 12
Installer connections 14
Installer terminal block 14
Electronic controller (A1) terminal block 14
General technical data 21
Checking and starting up the unit 22
Operation of the room temperature control
unit 23
Operation and functions of the room unit 24
using the buttons
Operation and functions of the room unit 24
in programming mode
Control and operating characteristics 27
System configuration 41
Maintenance and service 44
Peak limiter alarm signals 48
System operating status 49
Shutting down for long periods 51
Routine maintenance 51
Special maintenance 52
Disposal 52
Useful information 52
U I A A
A
A
A
A
A
A
A
A
A
A
A
A
AIU
U
U
U
I A
I A
I
I
I
A
A
A
I
I A
I
I
A
A
I A
I A
I A
I A
I A
U
I
A
GENERAL WARNINGS U I A
These appliances have been designed to heat water
and must be used in applications compatible with their
performance characteristics; these appliances are
designed for residential or similar applications.
Incorrect installation, regulation and maintenance or
improper use absolve the manufacturer from all liability,
whether contractual or otherwise, for damage to people,
animals or things.
Only those applications specifically indicated in this list
are permitted
Read this manual carefully. All work must be carried
out by qualified personnel in conformity with legislation in
force in the country concerned.
The warranty is void if the above instructions are not
respected and if the unit is started up for the first time
without the presence of personnel authorised by the
Company (where specified in the supply contract) who
should draw up a “start-up” report.
The documents supplied with the unit must be con-
signed to the owner who should keep them carefully for
future consultation in the event of maintenance or ser-
vice.
All repair or maintenance work must be carried out by
the Company’s Technical Service or qualified personnel
following the instructions in this manual.
The air-conditioner must under no circumstances be
modified or tampered with as this may create situations
of risk. Failure to observe this condition absolves the
manufacturer of all liability for resulting damage.

3GB 05/2009 AW HT
FUNDAMENTAL SAFETY RULES U I A
When operating equipment involving the use of electricity and water, a number of fundamental safety rules must be observed,
namely:
The unit must not be used by children or by unfit per-
sons without suitable supervision.
Do not touch the unit with bare feet or with wet or
damp parts of the body.
Never perform any cleaning operations before having
disconnected the unit from the mains power supply.
Do not modify safety or control devices without authori-
sation and instructions from the manufacturer.
Do not pull, detach or twist the electrical cables coming
from the unit, even when disconnected from the mains
electricity supply.
Do not open doors or panels providing access to the
internal parts of the unit without first switching QF1 to
OFF (see the wiring diagram).
Do not introduce pointed objects through the air
intake and outlet grills.
Do not dispose of, abandon or leave within reach of
children packaging materials (cardboard, staples, plastic
bags, etc) as they may represent a hazard.
Respect safety distances between the unit and other
equipment or structures. Guarantee adequate space for
access to the unit for maintenance and/or service opera-
tions.
Power supply: the cross section of the electrical cables
must be adequate for the power of the unit and the pow-
er supply voltage must correspond with the value indicat-
ed on the respective units. All units must be earthed in
conformity with legislation in force in the country con-
cerned.
The terminals may be live even when the unit has been
disconnected.
Make sure power is not connected before proceeding.
Water connections should be carried out as indicated in
the instructions to guarantee correct operation of the
unit.
Add glycol to the water circuit if the unit is not used dur-
ing the winter or the circuit is not emptied.
Handle the unit with the utmost care (see weight distrib-
ution table) to avoid damage.
WAIVER OF LIABILITY
This publication is the sole property of Climaveneta. Any
reproduction or disclosure of such is strictly prohibited with-
out the written authorisation of Climaveneta.
This document has been prepared with maximum care and
attention paid to the content shown. Nonetheless, Cli-
maveneta waives all liability deriving from the use of such
document.
Read this document carefully. All work must be performed,
components selected and materials used in complete accor-
dance with the legislation in force in material in the country
concerned, and considering the operating conditions and
intended uses of the system, by qualified personnel.
U I A
DEFINITIONS
Owner: legal representative of the company or organisation
or physical person who owns the system where the Cli-
maveneta unit is installed: this person is responsible for
ensuring compliance with all the safety standards described
in this manual and the national legislation in force.
Installer: legal representative of the company designated
by the owner to position and connect the Climaveneta unit
water circuit, electrical circuit, etc. to the system; this person
is also responsible for handling and correct installation as
described in this manual and by the national legislation in
force.
Operator: person authorised by the owner to perform, on
the Climaveneta unit, all control operations specified in this
manual, acting within the allowed limits as described in this
manual.
Technician: person authorised directly by Climaveneta, or
in all European Union countries, excluding Italy, designated
by the Climaveneta distributor, under its sole responsibility,
to perform all routine and special maintenance operations,
as well as all adjustments, checks, repairs and replacement
of parts that may be required throughout the life of the unit.
U I A

When the items are consigned by the carrier, check that
the packaging and the unit are undamaged.
If damage or missing components are noted, indicate this on
the delivery note. A formal complaint should be sent via fax
or registered post to the After Sales Department within eight
days from the date of receipt of the items.
The units are supplied complete with:
- instruction manual;
- guarantee certificate;
- CE declaration;
- list of the main components and sub-assemblies fitted on
the product, all enclosed in a plastic envelope (A) attached
to the heat pump.
- remote room unit A3 (installation required)
- DHW storage cylinder probe
- outside air temperature sensor (installation required)
The unit must be handled by qualified and suitably equipped
personnel only using equipment appropriate for the weight
of the unit, in compliance with the safety standards in force
(and subsequent amendments.).
If a forklift truck is used, insert the forks under the base,
spacing the forks as wide apart as possible.
If a crane is used, pass the cables through the bottom of the
base, making sure they do not exert pressure on the unit.
Once the packaging has been removed, the appliance can
be lifted and moved by inserting two metal tubes (max.
diameter 22mm) into the feet, and using suitable handling
equipment.
The instruction manual is an integral part of the unit
and should therefore be read and kept carefully..
The packaging should not be removed until the unit is
located in the installation site.
Do not dispose of packaging materials in the environ-
ment or leave them within reach of children as they may
represent a hazard.
The weight of the unit is biased towards the compres-
sor side (side of the packaging with the bar code, see
the figure).
During transport, the unit must be kept in a vertical
position.
The unit must be stored sheltered from direct sunlight,
rain, wind or sand.
Avoid exposing the unit to direct sunlight, as the pres-
sure inside the refrigerant circuit may reach dangerous
values and cause the activation of the safety valves,
where fitted.
Check the instructions on the packaging for stacking
units.
The packaging must be removed by the operator using
suitable protective equipment (gloves, glasses, etc.).
Take special care not to damage the unit.
Observe the local standards in force as regards disposal
of the packaging, using specialist collection or recycling
centres.
RECEIVING AND HANDLING THE PRODUCT I A
4AW HT GB 05/2009
Hole Ø22
A
H
P
L
Bar code
(compressor side)
Dimensions AW HT 0031 0041 0061 0071
Dimension W mm 970 970 970 1530
Dimension P mm 525 525 525 650
Dimension H mm 1450 1450 1600 1900
Gross weight kg 165 175 190 340

5GB 05/2009 AW HT
DESCRIPTION OF STANDARD UNIT I A
The air-cooled units with axial-flow fans for heating only oper-
ate on R407C refrigerant and are suitable for outdoor installa-
tion.
The units are CE marked, as established by the EU directives,
including the latest amendments, and the corresponding
approximated national legislation:
They are factory tested and on site installation is limited to
water and electrical connections.
VERSIONS AVAILABLE
AW HT
Air/water heat pump for heating only with domestic hot water production by external 3-way valve (accesso-
ry). Built-in water circuit assembly.
12
3
4
5
6
7
8
9
10
1112
13
14
15
16
17
18
19
20
21
21
22
1 Coil
2 Electrical panel
3 Injection heat exchanger
4 Thermostatic injection valve
5 Injection solenoid valve
6 Check valve
7 Indicator
8 System thermostatic valve
9 Filter
10 System plate heat exchanger
11 Pressure gauge
12 Installation pump
13 Liquid receiver
14 Safety valve
15 Fill valve
16 System inlet
17 HP pressure switch
18 LP pressure switch
19 Compressor
20 Reversing valve
21 Fan
22 Expansion vessel

U I A
6AW HT GB 05/2009

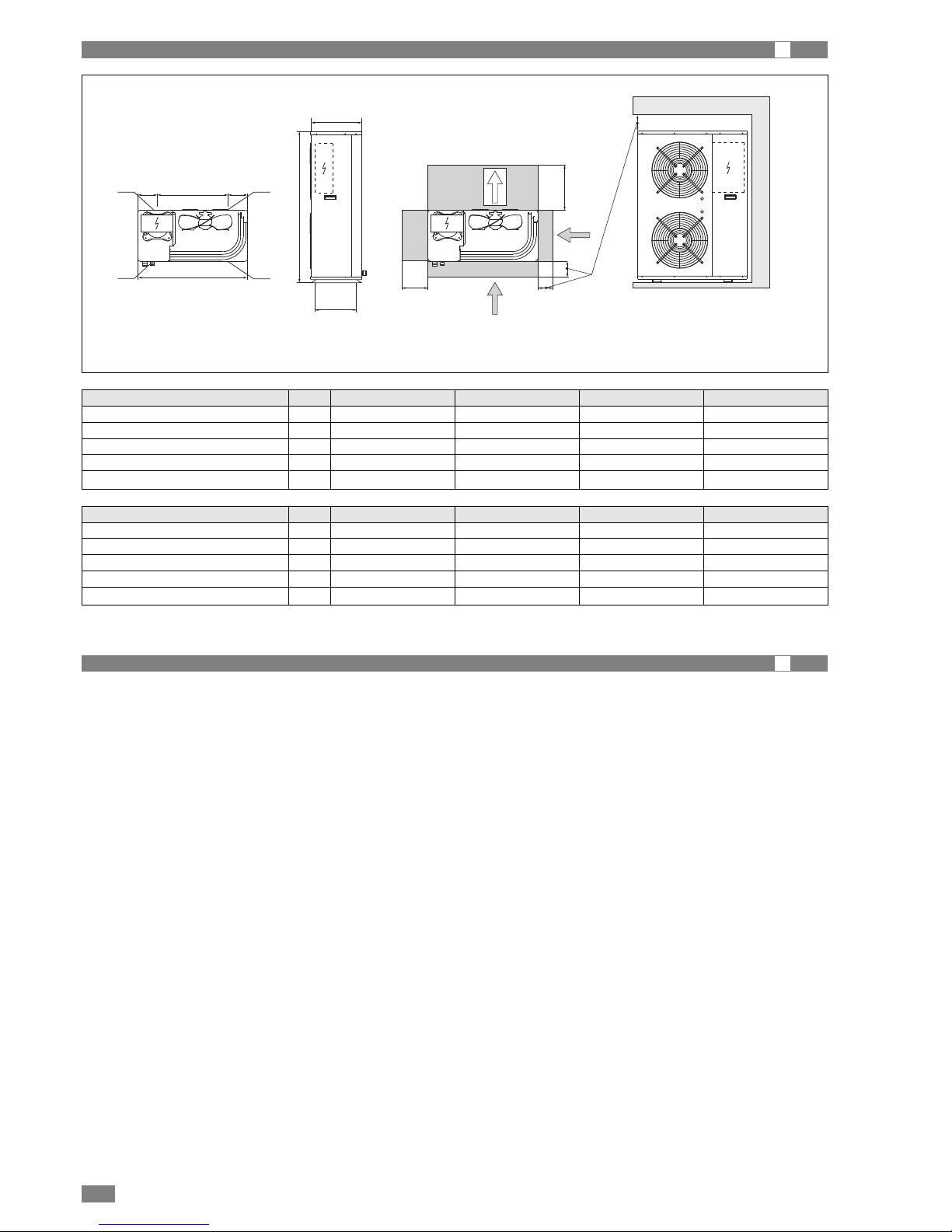

DIMENSIONAL DRAWINGS I
600
W1 W2
W4 W3
900
D
B
C
=E
A
=
400
INSTALLATION I
CHOICE OF INSTALLATION SITE
Before installing the unit, agree with the customer the site
where it will be installed, taking the following points into con-
sideration:
- check that the fixing points are adequate to support the
weight of the unit;
- pay scrupulous respect to safety distances between the
unit and other equipment or structures to ensure that air
entering the unit and discharged by the fans is free to cir-
culate.
- Follow the instructions shown in the chapter on DIMEN-
SIONAL DRAWINGS to allow room for maintenance oper-
ations. If installing multiple units the clearances must be
doubled.
POSITIONING
Before handling the unit, check the capacity of the lift equip-
ment used, respecting the instructions on the packaging.
To move the unit horizontally, make appropriate use of a lift
truck or similar, bearing in mind the weight distribution of the
unit.
To lift the unit, insert tubes long enough to allow positioning
of the lifting slings and safety pins in the special holes in the
base of the unit.
To avoid the slings damaging the unit, place protection
between the slings and the unit.
The unit should be installed on special vibration dampers.
See the chapter on DIMENSIONAL DRAWINGS for the sup-
port positions identified by W1, W2 etc. and the correspond-
ing weights for the correct sizing of the vibration dampers.
Fix the unit, making sure it is level and that there is easy
access to water and electrical components.
If the site is exposed to strong winds, fix the unit adequately
using tie rods if necessary.
In heating mode the unit produces a significant quantity of
condensate, which must be suitably drained.
Condensate drainage must not cause problems to objects or
people.
If the outside air temperature is less than 0°C, the conden-
sate may freeze; in these case fit a frost protection heater
on the drain line.
For correct operation of the unit, avoid the following: obsta-
cles to air flow, leaves that may block the heat exchange
coil, strong winds that stop or reinforce air flow, sources of
heat too close to the unit, recirculation or stratification of air.
1 - Water connections IN 0031-0061 dia. 1”1/4 M
1 - Water connections OUT 0031-0061 dia. 1”1/4 M
Dimensions 0031 0041 0061 0071
A mm 900 900 900 1470
B mm 1240 1240 1400 1700
C mm 420 420 420 570
D mm 370 370 370 497
E mm 580 580 580 1477
Weight distribution 0031 0041 0061 0071
W1 rear R kg 64 65 71 110
W2 rear L kg 20 22 24 49
W3 front L kg 18 21 22 46
W4 front R kg 53 57 63 115
tot kg 155 165 180 320

7GB 05/2009 AW HT
WATER CONNECTIONS I A
The choice and installation of components is the responsibil-
ity of the installer who should follow good working practice
and current legislation.
Before connecting the pipes, make sure they do not contain
stones, sand, rust, dross or other foreign bodies which might
damage the system.
Construction of a bypass is recommended to enable the
pipes to be washed through without having to disconnect
the unit (see drain valves).
The connection piping should be supported in such a way
as to avoid it weighing on the unit.
The following components should be installed in the water
circuit:
1. Two pressure gauges with a suitable scale (intake and
outlet);
2. Two vibration damper joints (intake and outlet);
3. Two gate valves (normal in intake and calibrating in out-
let);
4. A flow switch (inlet). The flow switch must be cali-
brated by the installer to a value equal to 70% of rat-
ed flow.
5. Two thermometers (intake and outlet);
6. An intake filter must be installed as close as possi-
ble to the unit and positioned to allow easy access
for routine maintenance.
7. All the pipes must be insulated with suitable material to
prevent the formation of condensate and heat loss.
The insulating material must be a vapour barrier.
Make sure that the control and shut off devices protrude
from the insulation.
8. At the lowest points in the system, install drain valves for
easy emptying.
9. At the highest points in the system, install automatic or
manual air vent valves.
10. The unit is fitted as standard with an expansion vessel;
make sure this is correctly sized for the water content of
the system and the expected operating temperature, oth-
erwise install an additional expansion vessel.
La mancata installazione dei flussostati non assicura una
Failure to install the flow switches will mean the heat
exchangers are not protected in the event of no flow of liq-
uid.
Climaveneta cannot be held liable for any damage to the
unit and/or the system following the failure to install these
devices or the filter.
The correct operation of the components that help ensure
the safety of the appliance and the system should be
checked regularly. Specifically, this involves cleaning the fil-
ters and checking the operation of the flow switches
installed.
Make sure that the frost protection heaters on the heat
exchanger are powered when the unit is off (unit in standby
“StbY”)
Water flow to the chiller unit must conform to the values
shown in the section on “General Technical Data”.
The flow of water must be maintained constant during oper-
ation.
The water content of the unit must be such as to avoid dis-
turbing operation of the refrigerant circuits.
The unit must be prevented from freezing at outside air tem-
peratures around 0°C. It is recommended to use suitable
percentages of antifreeze (see “Water circuit data”), protect
the piping with heating sheaths, and empty the system,
making sure there no water remains at the lowest points in
the circuit.
It is recommended to use non-toxic food grade antifreeze,
compliant with the standards in force in the countries where
the unit is used, if domestic hot water production is also fea-
tured.
Factory connected Installer connections
UTILITY RETURN
UTILITY OUTLET

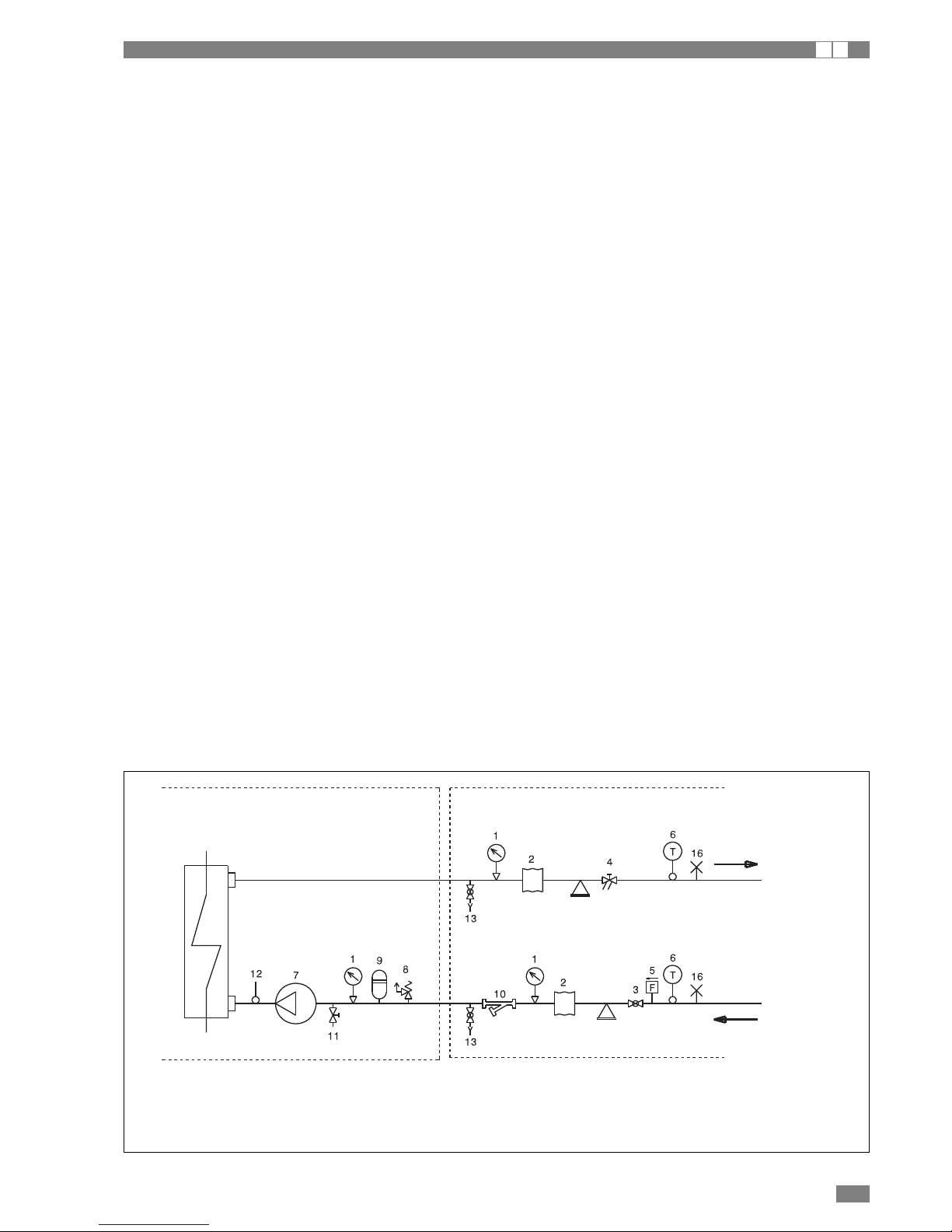

Utility water circuit connection diagram
1 Pressure gauge
2 Vibration damper joint
3 Shut-off valve
4 Calibrating valve
5 Flow switch
6 Thermometer
7 Pump
8 Safety valve
9 Expansion vessel
10 Mesh filter
11 Unit fill/drain valve
12 Temperature probe
13 Drain/chemical washing valve

8AW HT GB 05/2009
The heat pumps must be fitted with a filling/top-up sys-
tem connected to the return line and a drain valve in the
lowest part of the system.
Systems containing antifreeze or covered by specific
legislation must be fitted with low-loss headers.
The manufacturer is not liable for obstruction, breakage
or noise resulting from the failure to install filters or
vibration dampers.
Particular types of water used for filling or topping up
must be treated with appropriate treatment systems.
For reference values, see the table.
CONDENSATE DRAIN
The unit is fitted with condensate pan; this must be connect-
ed to a drain system to take away the water that forms, see
the drawing.
If the outside air temperature is less than 0°C, the conden-
sate may gradually freeze.
The unit must be supported on a suitable structure or brack-
ets to keep it off the ground, with a frost protection heater fit-
ted on the drain line.
PH 6-8
Electrical conductivity less than 200 mV/cm (25°C)
Chlorine ions less than 50 ppm
Sulphuric acid ions less than 50 ppm
Total iron less than 0,3 ppm
Alkalinity M less than 50 ppm
Total hardness less than 50 ppm
Sulphur ions none
Ammonia ions none
Silicon ions less than 30 ppm
CONDENSATE DRAIN POSITION 0031÷0061
OPENING FOR
CONDENSATE DRAIN
CONNECTION
B
A
Outlet G1 –1/4 male
Safety valve discharge
G1/2 female
Fill tap G1/2 female
Inlet G1 –1/4 male
Unit drain valve G1/2 female
Electrical connections
90 70
OUTLET
G1 –1/4 MALE
INLET
G1 –1/4
MALE
A
B
FILL TAP G1-1/4 FEMALE
SAFETY VALVE DISCHARGE
90.5
Dimensions 0031 0041 0061 0071
A mm 210 322 322 452
B mm 975 1000 1000 1183
Water connections M in/out Ø 1"1/4 1"1/4 1"1/4 1”1/4
0031÷0061
0071

9GB 05/2009 AW HT
WATER CIRCUIT DATA I A
Water content in the system
cPf
cQ
cdp
0
1
1
1
12%
0,985
1,02
1,07
20%
0,98
1,04
1,11
28%
0,974
1,075
1,18
35%
0,97
1,11
1,22
40%
0,965
1,14
1,24
Ethylene glycol solutions
Water and ethylene glycol solutions used as a heat carrier in
the place of water reduce the performance of the unit.
Multiply the performance figures by the values given in the
following table.
0 -5 -10 -15 -20 -25
Freezing point (°C)
Percentage of ethylene glycol by weight
cPf: correction factor refrigerating capacity
cQ: flow rate correction factor
cdp: pressure drop correction factor
f1: capacity correction factor
fk1: compressor power input correction factor
fx1: total power input correction factor
Fouling factors
The performance data given refer to conditions with clean
evaporator plates (fouling factor = 1).
For different fouling factors, multiply the figures in the perfor-
mance tables by the coefficient given in the following table.
4,4 x 10-5
0,86 x 10-4
1,72 x10-4
-
0,96
0,93
-
0,99
0,98
-
0,99
0,98
Fouling factors
(m2°C/W) f1
Evaporator
fk1 fx1
FILLING THE SYSTEM
- Before starting to fill, place the unit mains
switch QF1 in the OFF position.
- Before filling, check that the system drain
valve is closed.
- Open all system and terminal air vents.
- Open system shut off valves.
- Start filling by slowly opening the system water fill valve out-
side the unit.
- When water begins to leak out of the terminal air vent valves,
close them and continue filling until the pressure gauge indi-
cates a pressure of 1.5 bars.
The system must be filled to a pressure of between 1
and 2 bars.
It is recommended that this operation be repeated after
the unit has been operating for a number of hours. The
pressure should be checked regularly and if it drops
below 1 bar, the water content should be topped-up.
Check the tightness of the joints.
EMPTYING THE SYSTEM
- Before starting to empty, place switch QF1
in the OFF position
- Make sure the system fill/top-up water
valve is closed.
- Open the drain cock outside the unit and
all the installation and terminal air vent
valves..
If the fluid in the circuit contains antifreeze, it should
not be allowed to drain freely, as it is pollutant.
It should be collected for possible reuse.
When draining after heat pump operation, take care as
the water may be hot (up to 50°).
ON
OFF
ON
OFF
Size 0031 0041 0061 0071
Minimum water content l 75 105 130 175
Size 0031 0041 0061 0071
Expansion vessel volume l 455 8

10 AW HT GB 05/2009

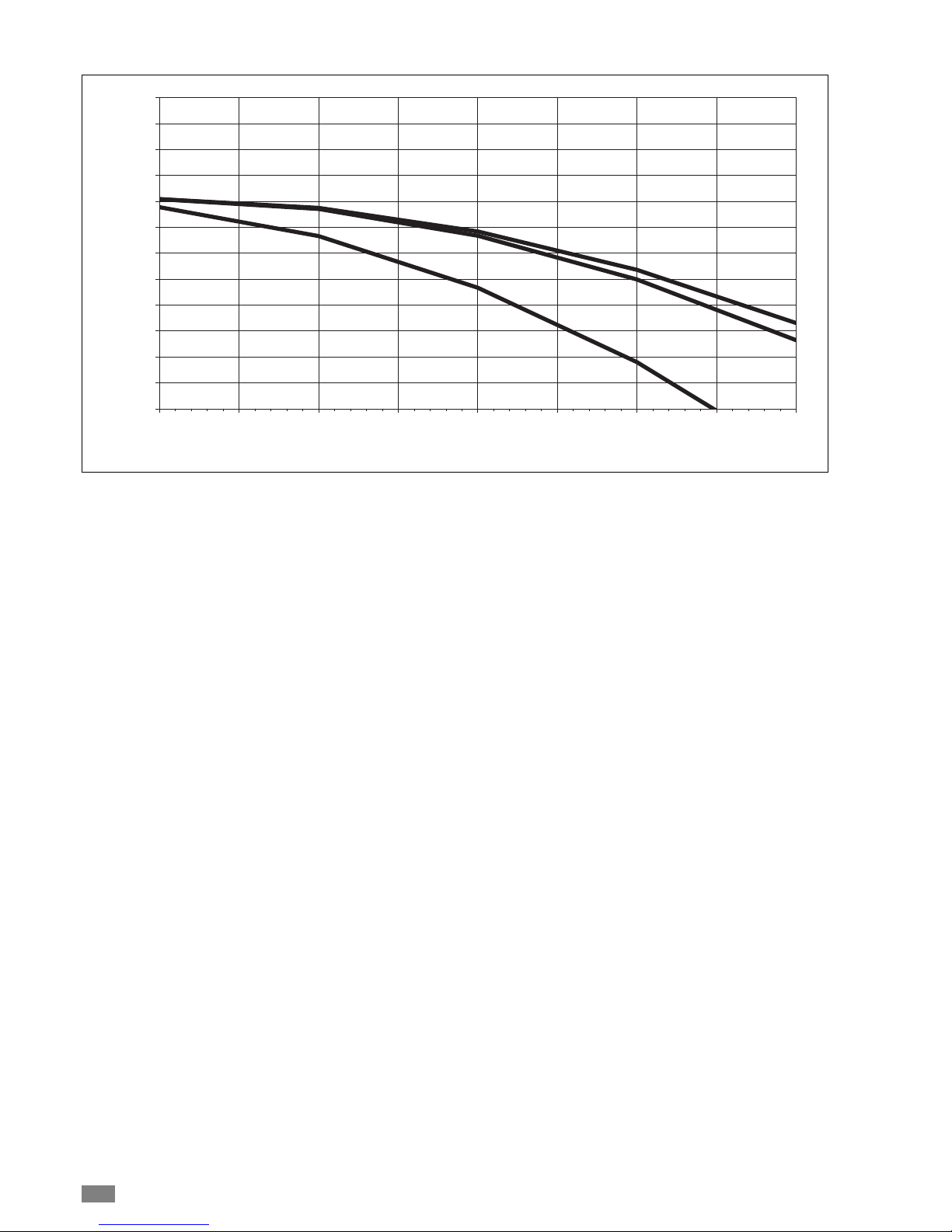

PUMP CURVES
The pressure head refers to the values at the fittings.
0
10
20
30
40
50
60
70
80
90
100
110
120
0 0,5 1 1,5 2 2,5 3 3,5 4
Useful head [kPa]
Water flow-rate [m3/h]
0031
0071
0041
-
0061

11GB 05/2009 AW HT
ELECTRICAL CONNECTIONS I A
The heat pumps must be installed downstream of a main
switch (QF1, see wiring diagram), as required by the stan-
dards in force in the country where the unit is installed. Con-
nection to the mains power supply and the connection of the
flow switch to the corresponding terminals must be per-
formed by authorised personnel in compliance with the stan-
dards in force.
For all electrical work, refer to the electrical wiring diagrams
in this manual.
It is also recommended to check that:
- The characteristics of the mains electricity supply are ade-
quate for the power ratings indicated in the electrical spec-
ifications below, also bearing in mind the possible use of
other equipment at the same time.
Power to the unit must be turned on only after installa-
tion work (plumbing and electrical) has been completed.
All electrical connections must be carried out by quali-
fied personnel in accordance with legislation in force in
the country concerned
Respect instructions for connecting phase, neutral and
earth conductors.
The power line should be fitted upstream with a suitable
device to protect against short-circuits and leakage to
earth, isolating the installation from other equipment.
Voltage must be within a tolerance of ±10% of the rated
power supply voltage for the unit (for three phase units,
the unbalance between the phases must not exceed 3%).
If these parameters are not respected, contact the elec-
tricity supply company.
For electrical connections, use double insulation cable
in conformity with legislation in force in the country con-
cerned.
A thermal overload switch and a lockable mains dis-
connect switch, in compliance with the CEI-EN stan-
dards (contact opening of at least 3mm), with ade-
quate switching and residual current protection
capacity based on the electrical data table shown
below, must be installed as near as possible to the
appliance.
An efficient earth connection is obligatory.
The manufacturer cannot be held liable for any damage
caused by the failure to correctly earth the unit.
In the case of three phase units, ensure the phases
are connected correctly.
Do not use water pipes to earth the unit.
Electrical data at maximum conditions allowed (full load)
Size Power supply Maximum values Fuses (5x20T 250V)
Compressor Fan/fans Pump Total FU1 FU2
F.L.I. F.L.A. L.R.A. F.L.I. F.L.A. F.L.I. F.L.A. F.L.I. F.L.A.
(V-Ph-Hz) (kW) (A) (A) (kW) (A) (kW) (A) (kW) (A)
0031ms 230~50 3,9 20,8 44 0,2 0,6 0,2 1 4,3 22,4 6,3 6,3
0041ms 230~50 4,8 30 45 0,2 0,6 0,2 1 5,2 31,6 6,3 6,3
0041t 400-3N~50 5,2 10 64 0,2 0,6 0,2 1 5,6 11,6 6,3 6,3
0061t 400-3N~50 6,3 14 101 0,2 0,6 0,2 1 6,7 15,6 6,3 6,3
0071t 400-3N~50 10,2 17,2 99 0,16 0,72 0,41 2,1 11,1 21,5 6,3 6,3
0041ts 400-3N~50 5,2 10 35 0,2 0,6 0,2 1 5,6 11,6 6,3 6,3
0061ts 400-3N~50 6,3 14 55 0,2 0,6 0,2 1 6,7 15,6 6,3 6,3
0071ts 400-3N~50 10,2 17,2 54,5 0,16 0,72 0,41 2,1 11,1 21,5 6,3 6,3
F.L.I. Maximum power input
F.L.A. Maximum current input
L.R.A. Start-up current

12 AW HT GB 05/2009
MAINS POWER SUPPLY CONNECTIONS I A
- Before connecting the unit to the power supply, make sure
that switch QF1 is open, suitably padlocked and marked.
- Remove the inspection panel by removing the ten screws.
- Use cable gland Afor the main electrical power cable and
cable gland Bfor other external cables to be connected by
the installer.
- Identify the terminals used for electrical connections on the
layout drawing shown in this manual.
For the functional connection of the unit, bring the power
supply cable to the electrical panel inside the unit and con-
nect it to terminals U-N, respecting the (U) phase, (N) neu-
tral and (PE) earth in the case of single phase units
(230V~50Hz), or U-V-W phases, N neutral and PE earth in
three phase units (400V-3N~ 50 Hz).
- Replace the inspection panel.
- Check that all the covers removed to make the electrical
connections have been replaced before powering up the
unit.
- Position the main switch QF1 (outside the unit) in the “ON”
position.
- The message “Updating Data” is shown on the room unit
display.
- The room unit is ready for operation after a few seconds.
AB

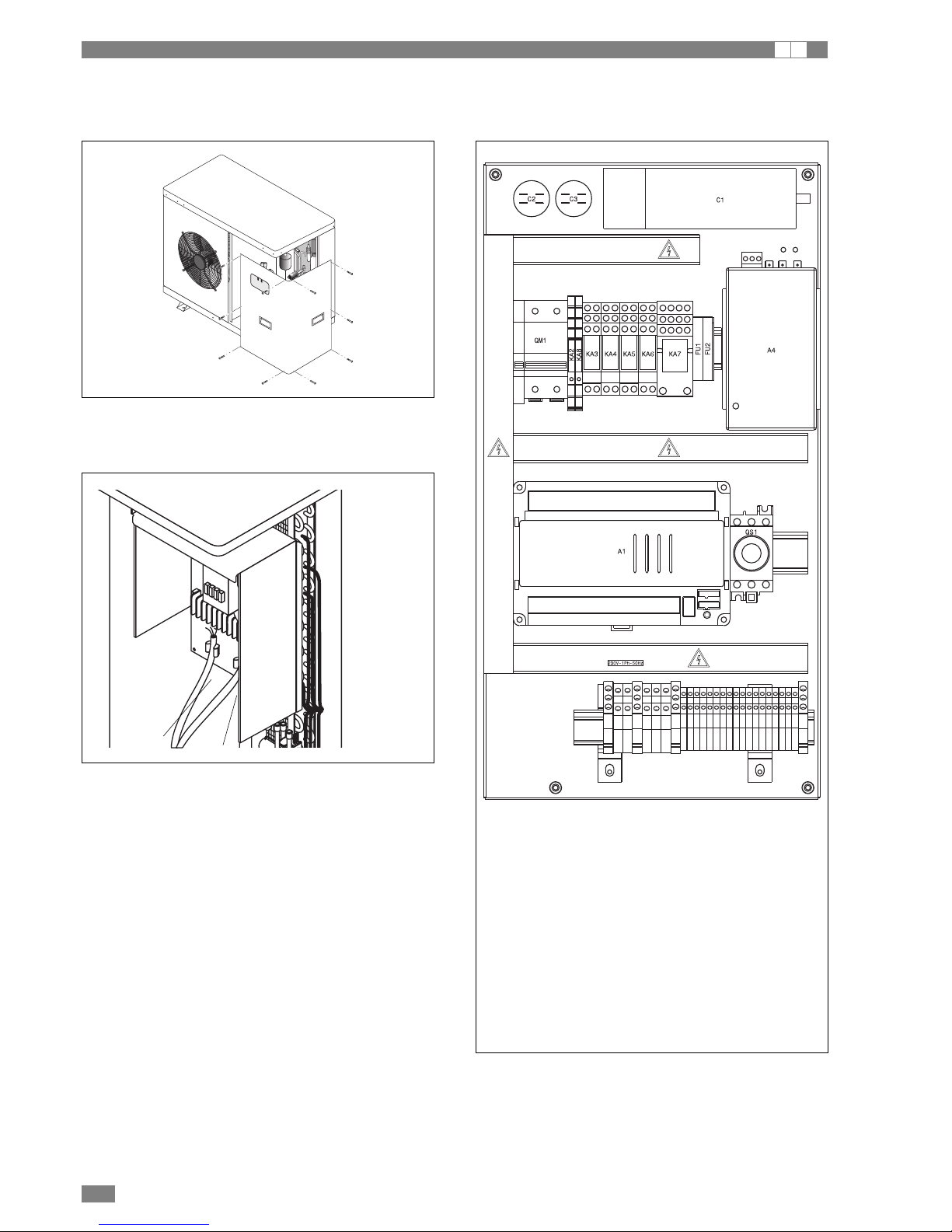

ELECTRICAL PANEL LAYOUT AW 0031-0041 HT
SINGLE-PHASE WITH PEAK LIMITER
A1 Electronic controller
A4 Peak limiter
C1 Compressor start capacitor
C2/C3 Fan start capacitor
FU1 Auxiliary circuit protection fuse ”L” 230VAC
FU2 Auxiliary circuit protection fuse ”N” 230VAC
KA2 Alarm relay (K10)
KA3 Electric heater control relay (K6)
KA4 Boiler control relay (K27)
KA5 High pressure switch relay
KA6 Steam injection valve bypass relay
KA7 Compressor control relay (K1)
KA8 Domestic hot water 3-way valve relay
QM1 Compressor thermal overload switch
QS1 Door lock disconnect switch

13GB 05/2009 AW HT
ELECTRICAL PANEL LAYOUT
AW 0041-0071 HT THREE-PHASE

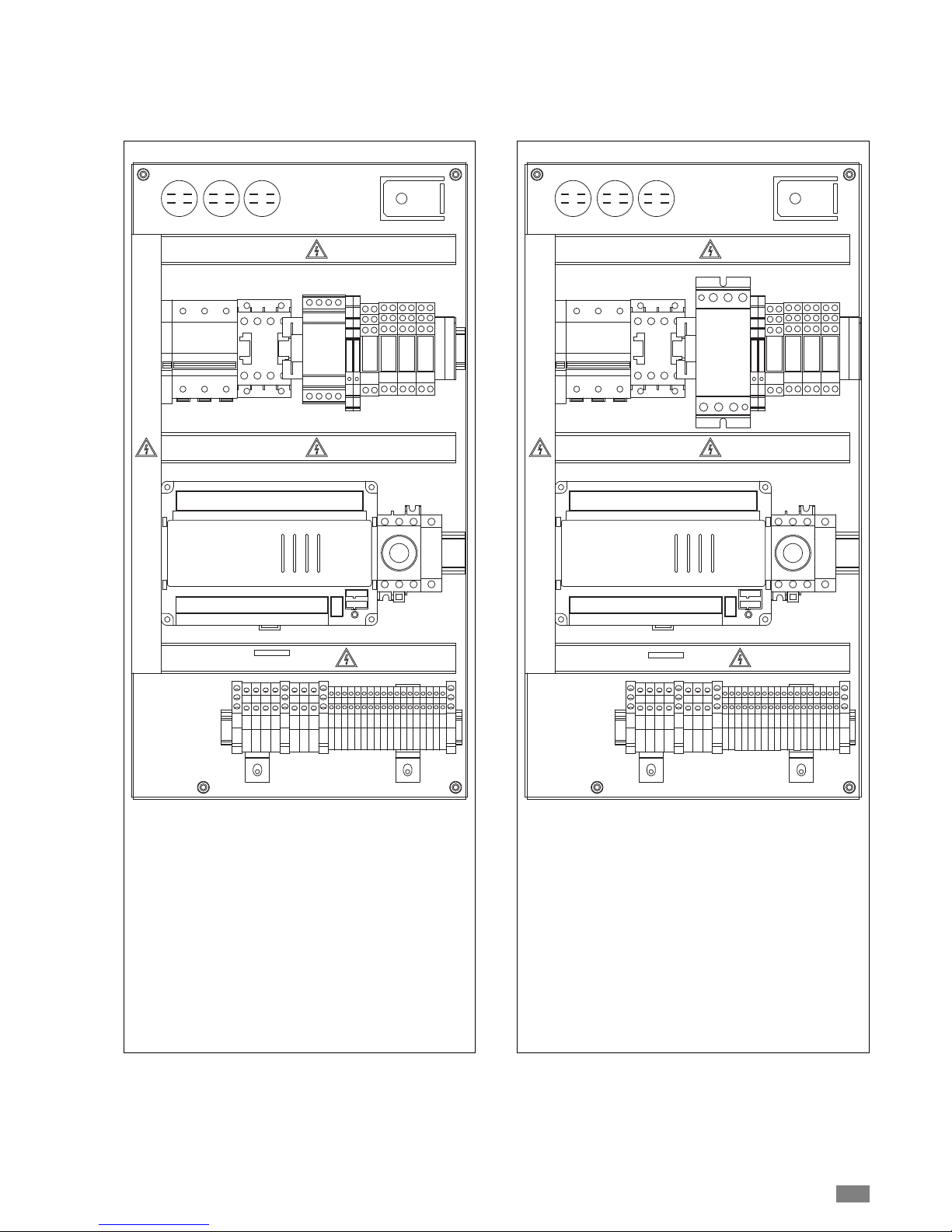

ELECTRICAL PANEL LAYOUT AW 0041-0071 HT
THREE-PHASE WITH PEAK LIMITER
KM1QM1 KA1
QS1
A1
FU1
400V-3Ph-50Hz
KA2
KA3 KA4 KA5
FU2
C2 C3
KA6
KA8
C4
A1 Electronic controller
C2/C3/C4 Fan start capacitor
FU1 Auxiliary circuit protection fuse ”L” 230VAC
FU2 Auxiliary circuit protection fuse ”N” 230VAC
KA1 Phase sequence control relay
KA2 Alarm relay (K10)
KA3 Electric heater control relay (K6)
KA4 Boiler control relay (K27)
KA5 High pressure switch relay
KA6 Steam injection valve bypass relay
KA8 Domestic hot water 3-way valve relay
KM1 Compressor control contact (K1)
QM1 Compressor thermal overload switch
QS1 Door lock disconnect switch
KM1QM1
A4
QS1
A1
FU1
KA2
KA3 KA4 KA5
FU2
C2 C3
KA6
KA8
C4
400V-3Ph-50Hz
A1 Electronic controller
A4 Peak limiter
C2/C3/C4 Fan start capacitor
FU1 Auxiliary circuit protection fuse ”L” 230VAC
FU2 Auxiliary circuit protection fuse ”N” 230VAC
KA2 Alarm relay (K10)
KA3 Electric heater control relay (K6)
KA4 Boiler control relay (K27)
KA5 High pressure switch relay
KA6 Steam injection valve bypass relay
KA8 Domestic hot water 3-way valve relay
KM1 Compressor control contact (K1)
QM1 Compressor thermal overload switch
QS1 Door lock disconnect switch

14 AW HT GB 05/2009
All the terminals referred to in the following explanations are to be found on the terminal board located inside the elec-
trical panel and called “installer terminal block” or “electronic controller A1 terminals” (see wiring diagram).
FIXED SET POINT OPERATION CONTACT (SA6)
Contact SA6 allows operation of the heat pump with a fixed
outlet set point defined by parameter 5952 (default = 50°C).
Closing the contact disables the outside temperature probe
and the room unit, the outlet temperature depends exclu-
sively on the set point set for parameter 5952.
ROOM UNIT (A3)
Installation instructions
The room unit must be located in a reference room to con-
trol the room temperature, keeping in the following factors
consideration:
INSTALLER CONNECTIONS I A
REMOTE ALARM (RD1)
For remote display of unit shut-down due to an operating
fault, an audible or visual alarm warning device can be con-
nected between terminals 6 and 7.
Connect the phase to terminal 7 and the alarm signal device
between terminal 6 and the neutral N.
ELECTRIC HEATER CONTACT (SA1)
To use an electric heater as an auxiliary heating element for
the production of domestic hot water.
Follow the instructions shown on the instruction sheet
enclosed with the electric heater kit if supplied by Cli-
maveneta, otherwise see the wiring diagram in this manual.
For further details see the chapter “Control”.
BOILER CONTACT (SA2)
To use a boiler as an auxiliary heating element or to replace
the heat pump, connect the phase to terminal 11 and the
control device, auxiliary relay, between terminal 10 and the
neutral N.
For further details see the chapter “Control”.
DEACTIVATION CONTACT FOR EXCESS POWER CON-
SUMPTION (SA3)
The heat pump accepts a external deactivation signal from
contact SA3, if using a system for managing power con-
sumption that disconnects active devices based on set prior-
ity, so as to avoid the overload switch on the power meter
from being triggered.
Connect the external contact to terminals 16 and 17.
Contact SA3 closed, heat pump operation disabled.
Contact SA3 open, heat pump operation enabled.
REDUCED ELECTRICITY RATE CONTACT (SA4)
The heat pump accepts an external signal from contact SA4
to activate the forced refilling of the reserve storage tanks
based on different electricity rates during the day.
During reduced rate periods, the heat pump can be forced
on so as to heat the domestic hot water or system storage
tank, where fitted.
Connect the external contact to terminals 18 and 19.
Contact SA4 closed, heat pump operation enabled (forced
operation during the reduced rate period).
Contact SA3 open, heat pump operation disabled.
CONTACT (SA5)
Not used
COMPRESSOR ON SIGNAL (GN1)
For remote display of the compressor operating status, an
audible or visual alarm warning device can be connected
between terminals 12 and 13.
Connect the phase to terminal 13 and the signal device
between terminal 12 and the neutral.
CONNECTING A FLOW SWITCH (F3)
If a flow switch is used, connect it to terminals 14 and 15 on
the installer terminal board, after having removed the
jumper.
DOMESTIC HOT WATER 3-WAY VALVE (YV3)
To configure a 3-way for the production of domestic hot
water (supplied by Climaveneta), make the following con-
nections as shown on the instruction sheet enclosed with
the accessory.
The 3-way valve for the domestic hot water production, if not
supplied by Climaveneta, should have the following charac-
teristics:
- Voltage 230V AC, 50/60 Hz
- Opening and closing time 10s.
- P delta 500 kPa
- Fluid temperature 0°C to 90°C
Use three-way valves with a pressure drop below 20 kPa.
For further details, see the chapter on “Operating character-
istics”.
INSTALLER TERMINAL BLOCK I A
ELECTRONIC CONTROLLER TERMINAL BLOCK (A1) I A
min.
10 cm

15GB 05/2009 AW HT

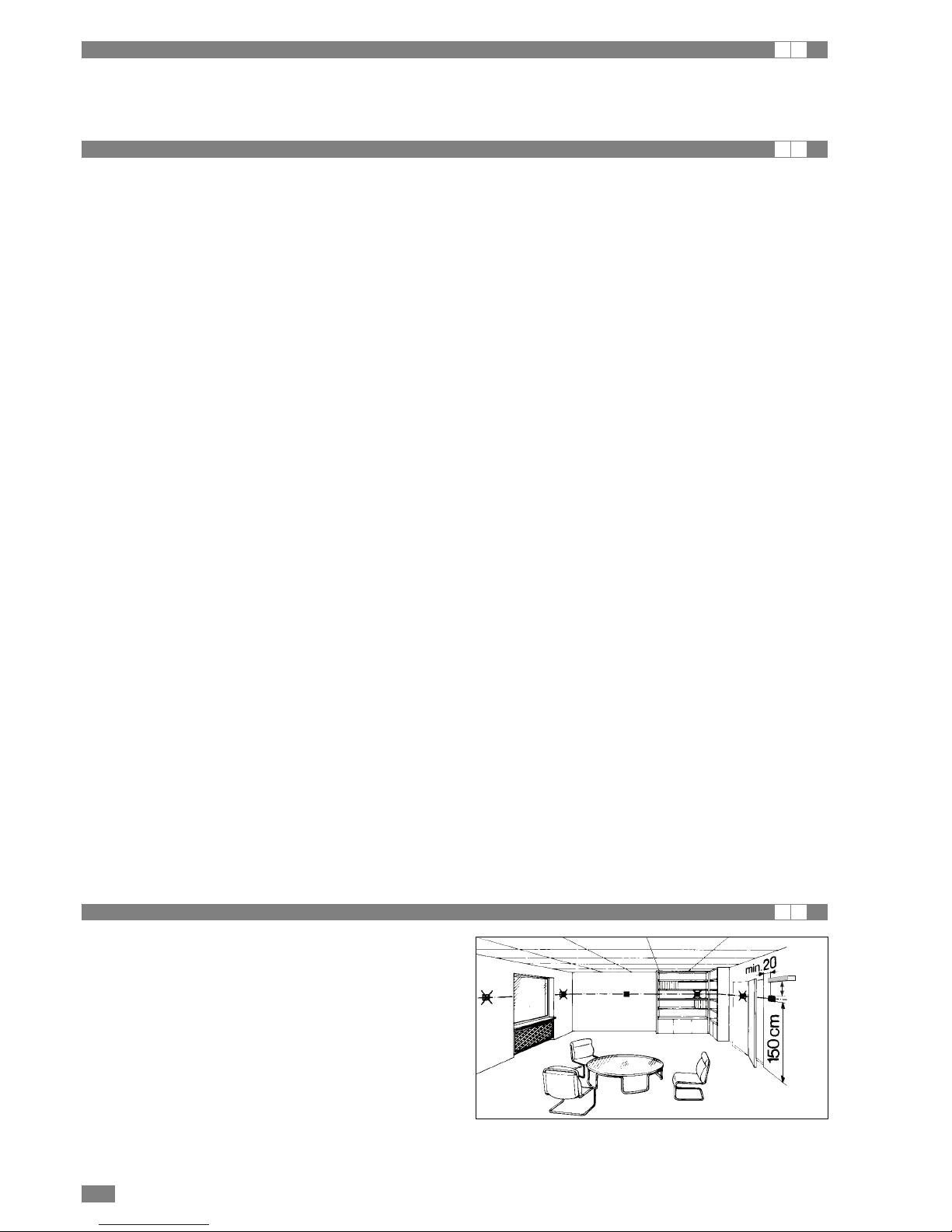

• The room unit must be located around 1.5 metres from the floor, in a part of the room where the sensor can measure the room
temperature as precisely as possible; it must be sheltered from streams of cold air, sunlight or other sources of heat.
• If mounted on the wall, at the top of the room unit there must be enough space for assembly and removal when necessary.
The room unit, once removed from its base, is no longer powered and consequently is not working.
Installation procedure:
1. Press the plastic hooks, right and left, on the
support.
2. Remove the top part of the support
3. Fasten the support to the wall
4. Make the electrical connections, see the
wiring diagram, and attach the top part of the
support
5. Attach the room unit to the support.
Electrical connection Room unit dimensions and support drilling template for installation.
1
2
3
CL+
CL-
G+
Terminal block
Room unit
Terminal block
Controller A1
42
185
100
82
4,2
9
56
60
100
80
11
39
67
Technical specifications
Room temperature measurement
Interface
Index of protection and safety class
Climate conditions
Weight
Power supply
Measurement
According to EN 12098:
Range 15 to 25 °C
Range 0 to 15 °C or 25 to 50 °C
Resolution
Maximum cable length
Case index of protection to EN 60 529
Safety class to EN 60 730
Degree of pollution EN 60 730
CE electromagnetic
compatibility conformity
- Immunity
- Emissions
Low voltage
- Electrical safety
Storage IEC721-3-1 class 1K3
Transport IEC721-3-2 class 2K3
Operation IEC721-3-3 class 3K5
Weight (excluding packaging)
Bus
0...50 °C
0.8 K tolerance
1.0 K tolerance
1/10 K
200m
IP20 for QAA7 …/ QAA55 …
Class 2 low-voltage if correctly installed
Normal pollution
89/336/EEC+2004/108/EEC and subsequent amend-
ments
- EN 61000-6-2
- EN 61000-6-3
2006/95/EEC and subsequent amendments
- EN 60730-1, EN 50090-2-2
temperature -20 to 65 °C
temperature -20 to 75 °C
temperature 0 to 50 °C (non-condensing)
170 g

16 AW HT GB 05/2009
OUTSIDE AIR TEMPERATURE SENSOR (BT2)
Installation instructions

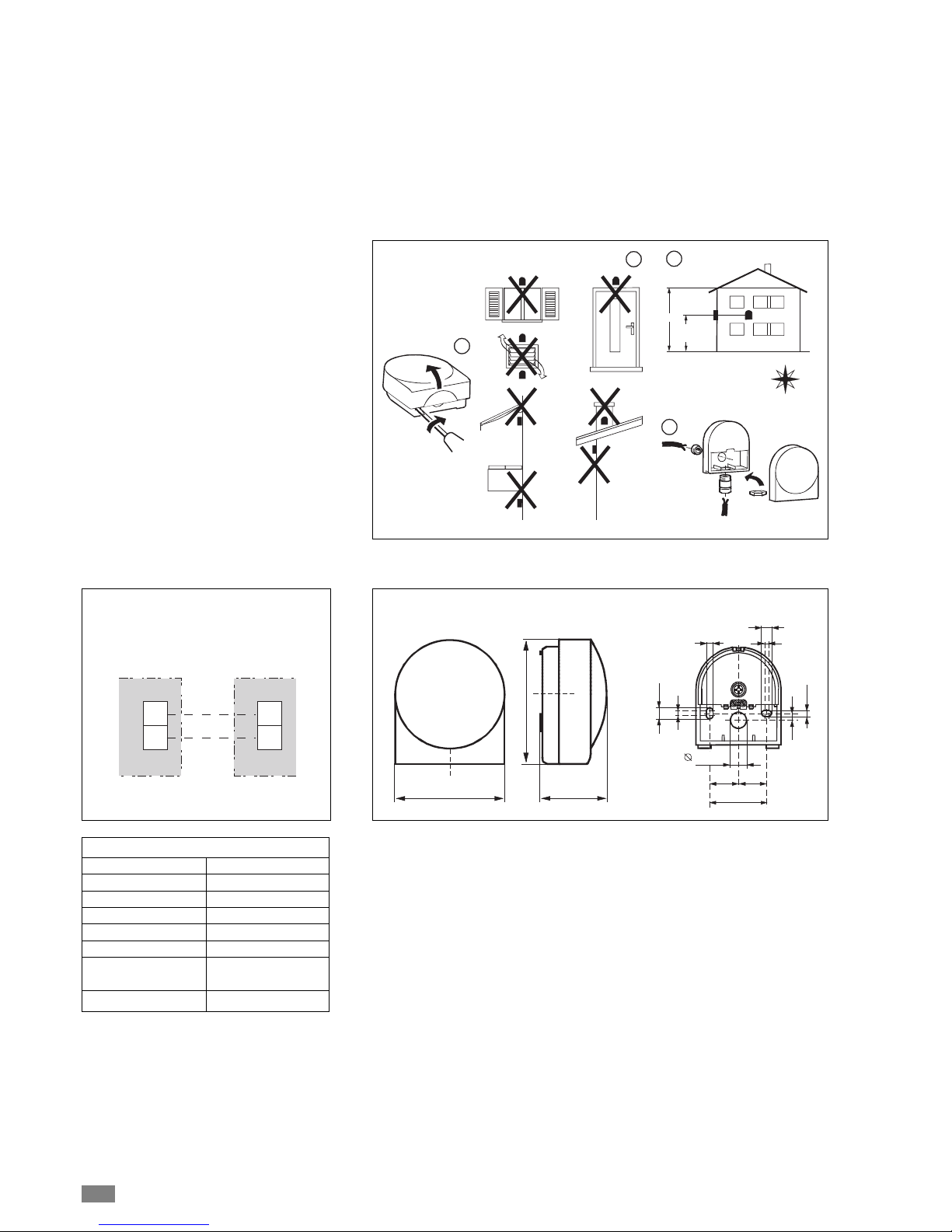

The outside air temperature sensor must be installed outside of the home in a reference position to correctly measure the tem-
perature, without being affected by sunlight, flue gas, near air outlets, doors and windows.
The outside air temperature sensor must be located on a perimeter wall facing north-north/west, minimum 2.5 metres from the
ground or maximum half way up the height of the home.
Installation procedure:
1. Remove the cover from the probe
using a special tool
2. Identify the correct installation position
for the probe
3. Fasten the probe to the wall at the cor-
rect height (see the drawings)
4. Make the electrical connections, see
the wiring diagram, and attach the top
of the probe.
Electrical connection: Dimensions:
H
H
2
/
1
N
N-W
3
min2,5 m
1
2
4
M
B9
Terminal block
Outside air
temperature sensor
Terminal block
Controller A1
49,7
91,6
79,8
3
8,5
5,5
14,1
25 24,5
49,5
9,5
4
5,5 6
Technical specifications
Probe NTC 1000Ω at 25 °C
Index of protection IP54
Cover colour RAL 9003
Base colour RAL 7001
Storage -20...65 °C
Transport -20...70 °C
Operation 0...50°C
(non-condensing)
Measurement -50…70°C
DOMESTIC HOT WATER STORAGE TEMPERATURE SENSOR (BT1)
The domestic hot water temperature inside the storage cylinder is measured using sensor BT1, connected to terminals M and
BX1.

17GB 05/2009 AW HT
U NPE
230V - 1Ph - 50Hz
SA3 SA4 SA5
RD1 SA1 SA2 GN1
N
L
230 VAC 1A max
Blu Nero Marrone G/V
PE
F3
4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21
INSTALLER TERMINAL BOARD AW 0031-0041 HT SINGLE-PHASE
UVPE W N
SA3 SA4 SA5
400V - 3N ~ 50Hz
RD1 SA1 SA2 GN1
N
L
230 VAC 1A max
4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21
Blu Nero Marrone G/V
PE
F3
INSTALLER TERMINAL BOARD AW 0041-0071 HT THREE-PHASE
SA6 A2
X50
BT1
A3
A1
M BX5
q
M BX4
n
M B84/92
p
M B91
r
M B9
k
M BX1
h
M UX
z
CL- CL+
b
MB DB
a
H3 M H1
e
G+ CL- CL+
b
123
+to
BT2
+to
X50
ELECTRONIC CONTROLLER (A1) TERMINAL BLOCK

18 AW HT GB 05/2009
AW 0031-0041 HT SINGLE-PHASE WITH PEAK LIMITER
A1 Electronic controller A2 Expansion module A3 Room unit A4 Compressor start BT1 DHW temperature probe (B3) BT2 Outside air temperature sensor (B9) BT3 Evaporator air inlet temperature probe (B91) BT4 Evaporator temperature probe (B84) BT5 Water return temperature probe (B71) BT6 Hot gas temperature probe (B81) C1 Compressor start capacitor C2-3 Fan start capacitors E1 System water pump (Q9) EV1-2 Fans (K19) F1 High pressure safety switch (E10) F2 Low pressure safety switch (E9)
F3 Flow switch (E24) F4 High pressure switch FU1 Auxiliary circuit protection fuse "L" 230VAC FU2 Auxiliary circuit protection fuse "N" 230VAC GN1 Green compressor ON light KA2 Alarm relay (K10) KA3 Electric heater control relay (K6) KA4 Boiler control relay (K27) KA5 High pressure switch relay KA6 Steam injection valve bypass relay KA7 Compressor control relay (K1) KA8 Domestic hot water 3-way valve relay QF1 Chiller assembly thermal overload switch QM1 Compressor thermal overload switch R1 Compressor oil sump heater SA1 Electric heater control output (K6)
SA2 Boiler control output (K27) SA3 Deactivation input for power consumption (E6) SA4 Low electricity rate input (E5) SA5 Free input SA6 Hot call input YV1 Defrost valve (Y22) YV2 Steam injection valve YV3 Domestic hot water 3-way valve (Q3) Z1 Compressor
1 Switch not supplied 2 Components not supplied 3 Components supplied

CL-EX7 H1 B91 M B84MEX6EX5
Sensor InputDigital Output
EX1 M BX1 M MEX2 EX4
Digital Input
ersh
A1
E
EX3
b
CL+
k
B9G+L
L N
N
Power Supply
N
QX3
S
QX5
Q
FX8 QX8QX6 QX7
Room Unit
0÷10V Input
MBX4
n
MBX5
q
E1
M
1~
brown
blue
N
R
QX1
00
11
1
QX4
N
X
A3
14 13
KM1
99
11
KA5
40 19
KA5
118
QM1
2121
1515
17
14
A
F3
1
17 17
3
15
4
F2
KA1
20
B
YV1
15
1
89
32
YV2
0
14
C
21
32
1
SA3 BT1
+to
+to
BT2
+to
BT3
+to
BT4
+to
BT5
KA2
1010
KA3
1111
KA4
BT6
+to
2222
1
1716
22
SA4 SA6
U N
U-V-W-NPE
400V-3N ~ 50Hz
QF1
U-V-W-N
L1-L2-L3-N
1
QS1
3~
M
T1 T2 T3
1L1
1L2
1L3
KM1
Z1
QM1
L2L1
KA1
L3
L2
L1
L3
FU1
1
0
12 3
BSB bus
X50
A2
X50
KA5
16
12
F1
16 16
1
321
R1
KM1
C
12
0
0
11
FU2
27
KA3
30
25
GN1
76
230VAC 1A MAX
KA2
541110
KM1
RD1 SA1
31
2
26
24
SA2
98
28
KA4
29
19
SA5
23
1
2323
78
777
888
18
A569
C65402984E_00
KA6
KA6
7
333333
343434
KA8
35
36
1312
YV3
37
KA8
38
2120
333
56 87
UN
F5
D
4
1
0
1
40
blue
black
1~
M
EV2
brown
blue
black
1~
M
EV1
brown
B3214 7658
41
4
5
41
4
6
EV3
39
4
41
brown
M
1~
black
blue
D1234
C3C2
4
5
41
4
6
39
4
41
QX2
N
U
L
B1
+5V
GND
N
C4657
L1
green
white
black
P
BP1
333
444
41 41
41
A5
44
Black
Ye-Gn
Blue
Grey
19GB 05/2009 AW HT
AW 0041-0071 HT THREE-PHASE
A1 Electronic controller A2 Expansion module A3 Room unit A5 Compressor controller BP1 Pressure sensor BT1 DHW temperature probe (B3) BT2 Outside air temperature sensor (B9) BT3 Evaporator air inlet temperature probe (B91) BT4 Evaporator temperature probe (B84) BT5 Water return temperature probe (B71) BT6 Hot gas temperature probe (B81) C2-3-4 Fan start capacitors E1 System water pump (Q9) EV1-2-3 Fans (K19) F1 High pressure safety switch (E10) F2 Low pressure safety switch (E9)
F3 Flow switch (E24) F4 High pressure switch F5 Compressor protection FU1-2 Auxiliary circuit protection fuse GN1 Green compressor ON light KA1 Phase sequence control relay KA2 Alarm relay (K10) KA3 Electric heater control relay (K6) KA4 Boiler control relay (K32) KA5 High pressure switch relay KA6 Steam injection valve bypass relay KA8 3 ways valve relay KM1 Compressor contactor (K1) QF1 Chiller assembly thermal overload switch QM1 Compressor thermal overload switch QS1 Door lock disconnect switch
R1 Compressor oil sump heater RD1 Warning light (alarm) SA1 Electric heater control output (K6) SA2 Boiler control output (K32) SA3 Deactivation input for power consumption (E6) SA4 Low electricity rate input (E5) SA5 Free input SA6 Hot call input YV1 Defrost valve (Y22) YV2 Steam injection valve YV3 3 ways plant valve (Q3) Z1 Compressor
1 Switch not supplied 2 Components not supplied 3 Components supplied 4 Only for 0071 size

CL-EX7 H1 B91 M B84MEX6EX5
Sensor InputDigital Output
EX1 MBX1 M MEX2 EX4
Digital Input
ersh
A1
E
EX3
b
CL+
k
B9G+L
L N
N
Power Supply
N
QX3
S
QX5
Q
FX8 QX8QX6 QX7
Room Unit
0÷10V Input
MBX4
n
MBX5
q
E1
M
1~
brown
blue
blue
black
1~
M
N
R
QX1
EV2
0
1
1
QX4
N
X
A3
brown
13
9
blue
black
1~
M
EV1
brown
1
19
18
21
15
17
14
F3
1
17
3
15
4
F2
B
YV1
15
1
89
32
YV2
0
C
21
32
1
SA3 BT1
+to
+to
BT2
+to
BT3
+to
BT4
+to
BT5
10
11
BT6
+to
22
1
1716
22
SA4 SA6
U N
U-V-W-NPE
400V-3N ~ 50Hz
QF1
U-V-W-N
L1-L2-L3-N
1
QS1
FU1
1
0
BSB bus
X50
A2
X50
12
F1
16
1
321
R1
2
0
1
FU2
27
KA3
30
25
GN1
76
230VAC 1A MAX
KA2
541110
KM1
RD1 SA1
31
2
26
24
SA2
98
28
KA4
29
B3214 7658
19
SA5
23
1
23
41
4
5
41
4
6
78
77
88
18
A569
C65402985E_01
3333
3434
1312
YV3
37
KA8
38
2120
333
EV3
39
4
41
brown
M
1~
black
blue
NU
F5
CAD 1234 D5678
0
1
C3
14
KM1
9
C2
1
KA5 KA5
1
QM1
21
15
17
14
KA2
10
KA3
11
KA4
22
KA5
16
16
KM1
1
0
1
23
4
5
41
4
6
7
8
KA6
KA6
7
33
34
KA8
35
36
39
4
41
C4
4
1
0
1
2 0
20
3~
M
T1 T2 T3
KM1
Z1
QM1
123
L2
L1
L2 L3
T1
L1
A4
T2 T3 A2
A1
L3
QX2
N
U
C4657
BP1
333
444
41 41
41
44
green
white
black
P
A5
L1
N
GND
+5V
B1
L
Blue
Grey
Black
Ye-Gn
20 AW HT GB 05/2009
AW 0041-0071ts HT THREE-PHASE WITH PEAK LIMITER
A1 Electronic controller A2 Expansion module A3 Room unit A4 Compressor start A5 Evaporation control BT1 DHW temperature probe (B3) BT2 Outside air temperature sensor (B9) BT3 Evaporator air inlet temperature probe (B91) BT4 Evaporator temperature probe (B84) BT5 Water return temperature probe (B71) BT6 Hot gas temperature probe (B81) C2-3-4 Fan start capacitors E1 System water pump (Q9) EV1-2-3 Fans (K19) F1 High pressure safety switch (E10) F2 Low pressure safety switch (E9)
F3 Flow switch (E24) F4 High pressure switch F5 Compressor protection FU1-2 Auxiliary circuit protection fuse GN1 Green compressor ON light KA2 Alarm relay (K10) KA3 Electric heater control relay (K6) KA4 Boiler control relay (K32) KA5 High pressure switch relay KA6 Steam injection valve bypass relay KA8 3 ways valve relay KM1 Compressor contactor (K1) QF1 Chiller assembly thermal overload switch QM1 Compressor thermal overload switch QS1 Door lock disconnect switch R1 Compressor oil sump heater
RD1 Warning light (alarm) SA1 Electric heater control output (K6) SA2 Boiler control output (K32) SA3 Deactivation input for power consumption (E6) SA4 Low electricity rate input (E5) SA5 Free input SA6 Hot call input YV1 Defrost valve (Y22) YV2 Steam injection valve YV3 3 ways plant valve (Q3) Z1 Compressor
1 Switch not supplied 2 Components not supplied 3 Components supplied 4 Only for 0071 size
