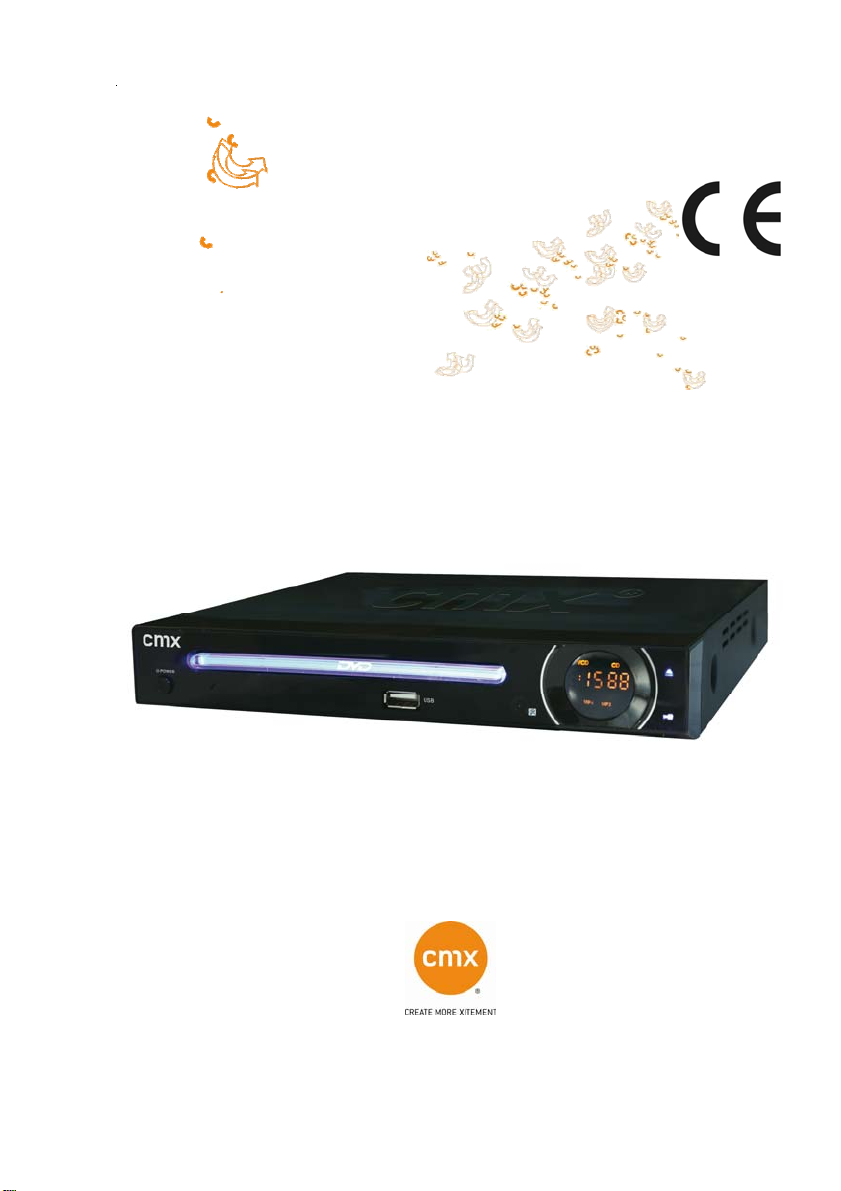

Cmx Dvx 3020 User manual

VER10720093020

MPEG4-DVD-PLAYER WITH

HDMI

DVX 3020

Symbol photo

USER MANUAL

General

- 2 -

Imprint

prohibited.

cmx® reserves the right to modifications of the device.

General

- 3 -

CONTEXTS

1. GENERAL...................................................................................... - 5-

1.1. Safety precautions.................................................................- 5 -

1.2. Disposal of waste electronic equipment................................- 5 -

1.3. Battery disposal.....................................................................- 6 -

1.4. Copyright...............................................................................- 6 -

1.5. Hearing protection.................................................................- 6 -

1.6. Macrovision...........................................................................- 6 -

1.7. Cleaning and maintenance ...................................................- 7 -

2. FEATURES..................................................................................... - 7-

3. LOCATION OF CONTROLS ............................................................... - 8-

3.1. Main unit - front .....................................................................- 8 -

3.2. Main unit - rear......................................................................- 9 -

3.3. Remote control....................................................................- 10 -

4. PREPARATION ............................................................................. - 12 -

4.1. Connection the device.........................................................- 12 -

4.1.1. Connection with SCART cable.....................................- 12 -

4.1.2. Connection with HDMI cable........................................- 13 -

4.2. Connect to hi-fi system........................................................- 13 -

4.3. Insert batteries.....................................................................- 13 -

5. START OF OPERATION AND CONFIGURATION.................................. - 14 -

5.1. Start of operation.................................................................- 14 -

5.2. General operation................................................................- 14 -

5.3. Configuration.......................................................................- 14 -

5.3.1. System-Setup...............................................................- 15 -

5.3.2. LANGUAGE SETUP ....................................................- 18 -

5.3.3. Audio Setup..................................................................- 18 -

5.3.4. Video-Setup..................................................................- 19 -

5.3.5. SPEAKER Setup..........................................................- 19 -

5.3.6. DIGITAL SETUP ..........................................................- 20 -

6. FURTHER FUNCTIONS .................................................................. - 20 -

6.1. CD-Ripping..........................................................................- 20 -

6.2. Programming.......................................................................- 21 -

6.3. A-B.......................................................................................- 21 -

7. EXTERNAL COMPONENTS............................................................. - 22 -

7.1. USB 2.0...............................................................................- 22 -

7.1.1. Music............................................................................- 22 -

General

- 4 -

7.1.1. PICTURE......................................................................- 22 -

7.1.2. Video ............................................................................- 23 -

7.2. HDMI...................................................................................- 23 -

8. TROUBLESHOOTING..................................................................... - 24 -

9. WARRANTY ................................................................................. - 24 -

9.1. Warranty Procedure............................................................- 25 -

9.2. Warranty has expired..........................................................- 25 -

9.3. Shipping the Unit.................................................................- 26 -

10.IN THE BOX.................................................................................. - 29 -

11.TECHNICAL SPECIFICATIONS......................................................... - 30 -

General

- 5 -

1. General

1.1. Safety precautions

Only connect to mains power supply (230 Volt / 50 Hz).

Do not place containers filled with water on top of the device.

Do not place device in close proximity of water (e.g. sink, wash

basin, etc.). The device can fall into the water and cause a short

circuit.

The device consumes some power during standby operation. For

zero power consumption disconnect from mains power supply.

During a thunderstorm disconnect the device.

Place the device on a stable surface to recent it from tipping over

and causing damages or injuries.

Condensation can form if the device is placed in cold

surroundings. Leave the device for at least one hour in standby

mode.

Keep at least 10 cm distances at top and rear and 5 cm at the

sides for proper ventilation to avoid overheating.

Do not subject the device to direct sunlight or high temperatures,

this can result in fire.

1.2. Disposal of waste electronic equipment

Your product is manufactured from high quality

raw materials and should be recycled.

Ask you municipality for collecting points for waste

electronic equipment.

Do not dispose of old appliances with the

household waste.

General

- 6 -

The symbol on the product, the instructions for use or the

packaging will advert about the methods for disposal.

1.3. Battery disposal

The law requires returning exhausted batteries to public collection

points or the dealer.

Do not dispose of exhausted batteries with the household waste.

1.4. Copyright

It is illegal to copy, send exhibit, broadcast via cable, publicly

show or rent copyrighted materials without consent.

1.5. Hearing protection

Select a moderate volume to protect your hearing.

Only turn the volume to a level where you can still hear ambient

noise.

1.6. Macrovision

This product incorporates copyright technology that is protected

by method claims of certain U.S. patents and other intellectual

property rights owned by Macrovision Corporation and other

rights owners.

Use of this copyright protection technology must be authorized by

Macrovision Corporation, and is intended for home and other

limited viewing uses only unless otherwise authorized by

Macrovision Corporation. Reverse engineering or disassembly is

prohibited.

Features

- 7 -

1.7. Cleaning and maintenance

Before cleaning disconnect from mains power supply.

Do not clean with liquid cleaning agents or a wet cloth, this can

cause a short circuit.

Cleaning the casing

Clean the casing with a dry cloth.

2. Features

Dive into the world of high definition with the cmx® DVX 3020! The

device is equipped with an HDMI port, USB 2.0 and CD-ripping

function.

Parental control, picture settings and other functions are also

available.

Location of controls

- 8 -

3. Location of controls

3.1. Main unit - front

Symbol photo

1 POWER ON/OFF

2 DRIVE DVD drive

3 USB Port for MP3-Player / USB-Stick

4 IR Sensor for infrared remote control

5 LED Display

6 II Start and pause playback

7 EJECT Open/Close the DVD drive

1 2 3 4 5

6 7

Location of controls

- 9 -

3.2. Main unit - rear

Symbol photo

1 L Left audio channel

2 Y, Pb, Pr Component output

3 SCART OUTPUT Scart output for TV/ recorder

4 HDMI HDMI digital audio/video output

5 R Right audio channel

6 COAXIAL coaxial digital audio output

7 VIDEO composite video output

8 S-VIDEO S-Video output

9 OPTICAL Optical Digital Audio output

1 2

3 4 5 6 7 8 9

Location of controls

- 10 -

3.3. Remote control

1 STANDBY ON/OFF

2 II PAUSE pause playback

3 TIME Quick select from a title

4 PBC PBC activate/deactivate

2 3

16 17
