CO/Tech LKS-400P-UK User manual

Important!
Read the entire instruction manual carefully
and make sure that you fully understand
it before you use the equipment. Keep the
manual for future reference.
Viktig information:
Läs hela bruksanvisningen noggrant och
försäkra dig om att du har förstått den
innan du använder utrustningen. Spara
bruksanvisningen för framtida bruk.
Viktig informasjon:
Les disse anvisningene nøye og forsikre deg om
at du forstår dem, før du tar produktet i bruk.
Ta vare på anvisningene for seinere bruk.
Tärkeää tietoa:
Lue nämä ohjeet huolellisesti ja varmista
että olet ymmärtänyt ne, ennen kuin alat
käyttää laitetta. Säilytä ohjeet myöhempää
tarvetta varten.
Wichtiger Hinweis:
Vor Inbetriebnahme die komplette
Bedienungsanleitung durchlesen und
aufbewahren.
ENGLISHSVENSKANORSKSUOMIDEUTSCH
Dränkbar pump
Senkepumpe
Uppopumppu
Tauchpumpe
Art.no Model
18-3567 LKS-400P-UK
40-9032 LKS-400P
18-3568 LKS-750PW-UK
40-9033 LKS-750PW
Submersible Pump
Ver. 20131025
Original instructions
Bruksanvisning i original
Original bruksanvisning
Alkuperäinen käyttöohje
Original Bedienungsanleitung

2

3
ENGLISH
150/233l/min Submersible Pump
Art.no 18-3567 Model LKS-400P-UK
40-9032 LKS-400P
18-3568 LKS-750PW-UK
40-9033 LKS-750PW
Please read theentire instruction manual before using theproduct and save it for future
reference. We reserve theright for any errors in text or images and any necessary
changes made to technical data. If you have any questions concerning technical
problems please contact our Customer Services.
Safety
• Always use aresidual current device (RCD or RCCB) which trips at < 30 mA
between thepump and thepower supply.
• Always inspect thepump before using it, especially thepower lead and plug.
Never use thepump if it is damaged.
• If themains lead is damaged it must only be replaced by aqualified tradesman.
Contact our Customer Services.
• Make sure that any electrical connections (extension lead, RCD, etc.) are placed in
adry place and protected from overflowing water and floods.
• Keep themains lead away from extreme heat, oil and sharp edges.
• The pump is not designed for continuous use.
• Protect thepump from frost.
• The pump is suitable for pumping clean water or dirty water with amaximum particle
size of 5 mm for 40-9032 and 25 mm for 40-9033, swimming pools and ornamental
ponds. Bear in mind that sand and other abrasive substances in theliquid that is
pumped will increase thewear and tear and reduce thecapacity of thepump.
• The pump must never be used in aswimming pool or pond if people or animals
are still in thewater.
• The pump is waterproof and submersible to adepth of max 7/7 m.
• Make sure that thepressure head does not exceed 7/8 m.
• The pump must not be used for corrosive, combustible or explosive liquids such
as petrol, kerosene or thinners. - Neither must thepump be used for grease, oil,
brackish water, seawater, urine or toilet sewage water.
• The temperature of thepumped liquid must not be greater than 35 ºC.
• Dry-running should be avoided, as this soon wears thepump out. Turn off
thepump as soon as water has stopped coming out of thehose.
• Avoid running thepump with thedischarge outlet closed for more than ten minutes.
• The pump has abuilt-in thermal overload motor protection and automatically shuts
off when it gets overheated. The motor starts again automatically when themotor
has cooled.
• If chlorinated water, such as swimming pool water, has been pumped, clean water
should be pumped afterwards to rinse out thepump.

4
ENGLISH
Product description
The pump is intended for domestic use in homes and gardens. Suitable uses:
• Drainage of containers
• The transfer of liquids
• Pumping water from springs, wells and barrels
• Bilge pumping boats
• Circulating water for limit periods

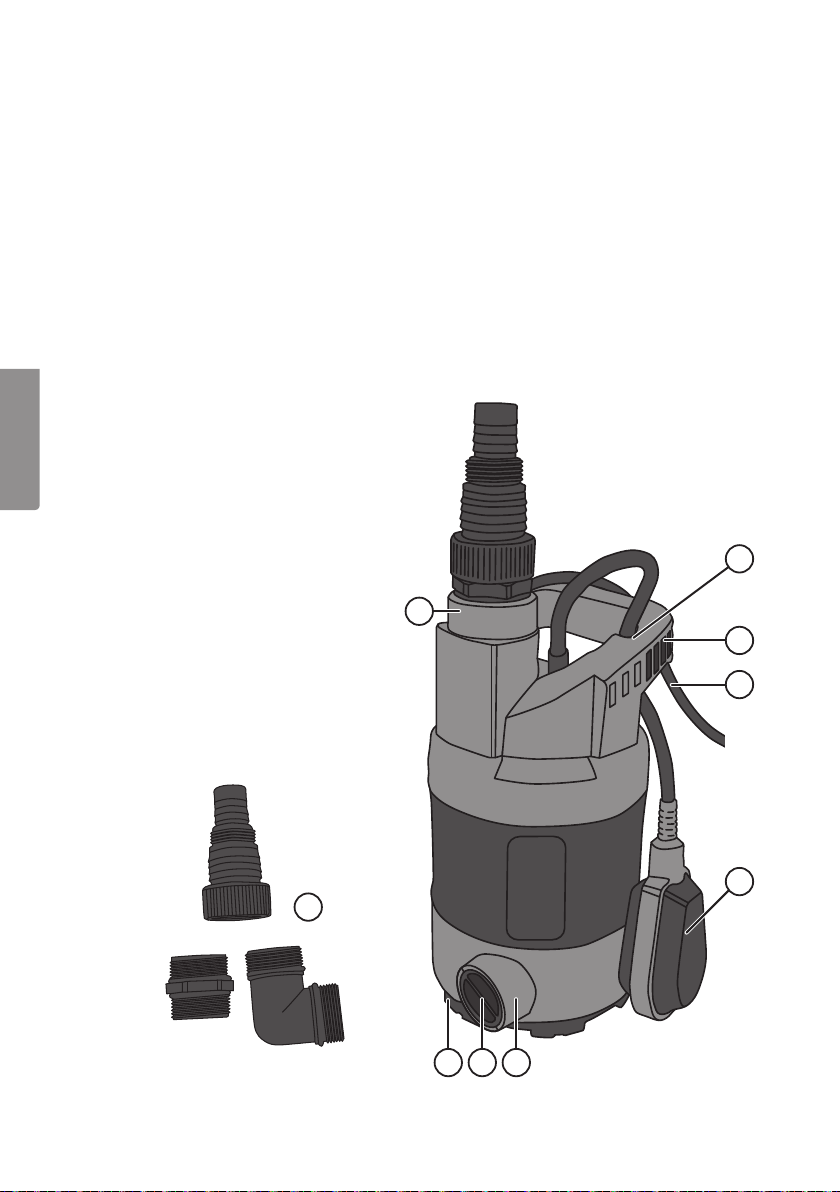

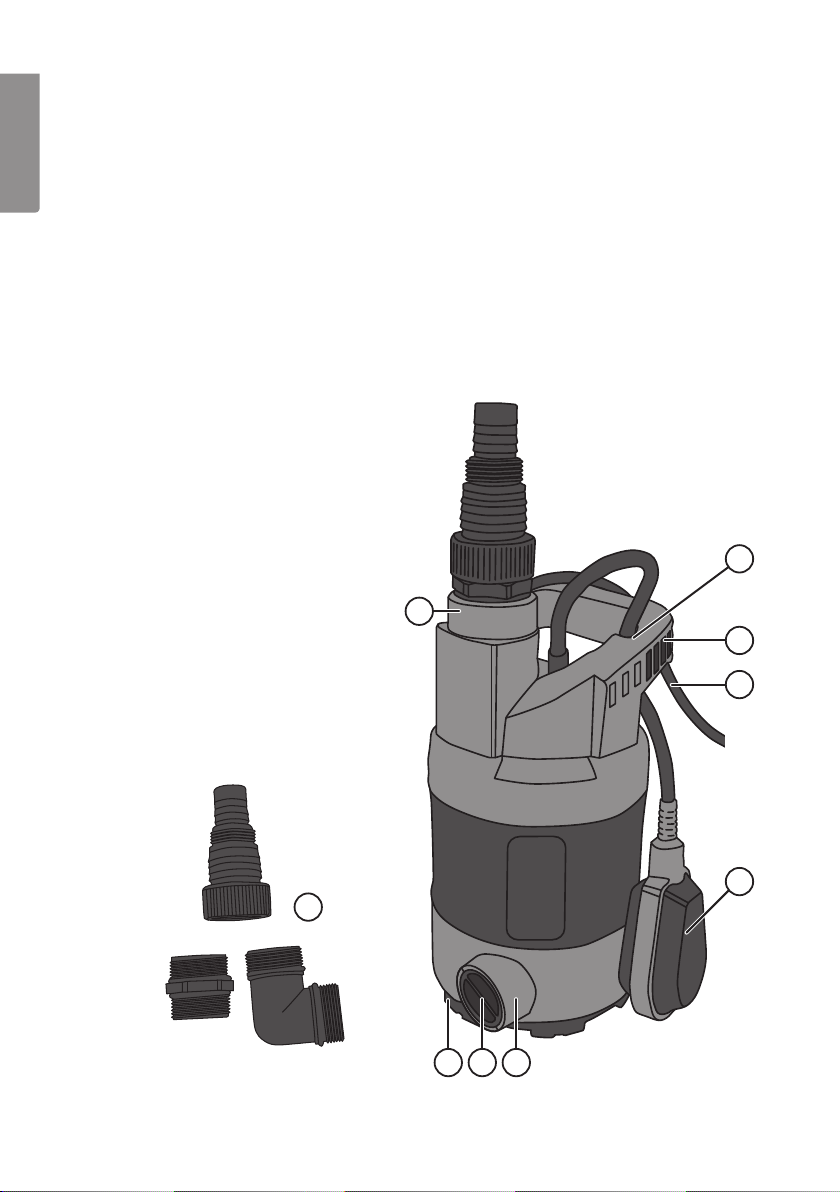

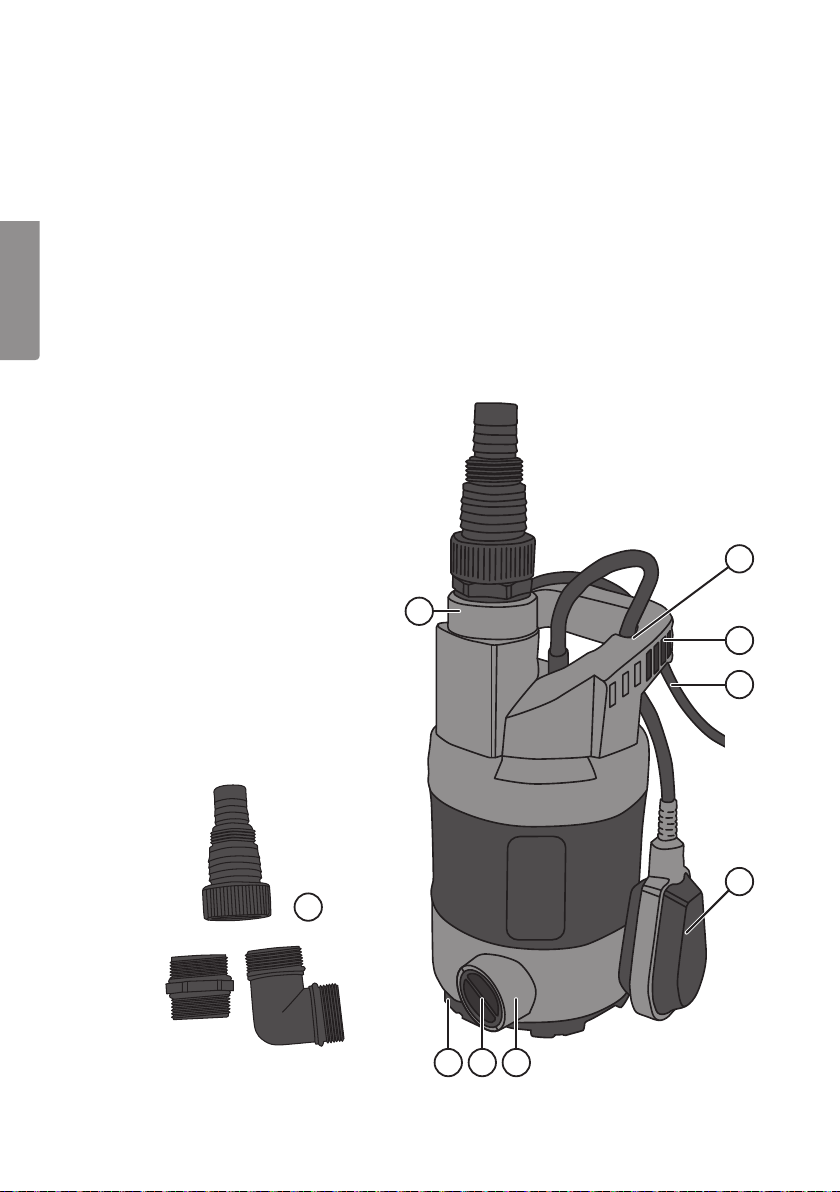

1. Upper outlet (1¼″female thread)
2. Float switch cable clip
3. Carrying handle
4. Power lead with plug
5. Float switch
6. Lower outlet (1¼″female thread)
7. Plug for theoutlet which is not used
8. Base with inlet
9. Connections:
- Universal hose union 38 mm
and 25 mm + 1″and 1¼″
male thread
- 90° elbow, 1¼″male thread
- Straight hose connector,
1¼″male thread
9
1
2
3
4
5
678

5
ENGLISH
Before use

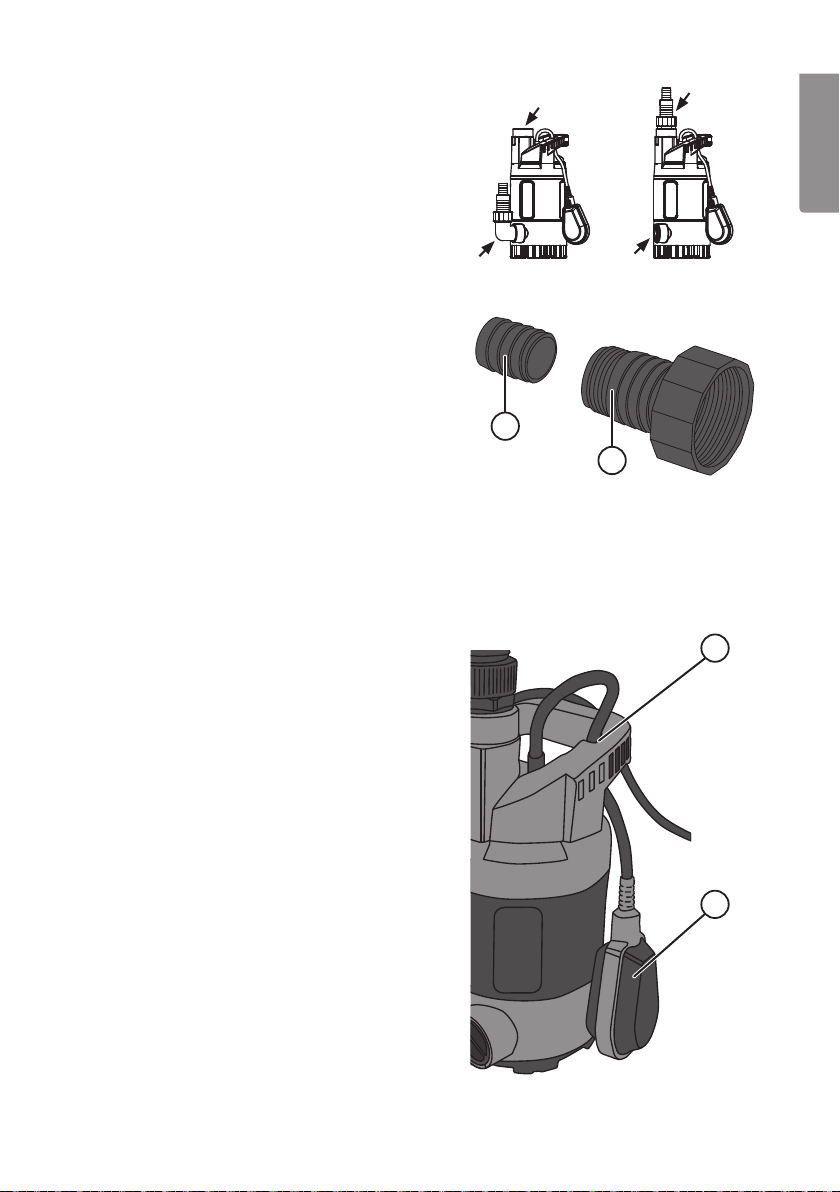

Hose Connection*
Fit theincluded universal hose union onto
one of theoutlets (1 or 6)*.
Note: The plastic plug (7) should be inserted
into theoutlet which is not being used.
A
B
The universal hose union is fitted with
a38mm (1½″) and 25mm (1″) diameter
barbed hose connectors and a1″male
threaded hose connector. 38mm hoses
provide thebest capacity.
If the38mm barbed hose connector or
the1″threaded connector are to be used,
theend of thenipple should be cut off as
shown in thefigure.
Cut off thepart (B) of theuniversal hose union
that is not needed (if using large diameter hose).
* The pump has two alternative outlets, upper
and lower. Depending on the construction of
the pump the upper outlet (1) provides about
10% less water flow than the lower outlet (6).
Note: The plastic plug (7) must be inserted
into the outlet which is not used.
Adjusting the Float Switch
The level of water at which thepump starts
and stops can be adjusted by lengthening
or shortening thefloat switch cable held by
theclip (2).
• Shortening thelength of thecable between
theswitch (5) and theclip (2) will enable
thepump to start at alower water level.
• Lengthening thelength of thecable
between theswitch (5) and theclip (2)
will enable thepump to start at ahigher
water level.
2
5

6
ENGLISH

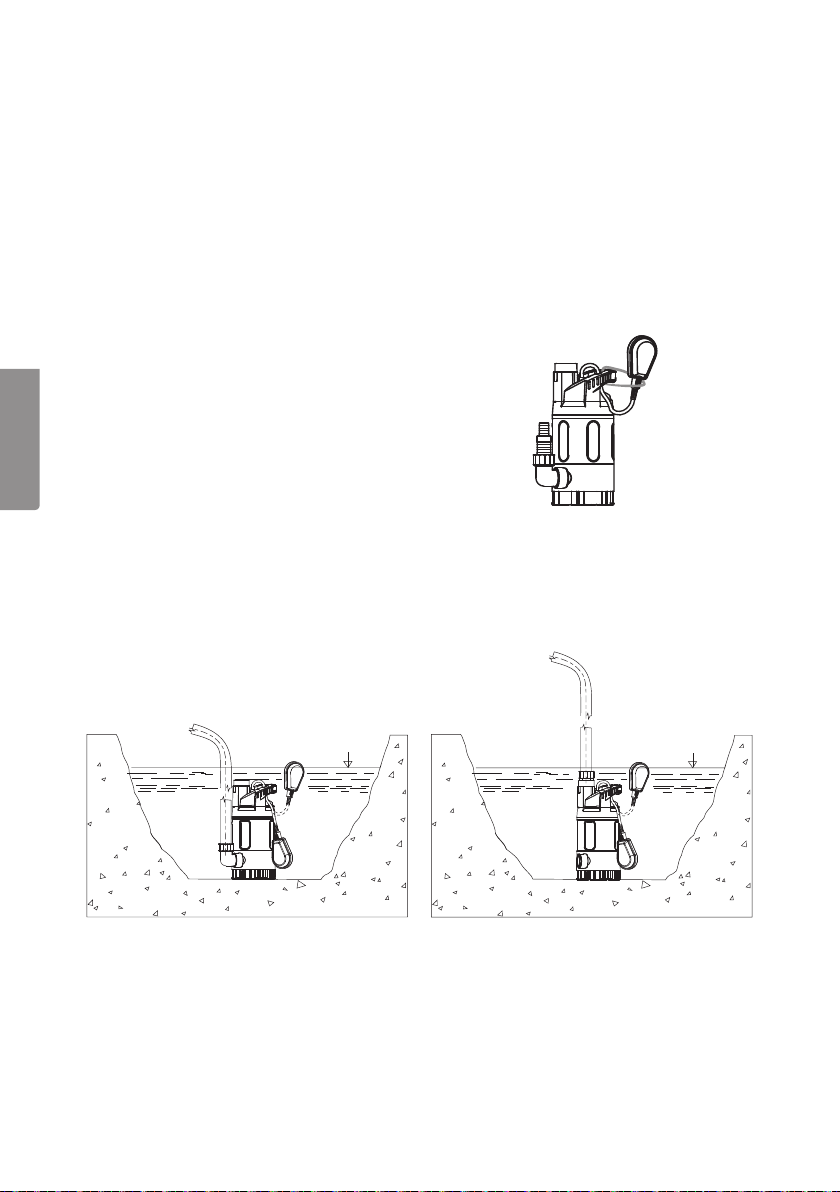

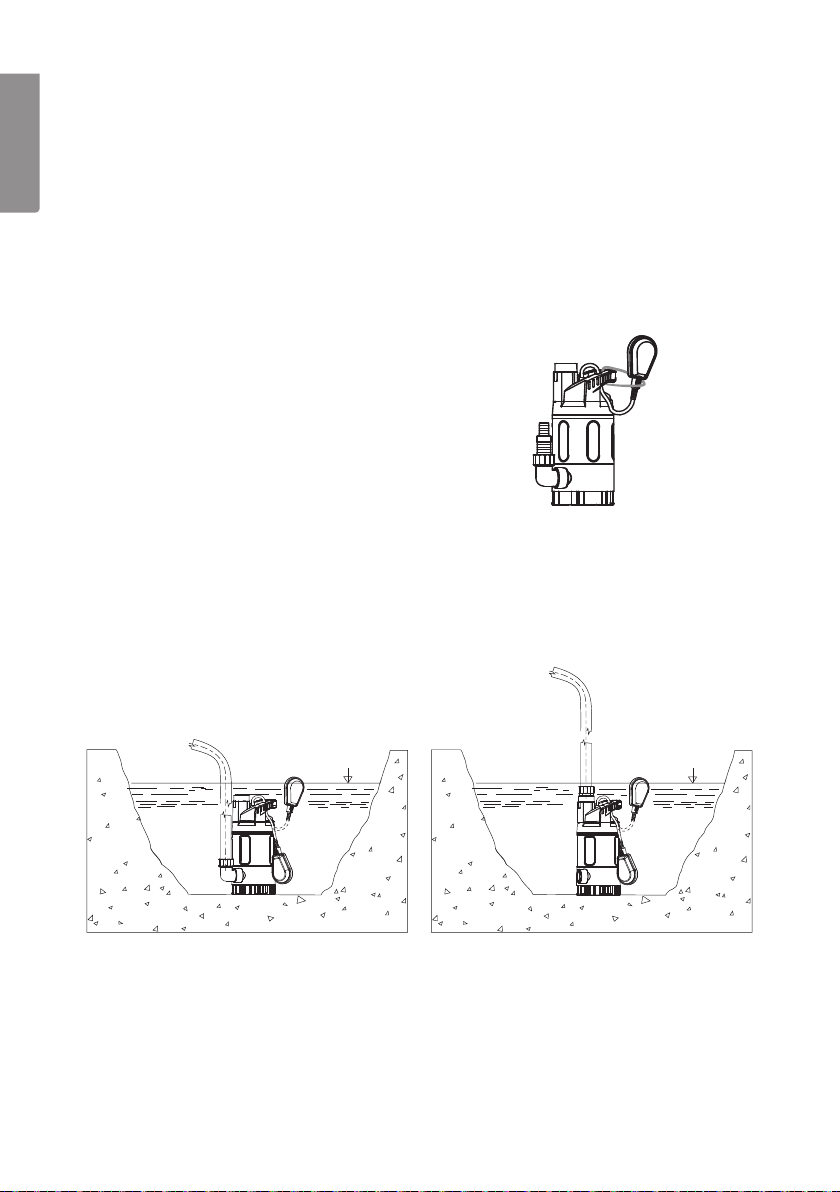

Positioning and transportation
• The pump should be placed in astable position (especially if set to automatic operation).
• The float switch (5) must be able to move unhindered.
• The inlet must not be blocked in any way, make sure that there are no loose
particles such as sand or stones near theinlet as this increases wear on thepump
and could even cause astoppage.
• Do not use themains lead or float switch to lift or carry thepump. Always use
arope tied to thehandle when lowering or raising thepump.
Operating instructions
Manual operation
Fasten thefloat switch so it is not hanging
down. Switch thepump on/off by either
using theswitch on thewall socket if it has
one or by pulling theplug out of thewall
socket. Do not let thepump run dry.
Automatic operation
When themains lead is connected to alive wall socket thesubmersible pump will
be switched on and off by thefloat switch. When thefloat switch is raised by water,
thepump starts. When thewater level falls, thefloat switch hangs down and
thepump stops.

7
ENGLISH

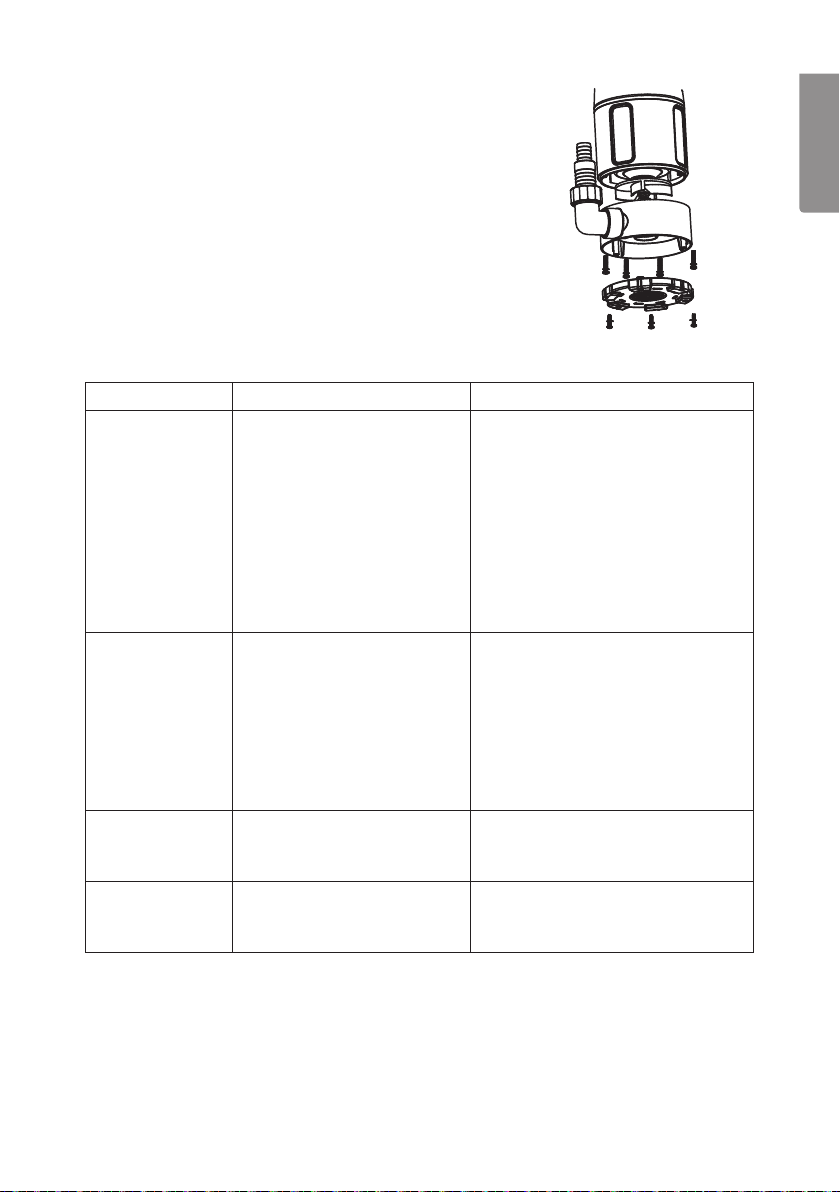

Care and maintenance
If necessary, unplug themains lead from thewall
socket, remove the3 screws holding thecover plate
onto thebase of thepump, then remove the4 screws
holding theimpeller housing and clean theinlet (8) of
any debris.
Screw theparts back on in reverse order, making sure
that theoutlet on theimpeller housing is on thesame
side of thepump as theupper outlet.
Troubleshooting guide
Problem Possible cause Possible solution
The pump runs
but doesn’t
pump.
1. Air in pump, outlet
is blocked.
2. Air trapped in suction pipe.
3. Impeller is blocked.
4. When thepump starts
thewater level falls to
below theminimum level.
1. Clean thehose, straighten any
kinks, etc.
2. Wait 60 seconds until thepump
is purged of air, switch it off
and then start it again.
3. Unplug thepump from
thepower supply and remove
any debris from thewater inlet.
4. Place thepump lower in
thewater.
The pump won’t
start or stops
under load.
1. The thermal protection
device has tripped.
2. Wall socket is not live.
3. Dirt lodged in
theimpeller housing.
1. Unplug pump and clean
thebase and impeller housing.
Remember that themax liquid
temperature is 35°C.
2. Check fuses and RCD, etc.
3. Unplug thepump from
thepower supply and remove
any debris from thewater inlet.
The pump runs
but theflow rate
falls suddenly.
Impeller is blocked. Unplug thepump from thepower
supply and remove any debris
from thewater inlet.
Pump doesn’t
stop when water
level has fallen.
The float switch is prevented
from sinking.
Place thepump so that thefloat
switch can move freely.

8
ENGLISH
Disposal
Dispose of your waste responsibly, sort and recycle where possible. All machines, hoses and
packing material should be sorted and handled according to local environmental regulations.
Specifications
Model LKS-400P, LKS-400P-UK LKS-750PW, LKS-750PW-UK
Wattage 400W 750W
Rated voltage 230V AC, 50Hz 230V AC, 50Hz
Pump Capacity 150l/min 233l/min
Pressure head 7m 8m
Max submersible depth 7m 7m
Max particle size 5mm 25mm
Max water temperature 35°C 35°C
Hose connection 25mm and 38mm 25mm and 38mm
Union thread 1¼″(female) x 2 1¼″(female) x 2
Length of mains lead 10m (H05RN-F) 10m (H05RN-F)
Ingress protection IPX8 IPX8
Weight 3.6kg 4.9kg

9
SVENSKA
Dränkbar pump 150/233 l/min
Art.nr 18-3567 Modell LKS-400P-UK
40-9032 LKS-400P
18-3568 LKS-750PW-UK
40-9033 LKS-750PW
Läs igenom hela bruksanvisningen före användning och spara den sedan för framtida
bruk. Vi reserverar oss för ev. text- och bildfel samt ändringar av tekniska data.
Vid tekniska problem eller andra frågor, kontakta vår kundtjänst.
Säkerhet
• Anslut alltid pumpen via en jordfelsbrytare som löser ut vid < 30 mA felström.
• Kontrollera alltid pumpen före användning, särskilt nätsladden och stickproppen.
Använd aldrig pumpen om den är skadad.
• Om nätsladden skadas får den endast bytas av kvalificerad personal.
Kontakta kundtjänst.
• Se till att elanslutningar (skarvuttag, jordfelsbrytare etc.) är placerade på torr plats,
skyddade vid ev. översvämning.
• Utsätt inte nätsladden för stark värme, olja eller vassa kanter.
• Pumpen är inte konstruerad för att användas kontinuerligt.
• Skydda pumpen mot frost.
• Pumpen är lämplig för att pumpa rent eller grumligt vatten med en partikelstorlek
på max 5 mm för 40-9032 och max 25 mm för 40-9033, swimmingpoolvatten eller
tvättvatten. Tänk på att sand eller andra slipande material i vätskan som pumpas
ger ökat slitage och reducerad kapacitet.
• Pumpen får aldrig användas i swimmingpool om människor eller djur befinner sig
i vattnet.
• Pumpen är vattenskyddad och sänkbar till ett djup på max 7/7 m.
• Kontrollera att tryckhöjden inte överskrider 7/8 m.
• Pumpen får inte användas till frätande, brännbara eller explosiva vätskor som
bensin, fotogen eller förtunning. Inte heller får pumpen användas till fetter, oljor,
bräckt vatten, saltvatten, urin eller avloppsvatten från toalett.
• Temperaturen på vätskan som pumpas får inte överstiga 35 ºC.
• Torrkörning ska undvikas eftersom det leder till snabb förslitning. Stäng omedelbart
av pumpen när vattnet slutar rinna ur slangen.
• Undvik att köra pumpen mot stängt utlopp i mer än 10 min.
• Pumpen har ett inbyggt termiskt motorskydd och stängs automatiskt av när den
blir överhettad. Motorn startar automatiskt när den har svalnat.
• Om du har pumpat klorerat vatten, t.ex. till swimmingpool, bör du pumpa rent
vatten efteråt för att skölja ur pumpen.

10
SVENSKA
Produktbeskrivning
Pumpen är avsedd för privat bruk i hem och trädgård. Lämpliga användningsområden är:
• Tömning av behållare
• Transport av vätskor
• Pumpning av vatten från källor och trummor
• Länspumpning av båtar
• Vattencirkulation under begränsad tid
1. Övre utlopp (invändig gänga R32)
2. Låsning för flottörkabel
3. Bärhandtag
4. Nätsladd med stickpropp
5. Flottör
6. Nedre utlopp (invändig gänga R32)
7. Plugg för utlopp som ej används
8. Fot med inlopp
9. Anslutningsdetaljer:
- Universalanslutning för
slang, 38 mm och 25 mm +
utvändig gänga R25 och R32
- 90° böj, utvändig gänga R32
- Rak anslutning,
utvändig gänga R32
9
1
2
3
4
5
678
