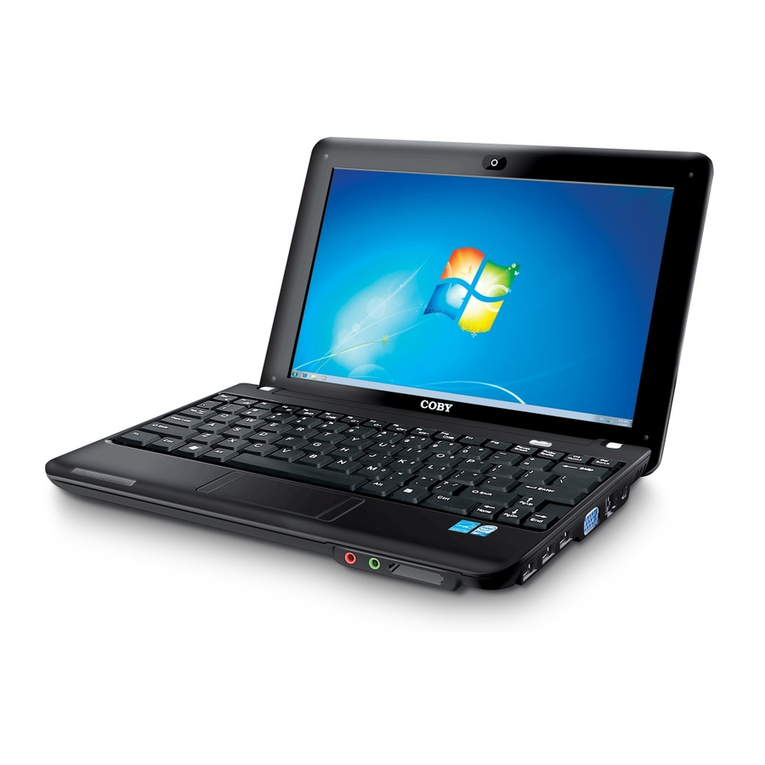

Coby NBPC1165 User manual
NBPC1025/NBPC1165
ES
FR
DE
PT
Please read carefully before use
English
Table of Contents
PACKAGE CONTENTS ........................................................ 4
SAFETY PRECAUTIONS ..................................................... 5
General Operation .................................................................................................. 5
Battery ........................................................................................................................ 6
Power Connection................................................................................................... 6
Unit Components .................................................................................................... 7
NETBOOK AT A GLANCE ................................................... 8
Top View ..................................................................................................................... 8
Left View................................................................................................................... 10
Bottom View............................................................................................................ 11
BASIC OPERATION ...........................................................12
Power......................................................................................................................... 12
AC Power................................................................................................... 12
Battery Power ........................................................................................... 12
Getting Started....................................................................................................... 14
Turning On Your Computer ................................................................. 14
Sleep Mode ............................................................................................... 14
Shut Down ................................................................................................ 14
Keyboard Functions.............................................................................................. 15
Function Key Combinations ................................................................ 15
Numeric Keypad ...................................................................................... 16
Using the Touchpad.............................................................................................. 17
www.cobyusa.com Page 3
English
Tableof Contents
FEATURES .........................................................................18
Using Memory Cards ............................................................................................ 18
Using the Web Camera ........................................................................................ 18
Using the Internet.................................................................................................. 18
LAN Port ..................................................................................................... 18
Wireless ...................................................................................................... 19
Installing Device Drivers...................................................................................... 19
EXTERNAL DEVICES ........................................................ 20
Connecting aUniversal Serial Bus(USB) Device..........................................20
Connecting an External Display........................................................................20
Connecting an Audio Device............................................................................. 21
Connecting an External Microphone.............................................................. 21
TROUBLESHOOTING ....................................................... 22
SPECIFICATIONS.............................................................. 27
FCC STATEMENT .............................................................28
Page 4 Coby Electronics Corporation
English
PackageContents
Congratulations on yourpurchase of aCoby netbook computer. This
instruction manual guides you in setting upand using yournew com-
puter. Please read the manual carefullybefore operation, and keep it
for future reference.
This package contains:
Coby computer unit
–VAC adapter
NBPC1025: -cell lithium-ion battery
NBPC1165: -cell lithium-ion battery or
6-cell lithium-ion battery
This package may contain plastic bags or other materials that
pose a hazard to children. Be sure to safely dispose of all pack-
ing materials after opening.
Product names used herein are for identification purposes only
and may be the trademarks of their respective companies. Mi-
crosoft®, Windows® XP, Windows® 7, and Windows Sound Sys-
tem are trademarks of Microsoft Corporation. Intel®, Intel®
Core™, Intel® HD Audio (Azalia) are registered trademark of Intel
Corporation. All other brands or product names mentioned in
this manual are trademarks or registered trademarks of their
respective companies.
English
Safety Precautions
Follow the guidelines below to ensure the safe operation of
your computer.
General Operation
Set up and store the computer on a firm, flat surface. Make sure
that your workspace allows for proper ventilation.
To avoid overheating, do not operate the computer on a soft
surface, such as a bed, for long periods of time.
Keep the computer away from water. Exposure to moisture may
cause malfunction or riskof electric shock.
Do not expose the computer to excessive heat, including direct
sunlight and heat-producing appliances.
To avoid potential damage to the hard drive, do not expose the
computer to electromagnetic fields from stereos, microwaves, or
other household appliances.
If liquid is spilled on or into the computer, unplug it immediately
and contact customer service.
Clean with a damp cloth or mild detergent; do not use harsh
chemicals.
Handle your computer gently to avoid hard drive damage. Do not
drop the computer.
Backup your hard drive regularly to avoid loss of data in the event
of damage.
English
Safety Precautions
Battery
Use only the recommended battery pack.
Keep metallic objects, such as keys and clips, away from the bat-
tery pack.
To avoid riskof fire, keep electrical appliances away from the bat-
tery pack.
Do not expose the battery packto heat or moisture.
Do not short-circuit the battery terminals.
To avoid damage to the battery, make sure that the battery catch
locks firmly in place upon installation.
Power Connection
Connect to a properly grounded outlet of the recommended volt-
age, only.
Do not use the power cord if it is damaged or frayed.
Do not connect the power cord to a loose or damaged socket.
To unplug the power cord, hold the body of the plug and pull
gently. Do not yankor stress the cord.
Disconnect the cord before cleaning the computer.
Disconnect the cord during electrical storms.
English
Safety Precautions
Unit Components
Do not connect the LAN port to a telephone line.
Connect only appropriate devices and drives to the SD, USB and
modem ports on the unit. Do not insert other objects into these
ports.
Do not stress, bend, or scratch the LCD. Doing so may cause it to
break.
Do not touch or ingest the liquid that spills from a broken LCD.
Do not operate the wireless internet within meters of a micro-
wave oven or plasma lamp.
Page 8 Coby Electronics Corporation
English
Netbook at aGlance
Illustrations in this manual may di er from the actual product.
Top View
1.Web camera
2. Display panel
3.Power button
4.Keyboard
5. WIFI statusindicator
6.Battery power statusindicator
7. Power statusindicator
8. Integrated mouse(left/right click)
9.Touchpad
10. AC adapter jack
1
2
3
89
4
7
5
6
13
10
11
12
14
15
16
17
18
11.LAN connection (broadband
or cableinternet input)
12. VGAconnection (monitor or
projector input)
13.Vent
14.HDMI
15. USB port (x2)
16.Headphone jack
17. Microphone jack
18. SD card slot (SDHCcompatible
www.cobyusa.com Page 9
English
These indicators display yourcomputer’scurrent status. Please refer to
the tablebelow for more information.
Indicator
Symbol
Indicator TypeAppearanceStatus
Power Solid blue System on
Flashing blue System in standby mode
O System o/hibernating
Battery O Battery charged
Solid red Charging
Flashing red Low battery
Wireless LAN O No power to wireless card/ RF
deactivated
Flashing blue, slow Wireless client is not associ-
ated with the network
Flashing blue, rapid Wireless transmitting/receiv-
ing data
Caps/Number
Lock
Solid blue Caps lock on
Solid red Number lock on/numeric
keypad active
Solid pink Caps lock on, Number lock on/
numeric keypad active
Netbook at aGlance
Page 10 Coby Electronics Corporation
English
LeftView
1.AC adapter jark
2. LAN connection(broadband or cableinternet input)
3.VGAconnection(monitor or projector input)
4.Vent
5. HDMI (HDport)
To avoid overheating, do not block the vents when the com-
puter is in use.
Netbook at aGlance
12345
www.cobyusa.com Page 11
English
Bottom View
1.Battery latch (manual)
2. Battery pack
3.Battery latch (automatic/
spring-loaded)
4.Vent
5. Hard drivecompartment
Do not attempt to disassemble or replace your hard drive. For
assistance with hard drive replacement and repair, contact a
qualified service professional.
To avoid overheating, do not block the vents when the com-
puter is in use.
Netbook at aGlance
12
3
4
5
English
BasicOperation
Power
Your computer includes both an AC adapter and built-in, rechargeable
lithium-ion battery for maximum portability.
AC Power
Use the AC adapter to run your computer on AC power and charge the
battery. To connect the AC adapter:
Connect the power cord to the transformer pack.
Plug the power cord into an electrical outlet.
Connect the AC adapter to the AC power adapter jackof the com-
puter.
Battery Power
Make sure the battery is fully charged before first use. The battery
power status indicator will flash when the battery is low. Connect the
AC adapter as instructed above to charge the battery.
To replace the battery:
Shut down the computer and disconnect all cables, including the
AC power cord.
Turn the computer over to access the battery release. Slide the bat-
tery release latch to the unlockposition and hold.
Slide the battery out.
Slide the replacement battery into the bay until it clicks into place.
Slide the release latch to the locked position.
www.cobyusa.com Page 13
English
The components and programs on your computer consume
power at dierent rates. Using power-intensive components/
programs will cause the battery to drain faster.
Your computer’s operating system may run more slowly when
operating on battery power.
Use only approved battery packs to power your computer. Us-
ing an incompatible battery may increase the risk of fire or ex-
plosion.
Do not attempt to disassemble or modify the battery pack. A
battery pack other than the one specified by us, or a disassem-
bled or modified battery pack, is not covered by the warranty.
When disposing of the battery, comply with local ordinances
and regulations. Do not attempt to dispose of the battery in
your household trash.
Basic Operation
English
Getting Started
Open the computer and adjust the display panel for comfortable viewing.
Turning On Your Computer
Press the power button to turn on the computer.
Sleep Mode
When you finish working with your computer, you can put it to sleep
or shut it down.
Use sleep mode if you will be away from your computer for only a
short time. To enter sleep mode:
Clickthe Start menu and select Sleep, or
Press Fn + Esc.
To wake the computer, press the Power button.
Wait until the power indicator light starts blinking (indicating
that the computer is in sleep) before you move your computer.
Moving your computer while the hard disk is spinning may
cause damage or loss of data.
Shut Down
Your computer should be shut down when not in use for hours or
more. Enter the Start menu and select Shut Down to turn off the com-
puter.
BasicOperation
English
Keyboard Functions
Your computer’s standard keyboard incorporates a numeric keypad
and function keys.
Function Key Combinations
The function keys allow you to change your computer’s operating
features instantly. See below for more information on using function
key combinations.
Key Description
Fn + Esc Put your computer in sleep mode.
Fn + F1 Enable/disable the built-in wireless internet.
Fn + F3 Mute.
Fn + F4 Enable/disable the touch pad.
Fn + F5 Shift to other connected display devices, i.e. another monitor.
Fn + F6 Decrease display brightness.
Fn + F7 Increase display brightness.
Fn + F8 Decrease computer volume.
Fn + F9 Increase computer volume.
Fn + F10 Turn on/off the LCD screen.
Fn + Ins/NumLk Enable/disable the Numeric keypad.
BasicOperation
English
BasicOperation
Numeric Keypad
When enabled, the keys indicated below can be used as a -key nu-
meric keypad. To enable or disable the numeric keypad, press Fn+Ins/
NumLk.
www.cobyusa.com Page 17
English
Basic Operation
Using the Touchpad
Use the touchpad and integrated mouse to navigate yourcomputer’s
operating system. Tomovethe cursor on the screen, slide yourfingertip
over the touchpad in the direction in which you want the cursor to move.
Use the left/right click buttons on the integrated mouse just as you
wouldthe left/right click on aconventional mouse to select objects,
open programs, or retrieveinformation.
1.Touchpad
2. Left click
3.Right click
Use one finger only to navigate the touchpad. Moisture or dirt
may cause the touchpad to function incorrectly.
Sharp objects or excessive pressure may damage the touch-
pad’s surface.
Do not attempt to remove the cover of the touchpad.
English
Features
Using Memory Cards
Your computer includes an SD memory card slot for easy transfer of
data. To insert a memory card, orient the memory card with the label
upward. Gently slide the card into the slot.
To remove a memory card, grasp it by the end and pull gently.
When a memory card is fully inserted, the rear half of the card
will remain outside of the card slot.
Using the Web Camera
The built-in web camera can be used for capturing photos, recording
video, or as a component of chat and conferencing applications.
Windows users will need to install a third-party dedicated applica-
tion in order to take pictures and video using the webcam.
Using the Internet
Your computer comes with LAN port for Ethernet connection or local
area network(LAN), as well as a built-in wireless connection.
LAN Port
The LAN port supports a standard RJ- connector, and allows you to con-
nect the computer to an Ethernet connection and local area network(LAN).
Do not attempt to connect a telephone cable (types RJ11,
RJ14, RJ25, RJ61) to the LAN port. Doing so may short-circuit
your computer.
English
Wireless
An antenna system is built into the display for optimal reception,
enabling wireless communication wherever you are. To connect to the
internet wirelessly, press Fn + F.
Installing Device Drivers
A compatible device driver is required to ensure correct operation and
performance of each component in your computer.
Most installations require a reboot to update the driver. Be sure
to perform this step when prompted.
Failing to reboot may compromise the system’s stability and re-
quire reinstallation of the operating system.
Features
!
English
External Devices
Your computer includes multiple connection ports for maximum
performance and productivity.
Do not connect or disconnect any external device cables other than
USB cables while the computer power is on. To avoid possible damage
to attached devices, wait at least five seconds after the computer is
shut down to disconnect external devices.
Connecting a Universal Serial Bus (USB)
Device
Your computer comes with three Universal Serial Bus Ports compatible
with USB . or USB . devices such as a keyboard, mouse, camera,
hard diskdrive, printer, and scanner. USB devices may be connected
and disconnected without rebooting the computer (hot swapping),
and allow specific classes of hardware to be used without requiring
individual device drivers to be installed.
When using a high power consumption USB device such as
USB HDD, use an external device power adapter to avoid sys-
tem damage.
Connecting an External Display
You can connect a VGA monitor via the computer’s built-in VGA port.
To connect a VGA monitor, plug the -pin display cable into the cor-
responding VGA port on your computer.
To shift to other connected display devices, press Fn + F. You may
also select a device using the Control Panel ÆDisplay menu.
This manual suits for next models
1
Table of contents
Other Coby Laptop manuals
