Coby TF TV1022 - 10.2" LCD TV User manual

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended
to alert the user to the presence of uninsulated “dangerous voltage” within the
product’s enclosure that may be of sufficient magnitude to constitute a risk of
electric to persons.
The exclamation point within an equilateral triangle is intended to alert the user to
the presence of important operating and maintenance (servicing) instructions in the
literature accompanying the appliance.
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO
NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
Important Safety Instruction
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended
to alert the user to the presence of uninsulated “dangerous voltage” within the
product’s enclosure that may be of sufficient magnitude to constitute a risk of
electric to persons.
The exclamation point within an equilateral triangle is intended to alert the user to
the presence of important operating and maintenance (servicing) instructions in the
literature accompanying the appliance.
Important Safety Instruction
CAUTION:
These servicing instructions are for use by qualified service personnel only. To reduce the risk
of electric shock, do not perform any servicing other than that contained in the operating
instructions unless you are qualified to do so. Refer to manual for servicing instructions.
POWER SUPPLY:
Connect one end of the supplied AC adapter to the DC12V jack on the unit side panel and the
other end to the AC100-240V wall outlet. If the unit will not be used for a long time, disconnect
the plug from the outlet.
POWER MANAGEMENT
Before plugging the power cord into the AC outlet, make sure that all the connections have
been properly made.
If the unit will not be used for a long period of time, disconnect the power and remove the
batteries form the remote.
•R
R
TF-TV1022
Please read this manual before connection and use.
Customer Service Hours
Monday- Friday 8:00AM ~ 11:00PM (EST) 1-800-681-2629 or 718-416-3197
Monday- Friday 6:30PM ~ 11:00PM (EST) 1-800-727-3592
Saturday- Sunday 9:00AM ~ 11:00PM (EST) 1-800-727-3592
Or Send E-Mail to: [email protected] / [email protected]

Important Safety Instruction
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Maintain well ventilated conditions around the product. Do
not put product on bed, sofa or anything that blocks ventilation. Install according to instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two
blades with one wider than the other. If the provided plug does not fit into your outlet, consult an
electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles,
and the point where they exit from the apparatus.
11.Only use attachments/accessories specified by the manufacturer.
12.Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the
apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid
injury from tip-over.
13.Unplug this apparatus during lightning storms or when unused for long periods of time.
14.Refer all servicing to qualified service personnel. Servicing is required when the apparatus has
been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled
or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture,
does not operate normally, or has been dropped.
15.Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as
vases, shall be placed on the apparatus.
Copyright Protection
Unauthorized copying, broadcasting, public performance, and lending of disks are prohibited. This
product incorporates copyright protection technology that is protected by method claims of certain U.S.
patents and other intellectual property rights owned by Macrovision Corporation and other rights
owners. Use of this copyright protection technology must be authorized by Macrovision Corporation,
and is intended for home and other limited viewing uses only unless otherwise authorized by
Macrovision Corporation. Reverse engineering or disassembly is prohibited.
Table of Contents
Table Of Contents
Important Safety Instruction
Unpacking --------------------------------------------------------------------------------------------------------------------1
Unit View-----------------------------------------------------------------------------------------------------------------------2
Remote Control --------------------------------------------------------------------------------------------------------------3-4
Cable Connections----------------------------------------------------------------------------------------------------------5
TV Function-------------------------------------------------------------------------------------------------------------------6-9
AV Function-------------------------------------------------------------------------------------------------------------------10
PC Function-------------------------------------------------------------------------------------------------------------------11
Troubleshooting--------------------------------------------------------------------------------------------------------------12
Specifications ----------------------------------------------------------------------------------------------------------------13
R

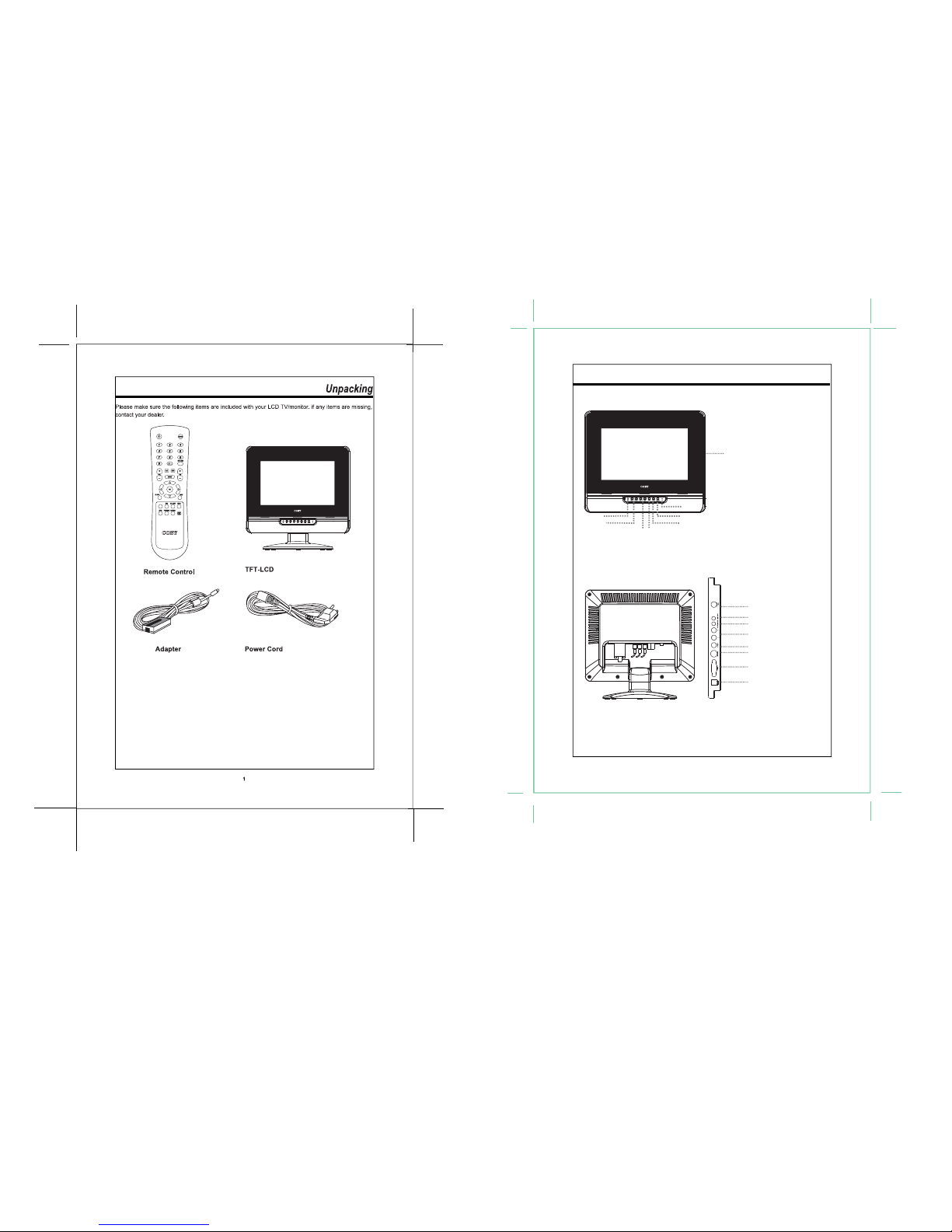

Unit View
2
1. TFT SCREEN
2. REMOTE SENSOR
3. VOLUME-/+
4. CH-/+
5. MENU
6. MODE
7. POWER
8. POWER INDICATOR
9. TV ANTENNA JACK
10. LINE OUT JACK
11. PC AUDIO IN
12. AUDIO IN (R/L)
13. VIDEO IN
14. S-VIDEO IN
15. VGA IN
16. POWER JACK
R
AC
1
9
10
11
12
13
14
15
16
P-MODE 8
2
3
45
7
6

Remote Control
4
7
R
s
Remote Control
Preparation
1. Take off the back cover and insert two AAA batteries and then put on the cover.
Insert the batteries while observing the correct (+) and (-) polarities.
2. Under normal use, the battery will last for six months.
Using Remote control
Point the remote to the remote sensor from no more than 7 meters and within about 60 degrees of the
front unit.
The operating distance may vary depending on the brightness around.
Notes:
Do not point bright lights directly at the remote control sensor.
Do not place objects between the remote control unit and the remote control sensor.
Do not use this remote control unit while simultaneously operating the remote control unit of any other
equipment.
Remove the batteries from the remote if the player will not be used for a long period of time.
MODE
RETURN

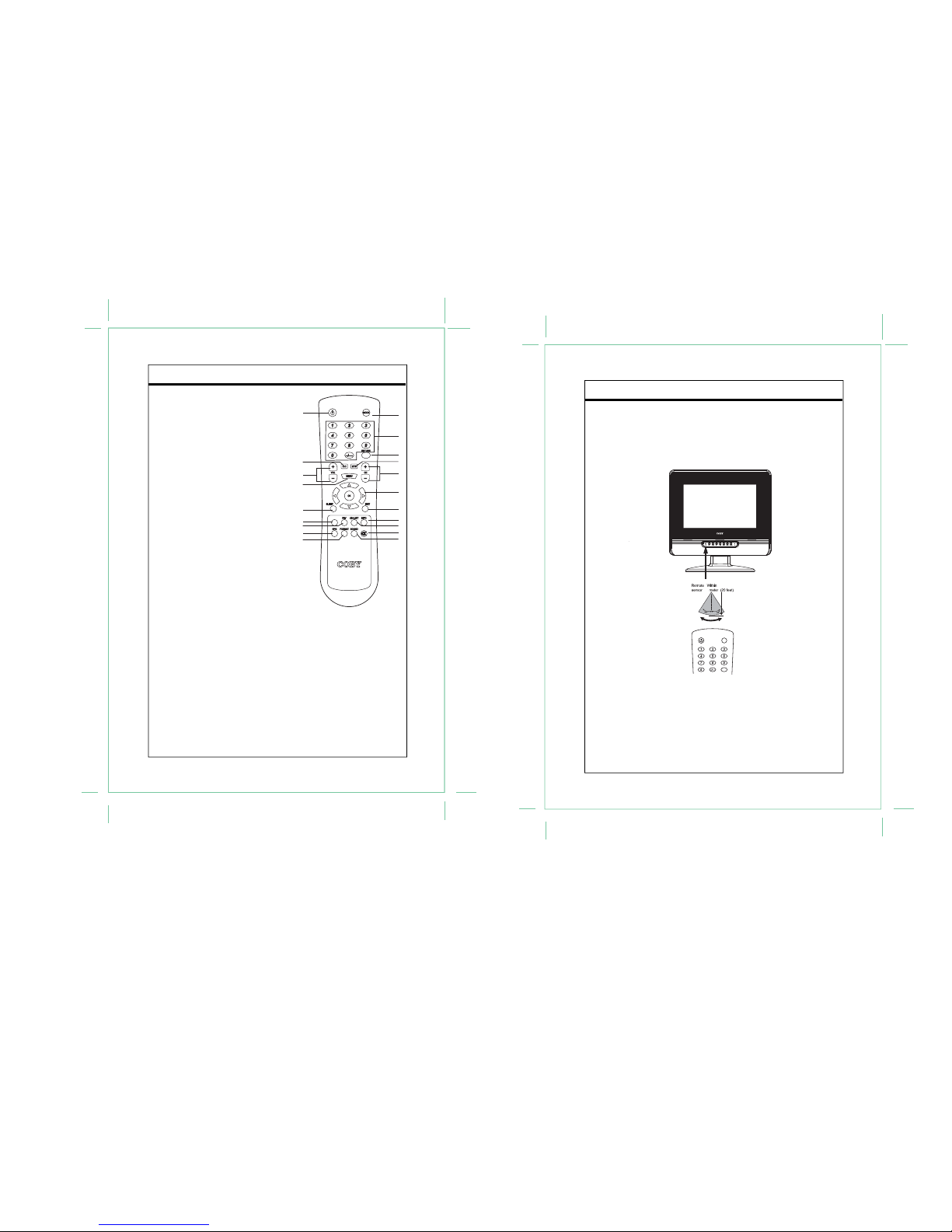

Remote Control
Remote Control Drawing
1. POWER button
Press to turn the power on/off.
2. CC button
Set the CC mode. (CC on Mute/Off/On).
3. VOLUME +/- button
Press to adjust the volume.
4. MENU button
Press to show the setup menu.
5. SLEEP button
Press to set the sleep timer.
6. MODE button
Press to select the working mode.
7. RETURN
Press to view the previous channel.
8. MTS
Press to select the TV audio mode.
9. CHANNEL +/- button
Press to skip channels.
10. Direction & OK button
Press the direction buttons to move the cursor.
Press OK to confirm settings.
11. EXIT button
Press to exit the menu setup.
12. Numeric key pad
Press to input data.
13. P.MODE button
Setup the picture mode (Personal, Standard,
Soft, Dynamic).
14. FAV button
Press to show the Favorite Channel List. If no channel is set on the list,
the button does not function.
15. EPG button
Press to show the Electronic Program Guide.
16. FORMAT button
Set the screen aspect ratio as 16:9 or 4:3.
17. INFO button
Press to show the current working status.
18. CH-LIST button
Press to show the channel list.
19. MUTE button
Press to muffle/release sound.
20. SOUND button
Press to change the sound mode.
3
1
2
3
4
5
13
14
15
16
6
12
7
8
9
10
11
17
18
19
20
P-MODE

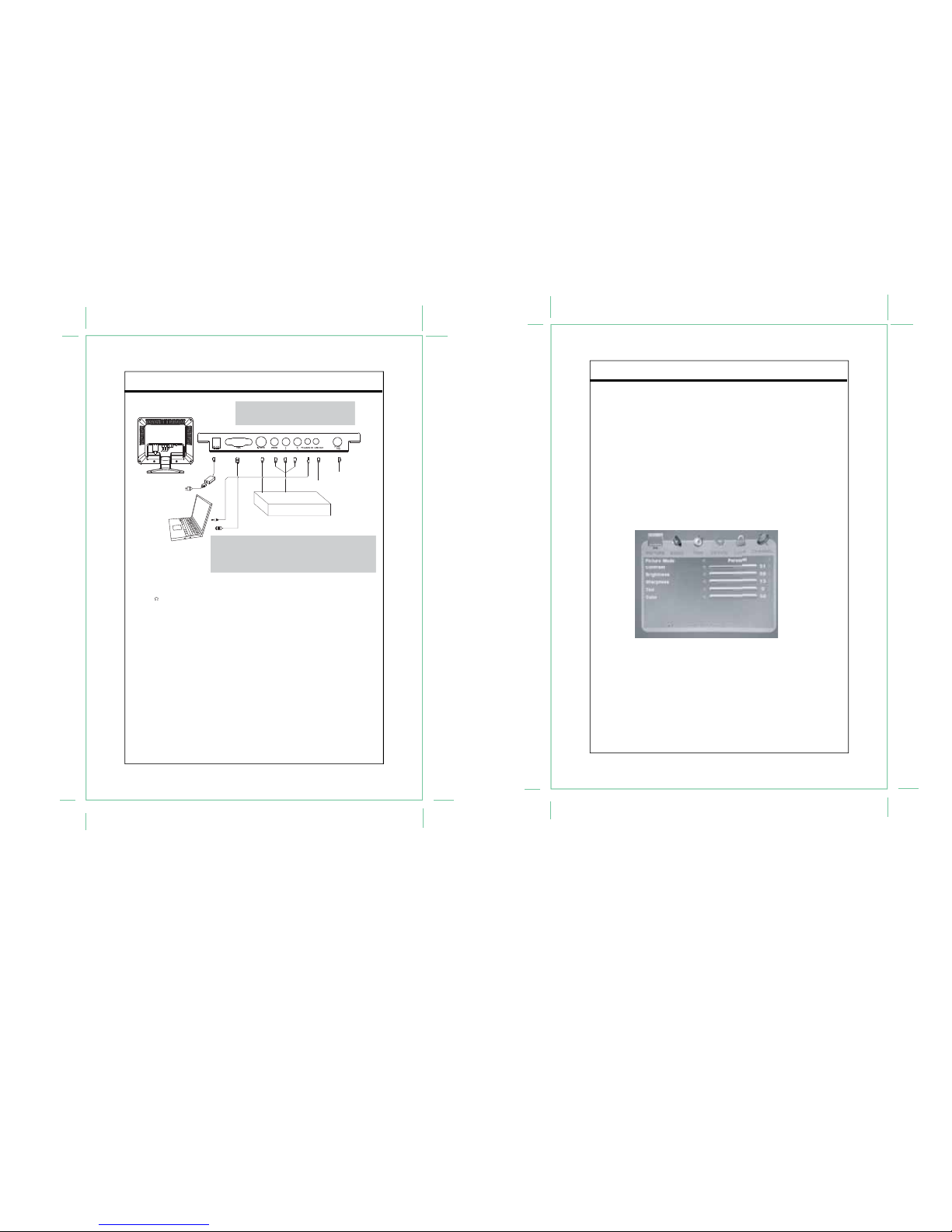

Cable Connections
5
Figure. Cable connections
TV Function
TV Function
Preparations
1. Connect the antenna to the antenna jack on the unit side panel.
2. Connect the power supply cord. Press POWER to turn on the the player.
3. Press MODE on the remote to select TV.
4. Press CH+/- buttons to skip channels or press numeric buttons to input channel directly.

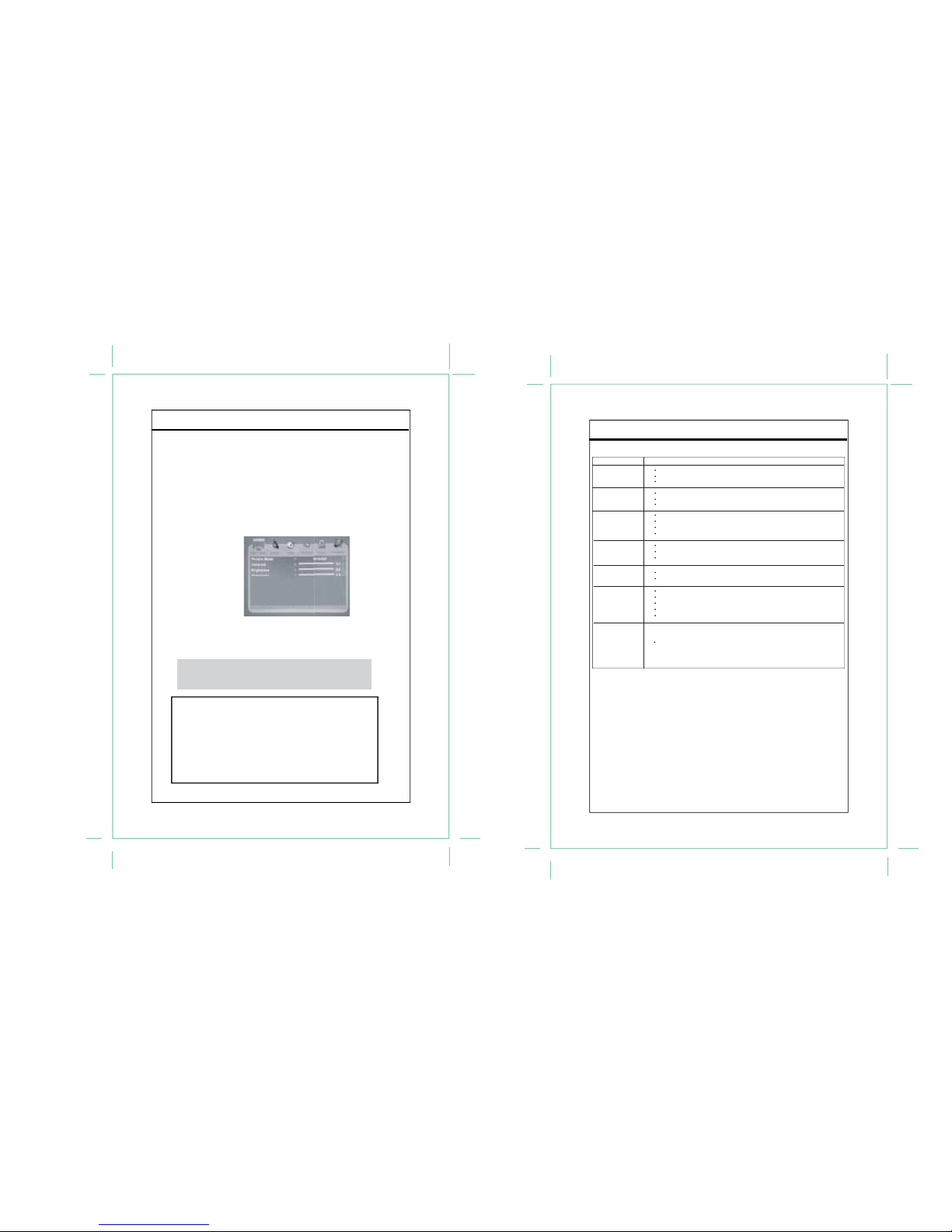

Setup Menu
Various features can be preset through the TV setup menu.
TV setup menu consists of six menus. They are Picture Menu, Audio Menu, Time Menu, Option Menu,
Lock Menu as well as Channel Menu.
1. Press MENU to show the menu window.
2. Press the left/right button to select the menu, press OK to enter the menu.
Working with the menu
While working with the menu,
1. Press the up/down direction button to select the item.
2. Press the left/right direction button to adjust
3. Press MENU to exit.
6
Antenna Connection
Connect TV RF sources to the antenna port. TV RF signals include: receiving antenna/CATV net. You
can use 75 coaxial cable to connect outdoor antenna.
Line Out - Audio Output
Connect the “ Line Out” port to the external speaker or the digital decoding amplifier to output sound.
Line out cable is not supplied.
AV Signal Input
To input the AV signal, you can chose either the S-Vdieo input or the RCA input. We suggest herewith
the S-Video input since it works much better on the image definition than RCA input does.
S-Video - Connect the “S-Video” port by the S-Video cable (not supplied) to input the video signal.
Connect the “L” “R” port to input the audio signal by the white&red plug of the RCA cable.
RCA - - Connect the “Video” port to input the video signal by the yellow plug of the RCA cable.
Connect the “L” “R” port to input the audio signal by the white&red plug of the RCA cable.
VGA Connection (PC Connection)
When used as the computer screen, connect the VGA port by the 15-pin D-SUB signal cable and the
PC Audio In port by the audio cable.
Power Connection
Insert one end of the adaptor to the 12V jack of the unit and the other end to the wall outlet with
AC100-240V. If the unit will not be used for long period of time, please disconnect the power.
DVD OR VCR
R
Set the unit to the relative input mode
to enable the signal pass.
AC100-240V
Outlet
NOTE: 1. Be sure to have all necessary connections properly
done before connect the power supply.
2. When input the AV signal, refer to the manual of the
external sources as well.
