HR170-I Pressure Washer
Art.no 41-1901 Model Q1W-SP02-2500
Please read theentire instruction manual before use and then save it for future
reference. Wereserve theright for any errors in text or images and any necessary
changes made to technicaldata. Intheevent of technical problems or other queries,
please contact our Customer Services (see address details on theback).
Safety
General requirements for household electrical appliances
WARNING
• If themains lead is damaged in any way it must be replaced by aqualified electrician.
• Keep theproduct out of children’sreach. Children must be supervised and never
allowed to play with theproduct.
• Theproduct may be used by persons with reduced physical, sensory or mental
capabilities or persons with alack of experience or knowledge which could
jeopardise their safety, provided they have been instructed in thesafe operation of
theproduct and understand thehazards involved.
Particular requirements for high pressure cleaners
WARNING
• Theproduct has been designed for use with thecleaning agent supplied or
recommended by themanufacturer. Theuse of other cleaning agents may
adversely affect thesafety of theproduct.
• All persons present within theworking area of theproduct must wear protective
clothing.
• Risk of explosion – Never use theproduct to spray flammable liquids.
• Theproduct must not be used by children or untrained operators.
• High pressure hoses, fittings and couplings are important for thesafe use
of theproduct. Onlyuse hoses, fittings and couplings recommended by
themanufacturer.
• Only use original parts for repairs and for your own safety.
• Water that has passed through thenon-return valve should be considered to be
non-potable.
• Theproduct must never be connected to thepower supply during cleaning,
maintenance or when changing accessories.
• Do not use theproduct if themains lead or other parts such as safety devices,
high pressure hoses or trigger are damaged in anyway.

ENGLISH
4
• Extension leads not designed for use with this product may be dangerous.
Ifanextension cable is used, it must be approved for outdoor use, kept dry and
raised above groundlevel. Inorder to achieve this it is advisable to use acable reel
which will support theconnection at least 60mm above groundlevel.
Connecting to the mains supply
Themaximum permissible impedance of thepower supply system to which thepressure
washer is connected is 0.299 Ω. If necessary, consult with your supply authority to
ensure that theequipment is connected only to asupply of that impedance or less.
Dangerous voltage
• Thewall socket that theproduct is connected to must have been installed by
acompetent electrician in accordance with IEC 60364-1 standards.
• Theproduct should be connected to themains via anRCD (tripping atmax.
30mA withinmax. 30ms).

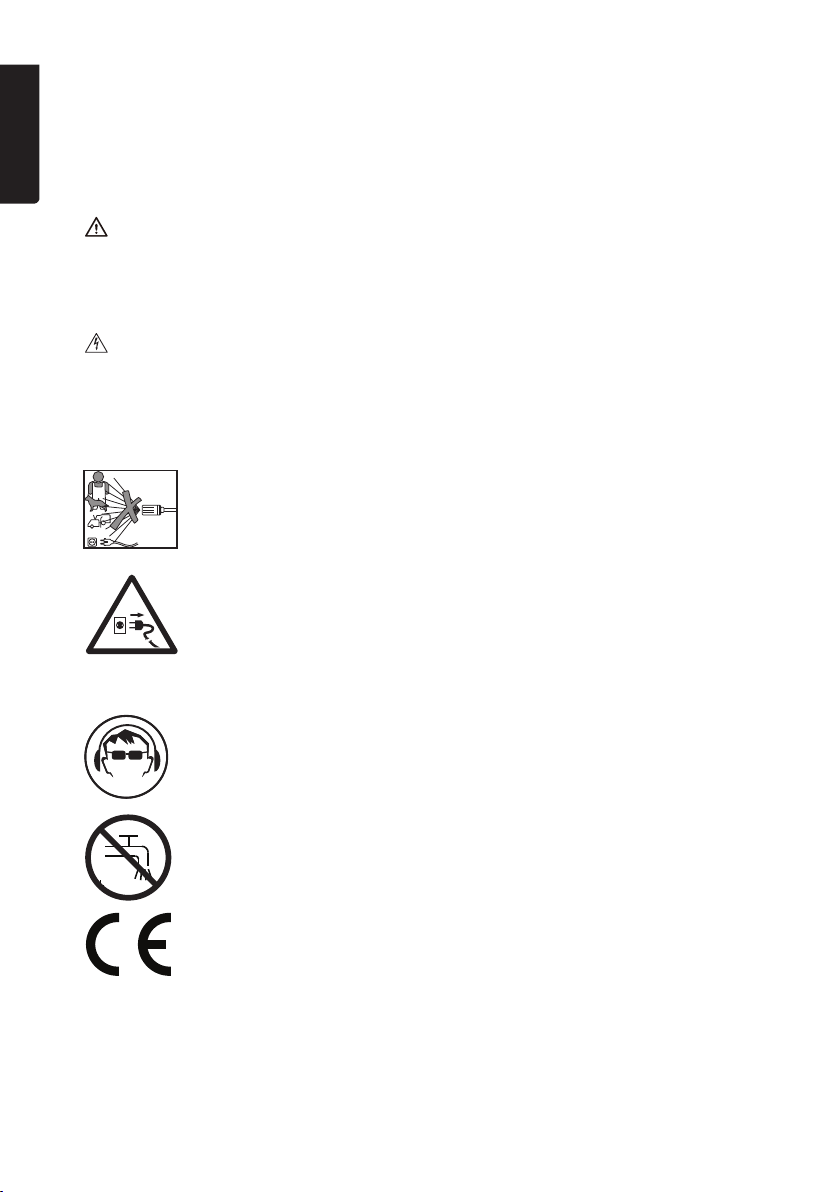

• WARNING: Waterjets under high pressure can be dangerous if
used incorrectly. Neverdirect thewater jet towards people, animals,
thepressure washer itself or any other electrical equipment.
• Never direct thewater jet towards yourself or others to clean
clothing or footwear.
• Always unplug theproduct when it is not being used, is left
unattended or is to bemoved.
Safety instructions
Always use safety glasses/visor and hearing protection.
Thepressure washer must not be connected directly to thepublic
drinking water supply. Ifyou are forced to use adrinking water supply,
thepressure washer must be equipped with anon-return valve and
hose meeting IEC 61770 standards.
Declaration of Conformity.

ENGLISH
5
WARNING
• Unplug thepressure washer from thepower supply immediately if it should start to
vibrate or behave abnormally.
• Thepressure washer must never be carried by themains lead or thepressurehose.
• Keep thework area free of bystanders andpets.
• Never use thepressure washer if you are tired or under theinfluence of drugs,
alcohol or medication.
• Never try to repair thepressure washer or any of its accessories by yourself.
Allrepairs must be carried out by qualified technicians using original spareparts.
Dangerous voltage
• Always unplug thepressure washer if its mains lead is damaged in anyway.
• Always check that thepressure washer, mains lead and plug are undamaged
before use in order to avoid thepossibility of electricshock.
• Make sure that thevoltage at thewall outlet corresponds to thevoltage marked on
therating plate of thepressure washer.
Important
• Thepressure washer should be used only as described in this manual.
Usingthepressure washer for other than its intended use may lead to personal
injuries or material damage.
• Do not route themains lead over aroad, track, cycle path,etc., where it could be
damaged or where someone could trip overit.
• Always adopt abalanced stance with both feet on theground when using
thepressure washer.
• Make sure that thepressure washer cannot be started accidentally. Always switch
thepressure washer off before unplugging it from thewall socket.
• Disconnect thepressure washer from thepower supply by unplugging it from
thewall socket. Makesure that thewall socket and plug are easily accessible.
• Store thepressure washer in adry, frost-free location.
Application
• Thepressure washer is designed to clean walls, terraces, cars, lawnmowers,
bicycles,etc. Whennecessary, thepressure washer may be used with specialised
detergents.
• Thepressure washer is designed to be used outdoors for cleaning masonry, wood,
metal and plastic materials.
• The pressure washer is only intended for private, non-commercialuse.

ENGLISH
6
1
2
3
4
56
7
8
9
10
11
12
13
14
15
16
17
18
19

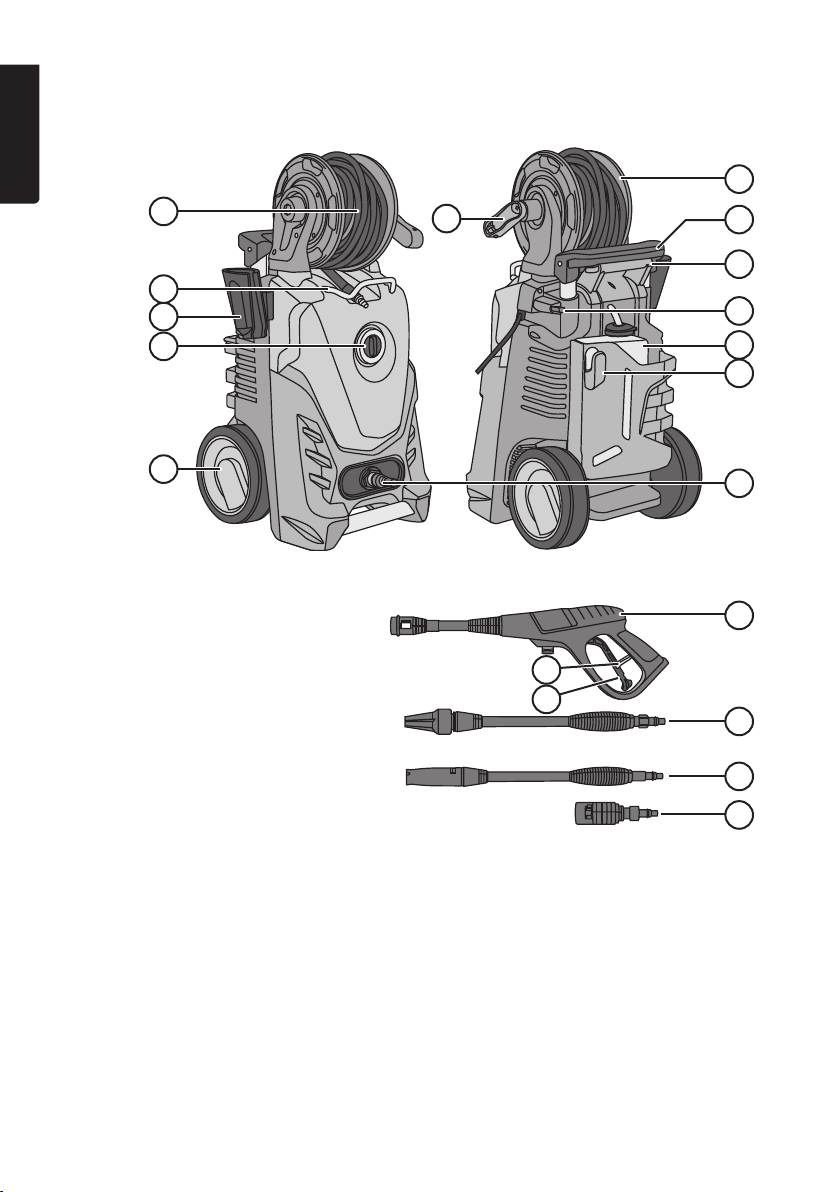

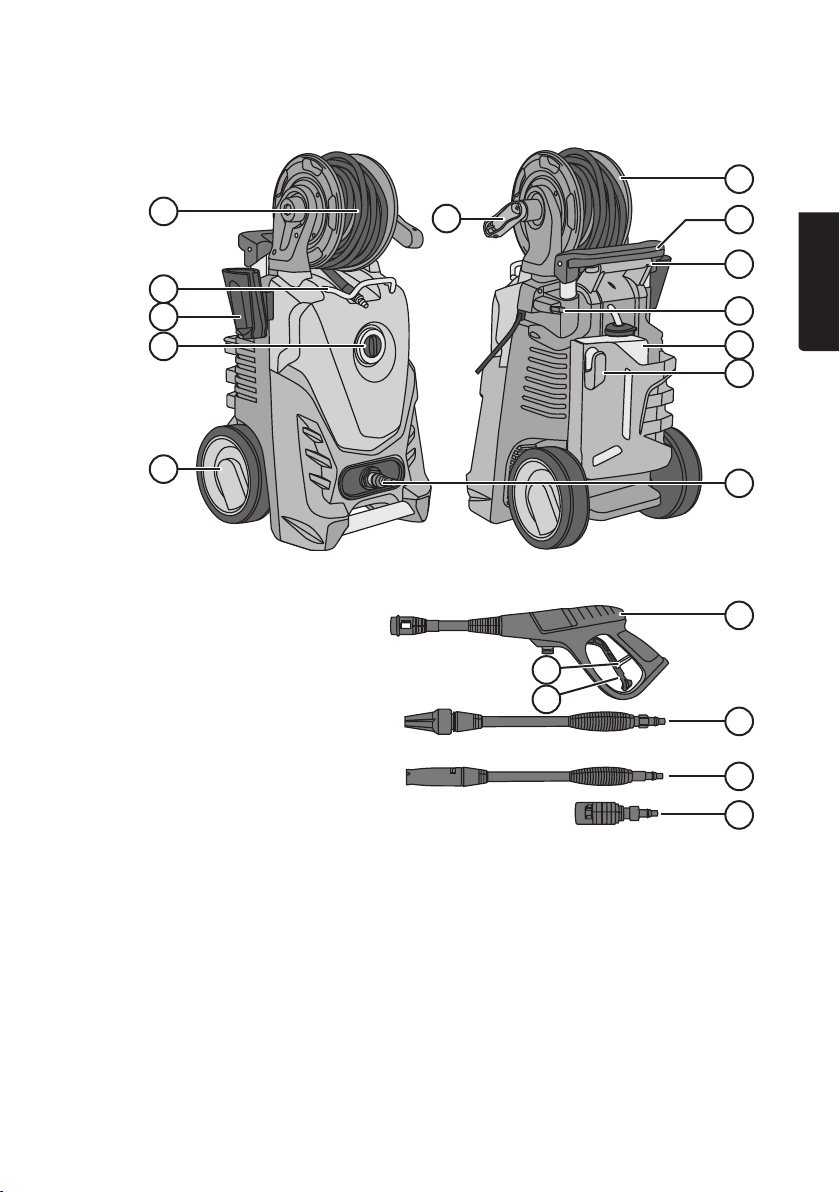

Product description
1. Wheels
2. [I/0 ] Power switch, on/off
3. Trigger gun holster
4. Pressure hoseguide
5. Pressurehose
6. Hose reel crank (folding handle)
7. Hose Reel
8. Trolley handle (telescopic)
9. Carrying handle
10. Cleaning needle
11. Detergent container
12. Mains lead holder
13. Water supply inlet /hose
connector
14. Triggergun
15. Turbo-nozzlelance
16. Standard lance with adjustable
nozzle
17. Karcher accessory adapter
18. Trigger
19. Triggerlock

ENGLISH
7
Assembly
5. Screw thehose connector (13) to
thewater inlet connector. Finger-
tightenonly.
1. Turn theon-off switch (2) to 0.
3. Screw thepressure hose (5)
securely onto thetriggergun.
2. Attach theholster (3) for thetrigger
gun (14) to thebracket on theside
of thepressure washer.
4. Connect one of thespray lances (15 or 16), theadapter (17) or other accessory
(sold separately) to thebayonet fitting on thetriggergun. Twistit ¼ turn until
itlocks.

ENGLISH
8
Instructions for use
Warning: Riskof equipment damage/personal injury.
• Thepressure washer should never be run dry (without water) as this may damage
thepump.
• Thepressure washer must always be operated in anupright/vertical position,
never in thehorizontal position.
• Bear in mind that thepressure washer may still be under pressure even if it is
switchedoff. De-pressurise thepressure washer by pulling thetrigger (18) until
no water comes out before disconnecting thehoses. Disconnecting thepressure
hose while thesystem is still under pressure can be dangerous.
• Thespray lance/trigger gun is subjected to arecoil force when thewater jet is
discharged. Makesure that you have afirm footing and are holding thespray lance
and trigger gun firmly in bothhands.
• Do not use awater connection hose shorter than 6 metres in length and with
adiameter of 1/2 inch, theconnection hose will buffer any possible pressure surges
in thewater lines and protect thepressure washer so that it works more smoothly.
• Thewater supply temperature must not exceed 40 °C. Let the water run for
amoment if thehose has been in thesun and becomewarm.
• Never look into thenozzle when it is attached to thewasher.
Read carefully through theinstruction manual before using thepressure
washer, pay particular attention to thewarning texts and symbols.
1. Connect awater hose with a1/2 inch quick-connector to thewater inlet hose connector.
2. Connect theother end of thehose to atap.
3. Turn thepower switch (2) to 0.
4. Plug themains lead into awall
socket.
5. Pull thetrigger and let water flow
through thespray lance for about
five seconds.
6. Fold out thetrigger lock (19) to
prevent thetrigger from being
pulled.
7. Unwind asufficient length of
thepressurehose.

ENGLISH
9

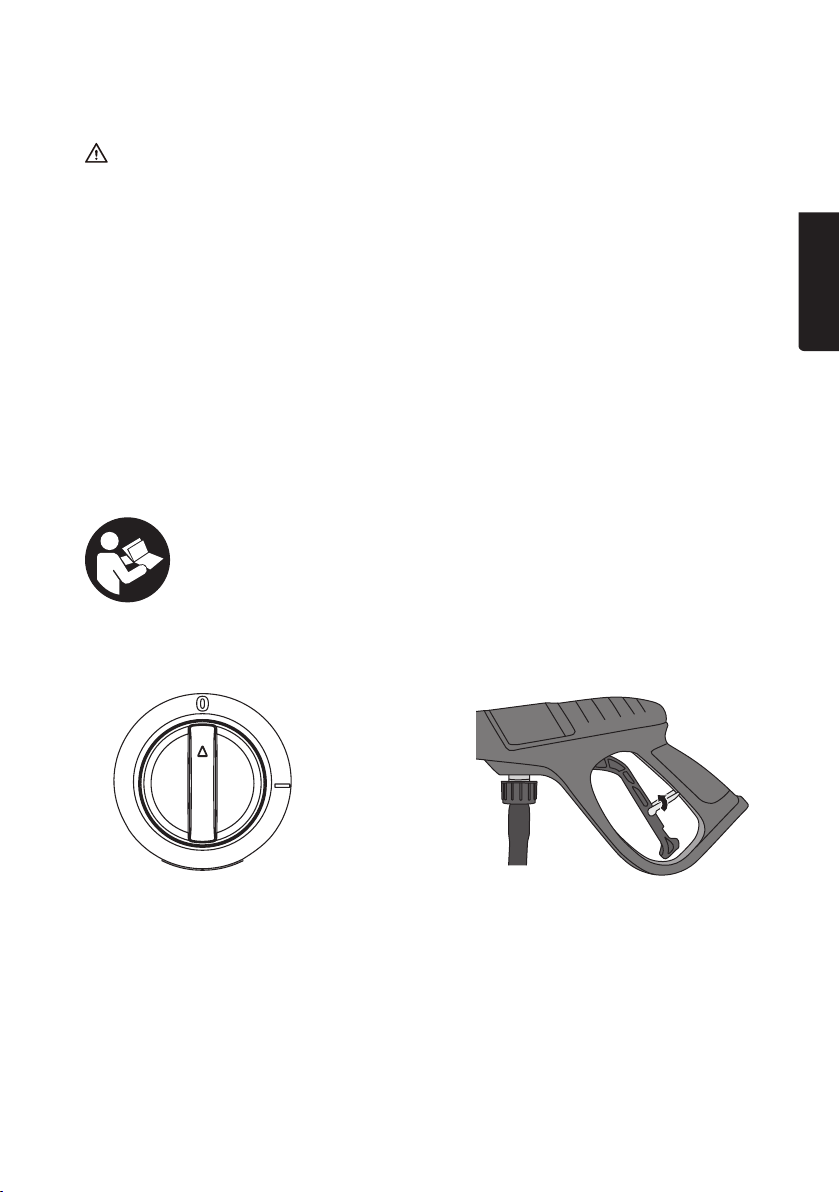

8. Turn thepower switch to the I
position to switch thepressure
washeron.
9. Point thetrigger gun/
attachment towards theobject
to be cleaned.
10. Fold in thetrigger lock and pull thetrigger to
start sprayingwater.
Information: Therecommended
distance between thenozzle and thesurface
to be cleaned is approx. 30cm. Shorter
distances provide ahigher degree of
cleaning power, but can damage thesurface
being cleaned. Longer distances result in
agentler cleaningjet. Adaptthedistance to
thesuit thesensitivity of thesurface.
11. Release thetrigger when you have finished cleaning.
12. Turn thepower switch to the 0position to switch thepressure washeroff.
13. Turn off thewatertap.
14. Pull thetrigger for afew seconds or however long it takes for water to stop coming
out of thenozzle. Foldout thetriggerlock.
15. Unplug themains lead from thewall socket. Coilthemains lead and hang it on
theholder (12).
16. Wind thehigh-pressure up onto thehose reel (7) using thecrank (6).
Adjusting the pressure and spray pattern
(does not apply to turbo lance)
Thepressure and spread of thewater jet can be adjusted when using thestandardlance.
1. Move thenozzle towards theend of thelance to lower thepressure.

ENGLISH
10
Using detergents (does not apply to turbo lance)
1. Remove thelid and pull thehose out of thedetergent container (11).
2. Fill thedetergent container with detergent.
3. Refit thehose and thelid.
2. Move thenozzle towards thetrigger gun to raise thepressure.
3. Twist thenozzle to
adjust thespray
pattern.
4. Pull thenozzle forwards to select
low pressure and spray detergent
onto thesurface to be cleaned.
5. Leave thedetergent to work for awhile (do not let it dry).
6. Spray off theloosened dirt using either high or low pressure. Note: Ifyou choose
to spray with low pressure, pull thehose out of thedetergent container and spray
until only water comes out of thenozzle.
