Owner's Manual
Portable Pickup Truck Skid

Cold Water Gas • Rev. 4/6/2016
IMPORTANT SAFETY INFORMATION
The safe operation of our pressure washing systems is the FIRST priority of Easy-Kleen. This
will only be achieved by following the operation and maintenance instructions as explained in
this manual and all other enclosed manuals.
This manual contains essential information regarding the safety hazards, operations, and
maintenance associated with this machine. The manual should always remain with the machine,
including if it is resold.
ALL CAUTIONS AND SAFETY WARNINGS MUST BE FOLLOWED TO AVOID
INJURY OR DAMAGE TO EQUIPMENT.
THIS EQUIPMENT IS TO BE USED ONLY BY TRAINED OPERATORS AND MUST
ALWAYS BE ATTENDED DURING OPERATION.

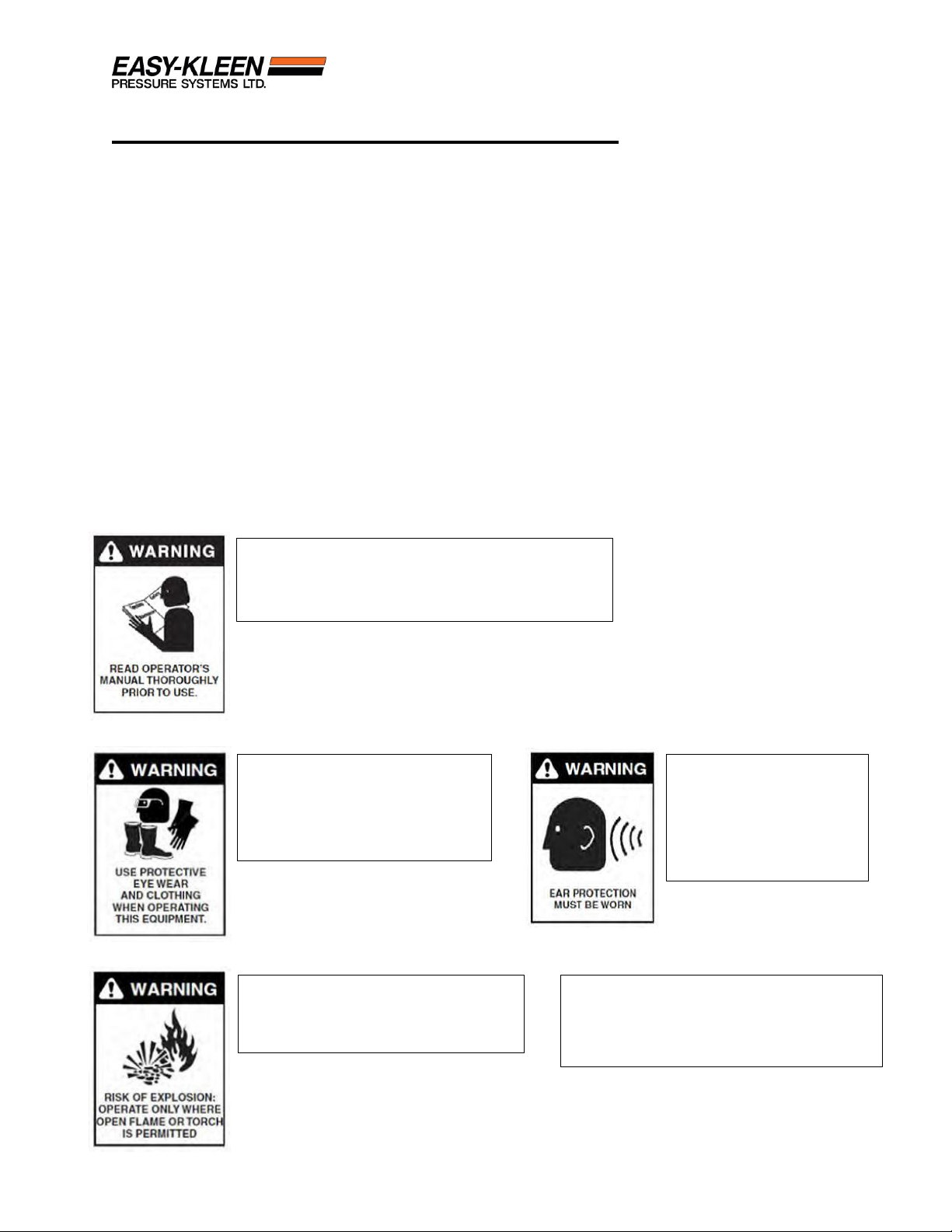

WARNING: To reduce the risk of injury,
read operating instructions carefully
before using.
WARNING: Use protective
eyewear and clothing when
operating equipment in
order to avoid personal
injuries.
1. Read the instructions in this manual carefully before attempting to assemble,
install, operate or service this pressure washer. Failure to comply with the
instructions could result in personal injury and/or property damage.
WARNING: This
machine exceeds
85db. Appropriate
ear protection must
be worn.
WARNING: Flammable liquids can
create fumes which can ignite,
causing property damage or severe
injury.
WARNING: Risk of explosion.
Operate only where open flame
or torch is permitted.
2. Be thoroughly familiar with all controls and know how to stop the machine in
the event of an emergency.

Cold Water Gas • Rev. 4/6/2016
.
WARNING: Risk of fire. Do not
add fuel when operating machine.
3. The minimum clearance to any combustible material is 12 inches.
WARNING: Keep water spray
away from electrical wiring.
4. All electrically powered equipment must be grounded at all times to prevent
fatal electric shots. Do not spray water on or near electrical components. Do
not touch electrical components while standing in water or when hands are
wet. Always make sure machine is disconnected from power source before
servicing.
WARNING: Risk of asphyxiation.
Use this product only in a well
ventilated area.
5. Use equipment in a well-ventilated area to avoid carbon monoxide poisoning
or death.
WARNING: Risk of injection or
severe injury to persons. Keep
clear of nozzle spray.
6. High pressure spray can cause serious injuries. Never point pressurized
spray at any person or animal. Handle the spray assembly with care.
WARNING: Risk of
injury. Hot surfaces
can cause burns.

Cold Water Gas • Rev. 4/6/2016
7. Hold firmly to the gun and wand during start up and operation of the
machine. Do not attempt to make adjustments while the trigger gun is in
operation.
8. Make sure all quick coupler fittings are properly secured before operating
pressure washer.

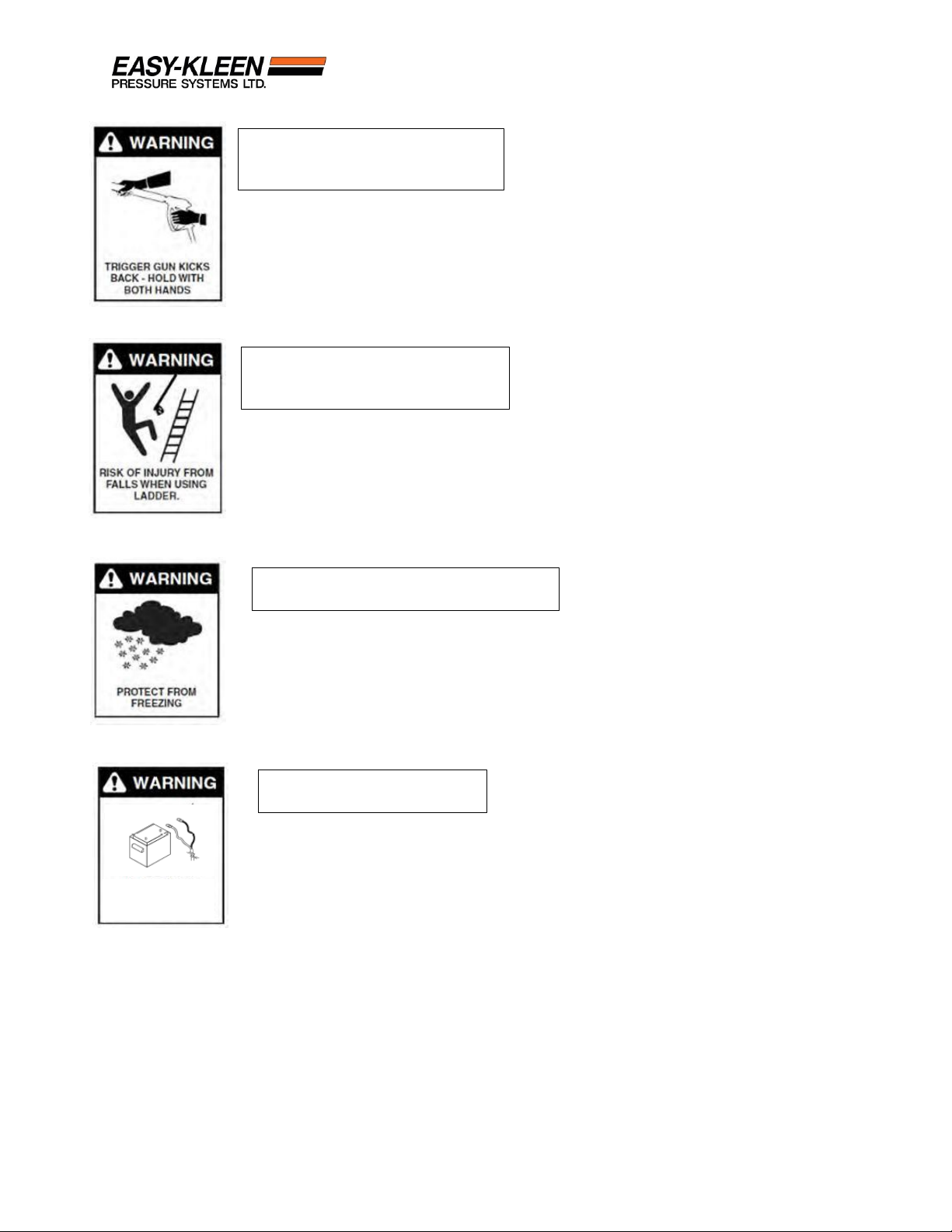

WARNING: Risk of injury
from falls when using ladder.
9. Do not overreach or stand on anything unstable. Keep a good balance and
make sure to keep a steady footing at all times.
WARNING: Protect from freezing.
WARNING: Trigger gun kicks
back. Hold with both hands.
10. It is important to keep your machine from freezing in order to keep it in its
best working condition. Failure to protect your machine from freezing may
cause damage to the machine and personal injuries may occur as a result.
11. For machines with a 12 V burner: Disconnect battery ground terminal
before servicing.
12. Protect high pressure hoses from sharp objects and vehicles. Inspect
condition of hoses prior to use, or serious injury could occur.
13. Do not pass acids or other caustic or abrasive fluids through the pump.
WARNING: Risk of Injury
RISK OF INJURY

Cold Water Gas • Rev. 4/6/2016
14. Never run pump dry of water or oil or let the pump run with the trigger gun released for
more than 2 minutes.
15. Do not attempt to operate this machine if fatigued or under the influence of alcohol,
prescription medications, or drugs.
16. Some of the maintenance procedures involved in this machine require a certified technician
(these steps are indicated throughout this manual). Do not attempt to perform these repairs if you
are not qualified.
If you need further explanation of any of the information in this manual, suspend any activity
involving the equipment and call our toll free number for assistance, 1-800-315-5533.

Pickup Skid • Rev. 2/11/2016
Portable Pickup Truck Skid
The Easy Kleen Portable Pickup Skid Unit is designed to fit into a 6’6” box of a pickup truck.
Model Specifications:
MODEL
GPM
PSI
BTU
HP/ Engine
Fuel
DRIVE
ELECTRIC START
BURNER
EZO3504G-K-PSR
4
3500
400,000
14 KOHLER
Gasoline
GEARBOX
YES
12V
EZO3504D-K-PSR
4
3500
400,000
9.8 KOHLER
Diesel
GEARBOX
YES
12V
Startup:
1. Ensure all ball valves are closed prior to starting machine.
2. Fill 225 gallon tank with water. NOTE: This tank can only be used with polyethylene
compatible liquids.
3. Open ball valve for main water supply from tank, then start pump. Follow the rest of the
instructions in the pressure washer user manual.
Special Winterization Instructions:
Use this procedure if machine is to be transported, stored, or operated in winter conditions to
prevent damage from freezing.
1. Close ball valve for the main water supply to pump from water tank.
2. Open Dump Valve to drain excess water from 225 gallon water tank.
3. Fill the 10 gallon antifreeze tank with full strength, winter rated, vehicle windshield washing
fluid or Anti-Freeze, RATED FOR MINIMUM -40°C.
4. Ensure pressure wand assembly is properly connected, then open ball valve below antifreeze
tank to run antifreeze through the system.

Pickup Skid • Rev. 2/11/2016
5. Start pump and engage trigger on the pressure gun. Operate the system until fluid coming out
from the nozzle runs the same color as antifreeze fluid. Release trigger with pump still running,
and wait 10 seconds to allow antifreeze to pass through bypass hose before shutting off pump.
Your machine is now prepared for storage.

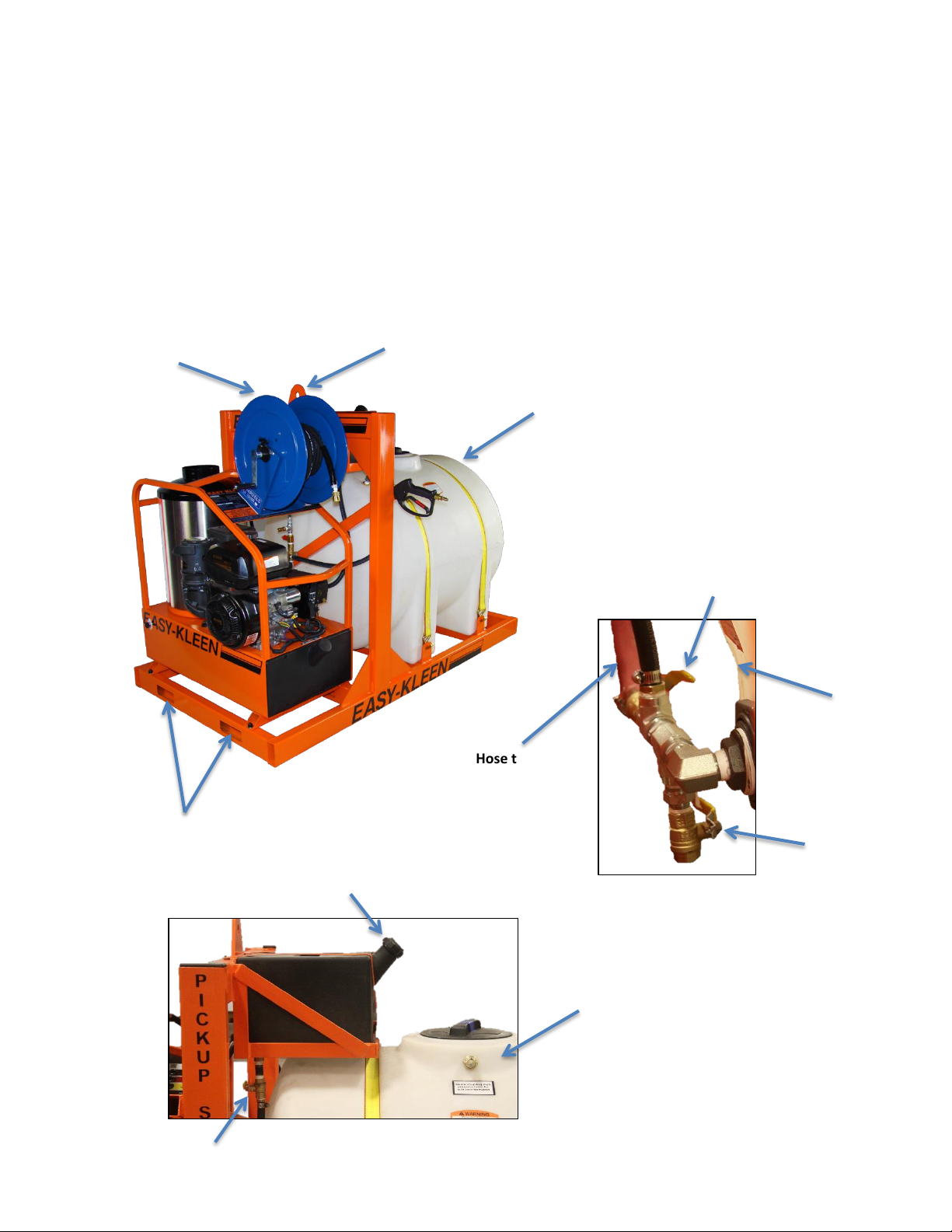

Component Identification:
225 Gallon Poly
Water Tank
10 Gallon
Antifreeze Tank
Ball Valve for Releasing
Antifreeze
Ball Valve for Main
Water Supply
Hose to Water
Inlet on Pump
Dump Valve
225 Gallon Poly
Water Tank
225 Gallon Poly
Water Tank
Lifting Eye
Fork Lift Slots
150 Foot Hose
Reel

MANUFACTURER’S WARRANTY
AUG 1ST,
2019
Thank you for your purchase of an Easy-Kleen pressure cleaning system. All original
equipment are warrantied for a specific period and on the conditions set forth, that the
product is free from defect in materials and workmanship as follows:
Electric Motors
1Phase 18 Months
3 Phase 24 Months
For warranty for these items manufacturer needs to be contacted
Oil Burners
Igniters, Fuel Solenoid, Burner Motor, Fuel Assembly, Drive Shaft, Electrodes Blower, Wheel
Fuel Pump
1Year Parts
Propane / Natural
Gas Burners
Burner Rings, Gas Valves, Gas Valve Control Board 1Year
Fitting
All Fittings, Brass Stainless Steel, Steel, Etc. 30 Days
Heating Coils
All Coils 1Year Replacement
Under 5100 PSI- 5 Year Prorated
25% Year each year for 4
Years
Gas Motors
Honda and Kohler have manufacturer’s warranty. Manufacturer does not cover fuel systems.
Lifan Motor
Contact Easy-Kleen for Warranty 1Year (for commercial use)
Frames
Limited warranty on Frames, Belt Guard, Welds due to manufacture defect.
Paint is not covered under the manufacturer’s warranty due to the aggressive environment or natural wear.
Plastic Tanks
Water or Fuel 1Year
Accessories/ Wear
Items
Unloader, Regulating Valves, Safety Valves, Jetter Valves, Check Valves, Foot Valves,
Pulsation Dampeners, Trigger Guns, Rotary Nozzles, Chemical Injectors, Hose, Hose Reels,
Sandblast Kits, Surface Cleaner, Water Broom, Water Strainer, Belts, Ball Valves, Swivels,
Balanced Relief Valves, Accumulator Lances
90 Days
Electrical
Components
Switches, Time Over Loads, Contactors, Transformer, Thermostat, Vacuum Switches, Flow
and Pressure Switches, Relays, Primary Controls
90 Days
No Warranty Items
Fuel Filters, Nozzles, O- Rings, Thermo Relief Valves (Pump Seals, Valves, Plungers)
ANY PARTS NOT LISTED ABOVE CALL FOR WARRANTY TIME FRAMES
NOTE* Due to original equipment manufacturer’s requirements, Easy-Kleen is not permitted to perform warranty repairs or claims for electrical
motors, gas, or diesel engines. Please contact Easy-Kleen service department for a local warranty representative.
LIMITATIONS OF LIABILITY
Easy-Kleen liability for special, incidental, or consequential damages is expressly disclaimed. In no event shall Easy-Kleen’s liability exceed the
purchase price of the product in question. Easy-Kleen makes every effort to ensure that all illustrations and specifications are correct, however,
these do not imply a warranty that the product is merchantable or fit for a particular purpose, or that the product will actually conform to the
illustrations or specifications. Our obligation under this warranty is expressly limited at our option to the replacement or repair at our
manufacturer location, is such part or parts at inspection shall disclose to have been defective. Easy-Kleen does not authorize any other party,
to make any representation or promise on behalf of Easy-Kleen or to modify the terms, conditions, or limitations in any way. It is the buyer’s
responsibility to ensure that the installation and use of Easy-Kleen products conform to local codes. While Easy-Kleen attempts to ensure that
its products meet national codes, it cannot be responsible for how the customer chooses to use or install the product. THE WARRANTY
CONTAINED HEREIN IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING ANY IMPLIED WARRANTY OF
MERCANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ARE EXPRESSLY LIMITED TO THE DURATION OF THIS WRITTEN WARRANTY.
Easy-Kleen reserves the right to make any changes to an Easy-Kleen product at any time without incurring any obligation with respect to any
product previously, ordered, sold, or shipped.

PUMP WARRANTY TIME LINE
Cat Pumps
Direct Drive Pumps 2 Years
Car Wash Pumps (Including all models used in Car Wash or Portable Fresh Water Pressure Cleaning applications 5 Years
All other pumps not listed above 1 Year
Giant Pumps
Pressure Washer and Self- Serve Car Wash Applications 5 Years
All other Giant Pumps, Industrial and Consumer Pumps 1 Year
Lifetime on Manifolds due to Manufacture defects
AR Pumps
Plunger Pumps 5 Years
Axial Pumps 1 Year
AR Accessories 90 Days
General Pumps
Manifolds 5 Years
Pressure Washer Pumps 5 Years
EK Pumps
Manifolds 5 Years
Pumps 1 Year
Accessories 90 Days
Manufacturer does not cover wet end of Pump Seals, Valves, and Plungers.
WARRANTY REPAIRS
Warranty claims must first contact Easy-Kleen’s Service Department to be issued a preauthorized repair number (PARN). You will need a copy of
your invoice and the equipment serial number.
If new parts are needed, they will be invoiced to you as normal. Defective parts are to be sent to us PREPAID for warranty consideration. If a
part is found to be defective, a credit will be issued to cover the costs of parts. All work is be performed at the manufacturers’ place of business
when returned PREPAID. This warranty will not cover labor if warranty work is conducted at the customer’s place of business. Road service will
be charged at the normal rate in these situations.
WARRANTY DOES NOT COVER:
•When warranty part is warrantied the warranty time frame does not re-start.
•Warranty freight cost will be covered by Easy-Kleen for the first 30 days of sale of the machine due
to manufacture defect or workmanship.
•Neglect of the periodic maintenance as specified in the owner’s manual.
•Improper repair or maintenance.
•Operating methods other than those indicated in the owner‘s manual.
•The use of non-genuine Easy-Kleen parts or accessories other than those approved by Easy-Kleen
•Exposure of chemical agents, such as: Sea Water, Sea Breeze, Salt, or other environmental phenomenon.
•Collision, fuel contamination or deterioration, neglect, unauthorized alteration or misuse.
•Warranty does not cover travel or time if a service call is needed.
•Warranty does not apply when pump or accessory is altered or used in excess of recommended
speeds, pressure, temperatures, or handling fluids not suitable for pump or accessorymaterial.
•Construction warranty does not apply to normal wear.
•Warranty does not apply to normal wear (such as but limited to seals, packing valves, plungersand
sealing O-Rings), freight damage, freezing damage or damage caused by parts or accessories not
supplied by Easy-Kleen.
•After 30 days freight will become chargeable.
•Warranty covers In-House Labour and Parts if manufacture defect is repaired at an Easy-Kleen approved Service Center.
WARRANTY DOES NOT COVER DEFECTS CAUSED BY:
•Improper or negligent operation or installation, accident, abuse, misuse, neglect, unauthorized modifications, including, butnot
limited to, the failure of the customer to comply with recommended product maintenance schedules.
•Improper repairs
•Neglected maintenance/incorrect operation (specified in the Owner/Operator’s Manual
•Unapproved devices or attachments
•Water sediments, rust corrosion, thermal expansion, scale deposits or a contaminated water supply or use of chemicals not approved
or recommended by Easy-Kleen Pressure Systems Ltd.
•Improper voltage, sudden voltage spikes or power transients in the electrical supply
•Usage which is contrary to the intended purpose of the equipment
•Natural calamities or disasters including, but not limited to, floods, fires, wind, freezing*, earthquakes, tornados, hurricanesand
lightning strikes
*Includes damage done to components that come in contact with water as a result of freezing in a non-winterized machine.
[e-mail] 1-800-315-5533 www.easykleen.com
