Code 3 C3100 User manual

Page 1 of 8

IMPORTANT! Read all instructions before installing and using. Installer: This manual must be delivered to the end user.

WARNING!

Failure to install or use this product according to manufacturer’s recommendations may result in property damage, serious injury,

and/or death to those you are seeking to protect!

1. Proper installation combined with operator training in the use, care, and maintenance of emergency warning devices are essential to

ensure the safety of emergency personnel and the public.

2. Emergency warning devices often require high electrical voltages and/or currents. Exercise caution when working with live electrical

connections.

3. This product must be properly grounded. Inadequate grounding and/or shorting of electrical connections can cause high current arcing,

which can cause personal injury and/or severe vehicle damage, including re.

4. Proper placement and installation is vital to the performance of this warning device. Install this product so that output performance of the

system is maximized and the controls are placed within convenient reach of the operator so that s/he can operate the system without losing

eye contact with the roadway.

5. It is the responsibility of the vehicle operator to ensure daily that all features of this product work correctly. In use, the vehicle operator

should ensure the projection of the warning signal is not blocked by vehicle components (i.e., open trunks or compartment doors), people,

vehicles or other obstructions.

6. The use of this or any other warning device does not ensure all drivers can or will observe or react to an emergency warning signal. Never

take the right-of-way for granted. It is your responsibility to be sure you can proceed safely before entering an intersection, drive against

tra󰀩c, respond at a high rate of speed, or walk on or around tra󰀩c lanes.

7. This equipment is intended for use by authorized personnel only. The user is responsible for understanding and obeying all laws regarding

emergency warning devices. Therefore, the user should check all applicable city, state, and federal laws and regulations. The manufacturer

assumes no liability for any loss resulting from the use of this warning device.

Do not install and/or operate this safety product unless you have read and understand the safety information con-

tained in this manual.

Installation and Operation Instructions

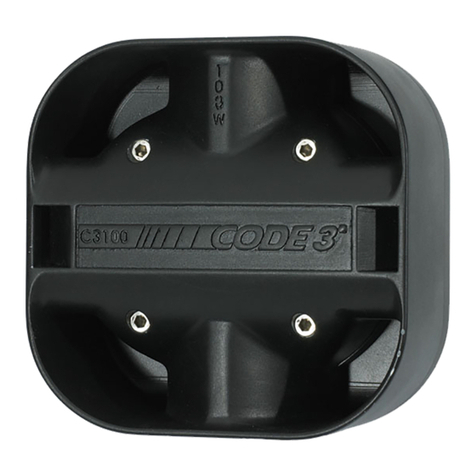

C3100 & C3900 SPEAKER MOUNT

2018+ FORD F-150 AND EXPEDITION

WARNING!

Sirens produce loud sounds that may damage hearing

• Wear hearing protection when testing

• Use siren only for emergency response

• Roll up windows when siren is operating

• Avoid exposure to the siren sound outside of the vehicle

Specications*:

*specications for a single C3900 speaker

w/o Bracket w/ Bracket

Power: 100 Watt

Impedance: 11 Ohm

Weight: 2.8 lbs 7.2 lbs

Dimensions: 1.61 in(L)

5.86 in(W)

5.96 in(H)

6.95 in(L)

9.25 in(W)

8.47 in(H)

*specications for a single C3100 speaker

w/o Bracket w/ Bracket

Power: 100 Watt

Impedance: 11 Ohm

Weight: 5.3lbs 9.7 lbs

Dimensions: 6.25 in(L)

3.25 in(W)

6.25 in(H)

9.25 in(L)

8.5 in(W)

7.5 in(H)

Page 2 of 8

Installation and Mounting for C3900:

The mounting of C3900 speaker using the clamp-on design bracket will avoid the need for drilling into the aluminum body of the new Ford

F150 or Expedition.

Step 1. Locate the vehicle’s aluminum cross member under the front end of the vehicle behind the grill & Eco-Boost Intercooler (See Fig-

ure-1).

Step 2. Install the single or dual speakers by threading two (2) ¼”-20 X 1 ¼” Phillips pan head screws with two (2) ¼” split lock washers for

each speaker body through the holes in the main bracket and into the threaded holes in the back side of the speaker body (See Figure 2 -

C3900). Tighten the screws until the lock washers fully atten out but do not over tighten.

Note: Make sure the speakers are mounted in the correct orientation with the word “BOTTOM” at the bottom of the assembly (See

Figure 2 - C3900 for correct speaker orientation). Caution: Severe damage could occur to the speaker if it is not mounted in the

proper orientation.

Step 3. Locate the slotted ange of the main bracket & position it over the top of the vehicle’s cross member. While pushing up on the

vehicle’s black plastic splash guard, slip the ange of the bracket between the cross member & the plastic splash guard as shown in Figure

3. Slide the bracket into position up against the back side of the vehicle’s cross member as shown in Figure 4. Position the assembly on the

cross member so that the speakers will clear all of the vehicles hoses & etc.

Step 4. Insert the short ange of the clamping bracket into the slot in the main bracket as shown in Figure 5 & rotate the clamping bracket up

to the bottom of the vehicles cross member as shown in Figure 6. Note: Make sure the short clamp bracket ange stays engaged in the slot

in the main bracket while you rotate the clamp bracket into position.

Step 5. Thread two (2) ¼”-20 X 1 ¼” Phillips pan head screws with two (2) ¼” split lock washers through the slots in the clamp bracket

and into the threaded inserts in the main bracket. Tighten the screws until the lock washers fully atten out, and the clamp bracket is tight

up against the main bracket ange (See Figure 7). Note: Make sure the speakers are mounted in the correct orientation with the Code 3

Speaker Labels at right side up. (See Figure 2 - C3900 for correct speaker orientation). Caution: Severe damage could occur to the speaker

if it is not mounted in the proper orientation.

Step 6. Connect the unit wires to customer supplied wires & route to the desired power source.

Figure 1

Aluminum cross member

Note: This view is from under

the vehicle looking up towards

the top

Figure 2

Page 3 of 8

Figure 3

The Plastic Splash Guard

is just above the cross

member

Short Flange

Main Bracket

Speakers

Figure 4

Clamping Bracket

Figure 5 Figure 6

Short Clamp Bracket

Flange Engaged in Slot

in Main Bracket

Figure 7

Page 4 of 8

Installation and Mounting for C3100:

The mounting of C3100 speaker using the clamp-on design bracket will avoid the need for drilling into the aluminum body of the new Ford

F150 or Expedition.

Step 1. Locate the aluminum cross member under the front end of the vehicle behind the grill & Eco-Boost Intercooler (See Figure-1).

Step 2. Locate the slotted ange of the main bracket & position it over the top of the vehicle’s cross member. While pushing up on the

vehicle’s black plastic splash guard, slip the ange of the bracket between the cross member & the plastic splash guard as shown in Figure

3. Slide the bracket into position up against the back side of the vehicle’s cross member as shown in Figure 4. Position the assembly on the

cross member so that the speakers will clear all of the vehicles hoses & etc.

Step 3. Insert the short ange of the clamping bracket into the slot in the main bracket as shown in Figure 5 & rotate the clamping bracket up

to the bottom of the vehicles cross member as shown in Figure 6.

Note: Make sure the short clamp bracket ange stays engaged in the slot in the main bracket while you rotate the clamp bracket

into position.

Step 4. Thread two (2) ¼”-20 X 1 ¼” Phillips pan head screws with two (2) ¼” split lock washers through the slots in the clamp bracket and

into the threaded inserts in the main bracket. Tighten the screws until the lock washers fully atten out and the clamp bracket is tight up

against the main bracket ange (See Figure 7).

Step 5. Step 5. Install the single or dual speakers by threading four (4) #12 X 1” Long Phillips pan head sheet metal screws with four (4) ¼”

internal tooth star lock washers for each speaker body through the holes in the main bracket and into the holes in the back side of the plastic

speaker body (See Figure 8 -C3100). Tighten the screws until the screws and washers fully bottom out against the bracket. Do not over

tighten. Note: Make sure the speakers are mounted in the correct orientation with the Code 3 Speaker Label at the top of the assem-

bly (See Figure 8 - C3100 for correct speaker orientation). Caution: Severe damage could occur to the speaker if it is not mounted

in the proper orientation.

Step 6. Connect the unit wires to customer supplied wires & route to the desired power source.

Figure 8

Item No. Part No. Description Qty.

1140-1533-00 100 Watt Slim Speaker 1Single Speaker

2Dual Speaker

2220-1174-00 Speaker Bracket 1Single and Dual

Speaker

3 220-1175-00 Speaker Bracket 1Single and Dual

Speaker

6321-0126-00 1/4”-20 x 1 1/4” Machine Screw 4Single Speaker

6Dual Speaker

7T03745 1/4” Split Lock Washer 4Single Speaker

6Dual Speaker

Installation and Mounting for C3900:

Page 5 of 8

Item No. Part No. Description Qty.

1140-1533-00 100 Watt Slim Speaker 1Single Speaker

2Dual Speaker

2220-1174-00 SPKR,BRKT,MAIN C3900 C3100 2015+ F150 2018+ EXPN 1Single & Dual

3 220-1175-00 SPKR,BRKT,CLAMP C3900 C3100 2015+ F150 2018+ EXPN 1Single & Dual

4321-0126-00 1/4”-20 x 1 1/4” Machine Screw 2Single & Dual

5T03745 1/4” Split Lock Washer 2Single & Dual

6 T11247 #12 Phil Pan Head SMS 4Single Speaker

8Dual Speaker

7T11253 1/4” Inside Star Washer 4Single Speaker

8Dual Speaker

Installation and Mounting for C3100:

Page 6 of 8

Notes:

Page 7 of 8

Notes:

Page 8 of 8
