Cohu HD Series 3930HD User manual

www.CohuHD.com
[email protected]
July 15, 2014
Technical Manual 6X-1092B
HeliosTM Products
INSTALLATION MANUAL Series
3930HD
Fixed Camera System

26X-1092B
Table of Contents
About this document 3
Additional information and documents related to the camera system 3
Copyright/Intellectual Property Rights statement 3
FCC compliance 3
Support services 3
Returns 4
Safety instructions 5
Grounding 5
1.0 Introduction 6
1.1 Optional Accessories 7
2.0 Installation 8
2.1 Power over Ethernet (PoE) 8
2.2 System Cable Requirements 10
2.3 CohuHD Manufactured System Cables (CA257) 10
2.4 Rear Plate Connector and Its Mating System Cable Connector 11
3.0 Mounting Methods 12
3.1 Horizontal Pole Mount Installation. CohuHD p/n 7411498-001 14

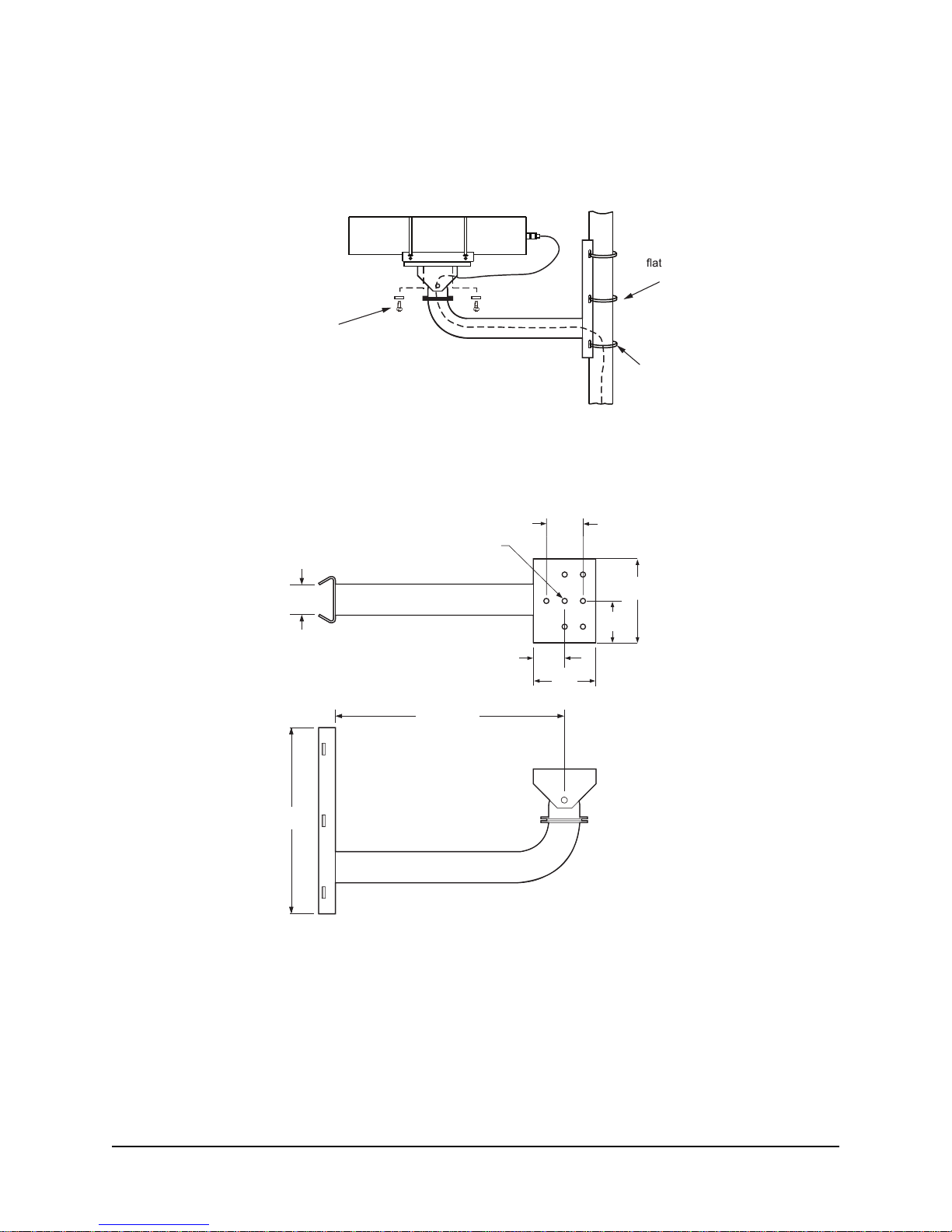

3.2 Vertical Pole Mount Installation. CohuHD p/n 7411498-002 15

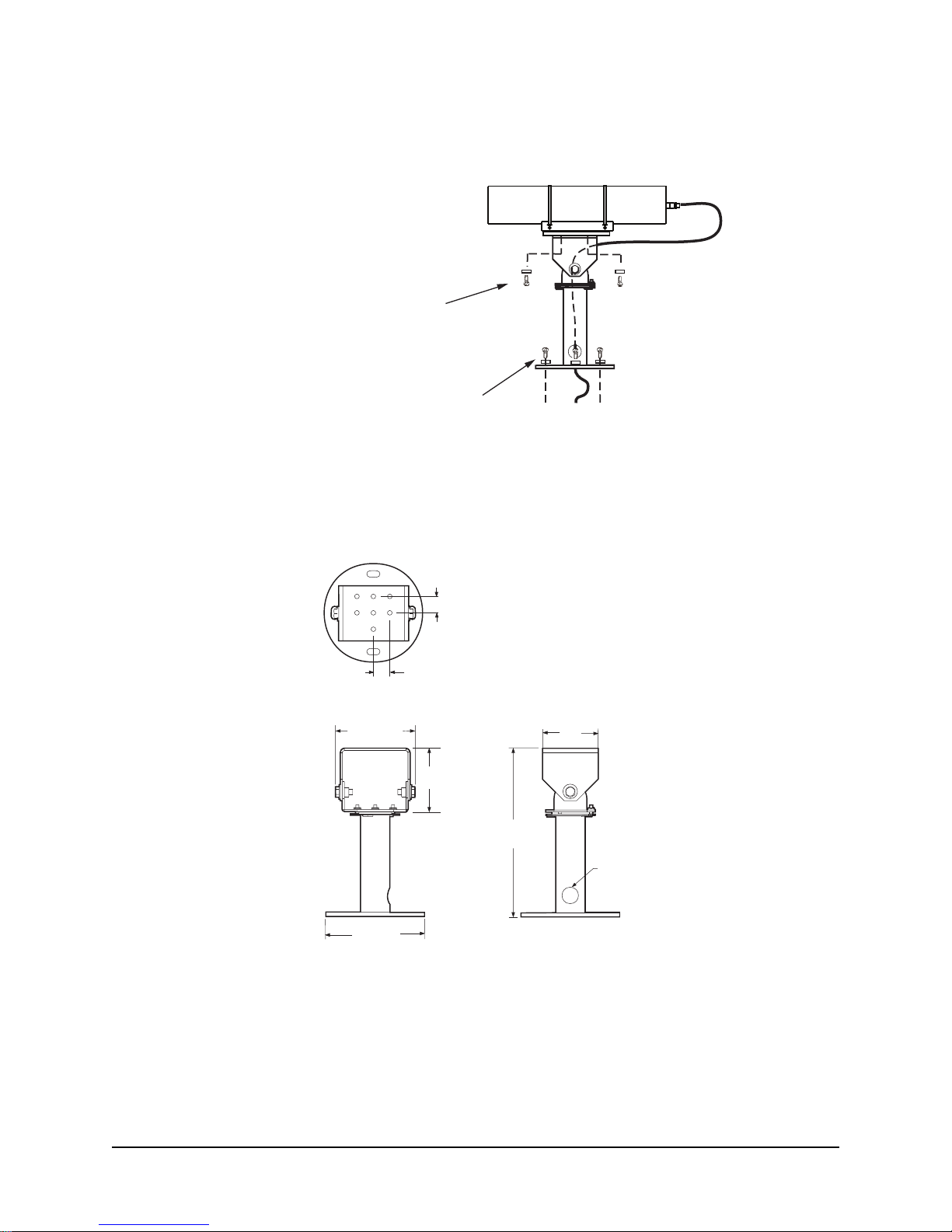

3.3 Pedestal Mount Installation. CohuHD p/n 7411499-001 16

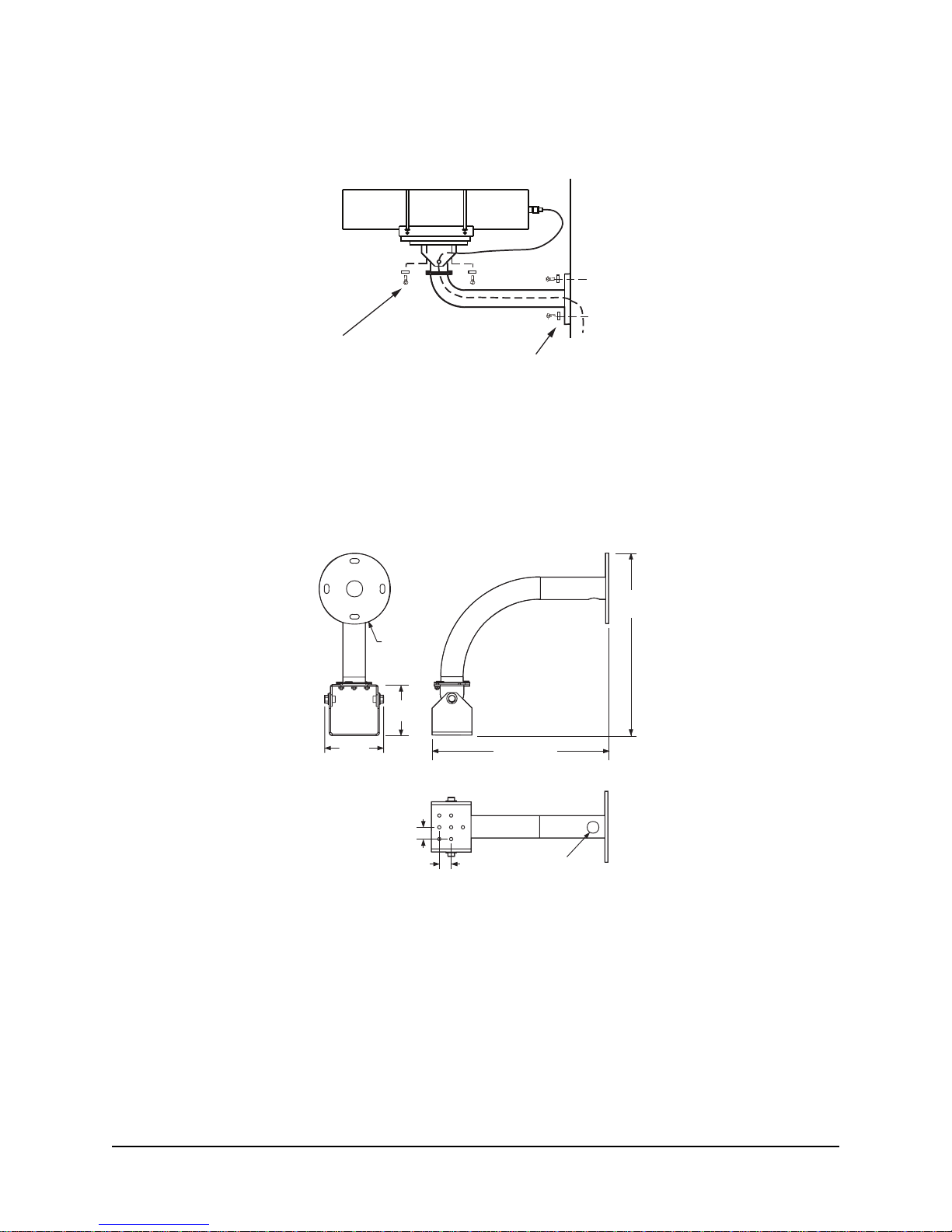

3.4 90° Wall Mount Installation. CohuHD p/n 7411499-002 17
3.5 Installation Procedure 18
3.6 Overall Dimensions 19
4.0 Quick Check 21
4.1 Computer Requirements 21
4.2 IP Control and Viewing of Camera 21
4.3 Factory Default IPAddress and Settings 21
4.4 Factory Default User Names and Passwords 21
4.5 Assigning the New Camera IPAddress 22
4.6 Using the CohuONVIFDiscovery Software to Discover the Camera 23
4.7 Checkout Procedure 24
5.0 Maintenance 25
5.1 Camera Head Housing Pressurization 25
5.1.1 Schrader Valve 26
5.1.2 Pressure Relief Valve 26
5.2 Wiper Unit 27
5.2.1 Wiper Blade Replacement 27
6.0 Warranty 28

3
6X-1092B
About this document
This manual contains information on the installation and maintenance of 3930HD xed position camera sys-
tem. Please read this manual carefully prior to installation to prevent any accidental damage or misuse. The
manual is available from the CohuHD website at
http://www.CohuHD.com/Files/install_manuals/3930HD_IM.pdf
The information in this manual is subject to change without notice. Please refer to the above website for
the latest information.
NOTE: All graphics contained within this document, including screenshots and other displays, are for reference use
only and are subject to change.
Additional information and documents related to the camera system
For information on the camera system operation and conguration, please see Operation manual 6x-1090.
The manual is available from the CohuHD website at:
http://www.CohuHD.com/Files/operation_manual/HeliosOperationManual.pdf
Copyright/Intellectual Property Rights statement
Copyright 2014 by CohuHD Costar, LLC. CohuHD Costar, LLC has intellectual property rights to technology
embodied in the product described in this manual.
CohuHD™ and Helios™ are trademarks of CohuHD Costar, LLC.
FCC compliance
This equipment has been tested and found to comply with the limits for a Class A digital device pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy, and, if not installed and used in accordance with the instruc-
tion manual, may cause harmful interference to radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference, in which case the user will be required to correct the
interference at his own expense.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any interference re-
ceived, including interference that may cause undesired operation. Changes or modications to this device
void the warranty.
Support services
Please contact the Customer Service Department for technical assistance.

46X-1092B
Returns
This item was thoroughly tested and carefully packed at the factory prior to shipping. Upon acceptance by
the carrier, the carrier assumes responsibility for the item’s safe arrival. If you receive the item in a damaged
condition, apparent or concealed, a claim for damage must be made to the carrier.
If a visual inspection shows damage upon receipt of this shipment, it must be noted on the freight bill or
express receipt and the notation signed by the carrier’s agent. Failure to do this can result in the carrier
refusing to honor the claim.
When the damage is not apparent until the unit is unpacked, a claim for concealed damage must be made.
Make a mail or phone request to the carrier for inspection immediately upon discovery of the concealed
damage. Keep all cartons and packing materials.
To return the product to the factory for service, please contact the Customer Service Department for a Re-
turn Material Authorization (RMA) Number.
Prominently display the RMA number on the outside of the shipping container(s) and on paperwork con-
tained inside. Give a brief description of why the equipment is being returned and list the symptoms of any
problems being experienced with the equipment.
Shipment
IMPORTANT
If the camera needs to be shipped, please use the original packaging material which was designed to
protect the product during transportation. If the original packaging is lost or damaged, please order a
replacement from Customer Service.

5
6X-1092B
Safety instructions
• Installation must be done by qualied installers, and conform to all local codes.
• It is the user’s responsibility to ensure that the mounting methods are safe and adequate for the
location.
• Use only stainless steel (SS) hardware to fasten the mount to an outdoor surface.
• All servicing must be performed by qualied service personnel. Procedures in this manual do not
require entry into the housing of the camera system. The unit contains potential high voltage. It also
contains sensitive devices that can be damaged by static discharge. To reduce the risk of electric
shock and damage to the unit by static discharge do not perform any servicing other than described
in these instructions. If the unit is defective, please contact the Customer Service Department for
technical assistance.
• It is the sole responsibility of the installer to provide proper installation in compliance with all local
codes and regulations.
Grounding
• To provide protection against electrical surges induced by lightning, static charges, or any other
cause, the camera and cabling system must be properly grounded to earth. For installation on a
building, the camera must be bonded (that is, provided with a low impedance connection) to the
building’s structural earth ground system. For installation on a metal pole with a proper ground
system at the base, the camera must be bonded to the pole. For installation on a non-grounded or
insulated support, the camera must be grounded with an adequate ground strap or wire between
the camera and a nearby ground system, or to a ground system installed at the base of the sup-
port. Failure to adequately ground the camera may lead to failure of the camera. This applies to
low voltage (i.e. PoE cameras) as well as to 115 Vac cameras. Failures due to surges are not
covered by the warranty, as they are not due to defects in material or workmanship, and it is
the installer’s responsibility to meet these grounding requirements.
• All system cables must be shielded, and the shield(s) must be bonded to earth ground.
• The grounding stud on the camera’s rear panel (see p6) must be connected to earth ground using
minimum 16 AWG wire and bonded to earth ground as close to the camera as possible.
WARNING:
PoE (Power over Ethernet) injectors used with this camera system may operate from 100-240 Vac.
These voltages are dangerous. Use extreme care working with equipment connected to these voltages.
WARNING:
Do not remove camera from housing. There are no user-serviceable parts inside.
CAUTION:
In order to avoid deterioration of the color lter of the CCD and potential discoloration of the image
avoid pointing the camera system directly toward the sun or other bright source.
WARNING:
Voltages that present a shock hazard may exist on Power over Ethernet circuits. Use caution to avoid
direct contact with exposed, bare Ethernet circuit conductors or connector contacts.

66X-1092B
1.0 Introduction
The 3930HD series camera system is a digital high denition
day/night zoom lens camera. The H.264 video standard,
which provides sharper image quality at lower bit rates than
previous standards, is used for video compression, along with
The motion JPEG (M-JPEG) standard.
The 3930HD series camera system is IP (Internet Protocol)
based with a full function built-in web server. Operator func-
tions, such as zoom, are controlled from the standard Internet
browser window. Administrative features, such as conguring
networking settings and assigning camera ID labels, can be
controlled from the same window as well. The 3930HD series
camera system can be programmed with ID labels for display
on an operator monitor. Camera location, presets, and sector
zones can be described with labels of up to 24 characters.
The camera system has built-in Power over Ethernet (PoE) in accordance with the IEEE 802.3at PoE stan-
dard. Power can come from a power supply within a PoE-enabled networking device such as an Ethernet
switch or from a midspan injector. Please refer to Section 2.1 for additional information.
The camera system has programmable input/output lines. The lines can be used for alarms or other user
dened controls.
The 3930HD camera system complies with NEMA TS 2 standards for temperature, shock, and vibration
specications. For environmental protection the camera complies with the IP67 standard. An optional sun-
shield and wiper are available to protect the camera system in inclement weather.
For more information on 3930HD specications and a datasheet, please refer to the CohuHD website.
3930HD Camera System Rear Plate
(Shown with Optional Wiper and Optional Sunshield)
Schrader Valve Pressure Relief Valve
(shown with plastic tubing)
8-32 x 1/2”L Stud
for earth ground connection
Wiper Connector
Rear Plate Connector

7
6X-1092B
1.1 Optional Accessories
The following optional accessories are recommended, and can be purchased with the camera system.
Mating Connector:
• 18-pin MS connector: CohuHD p/n 1310230-011.An 18-pin MS type connector to be wired into the
user-built system cable.
For more information on the connector see Chapter 2
Mounts:
• Horizontal pole mount with adjustable head: CohuHD p/n 7411498-001.
• Vertical pole mount with adjustable head: CohuHD p/n 7411498-002.
• Pedestal mount with adjustable head: CohuHD p/n 7411499-001.
• 90 degree wall mount with adjustable head: CohuHD p/n 7411499-002.
For more information on each type of mount see Chapter 3.
Cables:
• CA257 series.
For more information on cables see Section 2.2.
Wiper:
• CohuHD p/n 8157-0
Sunshield:
• CohuHD p/n 8165125-001

86X-1092B
2.0 Installation
This chapter covers the general installation and cable requirements of the 3930HD series.
Before starting installation:
• Choose the installation mounting method. See Chapter 3.
• Verify that the system cable can be routed to the location of the mounting assembly
See Section 3.5 for details on the installation procedure for recommended mounts.
2.1 Power over Ethernet (PoE)
The 3930HD camera system is compliant with the IEEE 802.3at standard. Power to the camera system is
supplied through the network cabling. Two types of PoE implementations are specied by the standard:
• Endspan PoE - power is applied directly by the switch to the camera system. This method requires
the deployment of a PoE-enabled switch.
• Midspan PoE - power is supplied by an injector placed between an existing non-PoE switch and
the camera system.
PoE injectors can be ordered from CohuHD. PoE injector is supplied with the HD15 option. Please refer to
the CohuHD webpage in the 3930HD series specications section for ordering information. The PoE injector
selected for use with 3930HD must meet the following requirement:
• Be compatible with the IEEE 802.3at standard. For information on PoE injectors, refer to the website:
www.ieee.li/pdf/viewgraphs/introduction_to_poe_ieee802.3af_802.3at.pdf.
Figures 1 and 2 show interconnection diagrams for 3930HD:
• Figure 1 shows a setup of the camera system with PoE-enabled switch.
• Figure 2 shows a setup of the camera system using the PoE injector with non-PoE switch.
These diagrams represent typical installations. Each installation site will have its own unique requirements.

9
6X-1092B
Figure 1. Interconnection Diagram with PoE-enabled switch
Network
Switch
Router/Switch
WAN
Router/PoE Switch
LAN
System Cable
(CAT5e)
Default IPAddress
192.168.2.150
Be sure to mount the camera system
before the power is applied.
Do not apply power before
installation is complete.
Grounding Stud
Earth
Ground
Earth
Ground
16 AWG Wire
Figure 2. Interconnection Diagram with non-PoE Switch
Network
Switch
Power
Router/Switch
System Cable
(CAT5e)
Router/
non-PoE Switch
PoE Injector
100-240 Vac
WAN
LAN
Out In
Default IPAddress
192.168.2.150
Power Cord
Be sure to mount the camera system
before the power is applied.
Do not apply power before
installation is complete.
Grounding Stud
Earth
Ground
Earth
Ground
16 AWG Wire

10 6X-1092B
2.2 System Cable Requirements
To build the camera system cable CohuHD recommends:
• For Ethernet/PoE: CAT5e or better cable. For distances up to 100 meters (328 feet), use CAT5e
cable with four pairs of copper wire, 24 AWG.
• When wiring to the Ethernet pins, consider if they are to be wired for the NIC (Network Interface
Card) in a PC or for system connections to a hub, switch, router, or similar device. See Tables 3
and 4.
• All Ethernet wiring must be done in accordance with the TIA/EIA568-C standard.
• All system cables must be shielded, and the shield(s) must be bonded to earth ground.
2.3 CohuHD Manufactured System Cables (CA257)
Please refer to the CohuHD website for cable information:
• http://www.CohuHD.com/Files/datasheet/CA257.pdf
Ethernet
Function
Camera Connector
Ethernet Pins Corresponding
RJ-45 Ethernet
Pins
MS
Tx+ D 1
Tx- E 2
Rx+ F 3
Rx- H 6
This Ethernet wiring is intended to connect directly to a hub,
switch, or router. For connection directly to a PC it will be neces-
sary to use either a crossover cable or a crossover adapter. See
Table 4. Note: For clarity, only signal lines are shown.
Table 3. Ethernet Cable Wiring to a Hub, Switch, or Router (Straight Wiring)
Table 4. Ethernet Cable Wiring to a PC (Crossover Wiring)
Ethernet
Function
Camera Connector
Ethernet Pins Corresponding
RJ-45 Ethernet
Pins
MS
Tx+ D 3
Tx- E 6
Rx+ F 1
Rx- H 2
This Ethernet wiring is intended to connect a Camera to the NIC
card in a PC. Note: For clarity, only signal lines are shown.
NOTE: If you have a Gigabit NIC, either a straight or crossover cable can be used.

11
6X-1092B
Figure 3. Pin Location Diagram.
Rear Plate Connector.
View from the front (mating) side
(which is identical to the view from the back
(wiring) side of the mating connector)
2.4 Rear Plate Connector and Its Mating System Cable Connector
A single 18-pin MS (metal) connector on the rear panel provides all electrical connections for the camera
system. Figure 3 shows the rear plate connector pin location viewed from the front (mating) side. The view
is identical to the back (wiring) side view of the mating connector.Table 6 lists pin functions of the rear plate
connector which are identical to the corresponding pin functions of the mating connector.
Pin Function
DTX +
E TX -
FRX +
H RX -
BPOE +
CPOE +
T POE -
K POE -
LNo Connection
A No Connection
R No Connection
S No Connection
JALM IN 1
MALM IN 2
NALM 3 (I/O)
PALM 4 (I/O)
GALM COM
U Cable Shield
Table 6. Rear Plate Connector Pinouts
(which are identical to the corresponding pin func-
tions of mating system cable)
Part Number
Reference MS Connector Mating Connector (supplied)
CohuHD Part No. 1310225-011 1310230-011
Equivalent MS
Amphenol/Bendix Part No PT017-14-18P PT06E-14-18S
Table 5. Rear Plate Metal MS Connector & Its Mating Connector

12 6X-1092B
3.0 Mounting Methods
This section is a generic description of typical installations for the mounting assemblies that are an option
with the camera system. Each mounting site will likely have its own unique requirements.
The 3930HD can be ordered with any one of four mounting arrangements:
1. CohuHD p/n 7411498-001. Pole mount pedestal bracket with adjust-
able head. See Section 3.1. This is a pedestal mount for use on a
horizontal pipe or pole.
2. CohuHD p/n 7411498-002. Pole mount wall bracket with adjustable
head. See Section 3.2. This is a J-type mount for use on a vertical pipe
or pole.
3. CohuHD p/n 7411499-001. Surface mount pedestal bracket with ad-
justable head. See Section 3.3.
4. CohuHD p/n 7411499-002. 90 degree wall mount. See 3.4 Section.
For installation:
• Use stainless steel hardware to fasten the camera system to the mounting
bracket and mounting brackets to surfaces.
• Use anti-seize compound in order to prevent galling on the threads. CohuHD recommends Never
Seez® from Bostick.
• Use gasket materials, if needed.
• Use a sealant wrap on the camera system waterproof connectors and their mating system cable
plugs for additional protection against moisture in severe conditions. Coax-Seal® is the recom-
mended product.

13
6X-1092B
All mounts have the following features:
• 1” diameter cable feedthrough hole.
• Manually adjustable swivel head: 360° pan rotation, ±75° tilt angle. See Figure 8.
• 2” mounting hole pattern.
• Fits 3” (7.62 cm) to 8”(20.32 cm) diameter pole.
Figure 8. Manually Adjustable Swivel Head
CAUTION:
Camera positioning system must be attached to the mount by a minimum of two 1/4-20 fasteners
(supplied).
For tilt adjustment use
9/16” wrench to loosen
the two 3/8-16 bolts
For pan adjustment use
3/8” wrench to loosen
three 10-32 nuts
Tilt Table:
±75° tilt angle
Swivel Head:
360° pan rotation

14 6X-1092B
3.1 Horizontal Pole Mount Installation. CohuHD p/n 7411498-001
Use the mount for installation on a horizontal pole. See Figure 9 for a typical installation diagram and Figure
10 for the mount dimensions.
Figure 9. Installation to a Horizontal Pole
8.00
(203.2)
9.55
(242.6)
1.50
(38.1)
3.00
(76.2)
2.00
(50.8)
0.272 (6.9), 7X
1.74
(44.2)
3.40
(104.1)
Ø
Figure 10. Horizontal Pole Mount. Dimensions in inches (mm).
CohuHD p/n 7411498-001
Tools required to
tighten strap screws:
blade screw driver
or 5/16-inch socket wrench
SS Straps (3)
Bolt, Hex Head, 1/4-20 x 3/4”L SS (2)
Washer, Spring Lock 1/4”, SS (2)
Washer, Flat 1/4”, SS (2)
Stainless Steel Straps

15
6X-1092B
3.2 Vertical Pole Mount Installation. CohuHD p/n 7411498-002
Use the 90° J-mount for installation on a vertical pole. See Figure 11 for a typical installation diagram and
Figure 12 for mount dimensions.
Figure 11. Installation to a Vertical Pole
14.75 (374.7)
12.00
(304.8)
1.90
(48.3)
1.50
(38.1)
3.00
(76.2)
2.00
(50.8)
Ø 0.272 (6.9), 7X
1.74
(44.2)
3.47
(104.1)
Figure 12. Vertical Pole Mount. Dimensions in inches (mm).
CohuHD p/n 7411498-002
Bolt, Hex Head, 1/4-20 x 3/4”L SS (2)
Washer, Spring Lock 1/4”, SS (2)
Washer, Flat 1/4”, SS (2) Stainless Steel Straps
Tools required to
tighten strap screws:
blade screw driver
or 5/16-inch socket wrench

16 6X-1092B
3.3 Pedestal Mount Installation. CohuHD p/n 7411499-001
Use the mount for installation on a pedestal. See Figure 13 for a typical installation diagram and Figure 14
for the mount dimensions.
Figure 13. Installation to a Pedestal
9.80 (248.9)
1.00 (25.4)
1.00
(25.4)
4.10 (104.1)
3.43
(87.1)
Ø 6.00
(152.4)
Ø 1.00
(25.4)
3.00
(76.2)
Figure 14. Pedestal Mount. Dimensions in inches (mm).
CohuHD p/n 7411499-001
Bolt, Hex Head, 1/4-20 x 3/4”L SS (2)
Washer, Spring Lock 1/4”, SS (2)
Washer, Flat 1/4”, SS (2)
Suggested hardware (not supplied):
1/4” SS hardware

17
6X-1092B
3.4 90° Wall Mount Installation. CohuHD p/n 7411499-002
Use the 90° J-mount for installation to a wall. See Figure 15 for a typical installation diagram and Figure 16
for mount dimensions.
Figure 15. Installation to a 90° Wall Mount
Figure 16. 90° Wall Mount. Dimensions in inches (mm).
CohuHD p/n 7411499-002
Bolt, Hex Head, 1/4-20 x 3/4”L SS (2)
Washer, Spring Lock 1/4”, SS (2)
Washer, Flat 1/4”, SS (2) Suggested hardware (not supplied):
1/4” SS hardware
1.00 (25.4) Ø1.00 (25.4)
14.16
(371.1)
15.03 (381.8)
3.43
(87.1)
4.10
(104.1)
Ø 6.00
(152.4)
1.00 (25.4)

18 6X-1092B
3.5 Installation Procedure
Provisions must be made for routing the system cable up to the camera system location:
• Pole mounting: if the cable routes up through the pole, support the cable inside the pole to strain
relieve the camera connector.
• Pedestal mounting: route the cable down into the pedestal. The cable must be secured by a strain
relief within the pedestal and must not be allowed to hang free through the pedestal.
• Allow approximately 4-5” clearance behind the camera system for the mating cable.
The sequence of installation can vary from site to site:
• Verify that the system cable is accessible for connection to the camera system rear plate connector
at the mounting location.
• If installing the camera system to the pedestal mount, use the mount as a template, mark and drill
holes in the mounting surface.
• Pull the system cable through the arm of the mount and out.
• Fasten the pole-mount bracket to the pole with the stainless steel straps (supplied) or attach the
pedestal mount with four 1/4-20 fasteners (not supplied) of appropriate length to the on-site mount.
• Position the camera system on the mount bracket and secure it with the 1/4-20 bolts (supplied).
• Loosen the bolts on the adjustable swivel head and adjust the pan rotation and tilt angle to the
desired position. Retighten the bolts and lock the mount into place.
• Connect the system cable to the camera rear plate.
• Ground the camera:
• Connect the grounding stud on the camera’s rear panel to earth ground using mini-
mum 16 AWG wire and bonded to earth ground as close to the camera as possible. A
star washer must be on either side of the grounding lug of the grounding cable when
attached to the rear plate. Refasten the nut securely. Recommended torque:12 in-lb.
• Refer to Section 4 to set up and check out the camera system.
WARNING:
It is the user’s responsibility to ensure that the mounting methods are safe and adequate for the location..
Schrader Valve Pressure Relief Valve (shown with plastic tubing)
Grounding Stud
Star Washer
Grounding Lug
Star Washer
8-32 Nut
8-32 x 1/2”L Stud
for earth ground connection
CAUTION:
Do not allow the full cable weight load to be placed solely at the camera system connector. Support
the cable to relieve the strain on the camera connector.

19
6X-1092B
3.6 Overall Dimensions
3930HD Series Camera System without Wiper and Sunshiels
3930HD Series Camera System with Wiper and Sunshield
5.1 (129.54)
7.5 (190.5)
1.0 (25.4)
1.0 (25.4) 9.2 (233.6)
15.0 (381)
Dimensions in inches (mm)
1.0 (25.4)
1.0 (25.4)
5.7 (144.7)
11.8 (299.7)
4.1 (104.1)
Dimensions in inches (mm)

20 6X-1092B
3930HD Series Camera System without Wiper
4.9 (124.46)
5.1 (129.5) 15.0 (381.0)
1.0 (25.4) 1.0 (25.4)
7.5 (190.5)
Dimensions in inches (mm)
