1.0 General Information
1.1 About this document
This document contains information on how to install and maintain the 4260HD Series Camera Positioning
System.Please read this manual carefully prior to installation to prevent any accidental damage or misuse.
The manual is available from the CohuHD website at
http://www.cohuhd.com/Support/Product-Documentation
The information in this manual is subject to change without notice. Please refer to the above website for the
latest information.
Note: All graphics contained within this document, including screenshots and other displays, are for ref-
erence use only and are subject to change.
1.2 Additional information and documents related to the camera system
For information on the camera system operation, see Operation manual 6x-1119. The manual is available from
the CohuHD website at:
http://www.cohuhd.com/Support/Product-Documentation
1.3 Copyright/Intellectual Property Rights Statement
Copyright 2015, 2016, 2017 CohuHD Costar, LLC. CohuHD Costar, LLC has intellectual property rights to
technology embodied in the product described in this manual.
CohuHD Costar™, RISE™, and Command Core™ are trademarks of CohuHD Costar, LLC.
1.4 FCC compliance
This equipment has been tested and found to comply with the limits for a Class A digital device pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful inter-
ference when the equipment is operated in a commercial environment. This equipment generates, uses, and
can radiate radio frequency energy, and, if not installed and used in accordance with the instruction manual,
may cause harmful interference to radio communications. Operation of this equipment in a residential area is
likely to cause harmful interference, in which case the user will be required to correct the interference at his
own expense.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation. Changes or modifications to this device void the
warranty.
1.5 Support services
Please contact the Customer Service Department for technical assistance.
1.6 Returns
This item was thoroughly tested and carefully packed at the factory prior to shipping. Upon acceptance by the
carrier, the carrier assumes responsibility for the item’s safe arrival. If you receive the item in a damaged con-
dition, apparent or concealed, a claim for damage must be made to the carrier.

- 6 -
If a visual inspection shows damage upon receipt of this shipment, it must be noted on the freight bill or
express receipt and the notation signed by the carrier’s agent. Failure to do this can result in the carrier refus-
ing to honor the claim.
When the damage is not apparent until the unit is unpacked, a claim for concealed damage must be made.
Make a mail or phone request to the carrier for inspection immediately upon discovery of the concealed dam-
age. Keep all cartons and packing materials.
To return the product to the factory for service, please contact the Customer Service Department for a Return
Material Authorization (RMA) Number.
Prominently display the RMA number on the outside of the shipping container(s) and on paperwork contained
inside. Give a brief description of why the equipment is being returned and list the symptoms of any problems
being experienced with the equipment.
1.7 Shipment
Important:If the camera needs to be shipped, please use the original packaging material which was
designed to protect the product during transportation. If the original packaging is lost or damaged, please
order a replacement from Customer Service.

- 7 -
2.0 Safety Instructions
2.1 Important Information
Warning: Do not remove the covers or housing. There are no user-serviceable parts inside.
Warning:The Schrader Valves on the camera head's back plate are for factory use only. Do not attempt to
add any gas to the camera head.
Warning: PoE++ (Power over Ethernet) injectors used with this camera system may operate from 100-240
Vac. These voltages are dangerous. Use extreme care working with equipment connected to these volt-
ages.
NFPA 70 (Articles 800.30 and 830.30), National Electric Code®requires that a listed primary protector be
installed on the conductors of outdoor communication circuits entering a premises, as close as possible to
the point of entrance. The primary protector must be appropriate to the circuit type (PoE, PoE++, or Eth-
ernet).
Warning: Voltages that present a shock hazard may exist on PoE circuits. Use caution to avoid direct con-
tact with exposed, bare Ethernet circuit conductors or connector contacts.
Warning: Some models of this camera system operate from 120 or 24 Vac. Use care working with equip-
ment connected to 120 or 24 Vac.
Warning: The camera system is operated via remote computer control and may move rapidly and unexpect-
edly. Remove power from the camera system before servicing and whenever working near the camera sys-
tem.
Warning: Do not use y-cables or other non-standard wiring schemes.
Caution: In order to prevent damage or deterioration of the optical system avoid pointing the camera system
directly toward the sun.
lInstallation must be done by qualified installers, and conform to all local codes and regulations.
lAll servicing must be performed by qualified service personnel. Procedures in this manual do not
require entry into the housing of the camera system. The unit contains sensitive devices that can be
damaged by static discharge. To reduce the risk of electric shock and damage to the unit by static dis-
charge do not perform any servicing other than described in these instructions. If the unit is defective,
please contact the Customer Service Department for technical assistance.
lIt is the user’s responsibility to ensure that the mounting methods are safe and adequate for the loca-
tion.
lUse only stainless steel (SS) hardware to fasten the mount to an outdoor surface.
2.2 Grounding
lTo provide protection against electrical surges induced by lightning, static charges, or any other cause,
the camera and cabling system must be properly grounded to earth. For installation on a building, the
camera must be bonded (that is, provided with a low impedance connection) to the building’s structural
earth ground system. For installation on a metal pole with a proper ground system at the base, the

- 8 -
camera must be bonded to the pole. For installation on a non-grounded or insulated support, the cam-
era must be grounded with an adequate ground strap or wire between the camera and a nearby ground
system, or to a ground system installed at the base of the support. Failure to adequately ground the
camera may lead to failure of the camera. This applies to low voltage (24 Vac and PoE cameras) as
well as to 120 Vac cameras. Failures due to surges are not covered by the warranty, as they are
not due to defects in material or workmanship, and it is the installer’s responsibility to meet
these grounding requirements.
lAll system cables must be shielded, and the shield(s) must be bonded to earth ground.
lThe grounding screw on the camera’s base must be connected to earth ground using minimum 16
AWG wire and bonded to earth ground as close to the camera system as possible.

- 9 -
3.0 Installation
3.1 4260HDCamera Positioner System Overview

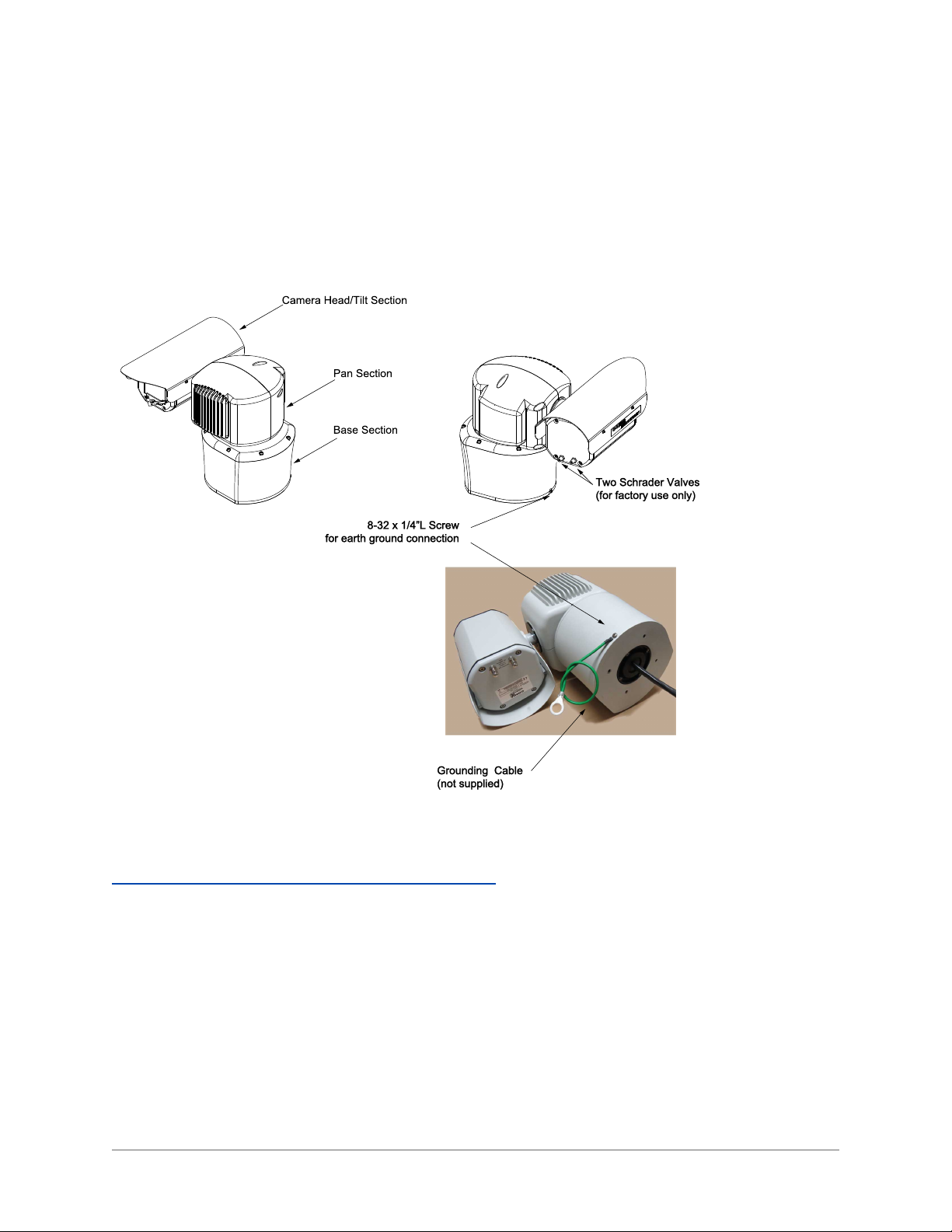

The 4260HD Camera System is an IP camera system contained within three independently sealed and envi-
ronmentally protected sections. The camera system provides IP video streams with H.264 and MJPEG com-
pression. The positioning system provides continuous 360° pan (azimuth) motion range with +/- 95° of tilt
(elevation). Control interfaces are via Ethernet network connection or optional RS422 serial control.
For detailed specifications, download the camera's datasheet from the CohuHD website:
http://www.cohuhd.com/Support/Product-Documentation.
3.2 Optional Accessories
The following optional accessories are recommended by CohuHD and can be purchased with the camera sys-
tem.
Mounts
lLarge Pedistal Adapter: CohuHD p/n 7411444-003
lLarge Pedestal Plate: CohuHD p/n 8481-9
lWall: CohuHD p/n 8425-7
lPole: CohuHD p/n 8503-0
lCorner: CohuHD p/n 8503-1
lParapet: CohuHD p/n 8503-2

- 10 -
Cables
lSee "4260HD CohuHD- Manufactured System Cables " on page 23.
PoE ++ Injectors
lCohuHD p/n 7412007-001, 120 Vac
lCohuHD p/n 7412007-002, 230 Vac
lCohuHD p/n 7412007-003,
See "Power over Ethernet (PoE++)" on page 14 .
Field Connectors
lMS Mating Connector: Amphenol p/n PT06E-14-18S(476) or equivalent, CohuHD p/n 1310230-111.
lAMP Mating connector kit:
1. 16-pin Connector, Plug. CohuHD p/n 1310307-009, Amphenol p/n 206037-1 or equivalent.
2. Backshell. CohuHD p/n 1310307-103, Amphenol p/n 206070-8 or equivalent.
3. Contacts
Waterproof RJ45 Coupler
lWaterproof RJ45 Coupler: VPI CAT5e-WTP-FF or equivalent, CohuHD p/n 7610203-001.
24 Vac Power Transformer
lAC Outdoor Power Supply: Altronix WayPoint-10A or equivalent, CohuHD p/n 7411543-010.
Wiper Arm
lWiper Arm Assembly: CohuHD p/n 8190-5. See " Maintenance" on page 49.
Outdoor Surge Protective Device for PoE and Ethernet
lSurge Protective Device, Power over Ethernet (PoE/PoE+): Edco CAT6-POE-1 or equivalent,
CohuHD p/n 7411708-005.
Outdoor Surge Protective Device for PoE++
lSurge Protective Device, Power over Ethernet (PoE++): PD-OUT/SP11 or equivalent, CohuHD p/n
7412009-001.

- 11 -
3.3 4260HD Interconnection Diagrams
See "Safety Instructions" on page 7.See " Installation Procedure" on page 33 for the camera grounding pro-
cedure.

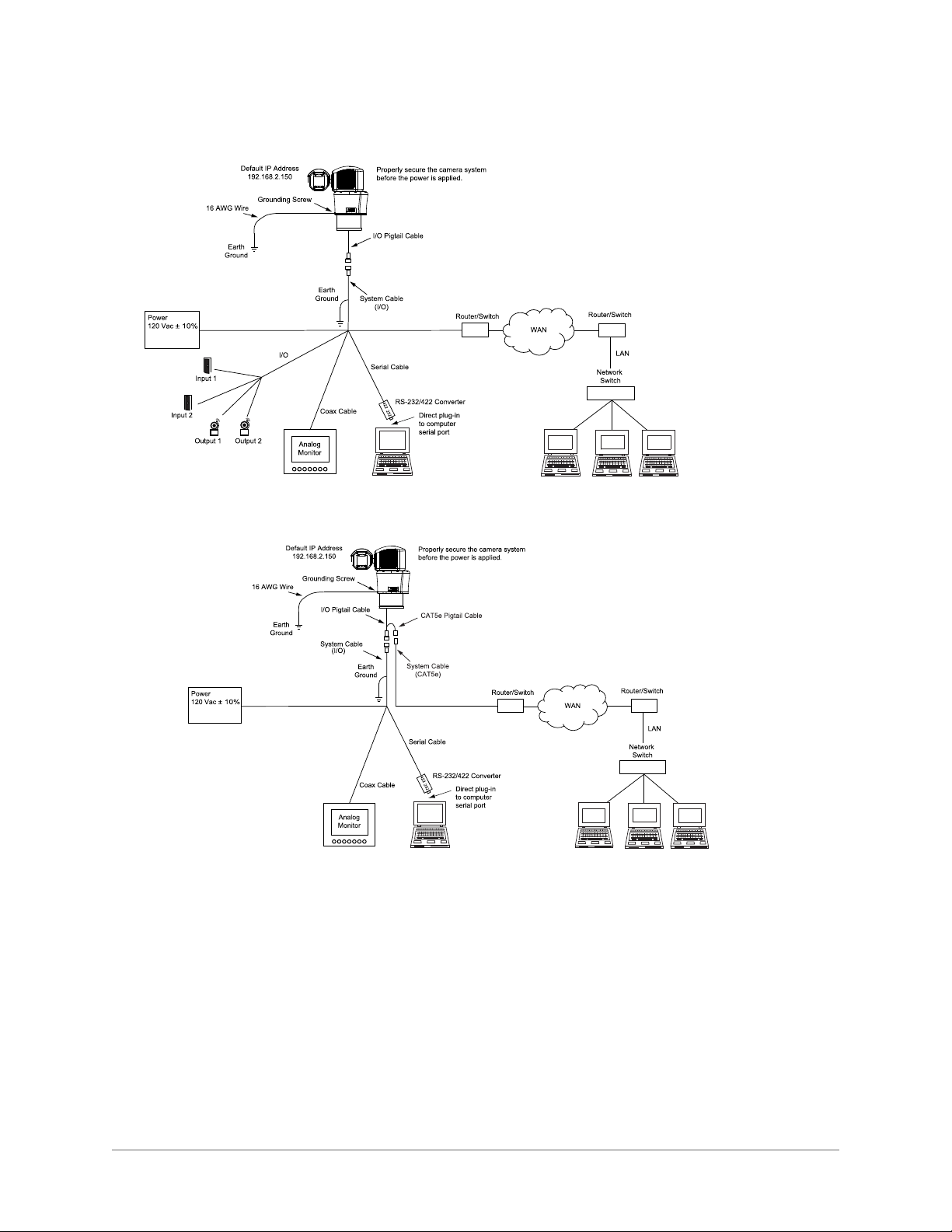

The following are interconnection diagrams for the 4260HD camera system:
3.3.1 Interconnection Diagram with PoE++ Power Supply and Non-PoE Switch.
3.3.2 Interconnection Diagram with PoE++ Power Supply, I/O and Non-PoE Switch.

- 12 -
3.3.3 Interconnection Diagram with 24 Vac Power Supply, Analog and IP Output.
3.3.4 Interconnection Diagram with 24 Vac Power Supply, Analog and IP Output.

- 13 -
3.3.5 Interconnection Diagram with 120 Vac Power Supply.
3.3.6 Interconnection Diagram with 120 Vac Power Supply. MS or AMP Connectors

- 14 -
3.3.7 Power over Ethernet (PoE++)
The 4260HD camera system is compliant with the LTPoE++™ (Linear Technology) specification.
LTPoE++ maintains interoperability with existing PoE and PoE+ standard equipment and specifies backward
compatibility with IEEE 802.3af (PoE) and 802.3at (PoE+) power sourcing equipment (PSE) and powered
devices (PD). It expands the power available at the PD to four different power levels: 38.7 W, 52.7 W, 70 W
and 90 W.
Power to the camera is supplied through the network cable. Two types of PoE++ implementations are spec-
ified:
lEndspan PoE++: Power is applied directly by the switch to the camera. This method requires the
deployment of a PoE++ enabled switch.
lMidspan PoE++: Power is supplied by an injector placed between an existing non-PoE++ switch and
the camera.
PoE++ injectors can be ordered from CohuHD. Please refer to the CohuHD website in the 4260HD series
specifications section for ordering information. The PoE++ injector selected for use with 4260HD must meet
the following requirement:
lBe compatible with the LTPoE++ specification. Please refer to the following website for more infor-
mation: http://www.linear.com/products/poe_powered_device_(pd)

- 15 -
3.4 4260HD Cables
3.4.1 4260HD Models and Available Cable Functions
The 4260HD camera system is built with one or two cables attached to the camera base for electrical con-
nection. The 4260HD camera model number identifies the type(s) of cable(s) the camera system requires.
The 4260HD camera system can be ordered with a combination of two cables:
lCAT5e (Ethernet and PoE++) Pigtail Cable: Belden 7919A shielded CAT5e pigtail cable terminated
into an RJ-45 connector.
lMulti-conductor Input/Output (I/O) Pigtail Cable: 36” long custom CohuHD multi-conductor pigtail
cable. The I/O cable is made with either stripped (prepared) leads, an MS type (metal) connector or
AMP type (plastic) connector.
The following pictures show camera models with cables.
4260HD Models and Available Cables
The following table lists the cable functions and the camera models where these functions are available.
4260HD Models and Available Cable Functions
Camera
Cables Function Models
4261HD 4262HD 4263HD 4264HD 4265HD 4266HD 4267HD 4268HD 4269HD
CAT5e with
RJ-45 Con-
nector
Ethernet yes yes yes yes yes * * yes yes
PoE++ PoE++ PoE++ PoE++ - - - - - -
I/O with MS
Connector,
AMP Con-
nector or
Stripped
Leads
DIO - yes yes yes yes yes yes - -
RS422
Serial - yes yes yes yes yes yes yes yes
Analog
Video - yes yes yes yes yes yes yes yes
Power
(120Vac or
24 Vac)
- - - 24 Vac 24 Vac 24 Vac 120 Vac 120 Vac 120 Vac
*Note: 4266HD, 4267HD - The Ethernet signal goes through the MS connector. See "MS Connector Pinouts (Model
4267HD)" on page 18 . See "MS Connector Pinouts (Model 4266HD)" on page 17 .
Note: The symbol "-" means that the cable function is not available for the camera model.

- 16 -
3.4.2 RJ-45 Connector Pinouts (Models 4261HD, 4262HD, and 4263HD)
RJ-45 Connector
Pin Function
1 Ethernet TX+
2 Ethernet TX-
3 Ethernet RX+
6 Ethernet RX-
5 PoE++ VPort-
4 PoE++ VPort+
7 PoE++ VPort+
8 PoE++ VPort-
3.4.3 RJ-45 Connector Pinouts (Models 4264HD, 4265HD, 4266HD, 4268HD, and 4269HD)
RJ-45 Connector
Pin Function
1 Ethernet TX+
2 Ethernet TX-
3 Ethernet RX+
6 Ethernet RX-
5 Not Connected
4 Not Connected
7 Not Connected
8 Not Connected
Note: Model 4267HD has no RJ-45 connector.
3.4.4 18-pin MS Type (Metal) Connector and its Mating System Cable Connector (Models 4263HD,
4265HD, 4266HD, 4267HD and 4268HD)
Camera connector: Amphenol p/n PT06E-14-18P(476) or equivalent, CohuHD p/n 1310230-117.
Mating connector: Amphenol p/n PT06E-14-18S(476) or equivalent, CohuHD p/n 1310230-111 (supplied, if
ordered).

- 17 -
3.4.4.1 MS Connector Pinouts (Models 4263HD and 4265HD)
MS Connector
Pin Function
C DIO 1
J DIO 3
K DIO 2
P I/O Common
M RS422 RX+
N RS422 RX-
S RS422 TX+
R RS422 TX-
L Analog Video Output
A Analog Video Shield
U Not Connected
H Not Connected
D Not Connected
B 24 Vac
E Not Connected
F Not Connected
T 24 Vac
G Overall Shield
3.4.4.2 MS Connector Pinouts (Model 4266HD)
MS Connector
Pin Function
C DIO 1
J DIO 3
K DIO 2
P I/O Common
M RS422 RX+
N RS422 RX-
S RS422 TX+
R RS422 TX-
L Analog Video Output
A Analog Video Shield
U Not Connected
H Ethernet RX-
D Ethernet TX+
B 24 Vac
E Ethernet TX-
F Ethernet RX+
T 24 Vac
G Overall Shield

- 18 -
3.4.4.3 MS Connector Pinouts (Model 4267HD)
MS Connector
Pin Function
C DIO 1
J DIO 3
K DIO 2
P I/O Common
M RS422 RX+
N RS422 RX-
S RS422 TX+
R RS422 TX-
L Analog Video Output
A Analog Video Shield
U 120 Vac Line
H Ethernet RX-
D Ethernet TX+
B Not Connected
E Ethernet TX-
F Ethernet RX+
T 120 Vac Neutral
G Overall Shield
3.4.4.4 MS Connector Pinouts (Model 4268HD)
MS Connector
Pin Function
C Not Connected
J Not Connected
K Not Connected
P I/O Common
M RS422 RX+
N RS422 RX-
S RS422 TX+
R RS422 TX-
L Analog Video Output
A Analog Video Shield
U 120 Vac Line
H Not Connected
D Not Connected
B Not Connected
E Not Connected
F Not Connected
T 120 Vac Neutral
G Overall Shield/AC Groound

- 19 -
3.4.5 Stripped Leads Wire Colors and Corresponding Functions (Models 4262HD and 4264HD)
Stripped Leads
Wire Color Function
ORN DIO 1
WHT/BLK DIO 2
RED/GRN DIO 3
BLU DIO 4
YEL Factory Default
BRN I/O Common
WHT (26 AWG) RS422 RX+
BLK (26 AWG) RS422 RX-
RED RS422 TX+
GRN RS422 TX-
COAX CENTER (WHT) Analog Video Output
COAX SHIELD (BLK) Analog Video Shield
BLK (22AWG) 24 Vac
WHT (22AWG) 24 Vac
GRY Overall Shield
3.4.6 16-pin Amp Type (Plastic) Connector Kit and its Mating System Cable Connector Kit (Model
4269HD)
Camera connector kit:
l16-pin Connector, Receptacle. CohuHD p/n 1310306-010, Amphenol p/n 206036-3 or equivalent.
lBackshell. CohuHD p/n 1310307-103, Amphenol p/n 206070-8 or equivalent.
lContacts
Mating connector kit:
l16-pin Connector, Plug. CohuHD p/n 1310307-009, Amphenol p/n 206037-1 or equivalent.
lBackshell. CohuHD p/n 1310307-103, Amphenol p/n 206070-8 or equivalent.
lContacts

- 20 -

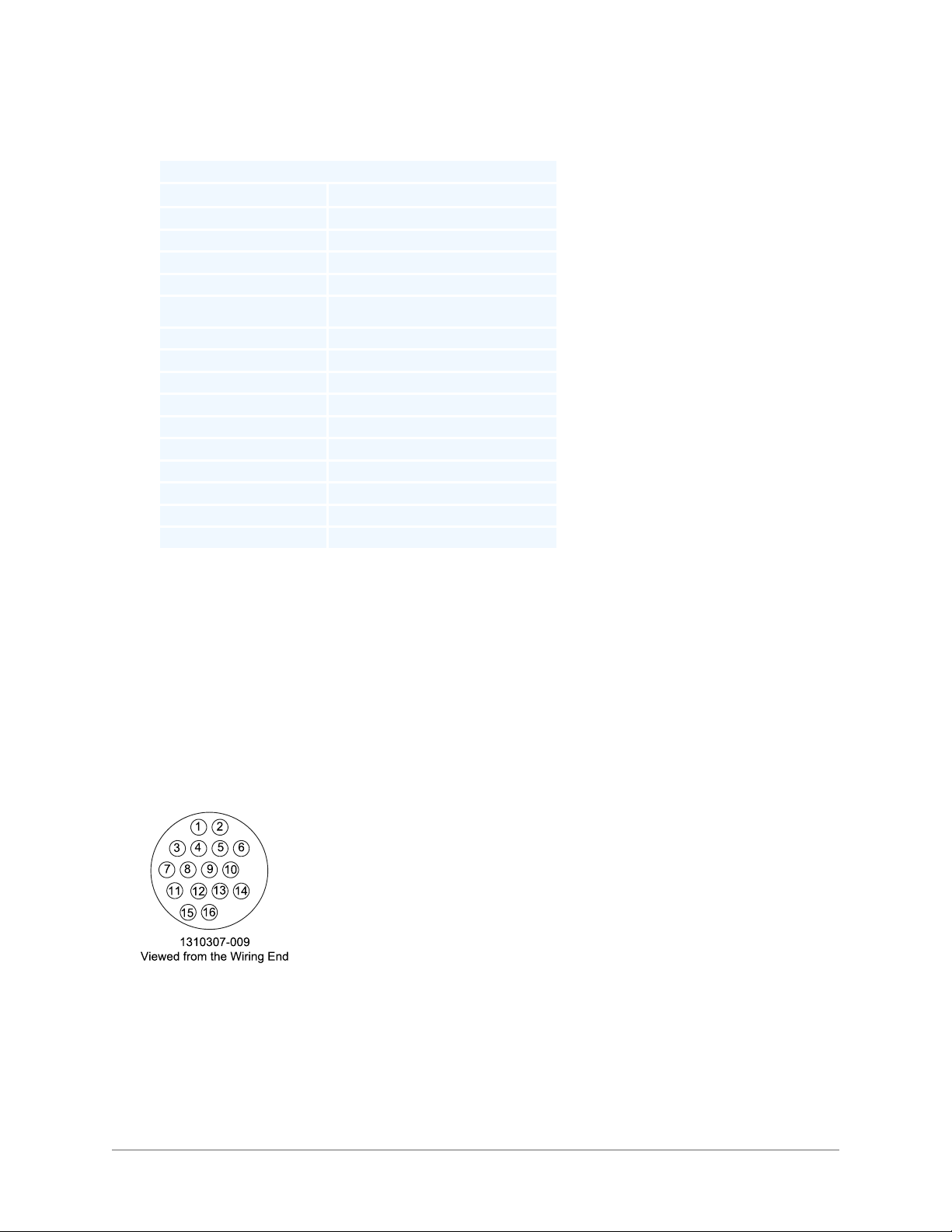

3.4.6.1 Amp Connector Pinouts (Model 4269HD)
AMP Connector
Pin Function
1 Analog Video Output
2 Analog Video Shield
3 I/O Common
4 RS422 TX-
5 RS422 TX+
6 RS422 RX+
7 RS422 RX-
8 Not Connected
9 Not Connected
10 Not Connected
11 Not Connected
12 120 Vac Line
13 120 Vac Neutral
14 Overall Shield
15 AC Ground
16 Not Connected
3.4.7 Digital Inputs/Outputs (DIO)
The camera system can be configured with up to four inputs or four outputs. Each pin can be set as an input or
output. The number of inputs/outputs depends on which I/O cable is ordered:
lCable with stripped leads: Four inputs or four outputs are available.
lCable with MS connector: Three inputs or three outputs are available.
Inputs
The inputs can be configured to initiate an event either when a contact closure between an Input and I/O Com-
mon is detected or when an open circuit between an Input and I/O Common is detected.
Caution: Do not connect a power source to the inputs.
Outputs
The Outputs can be set up to be latched or momentary with programmable momentary duration. When an
event is generated by the camera the Output acts as a relay to control external components.
Caution: The source voltage for any Output must not exceed 60 Vdc, and the maximum current must not
exceed 500 mA.
Wiring Inputs/Outputs
lCable with MS Connector: Connect pins C, K and J on the MS connector to DIO 1, 2, and 3, respec-
tively. A contact closure between the DIO and the I/O Common (MS connector pin P) will generate an
event.
lCable with Stripped Leads: Connect ORN, WHT/BLK, RED/GRN and BLU wires to DOI 1, 2, 3 and
4 respectively. A contact closure between the DOI and the I/O Common (BRN wire) will generate an
event.
