ColDesi Avance User manual

1 | P a g e
USER MANUAL
2020 EDITION

2 | P a g e
Table of Contents
Chapter 1 General Information........................................................................................................................... 4
1.1 Warnings and Cautions.............................................................................................................................. 4
1.2 Main Features.............................................................................................................................................. 6
1.3 Technical Specifications ............................................................................................................................. 8
Chapter 2 Embroidery Guide .............................................................................................................................. 9
2.1 Structure and Usage Instruction of Control Panel .................................................................................. 9
2.2 Instruction of the Main Interface ............................................................................................................ 10
2.3 Basic Procedure of Embroidery .............................................................................................................. 19
2.4 Normal Embroidery, Returning and Patching ...................................................................................... 22
2.5 Embroidery Operation ............................................................................................................................. 22
2.6 Working Status.......................................................................................................................................... 22
Chapter 3 U Disk Management ......................................................................................................................... 24
3.1 Select U Disk.............................................................................................................................................. 24
3.2 Pattern Preview......................................................................................................................................... 26
3.3 Pattern Input ............................................................................................................................................. 27
3.4 Directory Operation.................................................................................................................................. 28
3.5 Formatting U Disk .................................................................................................................................... 28
3.6 Delete Objects from U Disk (including pattern file and directory)...................................................... 29
3.7 Create a New Directory in the Current Directory................................................................................. 30
Chapter 4 Common Parameters and Color-Changing Order........................................................................ 31
4.1 Settings of Common Parameters ............................................................................................................. 31
4.1.1. Settings of X-Y Scale......................................................................................................................... 32
4.1.2. Settings of Rotate Angle ................................................................................................................... 33
4.1.3. Pattern Direction............................................................................................................................... 33
4.1.4. Prior Mode......................................................................................................................................... 34
4.1.5. Rep. Mode.......................................................................................................................................... 34
4.1.6. Rep. Order ......................................................................................................................................... 34
4.1.7. X-Y Rep. Times ................................................................................................................................. 34
4.1.8. X-Y Rep. Interval.............................................................................................................................. 34
4.2 Settings of Color-changing Order ........................................................................................................... 35
4.2.1. Color-changing Interface ................................................................................................................. 35
4.2.2. Settings of Color-Changing Order .................................................................................................. 37
4.2.3. Set Needle Bar Color ........................................................................................................................ 37
Chapter 5 Memory Pattern Management ........................................................................................................ 39
5.1 Memory Pattern Management Interface and Other Memory Pattern Operation Interfaces ........... 39
5.2 Select Pattern for Embroidery................................................................................................................. 41

3 | P a g e
5.3 Memory Pattern Preview ......................................................................................................................... 41
5.4 Pattern Output .......................................................................................................................................... 43
5.5 Copy the Memory Pattern........................................................................................................................ 45
5.6 Create Outline Pattern ............................................................................................................................. 47
5.7 Create High-speed Pattern....................................................................................................................... 47
5.8 Divide Pattern............................................................................................................................................ 48
5.9 Create Parameter Pattern........................................................................................................................ 49
5.10 Mosaic Pattern ........................................................................................................................................ 49
5.11 Create Combined Pattern ...................................................................................................................... 50
5.12 Satin Stitch Adjustment ......................................................................................................................... 53
Chapter 6 Letter Pattern Operation ................................................................................................................. 54
6.1 Enter Main Interface for Letter Embroidery ........................................................................................ 54
6.2 Input Letter String for Embroidery........................................................................................................ 55
6.3 Adjust Letter Pattern ............................................................................................................................... 56
6.4 Save Letter Pattern ................................................................................................................................... 60
Chapter 7 Assistant Operation .......................................................................................................................... 62
7.1 Frame Selection......................................................................................................................................... 62
7.2 Clear XY Displacement ............................................................................................................................ 63
7.3 Positioning Idling ...................................................................................................................................... 63
7.3.1. Low Speed Idling Forward .............................................................................................................. 63
7.3.2. Low Speed Idling Backward ............................................................................................................ 64
7.3.3. High Speed Idling Forward ............................................................................................................. 64
7.3.4. Go to Next Color ............................................................................................................................... 64

4 | P a g e
Chapter 1 General Information
Please read this manual carefully to assist with operating the machine correctly and effectively. Besides that,
you should keep this manual properly for future use.
1.1 Warnings and Cautions
In order to avoid fire, electrical shock or unpredicted injuries, you should follow the listed safety rules.

5 | P a g e

6 | P a g e
1.2 Main Features
1. User-friendly Interface on Touching Panel
The adoption of the touching panel technology offers user the delightful operation and easy learning.
The beautiful screen display turns everyday work into joyful experiences.
2. Huge Memory Capacity
The memory capacity reaches 100 million stitches, which can meet demands of different customers.
3. Maximum Stitch Amount of One Pattern Reaches Two Million
At present, a single pattern in the system has the maximum of 2 million stitches and 1,000 times of
automatic color changing.
4. Multi-Task Parallel Operation and Free Shift among Tasks
During the embroidery, actions like pattern input & output, preparation for the following patterns and
modification of parameters can be carried out.
5. Storage of Frequently Used Parameters and Color-Changing Order for Each Pattern
Pattern will be saved along with its parameters, color-changing orders and needle bar colors. System can
save the operational details for each pattern. Users can set parameters for a pattern during the
embroidery process of the previous pattern, which will save time and improve efficiency. Moreover, it is
one basis to realize network management.

7 | P a g e
6. Pattern Input/Output via USB
Customers can use USB disk for data transfer. USB disk supports DIR operation, which is easy for
pattern management. For each directory, system supports operation of 400 patterns or sub-directory.
There is no limitation of directory levels. Patterns in the formats of Binary, Ternary and Z-nary can be
loaded.
7. Patch Embroidery
This function can set a patch point at the position of color code or stop code, and when the machine
embroiders to the patch point, it will halt and move out frame for patching. After sticking a patch, user
would press the start key to return the frame and continue embroidering.
8. Brake Adjustment
User can adjust the parameter of brake to let the main shaft stop at the correct position according to the
characters of his own machines.
9. Save Start Point
This function can save the start point of each pattern, which saves the work of user to search the start
point manually at embroidering the identical pattern.
10. Mechanical Maintenance and Debugging
This function is to easily judge the malfunctions at maintaining and debugging the machine, such as
encoder testing, main shaft speed testing, machine parts testing and the main shaft stopping at any
position, etc.
11. Multi-Language Support
Currently, the system supports the display in Chinese, English, Spanish and Turkish, Russian, French
and many other languages.
12. Pattern Output
Patterns can be output and saved into USB disk. Adoption of TAJIMA’s binary format enjoys the
advantage of data transmitting through the World Wide Web (other formats may not be transmitted
directly).
13. Repetition Embroidery
The user can increase embroidery productivity by using the function of repetition embroidery, which can
also be used with cyclic embroidery.
14. Cyclic Embroidery
With this function, the machine can automatically return to the origin and start the same embroidery
again when finishing the pattern one time. User also can increase productivity rapidly by combining this
function with special pattern-making function or repetition embroidery function.
15. Pattern Compiling
(1) Compiling the Data of Selected Pattern to Generate New Pattern
Users can compile any pattern according to zoom ratio, rotate angle, normal repetition or partial
repetition to generate a new pattern and save it to memory. The newly generated pattern can be used for
embroidering, output or other operations.
(2) Compiling the Combined Pattern
After setting the combined pattern, the system can compile that pattern to generate a new one and save it
to memory. The newly generated pattern can be used for embroidering, output or other operations.

8 | P a g e
16. Letter Pattern
There are 28 built-in font libraries. Users can make letter groups and change letter orders according to
different tasks. This operation is vivid, simple and easy managing.
17. Pattern Edit (under developing)
18. Speed Adjustment
The highest speed for embroidery can be preset. During embroidery, speed may change automatically
along with the change of needle interval.
19. Thread-trimming
Thread-trimming can be manually operated. The machine can trim the thread automatically at the end of
embroidery process or at color changing.
20. Thread-breakage Detection
In case of thread breakage or running-out of bobbin thread, the machine will stop and give warning by
indicator.
21. Color-changing
At the color-changing point, user can either perform the color-changing manually or let the system do it
automatically according to the preset order.
1.3 Technical Specifications
1. Maximum number of patterns saved in memory: 800
2. Memory capacity: 100 million stitches
3. Screen resolution ratio: 1280*800
4. Network port speed: 100Mbps
5. Supported method for data exchange: USB disk, network (temporarily unavailable)
6. Control precision: Minimum controllable stitch interval is 0.1mm
7. Stitch range: 0.1mm~12.7mm

9 | P a g e
Chapter 2 Embroidery Guide
2.1 Structure and Usage Instruction of Control Panel
I. Structure of Control Panel
1. Touching Panel
•It adopts high-luminance LCD displayer and touching screen man-machine interaction interface.
2. Buttons
•Press the keys to start the embroidery, pause the embroidery.
3. Main USB Port
•USB disk can be plugged for data input/output.
II. Instructions on Touching Panel
•This machine uses the touching panel as its input device. In order to extend the service life of the
panel and to maintain its performance, please don’t apply too much pressure on the screen during
operation. Do not press with sharp or hard tools to click the screen.
III. Instructions on USB Disk
•Pay attention to the direction of the USB disk at plug-in. Don’t pull out the USB disk when system
loads data from or write data to it. If the USB disk is pulled out or the power is cut off during the
data input/output, the data could be lost. In that case, please check the integrity of data in the USB
disk and repair it before using.
•Attention: During the process of initialization, if the power is cut off or the USB disk is pulled out,
the USB disk may be damaged permanently.

10 | P a g e

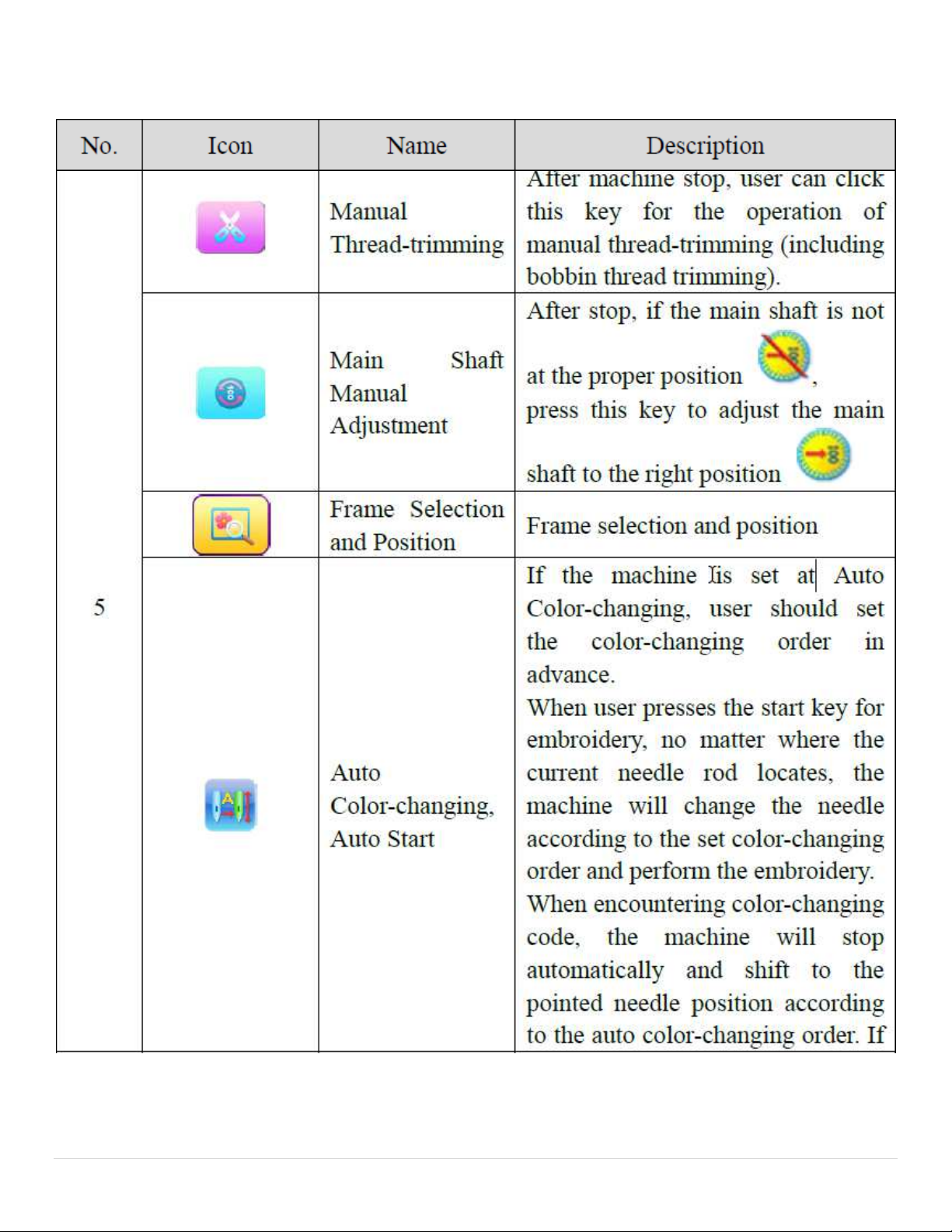

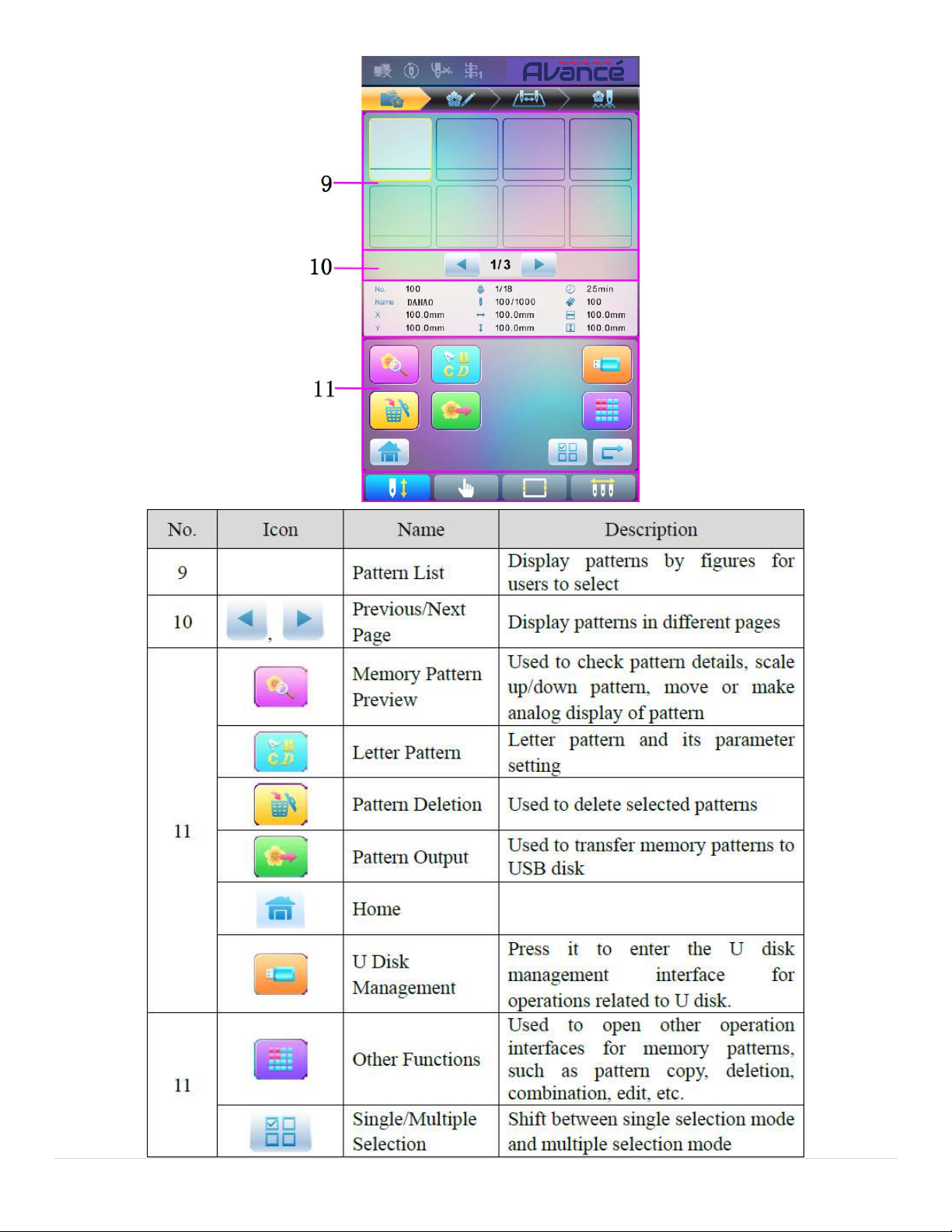

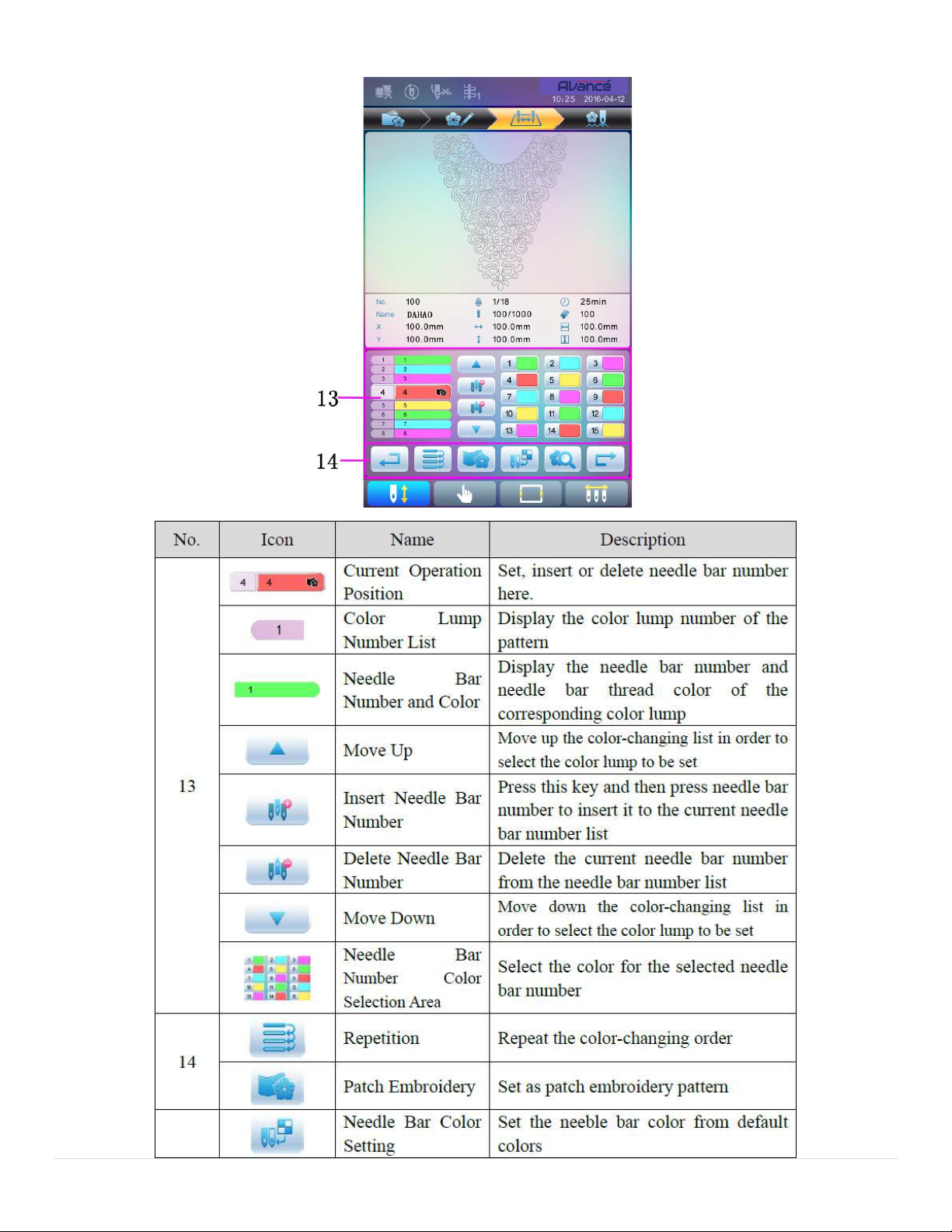

2.2 Instruction of the Main Interface

11 | P a g e

12 | P a g e

13 | P a g e

14 | P a g e

15 | P a g e

16 | P a g e

17 | P a g e

18 | P a g e

19 | P a g e
2.3 Basic Procedure of Embroidery
The machine carries out embroidery based on the patterns saved in memory. The following figure is the
basic procedure of the embroidery:
I. Input Patterns
User can input patterns through network or USB disk. Only with (successful registration)
displayed, can it be possible to transmit patterns by network. For U disk operation, in pattern
management interface, press to enter U disk management interface.

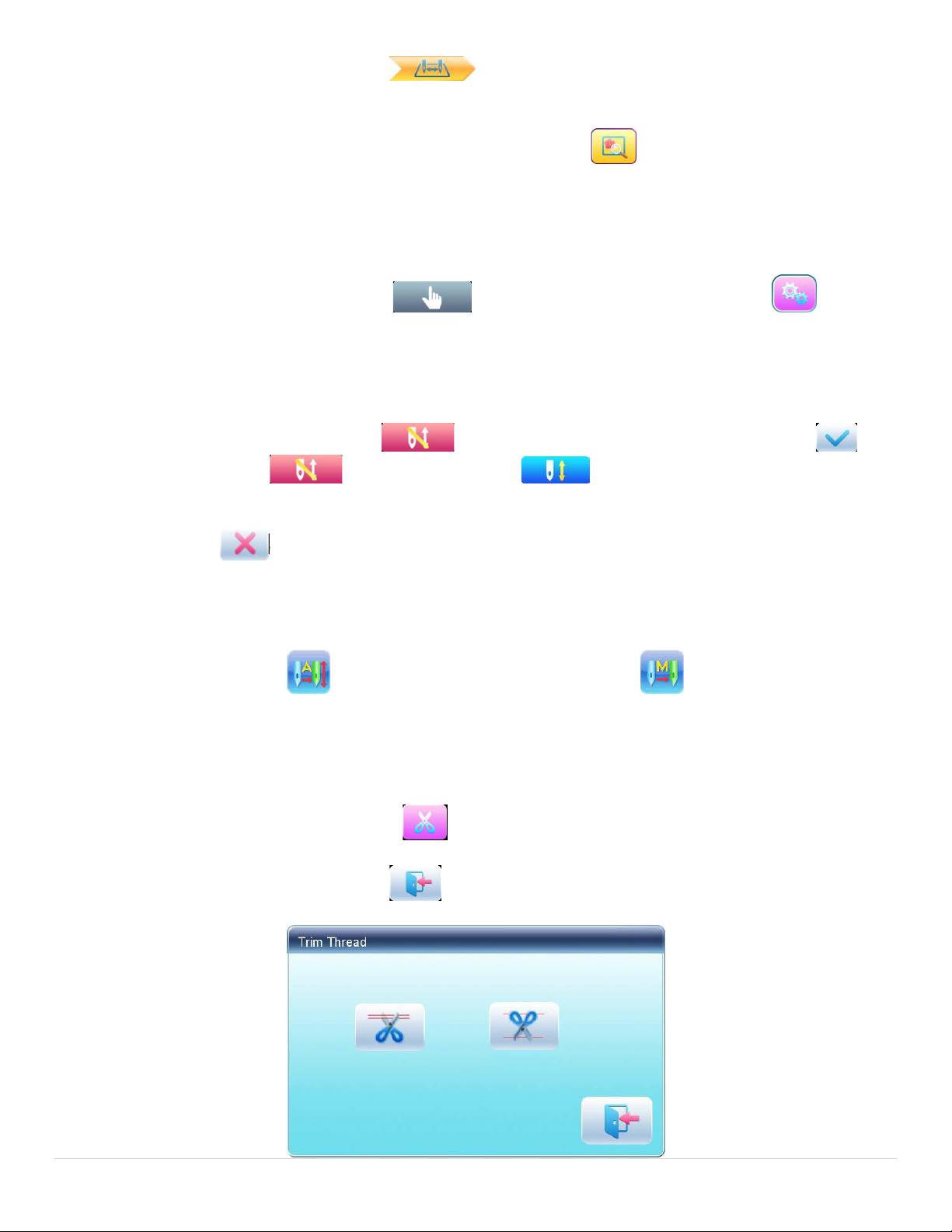

II. Select Pattern
In pattern management interface, user can select needed pattern for embroidery.
III. Assistant Operations
After selecting the pattern for embroidery, user can make assistant operations according to need before
embroidery.
1. Set repetition, rotation and scaling —— press to enter parameter management interface.
2. Set color-changing order —— press to enter color-changing setting interface.

20 | P a g e
3. Set patch embroidery —— press to enter color-changing setting interface and set patch
embroidery of the pattern according to hints.
4. For border inquiry, border idling, pattern outline —— press to enter frame selection and
position operation.
5. Locate pattern at frame center —— press to enter frame selection and position operation. Please note
this function is to locate pattern at the frame center set by soft limitation.
6. Set cyclic embroidery —— press to enter other function operation. Press to enter
parameter management interface. Then press “Embroidery Assistant Parameters” and set cyclic
embroidery according to hints.
IV. Confirm Embroidery
1. After assistant operations, press to display a hint window, where user can select to
confirm and turn (cancel embroidery) to (confirm embroidery), which indicates
the machine has entered Embroidery Ready Status.
If user selects , the machine will stay at Embroidery Cancel Status. At this time, the machine will
not work even when user presses the start key. A hint window will display on the screen for user to
confirm the embroidery.
2. Set Color-changing and Start Mode
User can shift between (auto color-changing and auto start) and (manual color-changing
and manual start).
V. Manual Operation
1. Manual Thread-trimming:
•When the machine stops, press in the main interface to display a hint window, where user
can press “Trim Upper&Bobbin Thread” to trim threads, or click “Trim Bobbin Thread” to trim
the bobbin thread only. Press to quit the thread-trimming operation.
