TECHNICAL GUIDE
Echelon
MODELS: FC9M*UP
GAS-FIRED
CONDENSING / HIGH EFFICIENCY
UPFLOW MODULATING FURNACES
NATURAL GAS
60 - 120 MBH INPUT
Due to continuous product improvement, specifications
are subject to change without notice.
Visit us on the web at www.york.com for the most
up-to-date technical information.
Additional rating information can be found at
www.gamanet.org.
EFFICIENCY
RATING
CERTIFIED
ISO 9001
Certified Quality
Management System
259720-CTG-B-0108
FOR DISTRIBUTION USE ONLY - NOT TO BE USED AT POINT OF RETAIL SALE
DESCRIPTION
These Category IV, highly efficient, compact, condensing
type furnaces are designed for residential and commercial
installations in a basement, closet, alcove, recreation room or
garage where the ambient temperature is above 32°F, or
higher. They may be either side wall or thru-roof vented using
approved plastic type combustion air and vent piping. All
units are factory assembled, wired and tested to assure
dependable and economical installation and operation.
WARRANTY
Lifetime limited warranty on both heat exchangers to the orig-
inal purchaser; a 20-year limited warranty from original instal-
lation date to subsequent purchaser.
10-year warranty on the heat exchanger in commercial appli-
cations.
5-year limited parts warranty.
FEATURES
• Modulating heating operation includes:
- Modulating gas valve
- Modulating inducer operation
• Provides increased comfort level & very quiet unit opera-
tion
• Compact, easy to install, ideal height 40" cabinet
• Blower-off delay for cooling SEER improvement.
• Easy to connect power/control wiring.
• Built-in, high level self diagnostics with fault code display.
• Low unit amp requirement for easy replacement applica-
tion.
• Integrated control module for reliable, economical opera-
tion.
• May be installed as either two-pipe (direct vent) or single
pipe vent (using indoor combustion air)
• Top intake & vent connection allows installation in narrow
locations.
• Electronic Hot Surface Ignition saves fuel cost with
increased dependability and reliability.
• Induced combustion system with inshot main burners for
quiet, efficient operation.
• No special vent termination kit required.
• 100% shut off main gas valve for extra safety.
• PSC -four speed, direct drive motor with large, quiet
blower.
• 24V, 40 VA control transformer and blower relay supplied
for add-on cooling.
• Hi-tech tubular aluminized steel primary heat exchanger.
• Secondary (condensing) heat exchanger of 29-4C high-
grade stainless steel.
• Solid removable bottom panel allows easy application.
• Easy access from front of unit for cleaning, maintenance or
service.
• Protection from intake, exhaust or condensate blockage.
• Insulated blower compartment for quiet operation.

259720-CTG-B-0108
2Unitary Products Group
30-7/8
21-1/2
13-7/8
7
11
7/8
23-3/4
7/8
30-1/8
26-1/2
24-5/8 A
40
26-1/2
25-3/8
28-3/8
21-1/2
11
8
26-3/4
1-3/81-1/4
C
24-3/8
20 5/8
5/8
B
24-7/16
2
D
1-1/2” GAS
PIPE ENTRY
7/8” JUNCTION
BOX HOLE
T-STAT WIRING
7/8” K.O.
CONDENSATE
DRAIN 7/8” K.O.
OPTIONAL RETURN AIR
CUT-OUT (either side)
FOR USE WITH
EXTERNAL FILTER
FRAME
LEFT SIDE
FRONT RIGHT SIDE
BOTTOM IMAGE
RETURN END TOP IMAGE
SUPPLY END
1-1/2” GAS
PIPE ENTRY
7/8” JUNCTION
BOX HOLE
T-STAT WIRING
7/8” K.O.
CONDENSATE
DRAIN 7/8” K.O.

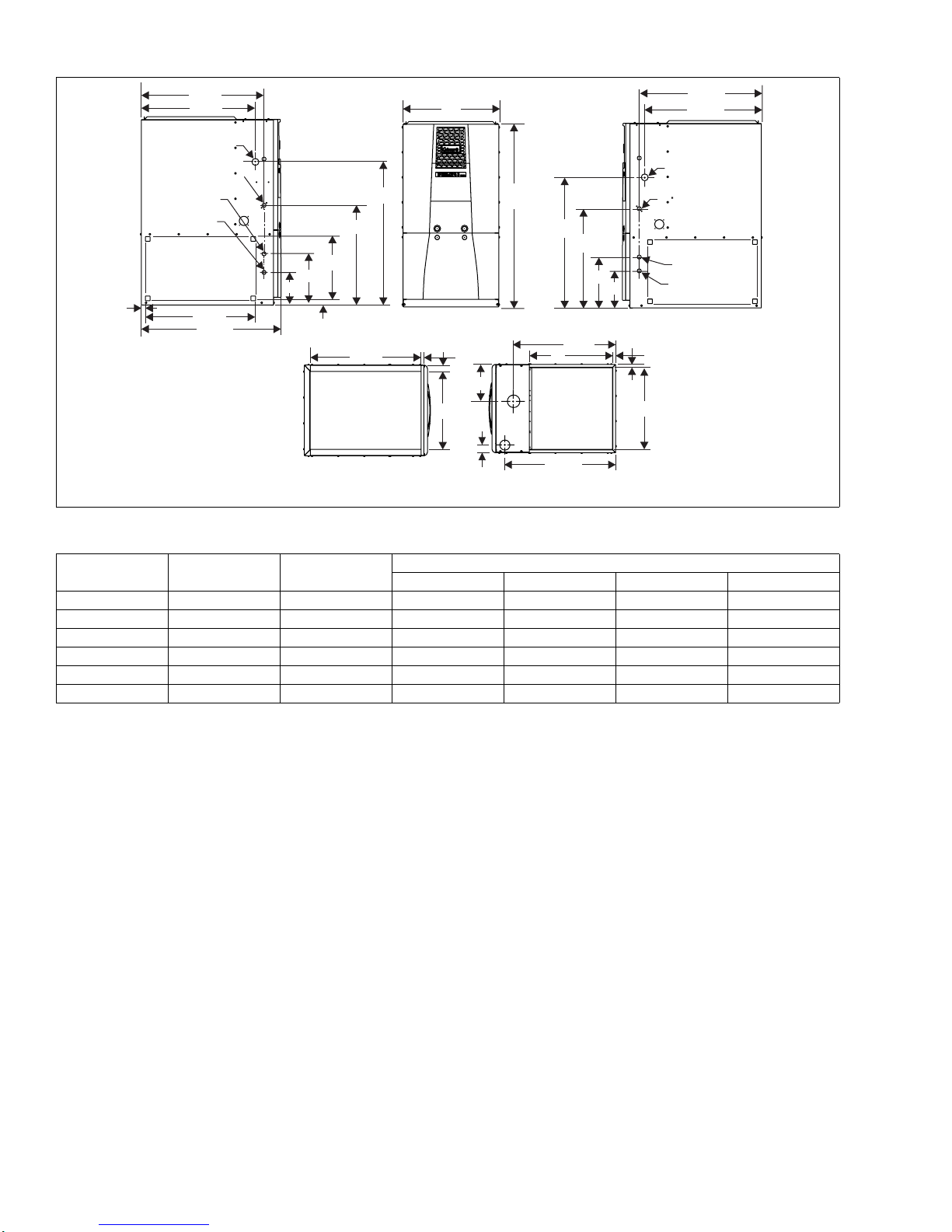

DIMENSIONS
Models Nominal
CFM Cabinet Size Cabinet Dimension
A (in.) B (in.) C (in.) D (in.)
FC9M060B12UP11 1200 B 17-1/2 16-1/4 14-1/2 8-1/2
FC9M080B12UP11 1200 B 17-1/2 16-1/4 11 8-1/2
FC9M080C16UP11 1600 C 21 19-3/4 18 8-7/8
FC9M100C16UP11 1600 C 21 19-3/4 18 8-7/8
FC9M100C20UP11 2000 C 21 19-3/4 18 8-7/8
FC9M120D20UP11 2000 D 24-1/2 23-1/4 21-1/2 10-5/8

259720-CTG-B-0108
Unitary Products Group 3
* ESP (External Static Pressure) .5" WG is at furnace outlet ahead of cooling coil.
Annual Fuel Utilization Efficiency (AFUE) numbers are determined in accordance with DOE Test procedures.
Wire size and over current protection must comply with the National Electrical Code (NFPA-70-latest edition) and all local codes.
The furnace shall be installed so that the electrical components are protected from water.
NOTES:
1. For altitudes above 2000 ft. reduce capacity 4% for each 1000 ft. above sea level.
2. Wire size based on copper conductors, 60°C, 3% voltage drop.
3. Continuous return air temperature must not be below 55°F.
4. All filters must be high velocity cleanable type.
5. Air flows above 1800 CFM require either return from two sides or one side plus bottom.
ELECTRICAL AND PERFORMANCE DATA
Models Input
Max/Min Output Max/Min Blower Size Blower Max.
Over-current
Protect
Air Temp. Rise
Maximum Input Air Temp. Rise Minimum Input
MBH MBH In. HP Amps °F °F
FC9M060B12UP11 60/21 57/20 11 x 8 1/2 7.7 20 40 - 70 20 - 50
FC9M080B12UP11 80/28 76/26 11 x 8 1/2 7.7 20 40 - 70 20 - 50
FC9M080C16UP11 80/28 76/26 11 x 10 3/4 10.2 20 40 - 70 20 - 50
FC9M100C16UP11 100/35 95/33 11 x 10 3/4 10.2 20 40 - 70 20 - 50
FC9M100C20UP11 100/35 95/33 11 x 11 1 12.8 20 40 - 70 20 - 50
FC9M120D20UP11 120/42 115/39 11 x 11 1 12.8 20 40 - 70 20 - 50
Models Max.Outlet
Air Temp. Nominal Airflow Cabinet Width Total Unit AFUE Min. Wire Size
(awg) @ 75 ft.
One Way
Approximate
Operating Weight Power Supply (Voltage-PH-Hz)
°F CFM In. Amps %
FC9M060B12UP11 170 1200 17-1/2 9 95.0 14 135 115-1-60
FC9M080B12UP11 170 1200 17-1/2 9 95.0 14 142 115-1-60
FC9M080C16UP11 170 1600 21 12 95.0 14 157 115-1-60
FC9M100C16UP11 170 1600 21 12 95.0 14 162 115-1-60
FC9M100C20UP11 170 2000 21 14 95.0 12 164 115-1-60
FC9M120D20UP11 170 2000 24-1/2 14 95.0 12 180 115-1-60

259720-CTG-B-0108
4Unitary Products Group
For additional connection diagrams for all UPG equipment refer to “Line Voltage System Wiring” document available on-line at
www.upgnet.com in the Product Catalog Section.
Thermostat Chart - PSC Modulating Furnace/Single Stage Air Conditioner
AC 11A Single Stage Air Conditioner – PSC Modulating Furnace
FL9M
FC9M
PM9ID MODELS
Part Numbers:
SAP = Legacy
155941 = 031-09140
1
C
24 – Volt Common
R
24 – Volt Hot
Y1
Single Stage Compressor
PSC
MODULATING FURNACE
G
Fan
PSC
MODULATING
FURNACE
Y/Y2
Second or Full
Stage Compressor
1
W
Modulating Heat
HM1
Humidistat
Y
Full Stage Compressor
G
Fan
*PP11C70224
THERMOSTAT
RH
24 – Volt Hot
(Heat XFMR)
RC
24 – Volt Hot
(Cool XFMR)
W
Full Stage Heat
Clipping Jumper W914 for
electric heat on thermostat
is not necessary
24VAC Humidifier
(Optional)
C
24 – Volt Common
Y
Compressor
SINGLE STAGE
AIR CONDITIONER
SINGLE STAGE
AIR CONDITIONER
Y
Compressor Contactor
SINGLE STAGE
AIR
CONDITIONER
SINGLE STAGE
AIR CONDITIONER

259720-CTG-B-0108
Unitary Products Group 5
Thermostat Chart - PSC Modulating Furnace/Single Stage Air Conditioner
AC 11B Single Stage Air Conditioner – PSC Modulating Furnace
FL9M
FC9M
PM9ID MODELS
Part Numbers:
SAP = Legacy
155941 = 031-09140
1
C
24 – Volt Common
R
24 – Volt Hot
Y1
Single Stage Compressor
PSC
MODULATING FURNACE
G
Fan
PSC
MODULATING
FURNACE
Y/Y2
Second or Full
Stage Compressor
1
W
Modulating Heat
C
24 – Volt Common
Y
Compressor Contactor
SINGLE STAGE
AIR
CONDITIONER
SINGLE STAGE
AIR CONDITIONER
Y
Full Stage Compressor
G
Fan
*BP11C50124
*BN11C01124
*DP11C40124
*DN11C00124
THERMOSTAT
RH
24 – Volt Hot
(Heat XFMR)
RC
24 – Volt Hot
(Cool XFMR)
W
Full Stage Heat
Selection of GAS/ELEC
switch on thermostat
is not necessary
C
24 – Volt Common
Y
Full Stage Compressor
G
Fan
*BN11C00124
THERMOSTAT
RH
24 – Volt Hot
(Heat XFMR)
RC
24 – Volt Hot
(Cool XFMR)
W
Full Stage Heat
Thermostat Installer Setup
1-System Type-must be
set to 0
C
24 – Volt Common
Thermostat Installer Setup
15-Compressor Protection
must be set to 5
External Humidistat
(Optional)
Open on Humidity Rise 24VAC Humidifier
(Optional)
2
Part Number:
S1-2HU16700124
2

259720-CTG-B-0108
6Unitary Products Group
Thermostat Chart - PSC Modulating Furnace/Single Stage Air Conditioner
AC 11C Single Stage Air Conditioner – PSC Modulating Furnace
FL9M
FC9M
PM9ID MODELS
Part Numbers:
SAP = Legacy
155941 = 031-09140
1
C
24 – Volt Common
R
24 – Volt Hot
Y1
Single Stage Compressor
PSC
MODULATING FURNACE
G
Fan
PSC
MODULATING
FURNACE
Y/Y2
Second or Full
Stage Compressor
1
W
Modulating Heat
C
24 – Volt Common
Y
Compressor Contactor
SINGLE STAGE
AIR
CONDITIONER
SINGLE STAGE
AIR CONDITIONER
24VAC Humidifier
(Optional)
Connection of the “C”
terminal, 24-Volt common
is optional when used with
batteries Step 1 of Thermostat User
Configuration Menu must
be set to MS 2
Connection of the “C”
terminal, 24-Volt common
is optional when used with
batteries
Connection of the “C”
terminal, 24-Volt common
is optional when used with
batteries
Thermostat Installer Setup
0170-System Type-must
be set to 9-2 Heat/1 Cool
Multistage Conventional
Connection of the “C”
terminal, 24-volt common
is optional when used with
batteries
Thermostat Installer Setup
1-System Type-must
be set to 7-2 Heat/1 Cool
Multistage Conventional
Thermostat Installer Setup
15-Compressor Protection
-must be set to 5
C
24 – Volt Common
R
24 – Volt Hot
Y
First Stage Compressor
Y2
Second Stage
Compressor
G
Fan
*DN22C00124
THERMOSTAT
W2
Second Stage Heat
C
24 – Volt Common
R
24 – Volt Hot
Y1
First Stage Compressor
Y2
Second Stage
Compressor
G
Fan
*DP22U70124
THERMOSTAT
W2
Second Stage Heat
W
First Stage Heat E/W1 First Stage Heat
Part Number:
S1-2HU16700124
2
External Humidistat
(Optional)
Open on Humidity Rise
2
C
24 – Volt Common
Y1
First Stage Compressor
Y2
Second Stage
Compressor
G
Fan
*PP32U70124
THERMOSTAT
AUX
Auxiliary Heat
R
24 – Volt Hot
(Heat XFMR)
R
24 – Volt Hot
(Cool XFMR)
C
24 – Volt Common
Y1
First Stage Compressor
Y2
Second Stage
Compressor
G
Fan
*DN22U00124
THERMOSTAT
W2
Second Stage Heat
R
24 – Volt Hot
(Heat XFMR)
R
24 – Volt Hot
(Cool XFMR)
E/W1
Emergency Heat
E/W1
First Stage Heat

259720-CTG-B-0108
Unitary Products Group 7
Thermostat Chart - PSC Modulating Furnace/Single Stage Air Conditioner
AC 11D Single Stage Air Conditioner – PSC Modulating Furnace
FL9M
FC9M
PM9ID MODELS
Part Numbers:
SAP = Legacy
155941 = 031-09140
1
C
24 – Volt Common
R
24 – Volt Hot
Y1
Single Stage Compressor
PSC
MODULATING FURNACE
G
Fan
PSC
MODULATING
FURNACE
Y/Y2
Second or Full
Stage Compressor
1
W
Modulating Heat
C
24 – Volt Common
Y
Compressor
SINGLE STAGE
AIR CONDITIONER
SINGLE STAGE
AIR CONDITIONER
Y
Compressor Contactor
SINGLE STAGE
AIR
CONDITIONER
SINGLE STAGE
AIR CONDITIONER
C
24 – Volt Common
Y1
First Stage Compressor
L
Malfunction Light
Y2
Second Stage
Compressor
G
Fan
*PP32U71124
*PP32U72124
THERMOSTAT
R
24 – Volt Hot
W2
Second Stage Heat
DHM
Dehumidistat
HM
Humidistat
O
Reversing Valve
Energized in Cool
24VAC Humidifier
(Optional)
E/W1
First Stage Heat
Step 1 of the Thermostat
Installer Table must be
set to MTLI STG
E2/P Switch must be in the
E2 position
Step 5 of Thermostat User
Configuration Menu must
be set to “ON” for
Dehumidification

259720-CTG-B-0108
8Unitary Products Group
Thermostat Chart - PSC Modulating Furnace/Single Stage Heat Pump
PM9
FC9M
FL9M
C
24 – Volt Common
R
24 – Volt Hot
Y1
Single Stage Compressor
PSC
MODULATING FURNACE
G
Fan
PSC
MODULATING
FURNACE
Y/Y2
Second or Full
Stage Compressor
2
W
Modulating Heat
HP 17A Single Stage Heat Pump – PSC Modulating Furnace (With Hot Heat Pump Operation)
C
24 – Volt Common
R
24 – Volt Hot
Y1
First Stage Compressor
O
Reversing Valve
Energized in Cool
L
Malfunction Light
G
Fan
*DP32H70124
THERMOSTAT
W1
Second Stage Aux. Heat
E
Emergency Heat
W2
Third Stage Heat
Step 1 of Thermostat
Installer / Configuration
Menu must be set to
Heat Pump 1
C
24 – Volt Common
R
24 – Volt Hot
Y1
First Stage Compressor
O
Reversing Valve
Energized in Cool
L
Malfunction Light
Y2
Second Stage Compressor
G
Fan
*BP21H50124
*BN21H00124
*DP21H40124
*DN21H00124
THERMOSTAT
E
Emergency Heat
W2
Second Stage Heat
B/O Switch on Thermostat
must be in the O position
C
24 – Volt Common
Y1
First Stage Compressor
O/B
Reversing Valve
L
Malfunction Light
Y2
Second Stage Compressor
G
Fan
*DN22U00124
THERMOSTAT
E
Emergency Heat
AUX
Auxiliary Heat
R
24 – Volt Hot
(Heat XFMR)
R
24 – Volt Hot
(Cool XFMR)
24VAC Humidifier
(Optional)
External Humidistat
(Optional)
Open on Humidity Rise
3
Part Number:
S1-2HU16700124
3
O
Reversing Valve
Energized in Cool
C
24 – Volt Common
R
24 – Volt Hot
W1 OUT
First Stage Heat
W2 OUT
Second Stage Heat
Y2 OUT
Second Stage Compressor
Y1
Single Stage Compressor
X/L
Malfunction Light
Y2
Second Stage Compressor
W
Auxiliary Heat
BS
Bonnet Sensor
BSG
Bonnet Sensor
YORKGUARD VI
CONTROL
SINGLE STAGE
HEAT PUMP
Bonnet Sensor
(Optional)
Change FFuel jumper
on the heat pump control
to “ON”
1
H*3
YMB
YZB
OD MODELS
Change Hot Heat Pump
jumper on the heat pump
control to “ON”
Part Numbers:
SAP = Legacy
126768 = 031-09137
18395 = 031-01996
340512 = 031-09178
1
Y2
Second Stage Compressor
Part Numbers:
SAP = Legacy
155941 = 031-09140
2
Thermostat Installer Setup
1-System Type-must be set
to 5 – 2 Heat/1 Heat Pump
Thermostat Installer Setup
2-Changeover Valve-must
be set to 0 – O/B terminal
Energized in Cooling
ID MODELS

259720-CTG-B-0108
Unitary Products Group 9
NOTE: Low cool (W1) airflow is 65% of high cool airflow.
NOTES:
1. Airflow expressed in standard cubic feet per minute (CFM).
2. Return air is through side opposite motor (left side).
3. In order to stay within the velocity rating the filters, airflows above 1800 CFM require either return from two sides or one side plus bottom.
4. Motor voltage at 115 V.
FILTER PERFORMANCE
The airflow capacity data published in the “Blower Perfor-
mance” table listed above represents blower performance
WITHOUT filters. To determine the approximate blower per-
formance of the system, apply the filter drop value for the fil-
ter being used or select an appropriate value from the “Filter
Performance” table shown.
NOTE: The filter pressure drop values in the “Filter Perfor-
mance” table shown are typical values for the type of filter
listed and should only be used as a guideline. Actual pres-
sure drop ratings for each filter type vary between filter manu-
facturer.
BLOWER PERFORMANCE CFM - COOLING
COOLING AIRFLOW WITH BOTTOM OR ONE SIDE RETURN
MODELS Speed
Tap
EXTERNAL STATIC PRESSURE, INCHES W.C. (kPa)
0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0
CFM CFM CFM CFM CFM CFM CFM CFM CFM CFM
FC9M060B12UP11
FC9M080B12UP11
A 1650 1605 1570 1525 1465 1410 1350 1275 1170 1060
B 1165 1185 1175 1165 1150 1140 1100 1050 970 875
C 895 915 935 940 940 920 905 860 815 750
D 710 725 725 725 720 700 685 660 625 560
FC9M100C20UP11
A 2300 2210 2120 2020 1930 1830 1715 1595 1480 1350
B 1950 1900 1830 1755 1680 1595 1500 1390 1270 1155
C 1610 1545 1490 1440 1390 1315 1230 1155 1050 920
D 1325 1270 1225 1175 1105 1045 990 905 890 790
FC9M080C16UP11
FC9M100C16UP11
A 1960 1955 1925 1890 1830 1765 1695 1615 1600 1485
B 1565 1560 1560 1575 1545 1530 1475 1425 1365 1260
C 1230 1275 1285 1300 1310 1300 1280 1245 1190 1070
D 930 945 965 975 975 975 975 950 910 850
FC9M120D20UP11
A 2560 2485 2410 2320 2220 2135 2035 1920 1785 1650
B 2090 2050 1990 1970 1885 1820 1760 1675 1545 1405
C 1695 1675 1665 1615 1565 1510 1460 1385 1285 1140
D 1175 1150 1135 1110 1085 1055 1005 980 970 845
COOLING AIRFLOW WITH TWO SIDE RETURNS OR WITH BOTTOM AND ONE SIDE RETURN
MODELS Speed
Tap
EXTERNAL STATIC PRESSURE, INCHES W.C. (kPa)
Input/
Airflow/Cabinet 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0
CFM CFM CFM CFM CFM CFM CFM CFM CFM CFM
FC9M100C20UP11
A 2465 2380 2295 2195 2095 1995 1875 1760 1620 1470
B 2085 2035 1960 1880 1800 1705 1605 1485 1360 1235
C 1725 1625 1595 1540 1485 1405 1315 1235 1125 995
D 1420 1360 1310 1255 1180 1120 1070 970 950 845
FC9M120D20UP11
A 2615 2535 2450 2385 2285 2175 2075 1945 1825 1670
B 2055 2045 2015 1985 1932 1855 1785 1730 1605 1470
C 1690 1650 1620 1600 1570 1525 1470 1395 1300 1200
D 1345 1335 1335 1285 1250 1230 1180 1115 1010 850
Blower speed adjustments should be done by moving the COOL jumper on the control
board. DO NOT move the motor wires to different positions on the furnace control board.
FILTER PERFORMANCE - PRESSURE DROP INCHES W.C.
Airflow Range Minimum
Opening Size
Filter Type
Disposable Washable
Fibers Pleated
CFM in2In W.C. In W.C. In W.C.
0 - 750 230 0.01 0.01 0.15
751 - 1000 330 0.05 0.05 0.20
1001 - 1250 330 0.10 0.10 0.20
1251 - 1500 330 0.10 0.10 0.25
1501 - 1750 380 0.15 0.14 0.30
1751 - 2000 380 0.19 0.18 0.30
2001 & Above 463 0.19 0.18 0.30

259720-CTG-B-0108
10 Unitary Products Group
APPLYING FILTER PRESSURE DROP TO
DETERMINE SYSTEM AIRFLOW
To determine the approximate airflow of the unit with a filter in
place, follow the steps below:
1. Select the filter type.
2. Select the number of return air openings or calculate the
return opening size in square inches to determine the
proper filter pressure drop.
3. Determine the External System Static Pressure (ESP)
without the filter.
4. Select a filter pressure drop from the table based upon
the number of return air openings or return air opening
size and add to the ESP from Step 3 to determine the
total system static.
5. If total system static matches a ESP value in the airflow
table (i.e. 0.20, 0.60, etc,) the system airflow corre-
sponds to the intersection of the ESP column and Model/
Blower Speed row.
6. If the total system static falls between ESP values in the
table (i.e. 0.58, 0.75, etc.), the static pressure may be
rounded to the nearest value in the table determining the
airflow using Step 5 or calculate the airflow by using the
following example.
Example: For a 120,000 Btuh furnace with 2 return openings
and operating on high speed blower, it is found that total sys-
tem static is 0.58" w.c. To determine the system airflow, com-
plete the following steps:
1. Obtain the airflow values at 0.50" & 0.60" ESP.
Airflow @ 0.50": 2285 CFM
Airflow @ 0.60": 2175 CFM
2. Subtract the airflow @ 0.50" from the airflow @ 0.60" to
obtain airflow difference.
2175 - 2285 = -110 CFM
3. Subtract the total system static from 0.50" and divide this
difference by the difference in ESP values in the table,
0.60" - 0.50", to obtain a percentage.
(0.58 - 0.50) / (0.60 - 0.50) = 0.8
4. Multiply percentage by airflow difference to obtain airflow
reduction.
(0.8) x (-110) = -88
5. Subract airflow reduction value to airflow @ 0.50" to
obtain actual airflow @ 0.58" ESP.
2288 - 88 = 2197
ACCESSORIES
PROPANE (LP) CONVERSION KIT -
1NP0680 - All units
This accessory conversion kit must be used to convert natu-
ral gas (N) units for propane (LP) operation. Conversions
must be made by qualified distributor or dealer personnel.
CONCENTRIC VENT TERMINATION -
1CT0302 (2")
1CT0303 (3")
For use through rooftop, sidewall. Allows combustion air to
enter and exhaust to exit through single common hole.
CONDENSATE NEUTRALIZER KIT - 1NK0301
Neutralizer cartidge has a 1/2" plastic tube fittings for installa-
tion in the drain line. Calcium carbonate refill media is also
avaiable from the Source 1 Parts (p/n 026-30228-000).
SIDEWALL VENT TERMINATION -
1HT0901 (3")
1HT0902 (2")
For use on sidewall, two-pipe installations only. Provide a
more attractive termination for locations where the terminal is
visable on the side of the home.
SIDE RETURN FILTER -
1SR0402 - All Models
1SR0200 - All Models
BOTTOM RETURN FILTER -
1BR0117 or 1BR0217 - For 17-1/2” cabinets
1BR0121 or 1BR0221 - For 21” cabinets
1BR0124 or 1BR0224 - For 24-1/2” cabinets
ROOM THERMOSTATS - A wide selection of compatible
thermosets are available to provide optimum performance
and features for any installation.
1H/1C, manual change-over electronic non-programmable
thermostat.
1H/1C, auto/manual changeover, electronic programmable,
deluxe 7-day, thermostat.
1H/1C, auto/manual changeover, electronic programmable.
* For the most current accessory information, refer to the
price book or consult factory.
UNIT CLEARANCES TO COMBUSTIBLES
APPLICATION TOP FRONT REAR LEFT SIDE RIGHT SIDE FLUE FLOOR/
BOTTOM CLOSET ALCOVE ATTIC
In. In. In. In. In. In.
UPFLOW 1 3 0 0 0 0 COMBUSTIBLE YES YES

259720-CTG-B-0108
Unitary Products Group 11
NOTES

Subject to change without notice. Printed in U.S.A. 259720-CTG-B-0108
Copyright © by Unitary Products Group. 2008. All rights reserved. Supersedes: 259720-CTG-A-0606
Unitary 5005 Norman
Products York OK
Group Drive 73069
NOTES
