Colorful A320M-K PRO V14 User manual

AB350M-K PRO V14
A320M-K PRO V14
1.1.Packing Contents
1*Colorful A320M-K PRO V14/AB350M-K PRO V14 motherboard
2* SATA cables
1* Driver/Utility CD
1* User's Guide
1* I/O shield
Thanks for purchasing Colorful series motherboard. This series of motherboards provides excellent performance and quality
assurance.
A320M-K PRO V14/AB350M-K PRO V14 motherboard based on AMD A320/B350 Express Chipset, support AMD AM4
CPUs, support dual channel DDR4 2666（OC）/2400/2133MHZ memory, support PCI-E 3.0 standard.
The motherboard provides 1*HDMI port、1*VGA port、2*DDR4 memory slots、4*SATA3.0、4*USB2.0、4*USB3.0 ports
(including headers)、onboard 6-CH audio chipset、onboard 1000M LAN chipset, it’s a Cost-effective motherboard ！
The motherboard provides 1*PCI Express3.0 x16 slot、1*PCI Express x1 slot,all kinds of high-performance extension cards
can be added.
Colorful Technology Website:
http://www.colorful.cn
1.2.MOTHERBOARD SPEC
CPU ·Supports Socket AM4
·Support AMD AM4 CPUS
Chipset ·AMD A320(A320M-K PRO V14)
·AMD B350(AB350M-K PRO V14)
Main
Memory
Slots
·Dual-Channel DDR4 2666（OC）/2400
/2133MHZ support
·Offer 2 DIMM slots
·1*24-pin ATX Power connector
·1* 4-pin ATX 12V Power connector
·1*Front panel audio connector（F_AUDIO）
·1*System panel connector（F_PANEL）
·1*USB2.0 headers（F USB20_1）
·1*USB3.0 header（F USB30_1）
·2*FANs（CPU_FAN,SYS_FAN）
·1*PC speaker connector（SPEAK）
·1*Debug card connector（DEBUG）
·1*COM header（COM_A）
·1*clear CMOS jumper（CLR_CMOS）
·1*FAN_RGB_header(RGB_HEADER)
·1*SPDIF header（JSPDIF）
·1*PS2 Mouse/ Keyboard boot jumper（JKB）
·1*PCI Express 3.0x16 slot
·1*PCI Express x1 slot
Storage ·4*SATA3.0 6Gb/s ports
USB ·4*USB2.0+4*USB3.0(including headers)
Rear IO
Connector
Other
Connectors
·Onboard 6-channel High Definition audio chipset
·Support 3D surround sound
High
Definition
Audio
·Onboard 1000M LAN
·Provides 10/100/1000Mb Ethernet
Onboard
LAN
·2*PS/2 Mouse and Keyboard port
·1*LAN(RJ45) port
·2*USB 2.0 ports
·2*USB 3.0 ports
·6-Channel Audio I/O
·1*HDMI Port
·1*VGA Port

2.Hardware Installation
This section will guide you through the installation of the motherboard. The topics covered in this section are:
Preparing the motherboard
. Installing the CPU
. Installing the CPU fan
. Installing the memory
Installing the motherboard
Connecting cables and setting switches
1.PS/2 Mouse and Keyboard port
2.Connect to HDMI monitor
3.Connect to VGA monitor
4.Connect to USB3.0 devices
5.Connect to USB2.0 devices and LAN
6.Audio devices
7.PS2 Mouse/ Keyboard boot jumper
8.4-pin ATX 12V Power connector
9.AMD AM4 socket
10.DIMM slots
11.24-pin ATX Power connector
12.SATA 3.0 ports
13.Fan connector（CPU_FAN，SYS_FAN）
14.FAN_RGB_header
15.PCI-Express 3.0 X16 slot,for VGA Card
16.clear CMOS jumper
17.COM header
18.Debug card connector
19.PCI Express x1 slot
20.Front panel audio connector
21.SPDIF header
22.Speaker connector
23.USB 3.0 header
24.USB 1.1/2.0 header
25.System panel connector

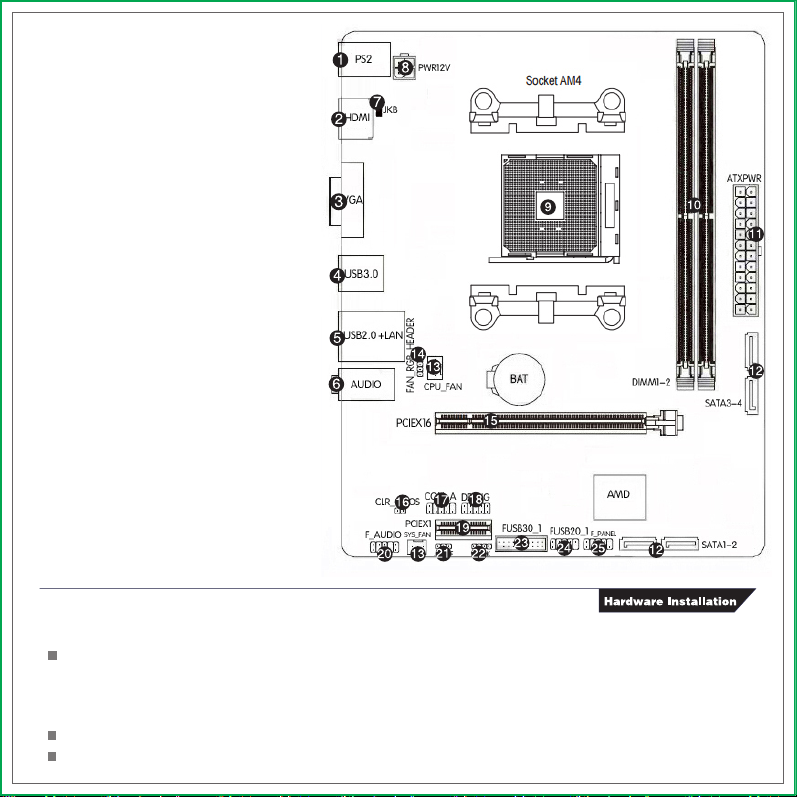

1.3.Motherboard Layout

2.1.Safety Instructions
To reduce the risk of fire, electric shock, and injury, always follow basic safety precautions.
Remember to remove power from your computer by disconnecting the AC main source before removing or installing any equip-
ment from/to the computer chassis.
2.2.Preparing the Motherboard
The motherboard shipped in the box does not contain a CPU or memory. You need to purchase a CPU, a CPU fan assembly,
and memory to complete this installation.

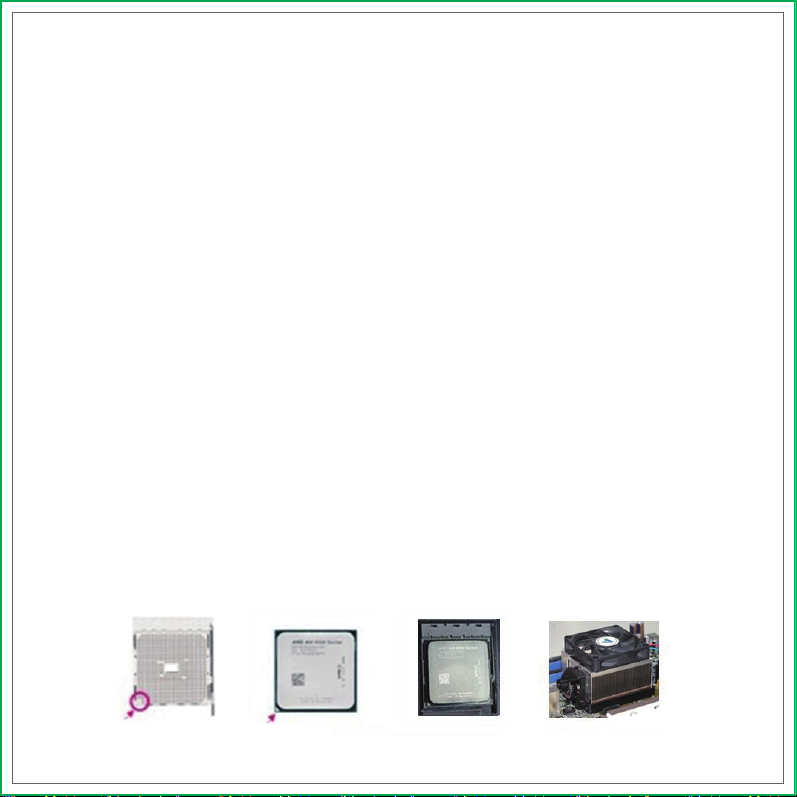

2.2.1.Installing the CPU
When installing a APU, always remember to install a APU heatsink. An APU heatsink is necessary to prevent overheating and
maintain system stability. Follow the steps below to ensure correct APU and heatsink installation. Wrong installation can damage
both the APU and the motherboard.
1. Pull the lever sideways away from the socket. Make sure to raise the lever up to a 90-degree angle.
2. Look for the gold arrow of the APU. The gold arrow should point as shown in the picture. The APU can only fit in the correct
orientation.
3. If the APU is correctly installed, the pins should be completely embedded into the socket and can not be seen. Please note that
any violation of the correct installation procedures may cause permanent damages to your motherboard.
4. Press the APU down firmly into the socket and close the lever. As the APU is likely to move while the lever is being closed,
always close the lever with your fingers pressing tightly on top of the APU to make sure the APU is properly and completely
embedded into the socket.
5. Locate the CPU fan connector on the motherboard.
6. Position the cooling set onto the retention mechanism. Hook one end of the clip to hook first.
7. Then press down the other end of the clip to fasten the cooling set on the top of the retention mechanism. Locate the Fix Lever
and lift up it.
8. Fasten down the lever.
9. Attach the APU Fan cable to the APU fan connector on the motherboard.

2.4.Installing the Motherboard
The sequence of installing the motherboard�into the chassis depends on the chassis you are using and if you are replacing
an existing motherboard or working with an empty chassis. Determine if it would be easier to make all the connections prior
to this step or to secure the motherboard and then make all the connections. Use the following procedure to install the I/O
shield and secure the motherboard into the chassis.
2.5.Installing the I/O Shield
The motherboard kit comes with an I/O shield�that is used to block radio frequency transmissions, protects internal compo-
nents from dust and foreign objects, and promotes correct airflow within the chassis.
Before installing the motherboard, install the I/O shield from the inside of the chassis. Press the I/O shield into place and
make sure it fits securely. �If the I/O shield does not fit into the chassis, you would need to obtain the proper size from the
chassis supplier.
Be sure that the CPU fan assembly has enough clearance for the chassis covers to lock into place and for the expan-
sion cards. Also make sure the CPU Fan assembly is aligned with the vents on the covers.
2.3.Installing Memory DIMMs
Your new motherboard has 2�slots for DDR4 memory. They support dual channel DDR4�memory technology. There must
be at least one memory bank populated to ensure normal operation. Use the following the recommendations for installing
memory.
1 DIMM: Install into DIMM 1. You can install the DIMM into any slot, however, slot 1 is preferred.
2 DIMMs:Install into DIMM 1&DIMM 2 slots , to build dual channel.
Use the following procedure to install memory DIMMs into the slots on the motherboard. Note that there is only one gap near
the center of the DIMM slot. This slot matches the slot on the memory DIMM to ensure the component is installed properly.
Unlock a DIMM slot by pressing the module clips outward.
Align the memory module to the DIMM slot, and insert the module vertically into the DIMM slot. The plastic clips at both
sides of the DIMM slot automatically lock the DIMM into the connector.

2.7.1.ATX power connectors (24-pin ATXPWR, 4-pin ATX12V)
These connectors are for an ATX power supply. The plugs from the power supply are designed to fit these connectors in
only one orientation. Find the proper orientation and push down firmly until the connectors completely fit.
2.7.2.Debug header:DEBUG
This Debug header is for Debug serial devices.
2.6.Securing the Motherboard into the Chassis
Most computer chassis have a base with mounting studs or spacers to allow the mother board to be secured to the chassis
and help to prevent short circuits. If there are studs that do not align with a mounting hole on the motherboard, it is recom-
mended that you remove that stud to prevent the possibility of a short circuit.
1.Carefully place the motherboard onto the studs/spacers located inside the chassis.
2.Align the mounting holes with the studs/spacers.
3.Align the connectors to the I/O shield.
4.Ensure that the fan assembly is aligned with the chassis vents according to the fan assembly instruction.
5.Secure the motherboard with a minimum of eight-to-ten screws.
2.7.Connecting Cables and Setting Switches
This section takes you through all the connections and switch settings necessary on the motherboard. This will include:
Power Connections
24-pin ATX power
4-pin ATX 12V power
Internal Headers
Front panel
USB Headers
Audio
Serial ATA III
Chassis Fans
Rear panel USB 2.0 Adapter
Expansion slots

2.7.3.Serial ATA 3.0 6Gb/s connectors (7-pin)
These connectors connect to Serial ATA 3.0 6Gb/s hard disk drives and optical drives via Serial ATA 3.0 6Gb/s signal cables.
2.7.4.USB 3.0 connector
This connector is for USB 3.0 devices.
This connector is for a chassis-mounted front panel audio I/O module that supports either High Definition Audio or AC`97
audio standard. Connect one end of the front panel audio I/O module cable to this connector.
2.7.5.USB2.0 connectors
These connectors are for USB 2.0 ports. Connect the USB module cable to any of these connectors, then install the module
to a slot opening at the back of the system chassis. These USB connectors comply with the USB 2.0 specification that
supports up to 480Mbps connection speed.

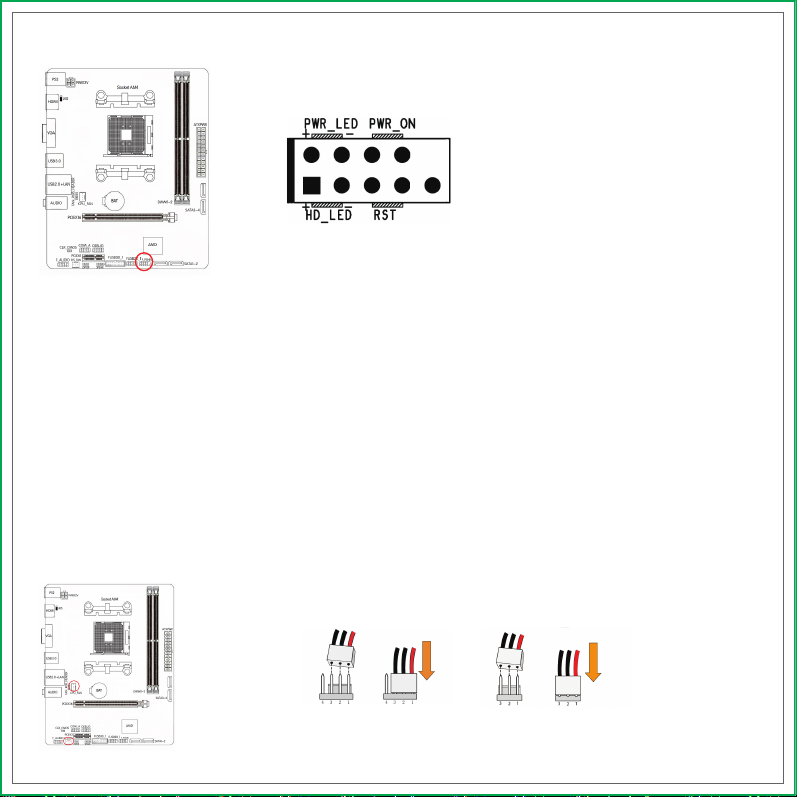

2.7.6.Front panel audio connector

This connector supports several chassis-mounted functions.
System power LED (2-pin PLED)
This 2-pin connector is for the system power LED. Connect the chassis power LED cable to this connector. The system
power LED lights up when you turn on the system power, and blinks when the system is in sleep mode.
Hard disk drive activity LED (2-pin IDE_LED)
This 2-pin connector is for the HDD Activity LED. Connect the HDD Activity LED cable to this connector. The IDE LED lights
up or flashes when data is read from or written to the HDD.
System warning speaker (4-pin SPEAKER)
This 4-pin connector is for the chassis-mounted system warning speaker. The speaker allows you to hear system beeps
and warnings.
ATX power button/soft-off button (2-pin PWRSW)
This 2-pin connector is for the system power button.
Reset button (2-pin RESET)
This 2-pin connector is for the chassis-mounted reset button for system reboot without turning off the system power.
2.7.7.System panel connector
Connect the fan cables to the fan connectors on the motherboard, making sure that the black wire of each cable matches
the ground pin of the connector.
2.7.8.CPU, Chassis, and Power fan connectors

There is a CMOS RAM on board that has a power supply from external battery to keep the system configuration data. With
the CMOS RAM, the system can automatically boot OS every time it is turned on. If you want to clear the system configura-
tion, use the CLR_CMOS Jumper to clear data.
2.7.10.Clear CMOS Jumper: CLR_CMOS
You can clear CMOS by shorting 1-2 pin. Before you clearing the CMOS, following next procedure:
1.Turn off the AC power supply and connect pins 1 and 2 together using the jumper cap.
2.Return the jumper setting to normal (pin 2) or Remove the jumper cap.
3.Turn the AC power supply back on.
Clear CMOS PROCEDURE
The PCI Express x16 slot�is reserved for a graphics or video card. The bandwidth of the x16 slot is up to 8GB/sec.
When installing a PCI Express x16 card, be sure the retention clip snaps and locks the card into place. If the card is not
seated properly, it could cause a short across the pins. Secure the card’s metal bracket to the chassis back panel with the
screw used to hold the blank cover.
2.7.9.PCI Express x16 Slots
PCI Express x1
PCI Express3.0 x16
Clear CMOS settings
1or2 normal1-2 clear CMOS

This COM header is for COM serial devices.
2.7.11.COM header：COM_A
This SPDIF header is for SPDIF audio devices.
2.7.13.SPDIF header：JSPDIF
This SPEAK header is for Speaker serial devices.
2.7.14.SPEAK header:SPEAK
This 4-pin header is for FAN with LED light.
2.7.12.FAN_RGB_HEADER

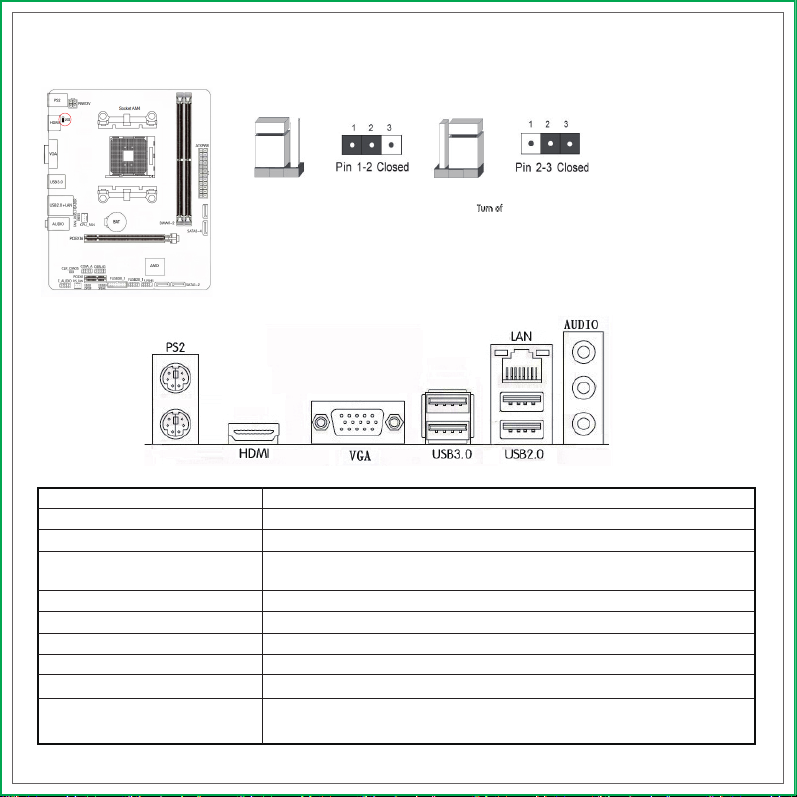

PS/2 Mouse/ Keyboard boot settings
T
urn of functions open functions
Use
This connector is for a PS/2 mouse.
This connector is for a PS/2 keyboard.
Used for external CD player, tape player or other audio devices.
This connector for speakers or headphones.
Parts
PS/2 Mouse Connector
PS/2 Keyboard Connector
The standard RJ-45 jack is for connection to single Local Area Network (LAN).
You can connect a network cable to it.
LAN Jack
Lie-In(Blue)
Line Out(Green)
Side surround speakers connector.Side R/L(Gray)
Onboard VGA, connect to Monitor.
VGA
Onboard HDMI port, connect to HDMI Monitor.HDMI
These connectors are for attaching USB devices such as keyboard, mouse,
or other USB-compatible devices.
USB Ports
These jumpers set PS/2 Mouse/ Keyboard to start up functions(you also need to open this function in Bios system)Note: the
white silk�screen "1" printing on PCB board is the first pin of jumper.
2.7.15.PS2 Mouse/ Keyboard boot jumper:JKB
2.7.16.Back Panel IO Connector

Press F1 to Run Setup
Press F2 to Load default values and continue
Power on the computer and the system will start the Power On Self Test (POST)process. When the message below
appears on the screen, press <DEL> key to enter BIOS:
Boot device Priority Setting.If user will install operating system, please put“Boot Option #1”set to your CD-ROM or your
USB device, After setting, press "F10" key to save and exit,System boot from CD-ROM or U disk.
Entering BIOS Setup
Boot Option Priorities（how to install operating system）
This motherboard manual belongs to Colorful Technology and Development CO, LTD. No one is permitted to copy, change,
or translate without our written permission.
Copyright
The products name we mentioned in this manual is only for identifying, all of the brands belong to other company.
The registered trademarks of IBM, VGA and PS/2 belong to International Business Machines.
The registered trademarks of Intel, Pentium, Pentium Ⅱ, Celeron, Pentium III and Pentium 4 belong to Intel.
The registered trademark of Athlon belongs to Advanced Micro Devices, Inc.
The registered trademarks of Microsoft, MS-DOS, Windows 95/98/NT, Windows2000/XP etc. belong to Microsoft.
All of the trademarks in this manual have been registered.
Disclaimer
Main Advanced Chipset
Boot Configuration
Setup Prompt Timeout
Bootup Numlock State
Quiet Boot
Driver Option Priorities
Boot Option #1
1
On
OFF →←Select Screen
Up/Down:Choose Item
Enter/ Click: Select
+/-: Change Opt
F1: General Help
F7: Previous Values
F9: Optimized Defaluts
F10: Save&Exit
ESC/Right Click: Exit
3.BIOS setup
4.Copyright Notice

The products name we mentioned in this manual is only for identifying, all of the brands belong to other company.
The registered trademarks of IBM, VGA and PS/2 belong to International Business Machines.
The registered trademarks of Intel, Pentium, Pentium Ⅱ, Celeron, Pentium III and Pentium 4 belong to Intel.
The registered trademark of Athlon belongs to Advanced Micro Devices, Inc.
The registered trademarks of Microsoft, MS-DOS, Windows 95/98/NT, Windows2000/XP etc. belong to Microsoft.
All of the trademarks in this manual have been registered.
5.Technical Support
