Colorimetry Research WiFi Box User manual

WiFi Box Quick Start
©2021 Colorimetry Research, Inc.
Information subject to change Page 1 May 9, 2021
WiFi Box Quick Start
The WiFi Box enables the Colorimetry Research instruments to be controlled over a wireless
network connection. This can be done using the CRIApp or using Remote Communication
commands.
Figure 1 CR-300 mounted with the WiFi Box
Hardware Setup:
The WiFi Box consists of the following
• Internal Battery
• Power switch (battery operation)
• SD Card (used for firmware updates)
• Micro USB and Micro USB Host OTG cable with Micro USB Power
Figure 2 Micro USB Cable
1. The male micro-USB connector of the micro-USB OTG (On-The-Go) is connected to the
WiFi Box.
2. The female USB-A (host) connector with the blue (Female to Male mini-USB) adapter is
used to connect to the Colorimetry Research meters.

WiFi Box Quick Start
©2021 Colorimetry Research, Inc.
Information subject to change Page 2 May 9, 2021
3. The other USB connector is used to supply external power to the device.
Note:
The external power is used to power the WiFi box and the meter and is also used to recharge
the internal battery.
Once the WiFi box is powered the status LED will indicate the state of the connection.
LED
Status
Green
Initial power up
Blue
Connected to WiFi Network
Yellow
In Access Point mode. CRIWiFi SSID available
Red
Disconnected, connection lost or a failed connection
White
Other intermediate statuses
Blinking
Meter detected
Table 1 LED status colors
Configuration
Connection to a wireless network
When the WiFi Box is powered on (LED Green) it will attempt to connect to a wireless network.
If no SSID is configured (which will be the first time) the WiFi box is configured in an AP (Access
Point) Mode which enables your browser to connect to and configure. The SSID of the AP is
CRIWiFi. The LED status will be YELLOW and the default IP address in AP mode is 192.168.4.1
Connect your computer WiFi network to CRIWiFi and then type in 192.168.4.1 in your
browser. You will now see the following screen to interact with your WiFi box.

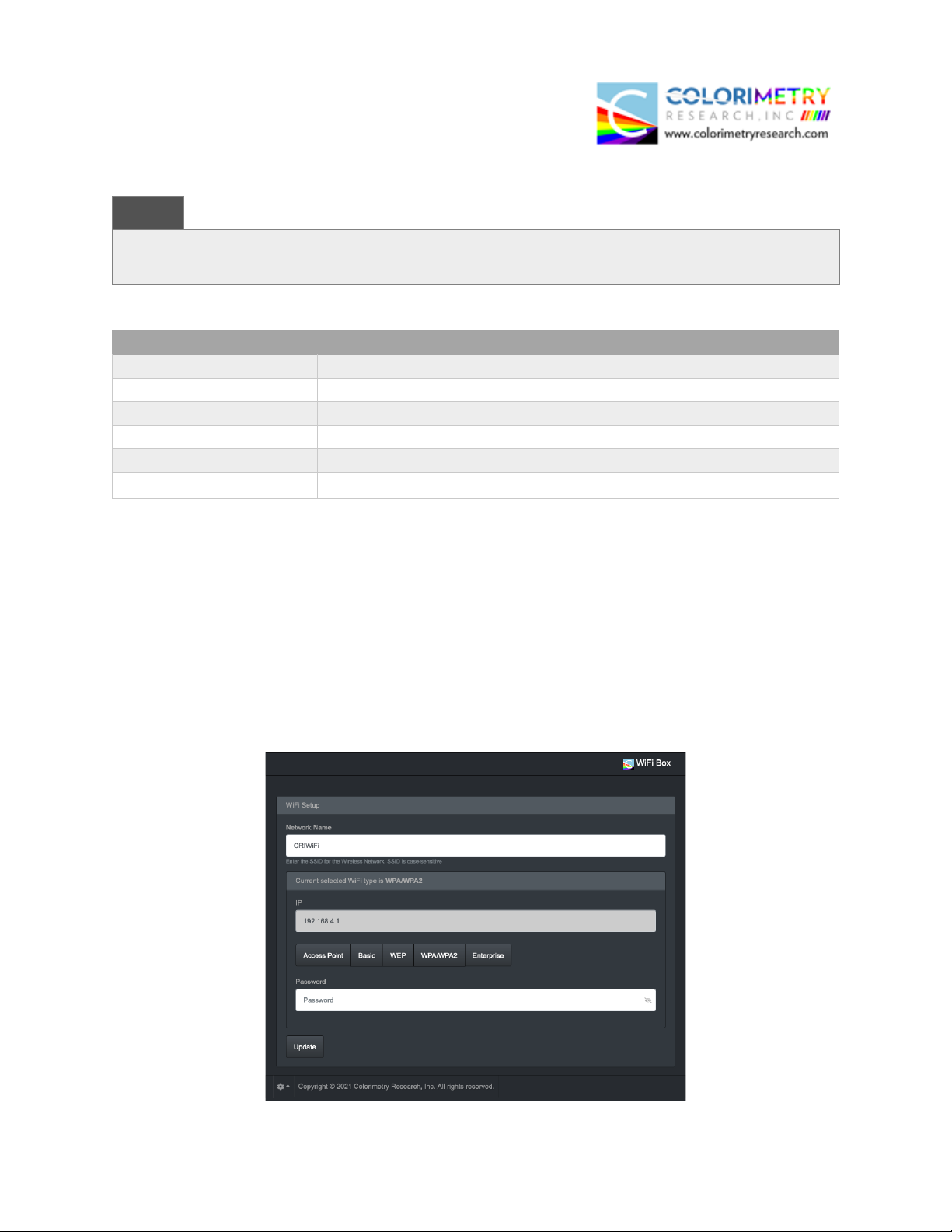

Figure 3 Colorimeter Utility Network Configuration

WiFi Box Quick Start
©2021 Colorimetry Research, Inc.
Information subject to change Page 3 May 9, 2021
Enter the SSID (case sensitive), select the WiFi connection type and enter the password. Once
all the data is confirmed to be accurate, click on Update.
The WiFi box will disconnect the Access Point and will attempt to connect to the configured
SSID. If connection is successful, the LED will turn BLUE.
Proceed to connect using the CRIApp to use the meter.
Note:
Once the firmware is updated, the browser will lose connection with the WiFi box as the IP
address will most likely change.
General Information
To “About” page displays the version of firmware and copyright information. This can be
launched by selecting the settings menu on the bottom left of the web page. The following
information is displayed
• Firmware version
• Build date and time
• WiFi version
Figure 4 Colorimeter Utility Network Configuration

WiFi Box Quick Start
©2021 Colorimetry Research, Inc.
Information subject to change Page 4 May 9, 2021
Updating Firmware
The “Firmware Update” can be launched by selecting the settings menu on the bottom left
of the web page.
Figure 5 Firmware Update
Drag the firmware image file from your computer to the dotted area. A progress bar indicating
the file upload will be displayed in place. Once the file upload is at a 100% completed, the
device will reset, and the firmware will be updated.
Note:
After the firmware update the SSID and password of WiFi box needs to be reconfigured.

WiFi Box Quick Start
©2021 Colorimetry Research, Inc.
Information subject to change Page 5 May 9, 2021
Connecting with CRIApp
Figure 6 CRIApp add new meter
Note:
As of the current release, the CRIApp does not auto connect to networked meters.
Launch CRIApp. Click the + icon in the METERS pane. This will launch the Add Meter setup.
Select the Network interface. Scanning the network will detect the IP address of the
meter/WiFI box and will display it in the Channel Address field. Select the correct model and
press OK.
Connecting using Remote Communication
Communication with the instrument is implemented by means of an ASCII protocol defined in
the Remote Communications Manual.
TCP Port: 51200
