Colormetrics P3100 User manual

Errors excepted; subject to change www.colormetric.net
P3100
User Manual
Version 1.0

2www.colormetric.netColormetrics P3100
COPYRIGHT
Copyright 2015 Publishing. All Rights Reserved.
This manual, software and firmware described in it are copyrighted by their respective owners and
protected under the laws of the Universal Copyright Convention. You may not reproduce, transmit,
transcribe, store in a retrieval system, or translate into any language, in any form or by any means,
electronic, mechanical, magnetic, optical, chemical, biological, molecular, manual, or otherwise, any part
of this publication without the express written permission of the publisher.
All products and trade names described within are mentioned for identification purpose only. No
affiliation with or endorsement of the manufacturer is made or implied. Product names and brands
appearing in this manual are registered trademarks of their respective companies.
The information published herein has been checked for accuracy as of publishing time. No representation
or warranties regarding the fitness of this document for any use are made or implied by the publisher. We
reserve the right to revise this document or make changes in the specifications of the product described
therein at any time without notice and without obligation to notify any person of such revision or change.

3
www.colormetric.net Colormetrics P3100
SAFETY INSTRUCTIONS
1. Read these instructions carefully. Keep these instructions for future reference.
2. Please disconnect this equipment from AC outlet before cleaning. Don’t use liquid or sprayed
detergent for cleaning. Use moisture sheet or cloth for cleaning.
3. Please keep this equipment from humidity.
4. Lay this equipment on a reliable surface when install. A drop or fall could cause injury.
5. Make sure power cord such a way that people can not step on it. Do not place anything over the
power cord.
6. All cautions and warnings on the equipment should be noted.
7. If the equipment is not used for long time, disconnect the equipment from main to avoid being
damaged by transient over voltage.
8. Never pour any liquid into opening, this could cause fire or electrical shock.
9. If one of the following situations arises, get the equipment checked by a service personnel:
a. The power cord or plug is damaged.
b. Liquid has penetrated into the equipment.
c. The equipment has been exposed to moisture.
d. The equipment does not work well or you can not get it work according to user manual.
e. The equipment has dropped and damaged.
10. Do not leave this equipment in an environment unconditioned, storage temperature below -20°C or
above 60°C, it may damage the equipment.
11. Unplug the power cord when doing any service or adding optional kits.
Lithium Battery Caution:
Danger of explosion can happen if the battery is incorrectly replaced, Replace only the original or equivalent
type recommended by the manufacture. Dispose used batteries according to the manufacture’s instructions.
Do not remove the cover, and ensure no user serviceable components are inside. Take the unit to the
service center for service and repair.

4www.colormetric.netColormetrics P3100
TABLE OF CONTENTS
COPYRIGHT 2
SAFETY INSTRUCTIONS 3
1 PACKING LIST 5
1-1 Standard Accessories 5
1-2 Optional Accessories 5
2 SYSTEM VIEW 6
2-1 Front/Rear View 6
2-2 Specification 7
3 PIN DEFINITION 8
4 REAR I/O INTERFACE 11
5 SYSTEM ASSEMBLY & DISASSEMBLY 15
5-1 HDD 15
5-2 Memory 15
5-3 MSR 15
5-4 VFD 16
5-5 2nd HDD Kit 16
5-6 8” 2nd Monitor 17
5-7 Adapter 18
5-8 1D / 2D / i-Button with RFID module 19
6 DEVICE DRIVER INSTALLATION 20
6-1 Resistive Type Touch Panel & P-Cup 20
6-2 MagStripe Card Reader Configuration Utility 26
6-3 Fingerprint Reader 43
6-4 RFID 53
6-5 Configuration Utility of I-Button Reader 59
6-6 Installation and Testing of Smart Card Reader 67
7 BIOS/UTILITY SETUP 72
7-1 Advanced 73
7-2 Security 76
7-3 Power 77
7-4 Boot 78
7-5 Save & Exit 78

5
www.colormetric.net Colormetrics P3100
1 PACKING LIST
1-1 Standard Accessories
a. System (with stand)
b. Power Adapter
c. Power Cord
d. Driver Bank
e. Cable Cover
1-2 Optional Accessories
Modules*:
MSR
1D/2D barcode scanner
RFID (13,56 MHz)
iButton
Smart card reader
Fingerprint reader
Addimat waiter key
Accessories:
Build-in VFD
Pole VFD
8” pole customer display
15” pole customer display
UPS battery
*Note: Nearly all modules are also available as 2-in-1 or 3-in-1 solution.

6www.colormetric.netColormetrics P3100
2 SYSTEM VIEW
2-1 Front/Rear View
Item
1. 19V DC Input
2. COM2
3. COM1
4. COM3
5. E-SATA&USB
6. USB 2.0 X1 & 3.0 X 1
7. VG A
8. LAN port
9. Line-out
10. Mic-in
11. RJ11(Ca sh
drawer)(COM6)
12. USB 2.0 x2
13. RJ45(COM4)
14. PS2(K/B)
15. Parallel port (Option)
16. UPS port(Option)
17. Power Button
18. RJ11(Cash
drawer)(COM6)
19. USB 2.0 x2
20. RJ11(Cash
drawer)(COM4)
21. PS2(K/B)
22. RJ11(Cash
drawer)(COM6)
23. USB 2.0 x2
24. RJ45(COM4)
25. USB 2.0 x2
26. RJ11(Cash
drawer)(COM6)
27. USB 2.0 x2
28. RJ45(COM4)
29. Powered 24V USB
30. Cover for MSR/Smart
Card/ i-Button/Fingerprint/
RFID
31. HDD Cover
32. Antenna Cover
33. 8” 2nd Display/VFD Cover
34. Memory Cover
35. Power LED
36. Cover for internal access of
HDD/Adapter
* Please make sure 19V DC plug in the right
direction before plugging in DC jack.
* Please make sure 19V DC plug in the right

7
www.colormetric.net Colormetrics P3100
2-2 Specification
Processor
Memory
Audio
Network
Storage
BIOS
Power
Thermal Solution
Dimension
Operating Temperature
Storage Temperature
Storage Humidity
Display
LCD Panel Size
Resolution
Brightness
Touch Panel
Tilt Angle
Intel® Celeron J1900 QC 2.0Ghz
One SO-DIMM socket supports DDR3L 1333 up to 8GB
Line-out/Mic-in
RJ45 10/100/1000 Base-T
2.5” SATA HDD / SSD
Insyde
DC 19V 90W adaptor, 150W for Type D I/O Board
Fanless design
410 (W) x 385.2 (H) x 296.4 (D) mm
0°C ~ 35°C
-20°C ~ 60°C
20% ~ 80%, non-condensing
17-inch TFT Active Matrix Display
1280 x 1024 Pixels
250 cd/m2 /350cd/m2 (Optional)
5-wire Resistive Type / Projected Capacitive Type
30°~90°

8www.colormetric.netColormetrics P3100
3 PIN DEFINITION

9
www.colormetric.net Colormetrics P3100
2. Printer connector
NO. Definition No. Definition
1 STB# 11 PD4
2 AFD# 12 PE
3 PD0 13 PD5
4 ERR# 14 SLCT
5 PD1 15 PD6
6 INIT# 16 GND
7 PD2 17 PD7
8 SLIN# 18 GND
9 PD3 19 ACK#
10 BUSY 20 GND
NO. Definition
1 +5V
2 RxD
3 TxD
4 GND
5 N/C
1. COM 5 for Touch Panel (CN 16)
3. VFD Connector CN9
4. Speaker SPK1, SPK2
NO. Definition
1 RTS#
2 GND
3 TxD
4 RxD
5 CTS#
6 +5V
7 +5V
8 USB D-
9 USB D+
10 GND
NO. Definition
1 Speaker Out +
2 Speaker Out -

10 www.colormetric.netColormetrics P3100
6. LED Panel Backlight
NO. Definition
1 +12V
2 GND
3 N/C
4 Brightness
5 BKL Enable
5. LVDS
No. Definition No. Definition
1 RxECLK+ 16 RxOCLK-
2 RxECLK- 17 GND
3 RxE3+ 18 RxO2+
4 RxE3- 19 RxO2-
5 RxE2+ 20 RxO1+
6 RxE2- 21 RxO1-
7 GND 22 RxO0+
8 RxE1+ 23 RxO0-
9 RxE1- 24 GND
10 RxE0+ 25 N/C for M-type, GND for G-type
11 RxE0- 26 N/C
12 RxO3+ 27 N/C for M-type, GND for G-type
13 RxO3- 28 +5V
14 GND 29 +5V
15 RxOCLK+ 30 +5V

11
www.colormetric.net Colormetrics P3100
4 REAR I/O INTERFACE

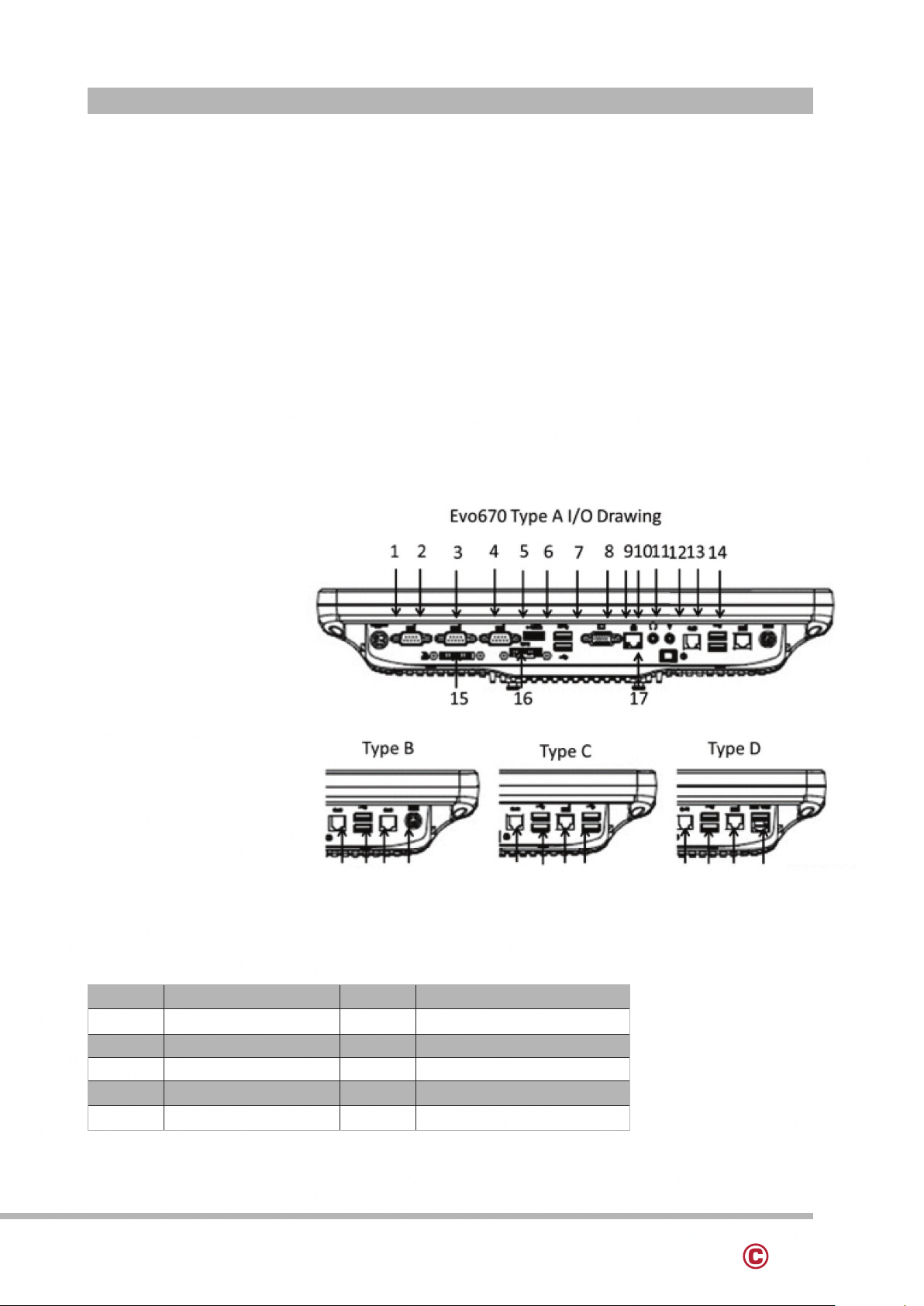

Rear I/O Drawing
No. Definition No. Definition
1 DCD# 6 DSR#
2 RxD 7 RTS#
3 TxD 8 CTS#
4 DTR# 9 RI#/+5V/+12V
5 GND
Item
1. 19V DC Input
2. COM2
3. COM1
4. COM3
5. E-SATA&USB
6. USB 2.0 x1 & 3.0 x1
7. VG A
8. LAN port
9. Line-out
10. Mic-in
11. RJ11(Cash drawer)
12. USB 2.0 x2
13. RJ45(COM4)
14. PS2(K/B)
15. Parallel port (Option)
16. UPS port(Option)
17. Power Button
18. RJ11(Cash Drawer)
19. USB 2.0 x2
20. RJ11(Cash Drawer)
21. PS2(K/B)
22. RJ11(Cash Drawer)
23. USB 2.0 x2
24. RJ45(COM4)
25. USB 2.0 x2
26. RJ11(Cash Drawer)
27. USB 2.0 x2
28. RJ45(COM4)
29. Powered 24V USB
1. COM1 & COM2 & COM3

12 www.colormetric.netColormetrics P3100
No. Definition
1 +5V/+12V
2 DSR#
3 GND
4 DTR#
5 RST#
6 CTS#
7 TxD
8 RxD
No. Definition No. Definition
1 +5V 8 TX-
2 D- 9 TX+
3 D+ 10 +5V
4 GND 11 D-
5 RX- 12 D+
6 RX+ 13 GND
7 GND
2. RJ45 VFD
4. 2-Layer USB 3.0+2.0 connector
3. VGA port
5. 2-Layer USB 2.0 connector
6. PS/2 K/B port
No. Definition No. Definition
1 Red 9 N/C
2 Green 10 GND
3 Blue 11 N/C
4 N/C 12 I2C DATA
5 GND 13 HSYNC
6 GND 14 VSYNC
7 GND 15 I2C CLK
8 GND
No. Definition No. Definition
1 +5V 5 +5v
2 D- 6 D-
3 D+ 7 D+
4 GND 8 GND
No. Definition No. Definition
1 KB_DAT 6 MS_CLK
2 MS_DAT 7 GND
3 GND 8 GND
4 +5V 9 GND
5 KB_CLK

13
www.colormetric.net Colormetrics P3100
No. Definition
1 MDI0A+
2 MDI0A-
3 MDI1A+
4 MDI1A-
5 MDI2A+
6 MDI2A-
7 MDI3A+
8 MDI3A-
No. Definition
1 GND
2 C/D_OPEN#
3 C/D Status
4 +12V/+24V
5 N/C
6 GND
No. Definition
1 GND
2 C/D_OPEN#
3 C/D Status
4 +12V/+24V
5 N/C
6 GND
No. Definition
1 +19V
2 Ground
3 +19V
7. LAN port 8. RJ11 port (for Cash Drawer)(COM4)
9. RJ11 port (for Cash Drawer)(COM6) 10. DC Jack
No. Definition No. Definition
S1 GND U1 +5V
S2 SATA_TX0_P U2 USB D-
S3 SATA_TX0_N U3 USB D+
S4 GND U4 GND
S5 SATA_RX0_N
S6 SATA_RX0_P
S7 GND
11. eSATA&USB connector
No. Definition
1 +5V
2 USB D-
3 USB D+
4 GND
5 GND
6 +24V
7 +24V
8 GND
12. Powered 24V USB
Example DOS COMMAND for Cash Drawer:
1. Create the file: TEST.TX T
2. Input below contents in TEST.T X T
CONTEXT-"000.0”
MODE COM4:300
3. Run COMMAND under DOS mode
COPY TEST.TXT COM 4
Example DOS COMMAND for Cash Drawer:
1. Create the file: TEST.TXT
2. Input below contents in TEST.T X T
CONTEXT-"000.0”
MODE COM6:300
3. Run COMMAND under DOS mode
COPY TEST.TXT COM 6

14 www.colormetric.netColormetrics P3100
No. Definition
1 Batt+
2 Batt+
3 Batt+
4 Batt+
5 BAT_ID
6 SMBCLK
7 SMBDATA
8 GND
9 GND
10 GND
11 GND
12 N/C
13. UPS 14. LINE-OUT JACK Pin Definition
15. MIC-in JACK Pin Definition
No. Definition
1 GND_AUD
2 GND_AUD
3 LINE_OUTR2
4 LINE_OUTL2
5 LINE2-JD
No. Definition
1 GND_AUD
2 GND_AUD
3 MIC1_IN
4 MIC1_IN
5 MIC1-JD

15
www.colormetric.net Colormetrics P3100
5-1 HDD
5-2 Memory
1. Unscrew 2 screws and remove the HDD cover
2. Install HDD with 4 screws
1 2
1 2
1. Unscrew 1 screw and remove the memory cover
2. Install HDD with 4 screws
5-3 MSR
12
1. Remove MSR cover
2. Install MSR with two screws
5 SYSTEM ASSEMBLY & DISASSEMBLY

16 www.colormetric.netColormetrics P3100
1. Remove the cover
2. Plug VFD cable into the 1*6 pin connector
3. Install VFD with two screws
5-5 2nd HDD Kit
5-4 VFD
3
1
2
1 2

17
www.colormetric.net Colormetrics P3100
1. Fix the e-SATA cable as the position shown in the picture 1
2. Install HDD kit with two screws
3. Plug e-SATA cable into the position shown in the picture 3
5-6 8” 2nd Monitor
1
32
3
1. Remove the cover
2. Plug cable into the 1*4 pin connector
3. Install 8” 2nd Monitor with two screws

18 www.colormetric.netColormetrics P3100
5-7 Adapter
1. Unlock two screws and then remove the cover
2. Assemble the adapter bracket with two screws
3. Assemble the back cover the stand with two screws
The adapter bracket of P3100 is only for P3100 standard adapter
(Model name: FSP150, 150W). Please don’t assemble other type adapter into the stand.
Note:

19
www.colormetric.net Colormetrics P3100
1. Cable installation.
For I-Button / RFID /1D/2D barcode scanner, please connect the cable as shown in figure
5-8 1D / 2D / i-Button with RFID module
2. Fix the screws as shown in below figure.

20 www.colormetric.netColormetrics P3100
6 DEVICE DRIVER INSTALLATION
6-1 Resistive Type Touch Panel and P-CAP
1. Click “Next”
2. Click “Next”
2. Click “Next”
