Elite Screens IWB85SW2a User manual

041217 DR 1 www.eliteproav.com
Insta-DE2a/2aF Series
Self-Adhesive Dry-EraseFront Projection Screen Film
with Frame Border and Pen Tray
User’s Guide
Thank you for choosing the Insta-DE2a Series dry-erase whiteboard projection screen! Please read through this
user guide before utilizing the screen. Correct usage and maintenance will ensure a long product life.
Precautionary Notes:
Before using the dry-erase function of your whiteboard screen, please make note of the following instructions to
properly maintain and clean your dry-erase surface projection screen. (These Whiteboard cleaning tips are just
as relevant with any dry-erase writing surface as they are with our Whiteboard-Projection Screens.)
1.Only use a high density foam eraser when removing dry-erase markings from the Whiteboard screen.
2. Do not use abrasive erasers as these may scratch the surface of the screen.
3. Never spray the whiteboard cleaner solution onto the surface while marker writing is present and then attempt
to use a high density foam eraser to remove. This will only smear the dry-erase marker ink making the surface
more difficult to clean and will likely ruin the foam eraser.
4. If there are any dry-erase markings left behind even after attempting to remove themusing our high density
erasers, spray our whiteboard cleaning solution directly onto the screen surface and use only a soft microfiber
cloth to wipe-down and clean the area.
For a video demonstration, please visit: http://www.elitescreens.com/whiteboardscreen-cleaning
If replacement cleaning accessories are needed, please visit the Whiteboard cleaning accessories section of our
website at http://www.elitescreens.com/clean-whiteboard
Product Features
Anti-reflection surface reduces glare and hot-spot while using a
projector.
Special anti-scratch layer to ensure long use as a dry-erase/projection
screen.
1.1 gain with 180 degree wide viewing angle.
Award winning and GREENGUARD certified VersaWhite material.
Application Advantages
Instantly converts flat surfaces/walls into a dry-erase whiteboard projection screen.
Includes adhesive black velveteen border to enhance contrast and overall appearance.
Perfect dry-erase and projection solution for today's short throw projectors
Ideal and effective instructional presentation tool in the classroom, boardroom, and training facilities.

041217 DR 2 www.eliteproav.com
For a full installation demonstration, please see our Insta-DE 2aF Installation Video
Installation Video
Watch our installation video on-line at
www.elitescreens.com/ide2afinstall
or scan the QR code
Product Specifications
What’s in the package
Please make sure all parts listed below are included.
Notes: For best results and maximum product longevity, ONLY use a high density whiteboard eraser.
Frame and Pen Tray Parts List
Specifications:
Color display
White
Thickness
2.1mm
Material composition
High molecular weight copolymer of Terephthalic acid ethyl esters
Weight
377g/m2
Temperature
At room temperature
Gain
1.1
Viewing Angle
180°
Parts List
QTY
a. Insta-DE2a Screen Material Film Roll
1
b. Pen Holder (Self-stick cradle)
1
c. 4.5mmx30mm screw
1
d. Whiteboard markers (pens)
2
e. High density eraser
1
f. Glue powder bag
See table
g. Scraper (smoothing tool)
1
Model Number
Powder bag qty
iWB114XW2aF
1
iWB5x10W2aF
1
iWB5x20W2aF
2
Frame Parts Qty
Part A
Qty
Part B
Qty
iWB114XW2aF
2
4
iWB5x10W2aF 2 6
iWB5x20W2aF 2 10
a.
f.
e.
d.
c.
b.
g.

041217 DR 3 www.eliteproav.com
Tools required (not included)
Carpenter’s Pencil
Tape Measurer
Sponge
150 grit sandpaper
Roller cover and
frame
Level
Paint Tray
Dust Mask
Safety goggles
Painting tape
Acrylic based
Primer
Strainer
Whisk
Measuring cup
Small bucket
Scraper
Step Stool/Ladder
Preparing the installation surface:
The Insta-DE 2aproduct is to be solely installed on a flat Level 5 surface. The dry erase function of this
product requires a smooth writeable surface. The smoother the surface, the better the result of the finished
product will be.
Any surfaces that are textured (ex. orange peel, drilled holes, glue/tape residue, dents, etc.) should be patched,
sanded, and primed before applying the Insta-DE2ascreen. We recommend sanding the area first to make sure
you have a clean flat and smooth surface. Failure to remove such imperfections can damage the product.
EliteProAV is not responsible should these instructions are not properly followed.
The warranty of this product will be voided if any bubbling occurs due to the use of an after-market
spray adhesive or if the screen was applied on to a textured wall.
Before applying the Insta-DE 2a, the application surface must be dry, clean, smooth, and structurally
sound.
1. Clean the surface to remove any dirt, grease, and wax.
2. Fill any depressions or holes with a drywall compound
3. Use sandpaper to smooth any bumps and blemishes. Sand until the surface is completely flat.
4. Level-5 finish to the surface and apply one coat of acrylic based primer.
Commercial use recommendation
If you would like your screen to have a professional-grade finish that is flat, durable, and free from
imperfections – EliteProAV strongly recommends hiring a professional wallpaper installer.

041217 DR 4 www.eliteproav.com
Glue Powder Compound Method for dry-wall (porous surfaces) installations
Installation
We strongly recommend three or more people for this installation.
1. Measure and draw a line around the screen installation area.
2. Apply one coat of Professional R-35 Primer and allow it to dry.
3. Un pack the Insta-DE 2a material from the box and lay it on a clean surface.
4.Scrape the installation area to assure a smooth surface. Sand as needed and clean dust with sponge.
5. Pour 25 oz. of room temperature water into a bucket, mix it with an entire glue powder bag and stir it with a
whisk until all lumps are gone and the compound has a syrup texture. This will make the mixture into an
adhesive compound for sticking the film to the wall.
Note: Once the compound has been mixed, it must be applied within 4 hours to ensure a sealed installation
of the Insta-DE 2a to the wall. Use one bag for every 25 oz. of water.
6. Pour the mixed glue compound thru a strainer into a paint tray. This is to avoid using compound that has
lumps which could result on the wall and causing bumps on the material.
7. Put a 3-4-inch piece of painter’s tape on the outer edge markings of the screen’s installation area. Space them
out approximately 18 inches apart.
8. Dip the paint roller in the paint tray and evenly apply a thin coat of the glue compound to the wall surface in 5
feet increments.
Do not allow the glue to dry. Use a spray bottle to gently wet the dry areas.
9. Carefully place and align the Insta-DE 2aon the left-hand side of the installation area. Once it has been
placed, peel off18 inches of the back film to expose the self-adhesive backing and attach to the installation area.
10. Use the painter’s tape that was put on the outer edge and tape the Insta-DE 2a to keep it from moving.
Note: The Insta-DE 2a material cannot be moved once attached, please make sure it is properly aligned on
the marked position.
11. Smoothing the Insta-DE 2a
a) Start from the Right-Middle area of the Insta-DE2a.
b) Make sure the Insta-DE2a adheres properly to the wall before proceeding.
c) Continue scraping as needed in an up/down/left direction as shown in the picture below, Step-2, Step-3.
Continue doing this until all material is attached.
Wall

041217 DR 5 www.eliteproav.com
11. Final Inspection:
Flash a light source directly on the surface of the Insta-DE2ato help inspect for air bubbles or dust.
Note: The Insta-DE2ashould not come off at this stage. If air bubbles are present, the only way to remove
them is to smooth them out.
13. Adhesion curing time:
In order to allow the Insta-DE2a and wall to properly bond, please refrain from touching and using the
dry-erase feature of the Insta-DE2afor a period of 2 days after the installation has been completed.
Self-adhesive Method for non-porous surfaces
1. Wall preparation:
Clean the entire non-porous surface with a wet sponge or a lint-free towel
2. Measure and draw a line around the screen installation area.
3. Moisturize the screen installation area:
a) Spray water on the screen installation area evenly with a sprayer.
b) Make sure the entire area where the Insta-DE2a will be installed is wet lightly (do not drench).
Note: The adhesive may not stick appropriately if the installation area is not sufficiently wet.
Wall

041217 DR 6 www.eliteproav.com
4. Procedures for attaching the material:
a) Carefully place and align the Insta-DE2aon the right-hand side of the installation area. Once it has
been placed,peeloff18 inches of the back film to expose the adhesive.
b) Spray the adhesive area to allow the Insta-DE2a the ability to move within the wet installation area.
c) Press the Insta-DE2a down with both hands to firmly position it in place.
d) As one person holds the Insta-DE2a in place, the other person peels off the backing from right to left.
e) Spray the exposed adhesive back of the Insta-DE2a and continue until the entire area is wet.
f) The Insta-DE2a material at this point can be easily moved and adjusted within the installation area if
needed.
5. Smoothing, scrapping out air bubbles and water:
Caution: The scraper’s edge is sharp. Carefully scrape the screen in a 45 degrees angle when removing air
bubbles to avoid scratching the surface.
a) Start from the Right-Middle area of the Insta-DE2a. Scrape up/down/left to remove the air
bubbles/water and dry any water excess with a lint-free cloth.
Note 1: Dust or other matter may reside within the Insta-DE2a and the wall. To remove such debris,
simply peel back the Insta-DE2a from the wall and clean it with the mixture described in step 3-a.
b) Make sure the Insta-DE2a adheres properly to the wall after cleaning before proceeding.
c) Continue scraping as needed in an up/down/left direction as shown in the picture below, Step-2, Step-3.
Note 2: Occasionally, water may come back in the areas that were just scrapped out. To avoid this from
happening, please make sure to dry any excess water immediately with a clean sponge or lint-free
cloth as soon as water is squeezed out.
6. Final Inspection:
Flash a light source directly on the surface of the Insta-DE2ato help inspect for air bubbles or dust.
Note: The Insta-DE2ashould not come off at this stage. If air bubbles are present, the only way to remove
them is to use a scraper to squeeze them out.
7. Adhesion curing time:
a) In order to allow the Insta-DE2a and wall to properly bond, please refrain from touching and using the
dry-erase feature for a period of 2 days after the installation has been completed.
b) It is normal for the surface of Insta-DE2a to have slight wavy edges. These will go away and flatten
after1-2 days.

041217 DR 7 www.eliteproav.com

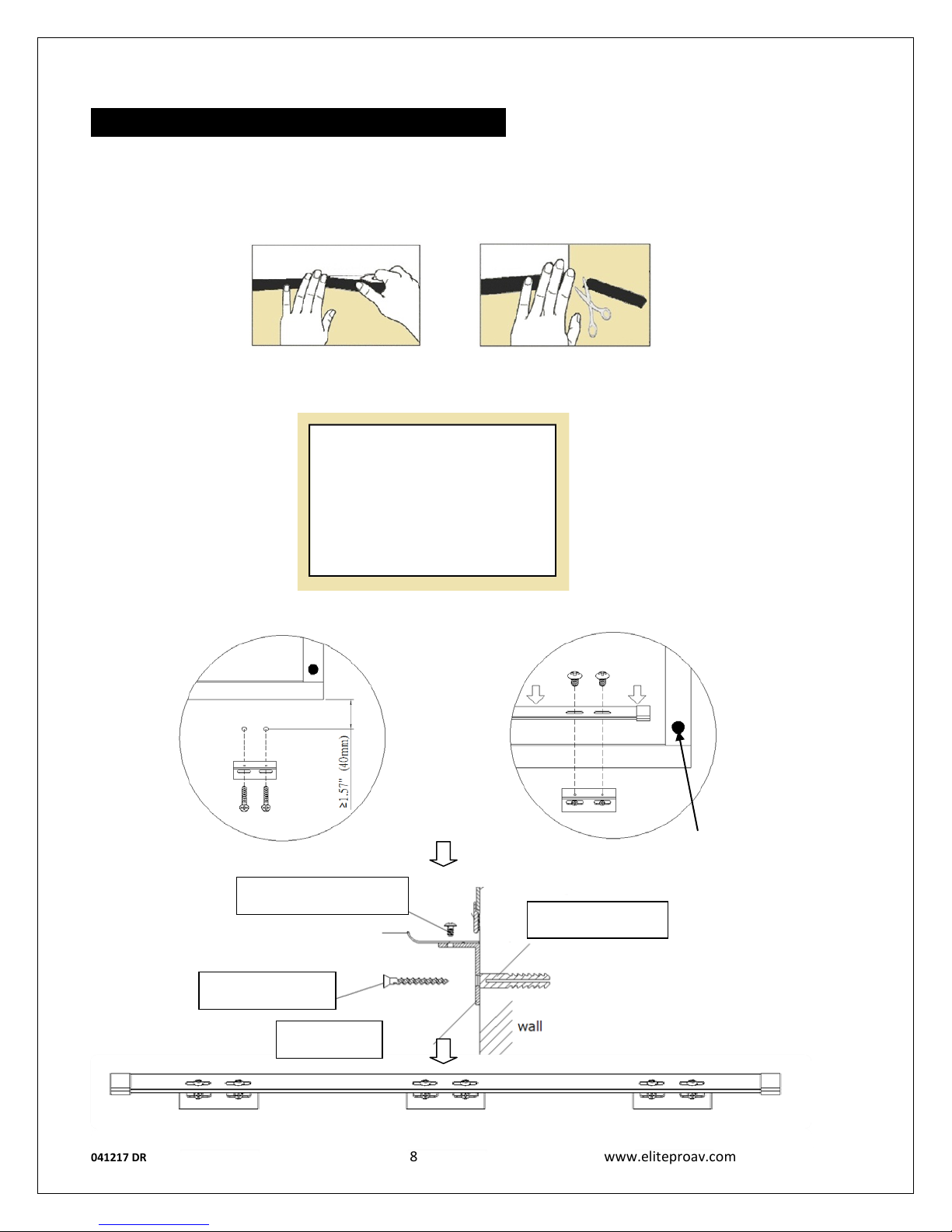

Frame Border Installation
The circular labels on the vertical frame pieces indicate their proper position for completing the installation.
Proceed with Step 1 to begin.
Attention:
Please be sure that the walls are clean and free of debris before installing the frame.

041217 DR 8 www.eliteproav.com
The following velvet border installation steps are intended for the Insta-DE 2a Series only.
Adhesive black velvet border installation
1. Measure the top/bottom and left/right sides of the Insta-DE2 screen to obtain the required length of the velvet
border you will need to use for bordering your screen.
2. Peel a small portion off of the velvet border and place it about half an inch over the white area of the screen.
Continue to peel off and roll out the remainder of the velvet border until you have reached the end and cut
the edge.
Note: For best results we recommend cutting the edge in a 45° angle.
3. Repeat the process for the remainder of the sides until all sides are bordered as shown below.
Tray Installation
Remove both labels
1.
2.
Plastic dry-wall anchor
M4x6mm round head screw
5x50mm wood screw
Support bracket

041217 DR 9 www.eliteproav.com
Attach the wall brackets to the wall and tray as shown above to complete your installation.
DIAGRAM OF FINISHED INSTALLATION
Use only the included erasers to remove and erase dry-erase markings. For a deep clean, we
recommend using a non-alcohol based dry-erase board cleaner with a soft microfiber cloth.
Elite offers a replacement kit (part number ZER3) which includes:
1 x bottle of 8.45 oz cleaning solution
1 x microfiber cloth
2 x high density foam erasers
2 x sets of dry-erase markers (4 total)
Contact your reseller or visit shop.elitescreens.com for pricing and purchase.
Safety Precautions:
1. Avoid using sharp objects directly on the screen which can result in permanently damaging the product and
voiding your warranty.
2. Creases or wrinkles caused by improper installation are not removable.

041217 DR 10 www.eliteproav.com
Please be advised:
The above picture is the result of an improper installation. The main factor that contribute to this should be
avoided per the tips below.
•The surface to which you are installing this material to should be perfectly smooth. If in case the
surface is uneven, it is recommended to place a smooth board over the desired space of the install
first. This will eliminate any bubbling of the material over time.
Dimension Table
Insta-DE 2a Dimension Table
Model
Number
Diag.
Size
Aspect
Ratio
View Area
(HxW)
View Height
(A)
View Width
(B)
Thickness
(C)
Unit: Inches
IWB85SW2a
85"
1:1
60.3"x60.3"
60.3
60.3
0.0063
Unit: mm
IWB85SW2a
85"
1:1
60.3"x60.3"
1531
1531
0.2
Note: Data Error ±1"

041217 DR 11 www.eliteproav.com
Insta-DE 2aF Dimension Table
Model Diag. Size Aspect Ratio View Area (HxW)
View
Height
(A)
View
Width
(B)
Frame
Height
(A1)
Frame
Width
(B1)
Tray
Width
(B2)
D D1
Unit: Inches
IWB5X10W2AF 5'X10' N/A 59.8"x119.6" 59.8 119.6 59.8 121.1 50.8 0.1 1.8
IWB5X20W2AF 5'X20' N/A 59.8"x219.6" 59.8 219.6 59.8 221.1 50.8 0.1 1.8
IWB114XW2AF
114"
16:10
55.9"x99.4"
55.9
99.4
55.9
100.9
50.8
0.1
1.8
Unit: mm
IWB5X10W2AF
5'X10'
N/A
59.8"x119.6"
1520
3038
1520
3076
1290
4
45
IWB5X20W2AF 5'X20' N/A 59.8"x219.6"
1520
5578
1520
5616
1290
4
45
IWB114XW2AF 114" 16:10 55.9"x99.4"
1419
2523
1419
2563
1290
4
45
For more information, technical support or your local EliteProAV contact,
please visit www.eliteproav.com
Note: Data Error ±1"
