Da-Lite Senior Electrol User manual

INSTRUCTION BOOK FOR
Senior Electrol®

2
Pre-Installation
Installation
1. Carefully unpack screen and remove outer wrapping
from case.
2. Remove instruction cover plate (Fig. 1). Do not remove metal
shipping brace (secures roller), wrapping paper, or tape strips
until screen is installed.
3. Make sure to recheck measurement of screen location
before installation.
NOTE: Screen is not centered in box. Screen surface
is set 18⅝" from motor end.
Ironing Board
Senior Electrols 14' wide and over contain an ironing board to
latten the fabric (long strip attached). The ironing board is part
of the screen case. Do not remove. Contact Da-Lite if the ironing
board is in need of adjustment. (Fig. 2).
Hangers (If required)
1. Make sure one hanger is approximately 25" from end
of case (motor end).
2. Make sure second hanger is approximately 11 ½" from
opposite end of case.
3. Place a third hanger on the center line of fabric.
4. On screens equipped with an ironing board, make sure
hangers do not interfere with the ironing board brackets.
5. Make sure hanger used on motor end does not interfere
with motor access door.
Figure 2
Hex Head
Screws Tape Strip
Shipping
Brace
(Not on 3"
Roller) Ironing
Board
Wall Type Hanger
Surface
Surface
Picture Surface
Ceiling Type
Hanger
Rafters
Wall or Ceiling Mount With Hangers
Wall Type Hangers with ceiling hanger adapters are
standard equipment. For wall type, use wall hanger only.
For ceiling type installation, use the wall type hanger and
ceiling adapters as shown in Fig. 3 on page 4.
Recessed Above Ceiling
Other methods of installation will no doubt
suggest themselves especially in new buildings
where it would be an easy matter to provide a
recess for the screen to conceal it when not in use.
Do Not Seal In-Allow Access.
For Exposed Installation
If the screen is to be mounted in an exposed
position, it may be covered with inished plywood,
veneer paneling, plastic wall covering or a valance.
Figure 1
Instruction Cover
Case
Important Safety Instructions
When using your video equipment, basic safety precautions should always be followed, including the following:
1. Read and understand all instructions before using.
2. Position the cord so that it will not be tripped over, pulled, or
contact hot surfaces.
3. If an extension cord is necessary, a cord with a current rating at
least equal to that of the appliance should be used. Cords rated
for less amperage than the appliance may overheat.
4. To reduce the risk of electric shock, do not disassemble this
appliance. Contact an authorized service dealer when repair
work is required. Incorrect reassembly can cause electric shock
when the appliance is used subsequently.
5. The use of an accessory attachment not recommended by the
manufacturer may cause a risk of ire, electric shock, or injury to
persons.
Save These Instructions

3
Installation
Screen Adjustment
NOTE: Unit is not to be installed in air handling space.
1. Level unit lengthwise with a carpenter's level and plum
level.
CAUTION! Do not completely seal in unit. Access
room must be allowed for motor repair or fabric
replacement.
ATTENTION! Ne ixez pas complètement l'unité. Un
espace doit être laissé pour pouvoir réparer le
moteur ou remplacer la toile.
2. Remove shipping brace by removing 3 hex head screws
(Fig. 2).
CAUTION! Do not cut wrapping paper or tape with
knife or any sharp tool. Remove by hand.
ATTENTION! Ne coupez pas le papier d'emballage ou
le ruban adhésif avec un couteau ou un outil
tranchant. Retirez à la main.
3. Remove wrapping paper and tape strips (Fig. 2).
4. Install electrical hook up that applies to your unit. Make
sure to review your Electrical Installation Checklists and
wiring diagrams (included) for either 120 volt switch,
220/240 volt switch, or DRC low voltage control. Unit
should be installed by a qualiied electrician.
NOTE: Must be installed in accordance with the
requirements of the Local Building Codes, the Canadian
Electrical Code (CEC), CAN/CSA C22.1 and the National
Electric Code (NEC), NFPA 70.
5. Test installation by carefully running surface up and
down several times. Be prepared to stop screen.
6. Check for satisfactory condition by running screen a
few times.
NOTE: The picture surface, when rolled down, should
have a full wrap around the roller. Do not allow any part
of the roller to become exposed.
Surface travel is stopped automatically in the fully opened and closed positions by limit switches that are properly adjusted at Da-Lite.
Should it be necessary to adjust for more or less drop of picture (viewing area), proceed in the following manner:
More Screen Drop
1. Place operating switch in “down” position.
2. When the screen stops, turn the “down” limit knob one-
quarter turn clockwise.
3. Test by raising picture surface approximately two feet, then
lower again. Repeat until desired drop is attained.
CAUTION! When screen is in bottom position, do not
adjust for more than 3" of additional drop. Roller should
not be exposed.
ATTENTION! Lorsque la surface de projection est sur la
position "Bas", ne déroulez pas la toile plus de 7,6 cm (3
po). N'exposer aucune partie du rouleau.
Less Screen Drop
1. Raise picture surface approximately two feet above desired
level.
2. Place operating switch in “of” position.
3. Turn the “down” limit knob one-quarter turn
counterclockwise.
4. Test by raising and lowering picture surface.
5. Repeat steps 3 and 4 until desired drop is attained.
NOTE: Limit “down” switch knob controls stopping point of
picture surface in bottom position.
Limit “up” switch knob controls stopping point of picture surface
inside case.

4
Picture Surface Rolled Up Or Closed Position
Senior Electrol®Instructions
NOTE: Adjustments should not be necessary to screen in the rolled up or closed position. If necessary, use the following procedures:
Picture Surface Rolls Too Far Into Case
1. Lower picture surface approximately two feet with operating
switch.
2. Place operating switch in “of” position.
3. Turn the “up” limit knob one-quarter turn clockwise.
4. Press operating switch to raise picture surface. Repeat operation
if picture surface continues to roll too far into case.
Picture Surface Does Not Roll Completely Into Case
1. Place operating switch in “up” position.
2. Turn the “up” limit knob one-quarter turn counterclockwise.
3. Test by lowering picture surface approximately two feet with
operating switch, then raise picture. Repeat operation if desired
position is not reached.
Raise Lower Raise Lower
Down Up
Side View
End View
Bottom View
Outlet
Box
Suggested
Slot Width
Picture Surface
Wall Or Ceiling Type Hanger
¾
¾
¾
¾
¾
2
¾
Hinged Access Panel In Bottom (For All Wiring & Adjustments)
Length A = Fabric Width “B“
Plus 23" All Sizes
NOTE: Install This Bracket
For Ceiling Type Hanger Only
10" Overall Width
Of Bracket
¾" Diameter
Holes
⅜" Nut & Bolt
2"
2 ⅞"
2⅞"
2"
4"
3 ¾"
⁄"
⅞"
9 ½"
3 ¾"
4 ⅜
Figure 3
9 ½ ± ¼
“ B“
18 ⅝
12 ⁄
11 ⅜ ± ⁄
“ A“ ±¼
8 ±¼
12 ⁄

5
Senior Electrol®Instructions

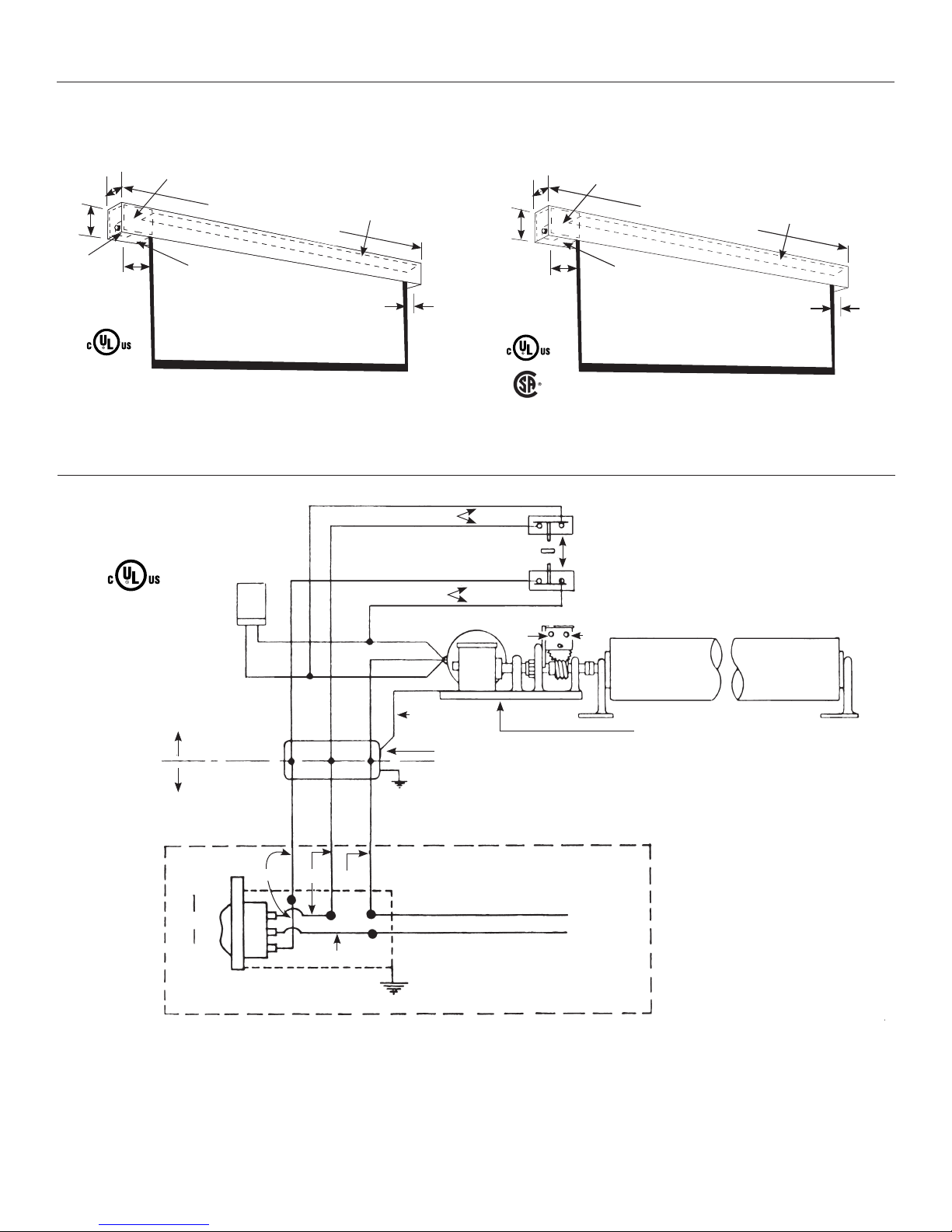

Senior Electrol®Installation
4 ⅜"
For Screens Up To 18' X 18'
Motor Compartment
Reinforced
Top
11 ⁄"
18 ⅝" Hinged Access Panel
For Motor Compartment
Fabric Height x Width As Ordered,
Up To 18 Feet x 18 Feet
Length = Fabric Width
+ 23", All Sizes
4 ⅜"
10 ¾" Reinforced
Top
18 ⅝" Hinged Access Panel
For Motor Compartment
Fabric Height x Width As Ordered,
Up To 20 Feet x 20 Feet Or
Up To 12 Feet High x 24 Feet Wide
Motor Compartment
12 ⁄"
For Screens 20' And Larger In Height Or Width
Length = Fabric
Width + 23", All Sizes
9 ½"
Up Limit Switch
Down Limit Switch
Black
Black
Black
Black
Black
(Down)
Red (Up)
Black (Down)
Capacitor
Red (Up)
White
White (Common)
Up
Up
Adj.
Down
Adj.
White
White
Black With Yellow
Down
Of
Internal
Wiring
External Wiring
To Be Completed
By Installer
Red
Green
(Ground) Motor: 120V. 60 Cycles
1/10HP Intermittent Duty
With Auto-Reset Thermal
Protector
Junction Box, Mounted In
Screen Case, In Which Internal
Wiring Terminates In White,
Black and Red Leads.
In Multiple Control Installations
This Switch Is Replaced By The
Low Voltage Control, Operated
From Push Button Stations.
Operating Switch, Switch Box,
And Plate Furnished With Screen.
(SPST With Center Of)
AC Common
AC HOT
120 Vac 60 Hz 1 Amp. Max.
Side View Of
Switch & Box
120V Wiring Diagram
240 Volt Wiring Diagram
For Standard Wall Switch:
Da-Lite ofers two styles of 240 volt wall
switches for standard operation. Please see
wiring diagram included in wall switch box
included with screen.
BlackRed

6
Troubleshooting
Symptom Cause Solution
Screen will not operate
and motor does not hum.
Blown fuse. Replace fuse.
Tripped circuit breaker. Reset circuit breaker.
Improper wiring to operating switch.
Tighten all loose wire connections. Correct any improper
connections. Check for power.
“Down” Position
Check for power across black and white leads.
“Up” Position
Check for power across red and white leads.
Improper wiring to junction box in screen.
“Down” Position
Check for power at black and white leads.
“Up” Position
Check for power at red and white leads.
Thermal overload tripped (excessive overheating). Let motor cool down for 15 minutes. Try again.
Burned out motor winding.
Disconnect motor leads and check for continuity between
black and white wires for “down” position. Check for
continuity between red and white wires for “up” position.
Replace gear motor if either combination shows an open
circuit.
Defective limit switch
Disconnect “down” limit switch from circuit. Check for
continuity. Switches are normally closed and open on
contact.
Motor hums.
Temporary binding. With power “o,” turn roller by hand to free binding.
Shipping bracket not removed. Remove shipping bracket and wooden wedge.
Defective capacitor. Replace capacitor.
Visit www.da-lite.com to ind installation and troubleshooting
tutorials. You will also ind a link to Live Chat for interactive
support and you can contact us by email at
[e-mail] or by phone at (800) 6223737 or (574) 2678101
with any troubleshooting questions.

7
Troubleshooting
Symptom Cause Solution
Screen will not move “up.”
Motor does not hum.
Motor hums.
Blown fuse or tripped circuit breaker. Replace fuse or reset circuit breaker.
No power between red and white leads
in junction box. Correct improper wiring.
Thermal overload tripped. Let motor cool for 15 minutes. Try again.
Burned out motor winding. Check for power between red and white motor leads.
Replace motor if there is power.
Temporary binding. With power o, turn roller by hand to free binding.
Burned out capacitor. Replace capacitor.
Broken wire or loose connection in “up”
position circuit. Secure connection or replace wire.
Scraping or grinding noise. If metal shipping bracket is left attached to screen,
it may be rubbing on motor end of roller. Remove shipping bracket.
Gear noise. Gear may need lubrication. Apply grease.
Fabric rubbing.
Normal condition.
NOTE: Screens with ironing boards have fabric
that drags across the board.
Incorrect stopping point in
upward position.
Lost roller wrap. Lift bottom edge up and over roller.
Limit switch out of adjustment. See installation instructions.
Incorrect stopping point in
downward direction.
Lost roller wrap. See above.
Limit switch out of adjustment. See installation instructions.
Inconsistent stopping points.
Limit switch travel plate not moving.. Tighten set screws located on nylon gears
(drives limit switch).
Excessive end play in lead screw of limit
switch assembly.
Tighten nut between adjusting knobs.
Tighten lead screw of limit switch.
Screen does not stop going
up or down.
Limit switch assembly paddle damaged
or is out of place.
Remove and check limit switch assembly.
Repair or replace as necessary.

LIMITED ONE YEAR WARRANTY ON DALITE PRESENTATION PRODUCTS
Milestone AV Technologies LLC warrants certain Da-Lite branded products to the original purchaser only, to be free from defects in
materials and workmanship for a period of one (1) year from the date of purchase by the original purchaser; provided they are properly
operated according to Da-Lite's instructions and are not damaged due to improper handling or treatment after shipment from the
factory.
This warranty does not apply to equipment showing evidence of misuse, abuse or accidental damage, or which has been tampered
with or repaired by a person other than authorized Da-Lite personnel.
Da-Lite’s sole obligation under this warranty shall be to repair or to replace (at Da-Lite’s option) the defective part of the merchandise.
Returns for service should be made to your Da-Lite dealer. If it is necessary for the dealer to return the screen or part to Da-Lite,
transportation expenses to and from Da-Lite are payable by the purchaser and Da-Lite is not responsible for damage in shipment.
To protect yourself against damage or loss in transit, insure the product and prepay all transportation expenses.
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS
OR IMPLIED, INCLUDING WARRANTIES AS TO FITNESS FOR USE AND MERCHANTABILITY. Any implied warranties of itness for use,
or merchantability, that may be mandated by statute or rule of law are limited to the one (1) year warranty period. This warranty gives
you speciic legal rights, and you may also have other rights, which vary from state-to-state. TO THE MAXIMUM EXTENT PERMITTED
BY APPLICABLE LAW, NO LIABILITY IS ASSUMED FOR EXPENSES OR DAMAGES RESULTING FROM INTERRUPTION IN OPERATION
OF EQUIPMENT, OR FOR INCIDENTAL, DIRECT, OR CONSEQUENTIAL DAMAGES OF ANY NATURE.
In the event that there is a defect in materials or workmanship of a Da-Lite product, you may contact our Sales Partners at PO Box 137,
Warsaw, IN 465810137, (574) 2678101, (800) 6223737.
IMPORTANT: THIS WARRANTY SHALL NOT BE VALID AND DALITE BRANDED PRODUCTS SHALL NOT BE BOUND BY THIS
WARRANTY IF THE PRODUCT IS NOT OPERATED IN ACCORDANCE WITH THE DALITE WRITTEN INSTRUCTIONS.
Keep your sales receipt to prove the date of purchase and your original ownership.
46490
A Milestone AV Technologies Brand
3100 North Detroit Street
Warsaw, Indiana 46582
P: 574.267.8101 or 800.622.3737
F: 574.267.7804 or 877.325.4832
E: [e-mail]
www.da-lite.com
DL–0255 (Rev. 3) 11.14
© 2014 Milestone AV Technologies LLC. Printed in U.S.A.
