User Manual
Please read the manual before operating.
Dimension
This fixture has affluent effect programs even though it is easy to operate.
Auto run mode
Built-in program mode
DMX mode
Slave mode
Dimming mode
Setting mode
Information mode

3/9
Menu
Menu 1
Menu 2
Menu 3
Menu 4
Functions
1:DMX
1)Address
001-512
Console mode
2)Channels
4/6/9-CH
2:Slave
Slave mode
3:AUTO
Auto run
mode
4:Built-in
Program
1)Effect mode
1-14
Built-in
program
mode
2)Static color
(Effect mode:1)
0-15
Static color
2)Speed
(Effect mode:2-14)
1-100
Speed
3)Strobe speed
0-99
Strobe
5:Dimmer
1)Red
000~255
Dimming
mode
2)Green
000~255
3)Blue
000~255
4)White
000~255
6:Settings
1)Curves Select:
1- 4
Dimming
curve
selection
2)Dimmer Speed:
Fast/ Smooth
Dimming
speed
selection
3)Dmx Fail:
Off/Hold
DMX signal
option
4)Dmx Sync:
On/Off
DMX
Synchronizati
on setting
5)Lock
Yes/No
Standby lock
screen
6)Factory:
Yes/No
Restore
factory set
7)Language
English/Chinese
Language
selection
7:Information
Versions: Vx.x.x
Version
display
Temperature: xx℃
Temperature
detection
UID:xxxxxxxxxxxx
Light UID

4/9
A. OPERATION
Operation Mode Transformation
Press the MODE, UPor DOWN button to transform menus
B. Operation Mode illustration
a. DMX mode
Press the setup button to enter and select by the up or down button.
As followings:
DMX
Address :
001~512
Channels
:
4/6/9-ch
DMX Channel sheet
Function
DMX
Value
Setting
4
Channel
s
6
Channel
s
9
Channel
s
Dimmer
000-255
0~100%
1
1
Red
000-255
0~100%
1
2
2
Green
000-255
0~100%
2
3
3
Blue
000-255
0~100%
3
4
4
White
000-255
0~100%
4
5
5
Color Preset
0~15
No function
6
16~31
R(255)G(0)B(0)W(0)
32~47
R(0)G(255)B(0)W(0)
48~63
R(0)G(0)B(255)W(0)
64~79
R(0)G(0)B(0)W(255)
80~95
R(255)G(150)B(0)W(0)
96~111
R(255)G(180)B(0)W(0)
112~127
R(255)G(255)B(0)W(0)
128~143
R(255)G(0)B(255)W(0)
144~159
R(255)G(0)B(140)W(0)
160~175
R(0)G(255)B(255)W(0)
176~191
R(255)G(0)B(0)W(210)
192~207
R(0)G(255)B(0)W(210)
208~223
R(0)G(0)B(255)W(210)
224~239
R(255)G(200)B(40)W(90)
240~255
R(255)G(255)B(255)W(255)
Program
0
No function
7
1~19
Program 02
20~39
Program 03

5/9
40~59
Program 04
60~79
Program 05
80~99
Program 06
100~119
Program 07
120~139
Program 08
140~159
Program 09
160~179
Program 10
180~199
Program 11
200~219
Program 12
220~239
Program 13
240~255
Program 14
Speed
0-255
Slow to fast
Program 02-14
8
Strobe
0-10
No function
6
9
11-255
Strobe speed:slow to fast
b. Slave mode “SLAV”
After connecting the DMX cable, the light will run with the main fixture at the
same step.
c. Auto run mode“AUTO”
Lights can circularly run in according with the speed and strobe of built-in Program
Mode:02~ Program Mode:14.
d. Built-in Program
There are 14 built-in programs. Please press the setup button to enter and up or down
button to select them. As followings:
1、Mode:01 Static color effect program
Mode:0
1
Color :
00~15
Strobe:
00~99
0.Black
1.Red
2.Green
3.Blue
4.Whit
e
5.Ambe
r
6.Orang
e
.7Yello
w
8.Purpl
e
9.Pink
10.Cya
n
11.Lig
ht Red
12.Lig
ht
Green
13.Ligh
t Blue
14.War
m White
15.Cold
White
2、Mode:02~14 built-in effect program
Mode:02~1
4
Speed:
001~10
0
Strobe:
00~99

6/9
e. Dimming mode “Dimmer”
Please press the setup button to enter and select by the up or down button.As
followings:
Dimme
r
Red:
000~25
5
Green:
000~25
5
Blue:
000~25
5
White:
000~25
5
f. Setting mode
Please press the setup button to enter and select by the up or down button. As
followings：
Setting
s
Curves Select
Dimmer Speed
DMX Fail
DMX Sync
Lock
Factory
Language

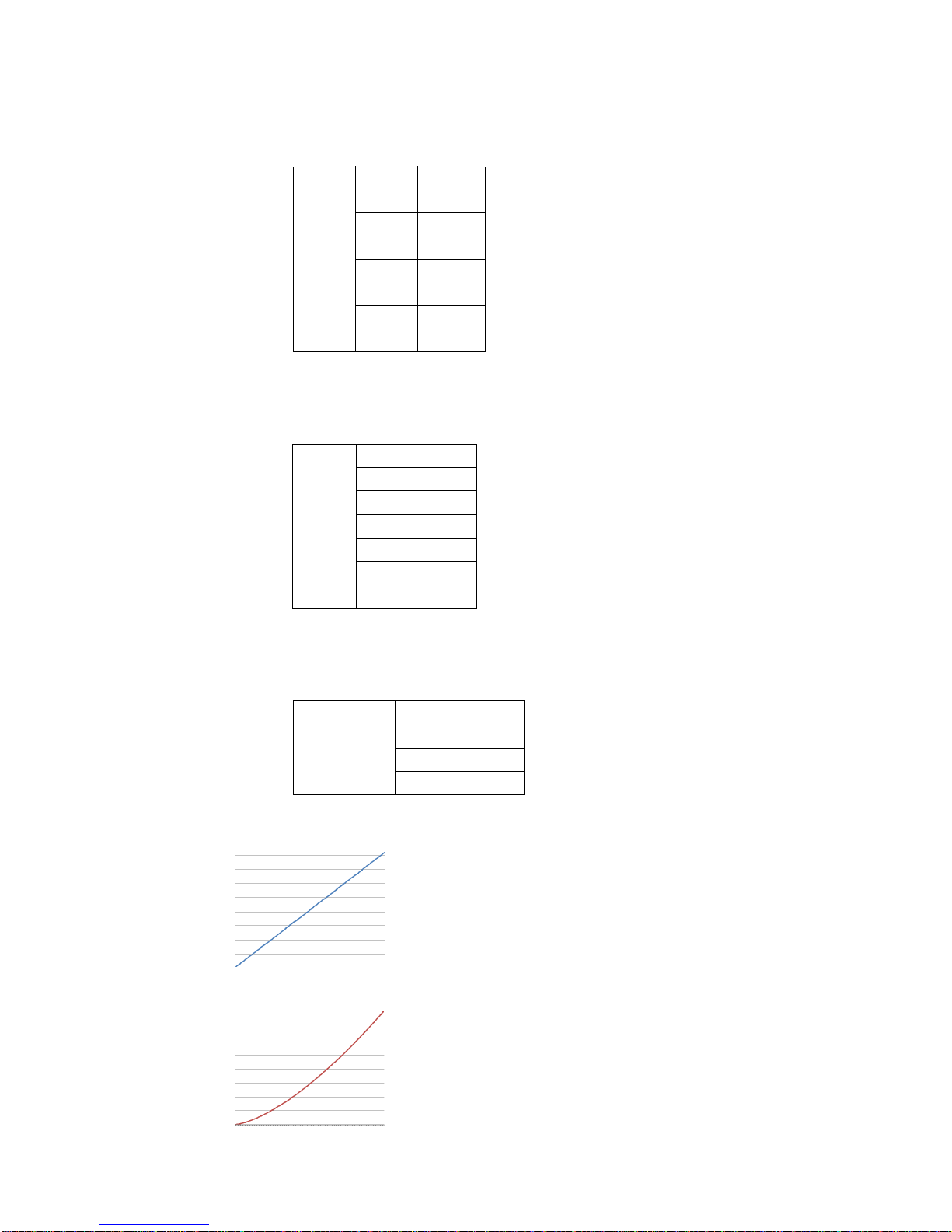

1：dimming curve setting
There are four available dimming curves. Please press the setup button to enter
and select by the up or down button.As followings：
Curves Select
1 )linear
2)Square Law
3)Inv Square Law
4)S-Type
a.linear dimming
b.Square Law dimming

7/9
c.Inv Square Law dimming
d.S-curve dimming
2：Dimming speed setting
Please press the setup button to enter and select by the up or down button.As
followings：
Dimmer Speed
Fast
Smoot
h
3：DMX Fail console DMX signal clear.
Please press the setup button to enter and select by the up or down button.As
followings：
DMX
Fail
Off
(DMX signal connection fail，light off)
Hol
d
(DMX signal connection fail，lighting keeps
current state)
4：DMX Sync
In DMX mode, several lights can also operate at the same step, even though no
DMX control for a period of time.
Please press the setup button to enter and select by the up or down button.As
followings：
DMX Sync
On
Off
5：Standby lock screen
Lock
Yes
No

8/9
6：Restore factory set
After carry out this function, all data will restore initial state.
Please press the setup button to enter and select by the up or down button. As
followings:
Factory
Yes
No
7：Language selection
Please press the setup button to enter and select by the up or down button. As
followings：
Language
English
Chines
e
g. Information mode
Save related messages.
Information
Versions: x.x.x
Temperature: xx℃
UID: xxxxxxxxxxxx
C. RDM(Remote Device Management)
This product supports RDM communication protocol. RDM is a protocol that
supports two-way traffic in the standard DMX512 protocol. RDM control devices,
configurations and detect lights. Such as changing the DMX address of the fixture,
DMX mode, and so on. Each RDM - compatible light can be identified by the built-in
unique UID code.
Parameter ID
Discovery
command
SET command
Get command
DISC_UNIQUE_BRANCH
*
DISC_MUTE
*
DISC_UN_MUTE
*
DEVICE_INFO
*
SOFTWARE_VERSION_L
ABEL
*
DMX_START_ADDRESS
*
*
IDENTIFY_DEVICE
*
*
SUPPORTED_PARAMETE
RS
*
SENSOR_DEFINITION
*
SENSOR_VALUE
*

9/9
DMX_PERSONALITY
*
*
DMX_PERSONALITY_DE
SCRIPTION
*
RESET_DEVICE
*
FACTORY_DEFAULTS
*
E. Notice
a. When the product powers on and shows version information, pressing the “MODE”
and “SETUP” buttons for some seconds at the same time. After this, it can restore
factory settings and the data will be initialized.
b. If no press any button in 30s, it will lock screen automatically and show current
operating mode, software version and temperature. Of course, it will unlock again by
pressing the mode and setup button for 3s at the same time.
c. If there are following two sides, to make sure the light can operate normally, please
check whether lines of internal temperature control connect well.
1. When the product powers up, the LED display screen shows temperature “×” .
2.After the product starts up and lock the screen, it will show ×℃.
d. In order to avoid any problem, please follow the user manual to make sure it is in safety
operations.
e. If the environment temperature is not in the using range, please reduce the using time of
the full power to prevent products damaged because of overheating.
f. In order to prevent the accident, please don’t tear down the light under the condition of
charging.
