Phantos M6WB User manual

PHANTOS M6WB
MATTRIX 6X6 RGBA PIXEL WASH BEAM
Version:1.0
Data:2018-05-29
PHANTOS M6WB EN

PHANTOS M6WB EN
Thank you for buying this product. To take full advantage of all possibilities and
for your own safety, please read these operating instructions very carefully before
you start using this unit.
FEATURES:
• The unit is equipped with 36pcs extremely effective very narrow 4° lenses, in
combination with powerful and reliable CREE 3W warm white leds and 144Pcs
SMD5050 RGB leds.
• This results in an exceptionally powerful “narrow beam” 6x6 Matrix effect projector
that turns even the biggest concerts and TV shows into an amazing spectacle! Light
engineers will be amazed by the endless possibilities and ease of use to create
astonishing light shows!
• A vast internal effects library, containing letters, numbers, chases!
• 4 different DMX channel modes for different applications and different level of user:
• Excellent built-in programs for wonderful, ever changing, light shows.
• Silent operation, thanks to natural convection.
• The internal shows work in standalone, master/slave or can be selected by DMX:
static colors, fading colors, different static chases, different sound activated chases.
• Backlit alphanumeric 2x 8 character LCD-display for easy menu navigation
• ProCON in/outputs: easy daisy chaining of several units.
• 3pin XLR DMX in/outputs
• RJ45 In/Out puts
• Rugged metal construction, equipped with “quick lock” mechanisms to build large
matrix arrays in no time.
• Optionally a hanging bracket is available for truss mounting of larger arrays
(Optional)
•High efficiency and low power consumption!
PHANTOS M6WB EN

PHANTOS M6WB EN
BEFORE USE
• Before you start using this unit, please check if there’s no transportation damage.
Should there be any, do not use the device and consult with us first.
• Important: This device left our factory in perfect condition and well packaged. It is
absolutely necessary for the user to strictly follow the safety instructions and
warnings in this user manual. Any damage caused by mishandling is not subject to
warranty. we will not accept responsibility for any resulting defects or problems
caused by disregarding this user manual.
• Keep this booklet in a safe place for future consultation. If you sell the fixture, be
sure to add this user manual.
Check the contents:
Check that the carton contains the following items:
• Operating instructions x1
• PHANTOS M6WB x1
• Dmx Cable+Power Cable+ RJ45 x1
Please contact the seller,If anything mentioned above are missed.
PHANTOS M6WB EN

PHANTOS M6WB EN

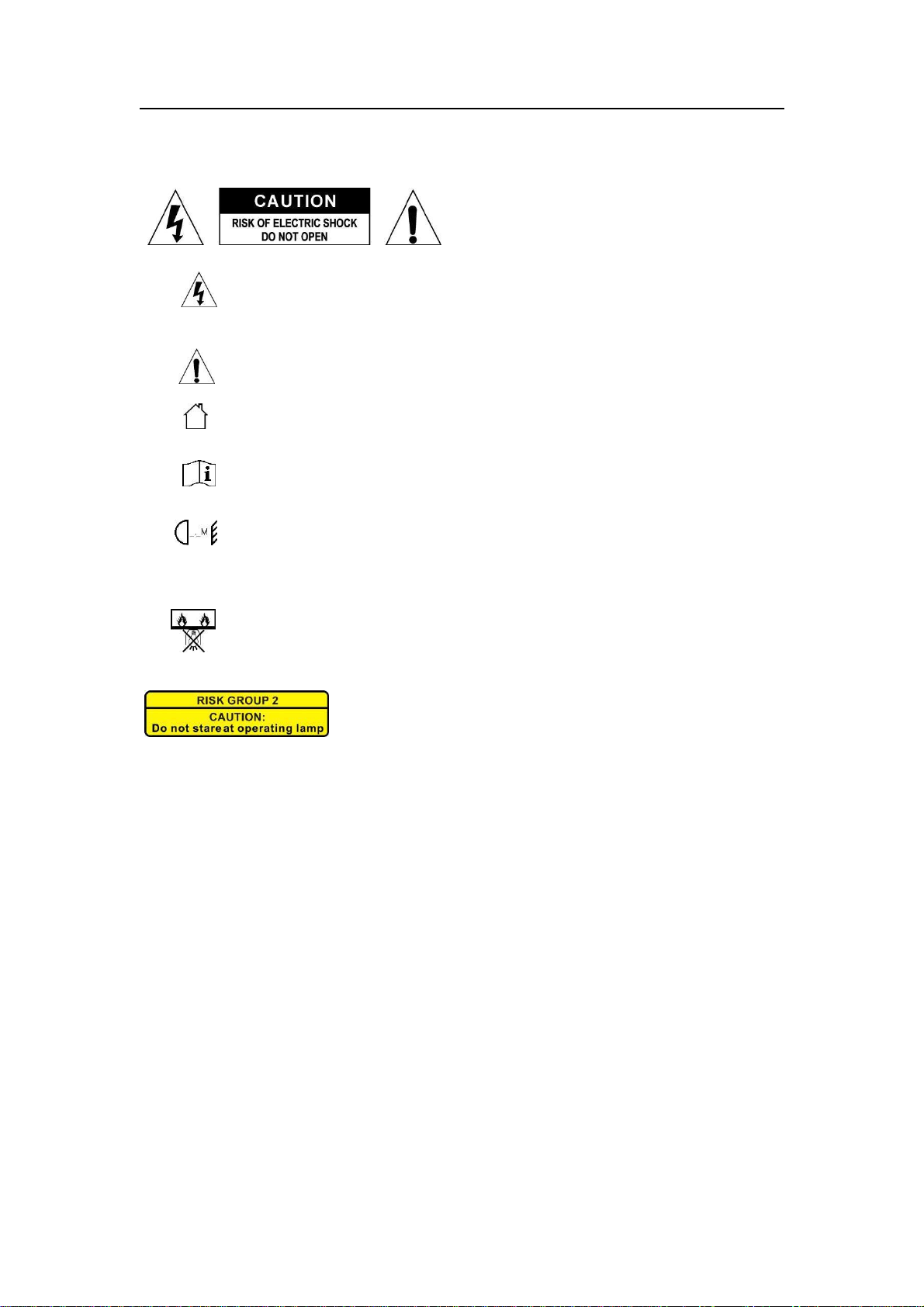

SAFETY INSTRUCTIONS:
CAUTION: To reduce the risk of electric shock, do not
remove the top cover. No user-serviceable parts inside.
Refer servicing to qualified service personnel only.
The lightning flash with arrowhead symbol within the equilateral triangle is intended to alert
the use or the presence of un-insulated “dangerous voltage” within the product’s enclosure
that may be of sufficient magnitude to constitute a risk of electric shock
The exclamation point within the equilateral triangle is intended to alert the user to
the presence of important operation and maintenance (servicing) instructions in the
literature accompanying this appliance.
This symbol means: indoor use only
This symbol means: Read instructions
This symbol determines: the minimum distance from lighted objects. The minimum
distance between light-output and the illuminated surface must be more than 1
meters
The device is not suitable for direct mounting on normally flammable surfaces.
(suitable only for mounting on non-combustible surfaces)
CAUTION: Do not stare at
operating lamp. May be
harmful to the eyes.
• To protect the environment, please try to recycle the packing material as much as possible.
• To prevent fire or shock hazard, do not expose this appliance to rain or moisture.
• To avoid condensation to be formed inside, allow the unit to adapt to the surrounding temperatures
when bringing it into a warm room after transport. Condense sometimes prevents the unit from working
at full performance or may even cause damages.
• This unit is for indoor use only.
• Don’t place metal objects or spill liquid inside the unit. Electric shock or malfunction may result. If a
foreign object enters the unit, immediately disconnect the mains power.
• Locate the fixture in a well ventilated spot, away from any flammable materials and/or liquids. The
fixture must be fixed at least 50cm from surrounding walls.
• Don’t cover any ventilation openings as this may result in overheating.
• Prevent use in dusty environments and clean the unit regularly.
• Keep the unit away from children.
• Inexperienced persons should not operate this device.
• Maximum safe ambient temperature is 40°C. Don’t use this unit at higher ambient temperatures.
• Make sure the area below the installation place is free from unwanted persons during rigging, de-
rigging and servicing.
• Allow the device about 10 minutes to cool down before to start servicing.
• Always unplug the unit when it is not used for a longer time or before to start servicing.
• The electrical installation should be carried out by qualified personal only, according to the regulations
for electrical and mechanical safety in your country.
• Check that the available voltage is not higher than the one stated on the unit.
PHANTOS M6WB EN

PHANTOS M6WB EN
• The power cord should always be in perfect condition. Switch the unit immediately off when the power
cord is squashed or damaged. It must be replaced by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
• Never let the power-cord come into contact with other cables!
• This fixture must be earthed in order to comply with safety regulations.
• Don’t connect the unit to any dimmer pack.
• Always use an appropriate and certified safety cable when installing the unit.
• In order to prevent electric shock, do not open the cover. Apart from the mains fuse there are no user
serviceable parts inside.
• Never repair a fuse or bypass the fuse holder. Always replace a damaged fuse with a fuse of the
same type and electrical specifications!
• In the event of serious operating problems, stop using the fixture and contact your dealer immediately.
• The housing and the lenses must be replaced if they are visibly damaged.
• Please use the original packing when the device is to be transported.
• Due to safety reasons it is prohibited to make unauthorized modifications to the unit.
Important: Never look directly into the light source! Don’t use the effect in
the presence of persons suffering from epilepsy.
Product Overview:
PHANTOS M6WB EN

PHANTOS M6WB EN
．
．
．
．
．
．
．
．
．
．
．
．
．
．
．
．
．
．
OVERHEAD RIGGING:
• Important: The installation must be carried out by qualified service personal
only. Improper installation can result in serious injuries and/or damage to
property. Overhead rigging requires extensive experience! Working load limits
should be respected, certified installation materials should be used, the
installed device should be inspected regularly for safety.
• Make sure the area below the installation place is free from unwanted persons
during rigging, de-rigging and servicing.
• Locate the fixture in a well ventilated spot, far away from any flammable materials
and/or liquids. The fixture must be fixed at least 50cm from surrounding walls.
• The device should be installed out of reach of people and outside
areas where persons may walk by or be seated.
• Before rigging make sure that the installation area can hold a minimum point load
of 10times the device’s weight.
PHANTOS M6WB EN

PHANTOS M6WB EN

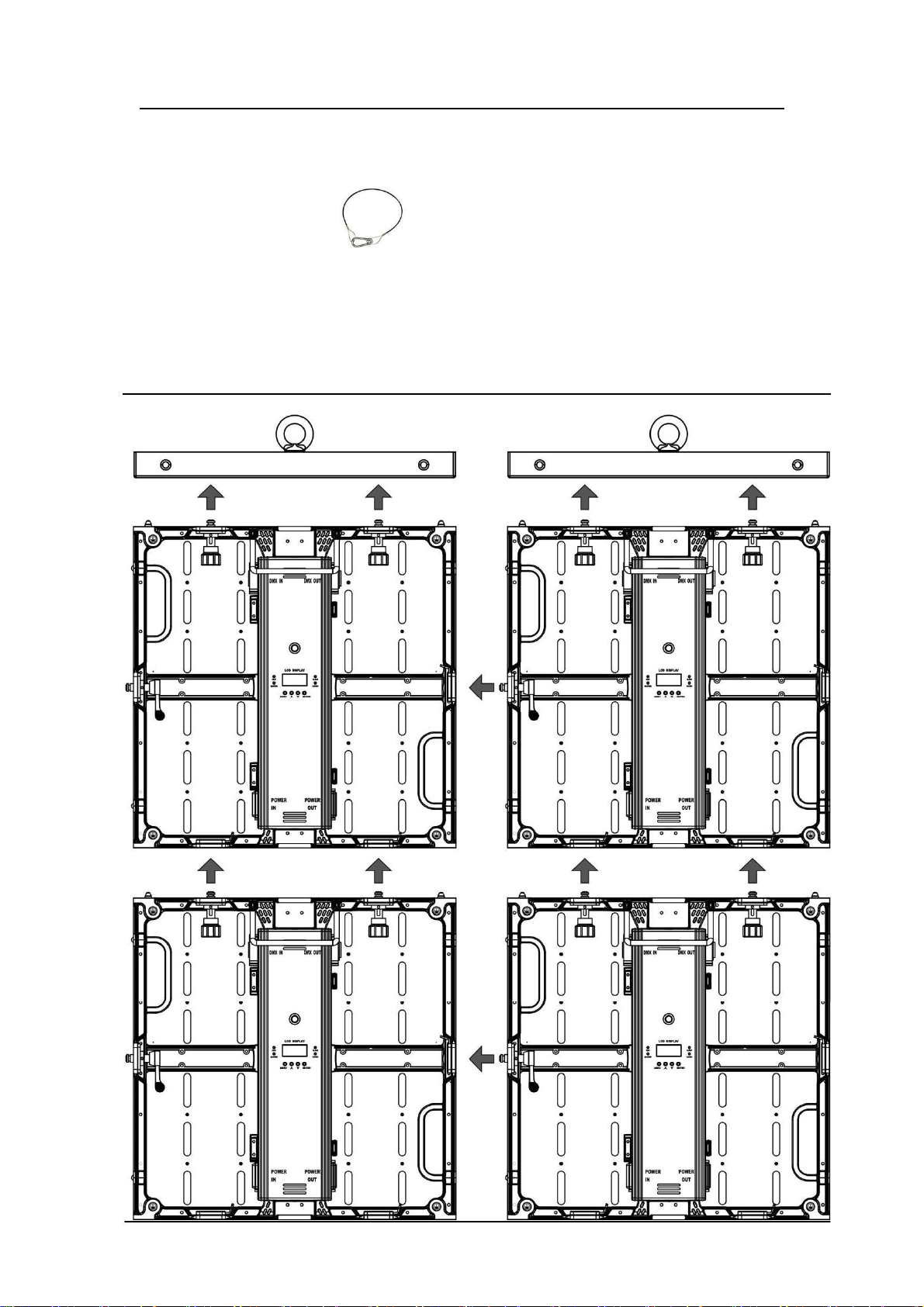

• Always use a certified safety cable that can hold 12 times the weight of the device
when installing the unit. This secondary safety attachment should be installed in a
way that no part of the installation can drop more than 20cm if the main attachment
fails.
• The device should be well fixed; a free-swinging mounting is dangerous and may
not be considered!
• Don’t cover any ventilation openings as this may result in overheating.
The operator has to make sure that the safety-relating and machine-technical
installations are approved by an expert before using them for the first time. The
installations should be inspected every year by a skilled person to be sure that safety
is still optimal.
PHANTOS M6WB EN

PHANTOS M6WB EN
ELECTRICAL INSTALLATION
Important: The electrical installation should be carried out by qualified
personal only, according to the regulations for electrical and mechanical
safety in your country.

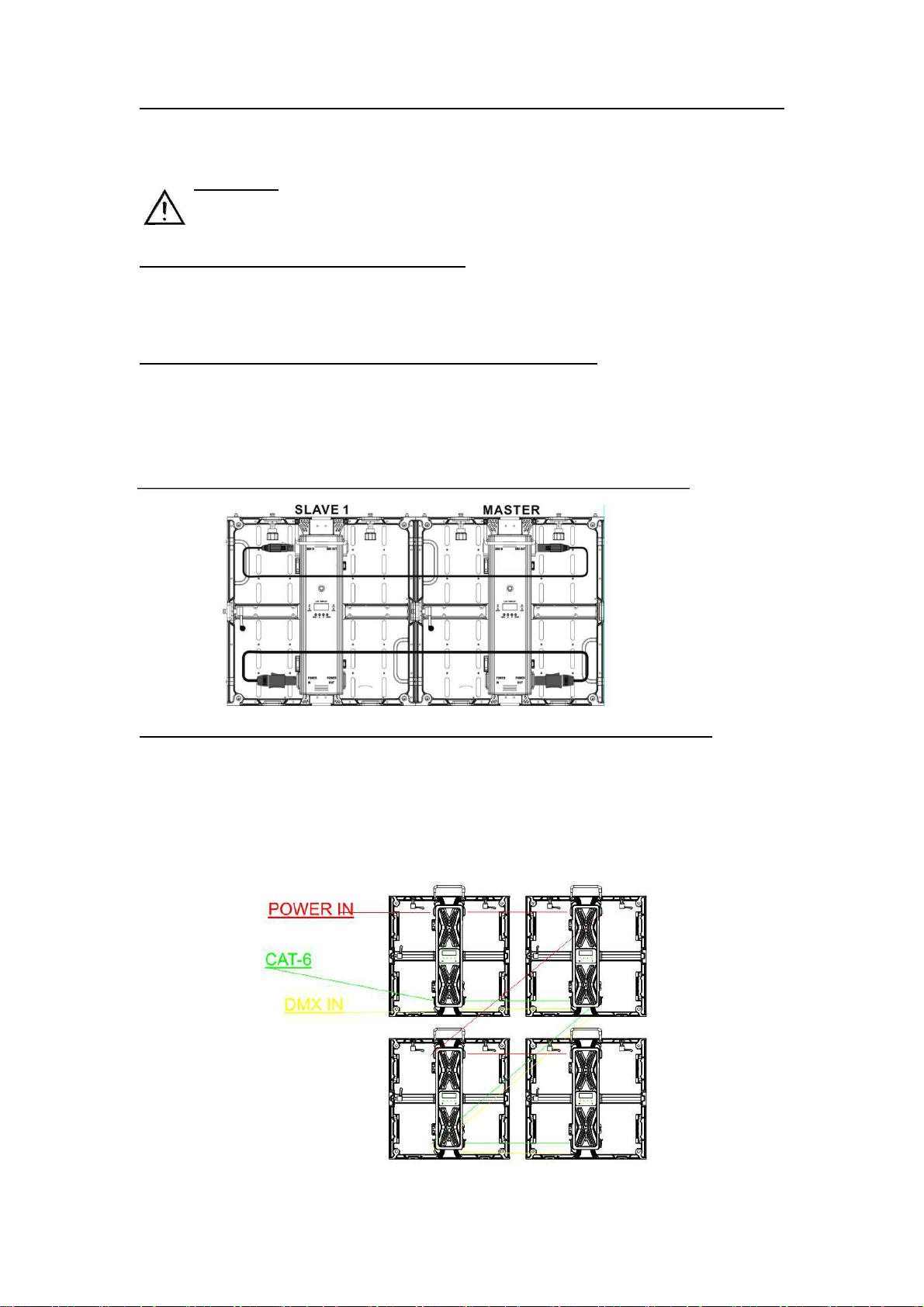

STANDALONE WITH BUILT-IN CHASES:
Use this function when you want an instant show on only 1 panel.
• Connect the panel to the mains.
• Select one of the M/S modes in the setup menu:
STANDALONE MASTER/SLAVE WITH BUILT-IN SHOWS:
Use this function when you want an instant show on 2 or more fixtures.
By linking the units in master/slave connection, the first unit will control the other
units to show a synchronized automatic or sound activated light show.
• Connect the panels as shown in the drawing below
• The first unit will start running its selected show.
The connected panel (or panels) will be set as SLAVE automatically
ELECTRICAL INSTALLATION FOR TWO OR MORE UNITS IN all MODE:
Use this function when you want to control the projectors by any DMX controller.
• Connect the projectors as shown in the drawing below.
• First put the projectors in the desired DMX-mode: see the different DMX-charts and
choose the one that suits you best.
• Give all projectors a start address: each projector shows its start + end address,
make sure that the addresses do not overlap!
PHANTOS M6WB EN

PHANTOS M6WB EN
Some general information on DMX:
• The DMX-protocol is a widely used high speed signal to control intelligent light
equipment. You need to
“daisy chain” your DMX controller and all the connected units with a balanced
cable of good quality.
• Both XLR-3pin and XLR-5pin connectors are used, however XLR-3pin is more
popular because these cables are compatible with balanced audio cables.
• Pin layout XLR-3pin: Pin1 = GND ~ Pin2 = Negative signal (-)
~ Pin3 = Positive signal (+)
• Pin layout XLR-5pin: Pin1 = GND ~ Pin2 = Negative signal (-) ~ Pin3 =
Positive
signal (+) ~ Pins4+5 not used.
• To prevent strange behavior of the light effects, due to interferences, you must
use
a 90Ωto 120Ωterminator at the end of the chain. Never use Y-splitter cables,
this simply won’t work!
• Make sure that all units are connected to the mains.
• Each light effect in the chain needs to have its proper starting address so it
knows which commands from the controller it has to decode.
DMX 10 CH MODEL:
DMX CHANNEL VALUE FUNCTION REMARKS
10-255 Master-Dimmer
20-255 Strobe
30-255 RED Colo
r
fo
r
SMD 5050 leds
40-255 Green Colo
r
fo
r
SMD 5050 leds
50-255 Blue Colo
r
fo
r
SMD 5050 leds
60-255 Cree 3W LEDS
70-255 Build-In effects fo
r
1-15
80-255 Build-in effects fo
r
When value is on
16-30 255,It will running
automatically
90-255 S
p
eed for build-in From Slow to Fast
effects
10 0-255 Sound control Sensitivity 0-100
Ps:This is the basic model which is so easy for people to control，to have
some good effects.
PHANTOS M6WB EN

PHANTOS M6WB
EN
DMX 45CH Model:
DMX CHANNEL VALUE FUNCTION REMARKS
10-255 Master-Dimmer
20-255 Strobe
30-255 Build-In effects fo
r
1-15
40-255 Build-in effects fo
r
When value is on
16-30 255,It will running
automatically
50-255 Speed for build-in From Slow to Fast
effects
60-255 Sound control Sensitivity 0-100
7-42 0-255 Pixel control for all 36
p
cs=36CH
Cree 3W leds 36CH+6CH=42CH
43 0-255
A
ll SMD5050 on Red
Color
44 0-255
A
ll SMD5050 on
Green Color
45 0-255
A
ll SMD5050 on
Bule Color
PS: In this model, All the 3W beam leds can be pixel control, and all the SMD
5050 will worked as background light.
DMX 146CH Model:
PHANTOS M6WB EN

PHANTOS M6WB EN
DMX CHANNEL VALUE FUNCTION REMARKS
10-255
Master-Dimmer
20-255 Strobe
3-38 0-255 Pixel control fo
r
all Cree 3W leds
39-146 0-255 RGB*4PCS We have 144pcs
SMD5050 as aSMD leds as a
group background light.
144pcs/4pcs as a
group=36group
*RGB=108CH+38C
H=146CH
Ps;In this model, not only the 3W leds can be pixel control but also we
made 4pcs SMD5050 as a group,the user will be able to have more effects.
DMX 468CH Model:
36pcs Cree beam led= 36CH
144pcs SMD5050 x RGB=432CH
432CH+36CH=468CH
Ps:In this model, All the colors of each led can be pixel-control,By doing in this
way,people will be amazed by the endless possibilities and ease of use to
create astonishing light shows.
PHANTOS M6WB EN

PHANTOS M6WB EN
MAINTENANCE
• Make sure the area below the installation place is free from unwanted persons
during servicing.
• Switch off the unit, unplug the mains cable and wait until the unit has been cooled
down.
During inspection the following points should be checked:
• All screws used for installing the device and any of its parts should be tightly
fastened and may not be corroded.
• Housings, fixations and installations spots (ceiling, truss, suspensions) should be
totally free from any deformation.
• When an optical lens is visibly damaged due to cracks or deep scratches, it must
be replaced.
• The mains cables must be in impeccable condition and should be replaced
immediately when even a small problem is detected.
• In order to protect the device from overheat the cooling fans (if any) and ventilation
openings should be cleaned monthly.
• The interior of the device should be cleaned annually using a vacuum cleaner or
air-jet.
• The cleaning of internal and external optical lenses and/or mirrors must be carried
out periodically to optimize light output. Cleaning frequency depends on the
environment in which the fixture operates: damp, smoky or particularly dirty
surroundings can cause greater accumulation of dirt on the unit’s optics.
• Clean with a soft cloth using normal glass cleaning products.
• Always dry the parts carefully.
Attention: We strongly recommend internal cleaning to be carried out by
qualified personnel!
PHANTOS M6WB EN

PHANTOS M6WB EN
SPECIFICATIONS
This unit is radio-interference suppressed. This product meets the requirements of
the current European and national guidelines. Conformity has been established and
the relevant statements and documents have been
deposited by the manufacturer.
Mains Input: AC 100V - 240V, 50/60Hz
Power consumption:190 Watt max.
Fuse: 250V F3A (5x20mm glass)
Sound Control:Internal microphone
DMX connections:3pin XLR male / female
DMX channels used: 4 modes (10, 45, 146, 468CH)
Lamp: 36x 3W WW (2700K) CREE leds +144x 0,5W SMDRGB leds
Optics:4°
Protocol: Art-Net + Kling-Net+ RDM+DMX
Arc-shaped:10°
Size: 500x500x100
Weight::9,5 kg
PHANTOS M6WB EN

PHANTOS M6WB EN
Size of the product:
PHANTOS M6WB EN
